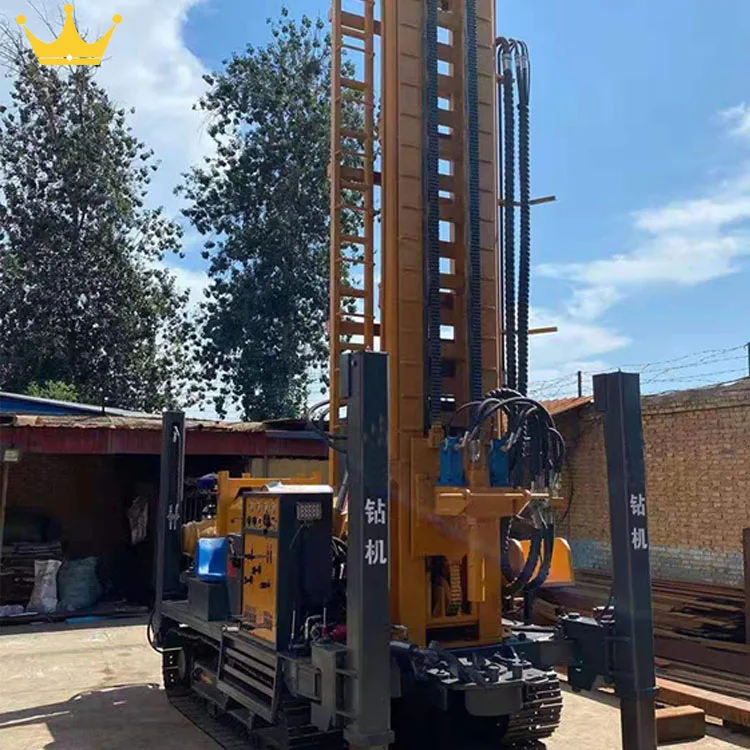

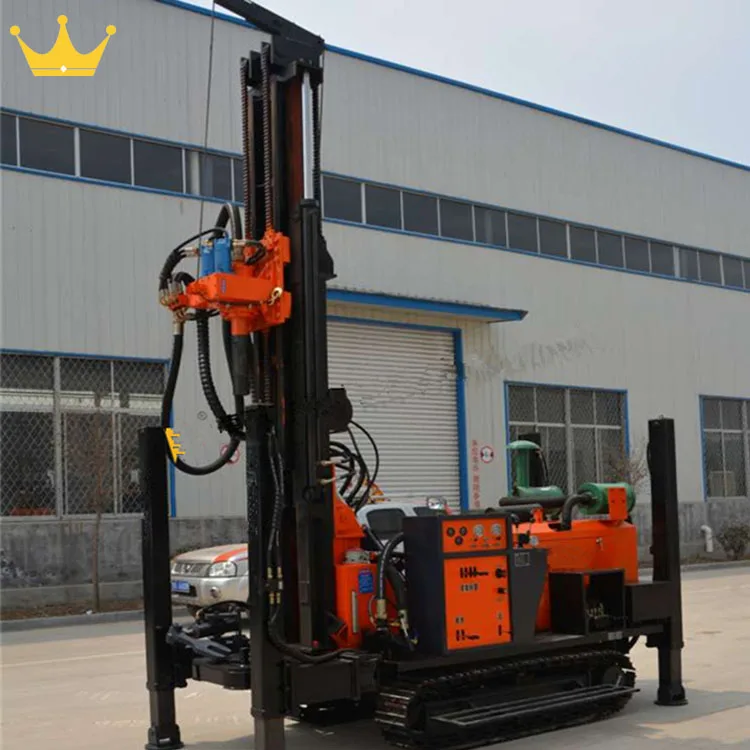

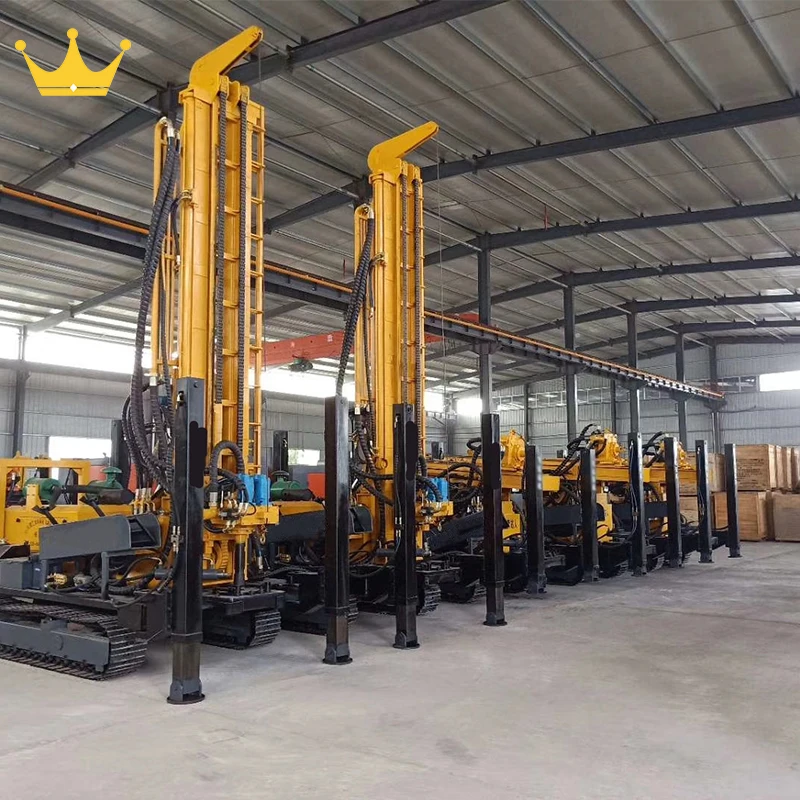

260m/360m/460m/560m Hydraulic crawler type borehole water well drilling machine rig mine drilling rig
- Category: Mining Machinery >>>
- Supplier: Henan Yugong Machinery Co. Ltd.
Share on (1600540430014):
Product Overview
Description

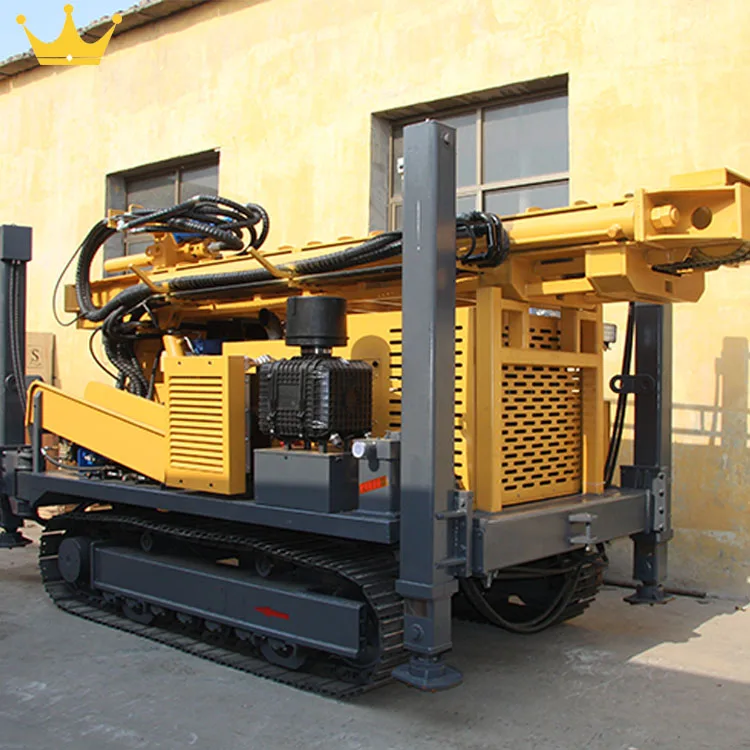

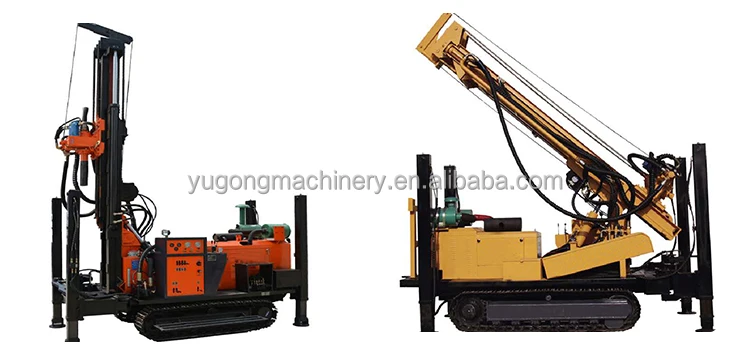

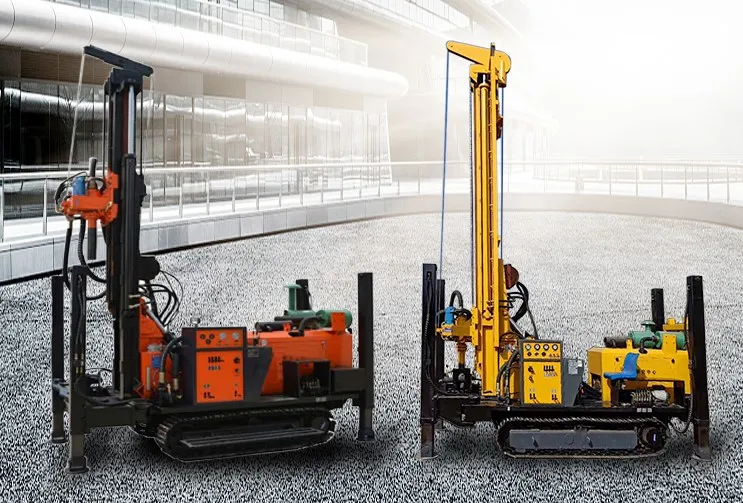

Crawler Borehole Mine Drilling Machine Water Well Drilling Rig Machine
Our water well drilling rig is multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method. The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose. The theory designed drilling depth is 100 - 600 meters.
They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock information connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
Product Paramenters
Model | YG-500S | ||
Max drilling depth | 500m | ||
Drilling diameter | 105-350mm | ||
Working wind pressure | 1.05-4.5Mpa | ||
Air consumption | 16-60m³/min | ||
Drill pipe length | 3m | ||
Drill pipe diameter | 89mm | ||
Shaft pressure | 10T | ||
Lifting power | 28T | ||
One-time advance length | 6.6m | ||
boost speed | 3.0m/min | ||
Advancing speed | 0.5-5m/min | ||
Rapid rise speed | 25m/min | ||
Fast forward speed | 40m/min | ||
Maximum rotation torque | 8500-11000Nm | ||
Rotation speed | 75-150r/min | ||
Tool hoisting force | 1.5T | ||
High hydraulic outrigger stroke | 1.65m | ||
Footage efficiency | 10-35m/h | ||
Walking speed | 3.5Km/h | ||
Gradeability | 21° | ||
Machine Weight | 11.5T | ||
Dimension | 5.8m×2.25m×2.55m | ||
Product Description

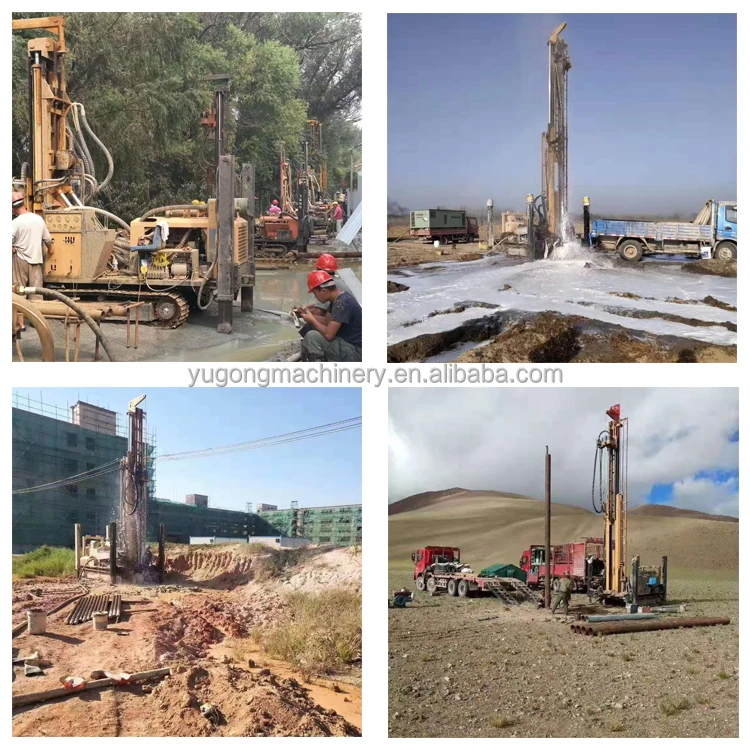

Construction Pictures
