Stepper Motor Pump For Viscous Materials Dosing Peristaltic Pump
Stepper Motor Pump For Viscous Materials Dosing Peristaltic Pump
Stepper Motor Pump For Viscous Materials Dosing Peristaltic Pump
Stepper Motor Pump For Viscous Materials Dosing Peristaltic Pump
Stepper Motor Pump For Viscous Materials Dosing Peristaltic Pump
Stepper Motor Pump For Viscous Materials Dosing Peristaltic Pump
Stepper Motor Pump For Viscous Materials Dosing Peristaltic Pump

Stepper Motor Pump For Viscous Materials Dosing Peristaltic Pump

Share on (1600540433887):


Price:

Quantity:


Product Overview

Description

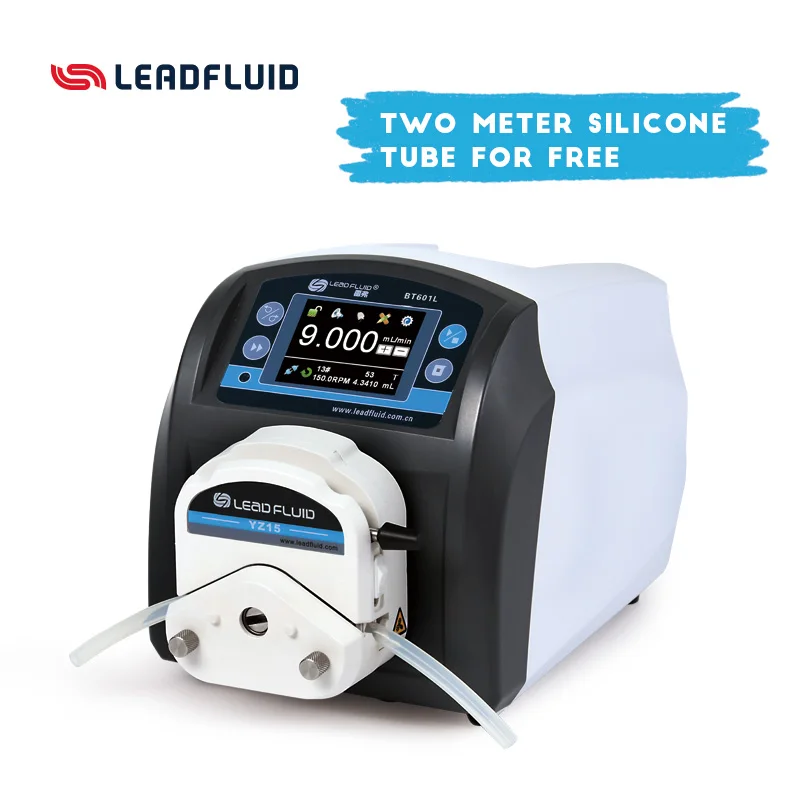

Lead Fluid BT601L-YZ15 Intelligent Dispensing  Peristaltic Pump


Product Description

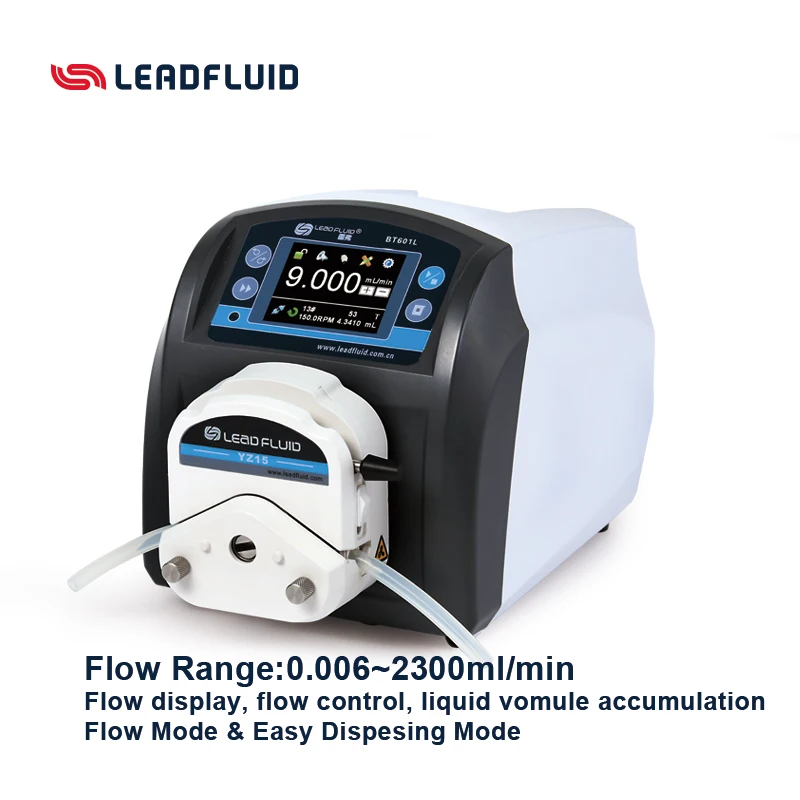

Flow Range
0.006~2300 ml/min
Speed Range
0.1~600 rpm
Application
Mainly applicable to liquid transmission requiring accurate flow control

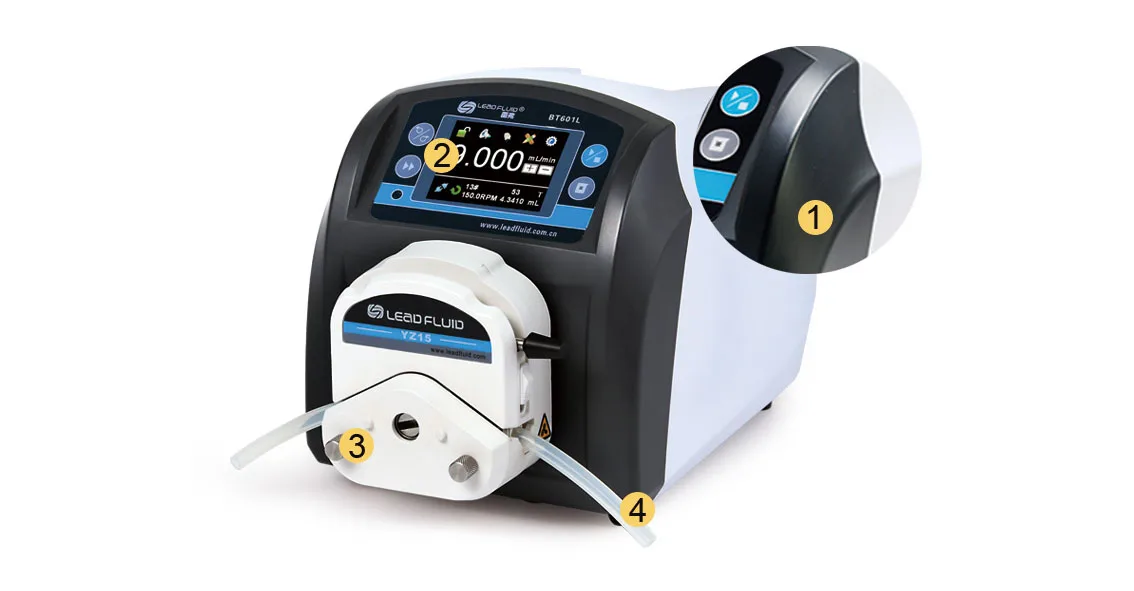

①Pump shell:ABS plastic shell, creative streamlined appearance, beautiful and simple.
②Color LCD display:easy to read and operate touch screen,even wearing gloves
③YZ15 mode pump head: With self-adapting clamping device, it is easy to clamp tubes of different thicknesses without manual adjustment.Classic pump tube locking mechanism, replacing tube only takes several seconds, easy to deal with frequent tube change conditions
④Pump tube:the tube can be replaced with different materials according to the transmitted liquid, such as silicone tubes, chemical tubes etc.




①RS232 connector ② Power line connector
③Power switch ④DB15 external control interface


Functions and Features








The operator can input the flow rate directly, simple operation, the operating interface is intuitive.








Easy dispensing function, it realizes the repeat timing quantitative dispensing without the time controller.


●Work modes: time mode,volume mode,copy mode.
●Display and control flow rate, accumulate dispensing volume automatically.
●Automatically store five groups of working parameters.
●Calibration function, easy to operate.


Quite peristaltic pump
Drip proof
Wifi function


High precision motor
Super anti-interference
Widely used


Application Show






Specification


Brand Name
Lead Fluid
Model Number
BT601L-YZ15
Channel
One
Voltage
AC100-240V,50Hz/60Hz
Power
50W
Flow
0.006～2300 ml/min
Rotation Speed
0.1-600 rpm
Display
LED +key pad
Speed accuracy
＜±0.5%
Tubing
13#14#19#16#25#17#18#
External control
external input level5V,12V(standard),25V(optional)External control analog 0-5V(Standard),
0-10V,4-20mA（Optional）
Communication interface
RS485 communication interface, MODBUS protocol is available
Working environment
Temperature 0 ～ 40℃, relative humidity＜80%
IP grade
IP31
Dimension
257(L)*180(W)*197(H)mm
Weight
4.9KG


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




Related Products

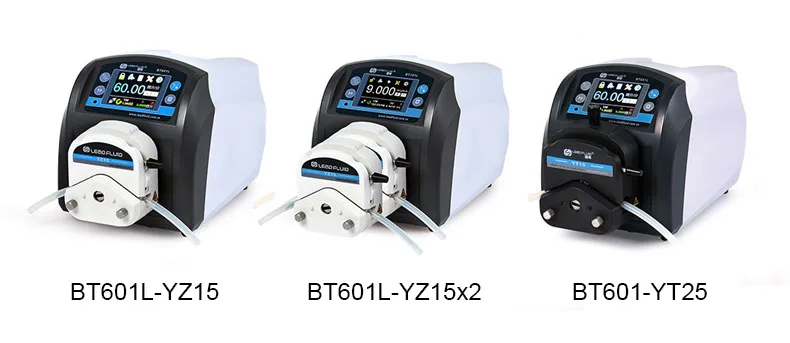

BT101L Pump Drive With Different Pump Head


Drive type
Pump Head
Channel
Tube(mm)
Flow Rate Per Channel （mL/Min）

BT601L
YZ15
1
13#14#19#16#25#17#18#
0.006～2300

2×YZ15
2
13#14#19#16#25#17#18#
0.006～1700

YT25
1
15#24#35#36#
0.16～2900






Company Profile




Baoding Lead Fluid Technology Co., Ltd. was founded in October 1999. It mainly engaged in R&D, production and the sale of peristaltic pumps, laboratory syringe pumps, micro syringe pumps, precision gear pumps and related accessories, and is committed to continuously providing users with competitive micro Fluid transmission solutions and services.


How About The Advantage About Lead Fluid Company?


● 23 years experience for peristaltic pump, syringe pump ,gear pump ,ODM pump production.
● 20000㎡ factory with 175 workers.
● 1000 ㎡ testing lab and perfect testing system ensure reliable design and stable batch production.
● 40 R & D workers ensure continuous technological innovation and provide you with perfect fluid solutions
● Strong anti-interference design, working in complex industrial environment, more reliable quality.
● Strict ISO9000 quality management system + 6S management.
● Automatic testing equipment to ensure product consistency.
● Important accessories are purchased directly by large international manufacturers to ensure quality.
● The whole product process can be traced, including raw materials, assembly, inspection and logistics.
● Lead Fluid pumps has passed the CE certification of RoHS, reach, EMC, LVD and other directives, and the hose meets the GMP standard.










FAQ


Q:What is the minimum order?
A: The MOQ as 1 piece.

Q:What payment methods your company accept?
A:We accept most often payment methods,but mainly accept T/T,L/C,Western Union.

Q:How long is the warranty time for your products?
A:Our official warranty time is one year for quality problems.And if you have any questions,our after-sales department will offer the best service for you in time.

Q:Do you offer any discount?
A:We will try our best to help you get the best price and good service at the same time,welcome to contact us.

Q:Do you offer custom service?
A:yes, we have R & D department,they will offer suitable liquid transfer solution for you, welcome to send us your details requires.
