Product Overview

Description

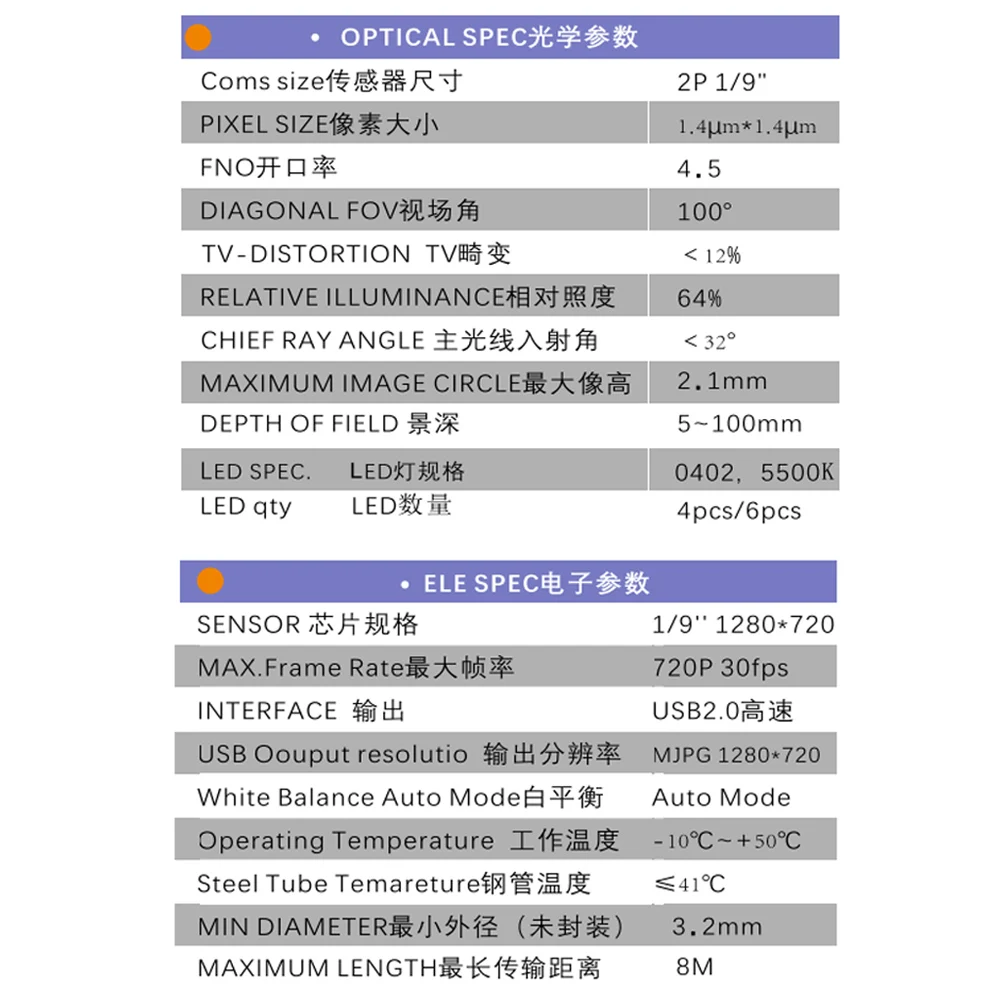

Optical Spec



Coms size	2P 1/9"
Pixel size	1.4*1.4um
Fno	4.5
Diagonal Fov	100 degree
TV-distortion	<12%
Relative illumiance	64%
Chief ray angle	<32%
Maximum image circle	2.1 mm
Depth of filed	5-100 mm



Electric spec



Sensor	1/9" 1280*720
Max frame rate	VGA 360fps
Interface	USB 2.0
USB output solution	MJPG 1280*720
White balance auto mode	Auto mode
Operating temperature	-10 ~+50 degree
Steel tube temperature	</= 41 degree
Min diameter	3.2 MM
Maximum length	8 M

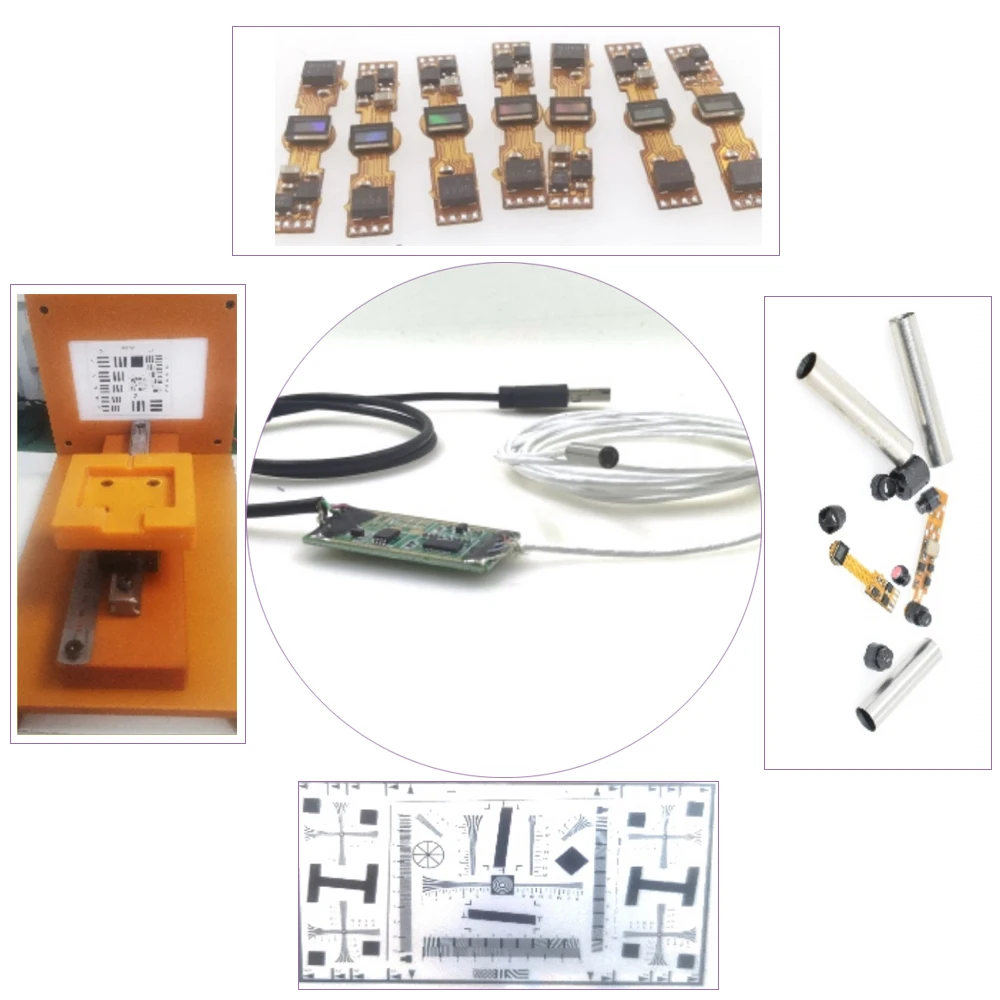

More details for High speed USB mipi camera module for smartphone
