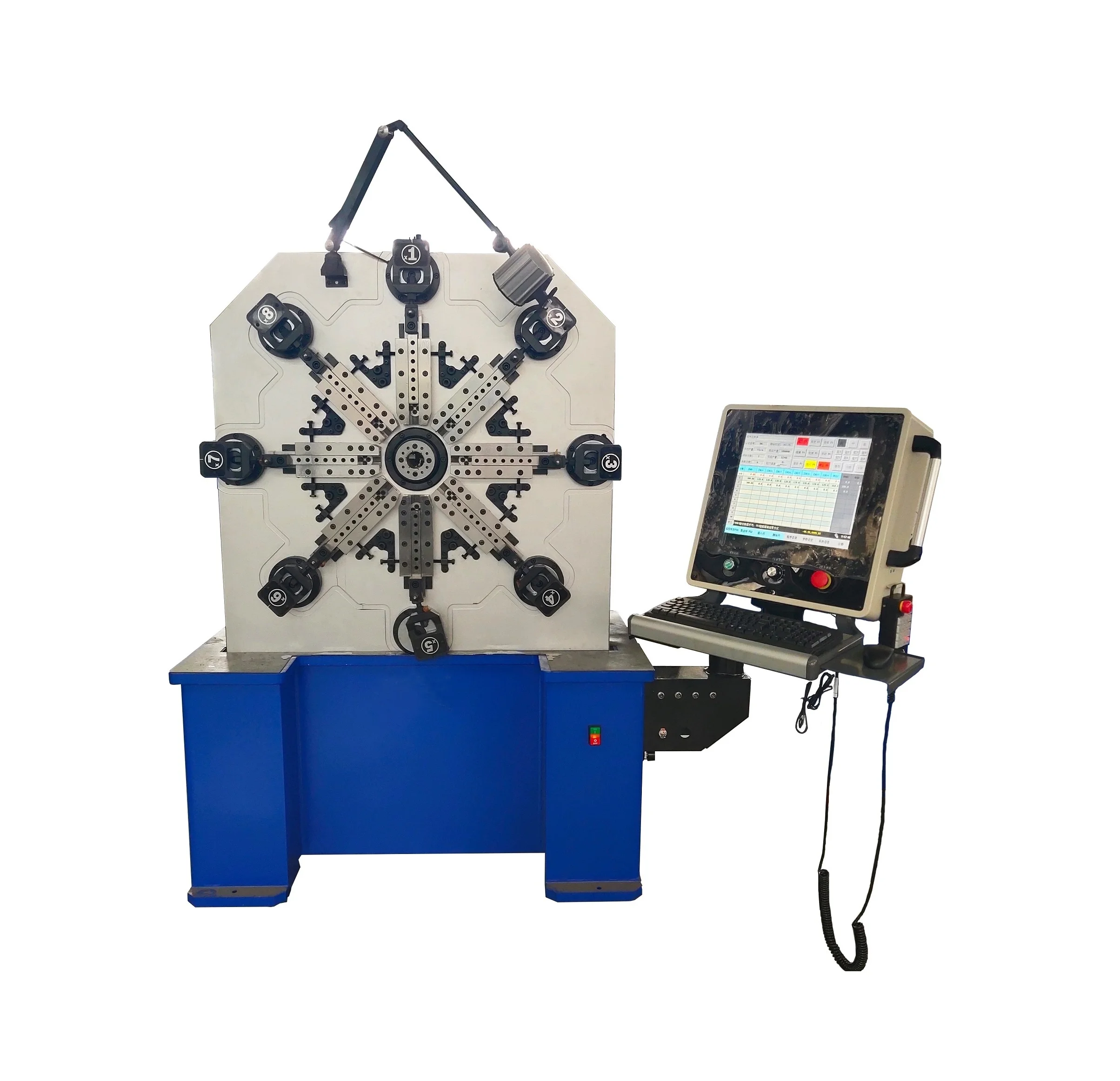

Cnc Automatic Metal Hanger Hook Loop Buckle Binder Clip Spring Making Machine

Share on (1600540485493):


Price:$15,800.00

Quantity:


Product Overview

Description


 (2)


        Cnc Automatic Metal Hanger Hook Loop Buckle Binder Clip Spring Making Machine



Product Description


 I . To use of imported computer control system and imported servo motor.
II. The computer is english interface, easy to operation, accurate positioning, the computer can control three to eight servo motors, all can be synchronized or run separately.
III. The product has a precision detection tracking device, it can automatically shut down if find a substandard product.
V. The mechanical automatic lubricating oil supply design, to ensure the equipment movement for a long time
VII. When it has wireless, broken, wrapped wire, automatic shutdown design and wire frame automatic function to make production more easily and efficiently.

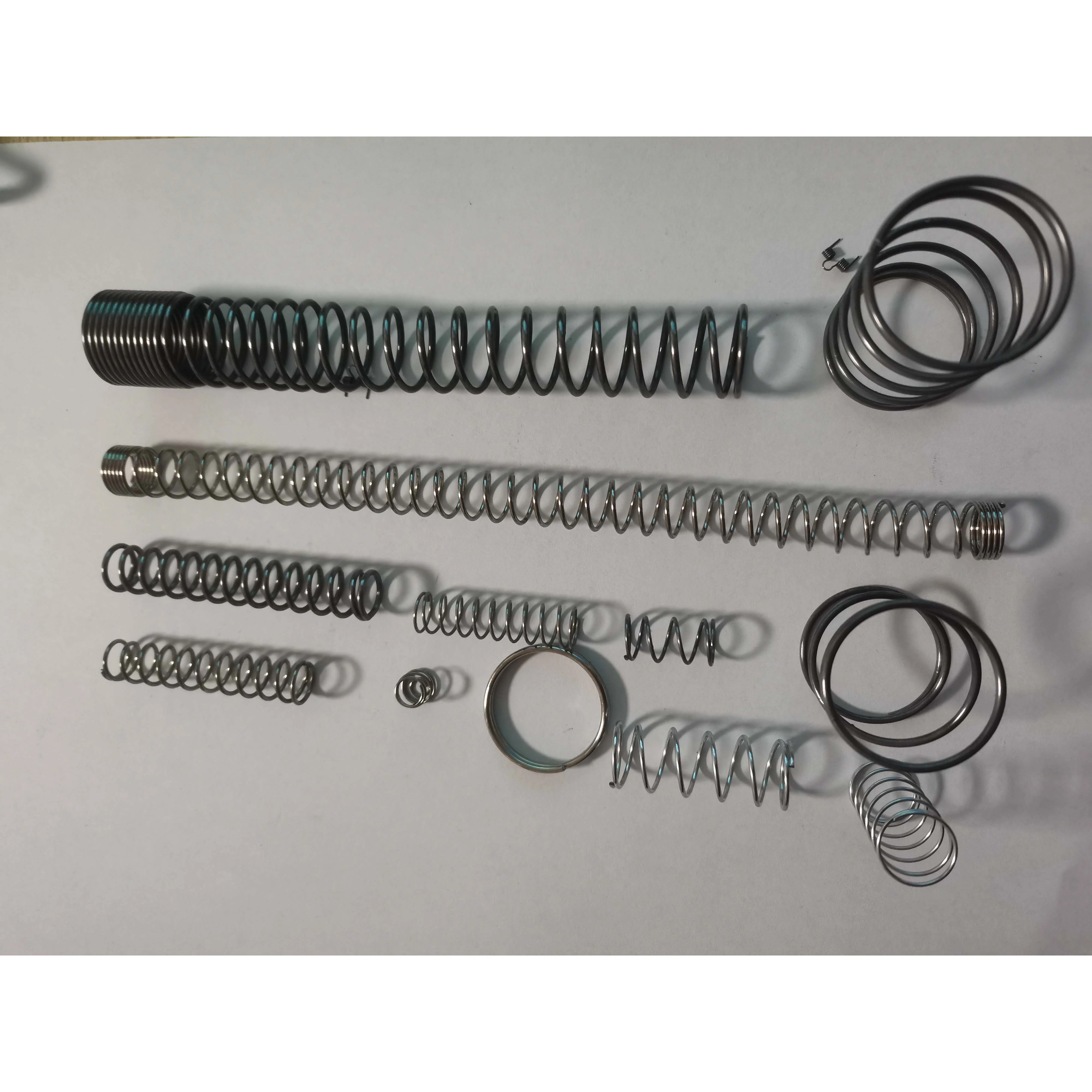

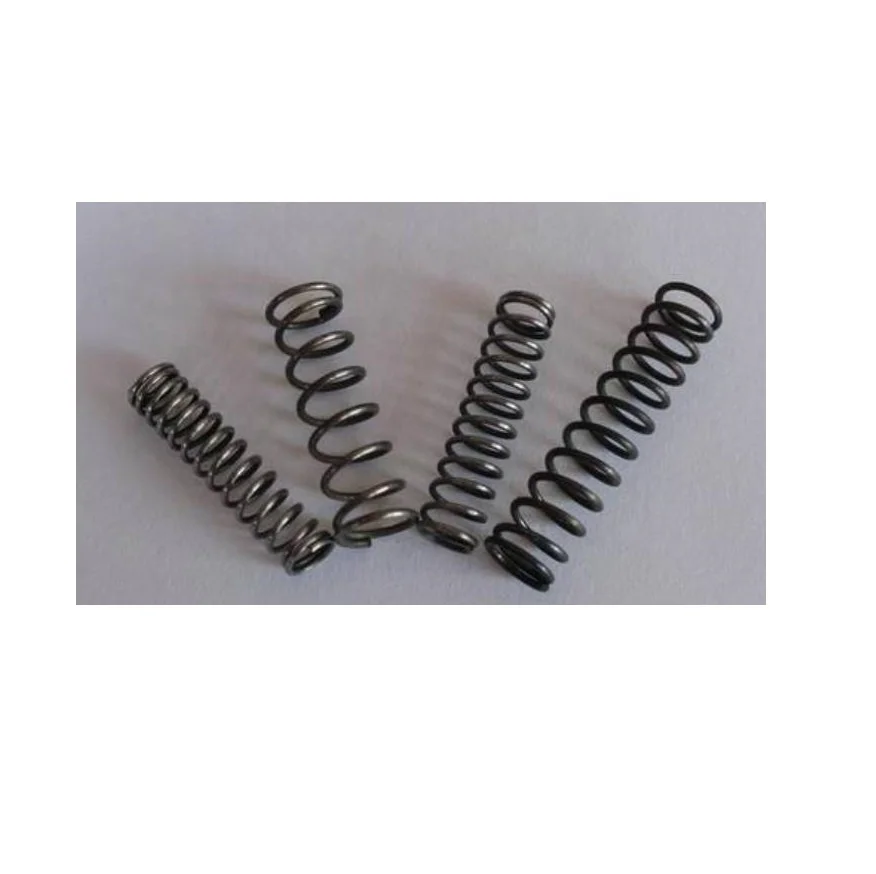

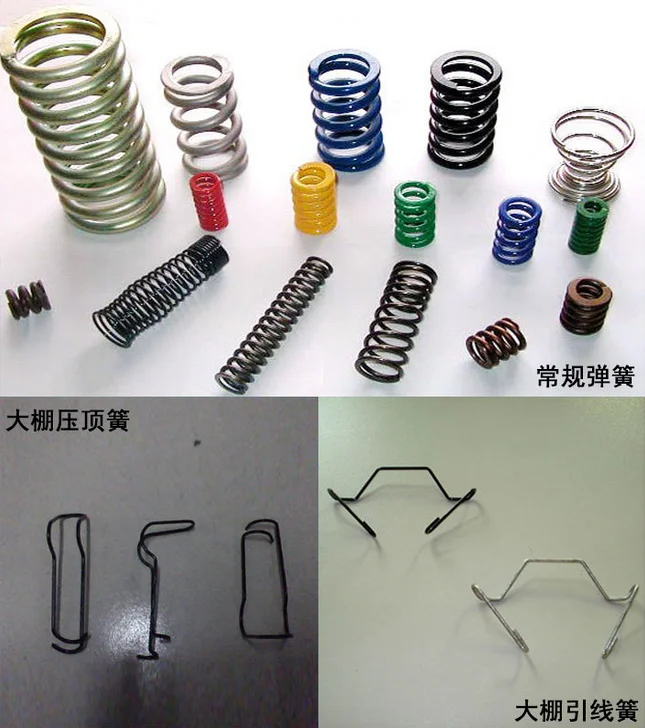

VIII. The product applicable to the production of compressed spring, pagoda spring, coil spring, wave spring and others.





 Technical specification:






















































Wire diameter of coiled material



dia 1.0-4.5mm(iron wire dia1.0-6.0mm)



Max outer diameter of coiled spring



Max dia 80mm



Wire Feed instruction value



±0.01-±9999.99



Max Wire Feed speed



0-110m/min



Cam instruction value



±0.1°-±359.9°



Cam rotation speed



0-60RPM



Wire feed servo motor



5.5KW



Core-switching servo motor



1.5KW



Cam servo motor



5.5KW



Power supply



380V±10%V50HZ



Size



1700X1300X2000mm



Weight



1800KG

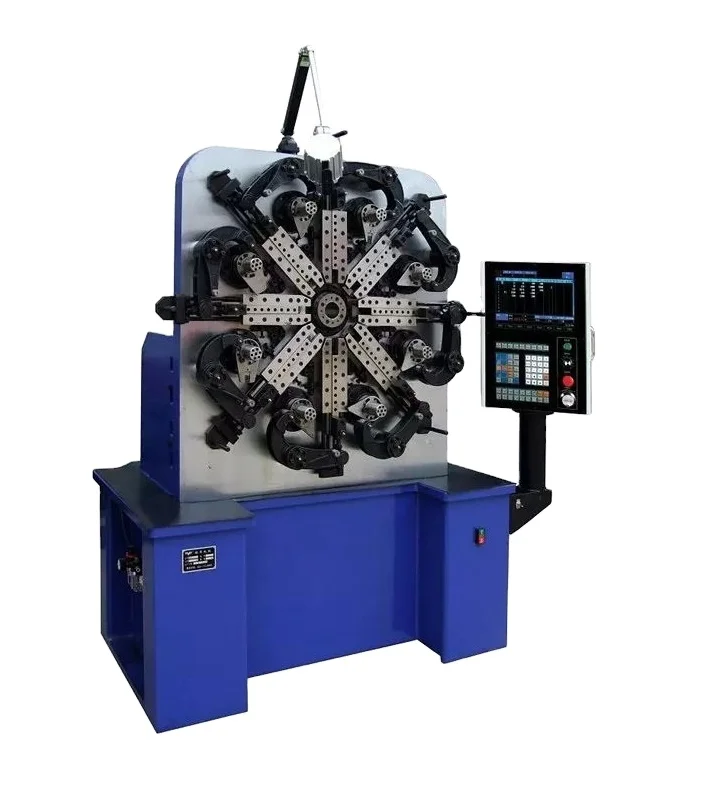

 YF-8345-Spring Making Machine.jpg




Spring Making Machine-7.jpg Spring Making Machine (1).png


Cnc Automatic Metal Hanger Hook Loop Buckle Binder Clip Spring Making Machine



Our Services









FAQ


paste-pic-dp_uuid_0i2wy


1.Do you have after sale service ?


Sure , we provide after sale service.If there any question video, phone, on site guide is okay.


 2. How about wrought iron machine moulds


We design molds according to your market needs. If any new moulds you need, contact now.


3. How about the warrenty ?


1 year warrenty period, if any question about machine beforing working, contact for free spare parts and operation guide.


4. How to ensure customs' rights ?


We provide trade assurance on Alibaba and custom service 24 online to provide help.


5. How to shipment?


  We have professional operators can arrange customs clearance. Professional fowraders arrange ship. can export from tianjin port, Qingdao Port, Shanghai Port, yiwu port, etc. as you need.
