Concrete Floor Grinder Vacuum Aspirateur Industriel Industrial Vacuum Cleaner Concrete Dust Extractor Concrete Floor Extractor
- Category: >>>
- Supplier: Suzhou Bersi Industrial Equipment Co. Ltd.
Share on (1600540487948):
Product Overview
Description
100% Auto self cleaning innovation concrete dust free vacuum cleaner
Main features:
1. Three powerful Ametek motors, is best suited to work with grinder working width below 750mm.
2. The independently controlled switches allow operator can choose 1, 2 or 3 switches on as wanted.
3. Incorporates cyclonic separation and a innovative auto pulsing cleaning system,without airflow losing while self cleaning,keep
strong suction and maximises work efficiency. Without air compressor, very reliable and low maintenance cost.
4.OSHA compliant 2- stage filtration system to ensure a safe and clean air. In the priary stage, the two cylindrical filters
rotate to pulsing clean. In the second stage, 3PCS H13 HEPA filters with 99.99% @0.3μm efficiency.
5. Continuous bag disposal system ensure a easy and dust-free bag changes.
Technical data sheet:
Model | Unit | AC32 | AC31 | ||
Voltage | 240V/50-60 HZ | 120V/50-60 HZ | |||
Power(kw) | KW | 3.6 KW | 2.4 KW | ||
HP | 5.1 | 3.4 | |||
Current | Amp | 14.4 | 18 | ||
Vacuum /water lift | mBar | 240 | 200 | ||
inch | 100 | 82 | |||
Airflow (max) | cfm | 354 | 285 | ||
m³/h | 600 | 485 | |||
Pre-filter >99.5%@1.0um | m2 | 4.5 | |||
ft2 | 48 | ||||
HEPA filter(H13) >99.97%@0.3μm | m2 | 3.6 | |||
ft2 | 39 | ||||
Filter\u007Fcleaning | Auto cleaning | ||||
Dimension(mm) | 630X840X1470 | ||||
Weight(kg) | 65 | ||||
Collection | Continuous folding bag | ||||
Applications:
greatly.Concrete dust is extremely fine and hazardous, this vacuum build with high standard dural stage HEPA filtration system.The first stage equipped with 2 big cylindrical filters with 3.0㎡ filter area in total. The second stage has 3pcs H13 HEPA filter tested andcertified with EN1822-1 and IEST RP CC001.6.This vacuum cleaner is ideal for use with floor grinders, concrete scarifiers,concrete cutting saws etc.

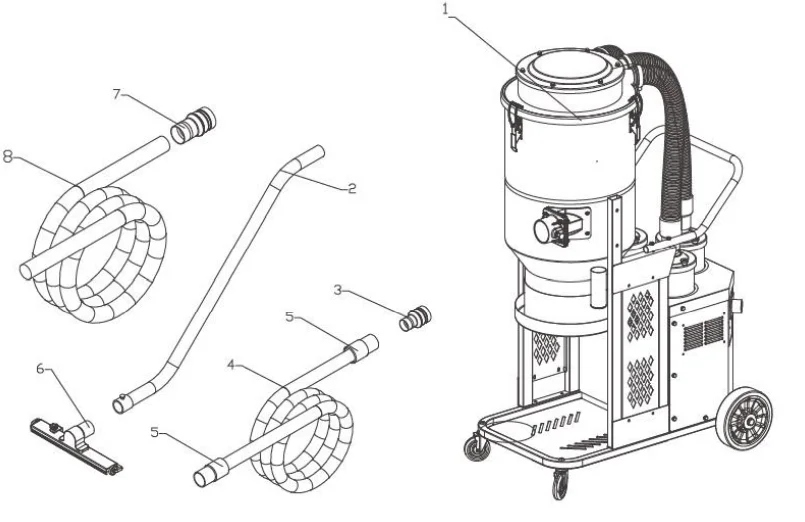

S/N | P/N | Description | Quantity | Unit |
1 | AC32 dust extractor | 1 | PC | |
2 | S8046 | D50 S wands | 1 | PC |
3 | C2031 | D70/50 reducer | 1 | PC |
4 | S8008 | D50 anti static EVA hose | 7.5 | Meter |
5 | S8006 | D50 hose cuff | 1 | PC |
6 | S8045 | D50 floor brush | 1 | PC |
7 | S2144 | D70/63 reducer | 1 | PC |
8 | S8037 | D63 PU hose with PC spiral | 10 | Meter |
Packaging: Pallet packing | ||
Size | 630(L)*840(W)*1470(H) | |
Weight | 65kg/Unit | |
Package Details | The regular package is carton box, fumigated wooden box packing for optional, we will customize the pallet size according to the models Nos, load more quantities to save space when shipped by container. | |
