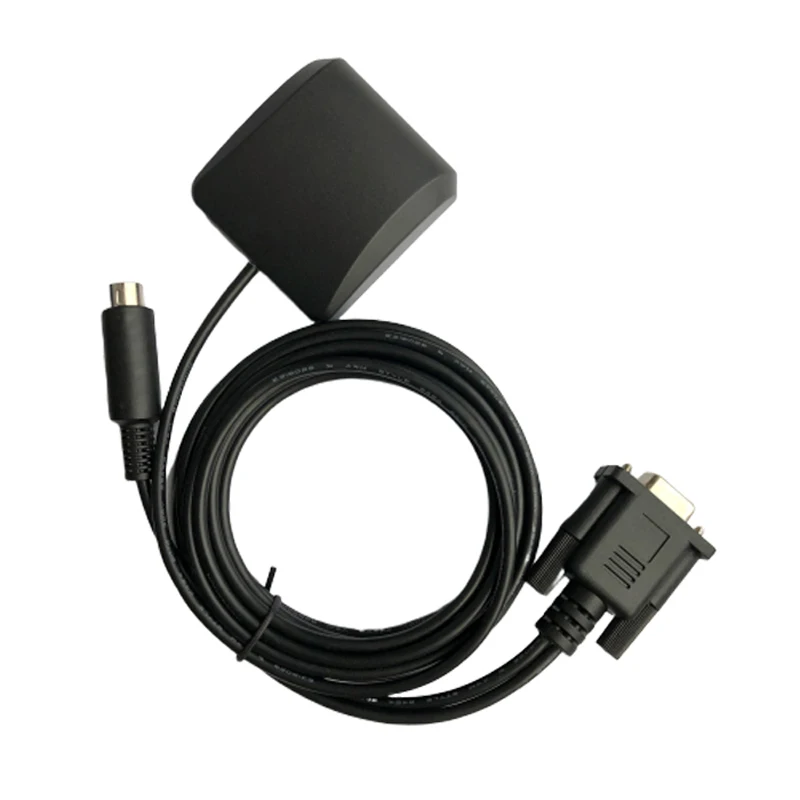

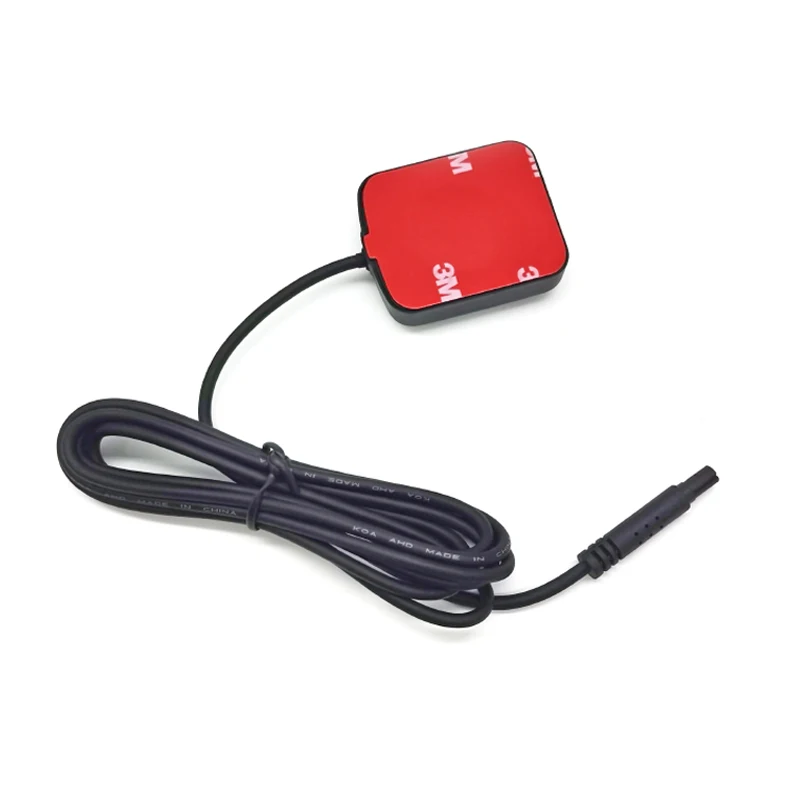

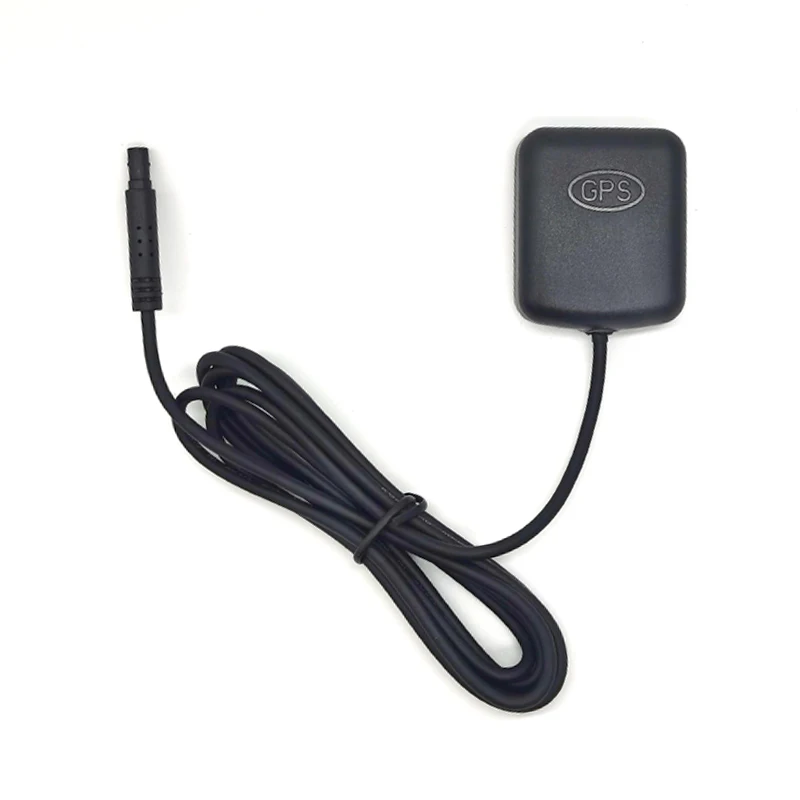

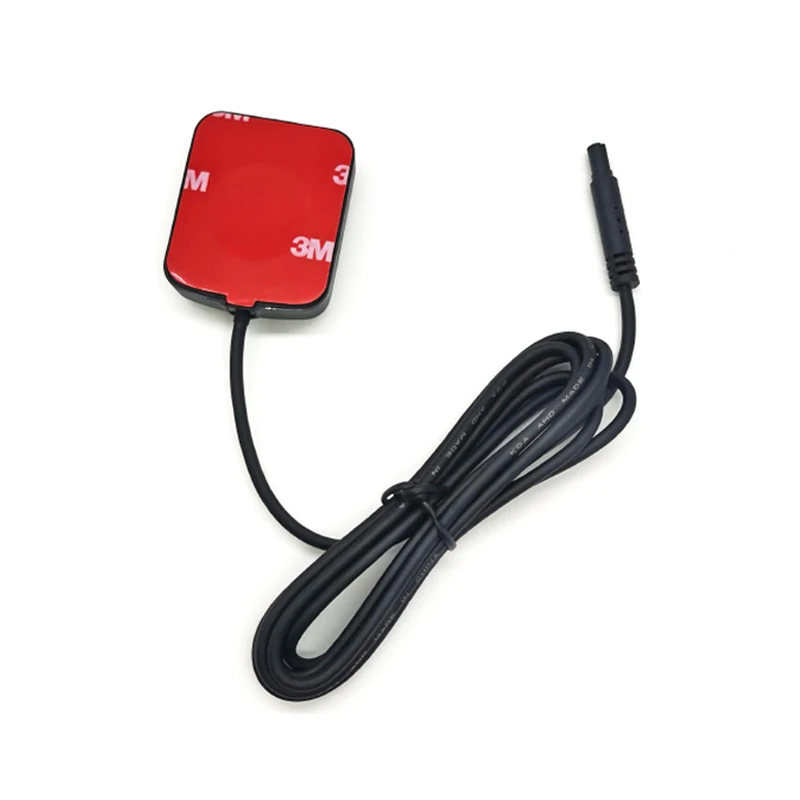

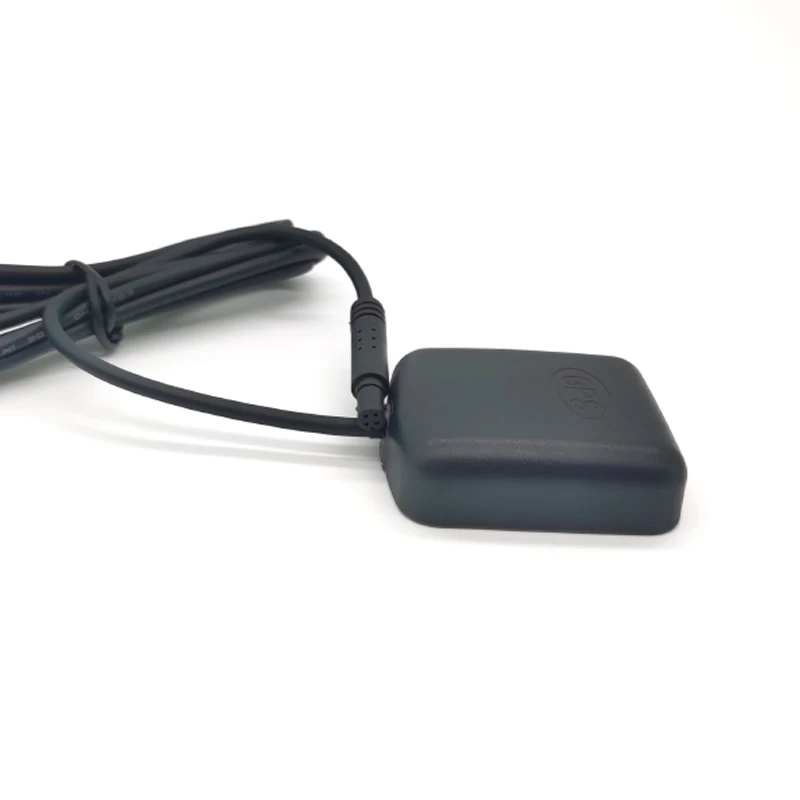

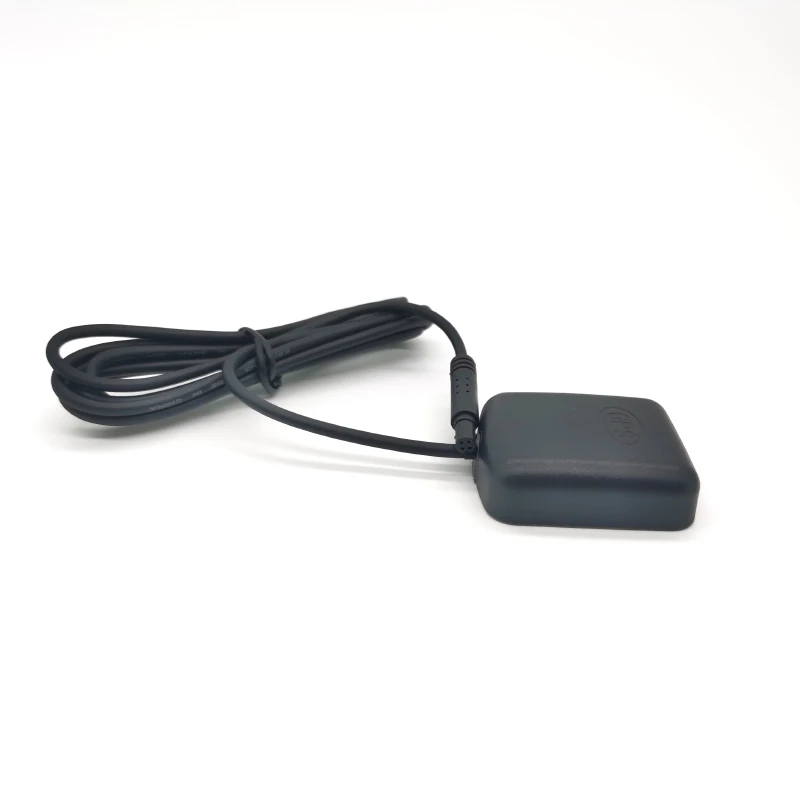

BnStar 1Hz 5.0V UBX G7020 KB Chip BM Connector GPS Receiver TTL Level NMEA 0183 GPS & GPS Antenna BBG702
- Category: >>>
- Supplier: Shenzhen Bainianxing Technology Co. Ltd.
Share on (1600540490085):
Product Overview
Description
Product Description
Features
• GNSS engine for GPS/QZSS, GLONASS
• It delivers exceptional sensitivity and acquisition times
• Low power consumption
Specification
Spec | Instructions | ||
Chip | UBX-G7020-KT | ||
Receiving type | GPS,GLONASS,QZSS | ||
Channels | 56-Channels | ||
Sensitivity | Tracking | -162dBm | |
Reacpture | -160dBm | ||
Cold start | -148dBm | ||
Hot start | -156dBm | ||
Accuracy | Horizontal accuracy | 2.5 m CEP | |
Velocity | 0.1m/s 95%(SAoff) | ||
Timing | 1us | ||
Cold start | 26s | ||
Warm start | 2s | ||
Hot start | 1s | ||
Data Output | Support rate | 4800 bps to 921600 bps, default 9600 bps | |
Output level | TTL Level | ||
NMEA Version | NMEA-0183 v2.3 to v4.x, UBX | ||
NMEA Message | RMC, VTG, GGA, GSA, GSV, GLL,TXT | ||
Update Rate | Up to 18Hz(GPS only) | ||
Update Rate | 1-10Hz, Default 1Hz (Standard GNSS) | ||
Work Limit | Altitude | 50000m Max | |
Velocity | 515m/s | ||
Gravitational Acceleration | 4g Max | ||
Voltage | 5.0V | ||
Current | Normal 70mA 5.0V | ||
Physical Parameters | Size | 48*35*13.5mm | |
Weight | 100g | ||
Connector | BM Connector | ||
Antenna | Antenna | Built in antenna | |
Operating temperature | -40℃ to +85℃ | ||
Storage temperature | -40℃ to +125℃ | ||
