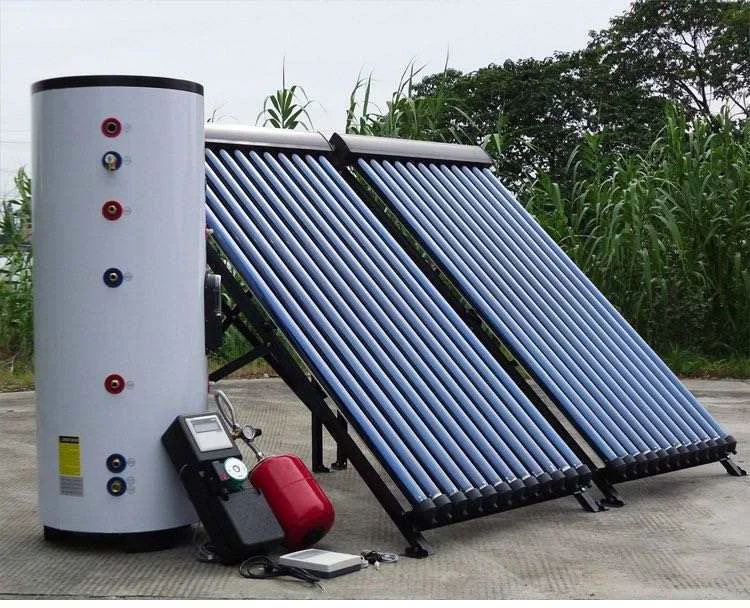

15 Tubes heat pipe solar geyser with Pressurized Split Solar Collector vacuum tubes solar hot water heater
- Category: >>>
- Supplier: Zhejiang Handa New Energy Co. Ltd.
Share on (1600540501639):
Product Overview
Description
Type | HHC-24 | ||||||
Product Name | Compact pressure solar water heater | ||||||
Inner Tank Material | Food grade SUS304 2B or SUS316L | ||||||
Inner Tank Diameter | Φ360mm;Φ370mm;Φ380mm;Φ420mm | ||||||
Inner Tank Thickness | 1.0mm;1.2mm;1.5mm | ||||||
Outer Tank Material | SPCC;PVDF;SUS304;SUS316;Colorful plate | ||||||
Outer Tank Diameter | Φ460mm;Φ470mm;Φ480mm;Φ520mm | ||||||
Outer Tank Thickness | 0.4mm 0.45mm 0.5mm | ||||||
Tube Material | Super conducted heat pipe vacuum tube | ||||||
Vacuum Tube Size(mm) | 58/1800(diameter/length) | ||||||
Tube Number | 9/10/12/15/18/20/24/30/32/36/40 | ||||||
Frames(Stand Parts) | Galvanized plate, Stainless steel or Aluminum alloy | ||||||
Insulation Layer | High quality polyurethane foam made by advanced high pressure foam machine | ||||||
Insulation Thickness | 50mm,55mm,60mm | ||||||
Foam Density | 42kg/m3 | ||||||
Material of Tank Cover | Galvanized steel/Stainless steel | ||||||
Holes of Tank | Water inlet /Water outlet/Air vent/Assistant tank--------3/4 inch | ||||||
Tank Weilding | Argon arc welding | ||||||
