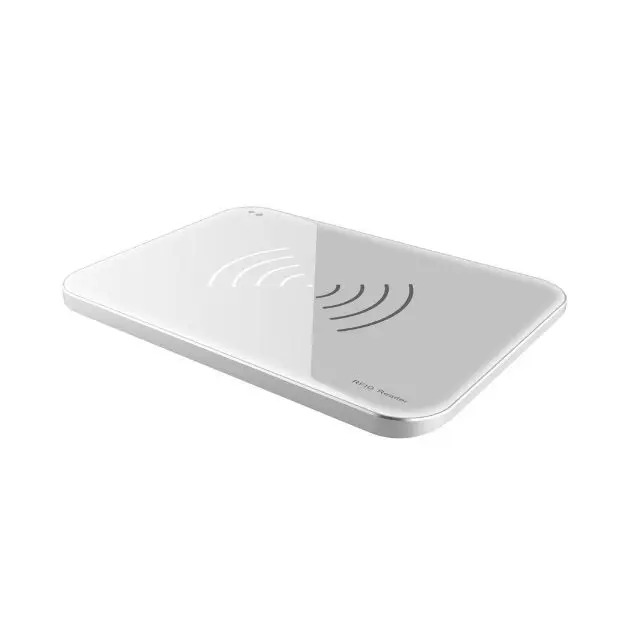

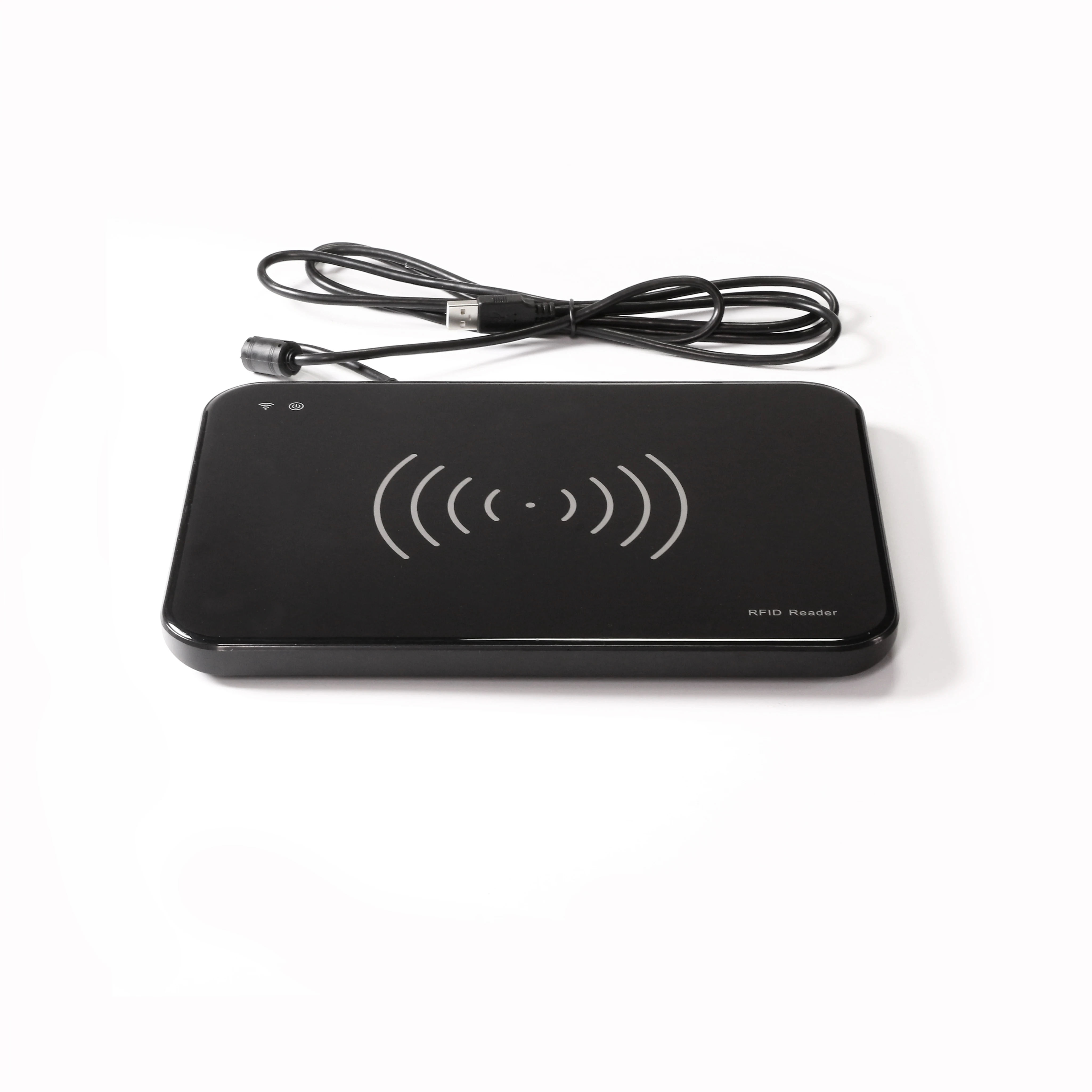

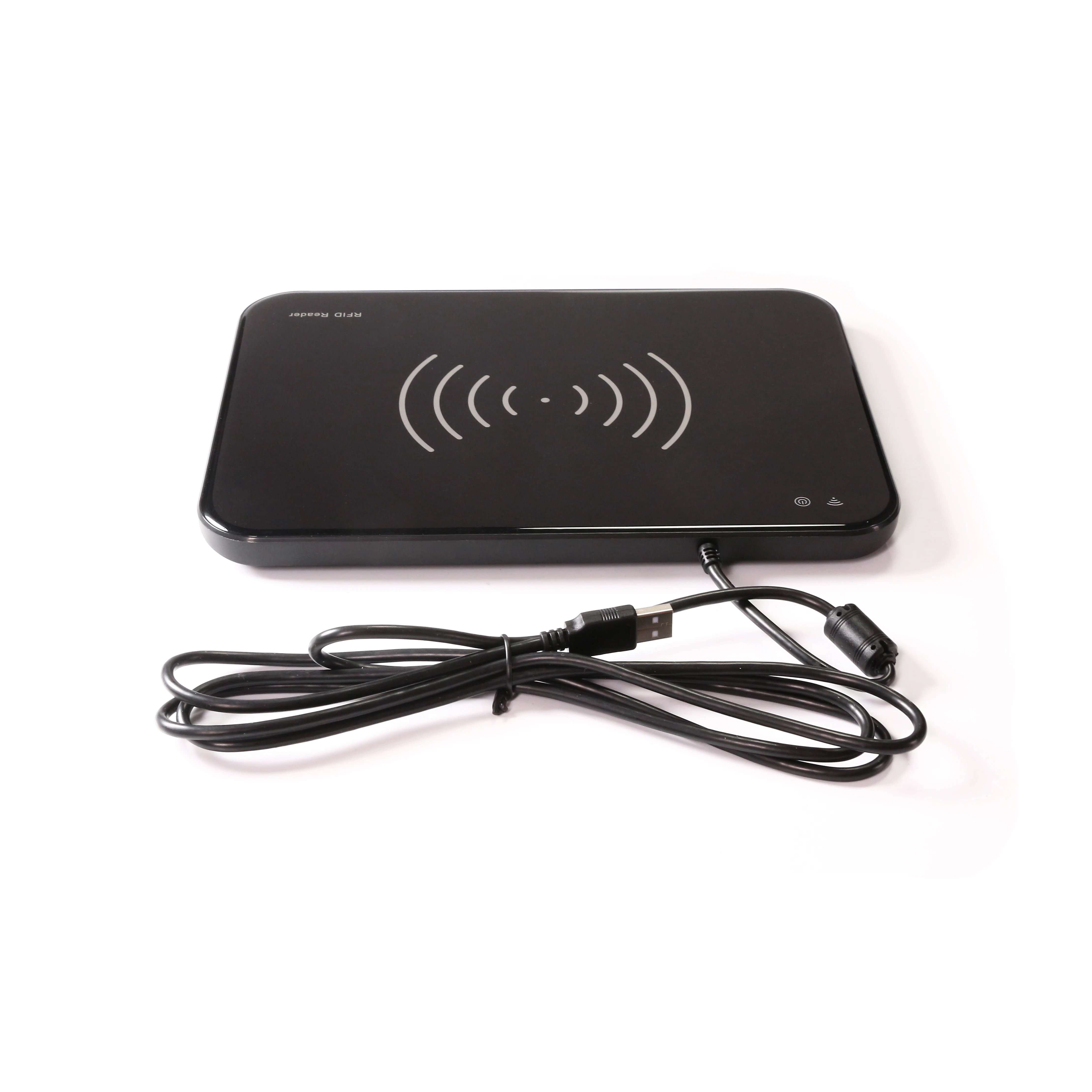

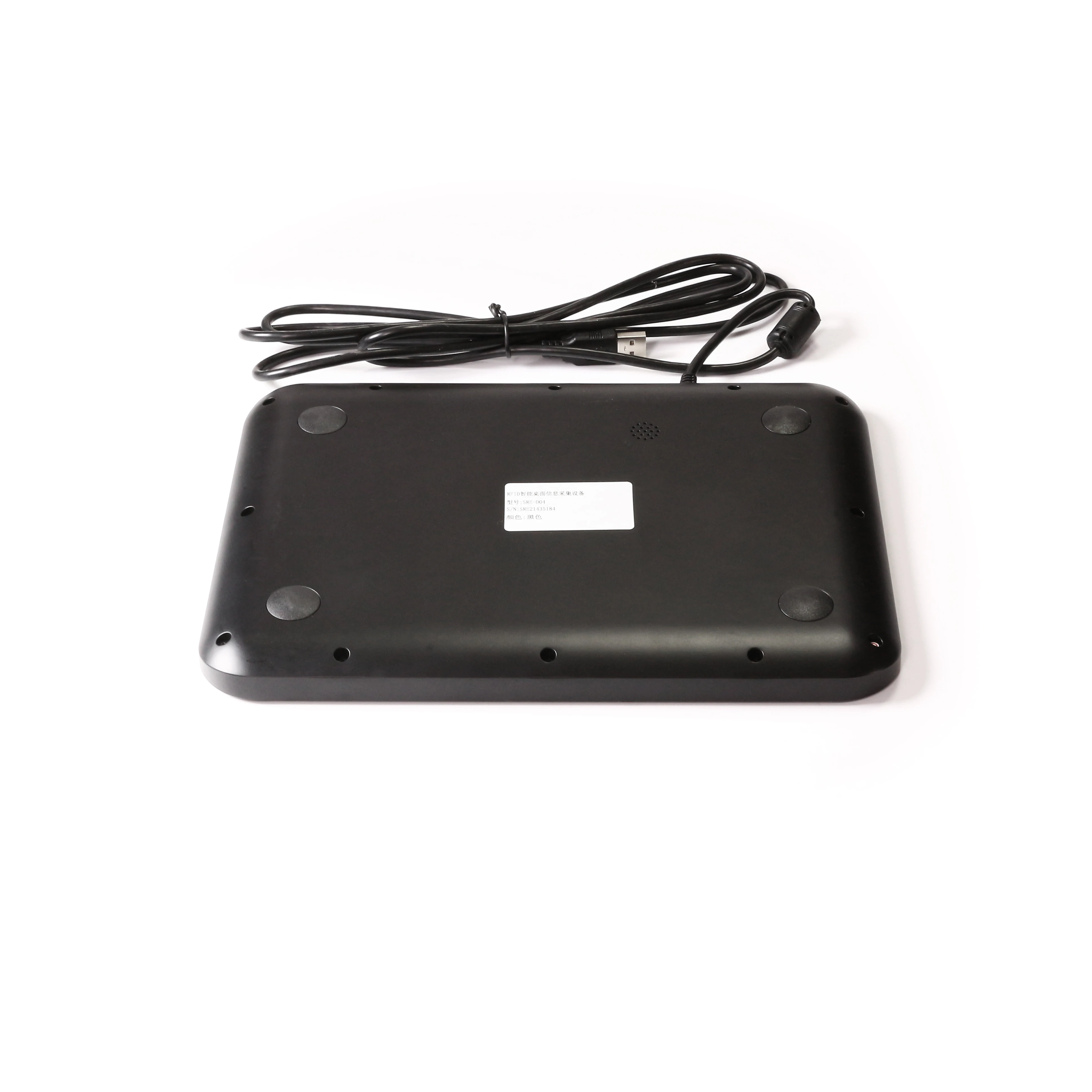

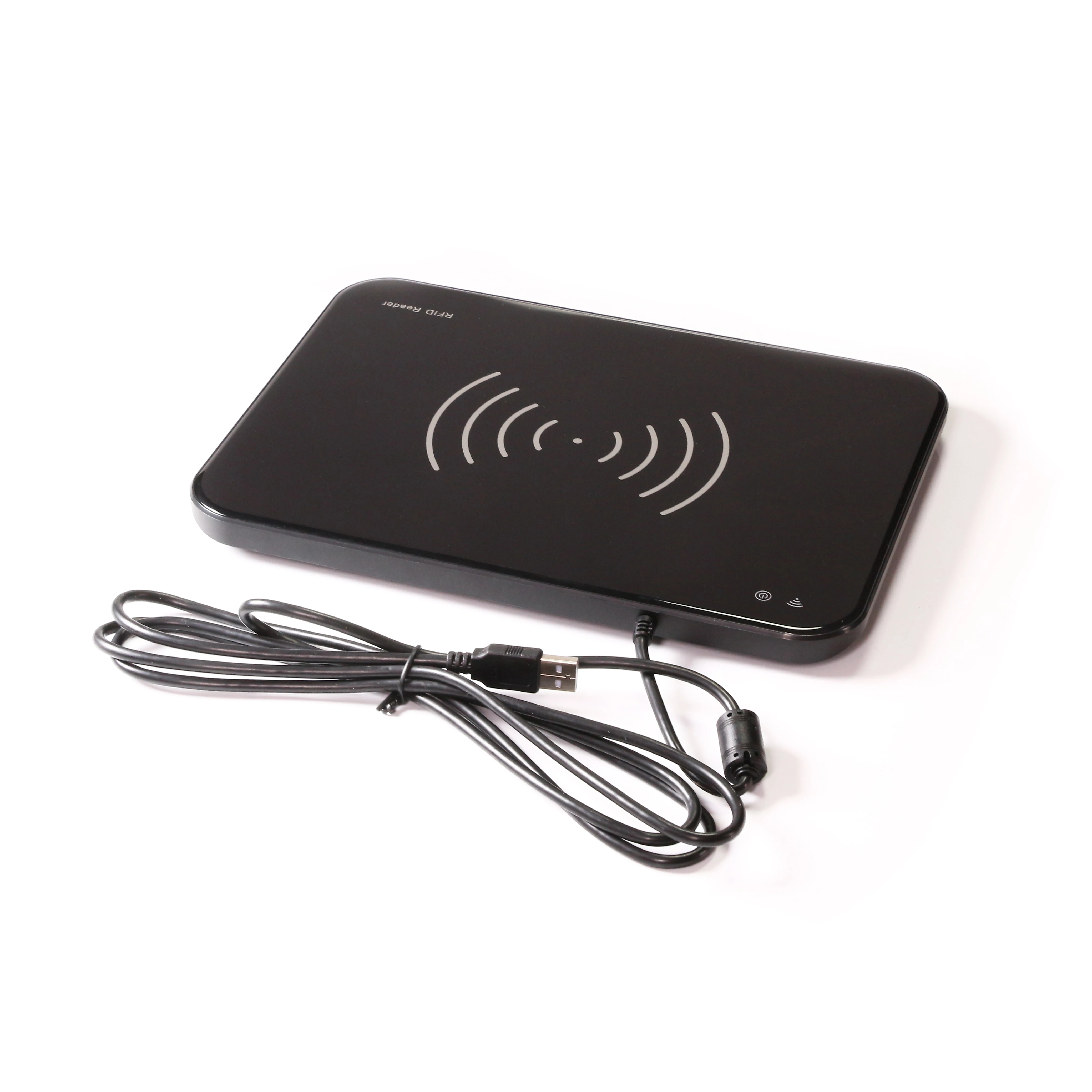

OPPD04 New Design Long Range RFID UHF Desktop Reader Writer for Jewelry Inventory
- Category: >>>
- Supplier: Xiamen OPP IOT Technologies Co. Ltd.
Share on (1600540512795):
Product Overview
Description
Product Description
OPPD04 New Wholesale Fashion RFID UHF Desktop Integrated Reader for Jewerly Inventory
OPPD04 is a high-performance RFID reader with a fashionable appearance.
It integrates high-performance RFID modules and adopts a uniquely designed antenna.
It can accurately control the reading range and realize rapid reading and writing processing while maintaining a high reading rate.
It can be widely used in RFID applications such as cashier, jewelry inventory, warehousing and logistics, books and archives, workstation, judicial vouchers and etc.
Please contact us today for a free consultation and factory direct pricing!\\uD83D\\uDE01
It integrates high-performance RFID modules and adopts a uniquely designed antenna.
It can accurately control the reading range and realize rapid reading and writing processing while maintaining a high reading rate.
It can be widely used in RFID applications such as cashier, jewelry inventory, warehousing and logistics, books and archives, workstation, judicial vouchers and etc.
Please contact us today for a free consultation and factory direct pricing!\\uD83D\\uDE01
Specification
Physical Specifications | ||
*Equipment Size | 260mm x 186mm x 19mm | |
*Package Size | 310mm x 265mm x 53mm | |
*Net Weight | 800g | |
*Gross Weight | 1000g | |
*Antenna | ≥4dB | |
*Shell Material | ABS+PC bottom shell + tempered glass panel | |
Performance Specifications | ||
*Protocols | EPC Global C1 Gen 2 ISO 18000-6C | |
*Frequency | 865~868MHz/902～928MHz | |
*Frequency modulation | FHSS or fixed-frequency, can be set by software | |
*RF output | from 0 dBm to 26dBm* with +/-1dBm | |
*Read Distance | >2m, depends on tags | |
*Reading speed | >50 tags/sec | |
*Tag RSSI | Supported | |
*Power | USB drive free (windows, Android) 5V, 400mA, 2W（MAX） | |
*Communication interface | USB 2.0 | |
*API Support | C#、JAVA | |
Environment | ||
*Operating Temp | -20 to +55℃ | |
*Storage Temp | -20 to +85℃ | |
*Humidity | 5%～95%RH，Non-condensing | |
Category

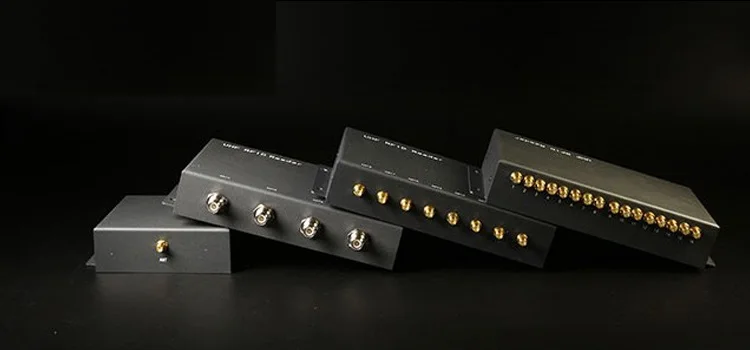

UHF RFID Reader - Handheld & Fixed Reader
333
Ceramic RFID Tags - Various sizes
333
PCB UHF Metal Tags - Various Sizes
333
High Temperature RFID Tags - Devil Series
333
Industrial RFID Tags - Long Range
333
Flexible RFID Tags - Printable & Flexible
333
FAQ
1. What you can buy from us?
RFID Tags for inventory and tracking.
RFID Wristbands and Cards.
RFID Handheld and Fixed Readers.
RFID Handheld and Fixed Readers.
2. Can I get Free Samples?
If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.
3. Can you program the NFC/RFID?
Yes, we do. Please provide the data, like numbers, URL and so on.
4. What is MOQ?
For the RFID Tags, the MOQ is 100pcs.
For the Printable Tags, the MOQ is 10k pcs.
For the Wristbands, the MOQ is 100pcs.
For the Wristbands, the MOQ is 100pcs.
5. Can I order if quantity less than MOQ?
Yes and it would be taken as sample order to production. Sample order costs more.
6. How to order and pay?
You can build an order online or contact us to do it!
You can pay through Alibaba or T/T, Western Union, Paypal.
Company Introduction
About Us

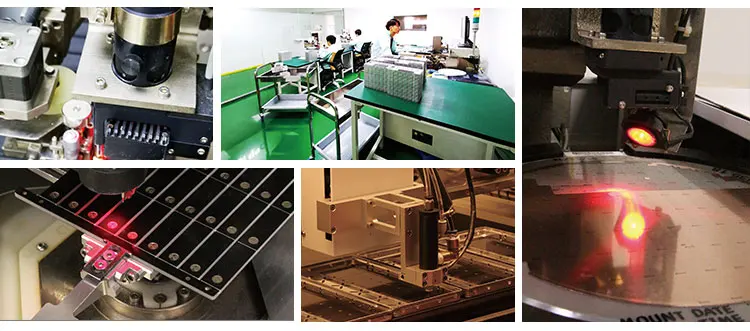

OPP IOT Technologies Co.,Ltd is the RFID Tags manufactures in China. We have advanced equipments and an professional technical R&D team. We certified to ISO9001and ISO14001 stabdards. All of our products have passed RoHs, REACH, CE and ATEX certificates.
