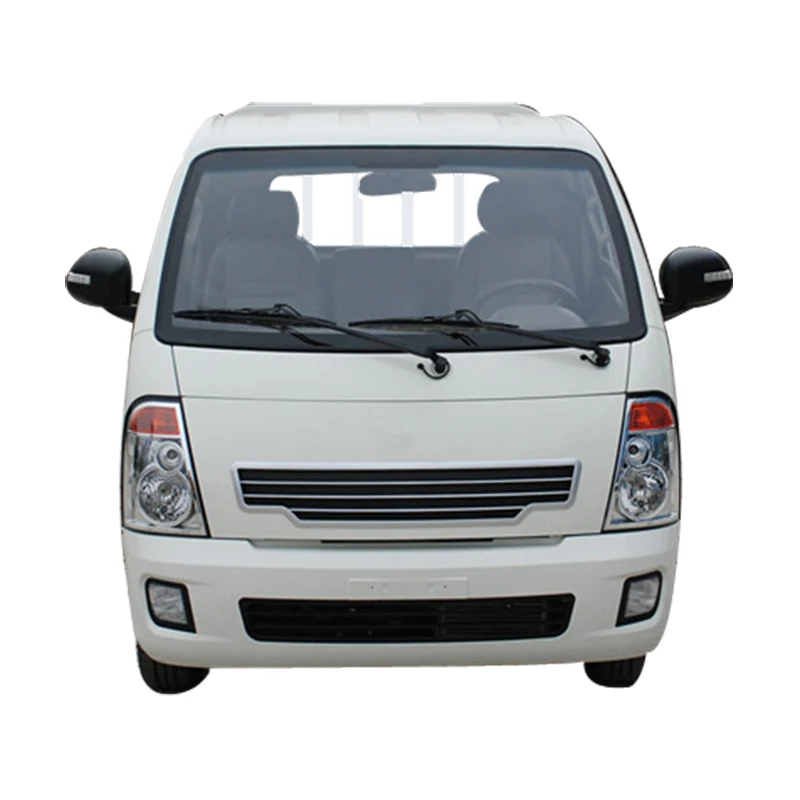

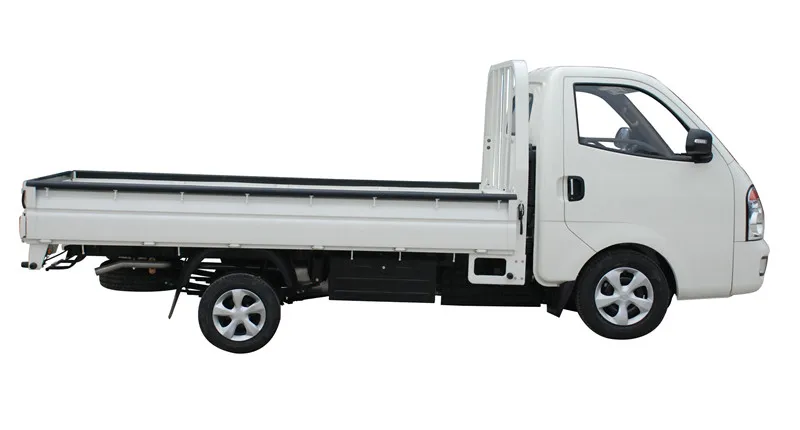

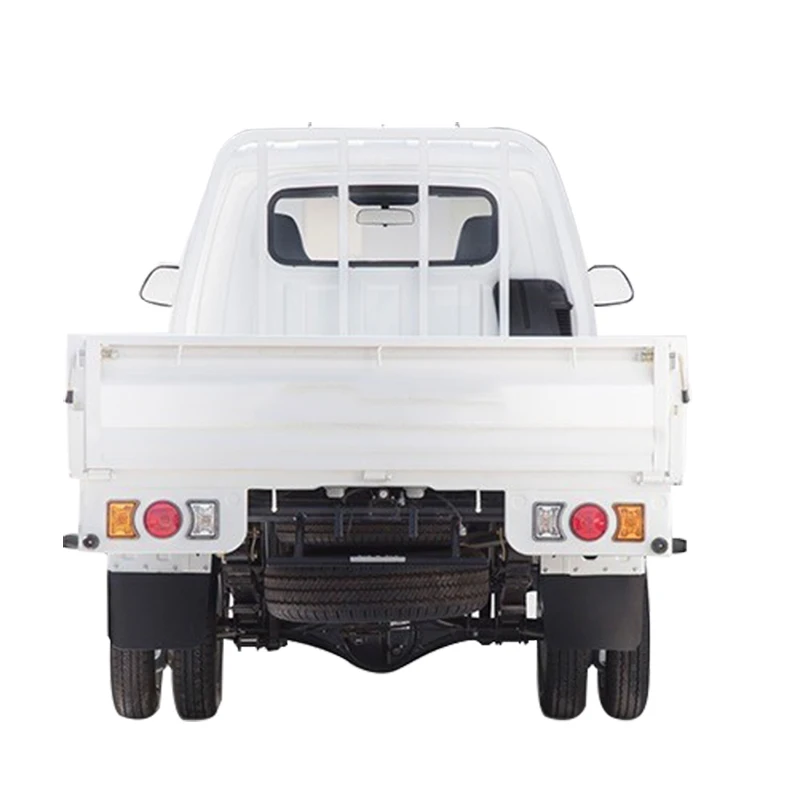

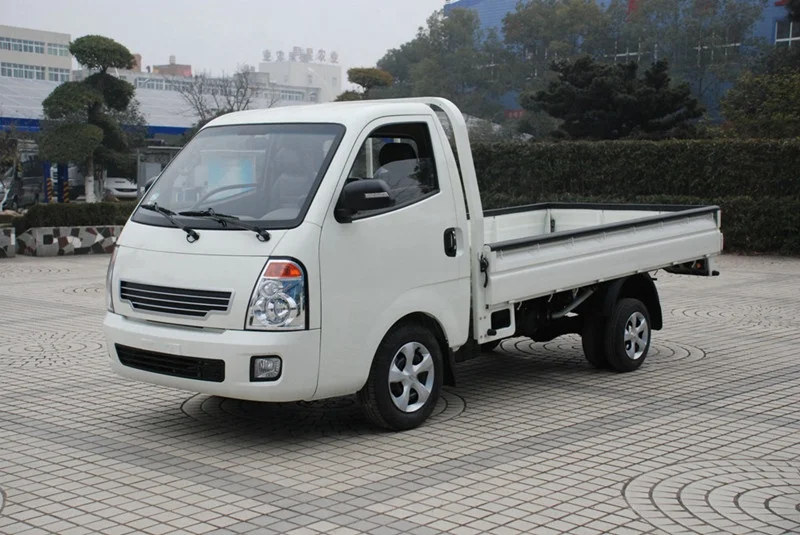

Best Quality 3 Ton Single Row CKD / SKD Mini Diesel Delivery Trucks Light Commercial Vehicle Small Pickup Truck for Sale
- Category: >>>
- Supplier: Hubei Qixing Truck Cabin Manufacturing Limited Company
Share on (1600540521150):
Product Overview
Description
Product Overview
3 ton mini cargo truck QX1025
FEATURES AT A GLANCE
ATTACTIVE DESIGN
SAFETY FRAME
SIMPLE CONTROL
SPACIOUS CABIN
PRODUCT SPECIFICATIONS
Model No. | QX1025 | ||||||
Dimension & Weight | Overall | L | mm | 5,385 | |||
W | mm | 1740 | |||||
H | mm | 2020 | |||||
Wheelbase | mm | 2,720 | |||||
Tread | FR | mm | 1485 | ||||
RR | mm | 1338 | |||||
Cargo | L | mm | 3,285 | ||||
W | mm | 1,630 | |||||
H | mm | 360 | |||||
Ground Clearance | mm | 120 | |||||
Weight | Gross | kg | 3,495 | ||||
Curb weight | kg | 1,800 | |||||
Rated Payload | kg | 1,300 | |||||
Minimum turning diameter | m | ≤12 | |||||
Engine | Emission Standard | Euro I/ II/ IV | |||||
Engine Model | JE493ZLQ4 | ||||||
Displacement | cc | 2771 | |||||
Bore x stroke | mm | 91 X 100 | |||||
Compression Ratio | 17.2:1 | ||||||
Maximum Power | ps/rpm | 80/3400 | |||||
Maximum Torque | kg.m/rpm | 260/2000 | |||||
Fuel tank capacity | L | 85 | |||||
Maximum Speed | KM/H | 110 | |||||
Chassis | Transmission Model | 5MTI280 | |||||
Transmission | 5 Speed Manual | ||||||
Transmission Gear Ratio | 1st | 4.717 | |||||
2nd | 2.513 | ||||||
3rd | 1.679 | ||||||
4th | 1 | ||||||
5th | 0.719 | ||||||
Reverse | 5.271 | ||||||
Rear Axle Gear Ratio | 4.33 | ||||||
Suspension | FR | Leaf spring | |||||
RR | Leaf spring | ||||||
Brake Type | FR | Disc | |||||
RR | Drum | ||||||
Steering Type | Hydraulic Power | ||||||
Tyre | FR | 195/70R15C-8PR | |||||
RR | 145R13C-8PR | ||||||
Spare Tyre | 1+1 | ||||||
Standard Equipment | Exterior | Bumper | Body Color | ||||
Side&Rear Step | With | ||||||
Mud guard | Front & Rear | ||||||
Cabin | Space | ||||||
Headlight | High quality Reflector | ||||||
Interior | Room mirror | Anti-reflection | |||||
Door window | Power window | ||||||
Door lock | Central lock | ||||||
Seat | Leather, Reclinable | ||||||
Seating capacity | Person | 2 | |||||
Air conditioner | With | ||||||
Safety Feature | Front Fog lamp | With | |||||
Seat belt | Driver & passenger | ||||||
