NEW ORIGINAL GBJ 2510 BRIDGE RECTIFIER
- Category: Rectifiers >>>
- Supplier: Xiamen Universal Electronic Co. Ltd.
Share on (1600540536109):
Product Overview
Description
Specification
Type | Bridge Rectifier |
Size | 30*37.5*4.6mm |
Model | GBJ2510 |
Package | GBJ/6KBJ |
Voltage | 1000V |
Current | 25A |
Brand | Ascendant |
Product Description
Features
* Thin single in-line package
* High surge current capability
* Solder dip 275 °C max. 7 s, per JESD
Mechanical Data
* Thin single in-line package
* High surge current capability
* Solder dip 275 °C max. 7 s, per JESD
22- B106
Typical Applications
General purpose use in AC/DC bridge full wave rectification
for switching power supply, home appliances, office
equipment, industrial automation applications.
General purpose use in AC/DC bridge full wave rectification
for switching power supply, home appliances, office
equipment, industrial automation applications.
Mechanical Data
* Package: 6KBJ / GBJ
* Terminals: Tin plated leads, solderable per
* Terminals: Tin plated leads, solderable per
J- STD-002 and JESD22-B102
* Polarity: As marked on body
* Polarity: As marked on body

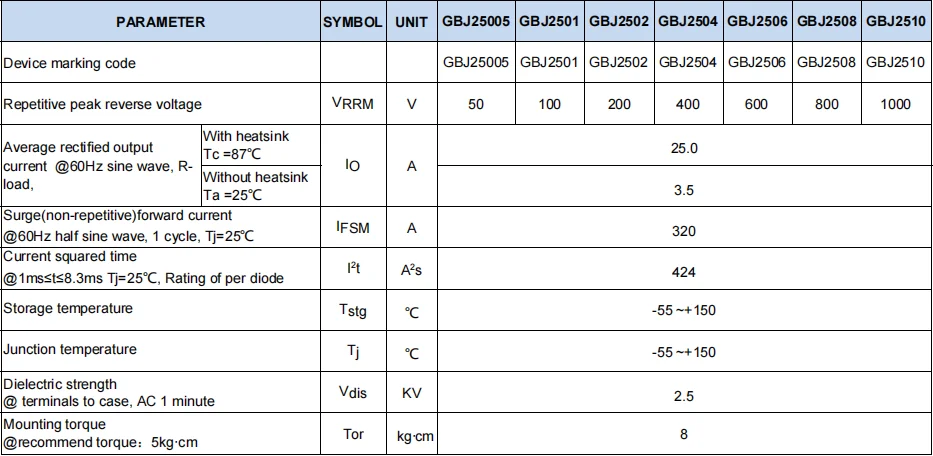

■Maximum Ratings (Ta=25℃ Unless otherwise specified）

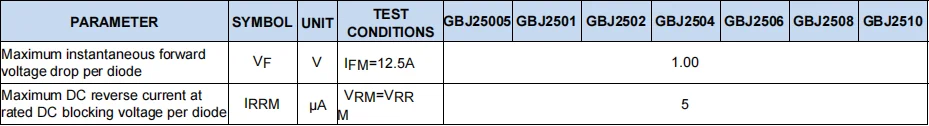

■Electrical Characteristics（Ta=25℃ Unless otherwise specified）

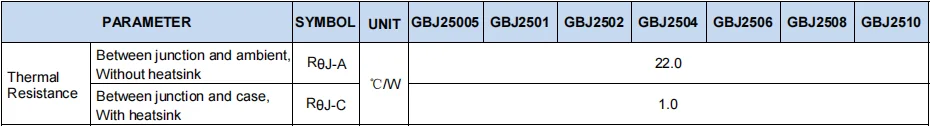

■Thermal Characteristics （Ta=25℃ Unless otherwise specified）
■Ordering Information (Example)

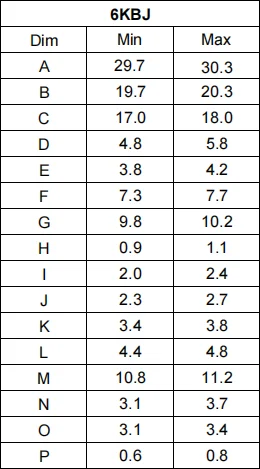

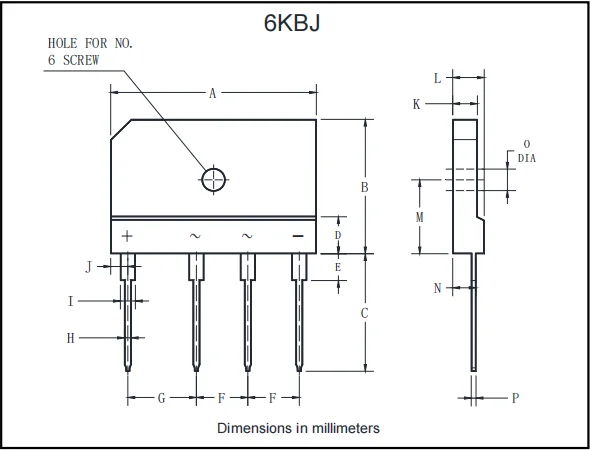

■ Outline Dimensions
