wdm catv optical fiber amplifier erbium-doped fiber amplifier 1550nm catv L-RU L-band single channel edfa
Products Description
Overview:

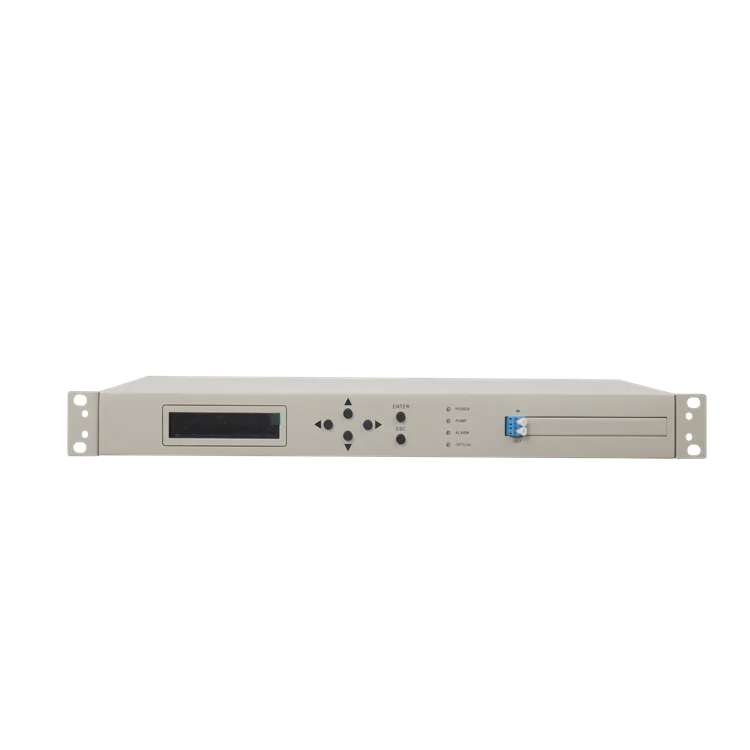

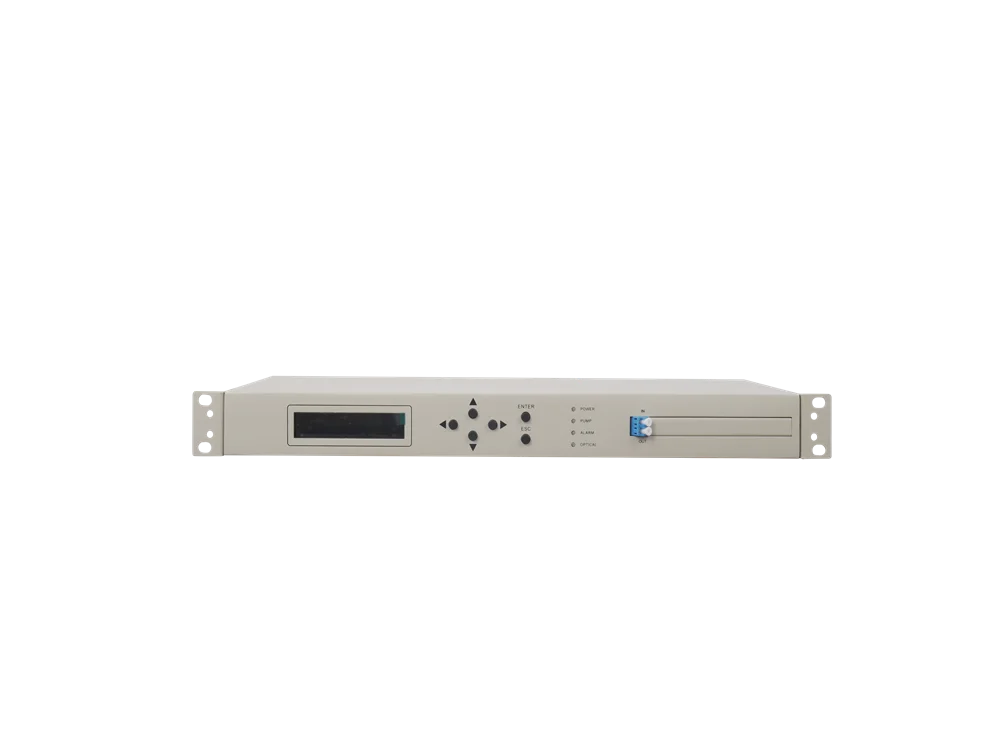

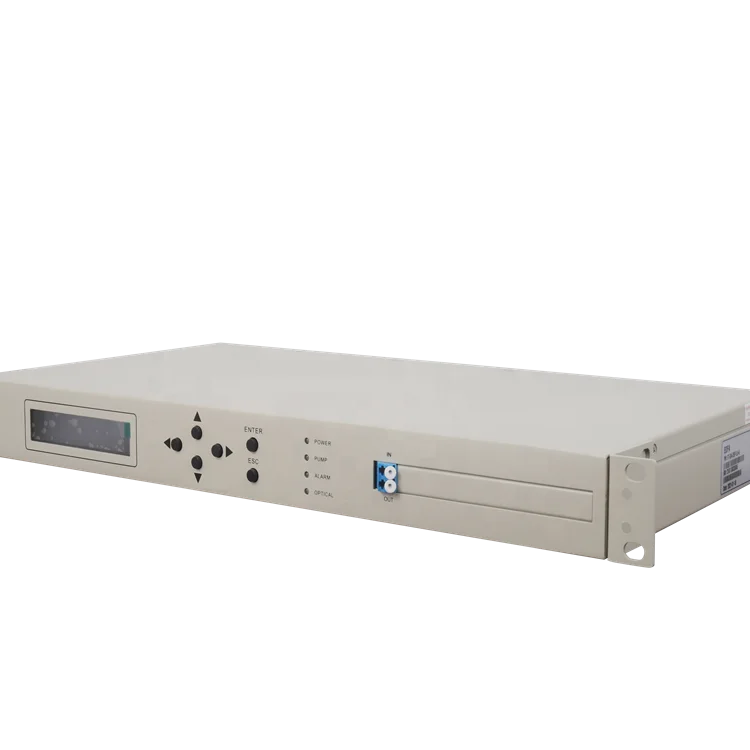

This product is a 1U rack series erbium-doped fiber amplifier. It uses a highly stable microprocessor to enable the amplifier to amplify in the C-band. The maximum output power can reach 24dBm, and it has good noise performance.
Features:
1. Low noise distributed amplification
2. Simple and convenient operation
3. Suitable for DWDM system
4. Support L-band amplifier
5. The maximum output power can reach 24dBm
6. Support fixed gain or adjustable gain
7. Support WEB and SNMP network management functions
3. Suitable for DWDM system
4. Support L-band amplifier
5. The maximum output power can reach 24dBm
6. Support fixed gain or adjustable gain
7. Support WEB and SNMP network management functions
Parameters
Parameter | Min | Ty | Max | Unit | ||
Wavelength | C-band | 1528 | ------ | 1568 | nm | |
L-band | 1572 | ------ | 1603 | nm | ||
Output power | ------ | ------ | 24 | dBm | ||
Input power | -35 | ------ | +10 | dBm | ||
Adjustable Gain Range | ------ | 10 | 15 | dB | ||
noise figure | ------ | ------ | 6 | dB | ||
Output power stability | ------ | ±0.05 | ±0.1 | dB | ||
DWDM | ------ | 1.0 | ----- | dB | ||
Power consumption | ------ | ------ | 20 | W | ||
