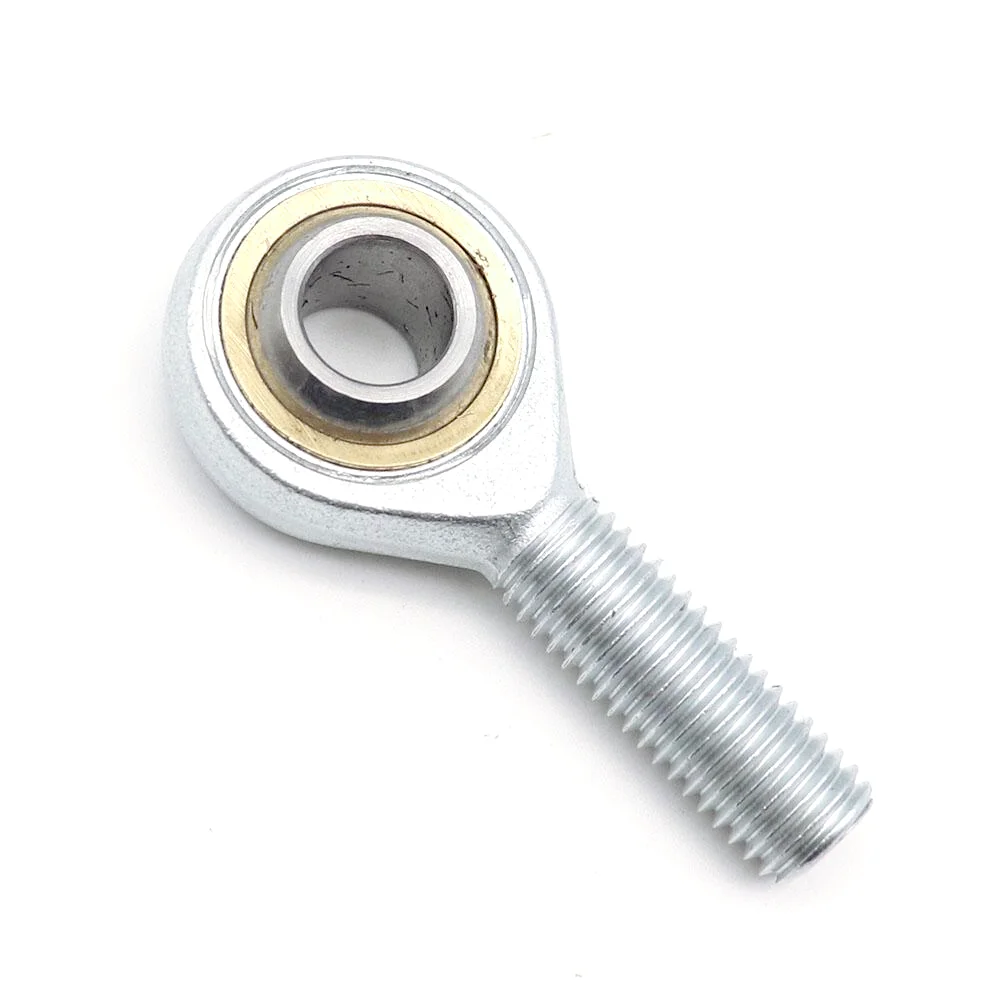

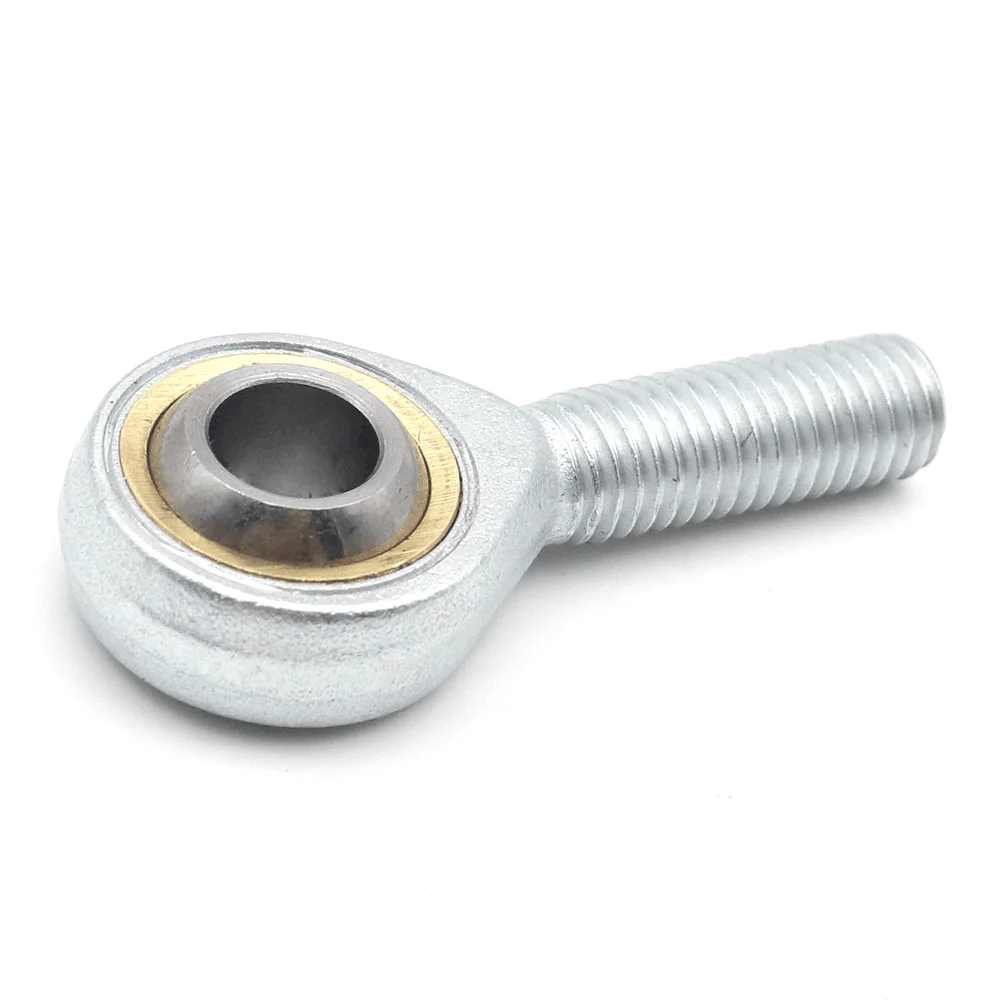

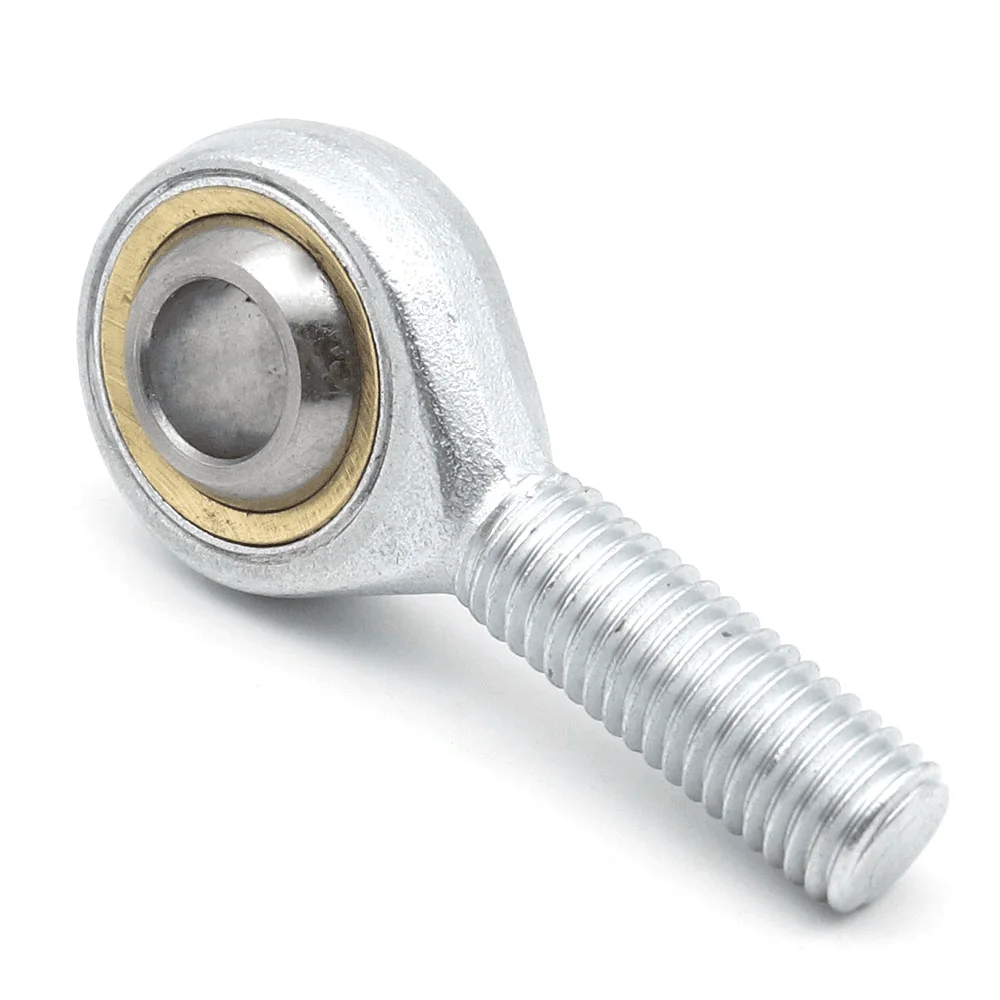

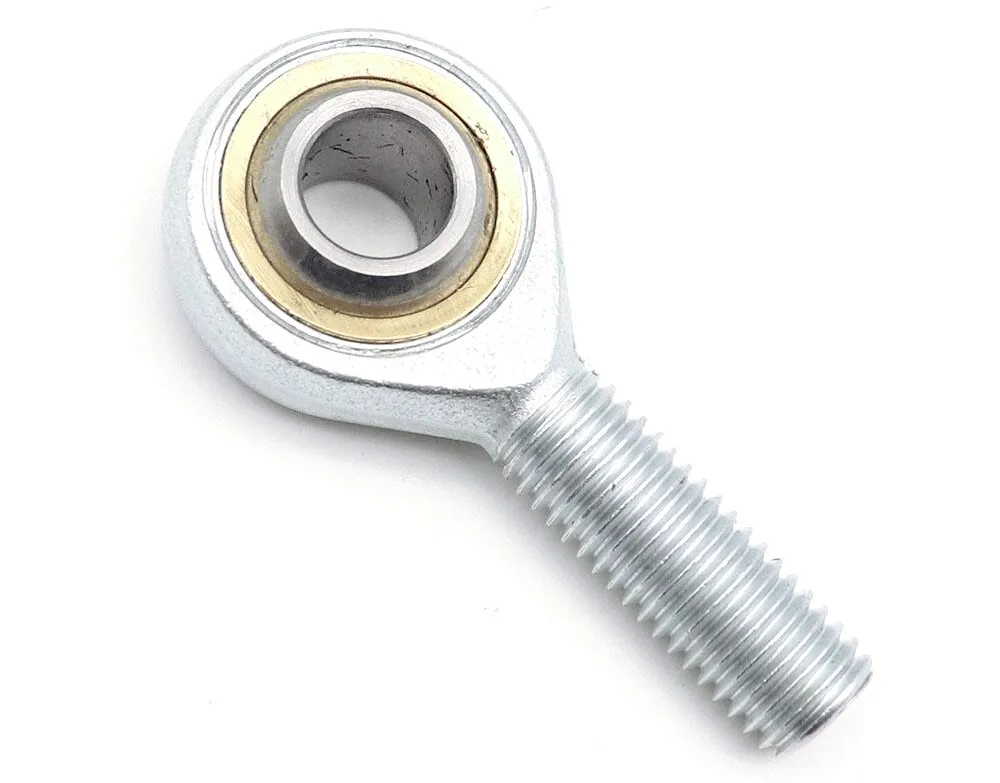

China Brand Staliless Steel Fisheye Joint Rod End bearing SA6T/K
- Category: >>>
- Supplier: Shanghai Xiayu Bearing Co. Ltd.
Share on (1600540571198):
Product Overview
Description
Product Description

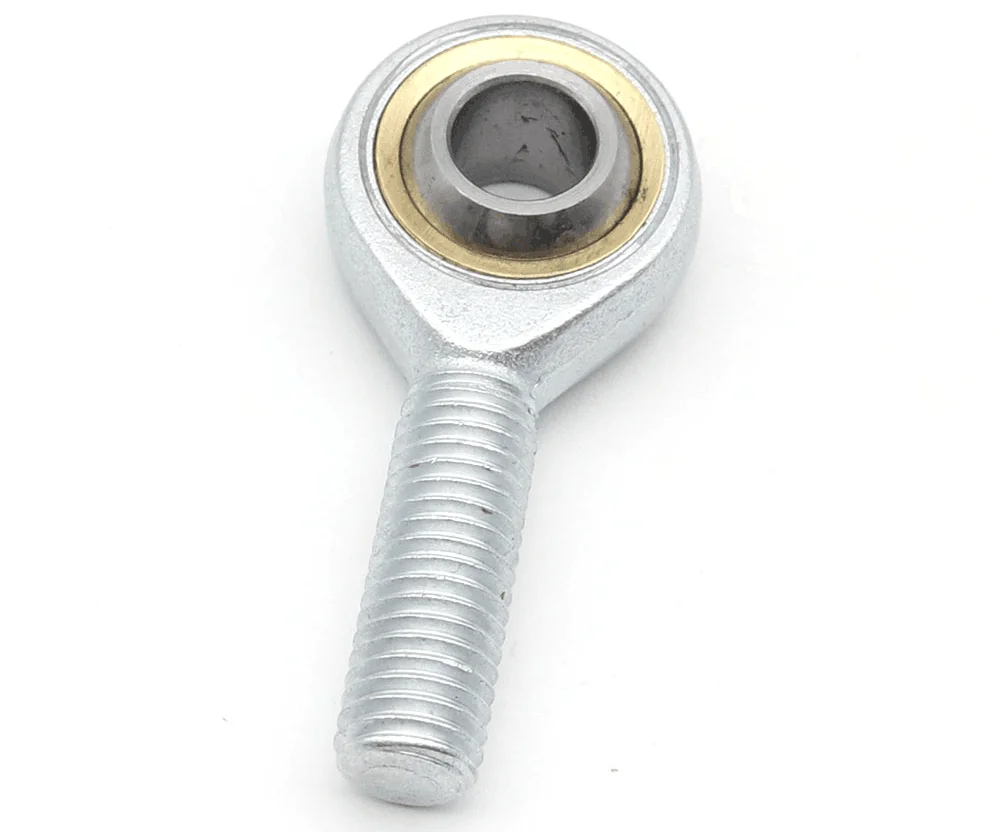

Rod end joint bearing is a kind of spherical sliding bearing. Its sliding contact surface is an inner spherical surface and an outer spherical surface. It can rotate and swing at any angle during movement. Process processing method is produced. The spherical plain bearing has the characteristics of large load capacity, impact resistance, corrosion resistance, wear resistance, self-aligning and good lubrication.

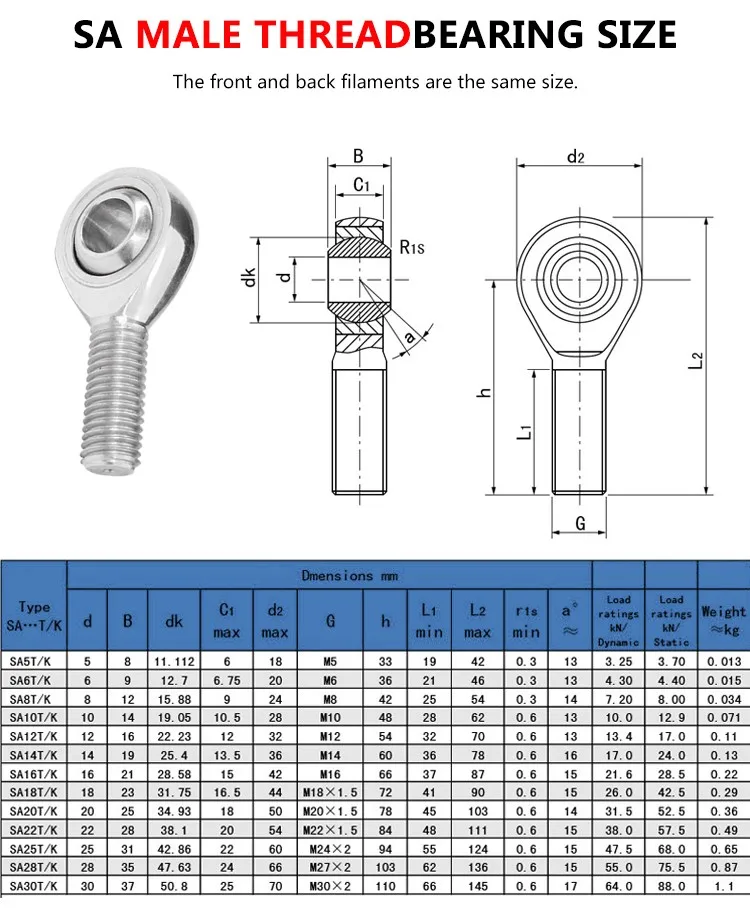

Size Information
Product Name | Rod End Bearings |
Size | SA6T/K |
Material | Chrome Steel/Stainless Steel/Custom Material |
Inner Dia | 5mm |
Outter Dia | 9mm |
Thickness | 21mm |
Dynamic Load | 4300N |
Static Road | 4400N |
ABEC Rating | ABEC 1 3 5 7 9 available |
Weight | 0.015kg |
Si3N4,ZrO2,Al2O3 and Steel's basical performance date comparision:
Items | Steel | Si3N4 | ZrO2 | Al2O3 |
Density(g/cm³） | 7.85g/cm³ | 3.23g/cm³ | 6.05g/cm³ | 3.95g/cm³ |
Coefficient of Thermal Expansion（10-6/K） | 10 | 3.2 | 10.5 | 9.1 |
Hardness | 700HV/62HRC | 1500-1800HV/75-80HRC | 1200HV/70HRC | 1800HV/80HRC |
Bending Strenth(Mpa) | 2400Mpa | 200Mpa | 300Mpa | 220Mpa |
Compressive | ----------- | 1400Mpa | 2100Mpa | 1500Mpa |
Highest Temp. | 300℃ | 800℃ | 550℃ | 1850℃ |
Acid and Alkali Corrossion Resistance Performance | Weak | Strong | Strong | Strong |
Dimensions Stability | With the Temp. change is big | With the Temp. change is smaller | ------------------ | ---------------------- |
Related Products
Our Company
XIAYU Bearing Industrial Inc. is one of the Custom Bearing Manufacturer and world wide Distributors of all types of Bearings,we work directly with our OEMs and Bearing Distributors. Our engineers can help you with bearing, shaft and housing tolerances as well as semiconductor applications, cryogenic applications, extreme hostile environments, and extreme temperatures environments.
Exhibition

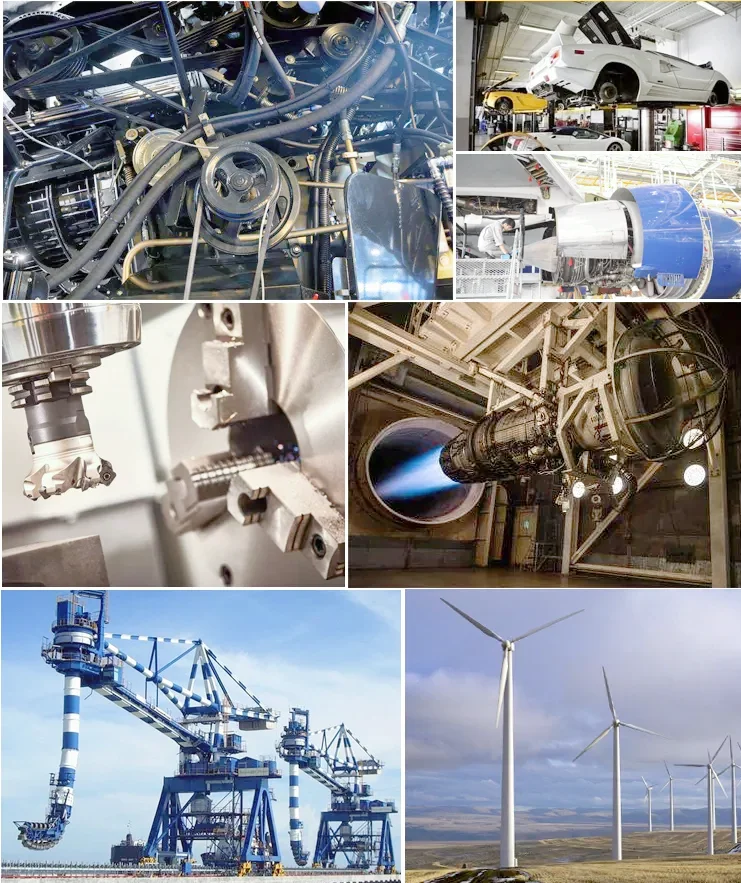

Application
Our service
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1.Single Box 2. Plastic Tube 3. Carton 4. Wooden 5. Pallet
We can also offer the customized packing service.
We can also offer the customized packing service.
