Factory wholesale tungsten carbide sandblasting nozzle

Product Overview

Description

Mainly used in the field of oil drill, plane, shipping, automobile, chemical industry and build engineering etc.

The product is better to be used to derust the rust on the inner-wall of pipes between φ80-300mm with cleaning grade to Sa 2.5.

The grinding materials matched with the cleaner are: Shot, ore sand

Abrasive grain mesh: 25 and 10, that is 0.71mm and 2mm respectively.

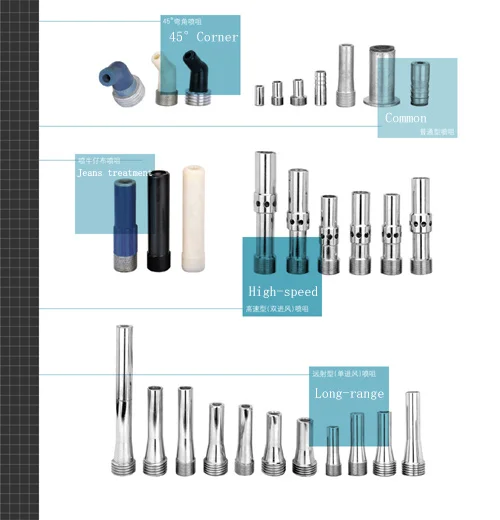

Description		Type	Throat diameter (mm)	Length (mm)	Air consumption volume (m3/min)	Use	Price
High-speed		YG-G6	6	135	1.68-2.70	It is mainly used for surface sandblasting, derusting and decontamination treatment and derusting efficiency of large equipment such as ships, chemicals, water conservancy and machinery: 30 m2 /h	$50
		YG-G8	8	170	2.71-4.41		$50
		YG-G8D	8	145	2.71-4.41		$50
		YG-G10	10	180	3.91-6.38		$51
		YG-G10D	10	150	3.91-6.38		$51
		YG-G12	12	190	6.99-11.40		$51
		YC-G14	14	190			$51
Long-range	Metric fine thread	YG-Y4WZ	6	125	1.68-2.70	It is mainly used for derusting and decontamination of containers, ships, bridges, vehicles and chemical pipelines, with an efficiency of 18-20 m2 /h	$40
		YG-Y5WX	8	145	2.71-4.41		$42
	Metric coarse thread	YG-Y5WXD	6	125	2.71-4.41		$40
		YG-Y5WXD	8	113	2.71-4.41		$40
		YG-Y6WBX	10	175	3.91-6.38		$50
		YG-Y6WXD	10	113	3.91-6.38		$44
		YG-Y8WX	12	180	6.99-11.40		$50
		YG-YWGD	12	115	6.99-11.40		$42
			14	190			$50

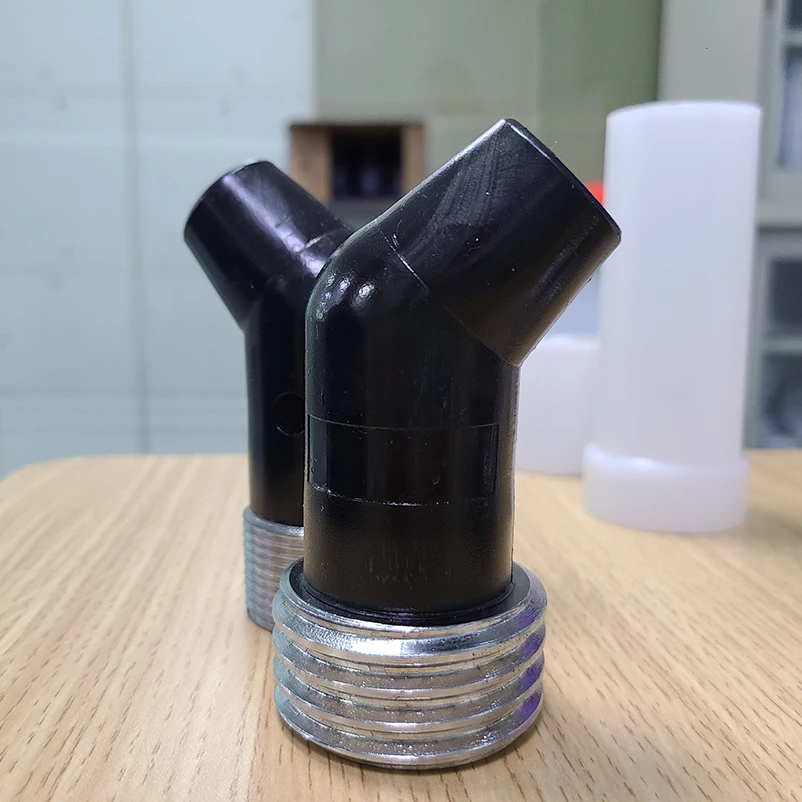

Special	45°Corner	YG-TX	6	105	2.71-4.41	It is mainly used for sand blasting of dead corners, inner walls and special purposes of pipelines.	$42
		YG-TY	8	100	2.71-4.41		$42
		YT-TG	10	100	2.71-4.41		$48
	Jeans treatment	YT-TG	12	100		Mainly used for denim surface sandblasting.	$42
		YGH-N4	6	125	1.68-2.70
		YGH-N5	8	145	2.71-4.41
		YGH-N7	10	175	3.91-6.38
Aluminum shell nozzle				400			$275
Small three hole				85			$67
Big three hole							$81
Large piston rod sleeve							$67

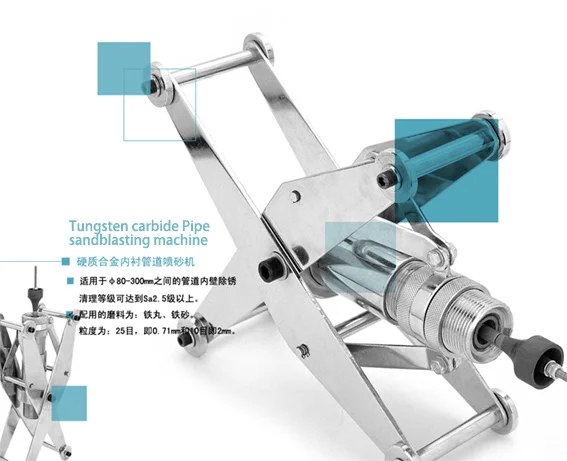

Pipe sandblasting machine							$446
