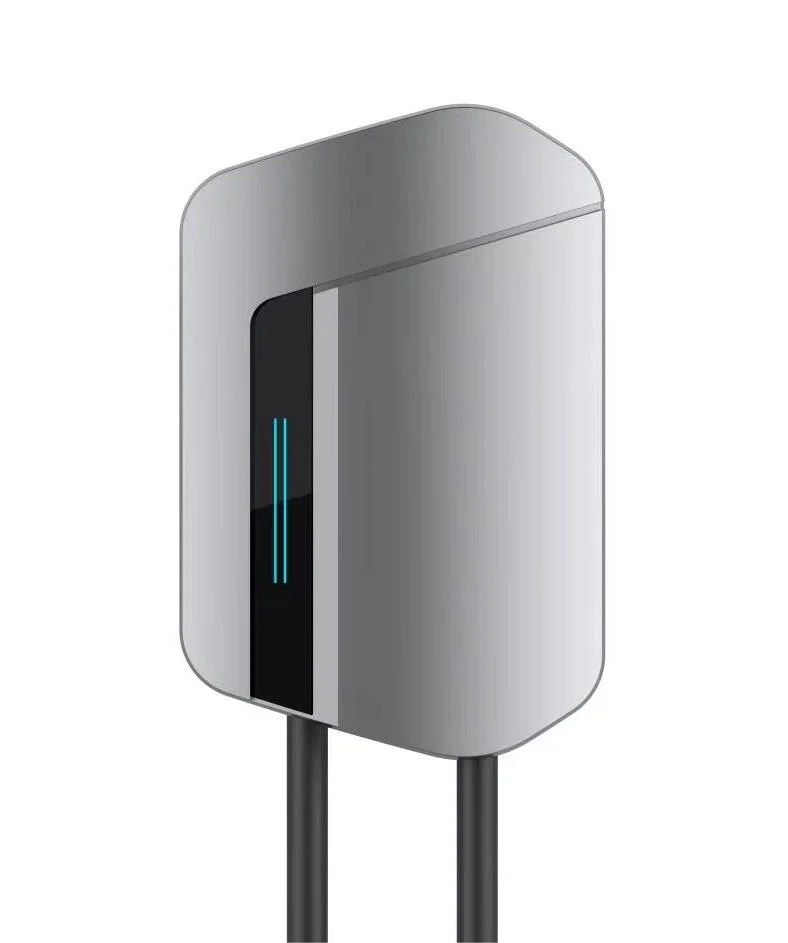

OEM ODM электрическая Автомобильная солнечная зарядка для электромобилей Тип 2 wallbox домашняя зарядная станция для электромобилей
- Category: Vehicle Parts & Accessories >>>
- Supplier: Zhongshan Auxus Electronic Technology Co. Ltd.
Share on (1600540579805):
Product Overview
Description
Certificates & QC | CE, UKCA, ROHS,ISO |

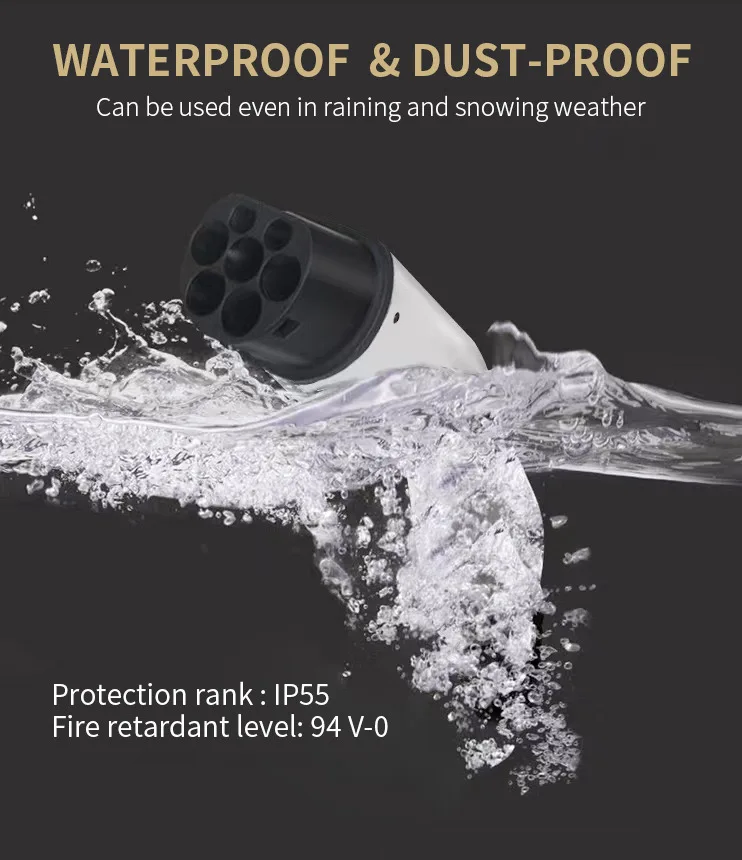

Protection rank | IP55 Cable; IP54 Station |
LCD display | without screen & with screen(opt) |
RCD | type B (30mA AC + 6mA DC) |

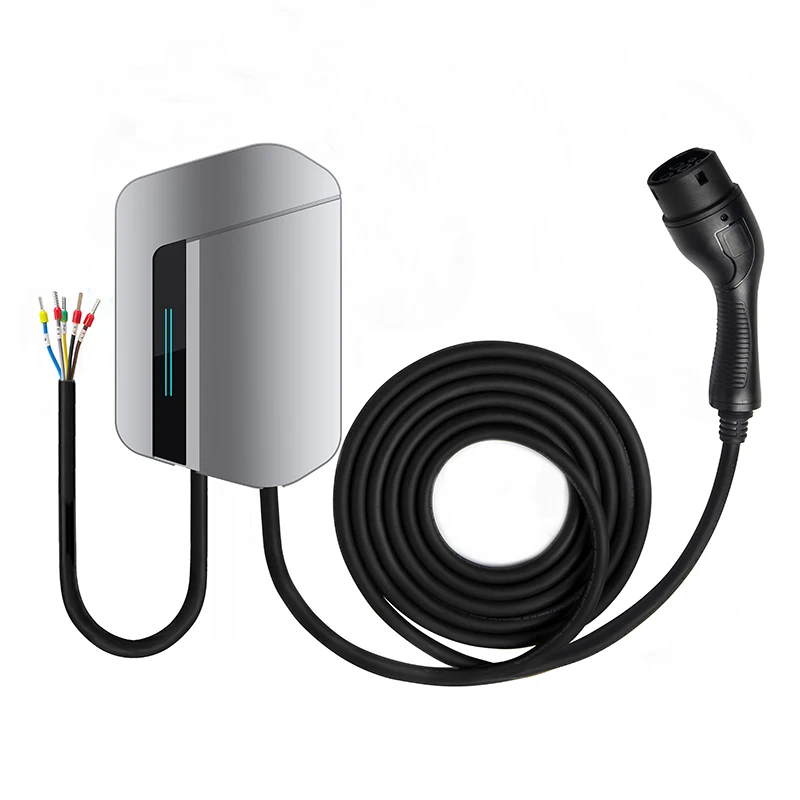

Power cord | open ready to wire into electricity |
Charging cable | 5M Type 2 (TPU Jacket) |
LED indicator | R/G/B |
Start mode | RFID card swipe / APP / Plug and Play(opt) |
Station size | 265x170x80 (mm) |
Warranty | 2 years (both cable and station) |
lead time | 30-35 days after deposit payment |
Payment Terms | T/T(30% advanced payment ,the rest 70% balance should be paid before shippment) |
Electrical Protection | Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection |
Materials Applied | Shell: by thermoplastic PC940. Anti-corrosion and abrasion protection. UV coating Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark. |
Customizing Logo | Logo put on shell by laser on station box or cable head |
Package | Each in inner carton box with blister inner tray, then 2 inner cartons into 1 master carton |
Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019 IP54, Weather proof; Leakage current protection; Impact resistance Charging status and working error simply displayed by LED indicators and LCD screen |
Products Description
EN Standard Strong Patience.
The charging cable meets the latest EN standard request of an electric vehicle charging cable.Highly resistant to the cold & heat,
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditio-ns.
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditio-ns.

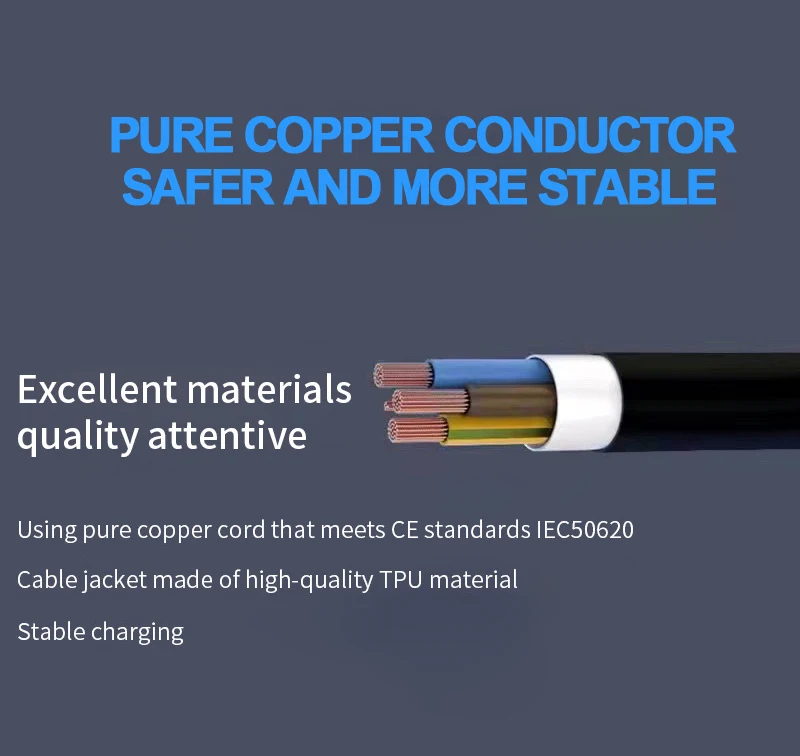

TPU Cable.
Highly resistant to bending, protecting the internal wiring harness to function normally under repeated bending conditions.
Climate Friendly Stronger & Anti-aging.
The halogen-free charging cable is climate friendly, meeting the EU’s and USA’s environmental standards.The tight, strong
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.

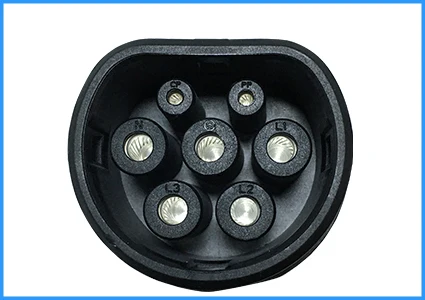

Arcing Design.
Unique self-cleaning’ design ensures that impurities on the surface of the pins can be removed during each plug-in process.

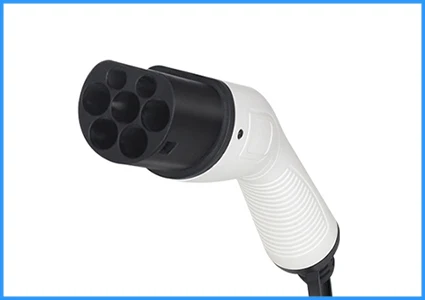

Ergonomic Design
and Integrated Design

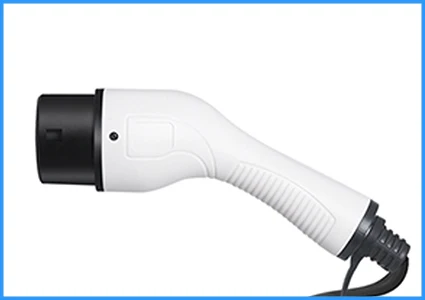

Angled horizontal bending design, in line with the habit of manual force which allows for convenient plugging & unplugging.
K10 rated with an integrated design ensuring that you can charge safely in all weather conditions.
K10 rated with an integrated design ensuring that you can charge safely in all weather conditions.
Better Conductivity.
Silver plating on the pins ensures greater conductivity, charging efficiency and reduces heat generation.
Temperature Monitoring
Detects if the temperature is higher than the ‘set safe’ value, if this occurs, the current will automatically be cut off.
Charger Model & Spec | ||||||||
Model No. | Rated Current | Power | Charging Cable | Certificate | ||||
VCS-MB-7 | 200-240V / 32A | 7kW | 3x6.0mm²+0.5mm² | CE, ROHS,UKCA | ||||
VCS-MB-11 | 380-440V / 16A | 11kW | 3x2.5mm²+0.5mm² | CE, ROHS,UKCA | ||||
VCS-MB-22 | 380-440V / 32A | 22kW | 5x6.0mm²+0.5mm² | CE, ROHS,UKCA | ||||
CAUTION:
1. Don't submerge the EV charging cable in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.

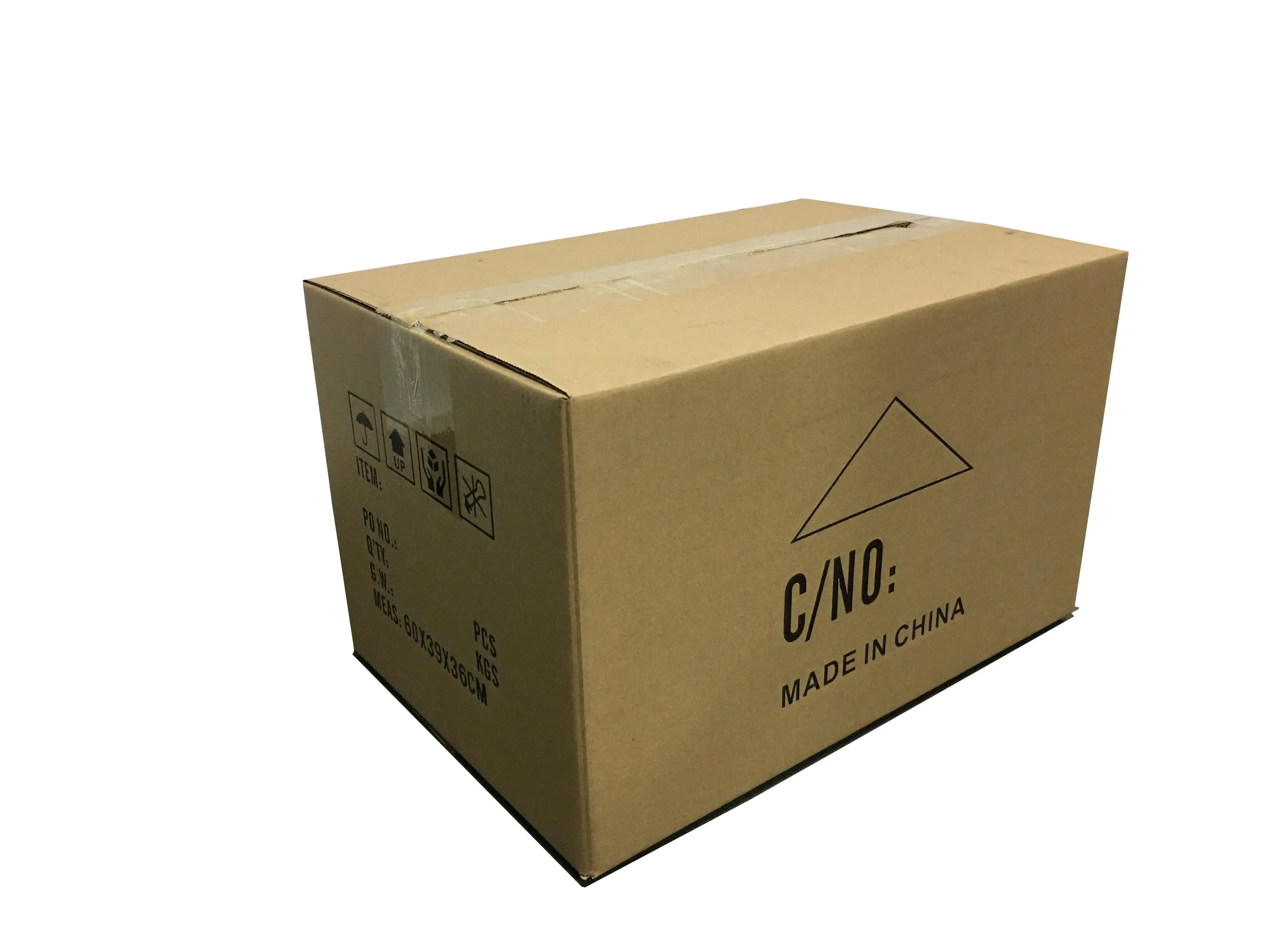

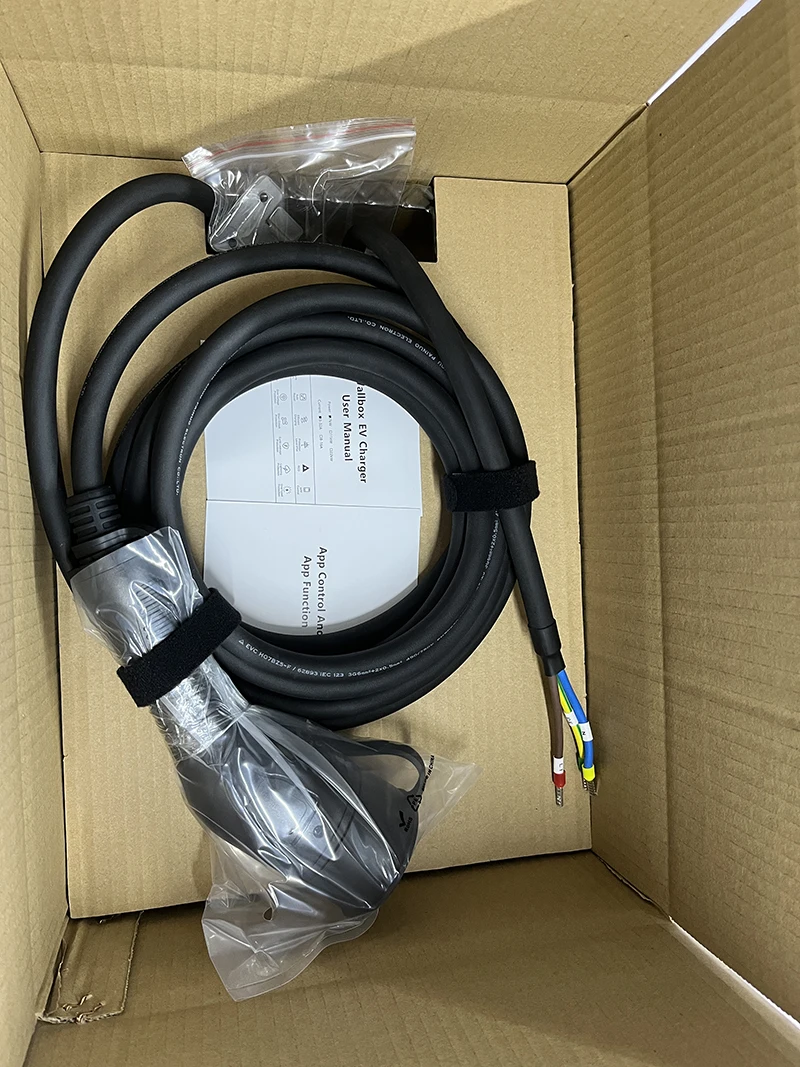

Packing & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services
will be provided.1 pcs in an inner carton, then take 2 pcs in a big master carton box.
will be provided.1 pcs in an inner carton, then take 2 pcs in a big master carton box.

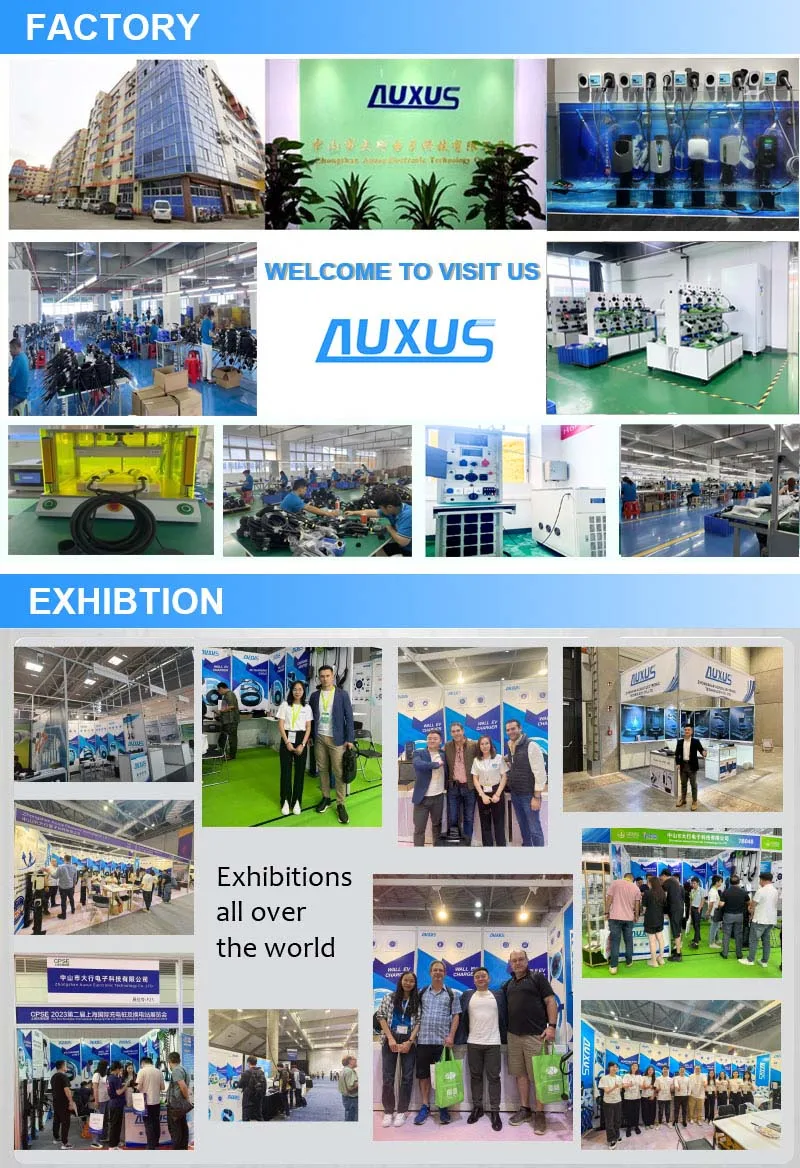

Company Profile

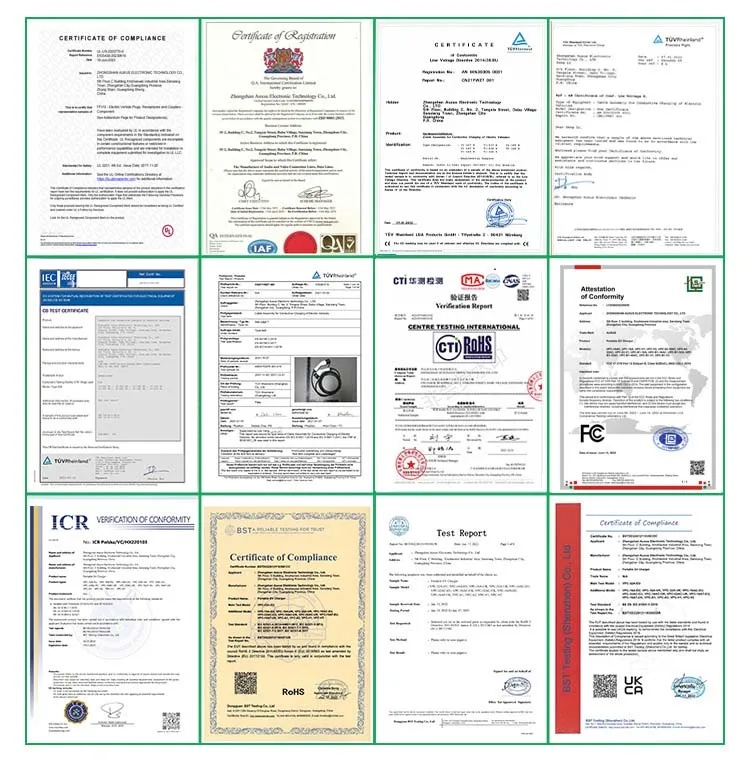

AUXUS, is expert on personal and home EV charging products(EV Charging cable & Portable EV Charger and the EV Charger station), selling to many big brands and distributors with OEM and ODM service. Clients can rest one hundred percent trust on our products as we have obtained lots of international certification, such as CE(TUV lab, ICR lab, UDEM lab), TUV-Mark, UKCA, UL, REACH, RoHs,CB,KC,ISO9001:2015, FCC. All of them are speaking witnesses on our products quality. When doing business with partners, we always sticks to one principle "simple-integrity".
Auxus is also continuously developing new patented designs to market with 14 years experiences in cables and charging products, we have low cost and most reliable expertise.
Many years of hard work have led Auxus to become an excellent international provider, enjoying world-wide prestige of first-class service as well as customer-orientated concept.
Zhongshan Auxus Electronic Technology Co., Ltd. is in a convenient traffic condition to deliver freight at customers’ requirement. We covering an area of 8,000 square meters.Time is gold, Auxus has around 100 employees and professional production line to ensure an adequate manufacture capability. Meanwhile there is an outstanding R&D team in Auxus to support product upgrading and innovating, which keeps moving on the way of satisfying customers’ various demands. Our sales team, believing in value of full-hearted service, always listens much carefully, considers much deeply, and serves much warmly.
Auxus is also continuously developing new patented designs to market with 14 years experiences in cables and charging products, we have low cost and most reliable expertise.
Many years of hard work have led Auxus to become an excellent international provider, enjoying world-wide prestige of first-class service as well as customer-orientated concept.
Zhongshan Auxus Electronic Technology Co., Ltd. is in a convenient traffic condition to deliver freight at customers’ requirement. We covering an area of 8,000 square meters.Time is gold, Auxus has around 100 employees and professional production line to ensure an adequate manufacture capability. Meanwhile there is an outstanding R&D team in Auxus to support product upgrading and innovating, which keeps moving on the way of satisfying customers’ various demands. Our sales team, believing in value of full-hearted service, always listens much carefully, considers much deeply, and serves much warmly.
FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
