Edible Oil Extraction Plant: Drag Chain Extractor



1. General Description

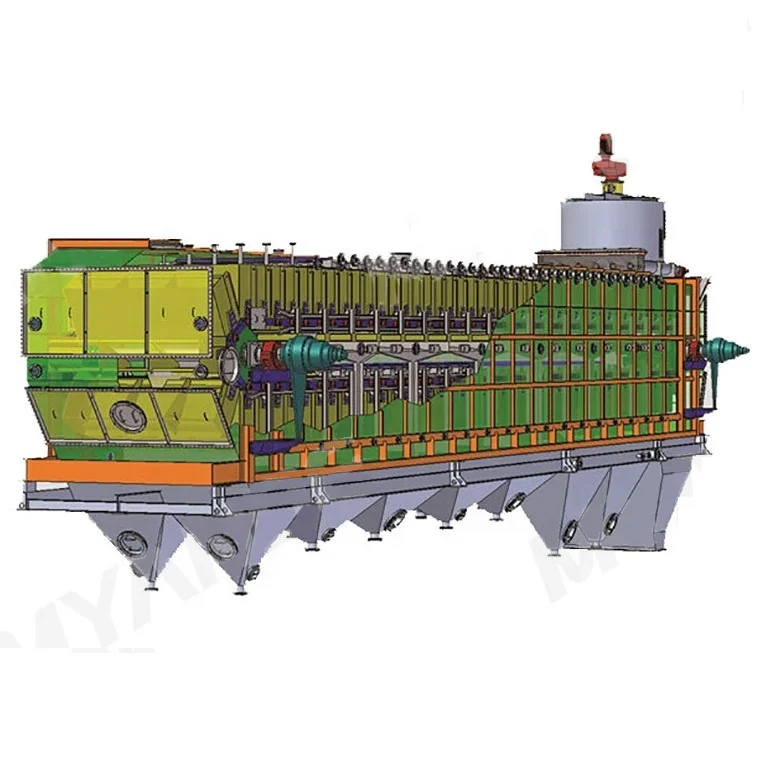

Drag chain extractor adopts the box structure that removes the bending section and unifies the separated loop type structure. The leaching principle is similar as the ring extractor. Though the bending section is removed, materials could be stirred completely by the turnover device when falling into the lower layer from the upper layer, so as to guarantee the good permeability. In practice, the residual oil can reach 0.6% ~ 0.8%. Due to the absence of the bending section, the overall height of drag chain extractor is quite lower than the loop type extractor.



2. Features

1. The entire drag chain type solvent extractor has a simple structure, convenient operation and high efficiency.

2. Adopting new techniques and advanced uniform box structure, that unifies the separated upper and lower layer of loop type structure, with good permeability, ensure uniform and better spraying, the residual oil rate can reach 0.6-0.8%.

3. Designed with a high bed, the solvent extractor has a good processing capacity. During the extracting process, the solvent and miscella get enough time to contact and mix with raw materials, allowing for quick saturation, high extraction and low oil waste.



3. More Technical Data

Model	Capacity	Power(kW)	Application	Notes
YJCT100	80-120t/d	2.2	Oil extraction of various of oilseeds	It's extremely suitable for fine oil materials and oil materials with high oil content, little residual oil.
YJCT120	100-150t/d	2.2
YJCT150	120-160t/d	3
YJCT180	160-200t/d	4
YJCT200	180-220t/d	4
YJCT250	200-280t/d	7.5
YJCT300	250-350t/d	11
YJCT350	300-480t/d	15
YJCT400	350-450t/d	22
YJCT500	450-600t/d	30

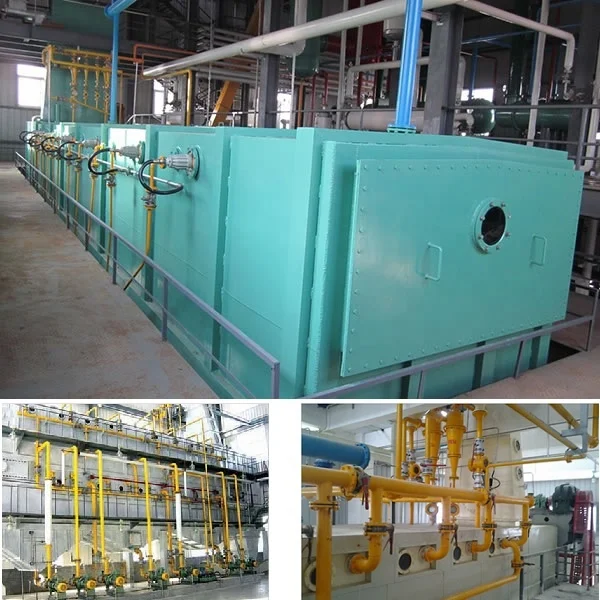

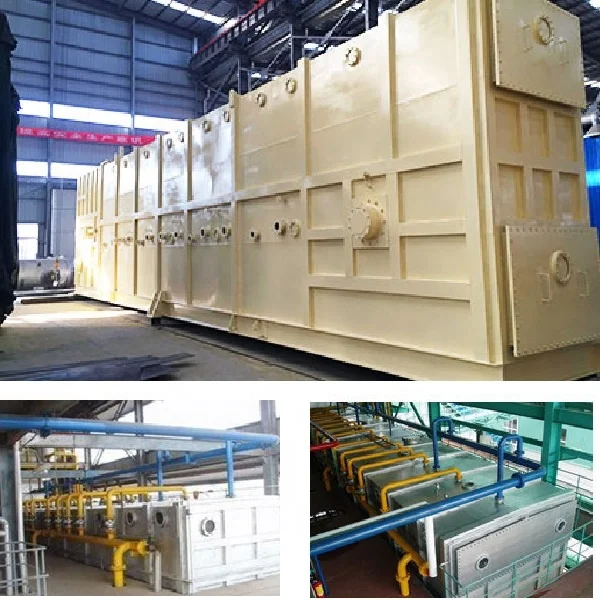

4. Photos





5. Packing and Shipping:
(1) Packing: Usually in the wooden cases for main machines and carton boxes for small parts.

(2) Delivery:
Usually in 5-45 days after payment, it depends on the model and order quantity. For small packages, we can choose delivery by air(Normal air or courier: DHL, TNT, UPS, FedEx, etc.). For large machines, we can arrange to ship by water( LCL or FCL, bulk cargo or RO/RO), train or truck.

6. Our Factory



7. Certificates



8. Customer Visiting

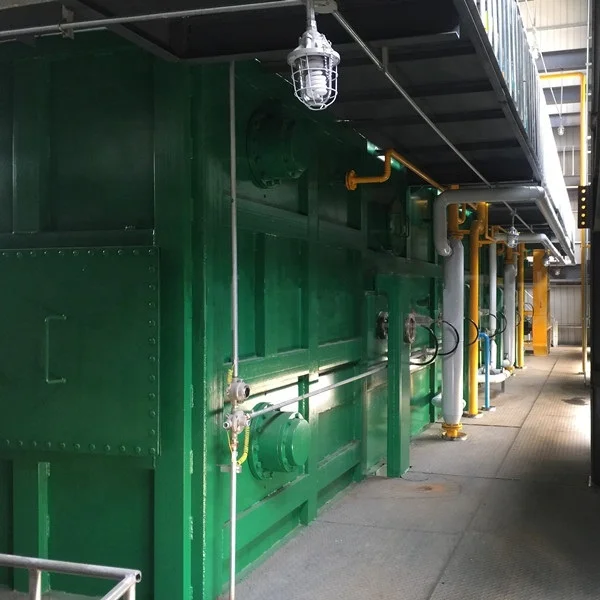

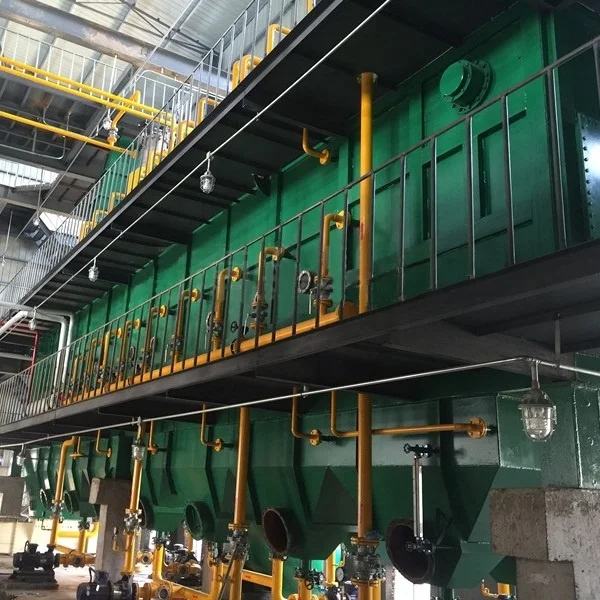

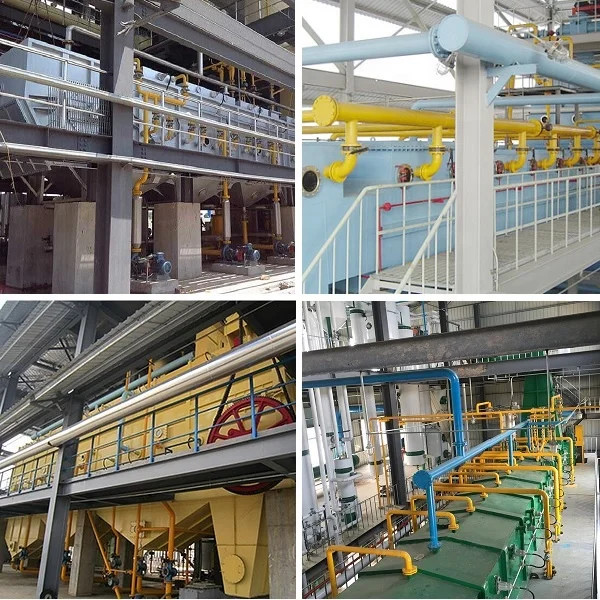

9. Installation site:



10. Why choose FOTMA?

11. Our Service:
---One year quality warranty for the machine and spare parts
--- Oversea engineers service for installation
--- Whole-life after-sales service and free consultation
---Customized requirements available
---Technician guide at the site.
---24Hr online service



12. FAQ
Q1:- Can we mix different models and accessories together?
A:- You may mix different products or models in a single container but we would need to advise you on optimum loading and final capacity of your shipment.

Q2:- How do I visit you and the factory?
A:- You are welcomed to visit us and our factory at your convenience. We can pick you up at airport or train station and bring you to our factory . Let us know your schedule in details so we can arrange everything for you. Normally you need 3 days for an adequate visit to our factory.

Q3:- How can I become a dealer in my area?
A:- If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.

Q4:- Can I get an exclusive right for your machines in some territories?
A:- It depends on which country you are in. We have exclusive agents at several countries at this time. Most countries you can sell freely.

Q5:- After payment, how long will it take to get the machines we order?
A:- Normally 30-90 days after your payment (15-45 days for manufacturing, 15 - 45 days for delivery and shipment on sea)

Q6:- I knew nothing about these machines, what kind of machine I should choose?
A:- Very easy. Let us know your idea about the capacity or budget, you will also be asked some easy questions, then we can recommend you good models according to the information.

Q7:- What is your warranty period?
A:- Our company offer 12 months warranty since goods arrival at destination. If there is any quality problem which caused by material or workmanship fault during the warranty period, please contact us directly and we'll supply free spare parts for replacement.

Q8:- What is the warranty range?
A:- The quality problem which caused by material or workmanship fault will be covered by warranty. The wearing parts and electric device are not included in warranty range. Any troubles and damages that caused by misplacement, misuse, improper operation, poor maintenance and non-compliance with seller's instructions will however be excluded from the guarantee.
