Wet drum magnetic separator for metal mine, wet type mineral processing magnetic drum separator
- Category: >>>
- Supplier: Sino Mining Co. Ltd.
Share on (1600540606006):
Product Overview
Description
Products Description

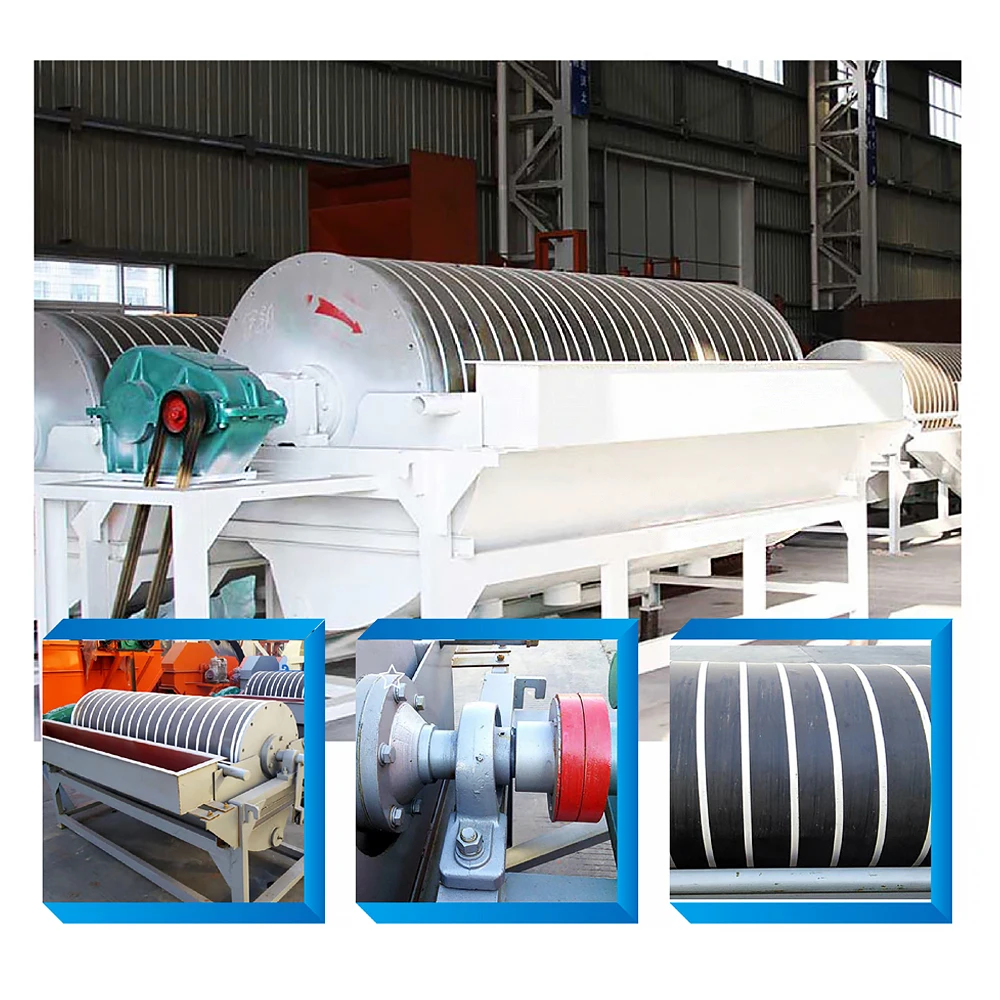

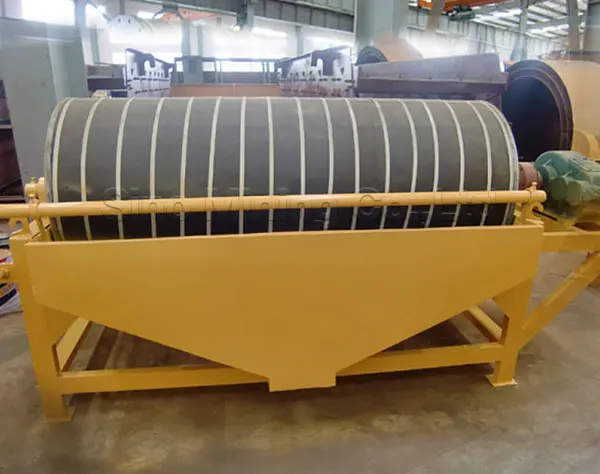

Factory Price Magnet Separator
Magnetic separation equipment is suitable for wet magnetic separation of magnetite, pyrrhotite, roasted ore, ilmenite and other materials with particle size less than 3mm and iron removal of coal, non-metallic ore, building materials and other materials. The magnetic system is made of high-quality ferrite material or composite with rare earth magnetic steel with the average magnetic induction intensity of cylinder surface is 100 ~ 600Mt.
Magnetic separation equipment is suitable for wet magnetic separation of magnetite, pyrrhotite, roasted ore, ilmenite and other materials with particle size less than 3mm and iron removal of coal, non-metallic ore, building materials and other materials. The magnetic system is made of high-quality ferrite material or composite with rare earth magnetic steel with the average magnetic induction intensity of cylinder surface is 100 ~ 600Mt.
Magnet Separator Working Principle
After the pulp flows into the tank body through the feeding box, the ore particles enter into the feeding area of the tank body under the action of the water flow of the feeding spout. Under the action of the magnetic field, the magnetic particles are magnetically aggregated to form a "magnetic group" or "magnetic chain". The "magnetic group" or "magnetic chain" moves to the magnetic pole in the slurry and is adsorbed on the cylinder.
After the pulp flows into the tank body through the feeding box, the ore particles enter into the feeding area of the tank body under the action of the water flow of the feeding spout. Under the action of the magnetic field, the magnetic particles are magnetically aggregated to form a "magnetic group" or "magnetic chain". The "magnetic group" or "magnetic chain" moves to the magnetic pole in the slurry and is adsorbed on the cylinder.
1. We have engineers in Kenya, Sudan, Uganda, Professional installation and training skills.
2. We have a factory and warehouse in Kenya and China, Fast pre-sale and after-sale service, Wear Parts in stocks, You can get it soon.
3. Our products have been spread all over China, and also exported to European, American, Asian, African countries. Our sales managers and engineers know the local condition very well, We will supply the most suitable solution for you.
Technical Paramenters
Model | CTB612 | CTB618 | CTB712 | CTB718 | |||||
Diameter(mm) | Φ600 | Φ600 | Φ750 | Φ750 | |||||
Length of drum(mm) | 1200 | 1800 | 1200 | 1800 | |||||
Granularity(mm) | 0-0.4 | 0-0.5 | |||||||
Feed density(%) | 20-25 | ||||||||
Capacity | Dry ore(t/h) | 10-15 | 15-20 | 30-35 | |||||
Pulp(m³/h) | 10-15 | 15-20 | 30-35 | ||||||
Power(kw) | 2.2 | 3 | |||||||
Weight(kg) | 1200 | 1500 | 1830 | 2045 | |||||
Overall dimensions(mm) | 2550*1300*1250 | 3150*1300*1250 | 2770*1780*1600 | 3350*1780*1600 | |||||
transportation
Ways of Packing:
1.Sand blasting, coat with high quality paint;2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival

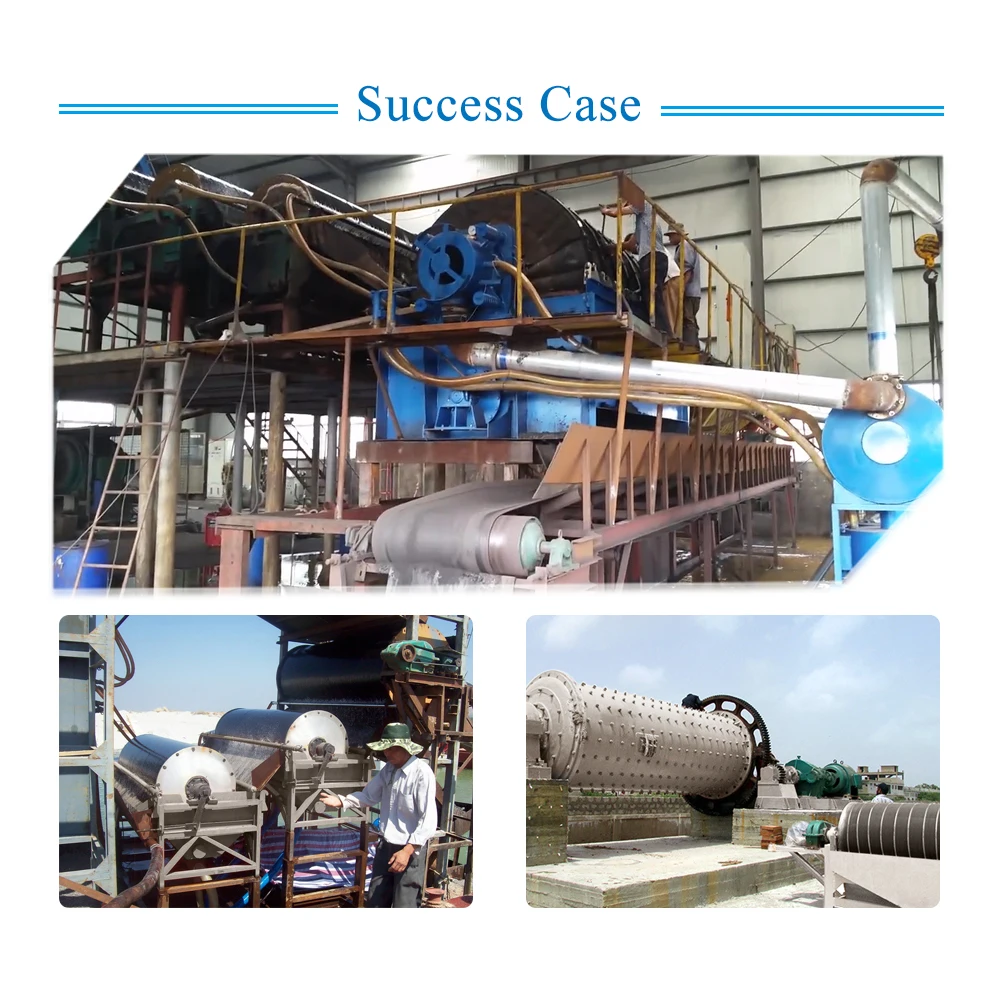

Customer Case
Overseas Service
1. We have engineers in Kenya, Sudan, Uganda, Professional installation and training skills.
2. We have a factory and warehouse in Kenya and Sudan, Fast pre-sale and after-sale service, Wear Parts in stocks, You can get it soon.
3. Our products have been spread all over China, and also exported to European, American, Asian, African countries. Our sales managers and engineers know the local condition very well, We will supply the most suitable solution for you.
Company Profile
Since its establishment in 1987, Sino Mining has gradually grown into an important force to push forward the reform and
development of the nonferrous metal industry thanks to the concerted efforts of generations of management team and all staff. In the process of international cooperation, Sino Mining has accumulated rich experience in resources development, engineering project contracting, international trade and related services, cultivated a professional team and formulated several valuable qualities. It has become one of the earliest and most successful enterprises in China's nonferrous metal industry implementing “going out” strategy.
development of the nonferrous metal industry thanks to the concerted efforts of generations of management team and all staff. In the process of international cooperation, Sino Mining has accumulated rich experience in resources development, engineering project contracting, international trade and related services, cultivated a professional team and formulated several valuable qualities. It has become one of the earliest and most successful enterprises in China's nonferrous metal industry implementing “going out” strategy.
Packing & Shipping
FAQ
Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China and Kenya .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A1: We are factory with CE. We have factory in China and Kenya .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
