Product Overview
Description
Product Overview

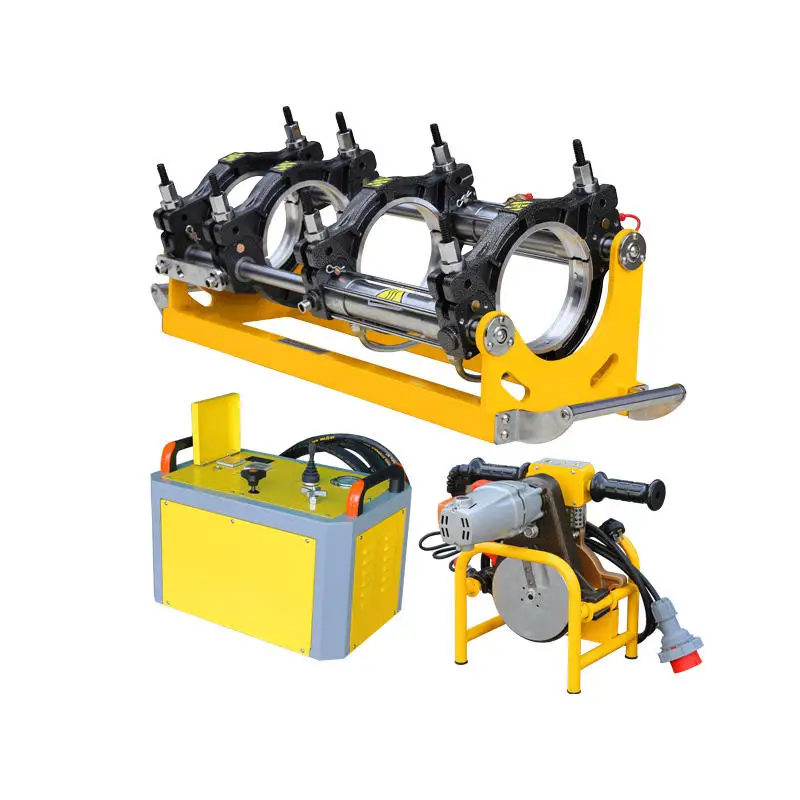

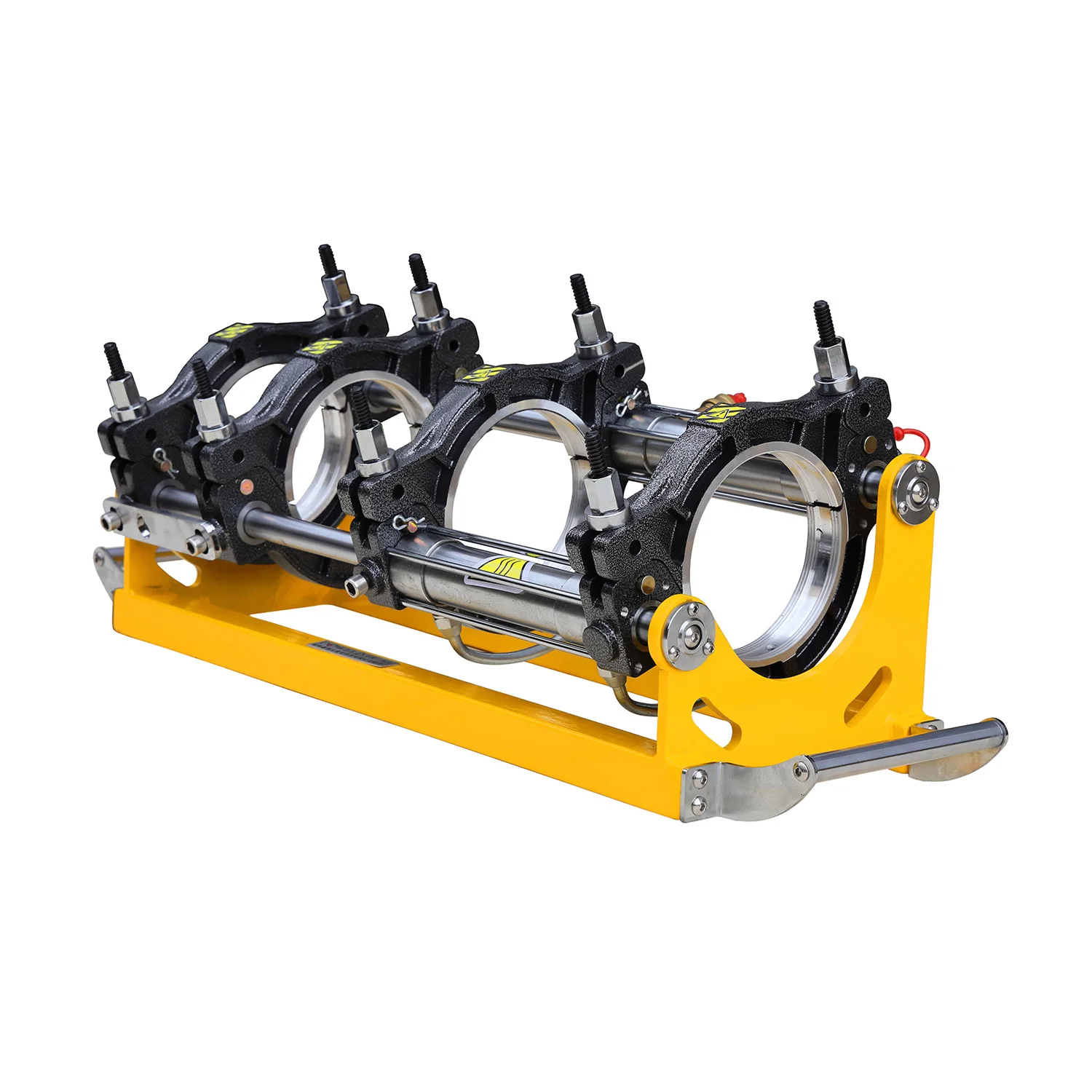

WP160A hydraulic butt fusion welding machine
HDPE, PE, PP pipes have been used extensively around the world. Butt fusion welding is an effective, trouble free connectingmethod for PE, HDPE pipes. In pressurized piping applications, butt fusion welding can provide excellent performance, just like awhole pipe.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing various butt fusion welding machine since 2005. It's our pleasure to help you build reputation in the piping project.

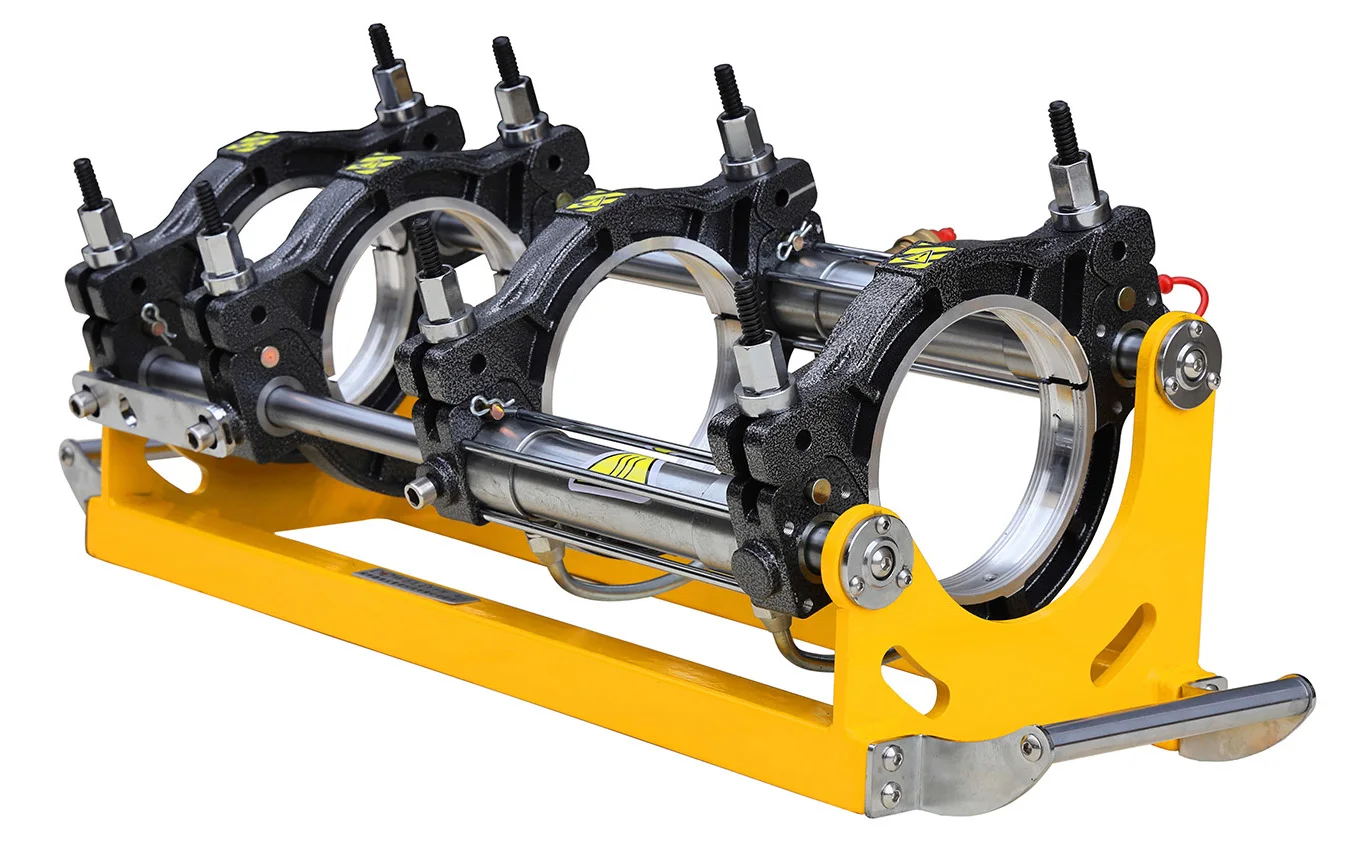

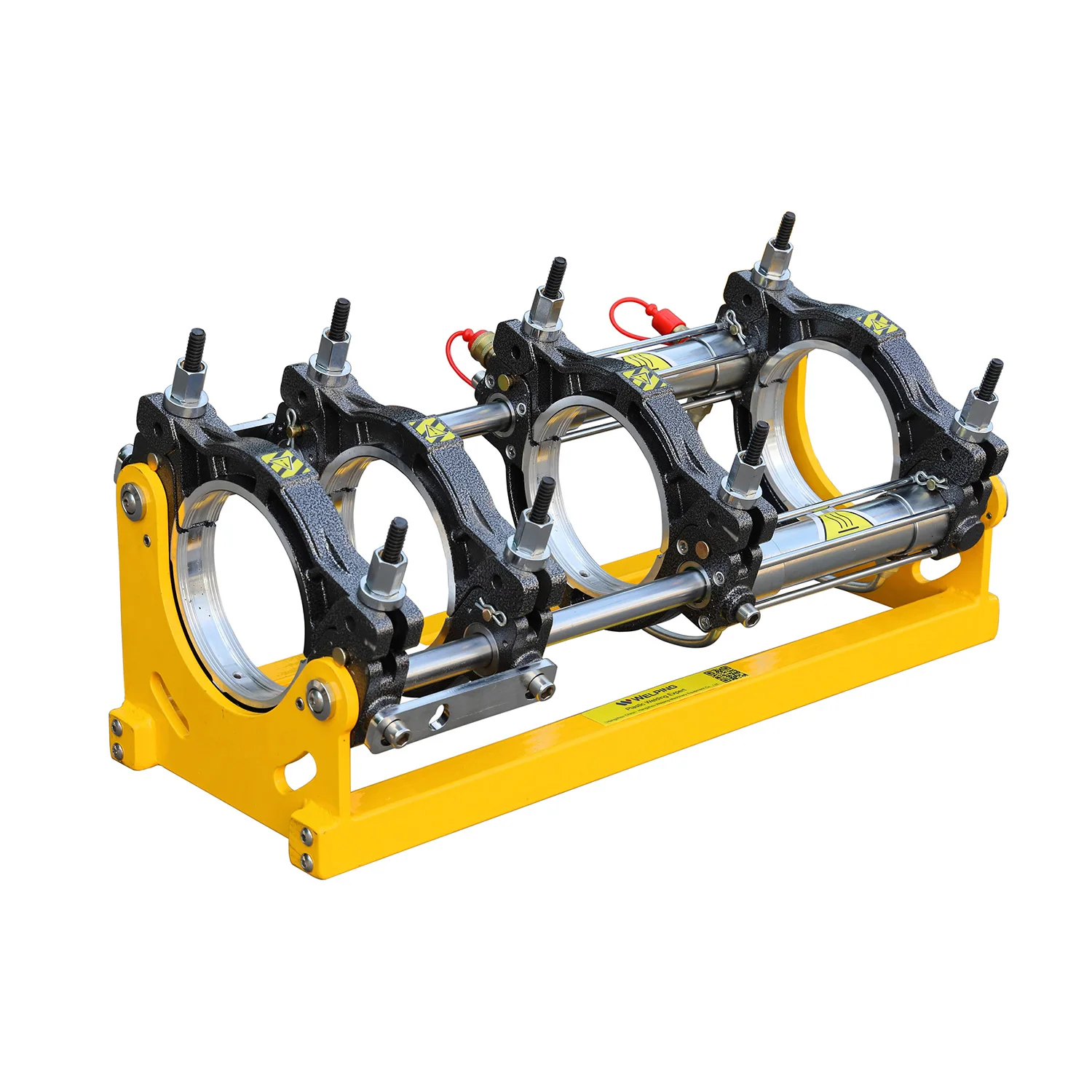

The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or base), planing tool(also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing various butt fusion welding machine since 2005. It's our pleasure to help you build reputation in the piping project.
The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or base), planing tool(also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control.
Productiion Specifications
Model | WP160A |
Suitable materials | PE,PP, PB. PVDF |
Range | 63-75-90-110-125-140-160mm |
Power supply | 110V/220V |
Frequency | 50HZ |
Total power | 3.25 KW |
Heating plate | 1.5 KW |
Planing tool | 1.0 KW |
Hydraulic station | 0.75 KW |
Max.Pressure | 16Mpa |
Hydraulic oil | L-HM46 |
Max.Temperature of heating plate | 270ºC |
Temp.Deviation in Surface | ±5ºC |
Total Weight | 111kg |
Net weight | 99kg |
Basic Frame & planing tool & heating plate （plywood case） | 84*45*62cm |
Hydraulic Unit （plywood case） | 54*49*58cm |

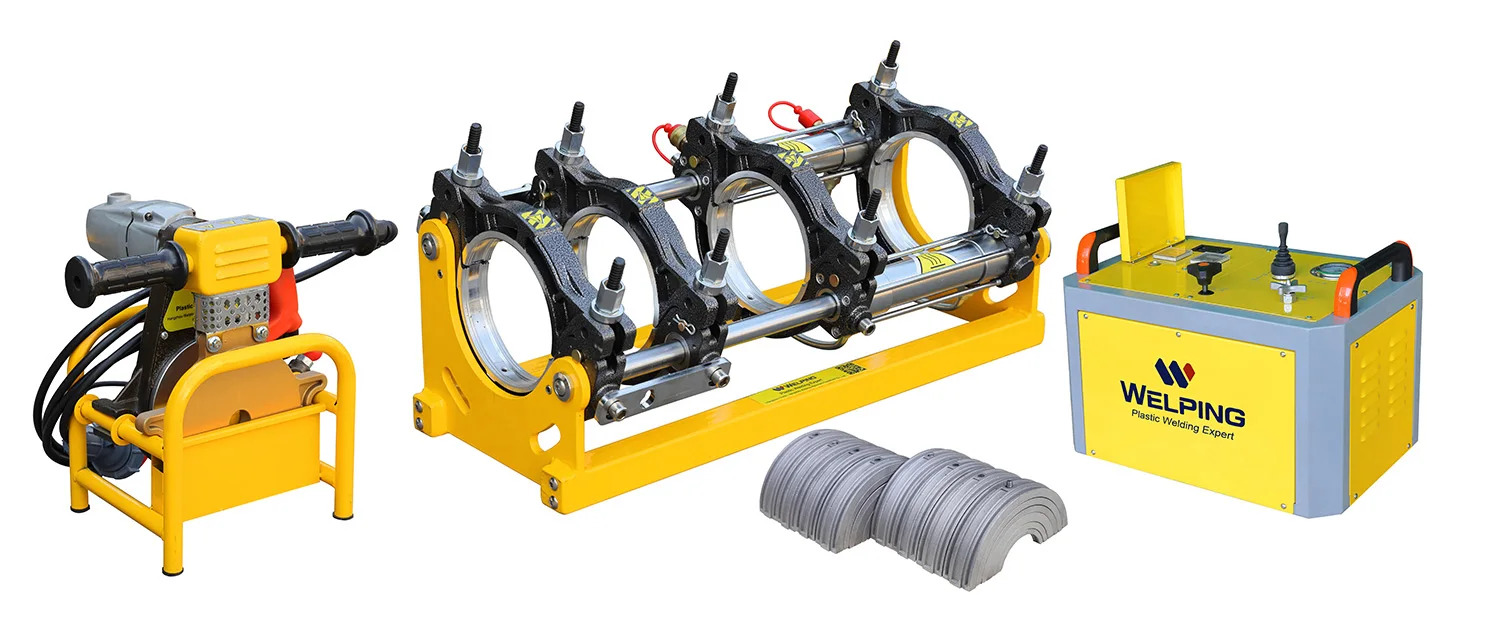

WP160A hydraulic butt fusion welding machine
Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor StructureModifications.
Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.

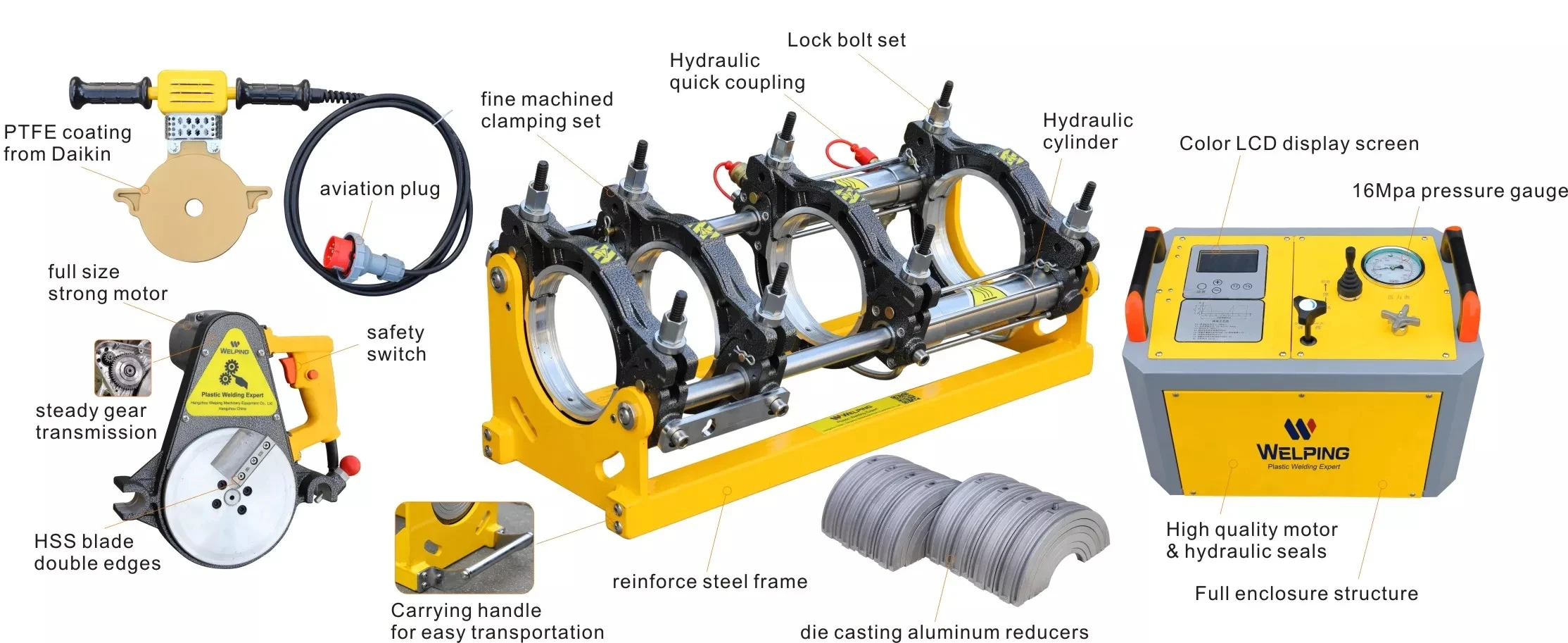

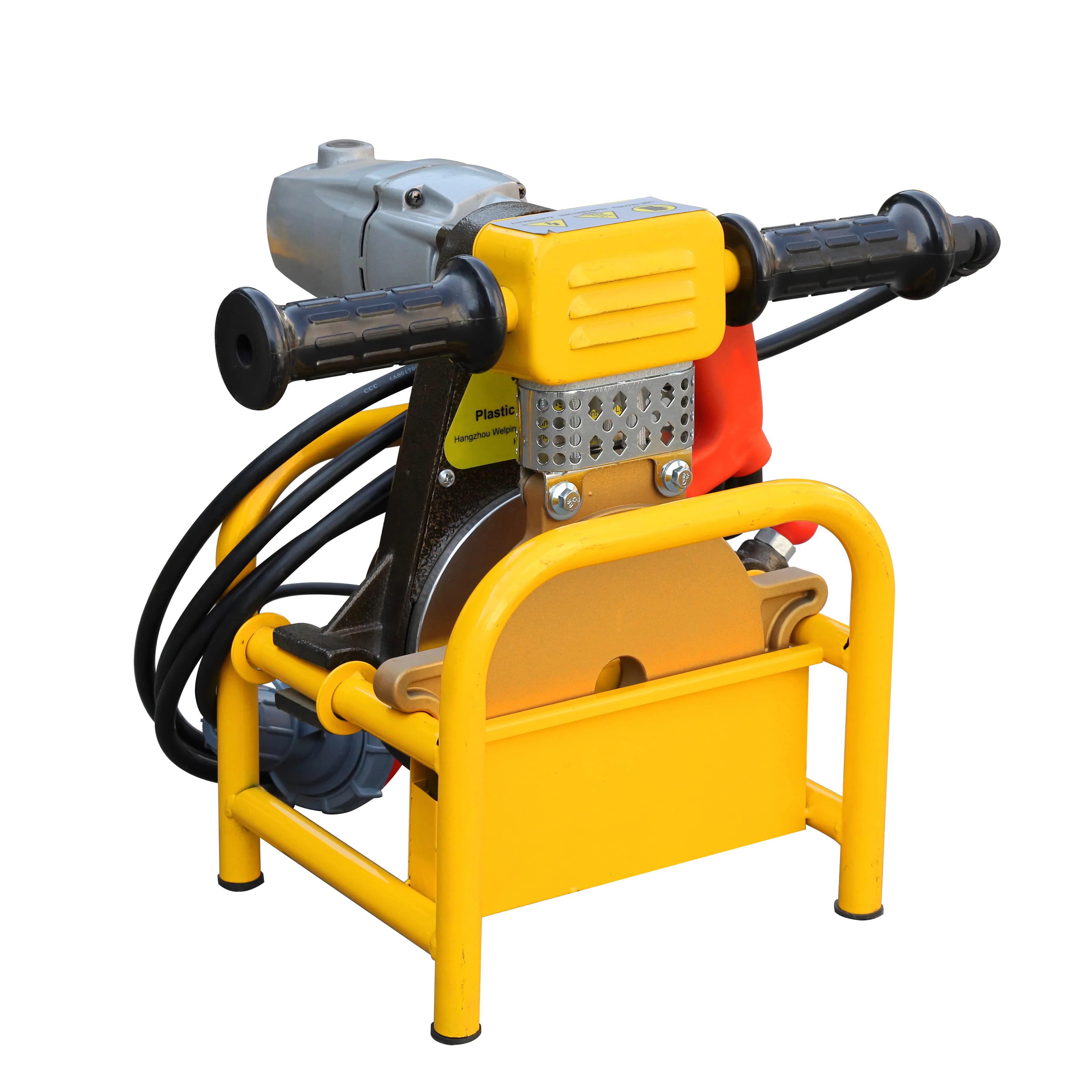

Product Features

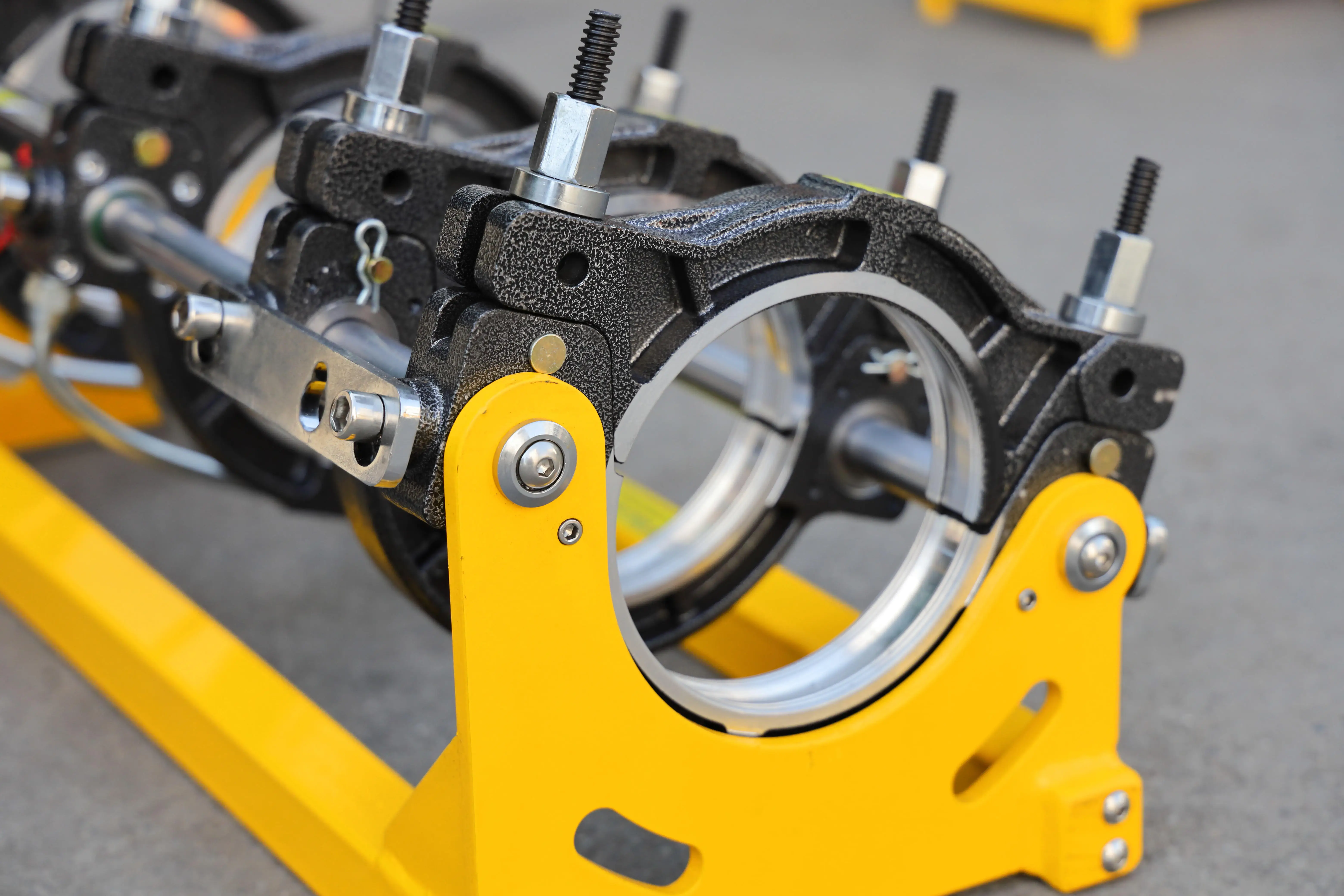

- Italy DNP quick coupler

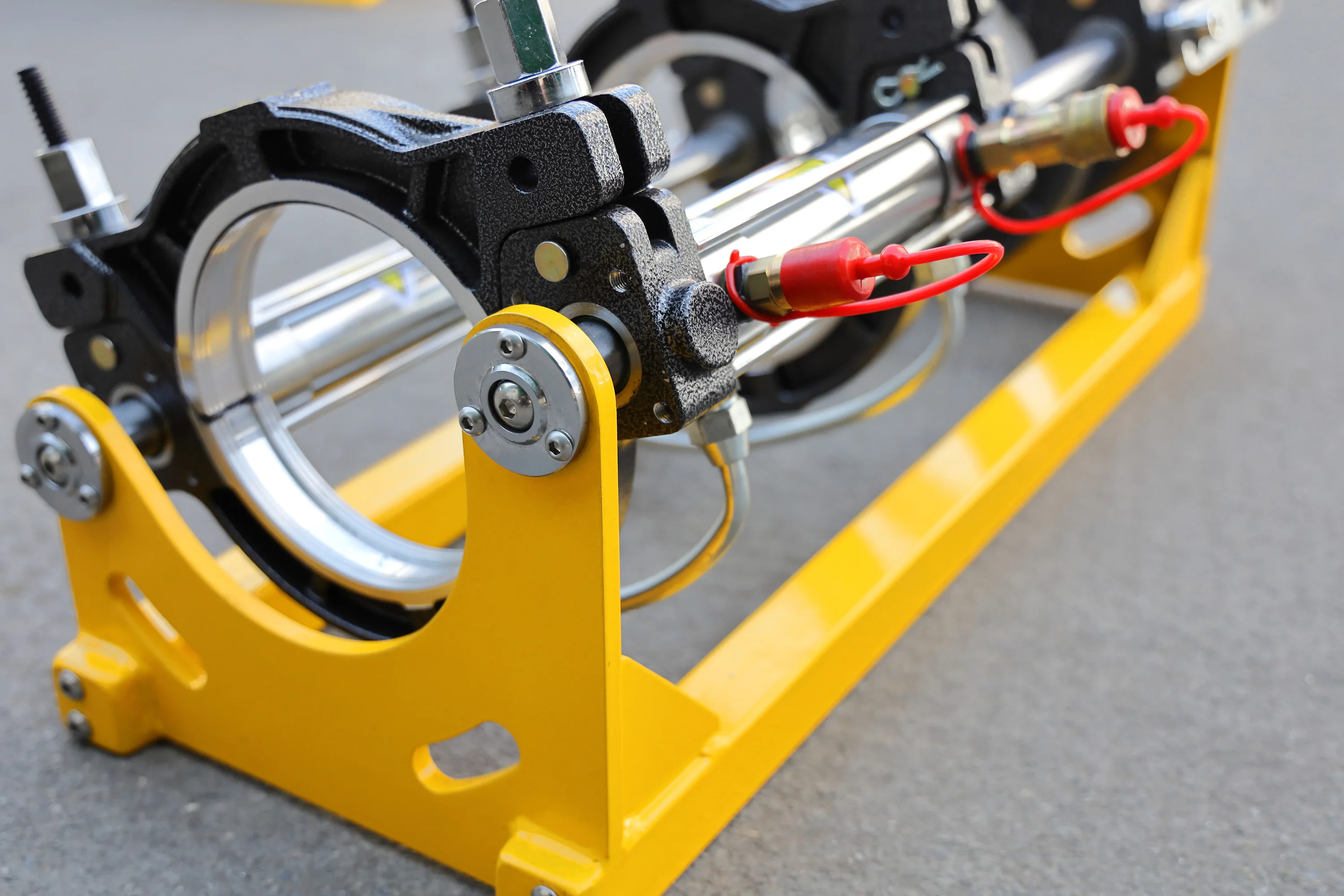

- Chromated hydraulic cylinder made of
1045(ASTM)/S45)(JIS)/C45(DIN) steel

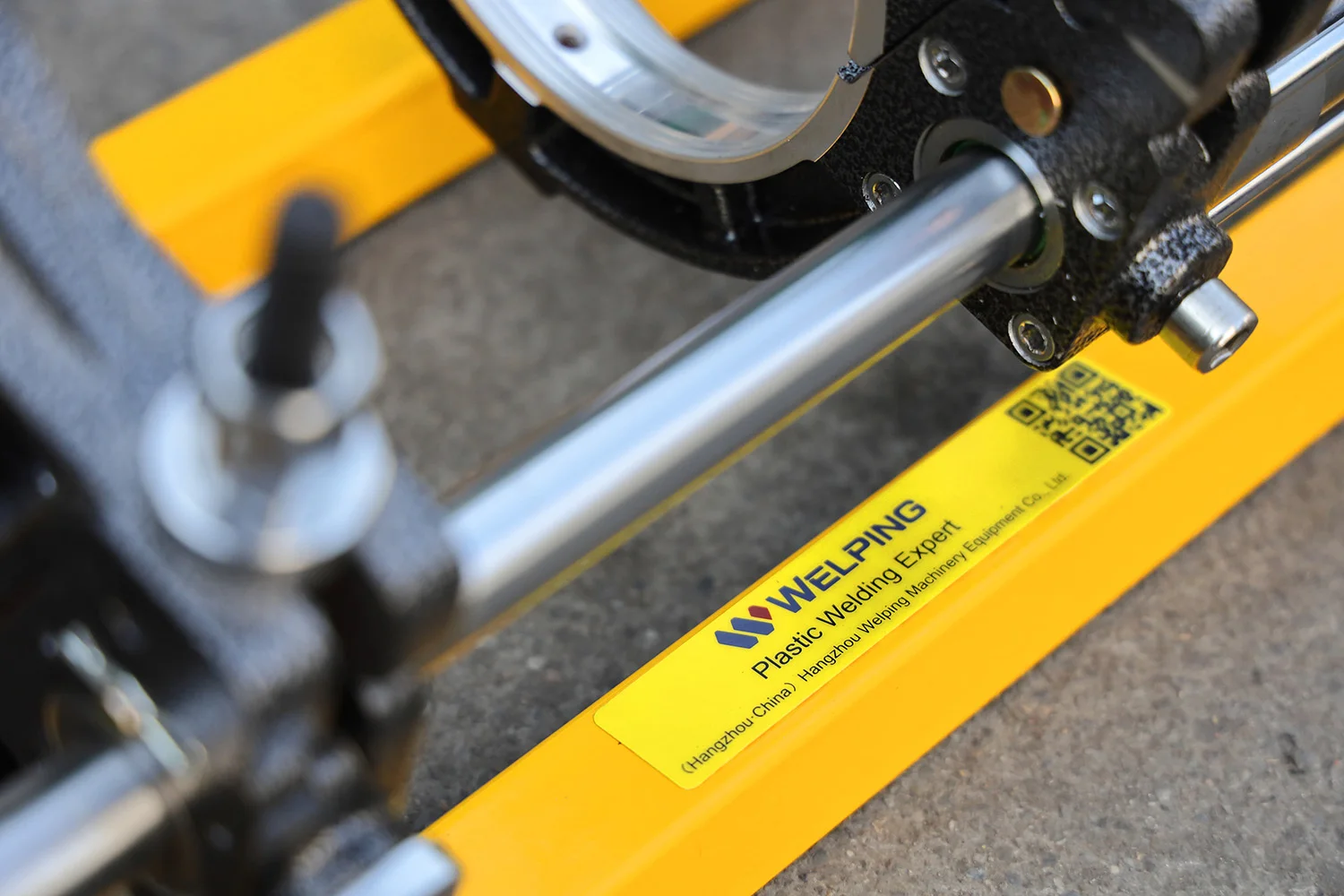

- Chromated integral shaft made of
1045(ASTM)/S45C(JIS)/C45(DIN) steel
- Steel plate cutting clamp with sandblasting &spraying treatment
- Base made of Q235 steel with spraying treatment
- Chromated hydraulic cylinder made of
1045(ASTM)/S45)(JIS)/C45(DIN) steel
- Chromated integral shaft made of
1045(ASTM)/S45C(JIS)/C45(DIN) steel
- Steel plate cutting clamp with sandblasting &spraying treatment
- Base made of Q235 steel with spraying treatment

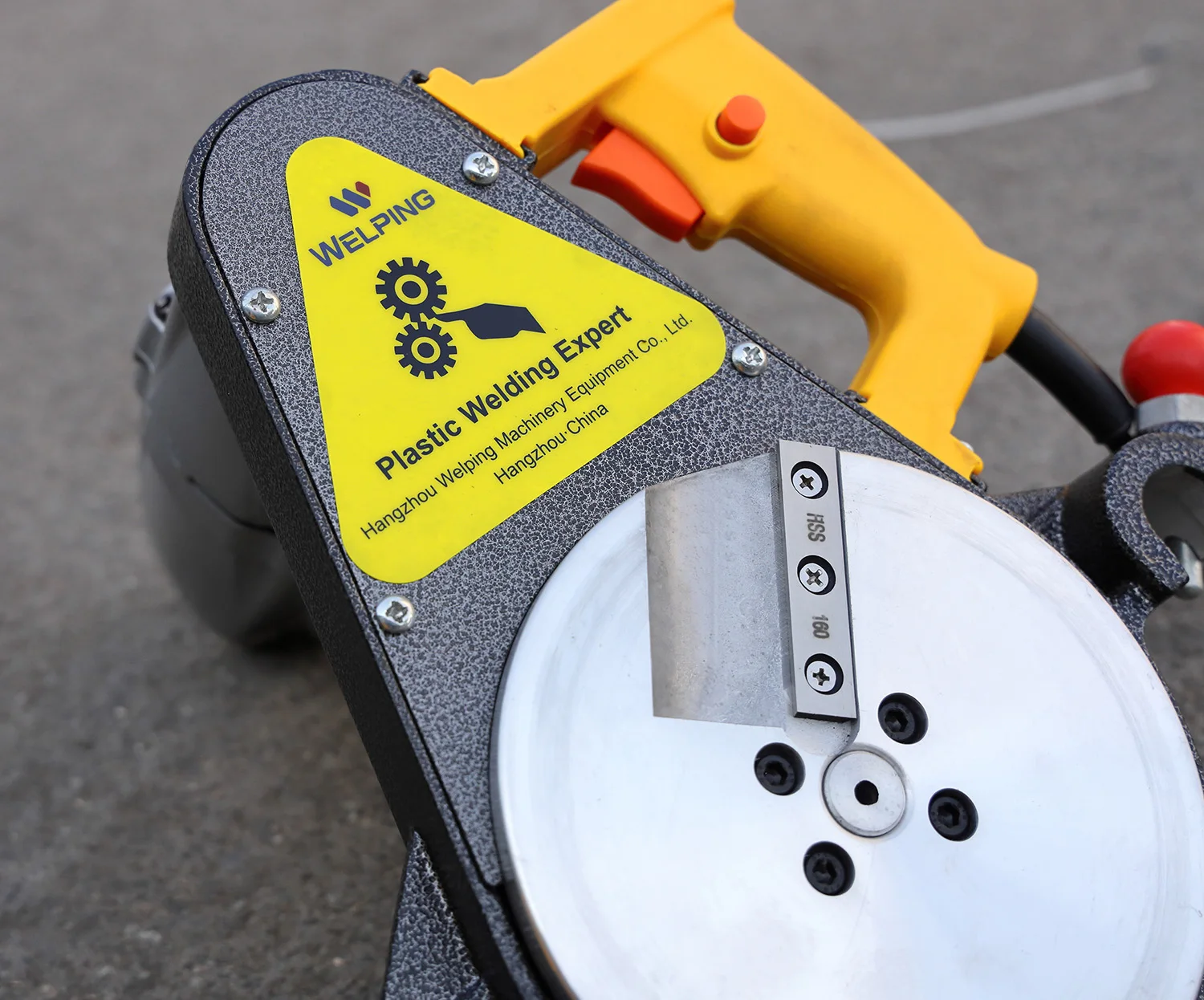

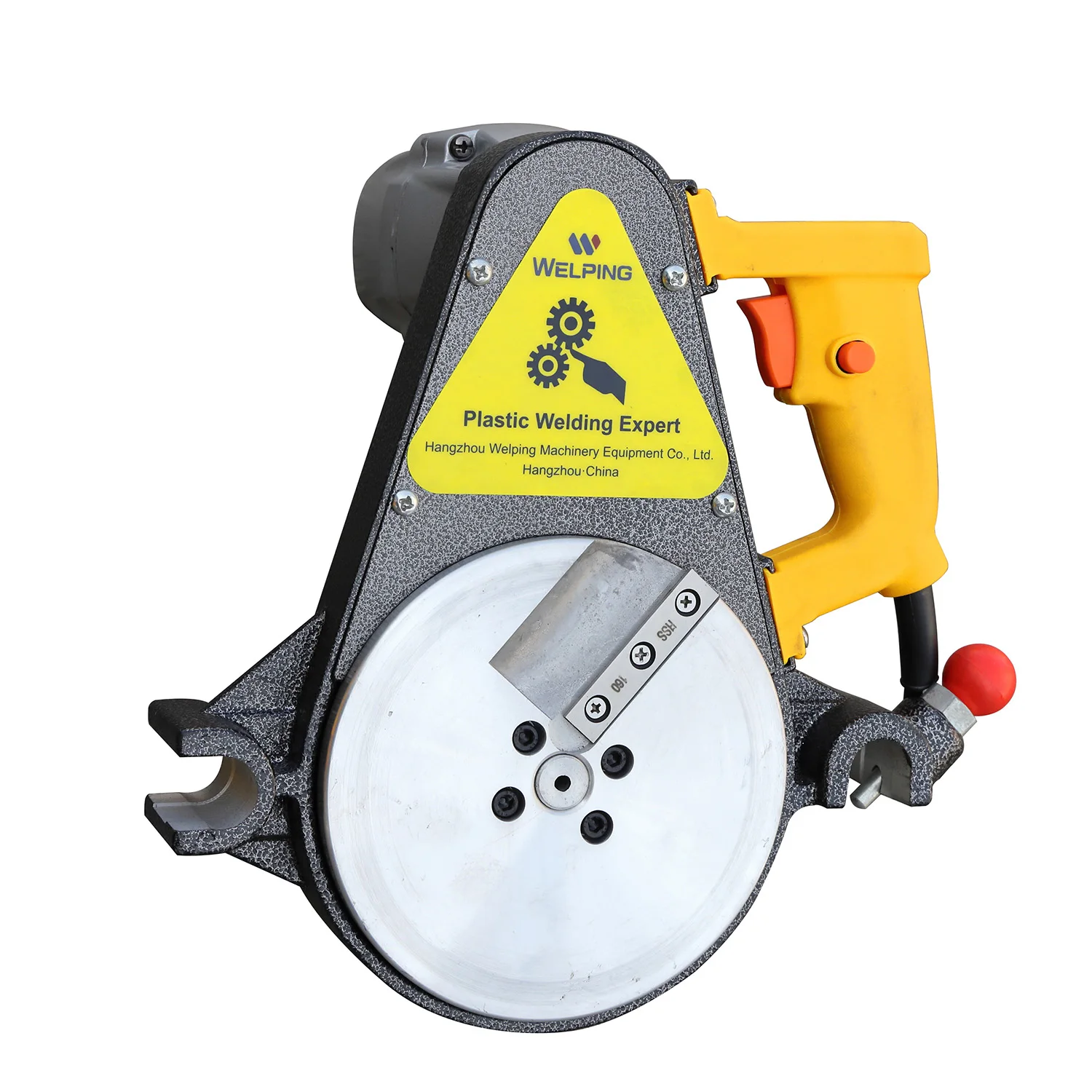

- HSS blade with double edge
- Casting aluminum trimmer plate, durable and anti-corrosion
- Casting aluminum frame of motor with good heat dissipation performance
- Motor with pure copper wiring
- Casting aluminum trimmer plate, durable and anti-corrosion
- Casting aluminum frame of motor with good heat dissipation performance
- Motor with pure copper wiring

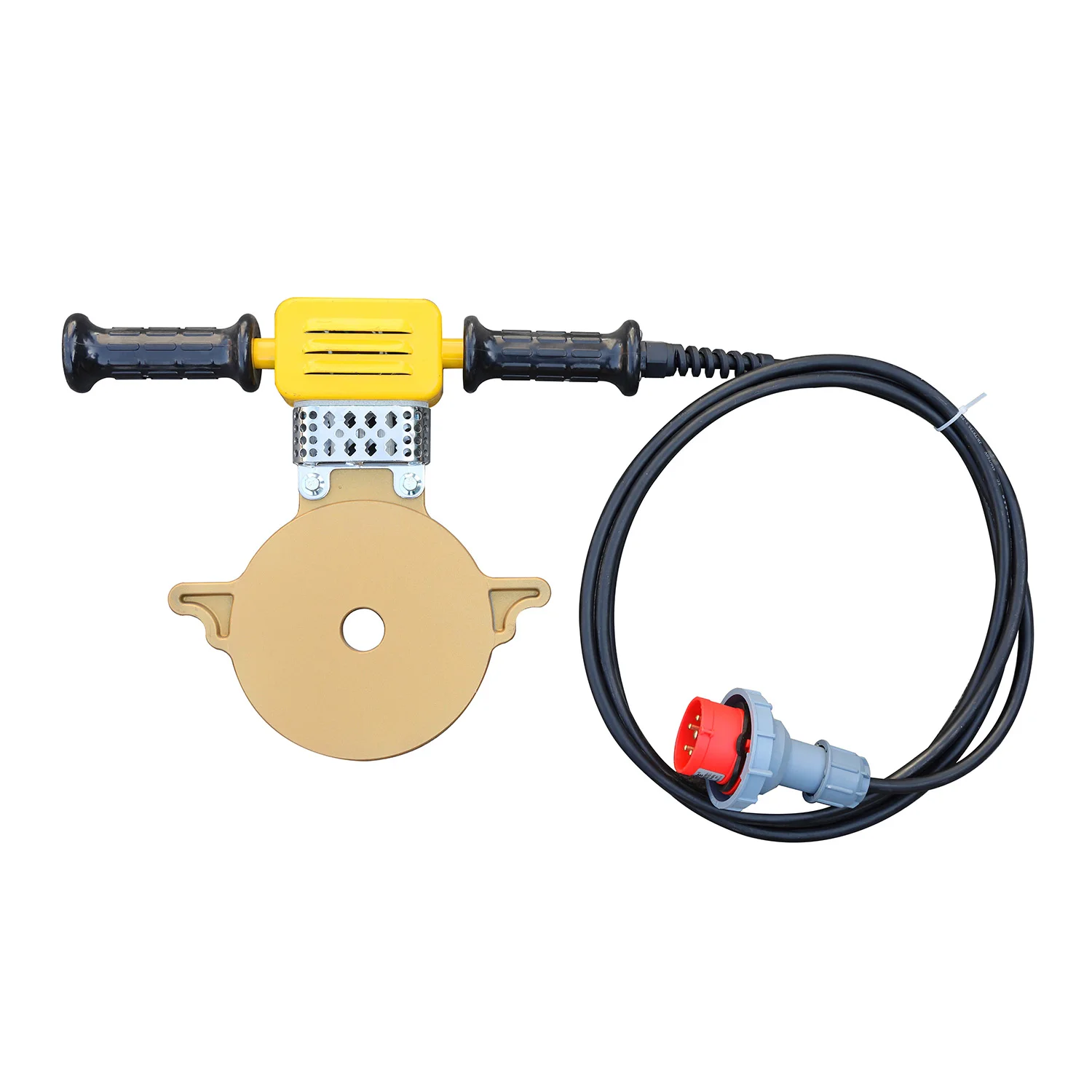

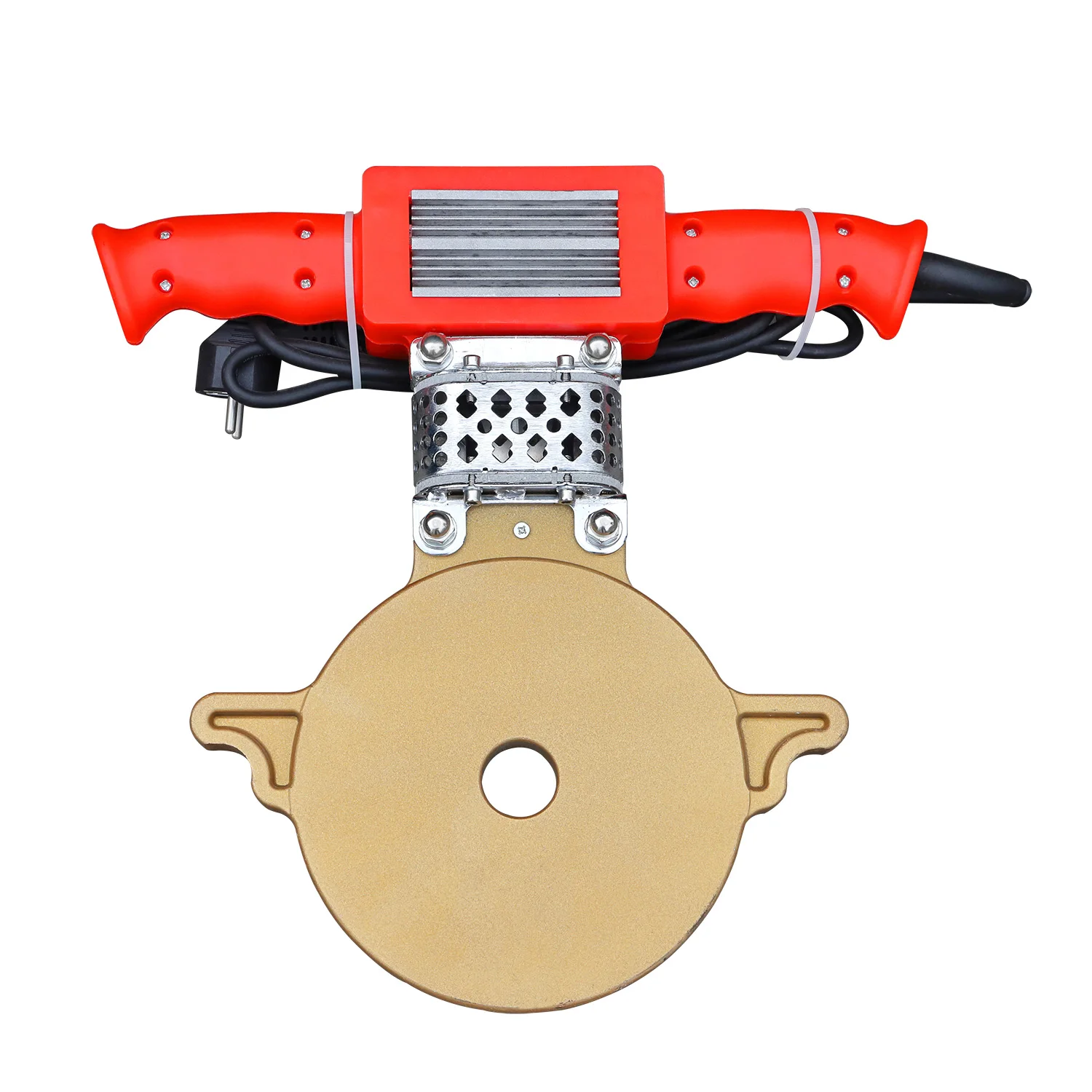

Heating Plate
- Bakelite handle with high insulating property and thermal insulation
- Thermocouple temperature sensor
- Heating element
- Teflon Coating imported from Daikin in Japan
- Aviation plug
- Thermocouple temperature sensor
- Heating element
- Teflon Coating imported from Daikin in Japan
- Aviation plug

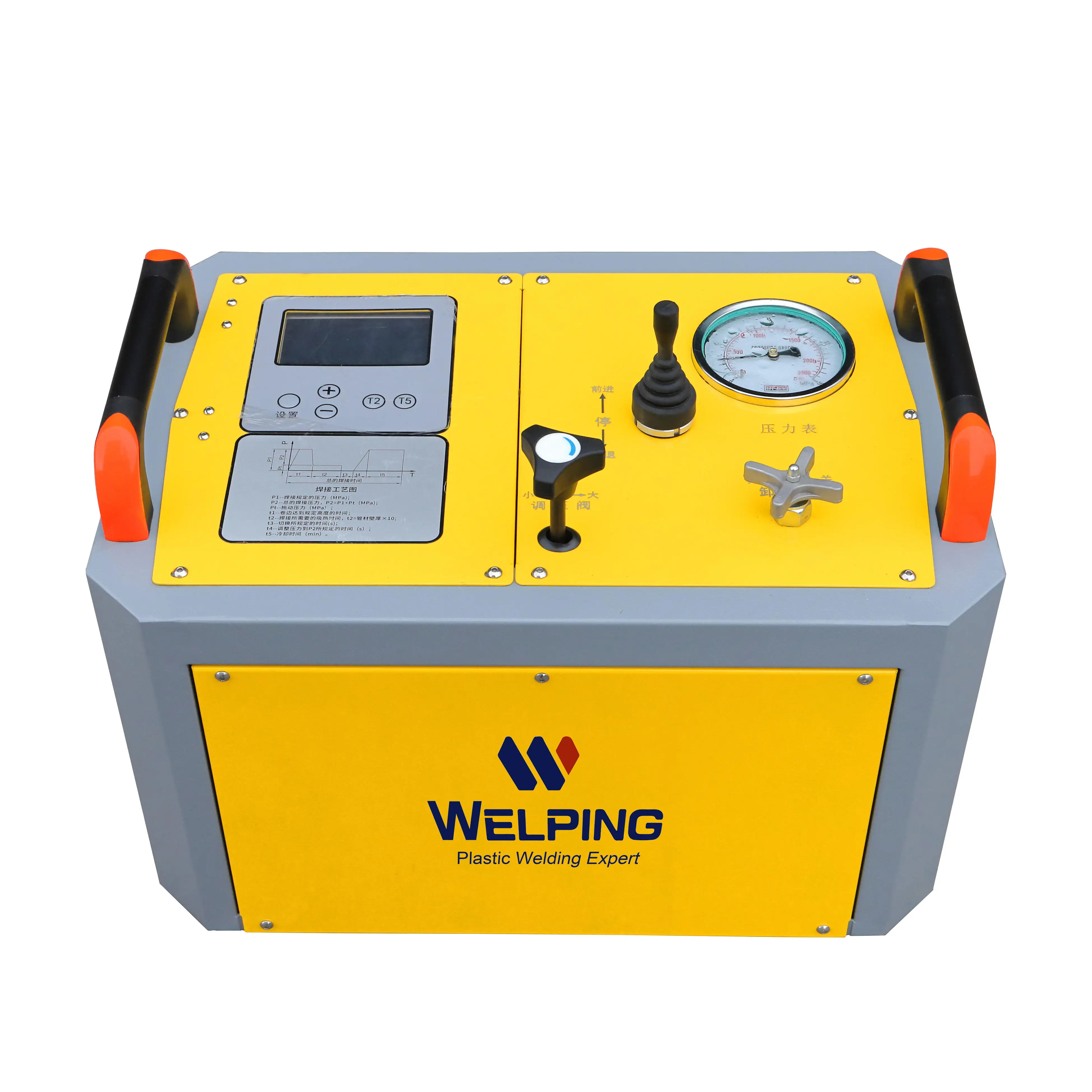

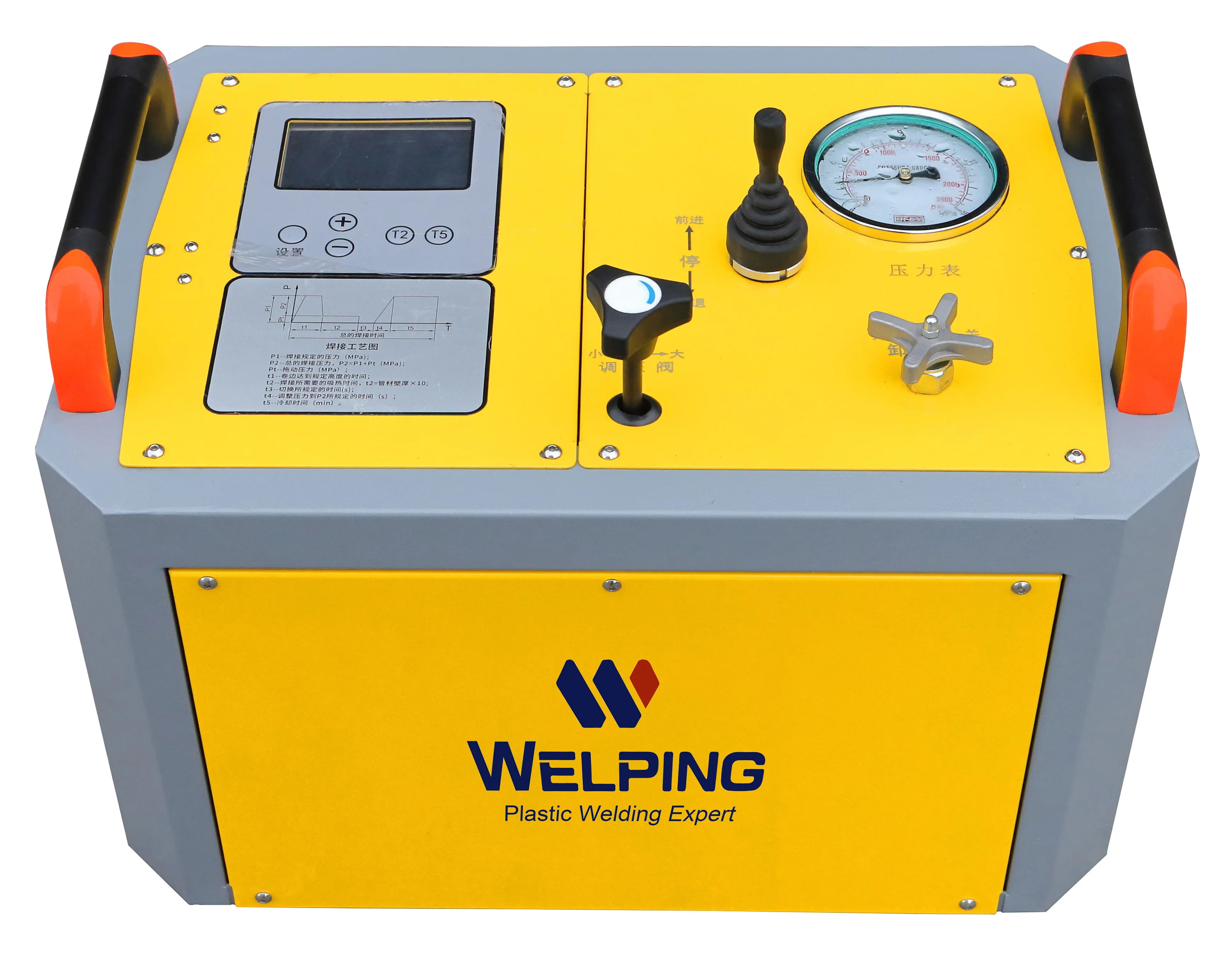

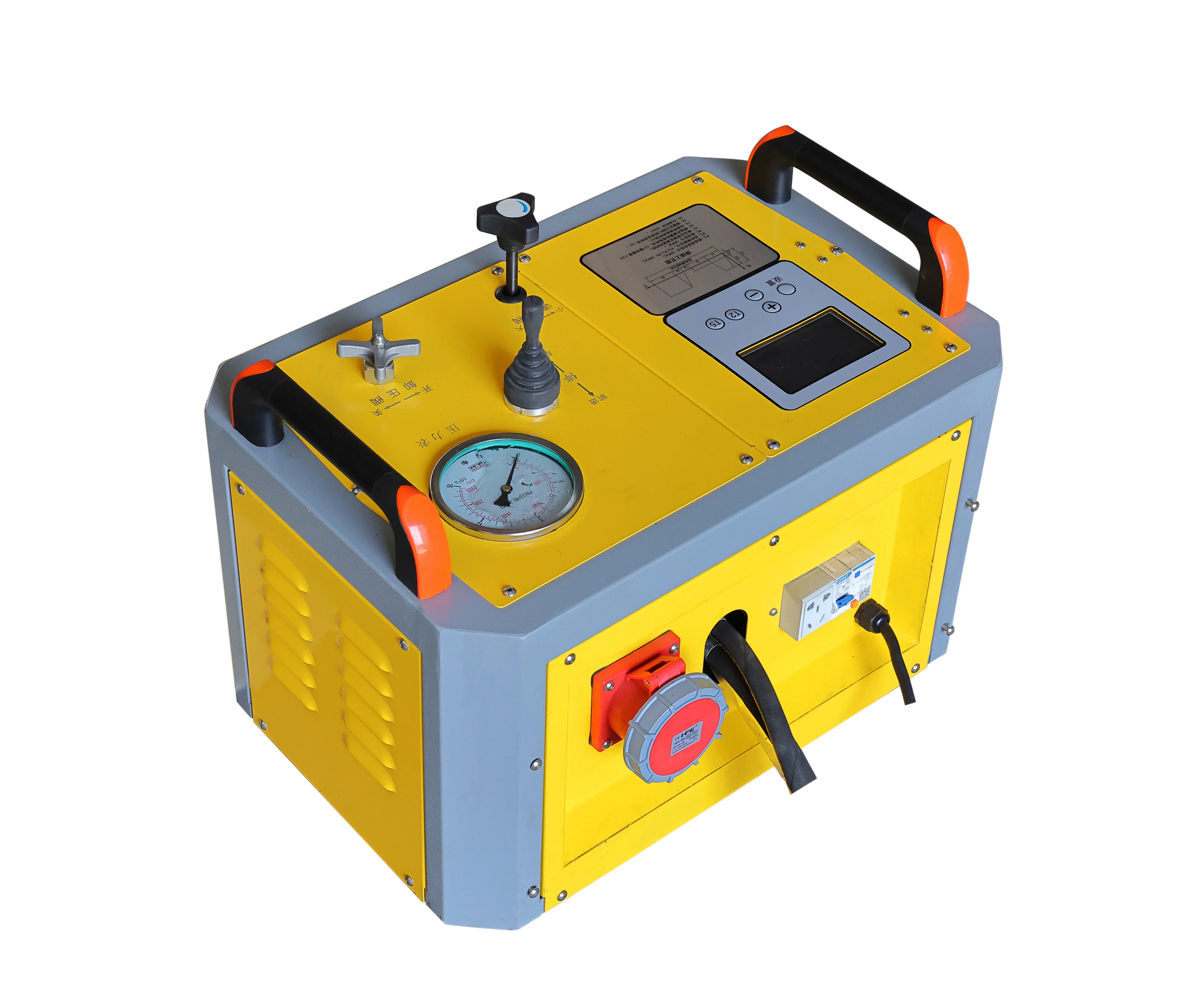

- Standard equipping pressure more stable- Fully enclosure structure shielding splash and dirt
- Electricity leakage protection switch
- 220V asynchronous motor
- Data logger(optional)
- oIntegrated LCD display and control
- Electricity leakage protection switch
- 220V asynchronous motor
- Data logger(optional)
- oIntegrated LCD display and control
Product packaging
WP160A butt welding | Length (cm) | Width (cm) | Height (cm) | N.W. | G.W. |
package 1 | 84 | 46 | 61 | 53 | 63 |
package 2 | 60 | 46 | 53 | 46 | 52 |

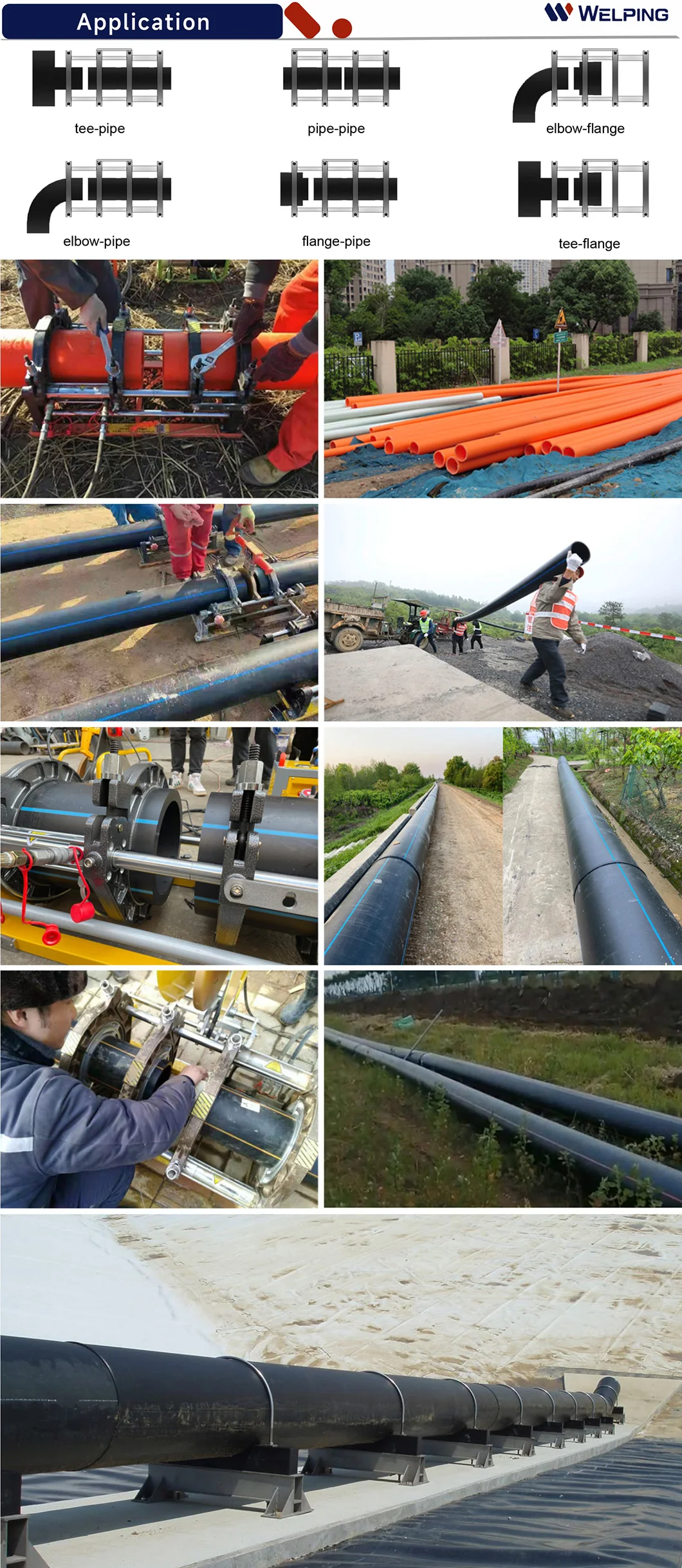

Applications

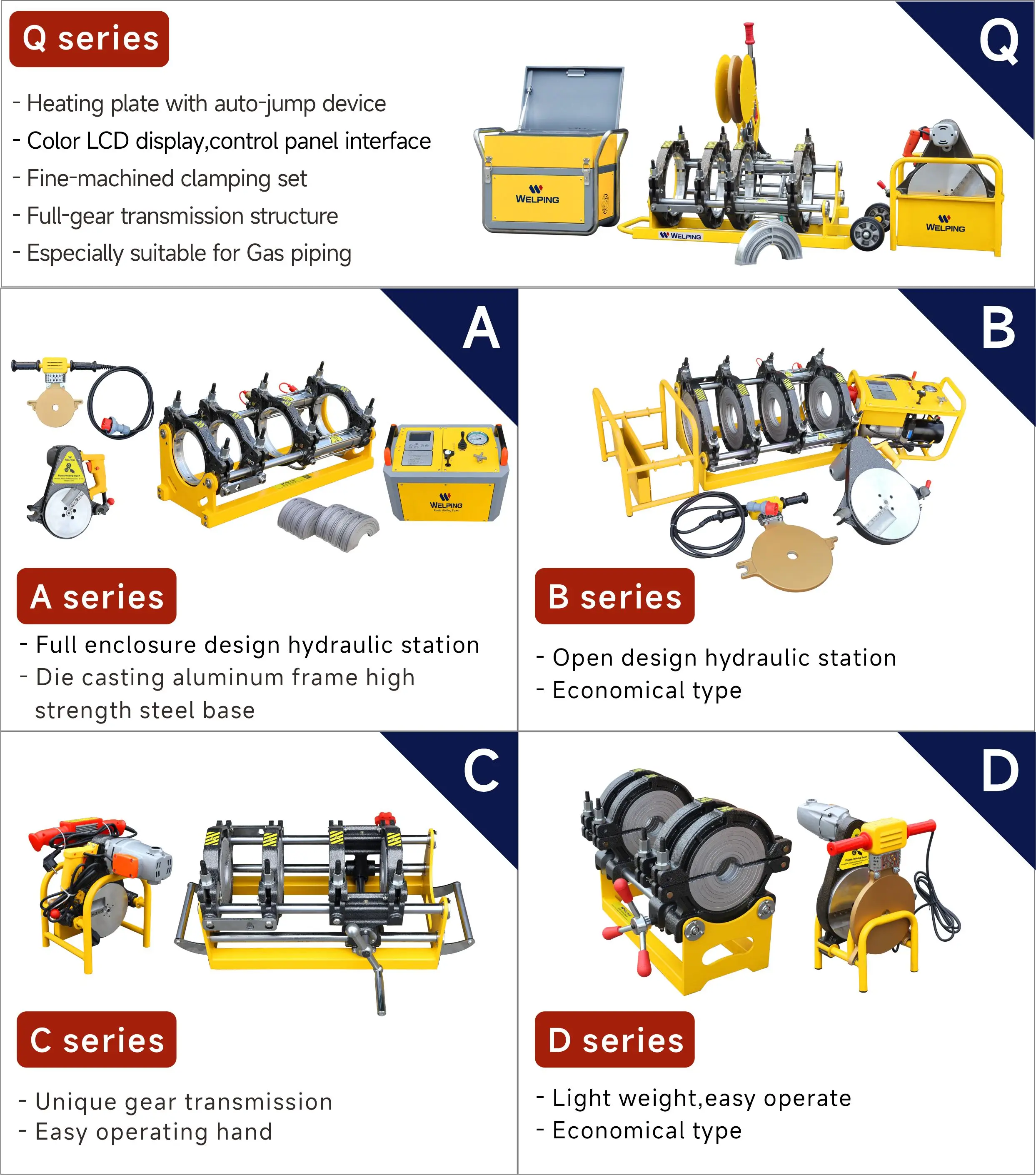

Series Product
SN | Model | Standard Welding Range (mm) | Optional Reducers (mm) | Power Supply |
1 | WP160A | 63-75-90-110-125-140-160 | — | 220V-50Hz |
2 | WP200A | 63-75-90-110-125-140-160-180-200 | — | 220V-50Hz |
3 | WP250A | 90-110-125-140-160-180-200-225-250 | 63-75 | 220V-50Hz |
4 | WP315A | 90-110-125-140-160-180-200-225-250-280-315 | — | 220V-50Hz |
5 | WP355A | 160-180-200-225-250-280-315-355 | 110-125-140 | 220V-50Hz 380V-50Hz |
6 | WP400A | 180-200-225-250-280-315-355-400 | — | 380V-50Hz |
7 | WP450A | 200-225-250-280-315-355-400-450 | 180 | 380V-50Hz |
8 | WP500A | 250-280-315-355-400-450-500 | 180-200-225 | 380V-50Hz |
9 | WP630A | 315-355-400-450-500-560-630 | — | 380V-50Hz |
10 | WP800A | 630-710-800 | 450-500-560 | 380V-50Hz |
11 | WP1000A | 800-900-1000 | 560-630-710 | 380V-50Hz |
12 | WP1200A | 1000-1100-1200 | 800-900 | 380V-50Hz |
13 | WP1400A | 1000-1200-1400 | — | 380V-50Hz |
14 | WP1600A | 1200-1400-1600 | — | 380V-50Hz |
