Green Backlight Push Button ON OFF Switch LED 6 Gang 12V Car Switch Panel
- Category: Auto Switches >>>
- Supplier: Shenzhen Nova Technology Co. Ltd.
Share on (1600540624041):
Product Overview
Description
Business Partner
What Partners Are We Looking For ?
We looking for business partners such as retailer, dealer, agent, wholesaler, distributor, manufacturer, etc., who sell our products online or offline (such as online store, supermarket chain, auto parts store, repair shop, 4S shop, etc.) and order in large quantity.
Please note that we do not sell for personal private purpose.
What We Can Support You?
As a combination of factory and trading company since 2007, we are proud to offer you OEM ODM service or regular LED lighting products supported by our full supply chain of raw materials, R&D team, skillful production team, and guarantee service. Check with our regular product line up if you are looking for aftermarket car led light bars, led fog driving lights, switch panel power system, mount brackets or other lighting accessories. Send us product inquiry if you need extra service such as LOGO engraving service, custom box, or even an exclusive product version just for your company.
Products Description
Why do you need a switch panel power system?
This switch panel power distributon system makes installing aftermarket led lights or electronic car devices or camping devices so much easier! It offers perfect solution to clean up all wiring harness mess through a single panel and compact size circuit control box. This switch panel system allows you to connect and control six car auxiliary LED light bars or LED fog driving lights or other electronic devices once a time.
12 Volt Fitment Only
This complete package of power control system only fits for all 12 volt vehicles, pickup trucks, powersports utv, boats and marines, suv, rv motovan, or other heavy duty machines. Do not try to use it for a 24 volt vehicles which may get the product burned or make damage to the vehicle battery.

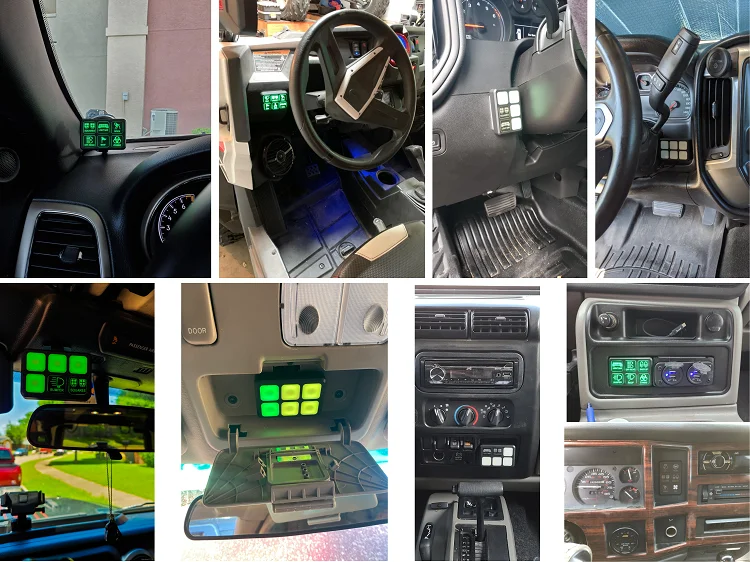

Widely Application
Available with aluminum flexible mount bracket or double sides adhesive tape. For most of the cases, end users could mount the switch panel overhead the rear view mirror or overhead liner, onto the dashboard arround the steering wheel, embedding or inserting into the position nearby the car audio device, empty postion between the driver and passenger, or even in the car trunk bed, etc.

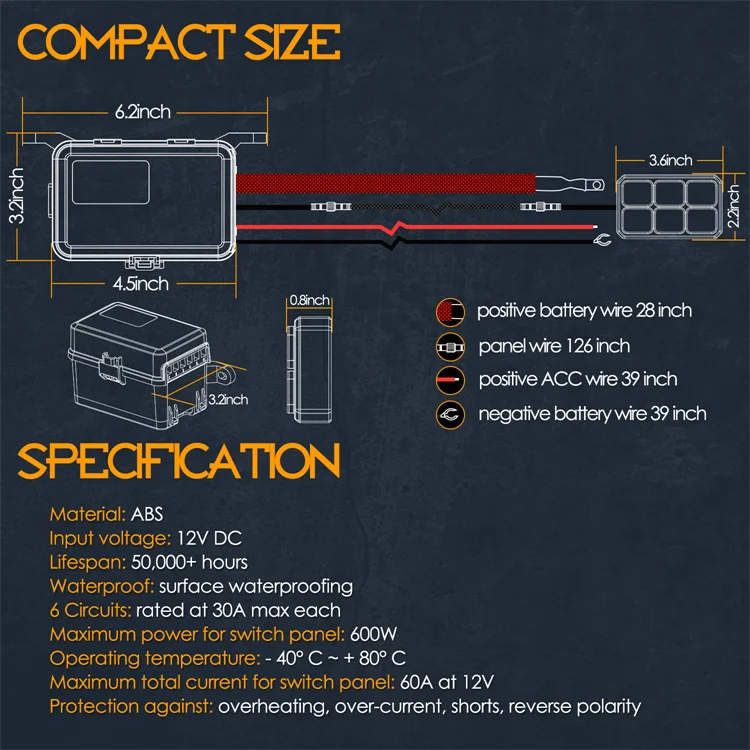

Switch Panel Specifications

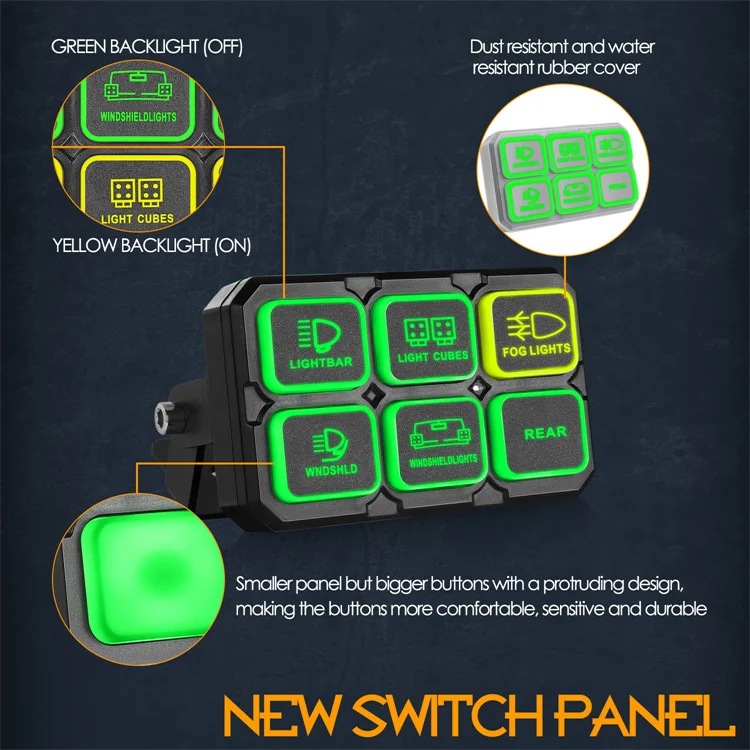

. Switched on and off operation
. Back light color: Green
. Yellow indicator light when circuit is powered on
. Input voltage: 12 volt only
. Power handling: 600 watts
. Maximum current: 60 amps
. Panel material: Plastic
. Panel size: 3.6*2.2*0.7 inch
. Switch panel anti dust cover: clear
. Panel mount: aluminum bracket and adhesive tape
. Extention wire cable: 106 inch
. Control box: Plastic
. Control box size: 4.5*2.8*3.2 inch

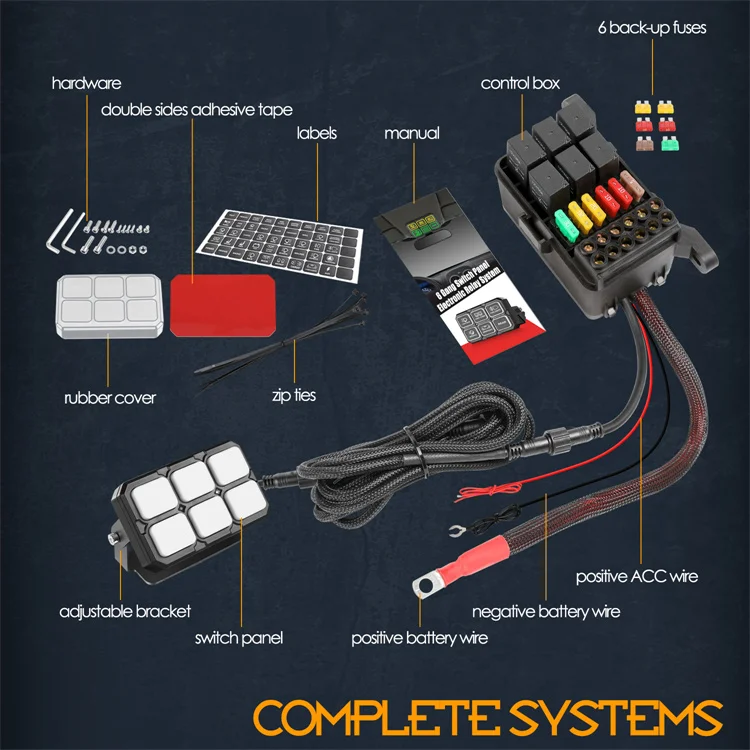

What's In the Box:
6 Gang switch panel,
Switch panel bracket,
Switch panel adhesive tape,
Switch panel anti dust cover,

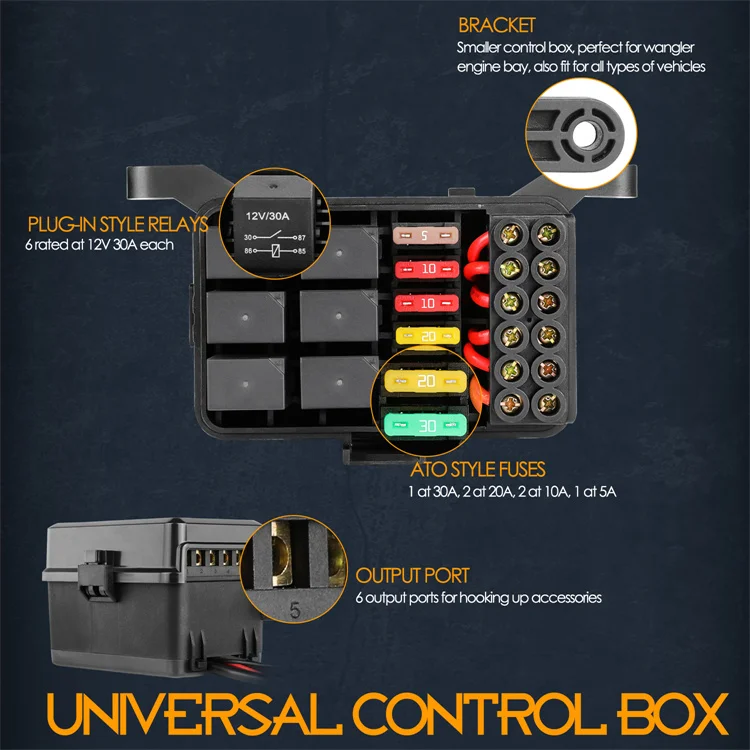

Circuit control box,
50 Custom labels decals,
6 Spare auto fuses,
Power harnesses,
Mount hardware, screws and zip ties.
Product Video
Check below product detailed video of this Green Backlight Push Button ON OFF Switch LED 6 Gang 12V Car Switch Panel
Product Q+A
Check below frequently asked questions about this Green Backlight Push Button ON OFF Switch LED 6 Gang 12V Car Switch Panel, if you have any further questions or needs more supports from us, please click Send Inquiry and chat with us online right now!
Question: What is the background light and indicate light?
Answer: By default, the background light is in green color when the switch panel is powered on, and the indicate light is in yellow color when each circuit is powered on.
Question: Can I turn off the background light?
Answer: No. The background light can not be turned off.
Question: Why should I connect the red color smaller positive cable to the Ignition Power, or say ACC? Why not directly to the battery positive post?
Answer: Avoid draining off the battery power when the vehicle is powered off.
Question: Is the switch panel and circuit control box waterproof?
Answer: Sort of. There's a plastic cover to cover the switch panel and prevent dust or water inside. But still try not to get them wet.
Question: How many amps can you run per switch?
Answer: Maximum 30amps per circuit.
Question: Can I switch the fuse of 30amps to the position of 5 amps circuit?
Answer: This is not recommended. Each circuit is fixed with maximum current.
Question: How do you connect to the connectors numbered 1-6?
Answer: The control box itself has the connection pieces already made on it, just slide your wires in and squash the connection pieces.
Question: How do you pack my orders?
Answer: There are 3 layer protection. The first layer is the PE foam or film wrap or air bubble bag, the second layer is small size inner box, and the last protection is one bigger size outside carton box.
Question: Does sample order acceptable?
Answer: Yes, paid sample order for product quality testing is acceptable and welcomed. But after that, there will be small minimum order requirement to keep a long term business relationship.
Question: Do you have other options of the switch panels?
Answer: Yes, we carry 6 and 8 gang switch panel control system.
OEM / ODM Service
Need to add more personality on this Green Backlight Push Button ON OFF Switch LED 6 Gang 12V Car Switch Panel? As a factory and manufacturer, Shenzhen Nova company offer you with different customize service including:
1, Sticker Printing Service.

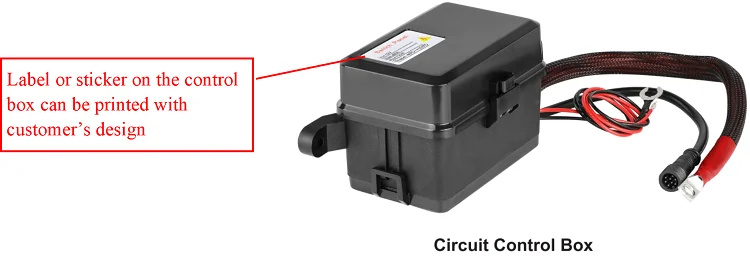

Send us design file in AI or PSD or PDF format, and we can add your company name or LOGO or any other required information shown and stick on the cover shell of the control box.

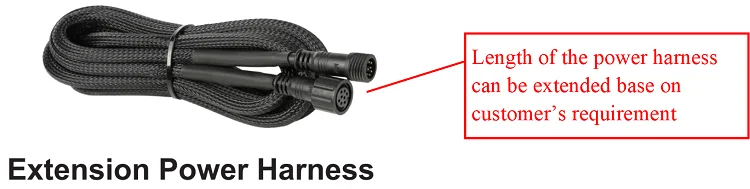

2, Wire Cable Or Light Harness.
By default, these power harnesses' length is fixed, if customer hopes to get a longer light harness, this is also acceptable.

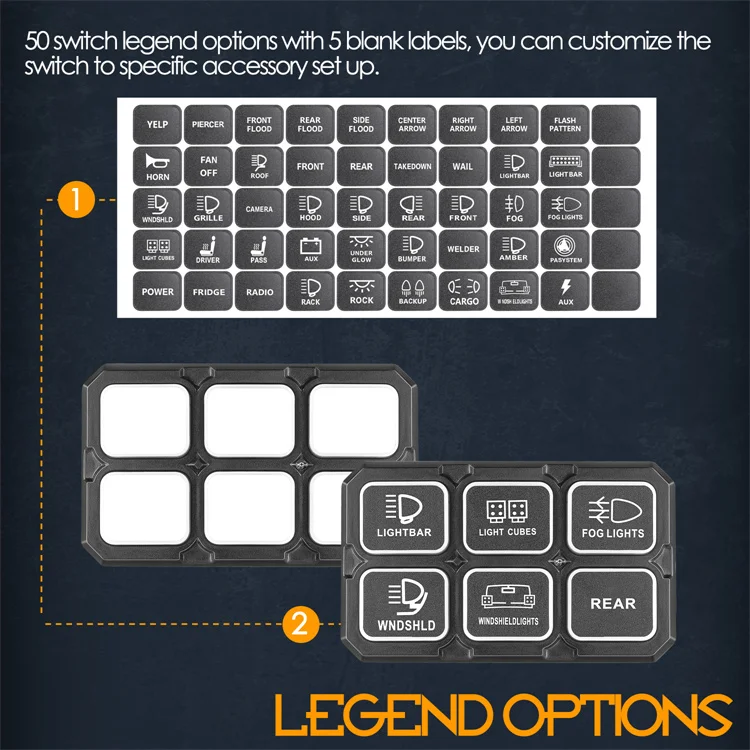

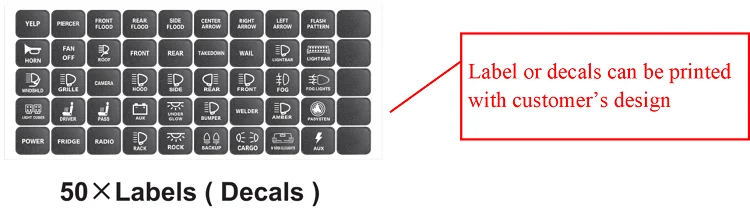

3, Labels Decals Customization
By default, there is 45 labels printed with black color background and white letters or icons, plus 5 blank labels. This design and combination is fixed. If customers hope to modify some of the label designs or create a totally new sheet, that is also acceptable.
4, Package Box
By default, this switch panel control system is packed in our design of box. Custom deisgn or printing is also available. Or it can be in white box without any printing.
Company Profile
Who Are We?
Shenzhen Nova has been dedicated into car interior and exterior LED light and accessories since 2007. We intergrate all advantages to continuous innovation, improvement and optimize industrial structure and product performance.Our business idea:
To offer a wide range of well-design, functional, value-for-money auto parts for drivers around the world.
What We Sell?
Shenzhen Nova mainly focus on the industry of automotive & motorcycle LED lighting system, including:
. street legal LED light ( emark or SAE DOT compliant),
. laser LED light bar and driving light,
. LED light bar,
. LED work light,
. switch panel control system,
. RGB LED light such as LED whip light, LED rock lights, etc.
All of Shenzhen Nova's LED light products and accessories are widely used on off road vehicles, power sport vehicles, agriculture machines, marine, etc.
What About Our Factory?
Shenzhen Nova's factory base in located in Foshan city, mainland of China, with over 2,000 square meters modern factory area, fully equipped with first class production and testing euipments. 12 assemblying lines, at least 10 professionals of the R&D team, 500 more skillful workers. Our factory performs according to ISO 9001:2008 standards, with original c ree LED chip or o sram LED chip, most of our LED lighting products have passed CE, ROHS, IP68, IP69K.
Any further hesitation or need more supports? Please click Send Inquiry and chat with us online right now!
