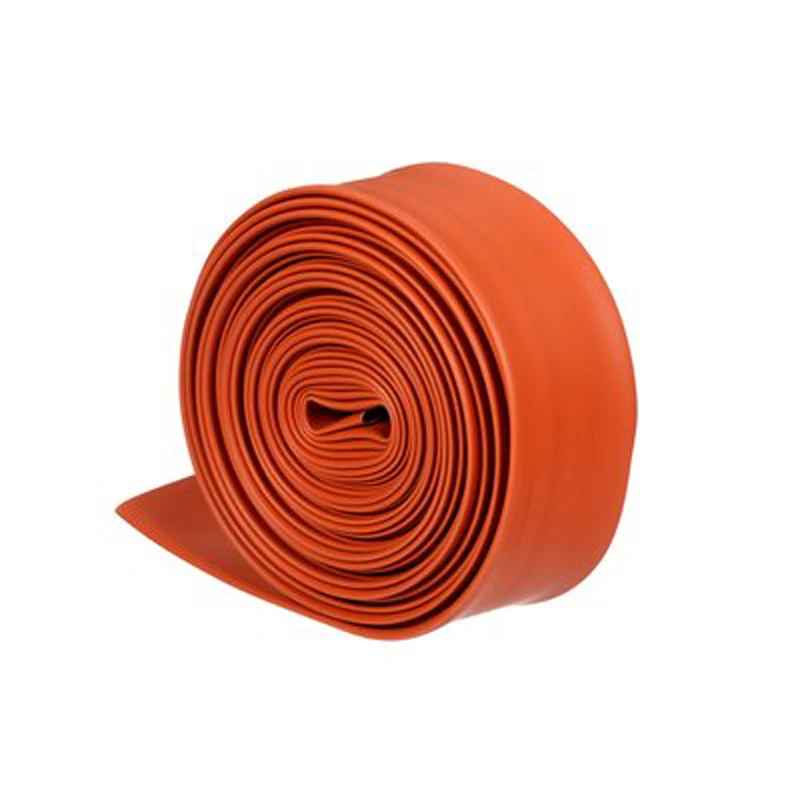

High voltage insulated bushing bus bar heat shrinkable tube
- Category: >>>
- Supplier: Xiamen QX Trade Co. Ltd.
Share on (1600540651195):
Product Overview
Description
Product Overview

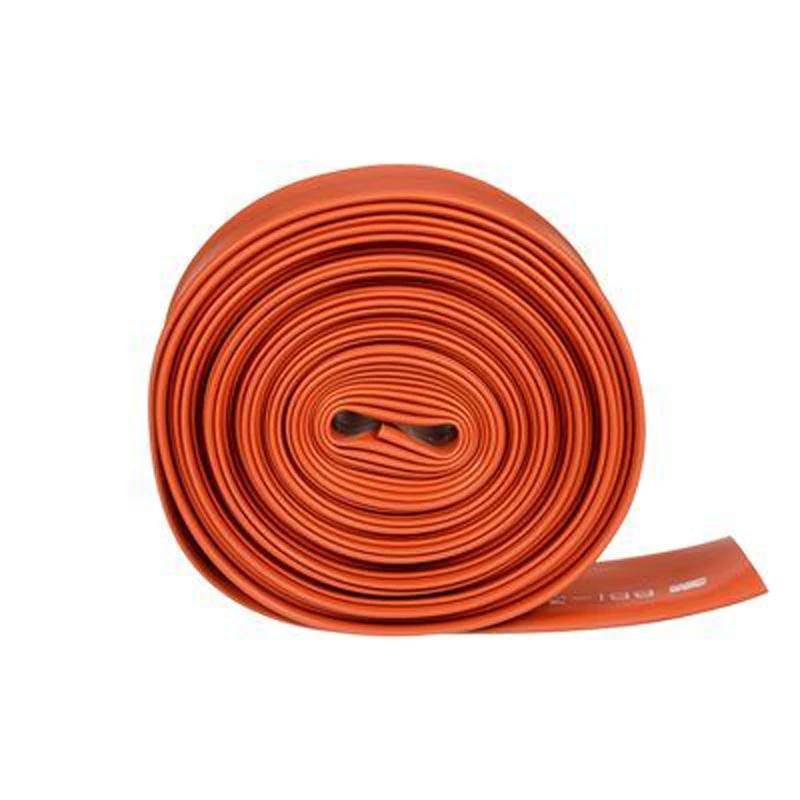

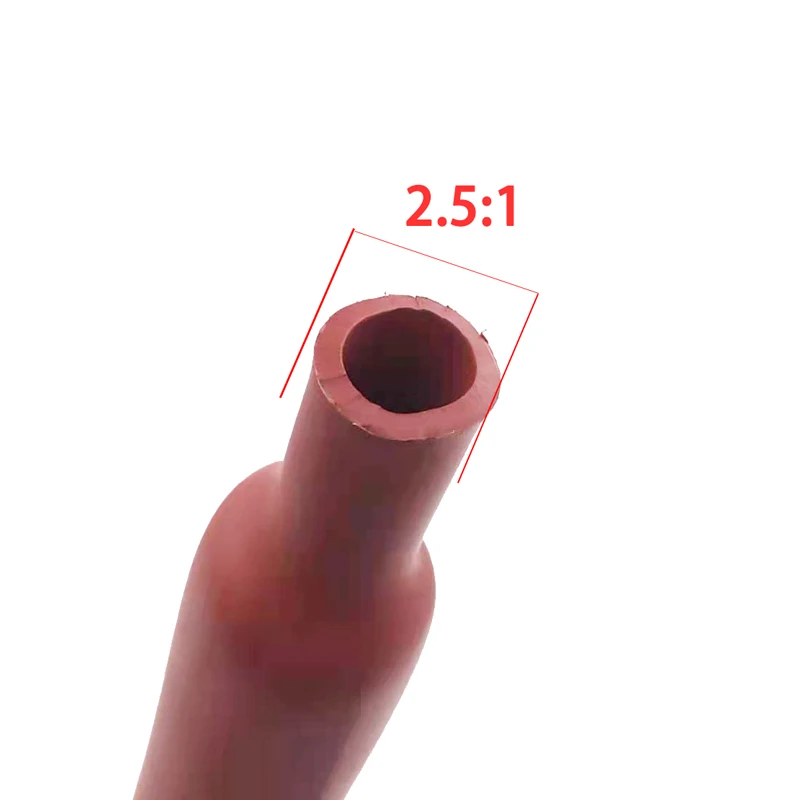

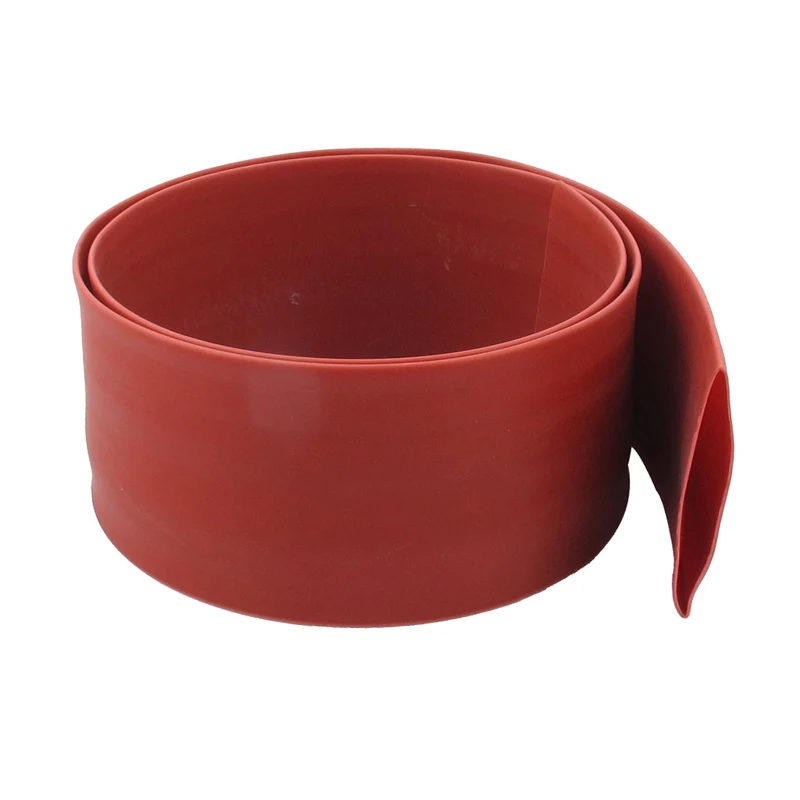

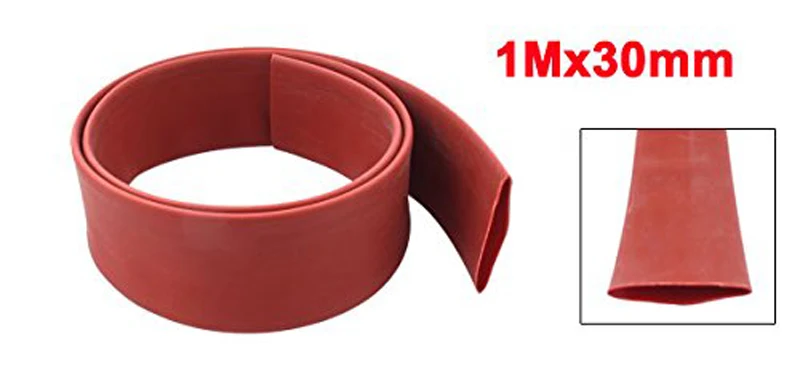

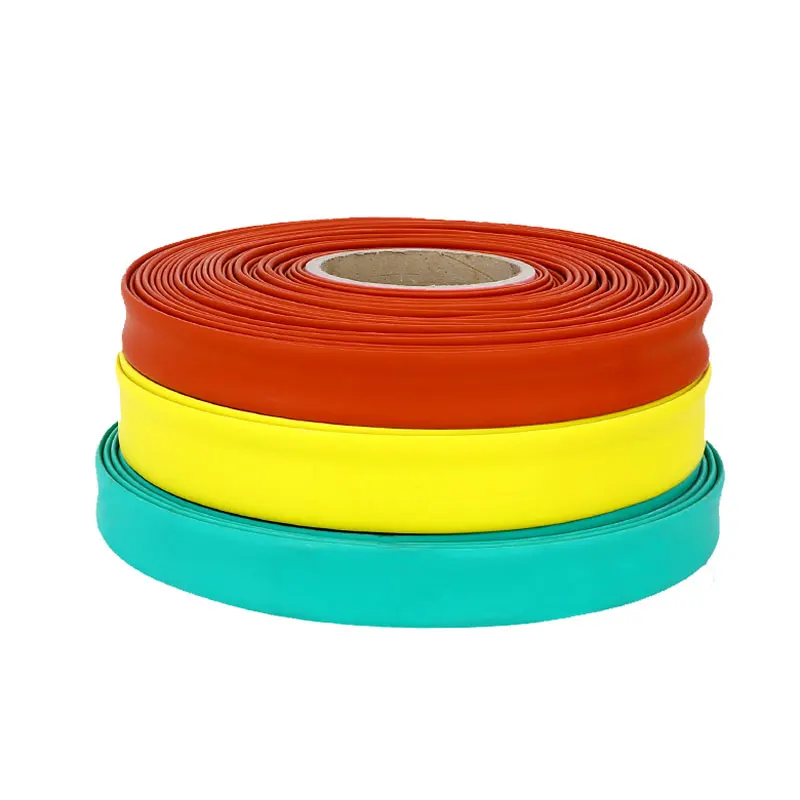

Busbar Heat shrink tube

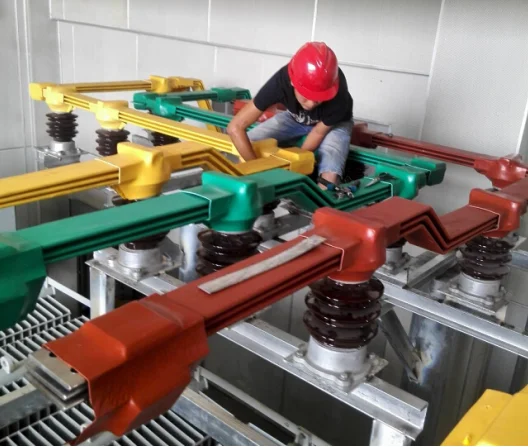

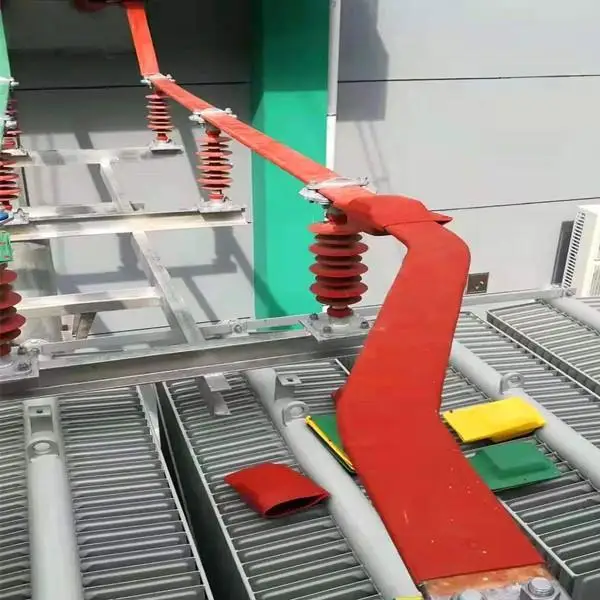

High voltage heat shrink bus bar insulation tube, a kind of continuous tube shape material made of radiation cross-linked polyolefin, carry excellent insulating performance. Typical applications include insulation of electrical bus bar rated up to 1KV -36KV voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars,copper or aluminum bus bars, metal-clad switch gear, metal-enclosed bus bar, substation switch gear etc.

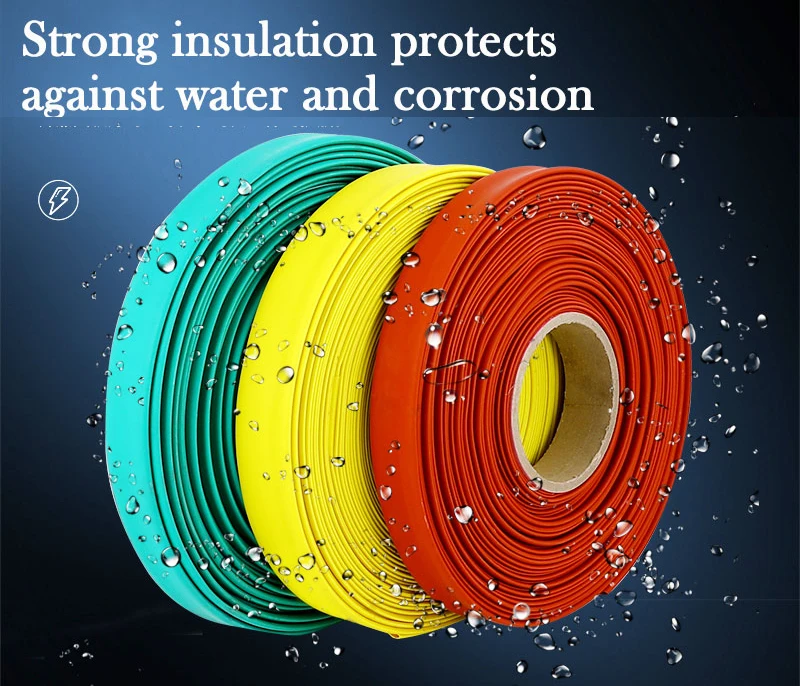

Feature
1.Flame retardant thin-wall bus bar made of cross-linked polyenjing material
2.Bus insulation, protection
3.Reduce the bus distance in the switch cabinet
4.Halogen-free, environmentally friendly
5.Prevent short circuit and leakage of electricity caused by small animals
2.Bus insulation, protection
3.Reduce the bus distance in the switch cabinet
4.Halogen-free, environmentally friendly
5.Prevent short circuit and leakage of electricity caused by small animals
Datasheet

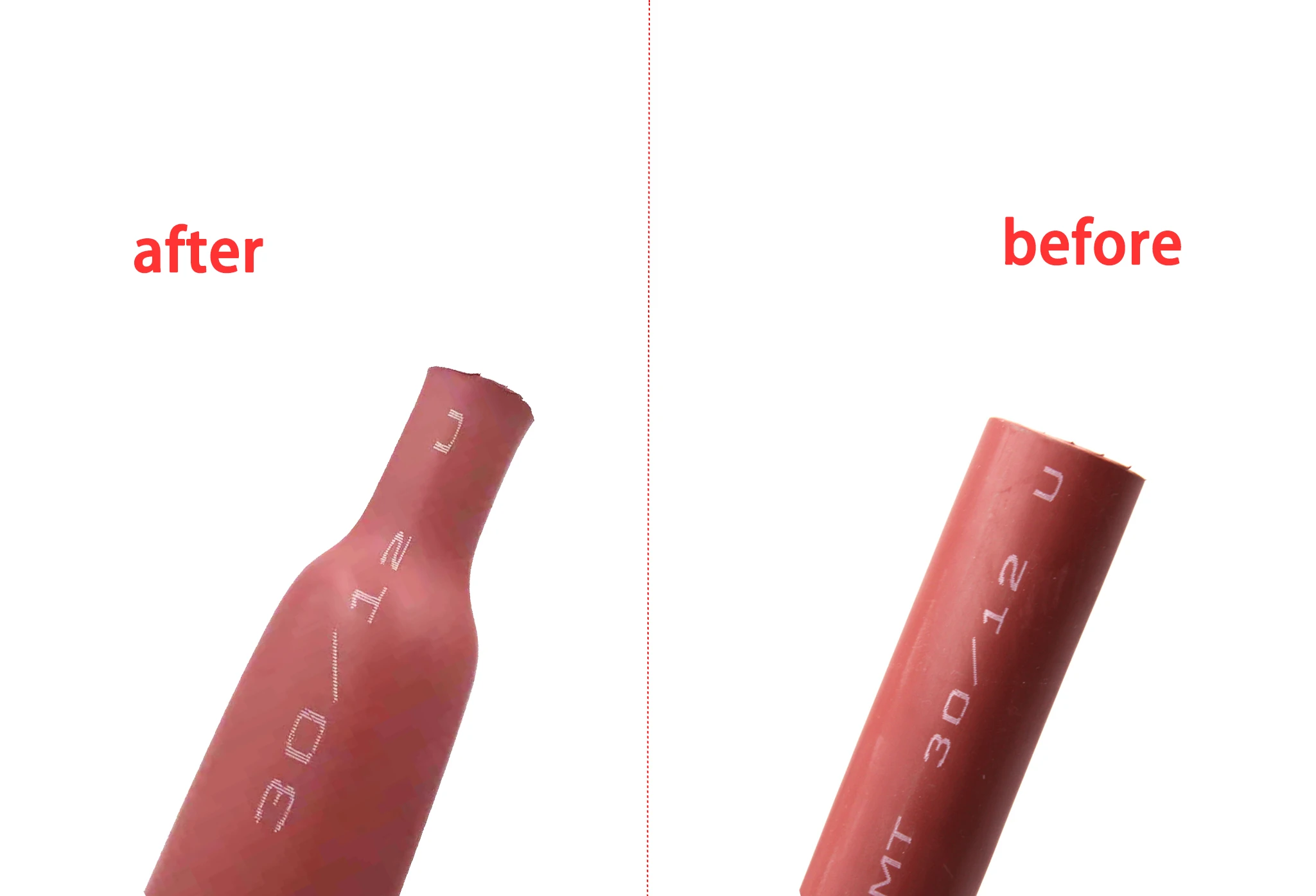

Size(mm) | As supplied(mm) I.D. | After recovered(mm) | Standard length | |
Wall thickness w | Wall thickness w | (M/spool) | ||
Φ25/10 | 25.0 | 10.0 | 3.5 | 15 |
Φ30/12 | 30.0 | 12.0 | 3.6 | 15 |
Φ40/16 | 40.0 | 16.0 | 3.6 | 15 |
Φ50/20 | 50.0 | 20.0 | 3.6 | 15 |
Φ65/25 | 65.0 | 25.0 | 3.6 | 15 |
Φ75/30 | 75.0 | 30.0 | 3.7 | 15 |
Φ85/35 | 85.0 | 35.0 | 3.7 | 15 |
Φ100/40 | 100.0 | 40.0 | 3.7 | 15 |
Φ120/50 | 120.0 | 50.0 | 3.7 | 15 |
Φ150/60 | 150.0 | 60.0 | 3.8 | 15 |
Φ175/75 | 175.0 | 75.0 | 3.8 | 15 |
Details Images
Related Products
Good feedback from customer
Company Profile
Company information
Xiamen Qx Trade Co.,Ltd is a leading supplier of cable and wire management product,which founded 2005.
Our main products including Cable and wire braided sleeve,cable wrap,insulating sleeve and tubing,special sleeve,nylon cable tie,Hook and Loop etc.
Our products have passed ISO 9001 quality system certification, products are exported to Europe, the Middle East, North America, Southeast Asia and other places.
Factory Show
Main production line
Automatic production, high efficiency, manual operation is simple
The environment is clean and orderly
Main production equipment
Equipment is complete
The corner of the warehouse
Certifications
Trade Condition
1.Trade terms: FOB, CIF, EXW
2.Payment terms: T/T,L/C,Western Unnion, Paypal,Escrow,Money Gram
3.Lead time: 7-15days
4.Sample time: 3-5 days
5.Package: Export carton or according to your requirement
