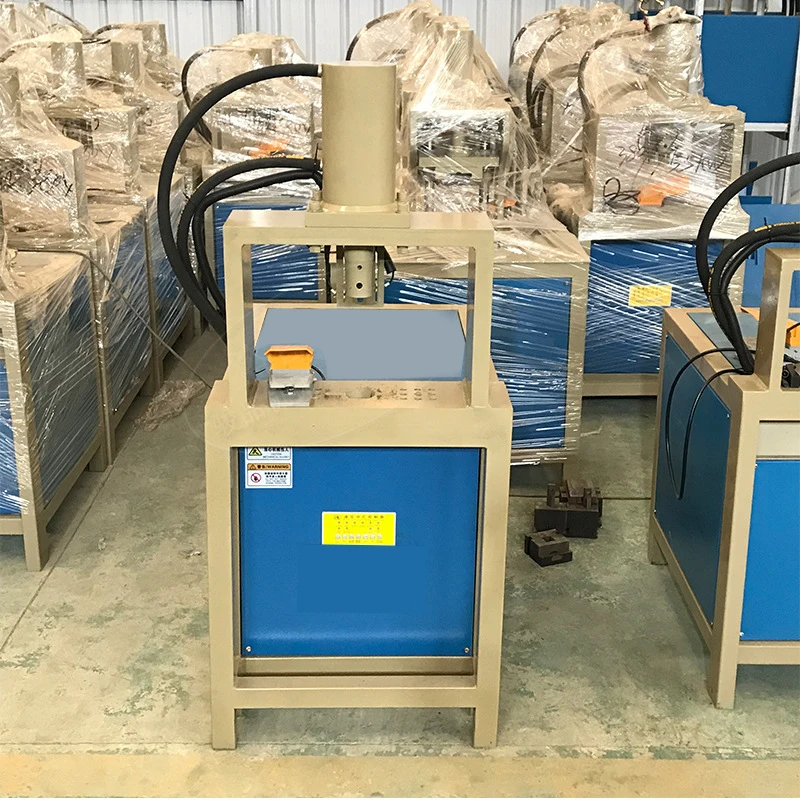

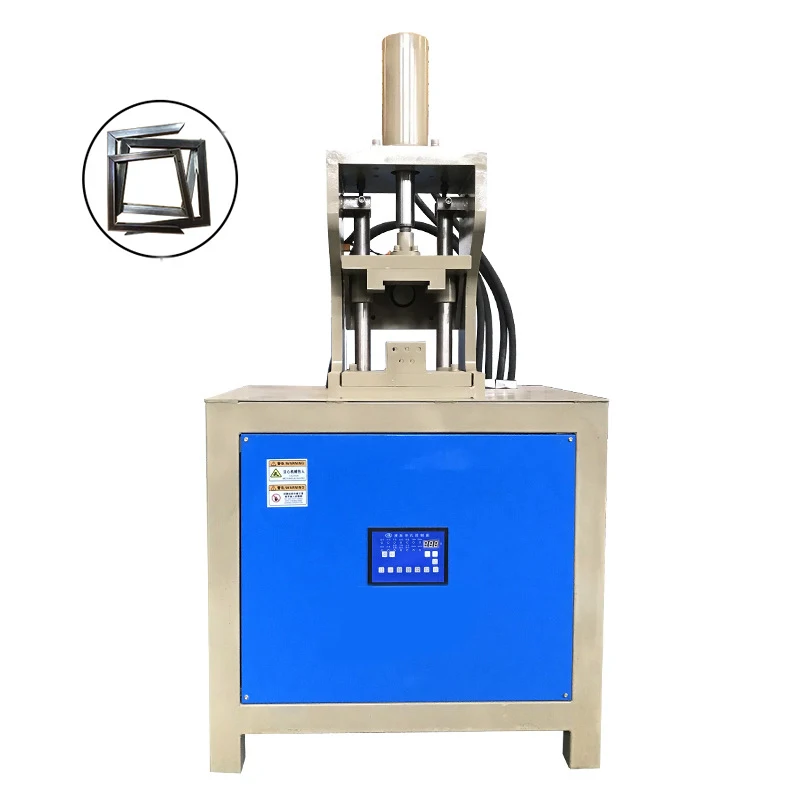

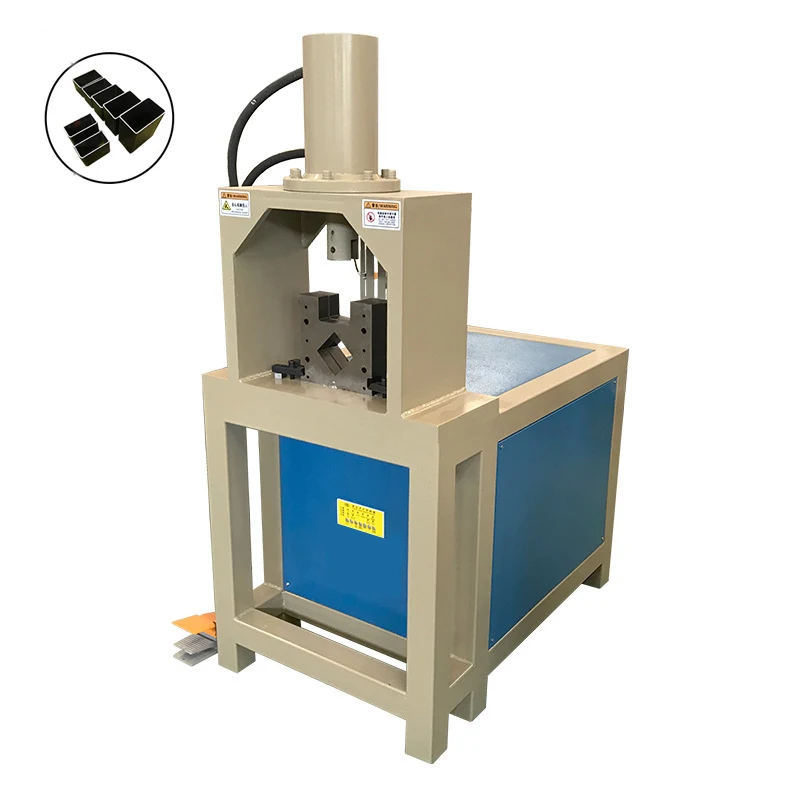

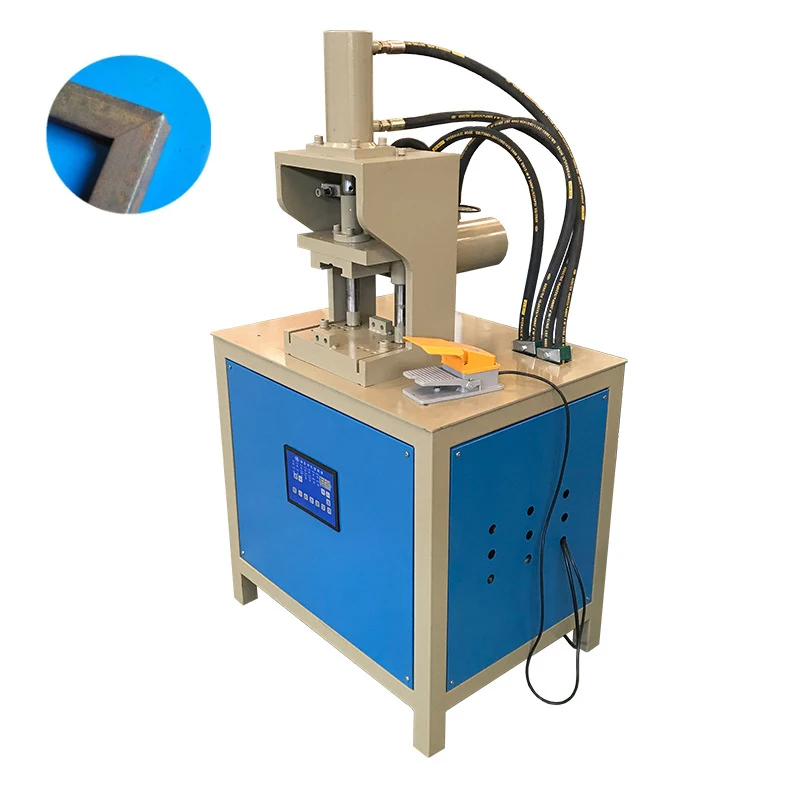

Hydraulic press Hole 90 Degree Angle Pipe Notching Machine Punching Machine Pipe End Cutting Machine
- Category: >>>
- Supplier: Anhui Advanced Grinding Tools Co. Ltd.
Share on (1600540669307):
Product Overview
Description
Products Description
ADV Hydraulic pipe end fish mouth forming machine tube punching machine
Intelligent control:
1.feed pipe by manual,puch different arc size fit to different pipe diameter
2.fit to carbon steel, stainless steel , copper, aluminum,glass fiber steel and so on

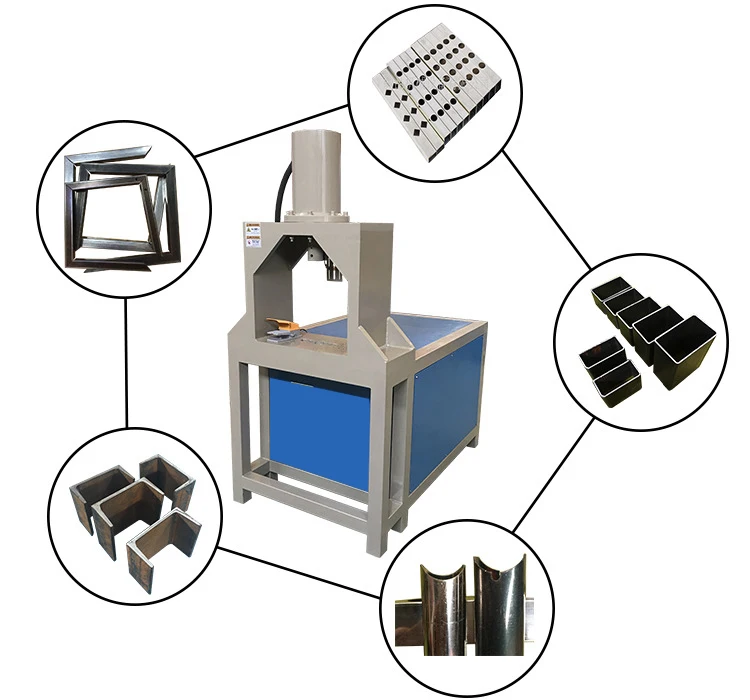

3.hole shape: round, square, rectangle, ellipse, and notch
4.punching type. half(one wall/side), through(two side/wall)
2.fit to carbon steel, stainless steel , copper, aluminum,glass fiber steel and so on
3.hole shape: round, square, rectangle, ellipse, and notch
4.punching type. half(one wall/side), through(two side/wall)
Product Paramenters
Model | ADV-R80 | ADV-R100 | ADV-R125 | ADV-R160 | ADV-R180 | ||||
Punching thickness | 1.0-1.5mm | 2.0-2.5mm | 3.0-3.5 mm | 5.0-5.5 mm | 7.0-8.0 mm | ||||
Type | Semi-automatic hydraulic | ||||||||
Pressure | 12 ton | 20 ton | 30 ton | 50 ton | 65 ton | ||||
Motor Power | 2.2/3/4 kw | 2.2/3/4 kw | 3/4/5.5 kw | 5.5/7.5 kw | 5.5/7.5/11kw | ||||
Slide Stroke | 80 mm | 100 mm | 125 mm | 160 mm | 180 mm | ||||
Processing speed | 1.2 s | 1.2 s | 1.2s | 1.2s | 1.2s | ||||
Machine weight | 300 kg | 350 kg | 400 kg | 500 kg | 600 kg | ||||
Machine size | 800*600*1300 mm | 800*620*1300 mm | 1000*750*1500 mm | 1200*750*1700 mm | 1200*750*1800 mm | ||||
Details Images

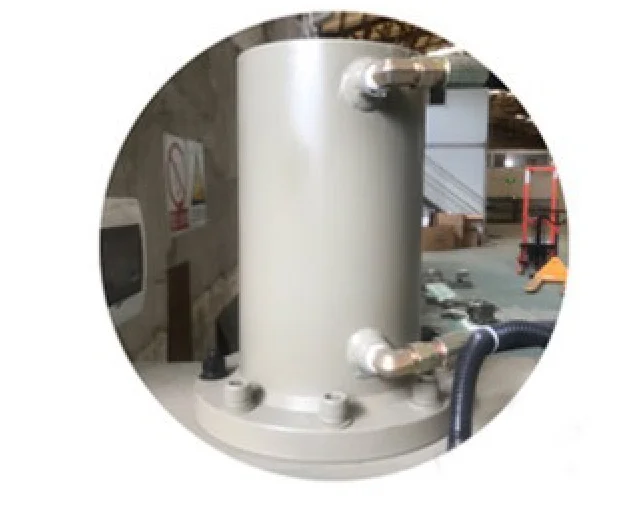

High pressure precision cylinder
Double oil seals, high temperature paint, welding reinforcement, to ensure zero oil leakage, suitable for long-term work

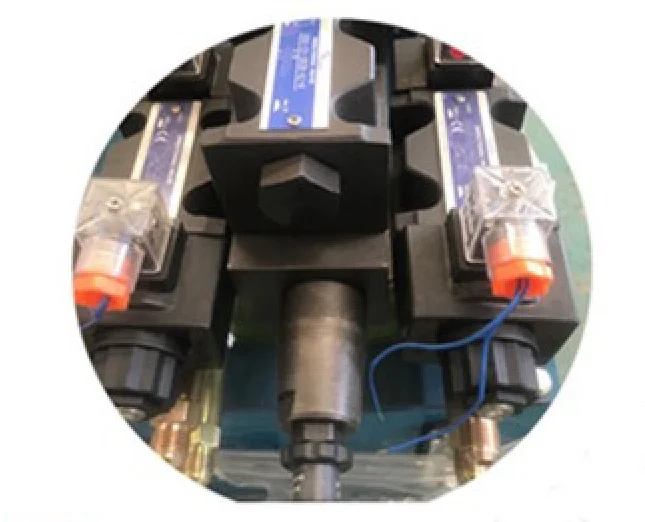

The electromagnetic valve
Precision oil circuit block, fast oil return, adjustable pressure

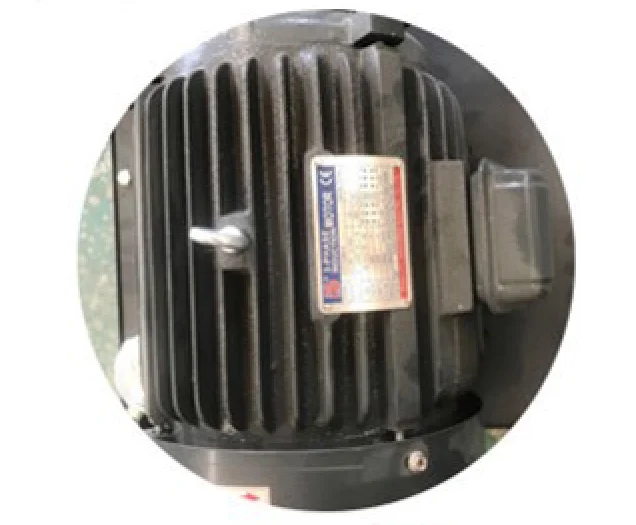

Pure copper motor
High efficiency, novel structure, beautiful appearance, low noise, low vibration and high insulation level

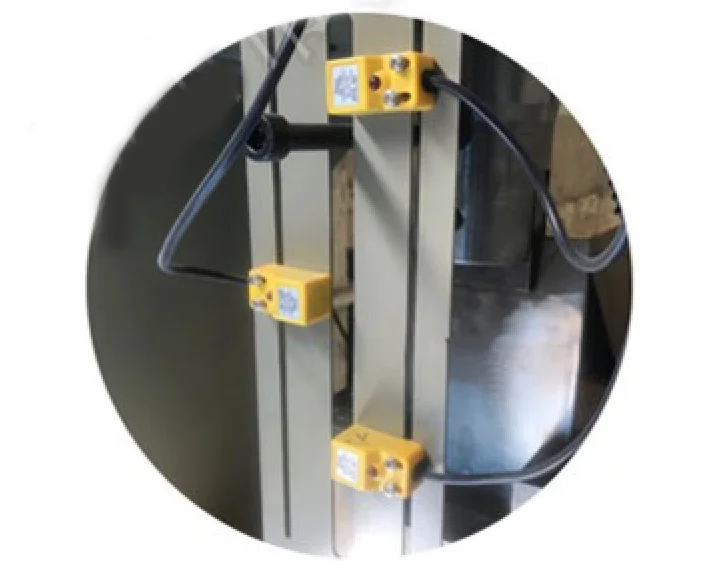

Stroke sensor
Divided into upper, middle and lower, three sensors, which can be adjusted manually

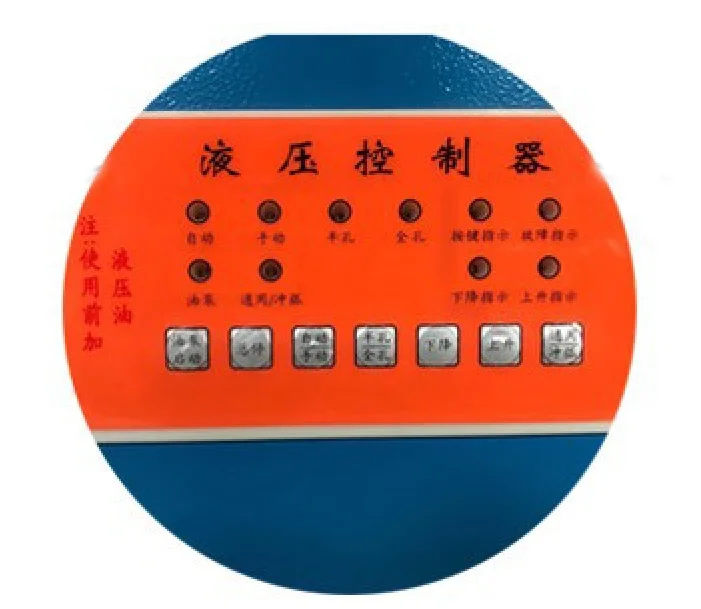

Control panel
Humanized control, one-key operation, easy to understand

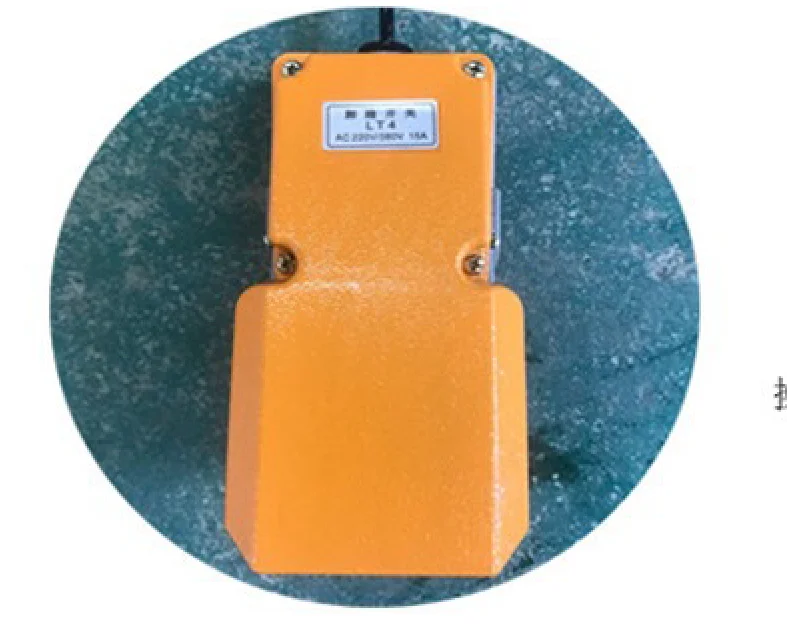

Foot switch
Sensitive operation and simple control

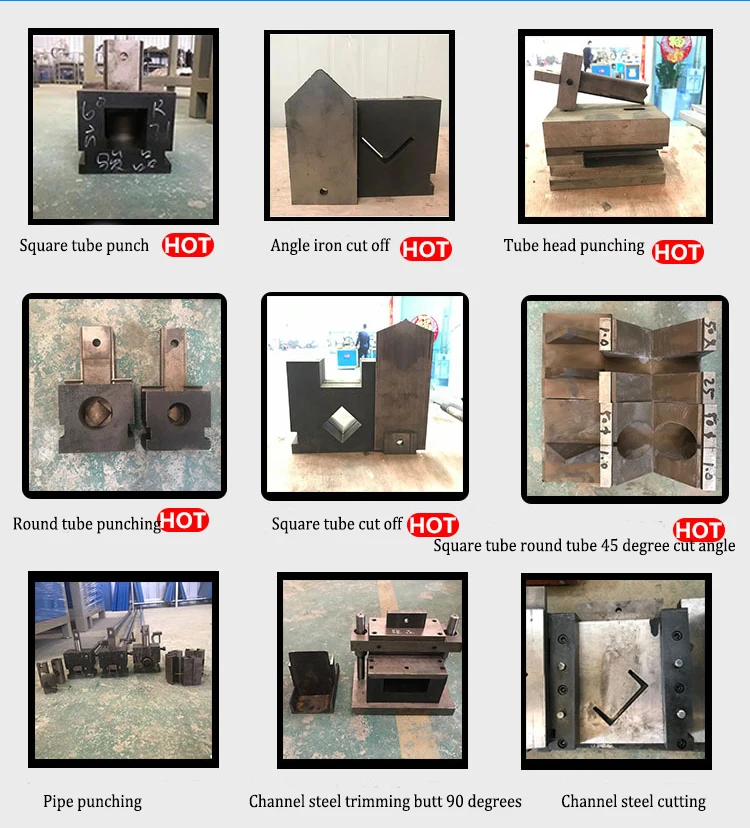

Punching molds:
According to the customer's independent design of pipe punching, pipe punching and cutting molds

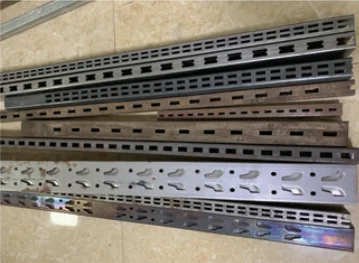

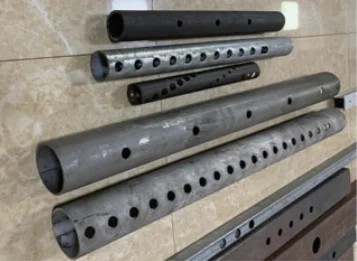

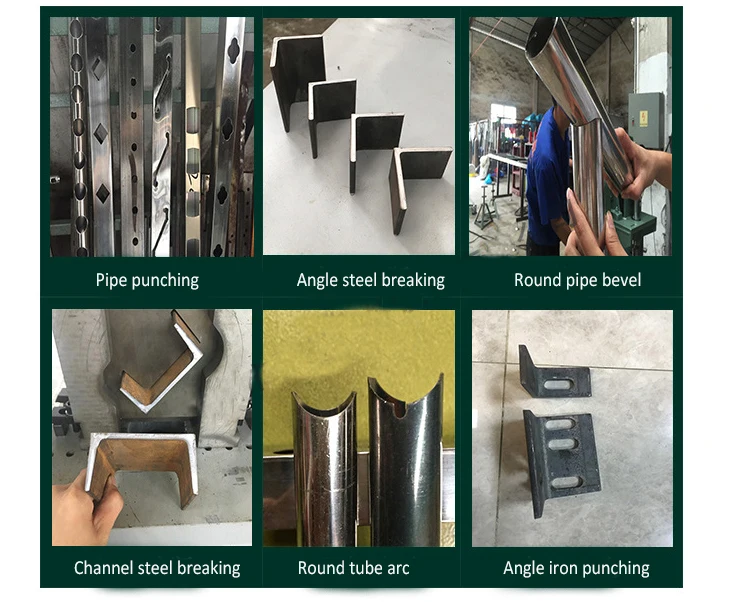

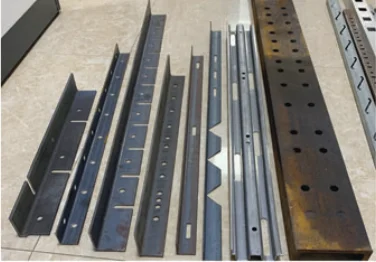

Finished product display
Company Profile
ADV is a new brand opened in the end of 2018, but the factory already has 25 years of designing and producing deburring machine, grinding machine and polishing machines. The original intention is to create a brand which is most reliable in China and most famous in the world. We made a plan to finish it within 5 years. We will take priority for all products we were and are selling out and best service for each order. We do believe in our original intention and
keep moving to achieve it!
Anhui Advanced Grinding Tools Company has been adhering to the concept of excellent quality and reasonable price. We are committed to optimize the supply chain, strictly control the quality, supervise the production and debugging process of machines, and ensure the delivery of high-quality products to customers. In addition, we have experienced sales and service personnel to provide customers with high-quality pre-sale, after-sales and technical support services.
The company actively explore foreign markets, advocate the business philosophy of integrity management, promote the development of customers is our driving force. Our products are exported to Europe, America and Southeast Asia.
The company actively explore foreign markets, advocate the business philosophy of integrity management, promote the development of customers is our driving force. Our products are exported to Europe, America and Southeast Asia.
Certifications
Exhibition
Packing & Delivery
Ports:
Shanghai Port / Ningbo Port / Customer Demand
1, Overseas after-sales service is available.
2, Two years warranty.
3, Foundation drawings, manual book, electric wiring diagram, electric manual book, and maintenance book, etc. provided.
4, We visit each country every year for free technical instructions.
2, Two years warranty.
3, Foundation drawings, manual book, electric wiring diagram, electric manual book, and maintenance book, etc. provided.
4, We visit each country every year for free technical instructions.
Our overseas service photo show:
