A13S10 10pC/g Charge Output General 3 Axis PE Accelerometer Vibration Acceleration Sensor
- Category: >>>
- Supplier: Yangzhou Xiyuan Electronic Technology Co. Ltd.
Share on (1600540787237):
Product Overview
Description
Product Description
Characteristic:
1. A three-way output measures X, Y, and Z directions simultaneously.
2. A passive, positive piezoelectric effect.
3. Fixed hole installation.
2. A passive, positive piezoelectric effect.
3. Fixed hole installation.
Specification:
Dynamic Properties | ||
Range(peak)） | ±2000g | |
Sensitivity(25℃) | 10pC/g (160Hz) | |
Frequency Response（±1dB) | 1-5,000Hz | |
Transverse Sensitivity Ratio | ≤5% | |
Electrical Properties | ||
Insulation resistance | >10^9Ω | |
Capacitance | ～1100PF | |
Polarity | + | |
Environment Properties | ||
Operation Temp | -54℃～+150℃ | |
Shock Resistance(peak) | ±2000 g | |
Temperature Response | Attached | |
Temperature Response | ||
Structural Style | Cutting | |
Shell Material | Titanium alloy | |
Output Mode | 3-M5 | |
Installation | φ5 through-hole (Z),2-M5(X、Y) | |
Piezoelectric Materials | PZT-5 | |
Weight | ～35g | |
Accessory | ||
Erection Bolt | M5 Hexagon socket screw、M5 | |
Cable | Double end M5 low noise shielded cable x 2m | |

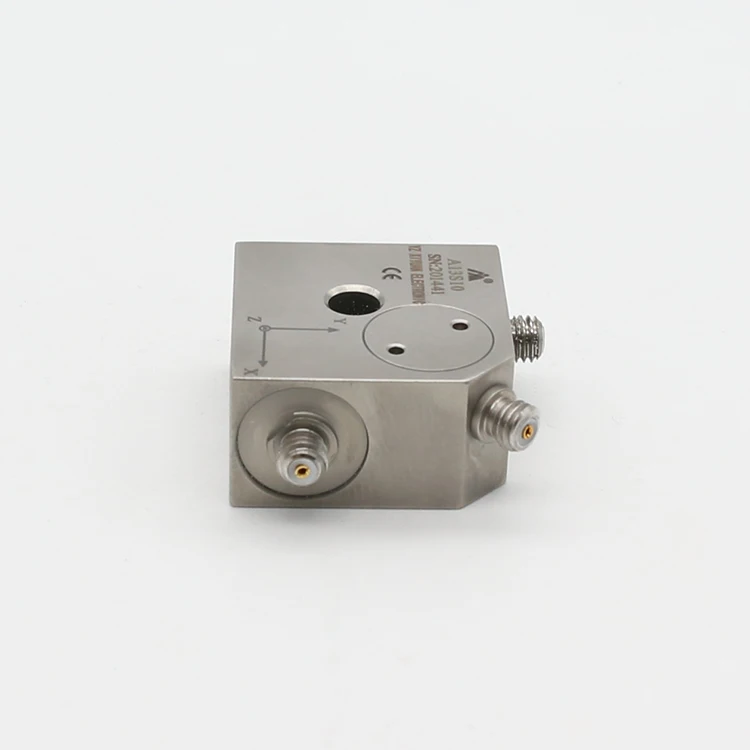

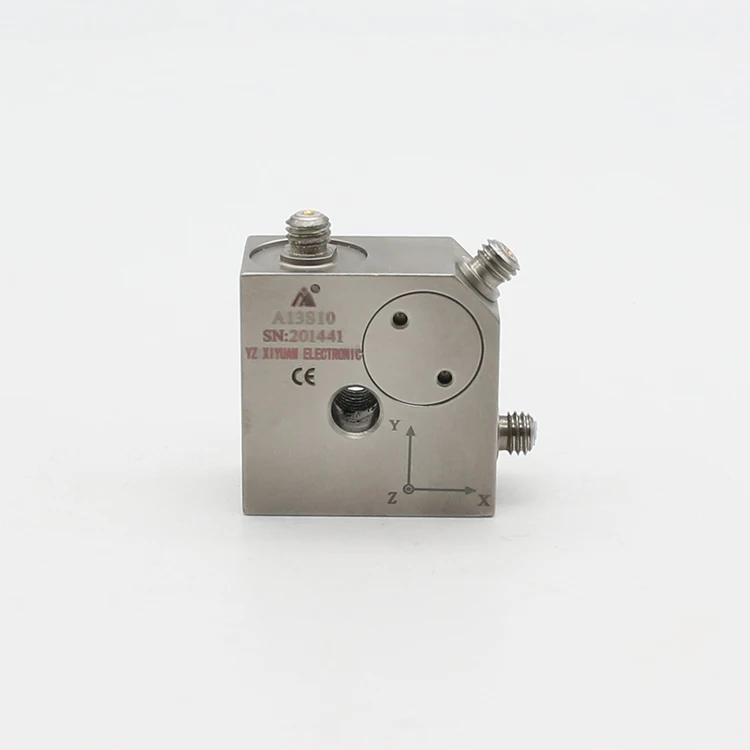

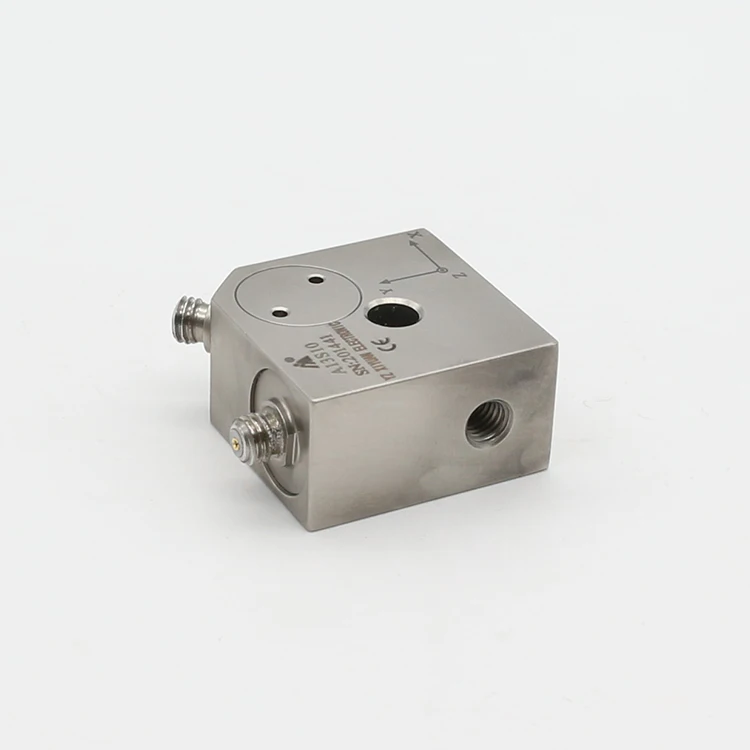

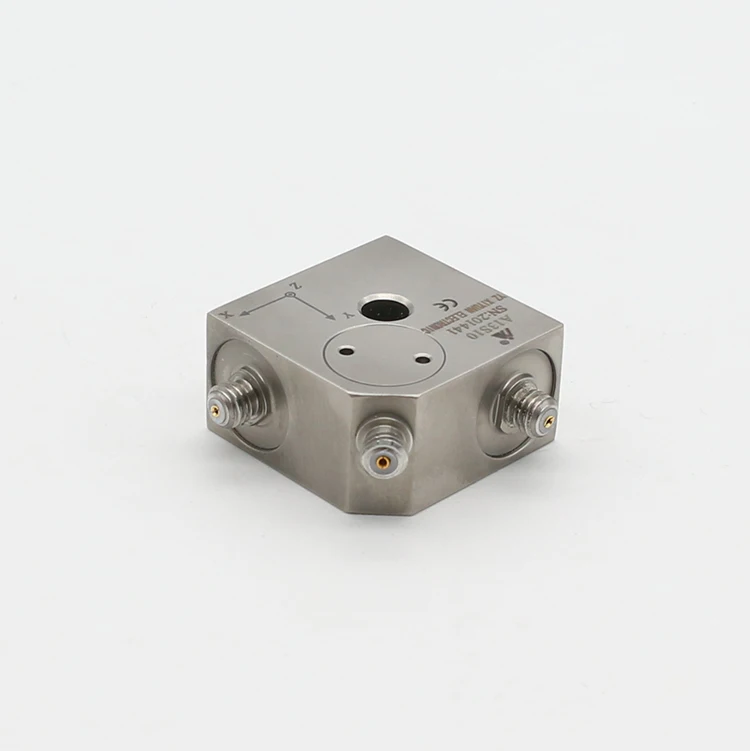

Product Display
Product
Size
Temperature Curve
Frequency Response Curve
