High Quality UV254 COD Probe RS485 COD Analyzer

Share on (1600540879536):


Price:$1,190.00 - $1,350.00

Quantity:


Product Overview

Description


cod20220716-6



Product Description


 EL551 UV254 probe features highly reliable UVC LED for light absorption measurement. This proven technology provides reliable and accurate analysis of organic pollutants for  water quality monitoring at low cost and low maintenance. With rugged design, and integrated turbidity compensation, it is an excellent solution for continuous monitoring of source water, surface water, municipal and industrial wastewaters.





Features and uses


 Modbus RS-485 output for easy system integration

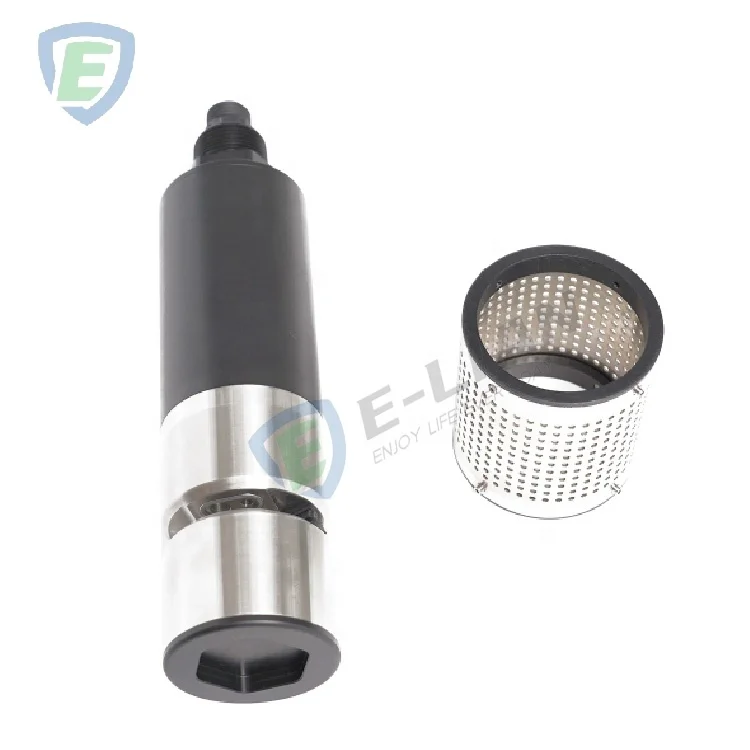

Programmable auto-cleaning wiper
No chemicals, direct UV254 spectral absorption measurement
Proven UVC LED technology, long lifetime, stable and instant measurement
Measurement of SAC,COD,TOC, and BOD
Advanced turbidity compensation algorithm





Technical parameter
























































































NameParameter
Interface

Support RS-485, MODBUS protocols

COD Range0.75 to 370mg/L equiv.KHP
COD Accuracy

<5% equiv.KHP
COD Resolution0.01mg/L equiv.KHP
TOC Range0.3 to 150mg/L equiv.KHP
TOC Accuracy<5% equiv.KHP
TOC Resolution0.1mg/L equiv.KHP
Tur Range0-300 NTU
Tur Accuracy<3% or 0.2NTU
Tur Resolution0.1NTU
Temperature Range

+5 ~ 45ºC
Housing IP Rating

IP68
Maximum pressure

1 bar
User Calibration

one or two points

Power Requirements

DC 12V +/-5%,current<50mA(without wiper)

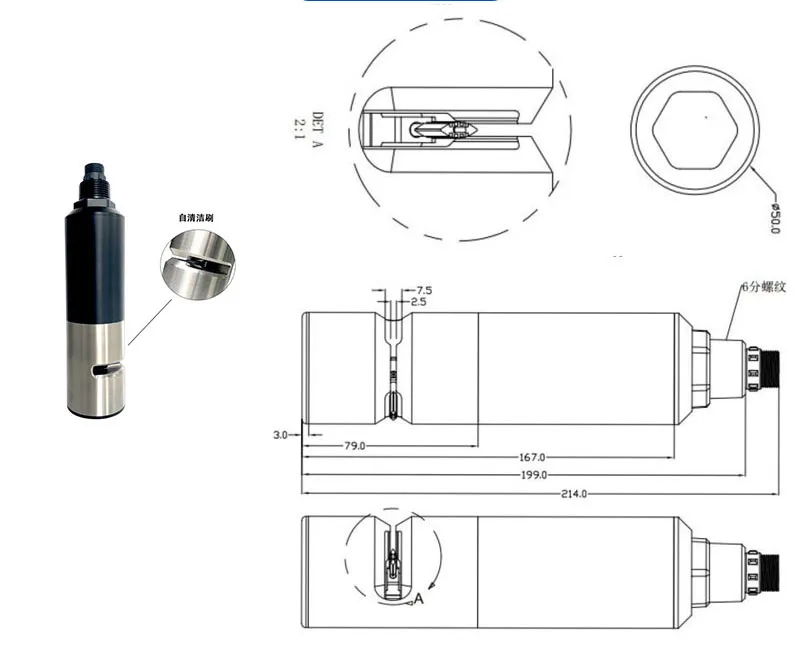

Sensor OD

50 mm
Sensor Length

214 mm
SpecificationΦ 50mm*214mm

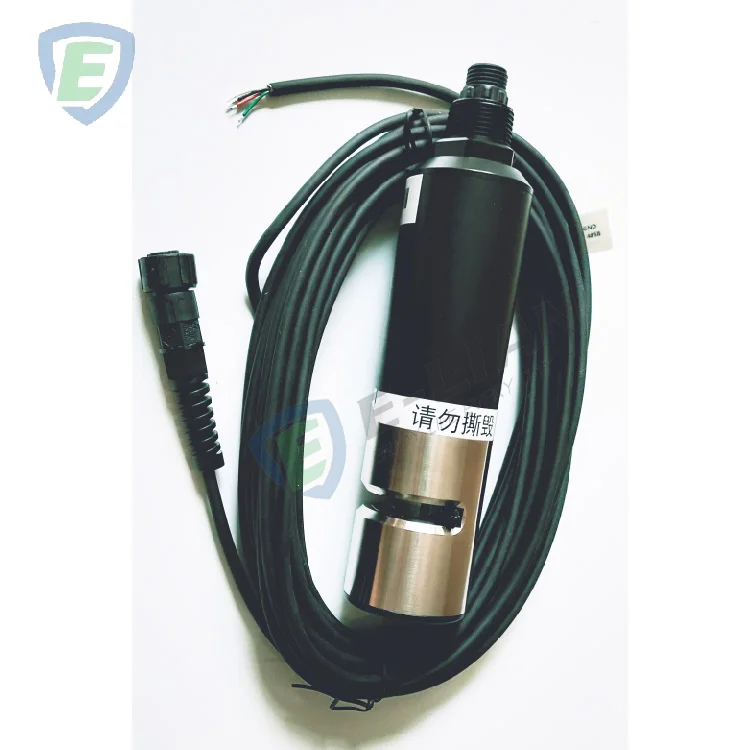

Cable Length10m (default).

cod 8





Packaging & Shipping

















Package


Carton


Delivery time


3-7 days on the way





Oil-in-Water Sensor (Crude oil, essential oil)











Company Information


Oil-in-Water Sensor (Crude oil, essential oil)











FAQ


Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N
sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 3-7 days after
received payment.
Q: How about warranty?
A: 12 months warranty
