Product Overview

Description



Product Overview

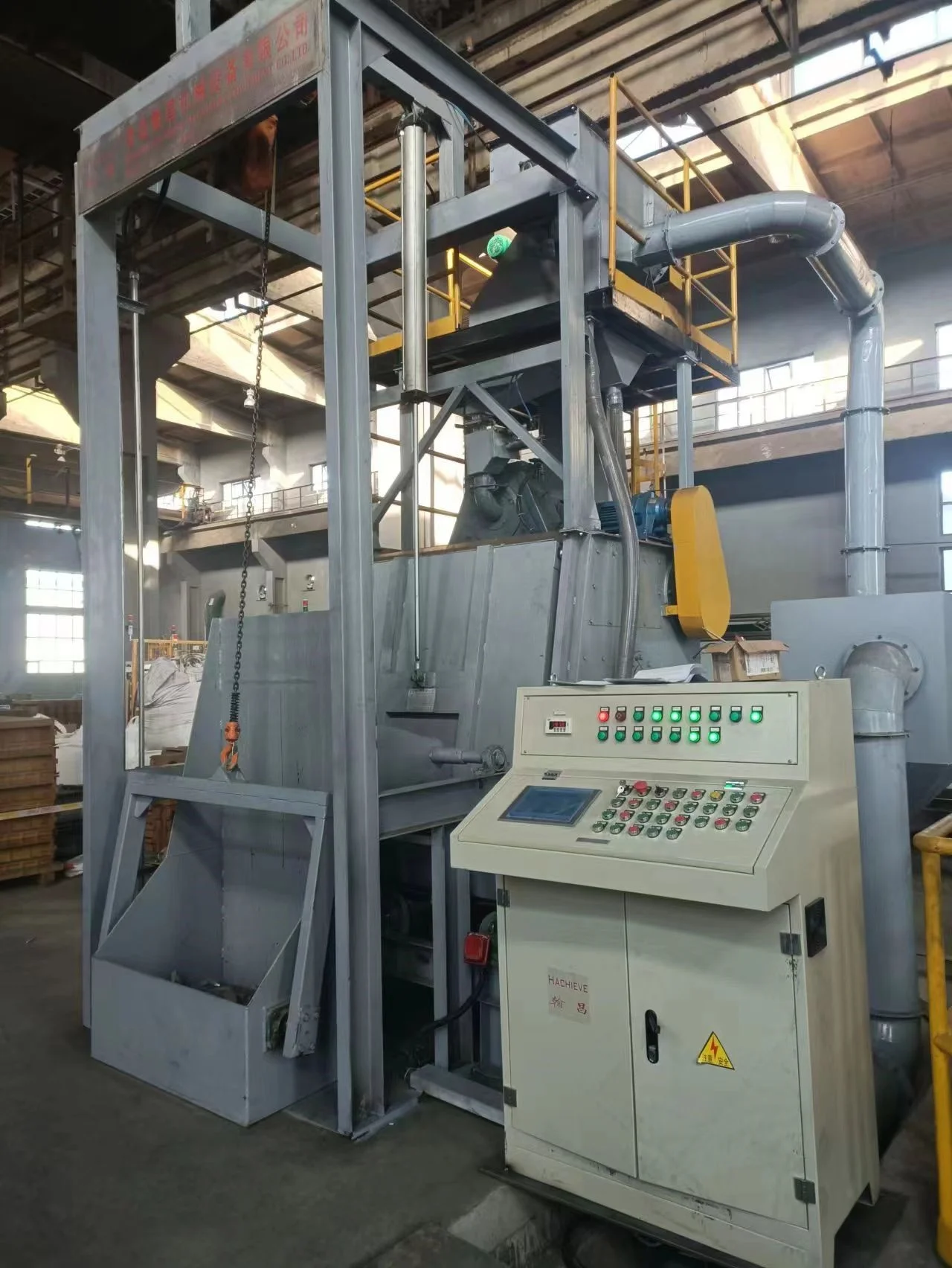

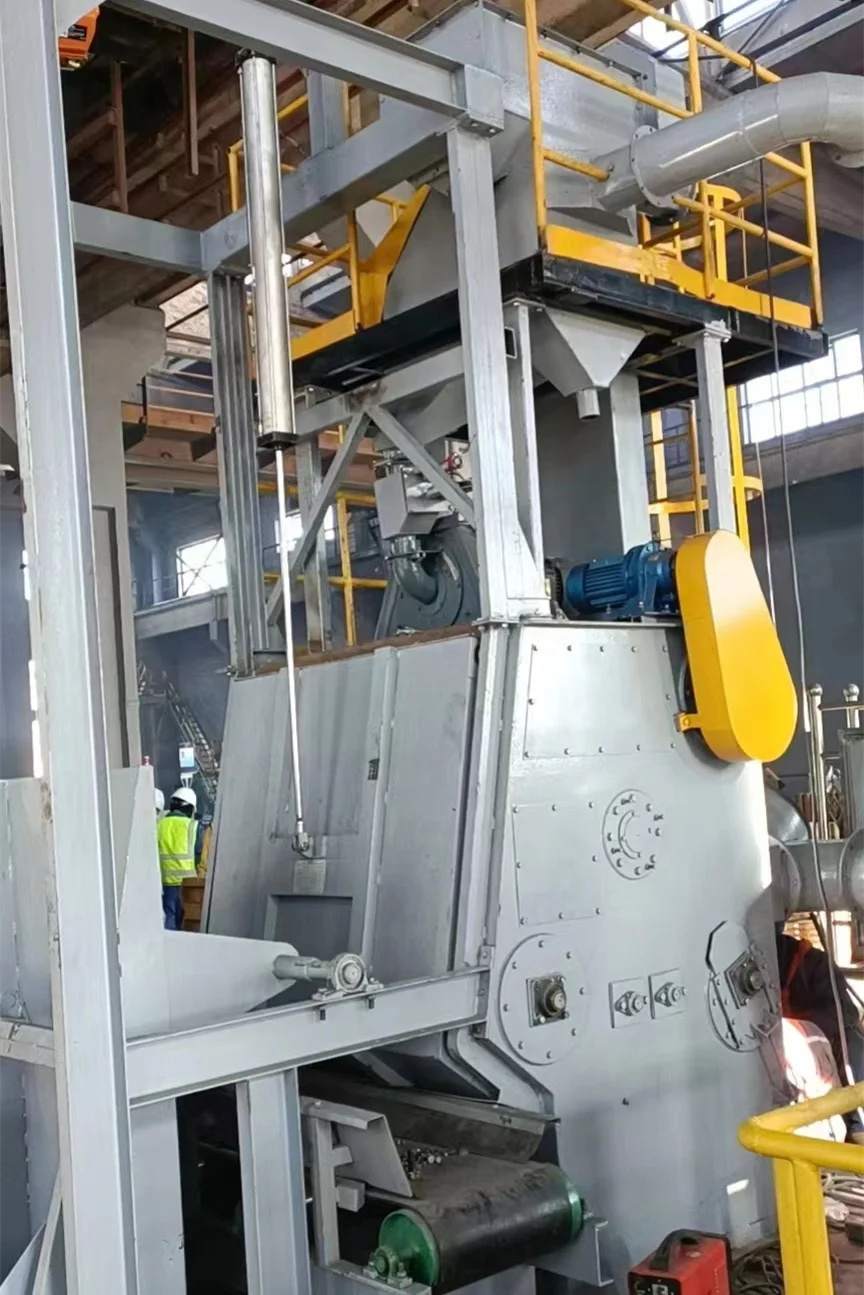

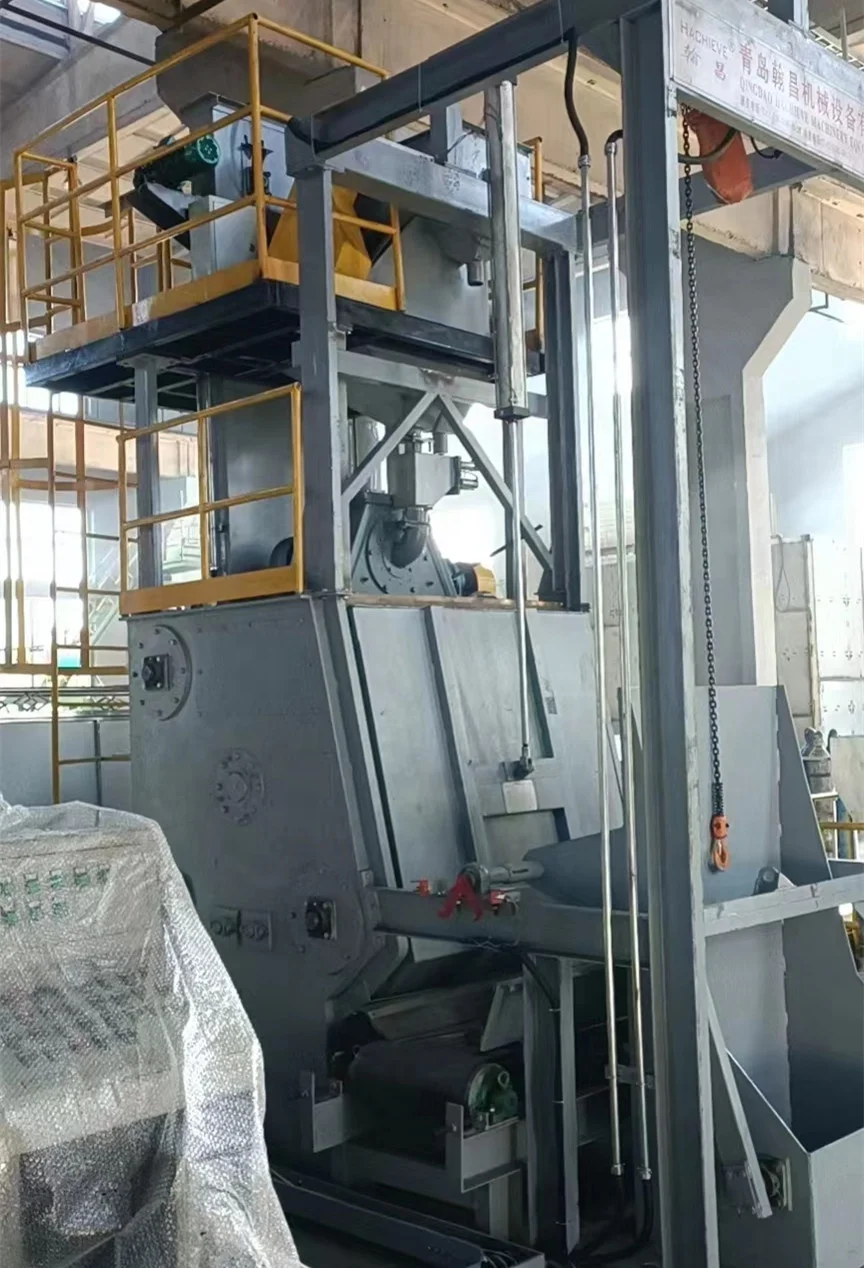

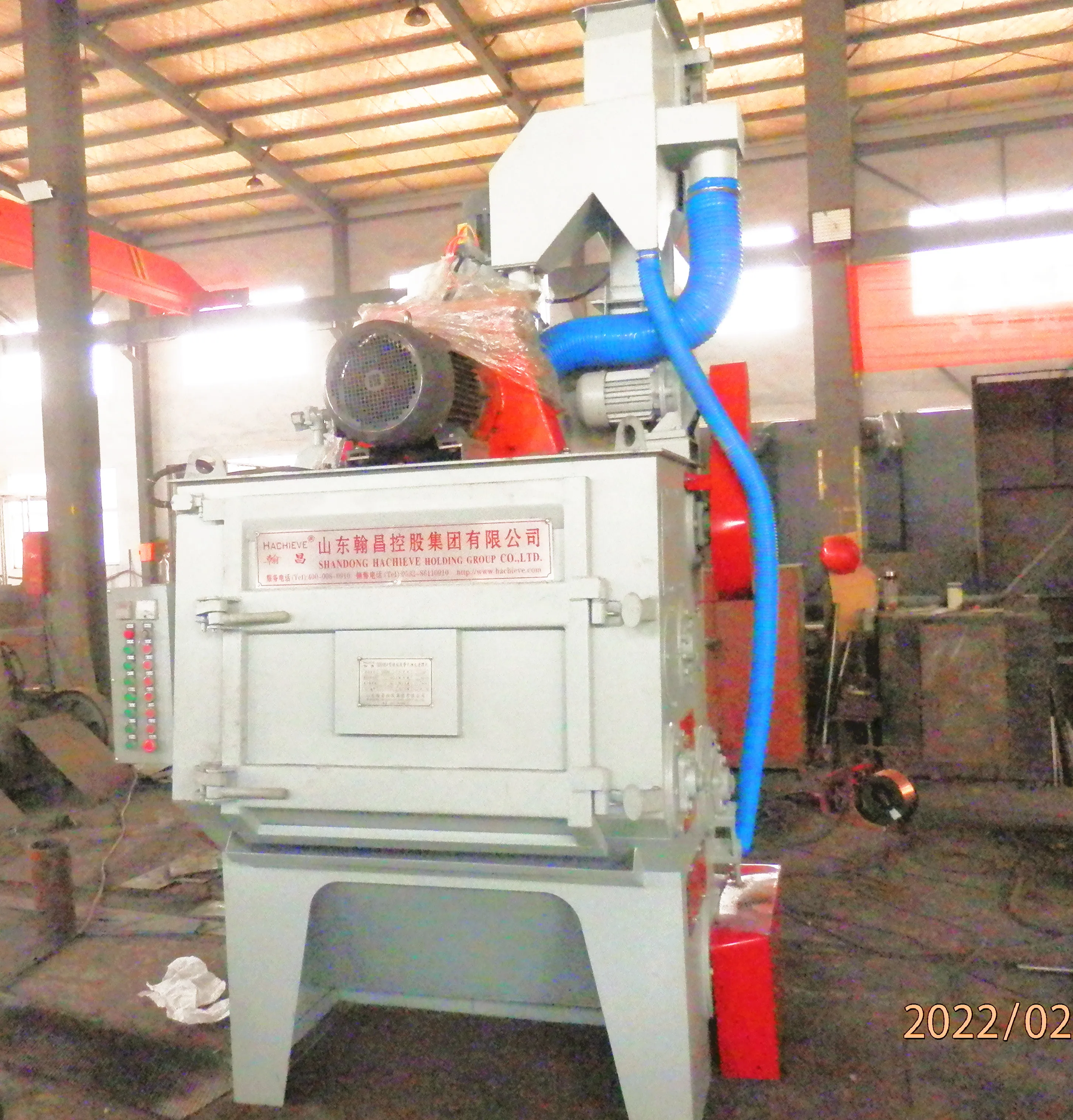

Tumble Belt Shot Blast Machine
it used high-speed rotating impeller to throw projectiles onto the continuously overturned work piece in the drum to achieve the purpose of cleaning.
It is suitable for shot blasting, descaling and surface strengthening of small castings, forgings and stampings in various industries.
It is especially suitable for surface cleaning and strengthening of parts that are not afraid of collisions.


FEATURES AT A GLANCE


1 )Q3210C: The crawler device is mainly composed of 45 links and crawlers mounted on the links. The use of steel crawlers has the advantages of large load and long service life

2) Q3210: The crawler device is mainly
composed of a chain link and a wear-resistant rubber crawler mounted on the chain link. The use of wear-resistant rubber crawlers reduces the collision and damage to the work piece and reduces the noise of the machine;

3)High-efficiency centrifugal impeller head

4) Winnowing separator

5) Bag filter

6) After cleaning, the belt can be reversed to realize automatic unloading;




PRODUCT SPECIFICATIONS


No
Item
Unit
Q326C
Q3210C
1
productivity
T/H
0.6-1.2
3-5
2
feeding capacity
kgs
200
800
3
max weight /pc
kgs
10
150
4
diameter of disk
mm
650
1000
5
effective volume
m3
0.15
0.4
6
blasting capacity
kg/min
100
250
7
dedusting volume
m3/h
2200
6000
8
power consumption
kw
12.6
32.6
9
outside size(L*W*H)
mm
3681*1650*5800
3644*2926*5856


Recommend Products




Stainless Steel Strip Shot Blast Equipment
it has been successfully applied to the mechanical cleaning of hot-rolled stainless steel strips (chromium-nickel-titanium alloy steel strips) and silicon steel strips. It has been effectively combined in the production lines of annealing, cooling, mechanical
cleaning and treatment.
view more check here


Wire Rod/ Steel Wire Shot Blast Equipment
mainly used for shot blasting of coils of carbon steel, stainless steel and other alloy materials, to remove oxide scale and dirton the surface of the wire

view more check here


Certifications




COMPANY ACHIEVEMENTS


STAINLESS STEEL COIL SHOT BLAST MACHINE
STEEL STRIP STEEL BAND SHOT BLAST MACHINE
DOMESTIC
Fujian Dingxin Technology Co., Ltd.--（1250mm) 5 lines
Henan Anyang Iron and Steel Co., Ltd.--1310mm 1line
Shandong Shengyang Metal Technology Co., Ltd. 1700mm 1 LINEJiu Steel Group --1700mm 1 line
FOREIGN
Qingshan Iron and Steel Indonesian company --1250mm 2 lines
lQingshan Iron and Steel Indonesian company --1550mm 2 lines




STEEL PLATE PRETREATMENT LINES
SHOT BLASTING AND PAINTING MACHINE
ROLLER CONVEYOR PASS THROUGH TYPE STEEL PLATE/H BEAM SHOT BLAST MACHINE
DOMESTIC
SHANGHAI WAIGAOQIAO SHIPBUILDING CO., LTD
BAOSTEEL GROUP CORPORTION
ANSTEEL GROUP CORPORATION
SHOUGANG GROUP
AN GANG GROUP
SHAN STEELGROUPNANJING NANGANG IRON& STEEL UNITED CO., LTD
Xiangfan Rail Vehicle
Wuchang Locomotive
Tangshan Locomotive
Harbin Locomotive
Zhanjiang locomotive
Wuhan Jiutong Vehicle Factory
Changsha Yuanda Air Conditioning
Qingdao Lingshan Shipbuilding Co., Ltd.
Yellow Sea Shipyard (2 lines)
Jiujiang Shipyard
Zhoushan Shipyard (Tsuneishi)
Xiangtan Motor Factory
...
FOREIGN
INDONESIA KPAKATAUSTEEL
SINGAPORE OLYMPIA CO., LTD
BANGLADESH QXY2500
PERU Q6910
SAUDI ARABIA QL6930
TURKEY QXY3500
RUSSIA Q6925
RUSSIA HQ6910
UAE Q6912






HOOK TYPE CHIAN TYPE SHOT BLAST MACHINE
DOMESTIC
BEIJING HALLA CONSTRUCTION MACHINERY
China FIRST TRACTOR
CHINA FAW,
CHINA SECOND AUTOMOBILE S
FOREIGN
BANGLADESH Q3720
TAILAND Q3710
BRAZIL Q3705JAPAN Q 3720






TUMBLE BELT TYPE SHOT BLAST MACHINE
DOMESTIC
Tianjin AutomobileWuxi Little Swan
Wazhou Group,
Qingdao Textile Machinery Factory
FOREIGN
VIETNAM Q376/Q326/Q3210






Construction machinery shot blasting machine
Changlin Hyundai, Komatsu Shantui, Hefei Hitachi Excavators, Xugong, Zhenggong, Hefei Forklifts, etc.
Construction machinery shot blasting machine Beijing Construction Machinery, Shandong Construction Machinery, etc.
Carbon electrode shot blasting machine Jilin Carbon Co., Ltd., Kaifeng Carbon Factory.
Shot blasting machine Tianjin Locomotive and Rolling Stock Factory, Zhuji Spring Factory, Qinhuangdao Dicastal, etc.
Shot blasting machine for large castings and forgings Tianjin Forging Machine Tool, North China Machinery Factory, Sichuan Dongfeng Motor, Deyang Erzhong, etc.
Locomotive frame and bogie cleaning machine Qishuyan Locomotive, Liuzhou Locomotive, Shenyang Locomotive, Qiqihar Locomotive, Shijiazhuang Locomotive, Zhuzhou Electric Locomotive, Beijing Erqi Locomotive, Jiang'an Locomotive Depot, Chengdu Locomotive Depot, Tianjin Locomotive Depot, Lanzhou Locomotive Depot, etc.
Ship anchor chain shot blasting machine Qingdao Anchor Chain Factory, Jiangsu Jingjiang Anchor Chain Factory, etc.
H-beam special cleaning machine Guangdong Steel Structure, Lifeng Steel Structure, Dongyue Steel Structure, etc.
Large shot blasting (sand) room Shenyang Aircraft Manufacturing Company, Harbin Aircraft Manufacturing Company, Guangzhou Yilin, Jiangsu Lihong Heavy Industry, Dalian Hitachi Baoyuan, Changchun Locomotive Factory, etc.




Company Profile




About us
Qingdao Hachieve Machine Equipment Co.,Ltd is a professional manufacturer of all kinds of shot blast equipment with more than 20 years experience


as a qualified company, our products are comprehesive
"Consider More From the Customer's Aspect " is our service princeple


we have established long-term cooperation relations with customers in Russia, Thailand, Vietnam, Brazil, UAE, Saudi Arabia, Japan, South Africa, India, Bengal, Algeria, Turkey, etc


we are confident in our products
we believe that our stable quality and competitive price will help you get more market and better develop
