FenceMate Fence Energizer with AC Power up to 2 Miles / 8 Acres, Charger for Containment of Livestock

Item

FM M15

Key Features

 * Suitable for electric fences (made of steel, aluminum or other conductive wire, rope, braid, tape, net) for containment of
rabbit, poultry, pet, small-sized, short-haired hobby animals, or for keeping out rodents, etc.
* Powered fence distance subject to type and resistance of fence wires, number of fence wires, vegetation on fence, grounding and
installation of fence system, animal intensity level, etc. Effectively powered fence distance around 0.5 miles / 2 acres in
average (2-3 steel or aluminum wires, little vegetation), or up to 2 miles / 8 acres (single steel or aluminum wire, no
vegetation). Heavy vegetation and poly fence products will reduce the overall power of the fence energizer.

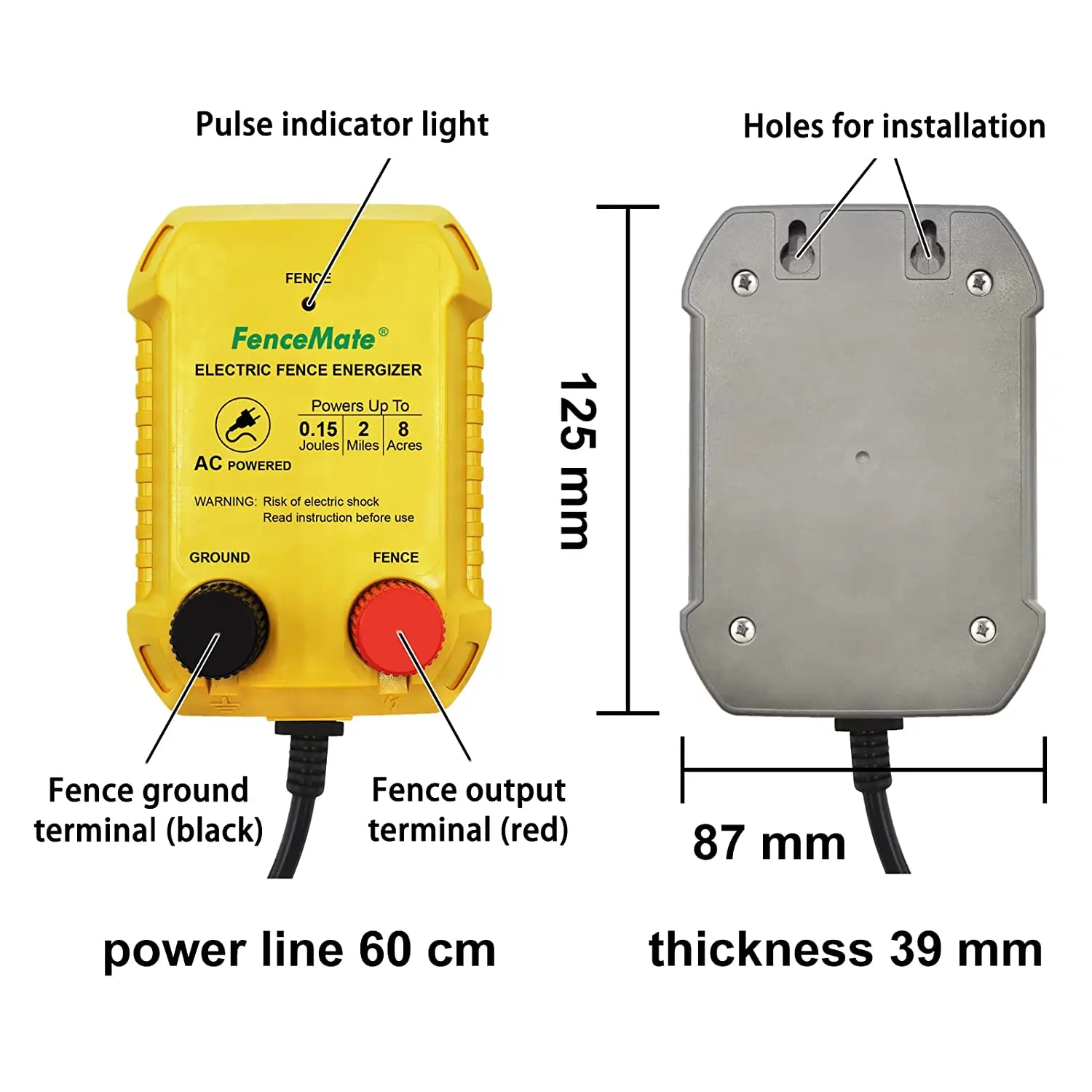

* Compact, sealed structure. Equipped with two terminals, ground (black) terminal for connecting to a separate ground rod, fence
(red) terminal for connecting to the fence line. Indicator light flashes with pulse, showing working condition. Lightning
protection included.
* Rainproof design, but better indoors or dry location installation in box or under shelter with 110/120 V, 60 Hz line
connection. Peak voltage 4.5 kV, and 3 kV under 500 Ω load.

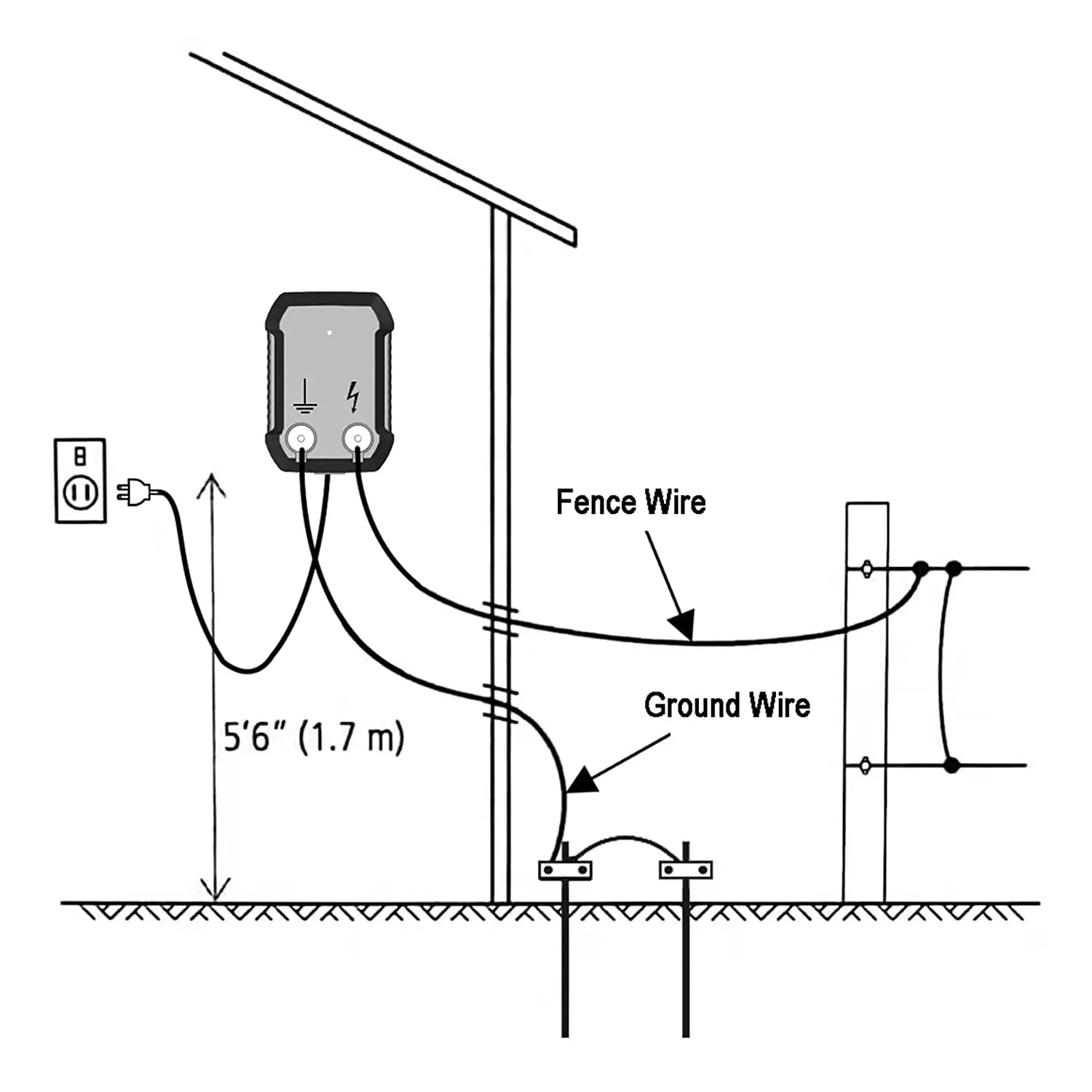

* GROUND ROD for earth connection is IMPORTANT to have good performance of the product. Soak ground rod with saturated salt water
to increase grounding contact. Warning signs shall be fitted to place where person may gain ready access to the fence.
FenceMate double-printed warning signs are recommended.

Package Dimensions

7.17 x 4.76 x 2.72 inches; 12.7 Ounces

Output Energy

0.15 Joules

Input Power

AC 110/120 V, 60 Hz

Output Voltage

4.5 kV max., 3 kV under 500 Ω load

Effective Fence Distance*

around 0.5 miles / 2 acres in average (2-3 wires, littlevegetation), and up to 2 miles / 8 acres (single wire, no vegetation)
