High Quality Steel With Strong Rigidity And Strength Excavator Transporter Gooseneck Lowboy Semi Trailer At Affordable Price
- Category: >>>
- Supplier: Shandong Hongdong Truck Trade Co. Ltd.
Share on (1600541010880):
Product Overview
Description

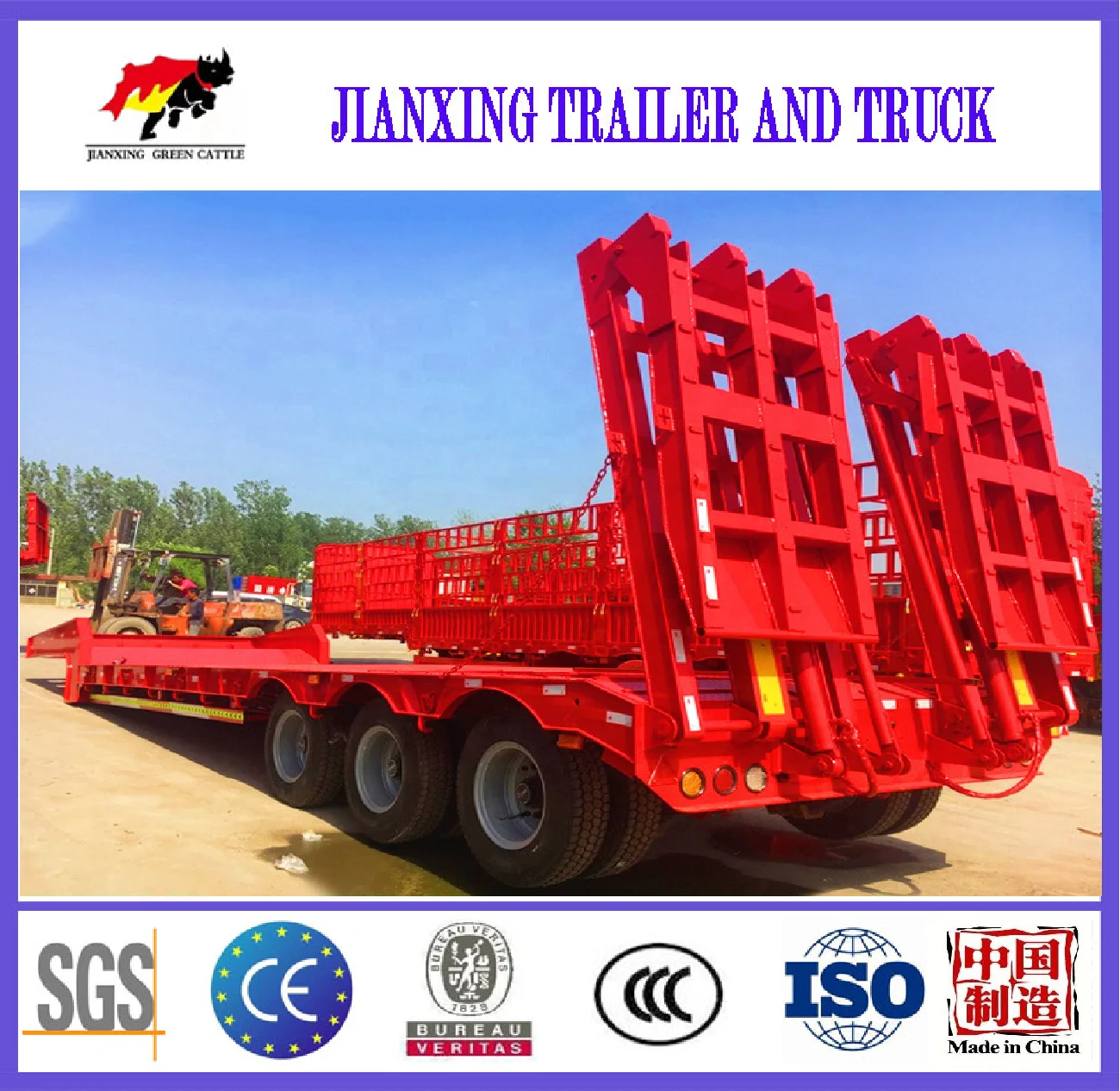

JIANXING brand Excavator Lowbed trailer 3 4 axle Low bed loader 50 60 ton gooseneck lowboy Semi Truck Trailer for sale
Low boy trailer is widely used, generally for medium and long distance freight. Its frame is a through-beam structure, and the longitudinal beam adopts straight live gooseneck type.
The height of the web varies from 400mm to 550mm, the longitudinal beam is welded by automatic submerged arc welding, the frame is shot blasted, and the crossbeam is welded through the longitudinal beam as a whole.
All accessories are world famous brand or independent products of Jianxing factory, quality is guaranteed.
---Our low bed semi trailers usually have 13 or 16 ton axles. For braking, we use brake pads with a width of 220 mm, which improves braking performance by 20%.
---We adopts high strength steel material to manufacture the trailer make the it have a higher loading capacity and a longer service life.(3Q45B)

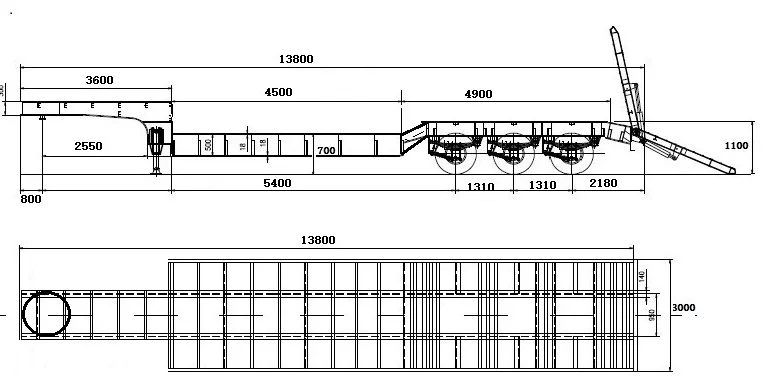

Overall Dimension | 11960mm*3000mm*3300mm | |||||
Flatbed Dimension | 8000mm*3000mm | |||||
Tare Weight | 9630kg | Pay Load | 40ton | |||
King Pin Setting | 450mm | Rear Overhang | 1870mm | |||
Wheel base | 7650mm+1305mm+1305mm | Loading Surface Height | 1320mm | |||
Track | 2160mm | |||||
Running Gear | ||||||
Suspension | Tri-axle 8-pcs leaf spring suspension with equalizer beam | |||||
Tires | 311.00-20, 11.00R20,12.00-20,12.00R20 12units | |||||
Axles | AQ，FUWA, BPW or STEYR axle, 13T capacity | |||||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | |||||
Under Frame | ||||||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | |||||
Cross Beam | Mild Alloy Q235, 16# channel beam | |||||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | |||||
Landing Gear | Single side operation or double side operation, Static capacity 30Ton | |||||

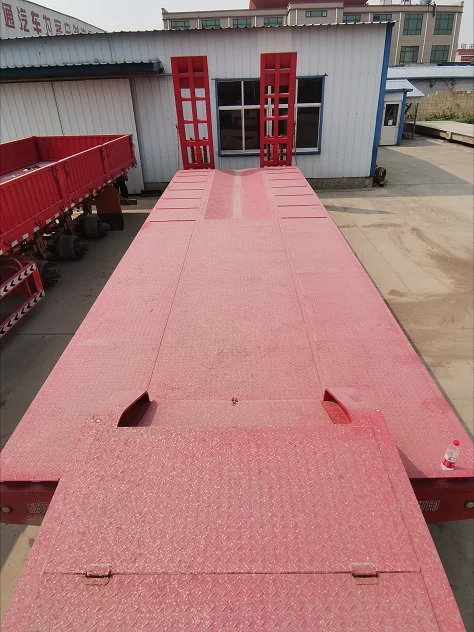

Flatbed Floor | Checkered sheet, thickness 4mm | |||||

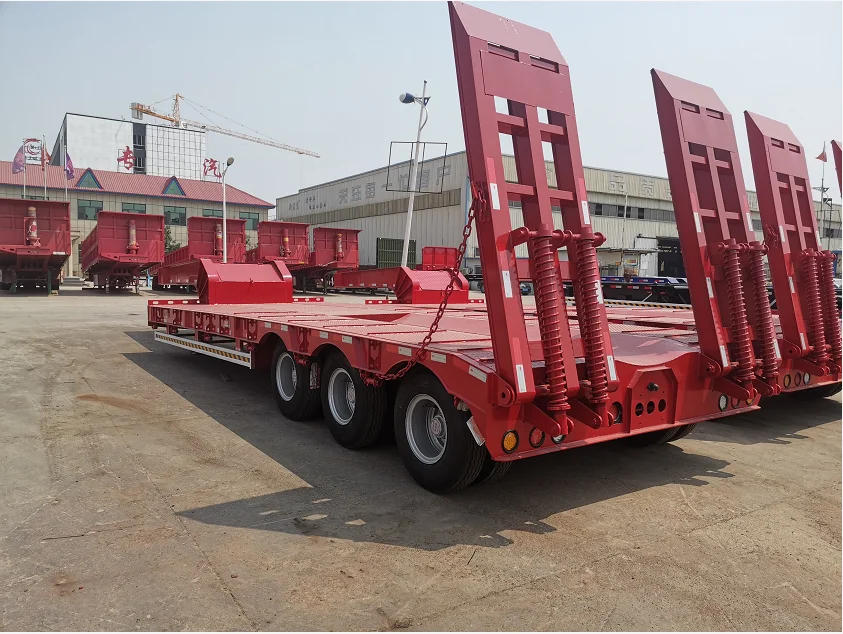

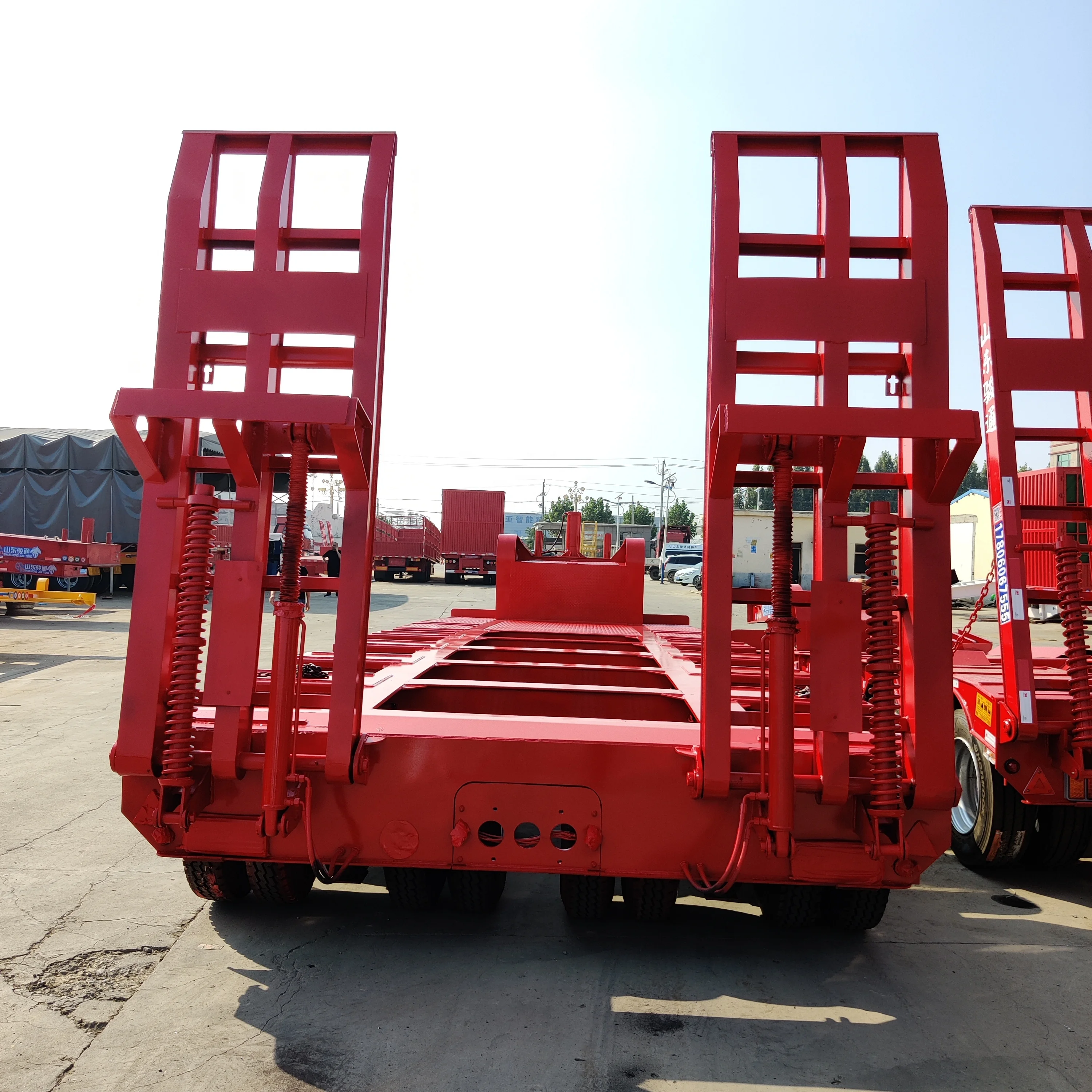

Rear Ladders | Spring power-assisted | |||||
Electrical & Paint | ||||||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||||
Wiring | 24V, 6 lines | |||||
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | |||||
Paint | Sand blasting before painting, color upon request | |||||
The above parameters of low bed semi-trailer are only common configurations, our factory can customize according to your needs.
Details

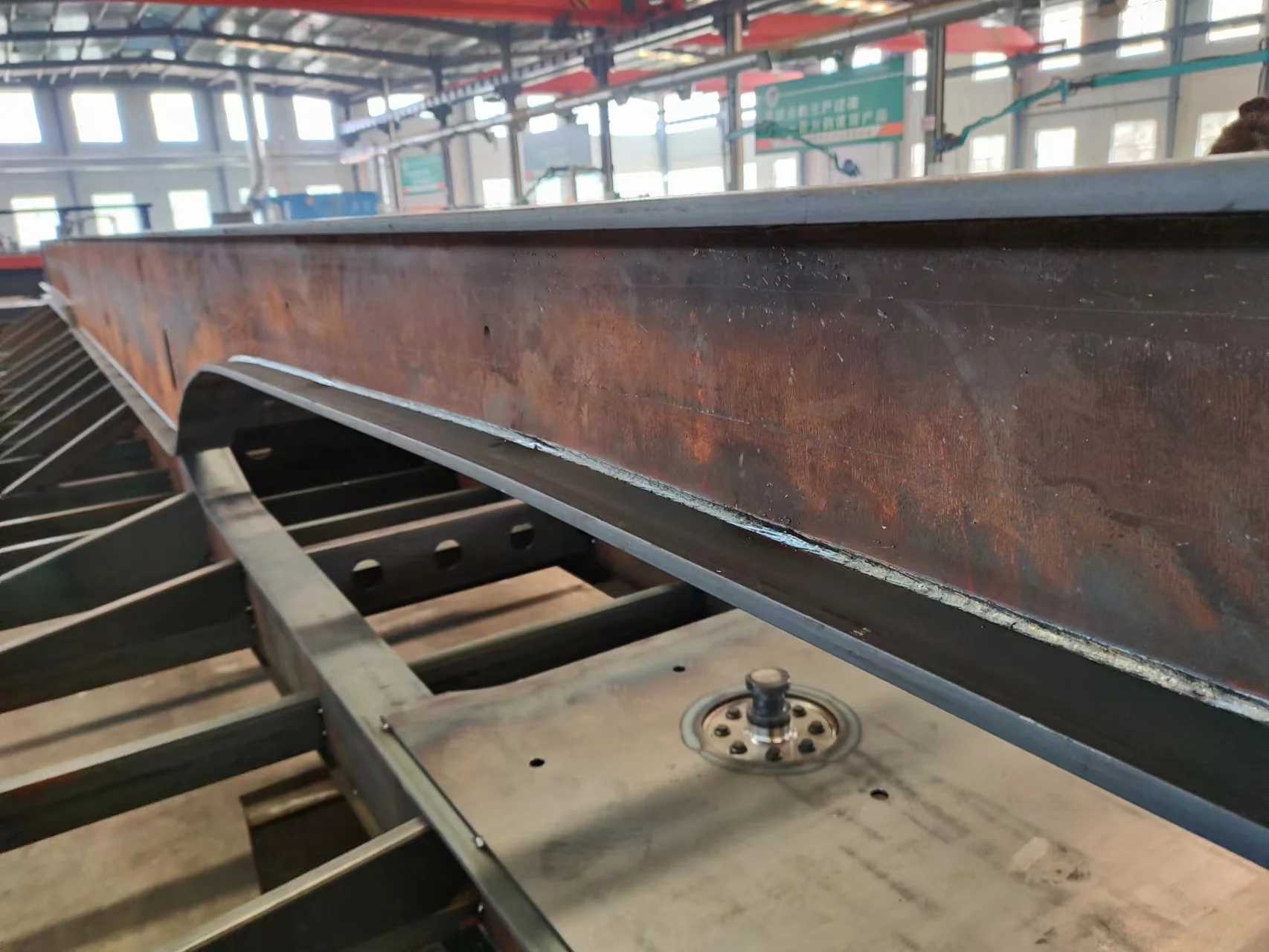

Automatic welding
Automatic welding construction of submerged arc welding, strengthening of key parts, targeted welding, avoiding some parts prone to welding leakage, to ensure that vehicles work for a long time without maintenance.

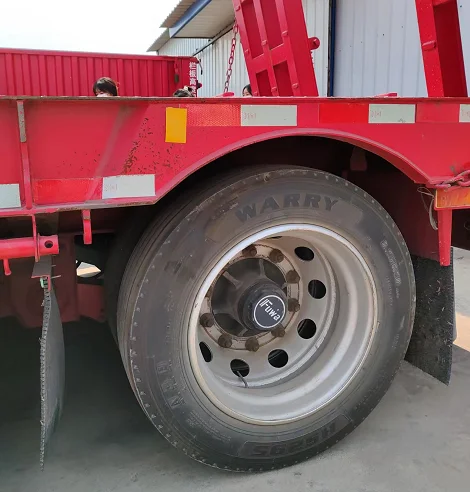

About axles
2/3 Axles *13 Ton/16Ton VEHICLE MASTER/FUWA/BPW/Other

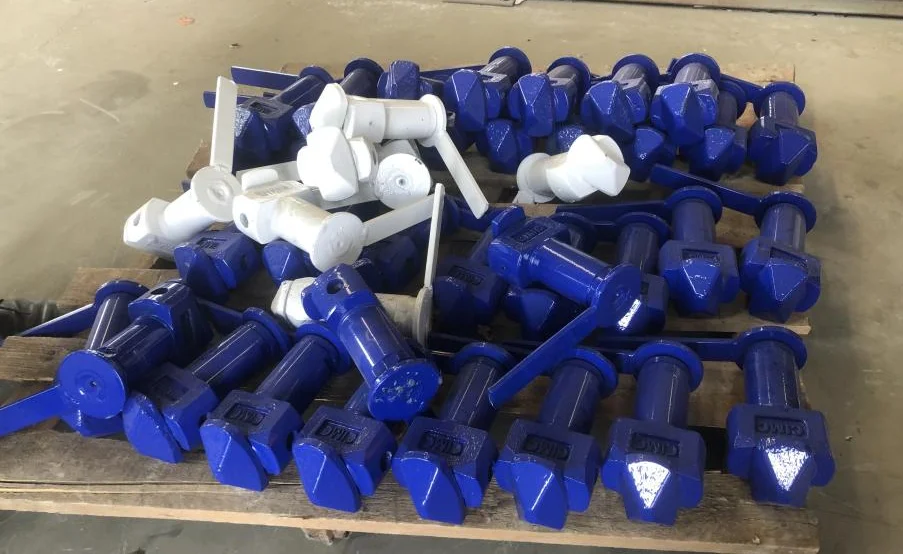

About container locks
We use high quality container locks to ensure that your goods can be safely delivered to the destination.
About leaf spring
High strength springs and suspension save you maintenance costs
The paint
Good spray paint surface after sandblasting treatment, so that the steel surface and paint tightly combined.
We make every part carefully
We are an industry and trade integrated company, with more than 5 years of semi-trailer production experience, strict quality control system, and experienced design team, can meet the different customized needs of customers, and provide lifelong parts support. With the good quality and reputation, we have been authorized ISO,CCC,CE and B&V certificates by government. We produce and sell about 12000 semi trailers per year. Our products are exported to Africa, Middle East, South Asia, South America and other international markets.
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, Our company promise one-year warranty preiod,during this period,under normal use if there is damage to the accessories,we will provide our customers with free new accessories.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, Our company promise one-year warranty preiod,during this period,under normal use if there is damage to the accessories,we will provide our customers with free new accessories.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
