TFG2900A Series 300 MHz 4bits electronic signal function arbitrary waveform generator factory price
TFG2900A Series 300 MHz 4bits electronic signal function arbitrary waveform generator factory price
TFG2900A Series 300 MHz 4bits electronic signal function arbitrary waveform generator factory price
TFG2900A Series 300 MHz 4bits electronic signal function arbitrary waveform generator factory price
TFG2900A Series 300 MHz 4bits electronic signal function arbitrary waveform generator factory price
TFG2900A Series 300 MHz 4bits electronic signal function arbitrary waveform generator factory price
TFG2900A Series 300 MHz 4bits electronic signal function arbitrary waveform generator factory price

TFG2900A Series 300 MHz 4bits electronic signal function arbitrary waveform generator factory price

Share on (1600541016517):


Price:

Quantity:


Product Overview

Description



Product Description


Features
1.2GSa/s sample rate,14 bits vertical resolution
MaximuM 4 output channels can be configured
Generating arbitrary waveform points by points to ensure output high-quality waveform accurately
Unique Harmonic Synthesis

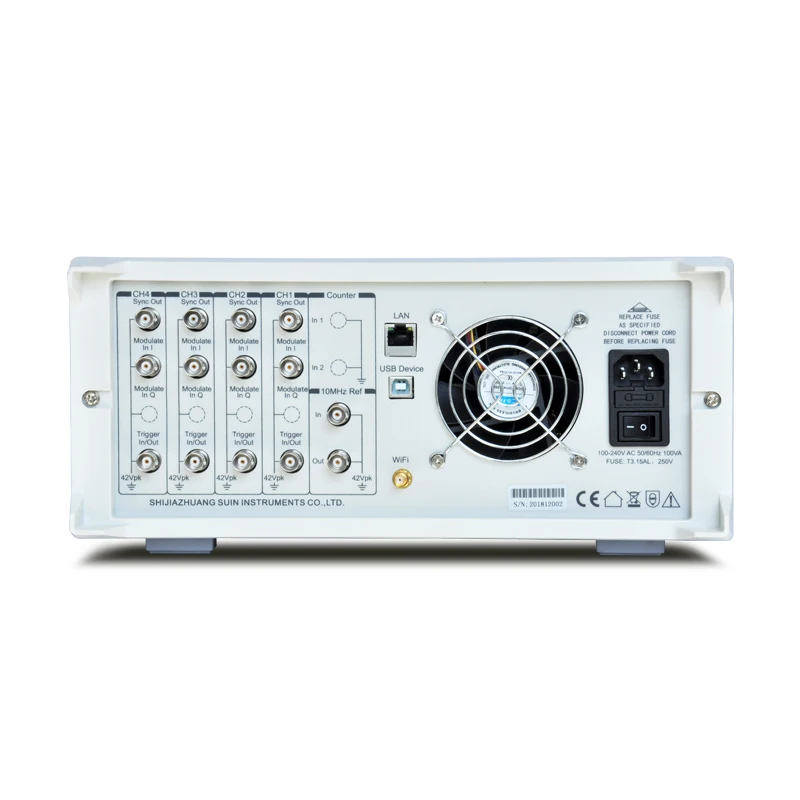

Standard interface include: USB Host, USB Device , LAN and WIFI

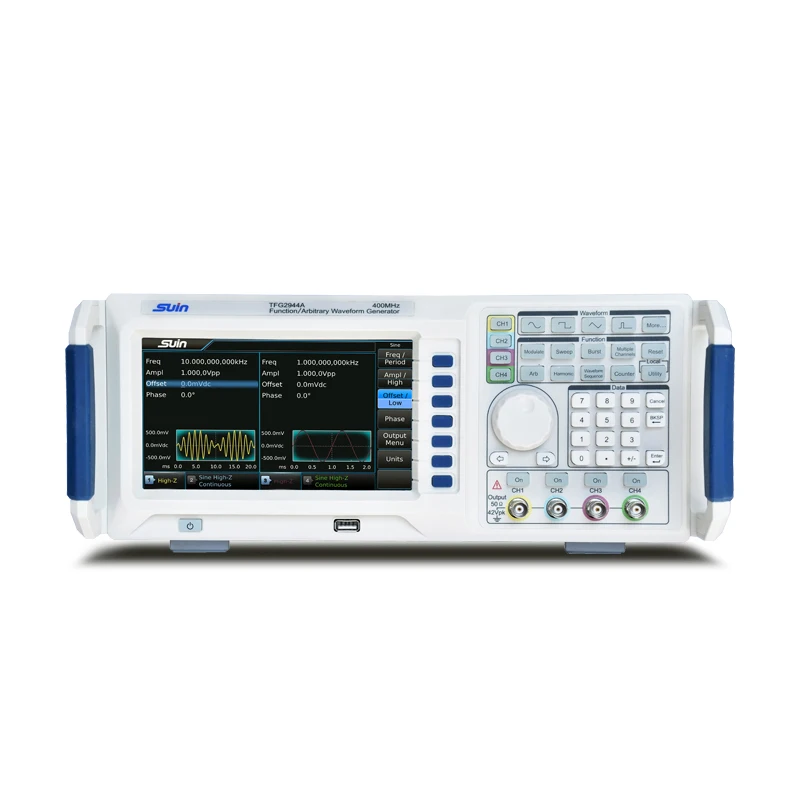

7" touch screen display for easier operation(pixel 800*400)




Specification


Model
TFG2922A
TFG2924A
TFG2932A
TFG2934A
TFG2942A
TFG2944A
Output Channel
2
4
2
4
2
4
Frequency
Sine
1μHz~200MHz
1μHz~300MHz
1μHz~400MHz
Square
1μHz~120MHz
Pulse
1μHz~80MHz
Ramp
1μHz~6MHz
Others
1μHz~50MHz
Resolution
1μHz
Accuracy
±1ppm
Waveform
Type
165 kinds include : Sine, Square, Ramp, Pulse, Noise, DC, PRBS, buid-in arbitrary waveforms, user-defined harmonic, etc.
Sample Rate
1.2GSa/s
Vertical Resolution
14 bits
Arbitrary
Sample Rate
1uSa/s~200MSa/s
Length
2 ~ 32M points
Resolution
14 bits
Square
Rise/Fall Time
≤2.5ns
Duty Cycle
0.01％~99.99％
Pulse
Rise/Fall Time
2.5ns ~1.2s
Width
4ns~(period-4ns)
Sine Spectral Purity
Total Distortion
≤0.2％ (20Hz~20kHz,20Vpp)
Phase Noise
＜-140dBc/Hz@10MHz (0dBm, 10kHz offset)
Amplitude (into 50Ω)
≤40MHz
1mVpp~10Vpp
≤100MHz
1mVpp~5Vpp
≤200MHz
1mVpp~2Vpp
≤300MHz
1mVpp~1.5Vpp
>300MHz
1mVpp~1Vpp
Accuracy
±(1％of setting＋1mVpp), (Sine 1kHz，0V offset，≥10mVpp)
Offset
Range
±5Vpk ac+dc (50Ω load)
Accuracy
±(1%of setting+2mV+0.5% of amplitude) (High-Z)
Modulation
Type
FM, AM, PM, PWM, Sum, FSK, 4FSK, NFSK, PSK, 4PSK, NPSK, ASK, OSK
Burst
Burst Count
1 to 100 000 000
General Characteristic
Power
AC 100~240V, 45~65Hz , <70VA (TFG29X2A) ,<80VA (TFG29X4A)

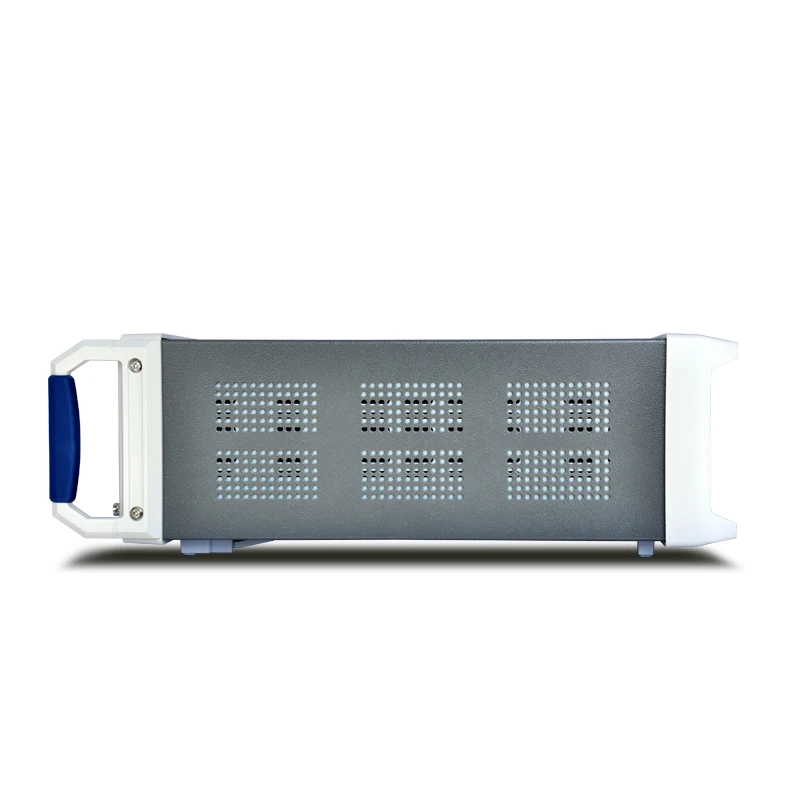

Dimension & Weight
364*155*329 mm, 7.0KGs , (TFG29X2A)
364*155*468 mm, 10.0Kgs (TFG29X4A)
Standard Accessories
Power Cord * 1
Options
Frequency Counter(upper limits to 3GHz)
BNC Cable *1
OXCO(accuracy: ±0.01ppm±1μHz)
CD(Software+User's Guide) *1
WIFI Antenna *1


Packing & Delivery




Company Profile








SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry.

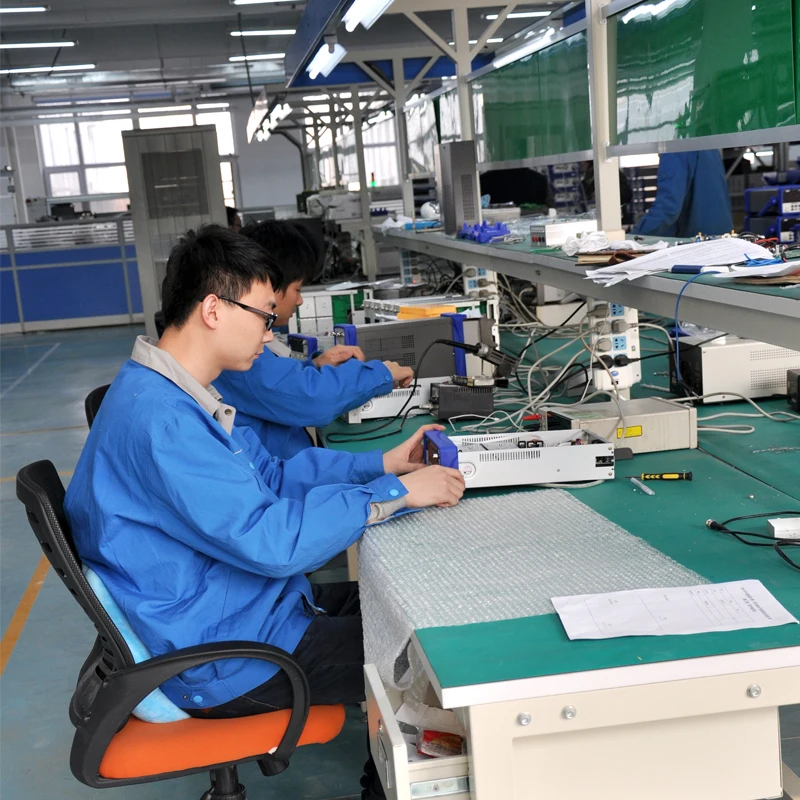

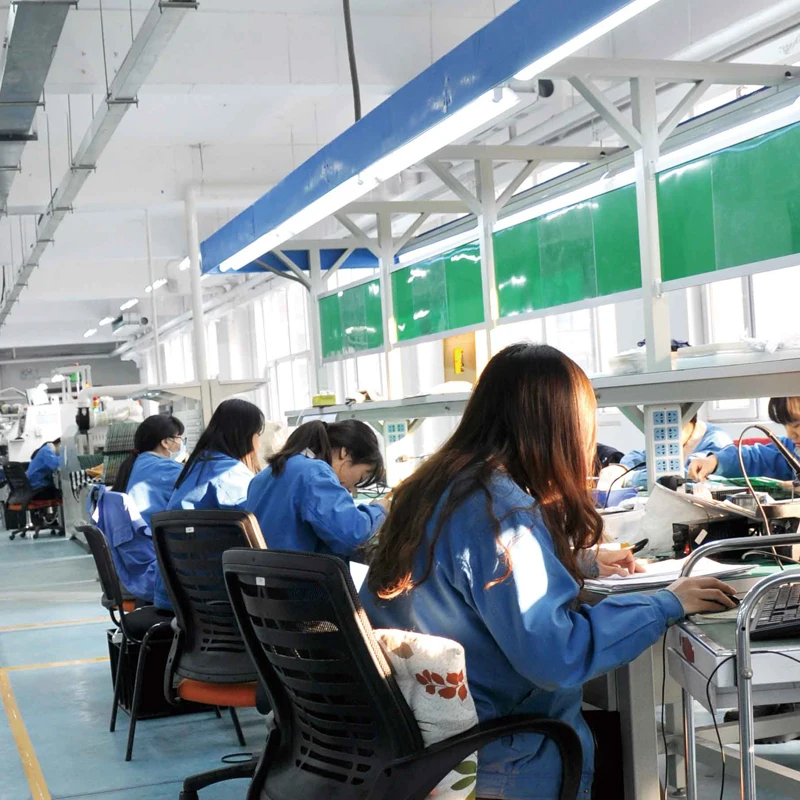

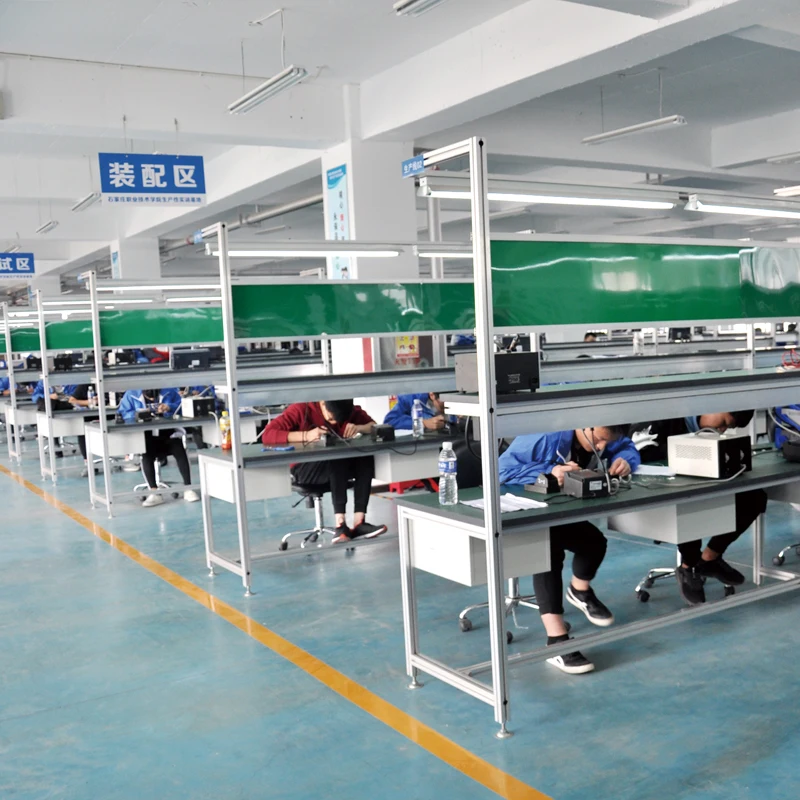

Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.
Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.


Quality Control




FAQ


1. who are we?
We are based in Hebei, China, start from 1990,sell to Eastern Europe(50.00%),Western Europe(22.00%),South America(12.00%),Southeast Asia(6.00%),South Asia(5.00%),Eastern Asia(3.00%),North America(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
power quality analyzer,signal generator,frequency counter,DC power supply,millivolt meter

4. why should you buy from us not from other suppliers?
Reliable factory base with own R&D, competitive price and good after-sale service make Suin a reliable supplier.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,German,French
