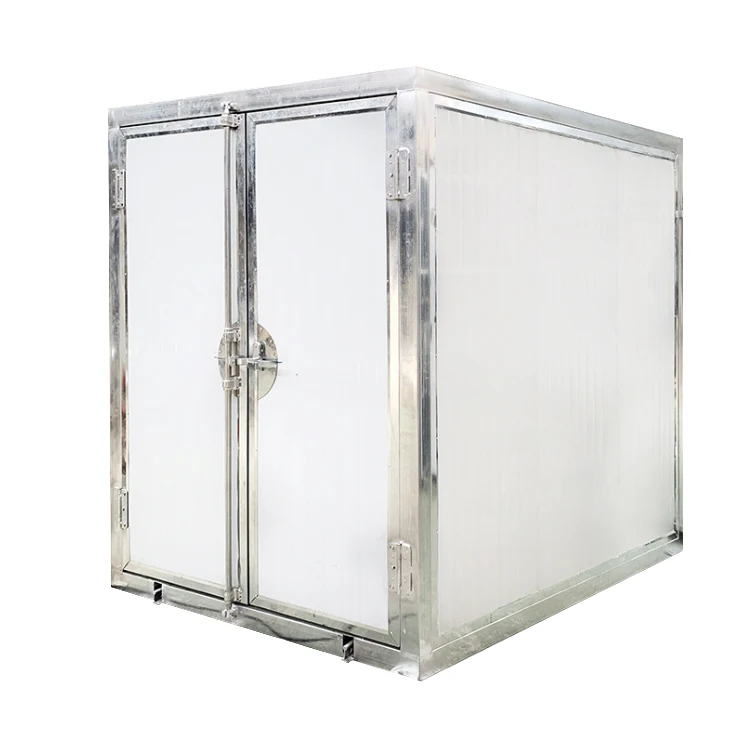

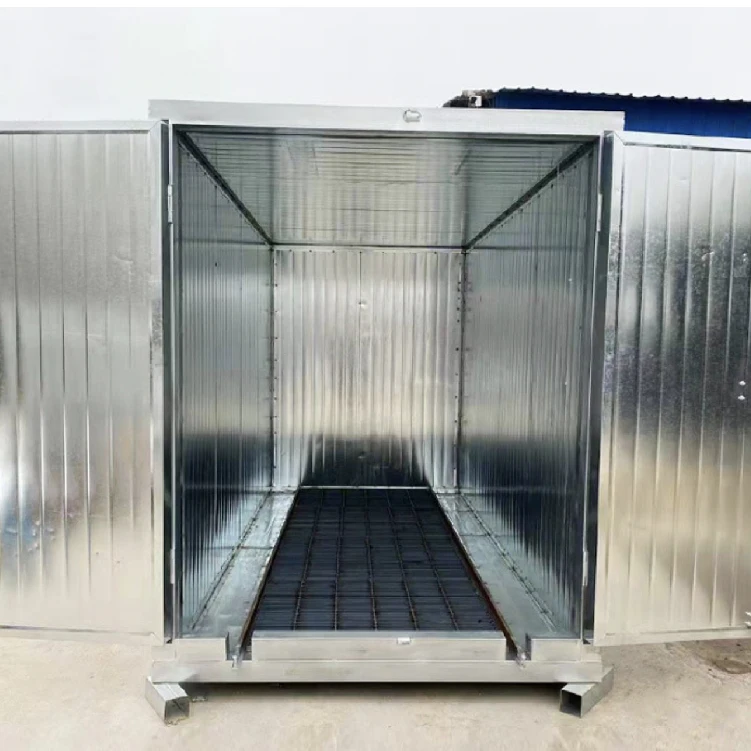

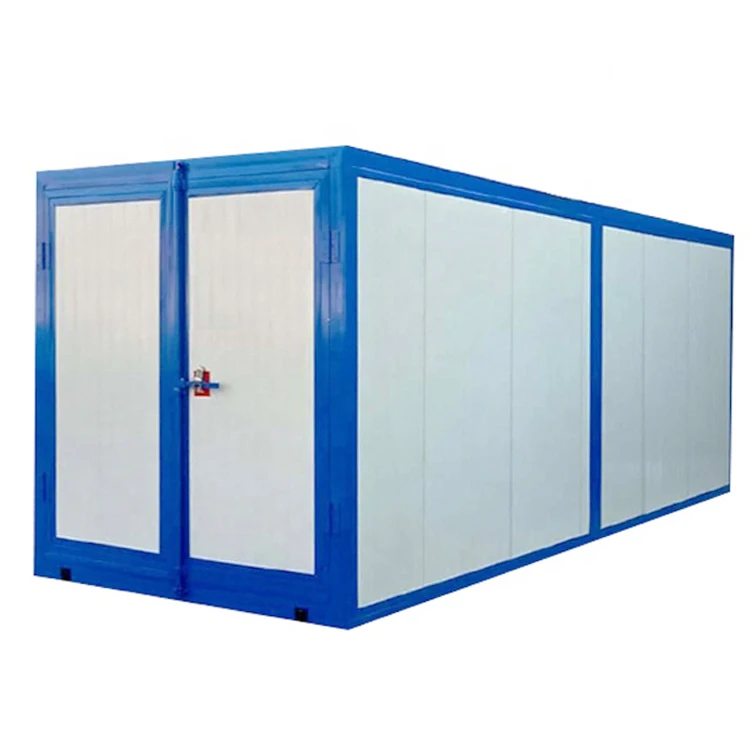

Powder coating oven

Powder coating surface aluminum alloy binding framework (Thickness：1.8mm) , 2 sets side hung door (One at front one at rear) ,each
one size is：800*1200mm.(W*H)

One set motor air fan on the top of the roof for air circulate.

100mm rock wool panel anti fired insulation material with 0.526mm 2-sided iron sheet.

100mm rock wool panel anti fired insulation material with 0.526mm 2-sided iron sheet.

100mm rock wool panel anti fired insulation material with 0.526mm 2-sided iron sheet, with anti-slide checkered plate.

Be equipped with 48pcs infrared lamps. The operating temperature can reach 250℃.

Export type. Microcomputer controlling system, which can program all the functions in each phase of every cycle work. Including
adjusting the parameters of the time, temperature, and main circuit has multiprotection, to control the light, time, spraying,
temperature, baking, failure indicator, and emergency stopand so on. Reasonbale structure and stable performance.
