Crush Fine Grinding and Shaping Stones Machine With Centrifugal Impact Sand Making Machinery
- Category: Sand Making Machinery >>>
- Supplier: Ganzhou,Eastman,Technology,Co.,Ltd
Share on:
Product Overview
Description
Product Description
Introduction

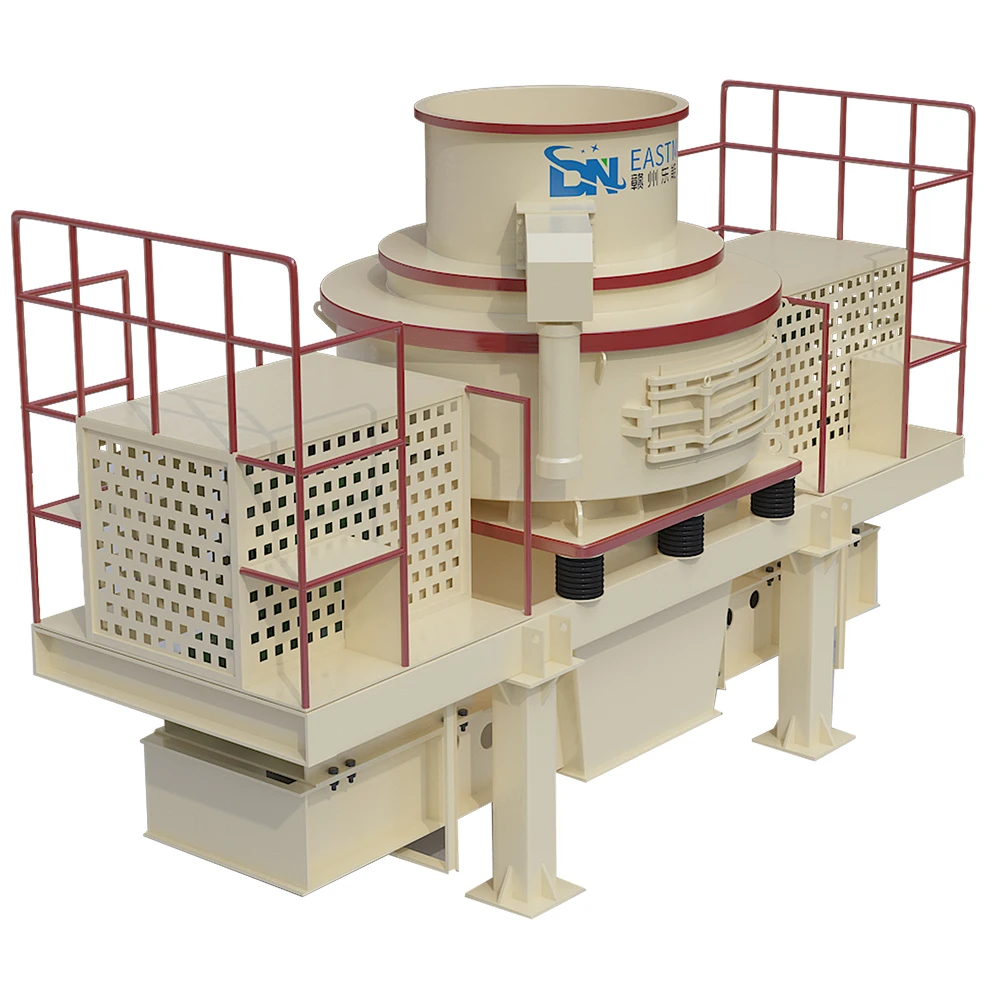

VSI sand making machine is a high-performance sand making equipment. It is a perfect combinationof unique rotor structure design, wear-resistant material technology, crushing speed optimization and hydraulic design. It is a model of the perfect combination of professional fine crushing technology and mechanical manufacturing, and is a full embodiment of new technologies and new processes.
1. We are factory and be able to give you the lowest price than market one;
2. Our products have been exported to over 40 countries and widely used in global mining and construction industry;
3. we have a professional after-sale service team to promptly and thoroughly solve your problems;
4. Provide free process design.
2. Our products have been exported to over 40 countries and widely used in global mining and construction industry;
3. we have a professional after-sale service team to promptly and thoroughly solve your problems;
4. Provide free process design.
Application:
River pebble, granite, basalt, iron ore, limestone, calcite, quartz, diabase, etc.
1. It is used for producing building aggregate, concrete, aggregate for road surface and roadbed, asphalt concrete and cement concrete.
2. It is also used for sand making and shaping in the field of engineering such as water conservancy,
hydroelectric power, high-class highway, high-speed railway, passenger special line, bridge, airport pavement, municipal works and high-rise buildings.
hydroelectric power, high-class highway, high-speed railway, passenger special line, bridge, airport pavement, municipal works and high-rise buildings.
3. It is used widely in many industries such as building materials, metallurgy, chemical engineer, mining, refractory materials, cement etc.
4. It is used for producing glass raw materials quartz sand and other high purity materials.
pebble, limestone, granite, basalt, diabase, andesite, etc
pebble, limestone, granite, basalt, diabase, andesite, etc
Working principle
VSI series sand making machine adpots high-speed movement of materials mutual self-broken and friction between materials to crush.This series of equipment is not only crushing stone, making sand and also playing shaping role with the finished products.
Product Paramenters
Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | VSI1145 | ||||||
Capacity (T/H) | Center And Ring Feeding | 120-180 | 200-260 | 300-380 | 450-520 | 500-640 | |||||
Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 | ||||||
Best Feed Size (MM) | Soft Material | 35 | 40 | 45 | 50 | 50 | |||||
Hard Material | 30 | 35 | 40 | 45 | 45 | ||||||
Rotation Speed (R/MIN) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1200-1390 | ||||||
Power For Double Motor (KW) | 110 | 180 | 264 | 400 | 440 | ||||||
Dimension L×W×H (MM) | 3700×2150 ×2100 | 4140×2280 ×2425 | 4560×2447 ×2778 | 5000×2700 ×3300 | 5100×2790 ×3320 | ||||||
Weight (t) | 11.8 | 14.5 | 17.8 | 25.6 | 26 | ||||||
Power Soppty | 380V 50Hz | ||||||||||
Vibrating Sensor | Monitering Range:0.1-20MM/S Continuousely Adjustable | ||||||||||
Lubrication Hydraulic Station | Dual Oil Bump Motor Power | 2×0.25kW | |||||||||
Security Protection | Double Oil Pump Ensure The Normal Oil Supply;Automatic Shut Down If No Oil Pressure;Water Cooling;Motor Preheating In Winter. | ||||||||||
Over Dimension L×W×H(mm) | 820×520×1270 | ||||||||||
Oil Tank Heating Power | 2KW | ||||||||||
The raw material is high strength cast iron, with good mechanical property, as well as good ability of absorbing the energy of crusher's vibration. It's a great help to make the rotation of main shaft running steady, which can continuously stable the output of your crusher. The heat treatment of tempering is applied to release the internal stress. It's a great help to prevent the part's dimension change in the daily operation of your crusher.
Details Images

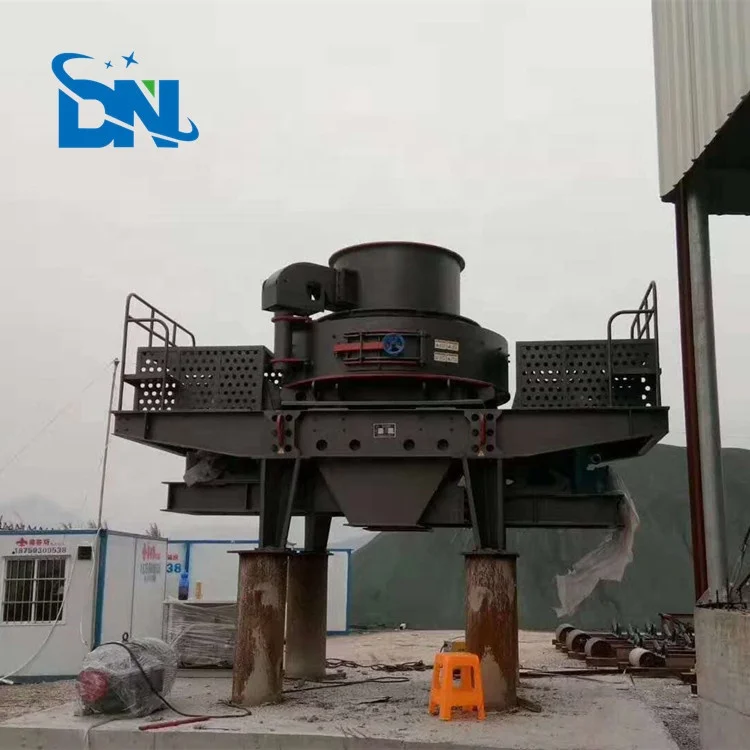

Successful cases
Maybe you are interested in
Company Introduction
Ganzhou Eastman Technology Co, Ltd. is a privatization enterprise, which focuses on mining equipment R&D, manufacturing and sales, the main products include all resires of stone crushers: jaw crusher, impact crusher, cone crusher, sand and stone making equipment, new type dry technology cement producing equipment, limestone producing equipment etc.
Besides, we also design and install sand project and ecological improvement equipment, and self-operate and agent import and export business for all kinds of products. The stone and sand making production process, mineral separation system, grinding system and drying system which independently R&D by our company have been the world leading level.

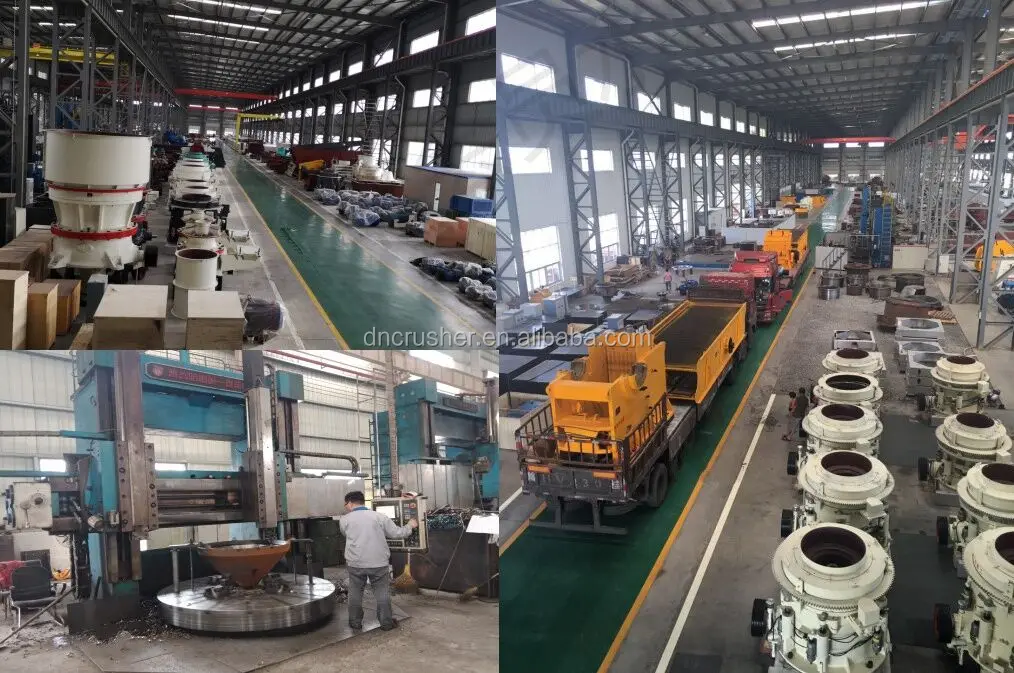

Our workshop
Our customers come to visit our factory

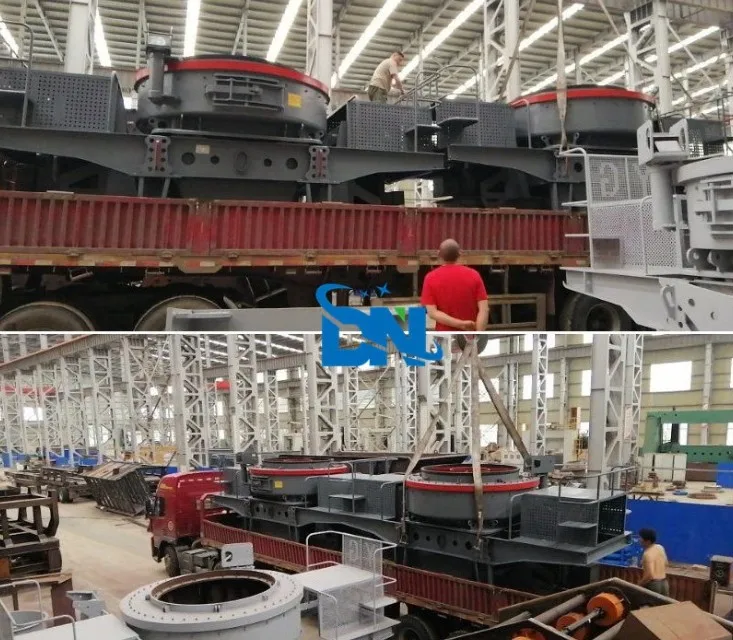

Packaging&Dilvery
Ways of Packing:
1.Coat with high quality paint;
2.Load container, spare parts in wooden case;Transportation:
1. By sea or by road by train;
2.MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before goods arrival.
1.Coat with high quality paint;
2.Load container, spare parts in wooden case;Transportation:
1. By sea or by road by train;
2.MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before goods arrival.
Certifications
We have passed CE Certification, National Level AAA Measurement System and ISO9001,ISO14001,OHSAS18001 Three Standard In One Certification.
Our services
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
FAQ
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every equipment before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 40% deposit, 60% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every equipment before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 40% deposit, 60% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
