300L best sell Electric thermal Pressurised Calentador Solar water heater heating systems geyser boiler tubes collector house
- Category: >>>
- Supplier: Guangzhou,Zhoudameng,New,Energy,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Hot sale products
Specification
item | value |
After-sales Service Provided | None |
Warranty | None |
Application | Outdoor, Hotel, Commercial, Household,hospital |
Power Source | Solar |
Type | Evacuated Tube |
Circulation Type | Indirect / close Loop (passive) |
Connection Type | Direct-Plug |
Installation | Freestanding |
Housing Material | stainless steel or galvanzied steel |
Certification | ce, ISO |
Place of Origin | China |
Brand Name | Tengen |
Product name | Integrative Pressurized Solar Water Heater |
Inner tank | SUS304 Stainless Steel |
Color | Customized |
Vacuum tube | 58mm/1800mm |
Solar collector | Vacuum Tubes 58/1800mm |
Outer tank material | Painted Steel/SUS201/SUS304 |
Product Description
How unpressurized solar water heater works
1. Unpressurized solar water heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravity of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes
4. Through this circulation, the cold water in the water tank will be gradually heated.
Type | Tube QTY | Tube size | Water Capacity(L) | Supply ability | QTY in 20GP/40HQ |
IP-NT10 | 10 | 58*1800mm | 100L | 1--2 people | 68/165 |
IP-NT15 | 15 | 58*1800mm | 150L | 2--3 people | 53/128 |
IP-NT20 | 20 | 58*1800mm | 200L | 3--4 people | 40/97 |
IP-NT24 | 24 | 58*1800mm | 240L | 4--5 people | 34/82 |
IP-NT30 | 30 | 58*1800mm | 300L | 5--6 people | 28/68 |
IP-NT36 | 36 | 58*1800mm | 360L | 6--7 people | 24/57 |
IP-NT42 | 42 | 58*1800mm | 420L | 7--8 people | 20/50 |
Product Details
Description | Integrated Compact Pressurized solar water heater Galvanized steel | ||||
Material of outer tank | Galvanized steel or Stainless steel 201 or Stainless steel 304 | ||||
Material of inner tank | Stainless steel 304-2B | ||||
Material of bracket | Galvanized steel or Stainless steel 201 or Stainless steel 304 or Aluminum | ||||
Insulation foam thickness | 50mm Polyurethane | ||||
Vacuum tubes | 58*1800mm/47*1500mm | ||||
Accessories | Anti-aging silicon seals, Dustproof seals, Air-vent cap, Stainless screws | ||||
Auxiliary Devices | Assistant tank, Intelligent controller, Electrical heater, Magnesium anodes | ||||
Tilt Angle | 18 ~ 45° | ||||
Water Output | 45 - 99°C | ||||
Optional Accessories
Assistant tank
Used to fill the water into big water tank automatically.
Magnesium Rod
It can help the equipment of the solar heater system such as the water tank, the evacuated tubes etc. preventing water incrustation, melting silt and preventing erosion by lower cost.
Electric Heater
Used to heat water in rainy days or evening nights when water not enough hot.

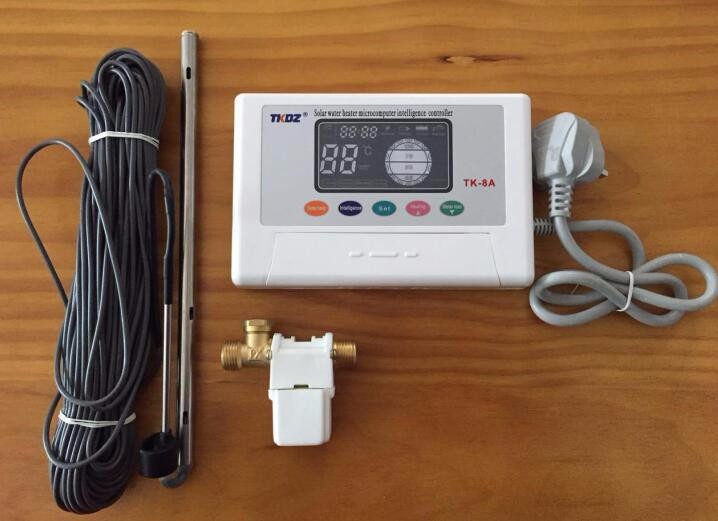

Controller
Display panel with Connection box
Temperature sensor and water level sensor for water tank
Electric valve for filling water
220V 50HZ/110V 60HZ, plug can be selected for the specifications of your country.
If you choose this, you do not need water supplier
Product Processing
