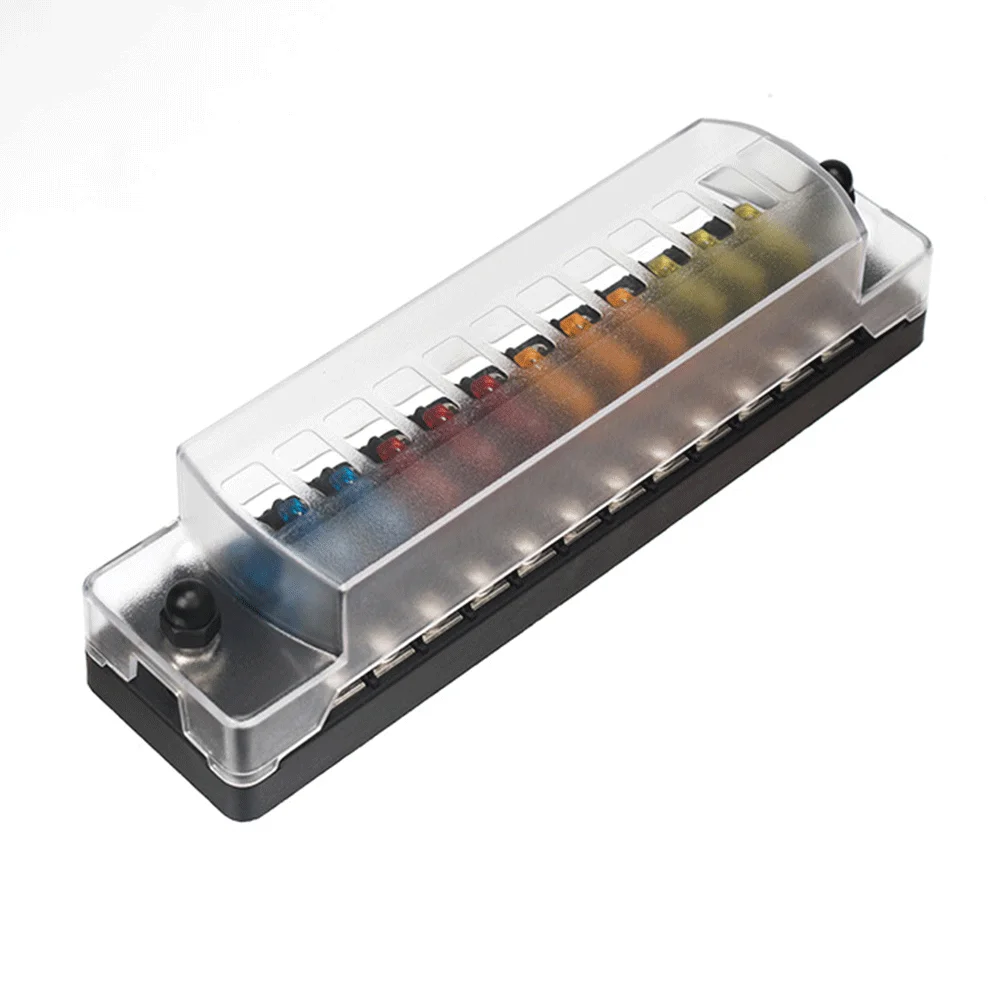

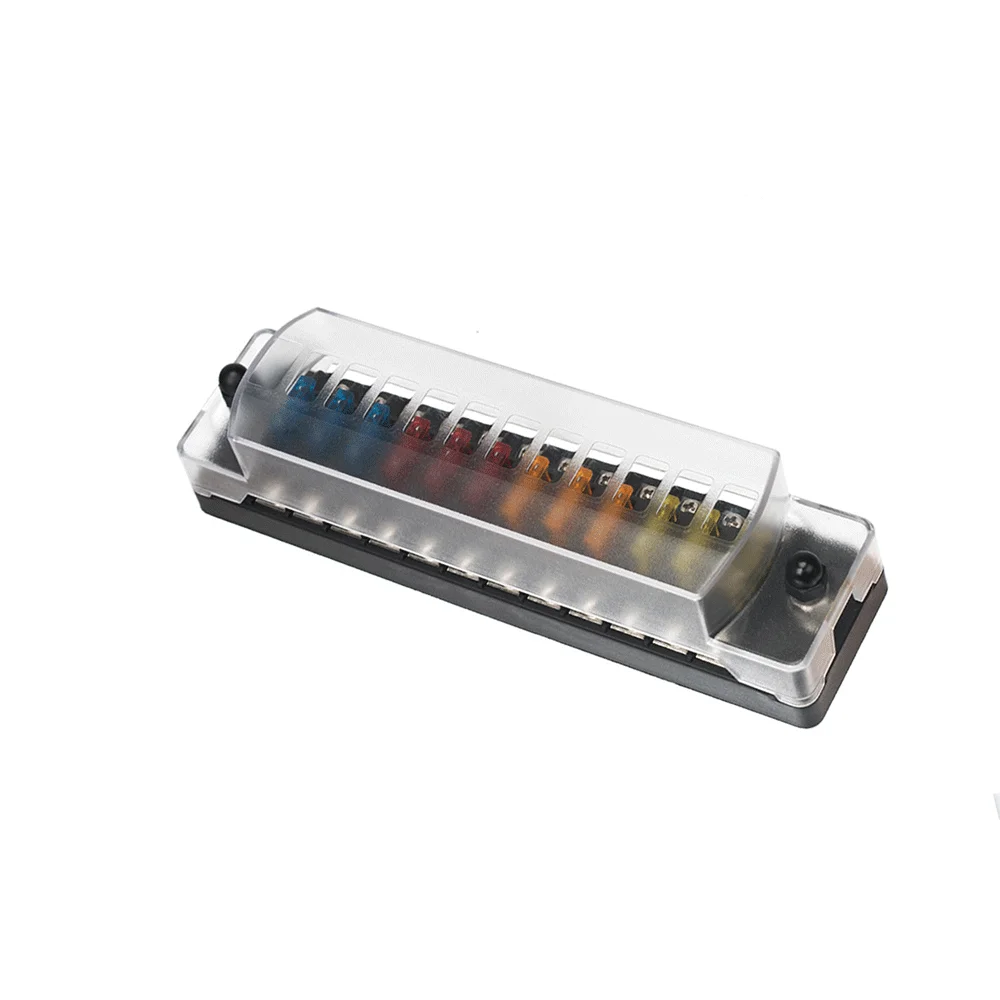

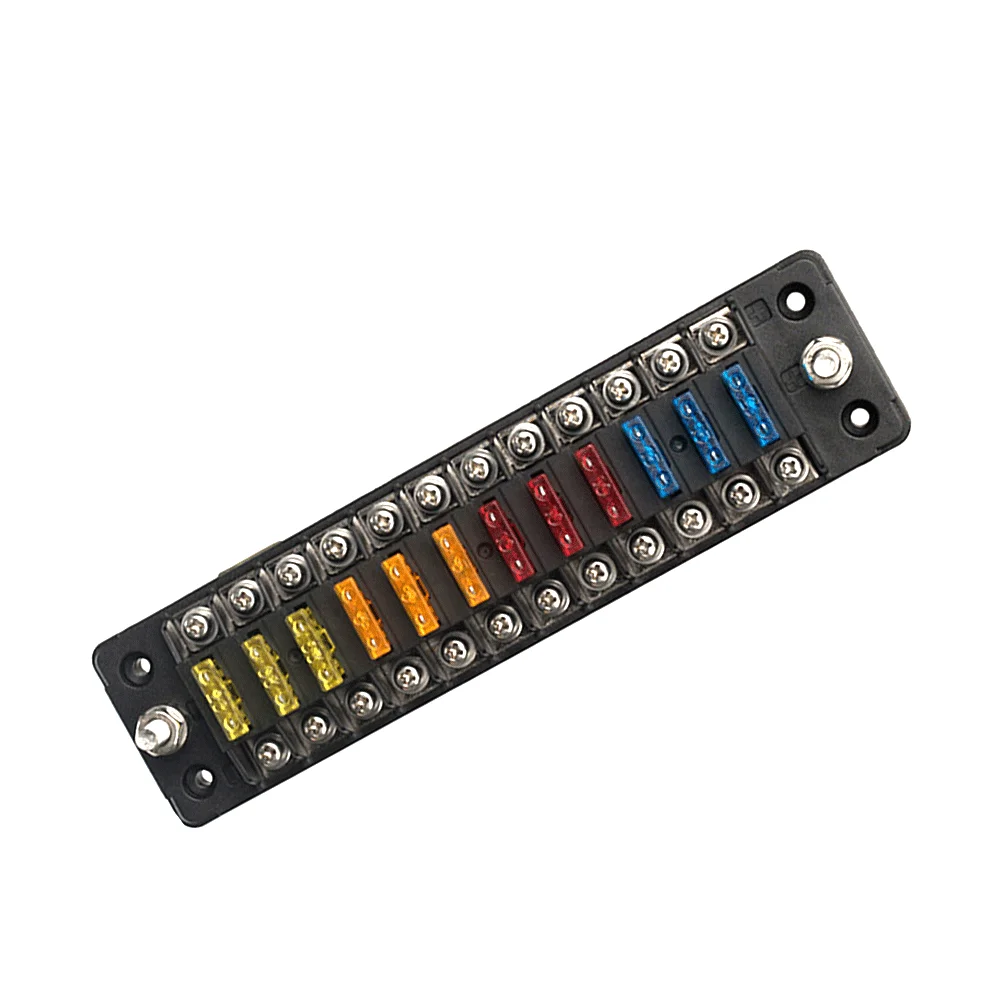

Waterproof Resistant car bus marine 100 amp negative terminal 12 way car fuse box holder block
- Category: Fuse Components >>>
- Supplier: Yueqing,Yueshun,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Dear Friend

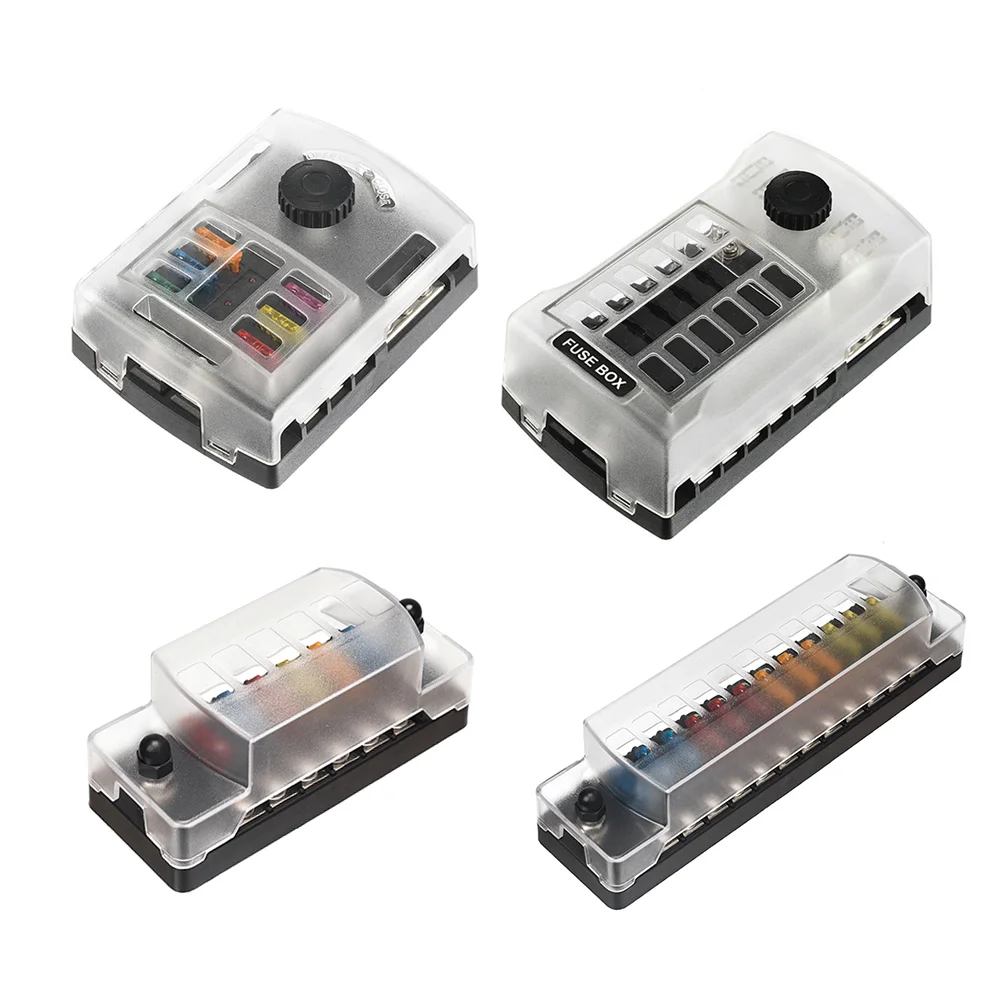

We have many types of fuse boxes to choose from, the price is favorable! Please contact us if necessary!
Product Paramenters
SPECIFICATION | ||
Product Name | 12 Circuit Illuminated fuse box holder with fuse | |
Product Size | 138mm*88mm*37mm | |
Input Rated Voltage | Max 32V DC（12V 24V universal） | |
Input Rated Current | Per circuit / fuse: 30 amp (Max.) Per box: 100 amp (Max.) | |
Quantity of circuits / fuse slots | 12 way | |
Working Temp. | -30℃~85℃ | |
Applicable Fuse | Medium blade fuse ( 1A 2A 3A 4A 5A 7.5A 10A 15A 20A 25A) | |
Product application | Cars, SUVs, buses, trailers, yachts, trucks, boats, * Display cases, medical equipment etc. | |
Product Usage | Can be directly connected to the car/ship any electrical wiring above, such as car headlights, roof lights, fog lights, width lights, warning lights, car chargers, car fans, etc | |
MATERIAL | ||
Base | PBT | |
Cap | PC | |
Terminal | Nickel Plated Brass | |
Screw | Stainless steel | |
Main Line | M5 threaded studs (100A 32vdc.Max),Suitable for wire #4-6 AWG | |
Single Line | M4 threaded studs (30A 32vdc.Max),Suitable for wire #12-16 AWG | |
Product Size
Product Function

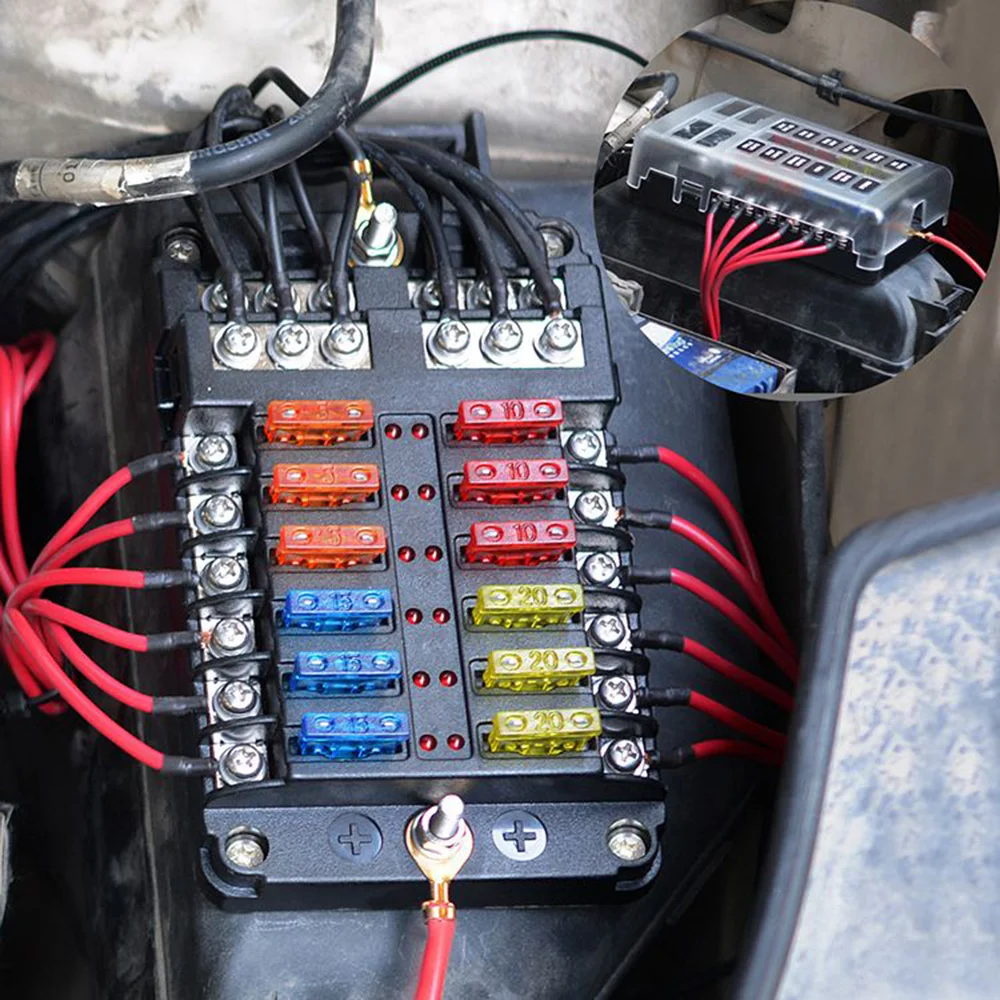

MAKE WIRING CLEAN
Instead of piling a mess of wires and fuse holders onto your battery posts, 12 volt fuse block/ground bus kit gives you 12 dedicated fuses and 12 ground locations to keep all of your wires clean, organized, and accessible. Made wiring electronics in your vehicles or boat a breeze!
UNIVERSAL PROTECTION
Whether you're building a massive overland lighting setup or adding power windows to your classic.Fuse block with 100 Amps capacity, 30 Amps per fuse, and ground bus bar are more than capable of protecting all of your hard work.
SAFE MATERIAL
Made of environment-friendly PBT material, 12-volt fuse block meets all the standards of an ideal fuse box. It is mechanically strong, insulated, heat resistant and flame resistant. There will hardly cause any issue like produce fracture, deformation, combustion or short circuit
QUICK FIX
Red LED warning light will light up immediately when the corresponding fuse is blown. Automotive fuse block will indicate exactly where there is a short circuit or any other fault so you can easily identify it and change it!
Dustproof Design
Clear cap,vibration resistant, snap fit cover
Can be secured via 2pre molded holes.
Prevent dust from entering, and the price is safe to use.Can be secured via 2pre molded holes.
Contains Accessories

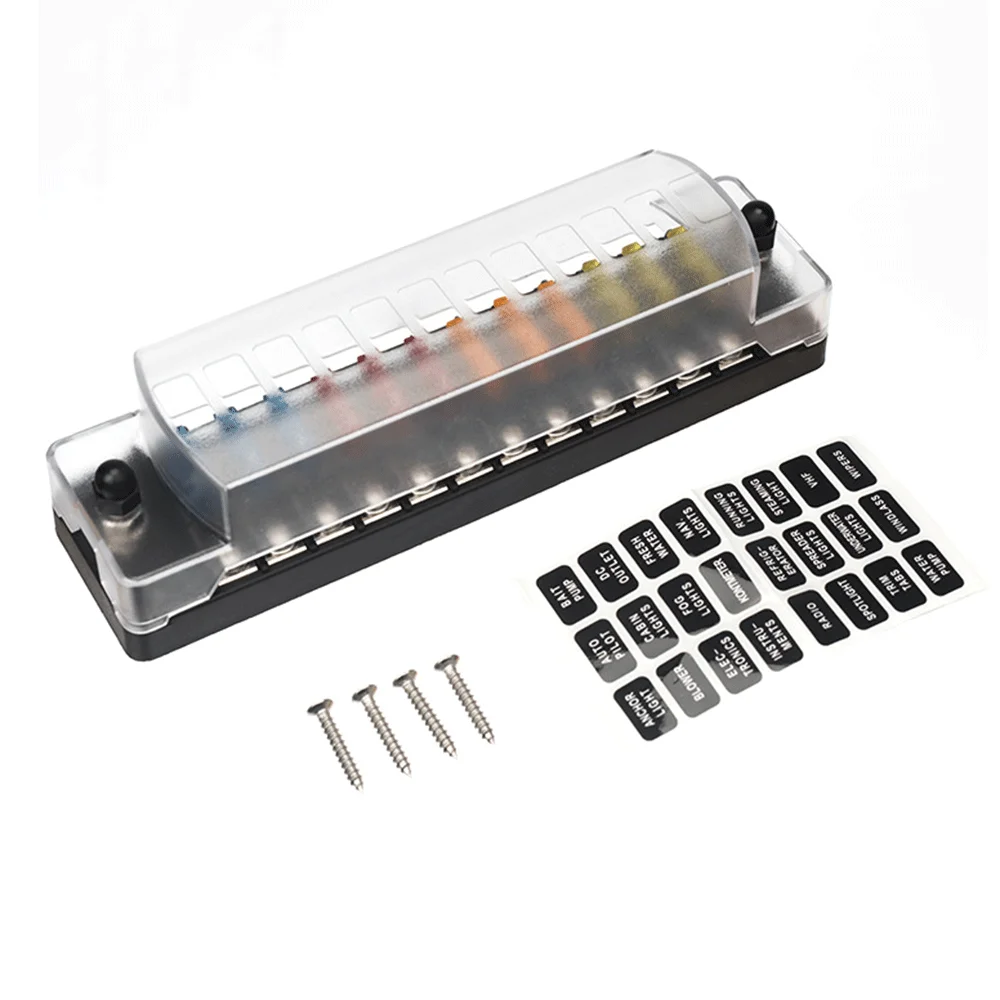

Each product includes 2 * label sticker and 4pcs screw for easy installation.
Product Application field

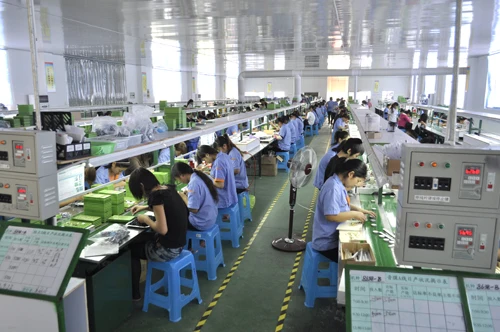

Company Profile
Yueqing YueShun Electric Co., Ltd
Our company is specialized in the design, development, production, sales and service of button switch, auto switch, indicator light, fuse holder, power socket, focusing on product innovation and quality. Our company can develop and customize products according to customer requirements.
Most of the products have passed the CE, CCC, CQC and other safety certification. All products are manufactured from RoHS
compliant materials. Products are exported to Europe, America, Middle East, Southeast Asia and other regions.
compliant materials. Products are exported to Europe, America, Middle East, Southeast Asia and other regions.
We satisfy all customers with advanced products, competitive prices, fast delivery and one-stop service. In line with the
principle of innovation, advanced and integrity, we constantly improve our products and services, so that your customers are more satisfied.
principle of innovation, advanced and integrity, we constantly improve our products and services, so that your customers are more satisfied.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
