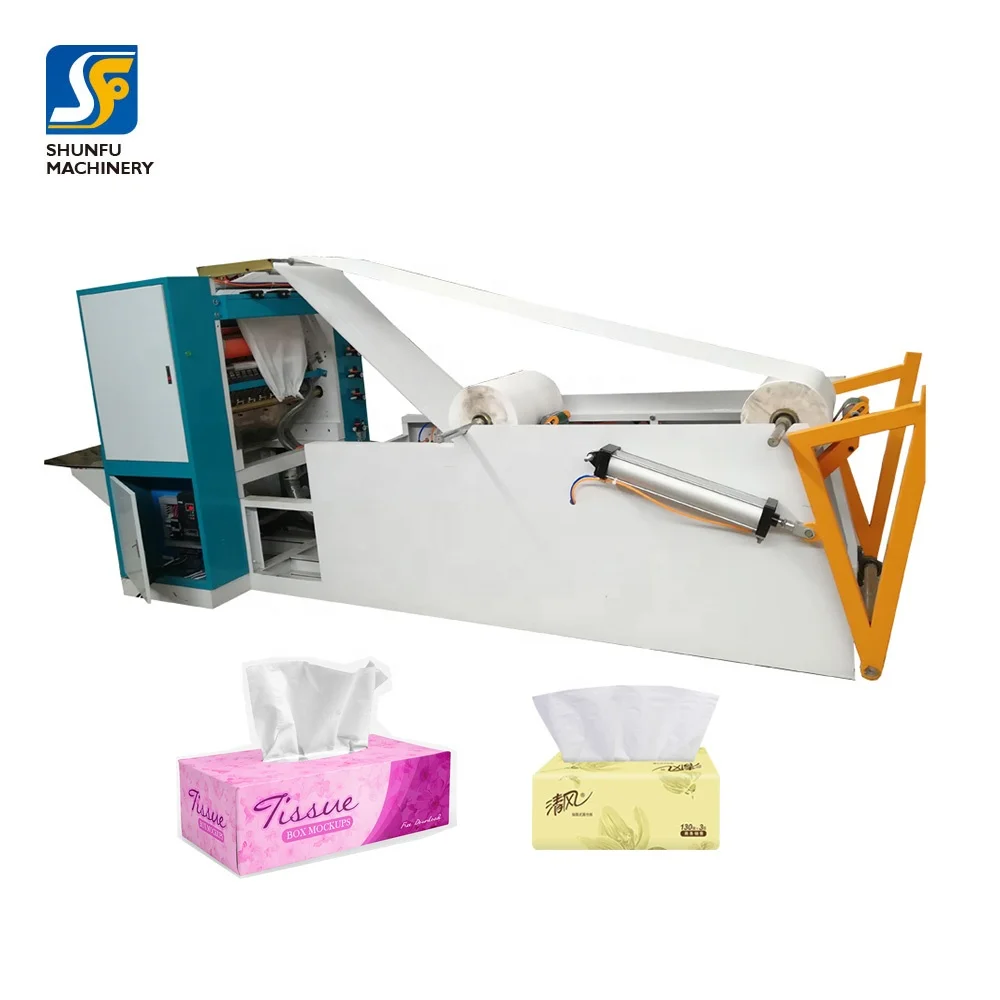

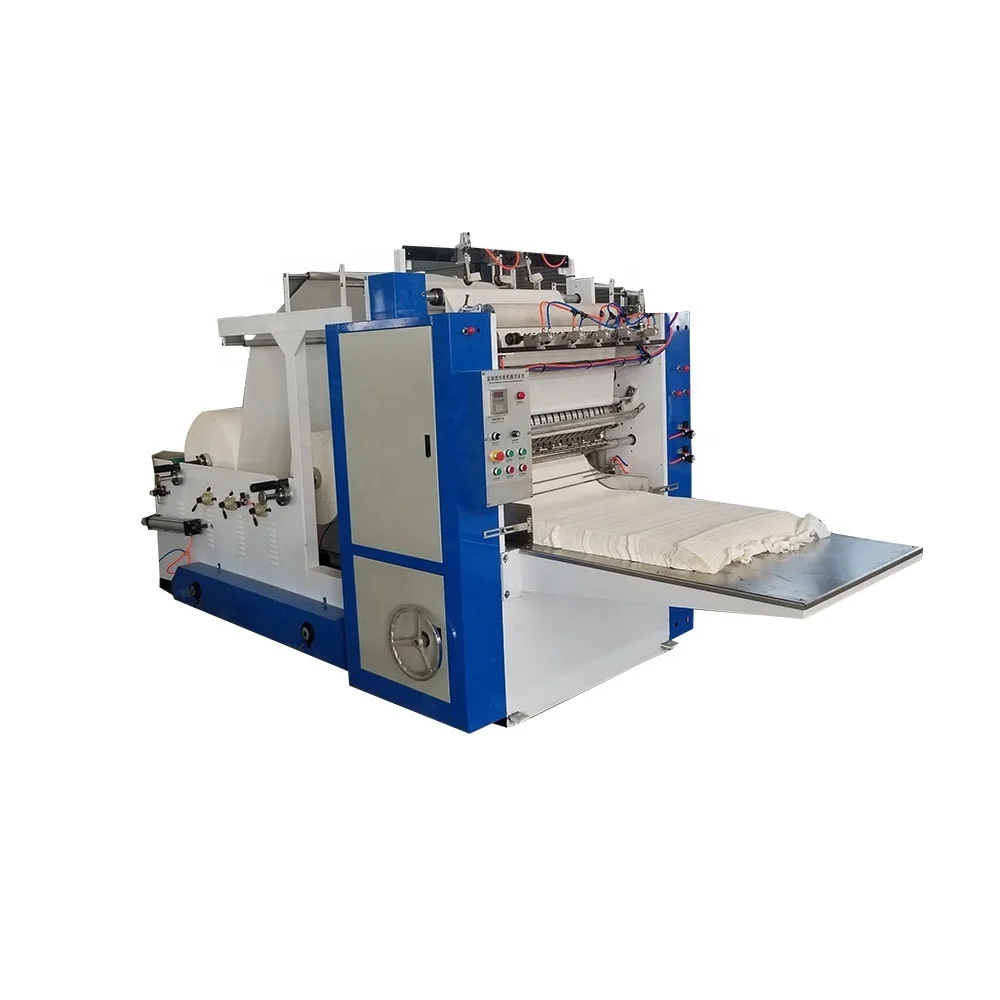

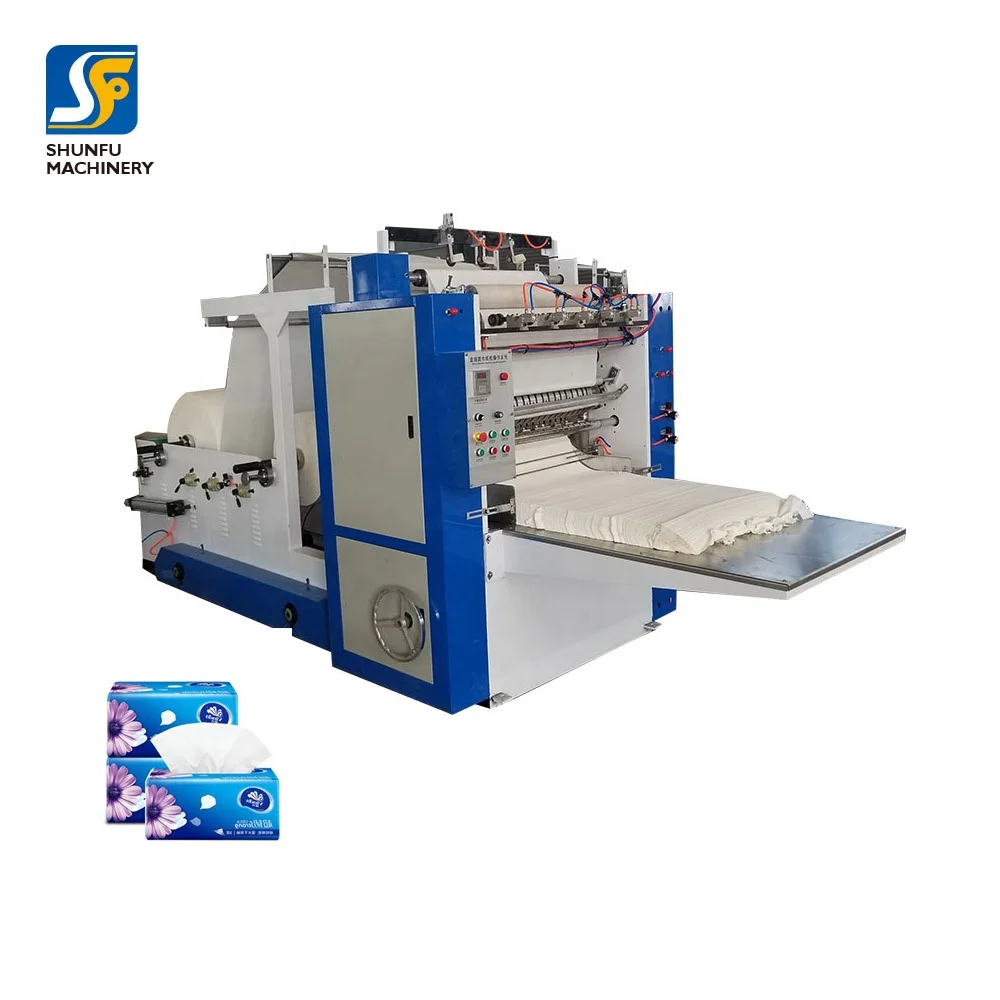

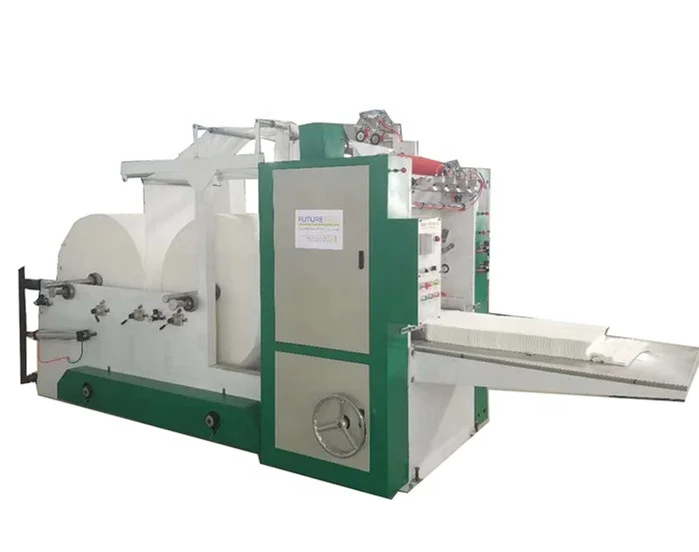

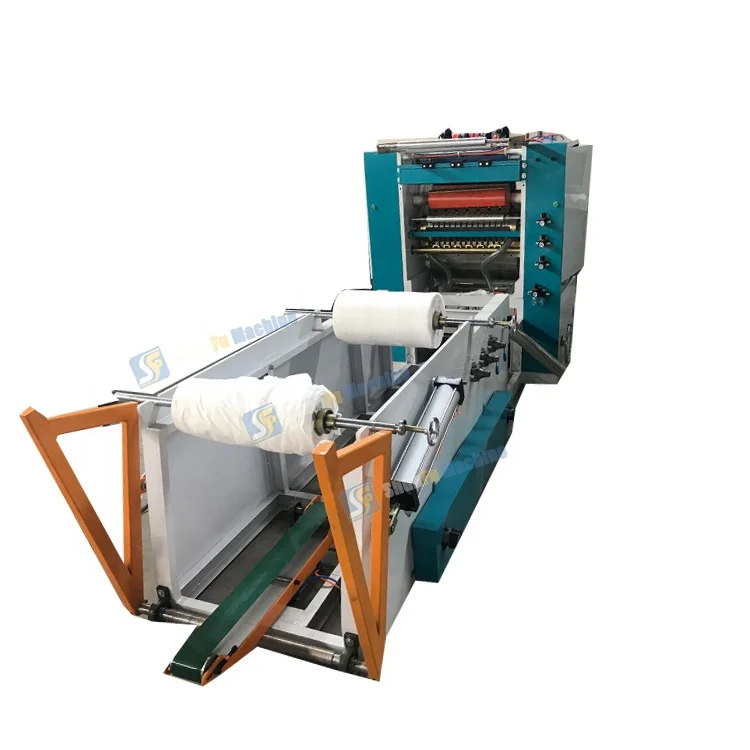

The Newest Printing Handkerchief Paper facial tissue paper machine
- Category: >>>
- Supplier: Qinyang City Shunfu Paper Making Machinery Co. Ltd.
Share on (1600541190054):
Product Overview
Description
Product Description
Function & Parameter
1. The machine can equipped with PLC. (need to order)
2.Count automatically and output in order
3. Adopting screw turning knife to cut and vacuum absorption to fold.

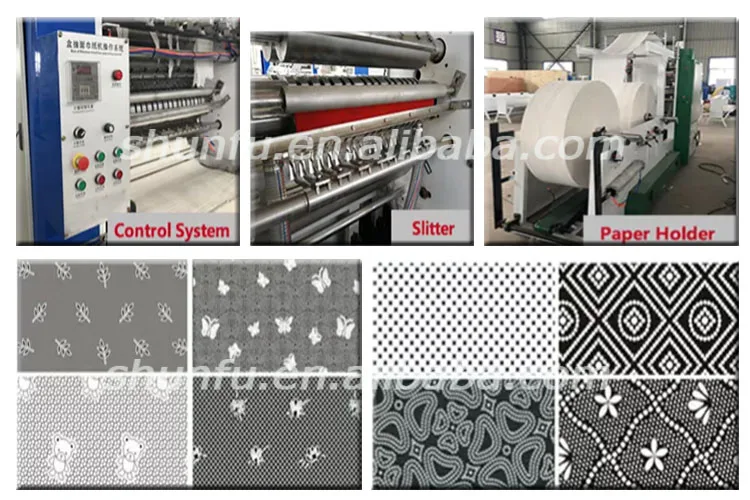

4.This equipment can have embossing unit.
5.Design the machine with 2lines, 3 lines ,4 lines, 5 lines and 6 lines according to customers' requirement.
6.Adopts folding pattern through vacuum absorption together with manipulator, which possesses auto stop when paper breaks, auto electronic counting and pneumatic staggering function, thus facilitate to separate the designated quantity of tissue for next step if packaging.
7.Optional items:Electromagnetic speed-regulator, color printing or laminating units.
Specification
Parent paper width（mm） | 560mm |
Diameter（mm） | ≤Φ1100mm |
Production | 0-1200 Pieces/Min×6 |
Power | Main machine 5.5kW vacuum pump12.5kW |
Machine board | 50mm steel board |
Air pressure | 0.45Mpa-0.6Mpa |
Electrical | PLC 、Frequency converter Touching screen Solenoid valve、Pneumatic parts |
Weight kg | 2000-5000 Kg |

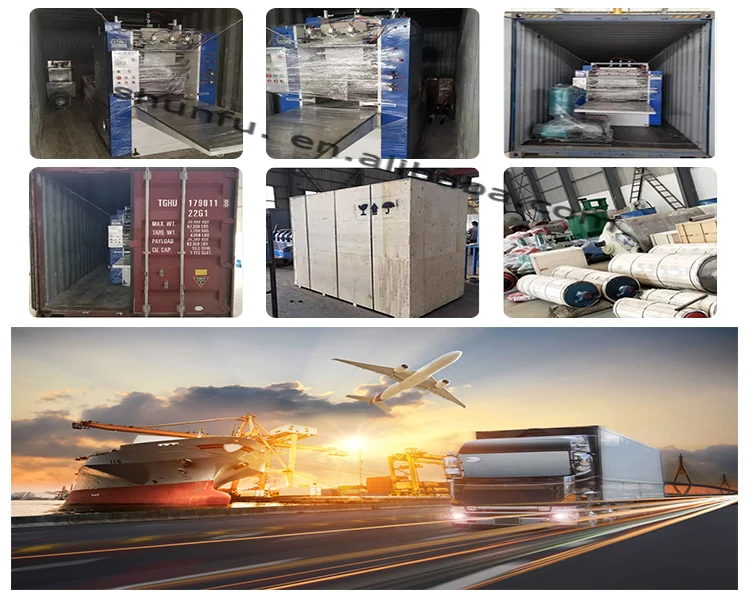

Packing & Delivery
Packaging:
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tight plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Shipment:
Shipment:
1.Sea transportation is from Qingdao,Tianjin,Shanghai Port or other China main ports
2.The delivery time is decided by your needed machines or machine parts. But it also follows your needs.

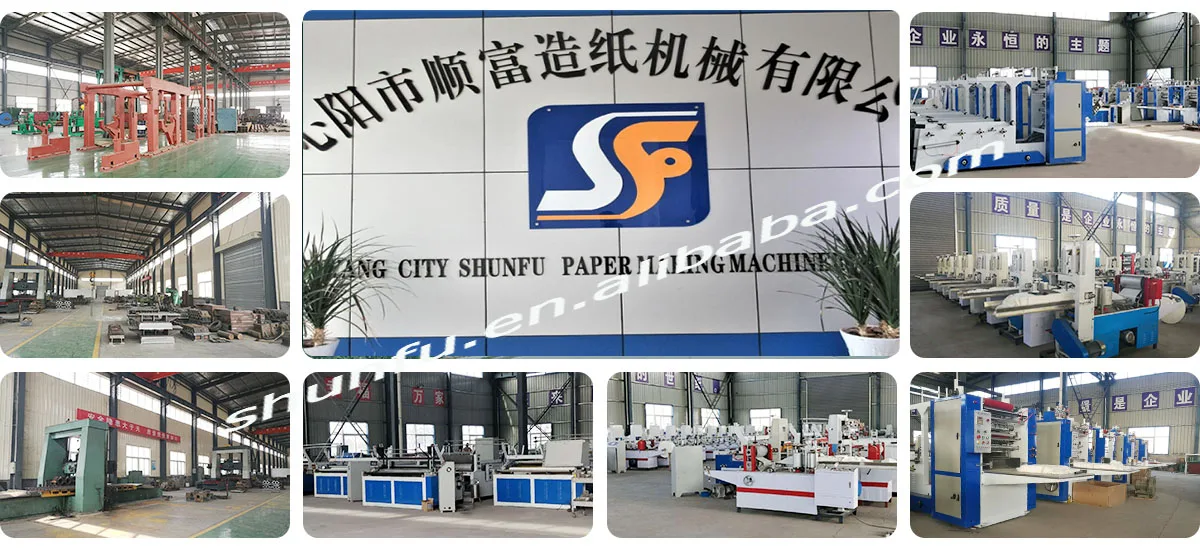

Company Profile
