Sunchonglic factory wholesale pwm controller 12V 24V 10A 10amp manual pwm solar charge controller
- Category: >>>
- Supplier: Foshan Sunchonglic Electric Appliance Co. Ltd.
Share on (1600541192084):
Product Overview
Description

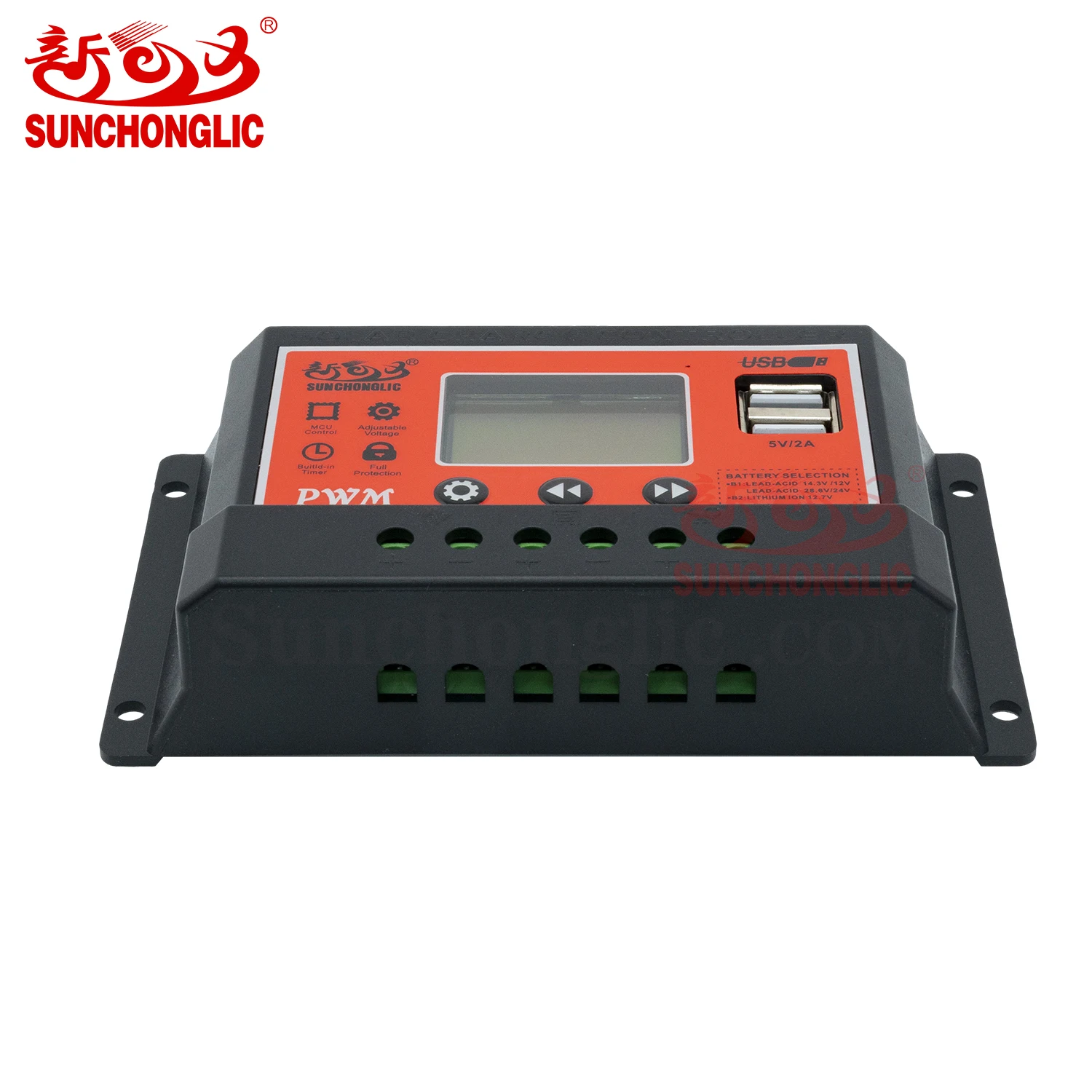

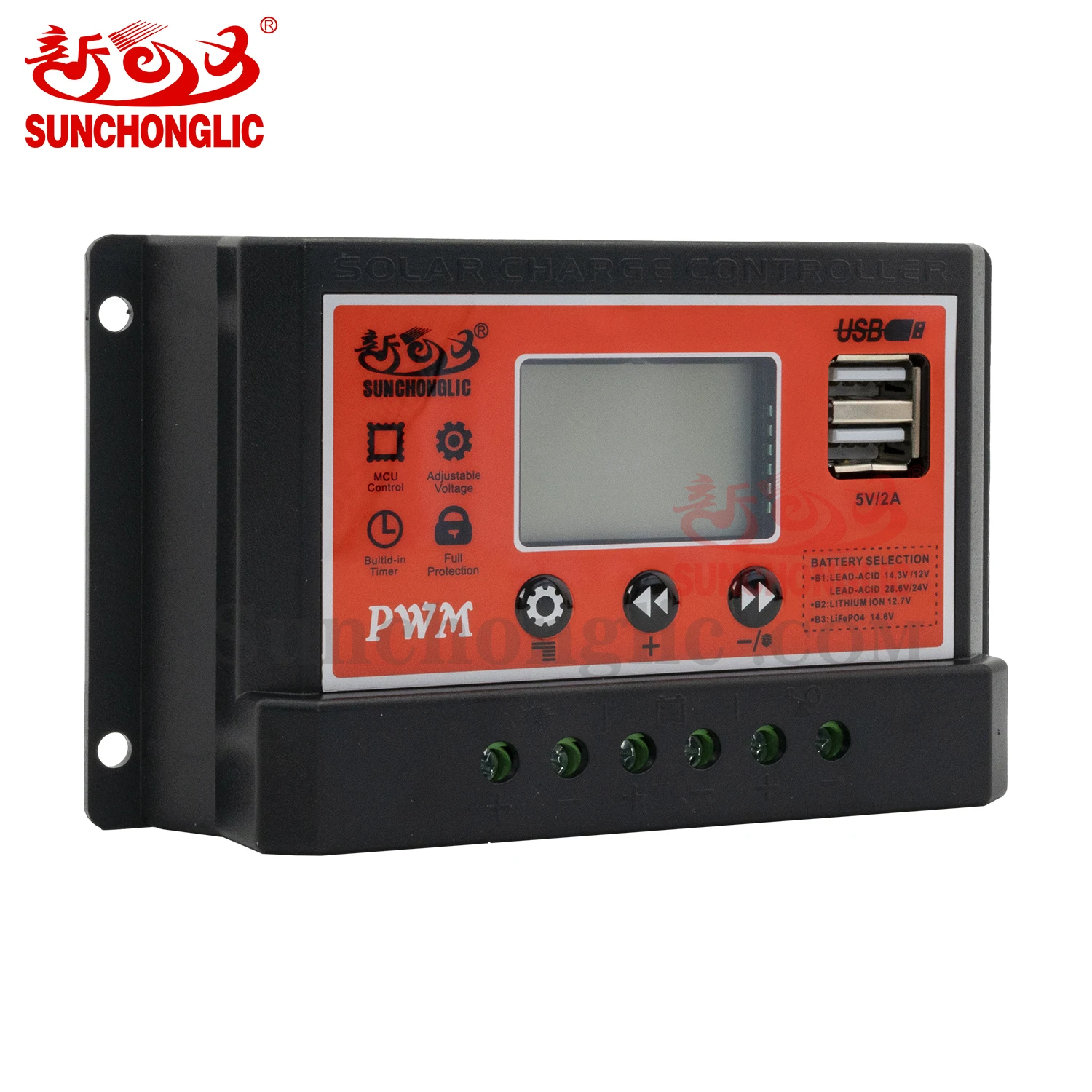

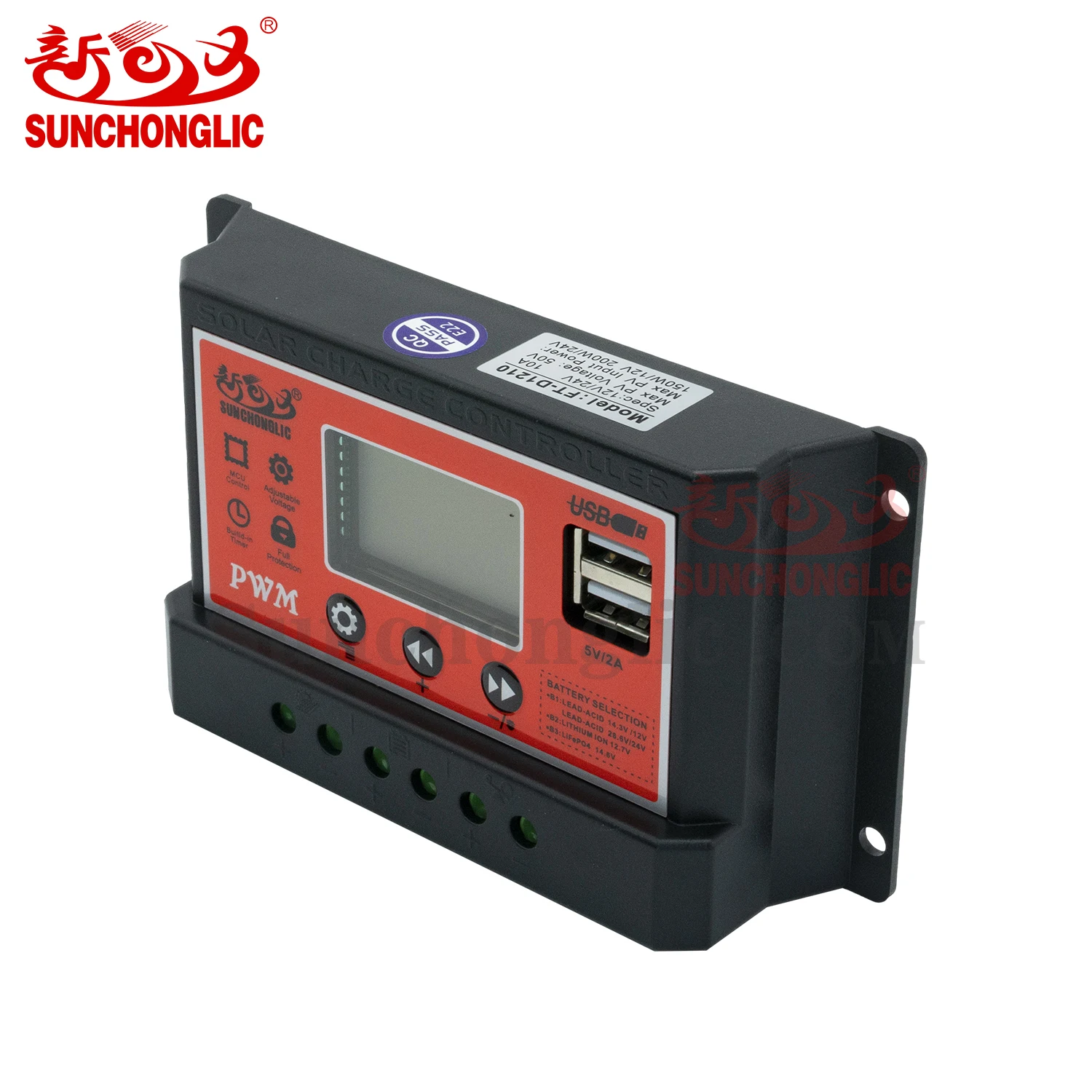

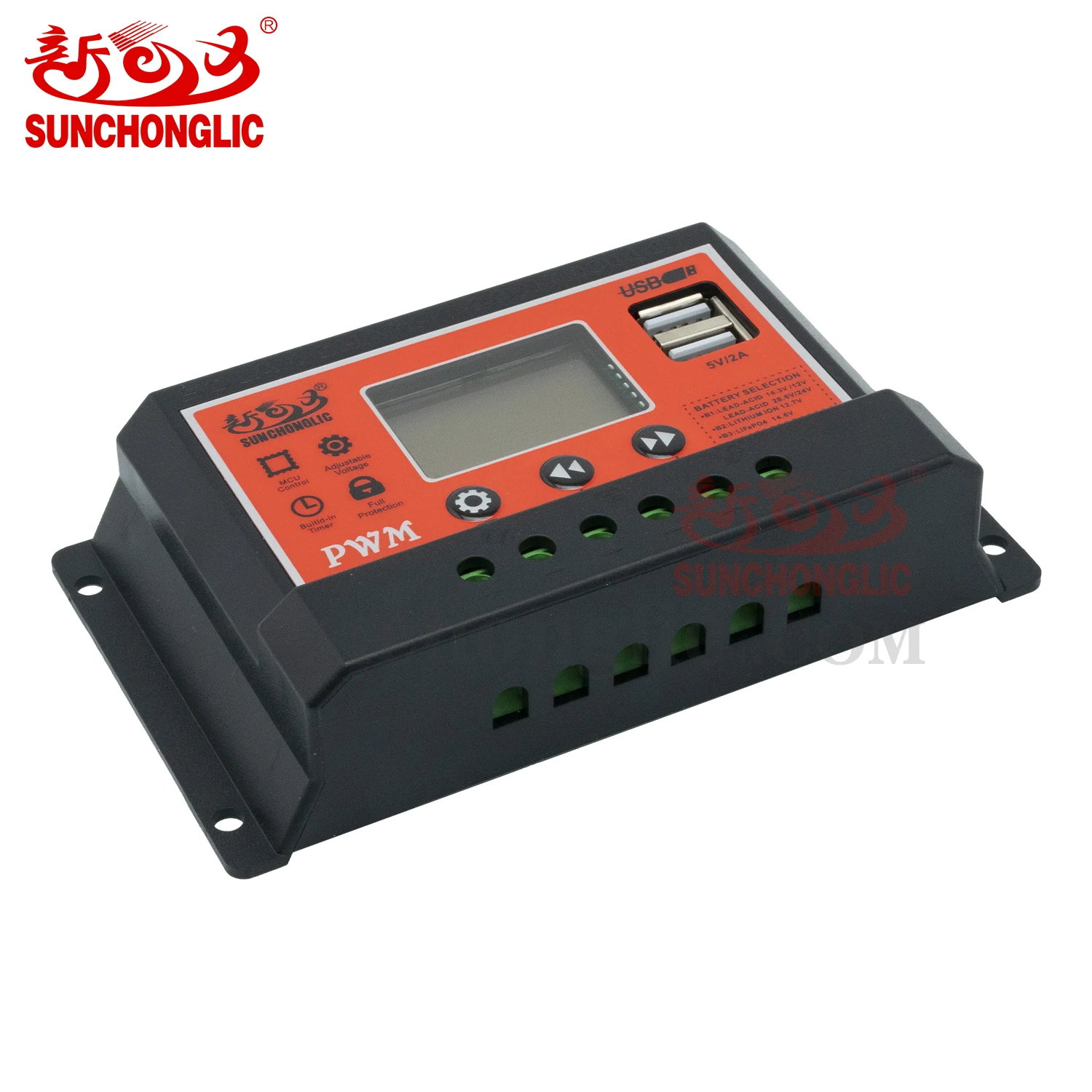

Sunchonglic factory wholesale pwm controller 12V 24V 10A 10amp manual pwm solar charge controller
Features
♣ Features of 12V/24V 10A PWM Solar Charge Controller
1. Applicable for 3 types of batteries:
B01 Lead acid batttery
B02 Lithium ion battery
B03 Lithium iron phosphate battery
2. Power-cut memory function.The power-cut memory function can automatically memory retention of users' last settings.
3. Large-screen LCD display.
4. Adopt complete three phase PWM charge management (Constant current mode,Constant voltage mode,Floating charge mode)
5. Multiple protections.Overcurrent protection, Short circuit protection, Open ciruit protection and Battery reverse protection.
6. Double MOS tube anti-reverse circuit protection, which prevents battery current from flowing back to the solar cell at night to cause power loss.
| Product Specification | |||
| Model | FT-D1210 | FT-D1220 | FT-D1230 |
| Rated current | 10A | 20A | 30A |
| System Voltage | 12V/24V system is only designed for lead-acid batteries with auto sense function | ||
| Solar PV input maximum voltage | 12V system<25V; 24V system<50V | ||
| Battery Type | B01=Lead Acid Battery 12V/24V auto sense | ||
| B02=Lithium-ion battery 3 series 3.7V=11.1V | |||
| B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V | |||
| Charging voltage | Default*14.3V(B1) adjustable range 13.7-14.6V | Default12.6V(B2) adjustable range 11.5-12.6V | Default14.6V(B3) adjustable range 13.7-14.6V |
| Low-voltage cut off voltage | Default*10.7V(B1) adjustable range 8-11.5V | Default9V(B2) adjustable range 8-11.5V | Default10V(B3) adjustable range 8-11.5V |
| Low power recovery voltage | Default*12.6V(B1) adjustable range 11.5-12.6V | Default10.5V(B2) adjustable range 10-12V | Default12V(B3) adjustable range 11-13V |
| External 12V battery recommended solar panel specifications | 100-150W/18V | 150-250W/18V | 200-350W/18V |
| External 24V battery recommended solar panel specifications | 150-200W/36V | 300-400W/36V | 400-500W/36V |
| Battery capacity recommended | 12V/24-80Ah | 12V/60-150Ah | 12V/100-200Ah |
| 24V/24-80Ah | 24V/60-150Ah | 24V/100-200Ah | |
| Rated current of DC load output | 12A | ||
| USB Output | 5V/2A | ||
| Standby current | <10mA | ||
| Working temperatue | -35℃~+60℃ | ||
| Size / Weight | 133x75x33mm/152g | ||
| Mark:* tagged voltage only corresponds to 12V solar system,if user use 24V system,please multiply by 2 | |||
More Hot Sale Items
We are factory manufacturer of High/Low hybrid solar inverter, Power inverter, AGM/GEL Battery Charger and Solar Charge Controller.
Click the picture into our home page to view more our hot sale items!
(If you have any questions,please feel free to inquiry us! We are service at any time!)
Application
Product Details
Product Show
Company Information
FAQ
Q1. Are you trading company or manufacturer?
A1. Our company is a wholesale company and also manufacturers. We are manufacturer of home appliances spare parts and solar energy products. We welcome you to visit our factory at any time.
Q2. May I take sample to test before placing the order ?
A2: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.
Q3. How to select a suitable products?
A3. Tell us your demand, we will recommend a suitable one to you.
Q4. How long can you offer the samples?
A4: 1~5 days after the deposit payment is confirmed.
Q5. What isyour payment methods?
A5: We accept T/T,Trade Assurance,etc.
Q6. What’s the price terms can you offer for us?
A6: We can accept EXW, FOB, CIF and so on.
Q7. Where is your main market for your products?
A7: Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and Mid East etc.
