Product Overview

Description



Product Description


Hot-Air Dried Noodle Production Line/Non-fried Instant Noodle Production Line
The production process of nutritional non-fried instant noodles is basically same as fried instant noodles;compared with the process of fried instant noodles, the process of the nutritional non-fried instant noodles is characterized in that: the noodle cake is dried and dehydrated, a large amount of water is added during dough kneading, the steaming time is prolonged and alpha gelatinization degree is improved, and micro-bulking process and hot air drying process are adopted. Product contents rich nutrition, taste smooth strength, rich flavor, convenient to eating, is the most popular product with consumers.








Production Line Process Flow


Process:
Automatic Raw Material Supply ---Mixing&Measurement of Salt& Water ---- Double-Speed Double-Shaft Dough Making ---- Ripening ----Monolithic Rolling ---- Continuous Rolling ---- Slitting&Forming ---- Noodle Steaming---- Cutting&Folding ---- Boxing Forming ---- Hot Air Drying ----- Cooling Conveying ----- Packaging.


Product Parameter


Model
Capacity(KG/H)
Install Power(KW)
Overall Size(M)
BDP-2Y/C
150
45
40*5*5
BDP-6Y/C
450
58
45*5*5
BDP-10Y/C
750
72
55*5*5
BDP-14Y/C
1000
80
59*5*5
BDP-18Y/C
1400
95
65*5*5
BDP-22Y/C
1700
108
72*5*5
BDP-26Y/C
2000
128
90*5*5


Details Images

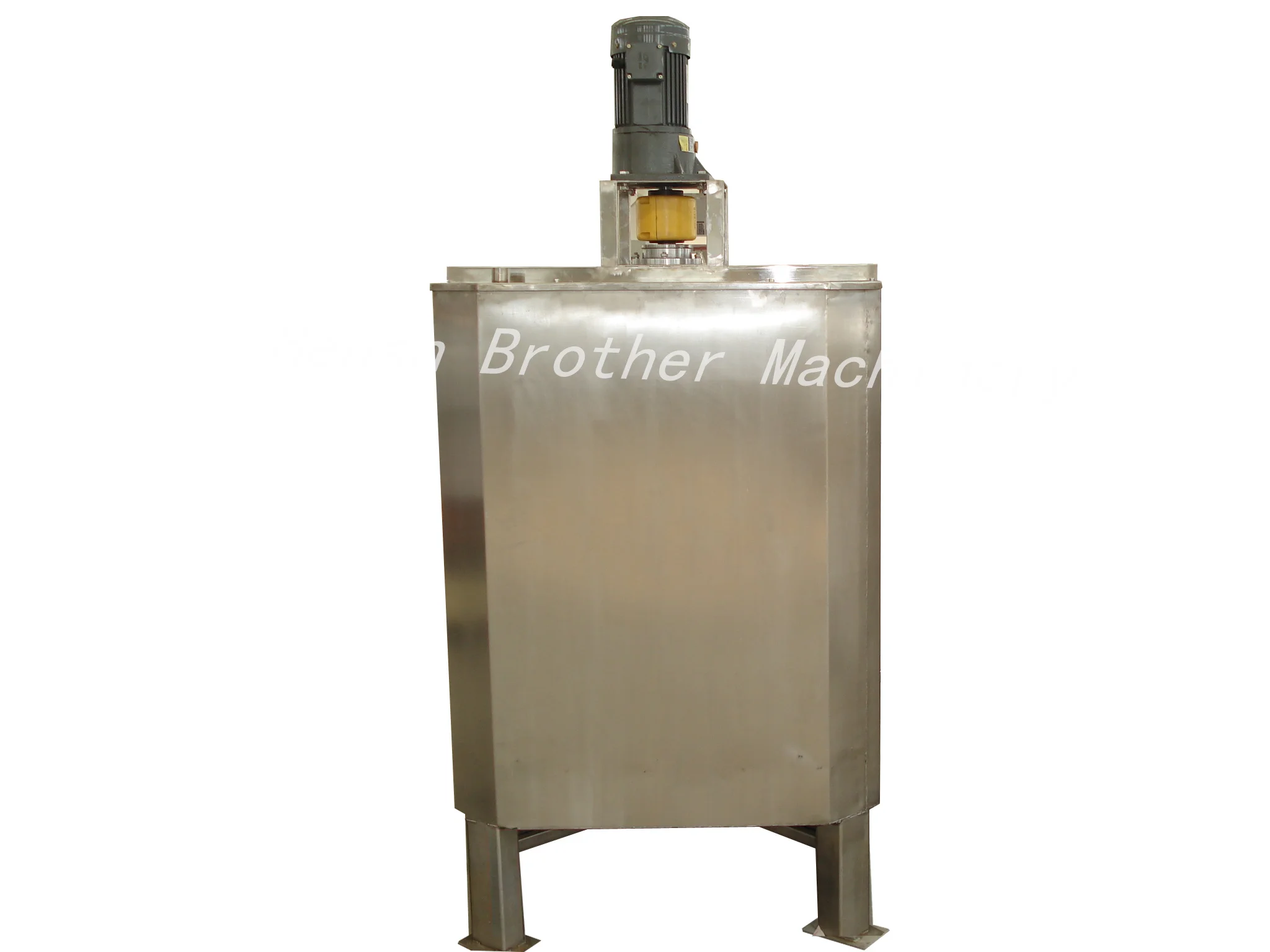

 ALKALI MIXING TANK

CAPACITY:500-1000KG PER TANK
MATERIAL: SUS304/316
FUNCTION: TO MIX WATER WITH SALT AND ADDITIVES
MAIN PARAMETERS: MIXING TIME: 10MINS
WATER CONTENT: PURED WATER BETTER

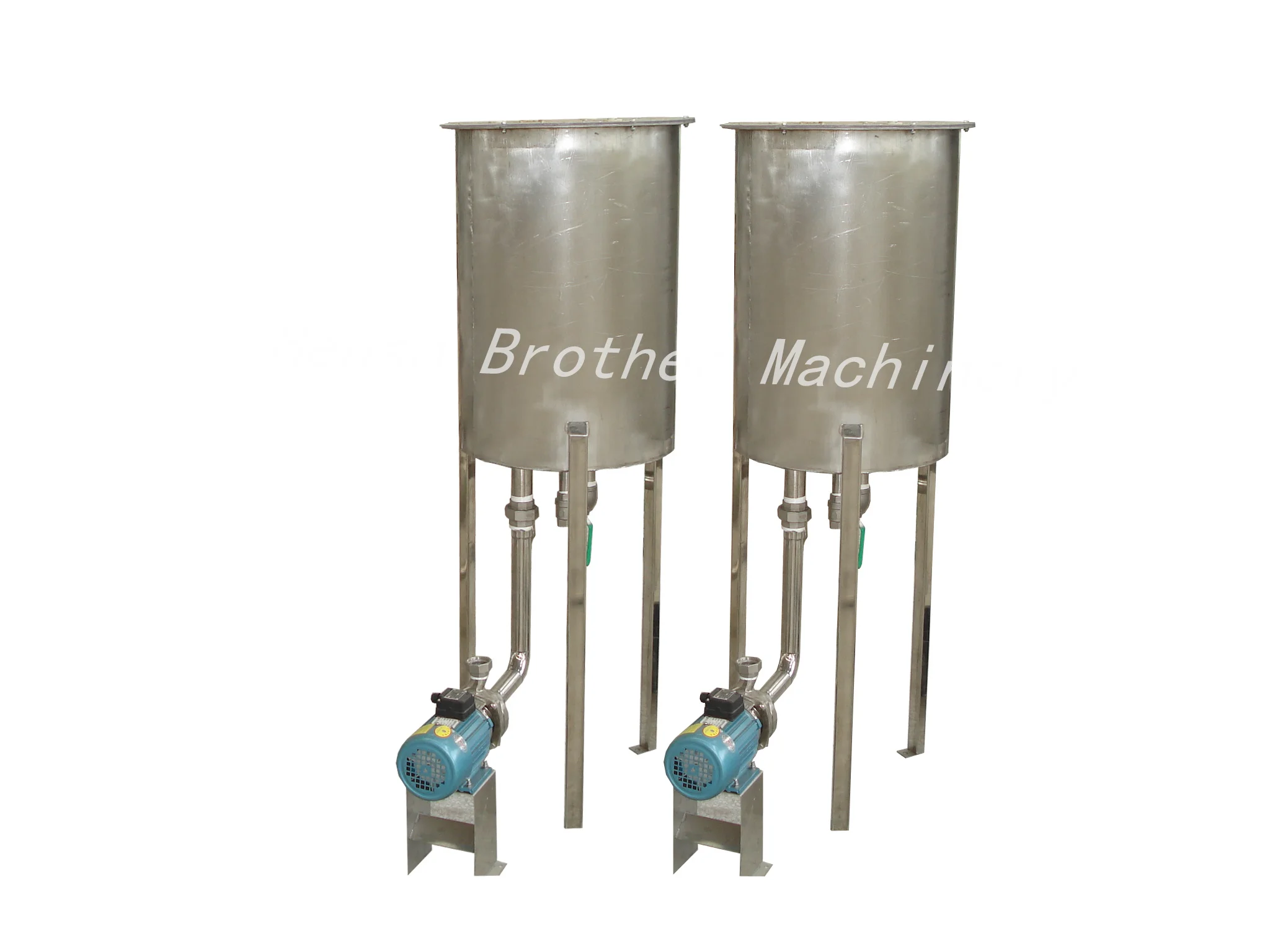

RATION FEEDING TANK

CAPACITY:50-150KG PER BATCH
MATERIAL: SUS304/316
FUNCTION: TO PUMP THE WATER TO MIXER BY RATION CONTROL
MAIN PARAMETERS:
ELECTRIC VALVE CONTROL
FEEDING AUTOMATICALLY

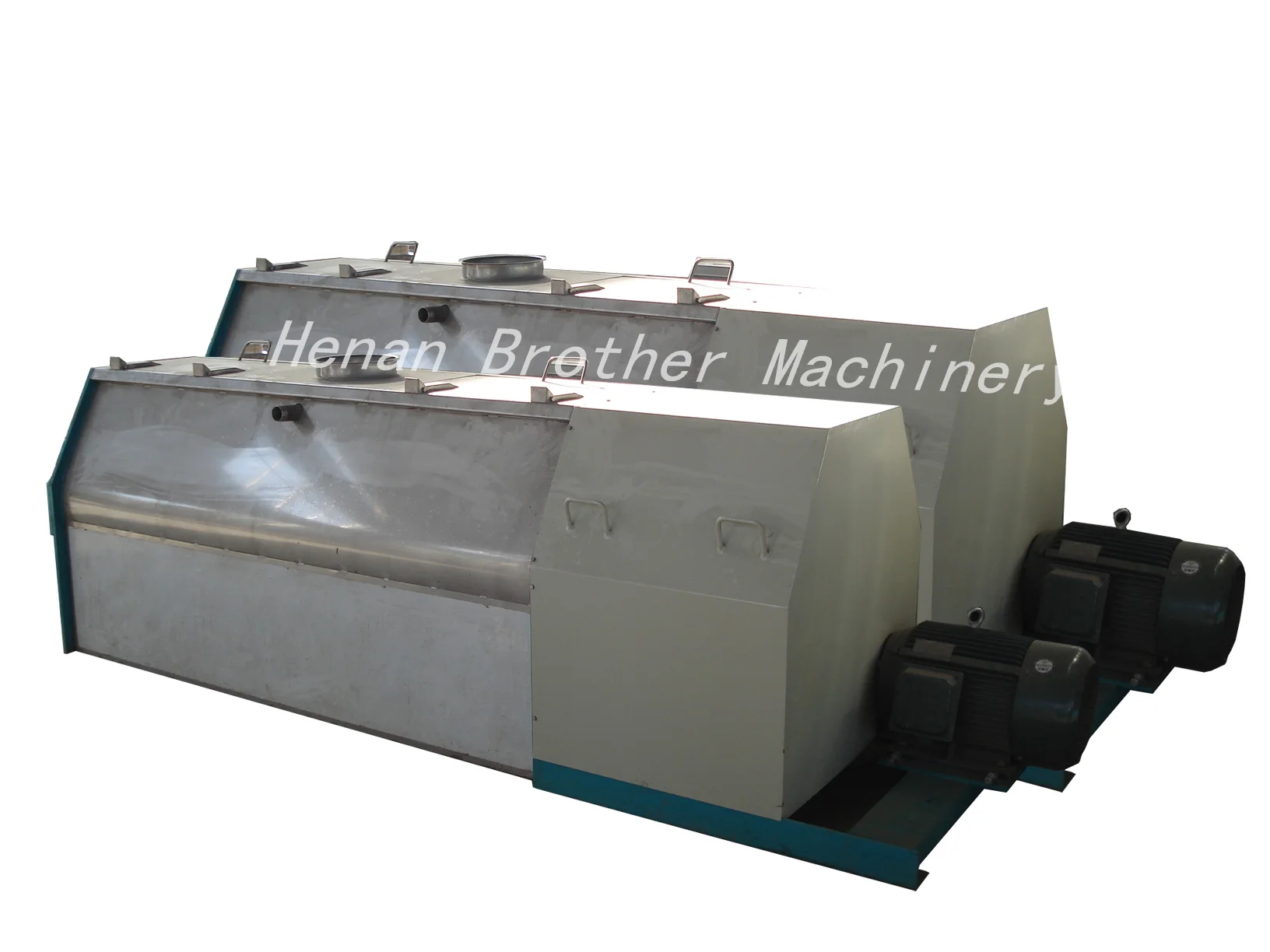

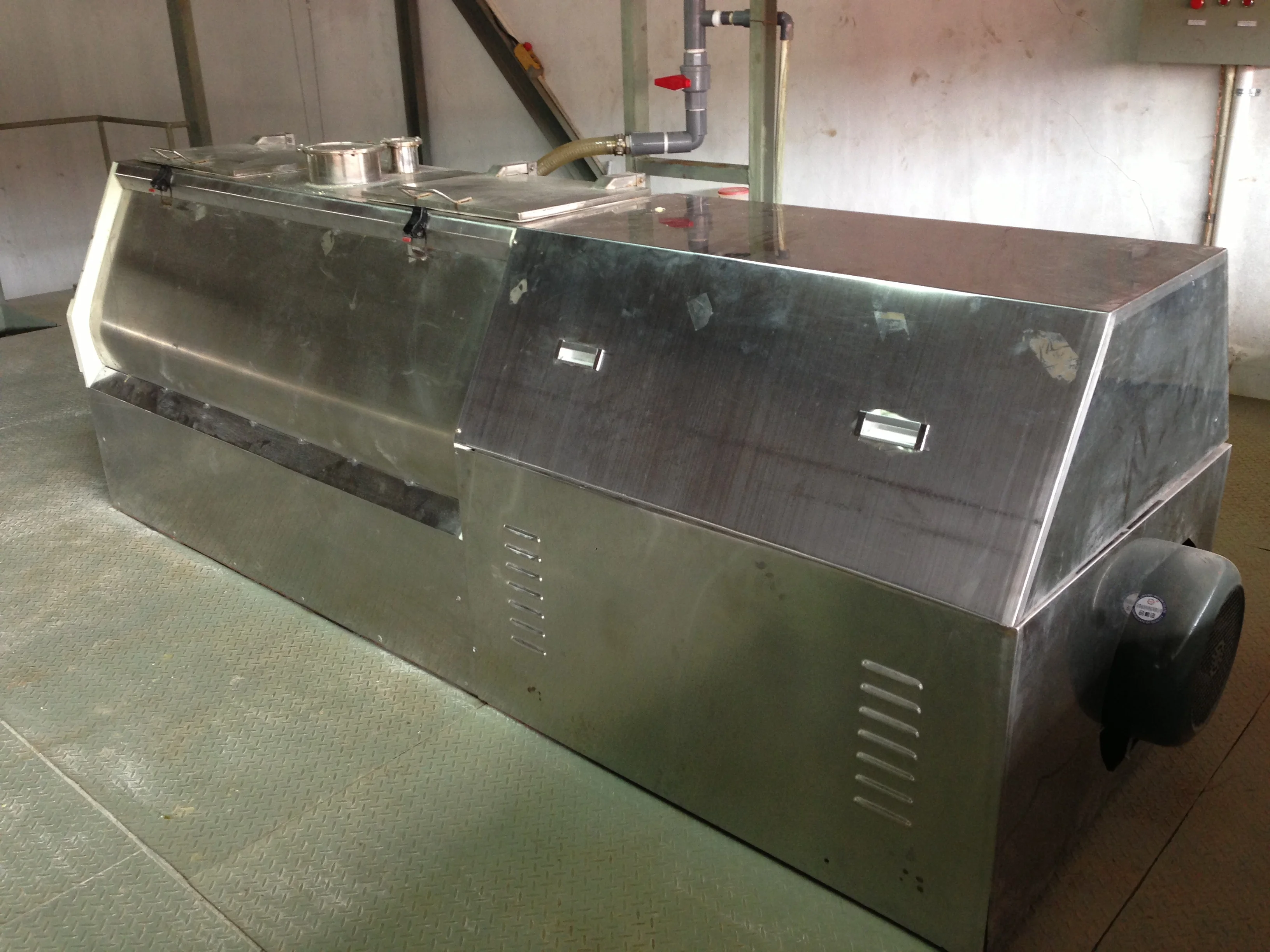

DOUGH MIXER

CAPACITY:50-350KG PER BATCH
MATERIAL: SUS304
FUNCTION: TO MAKE FLOUR WITH WATER COMPLETELY
MAIN PARAMETERS:
MIXING TIME: 15-20 MINS
WATER CONTENT: 11-14%
WATER ADD: 30-35%

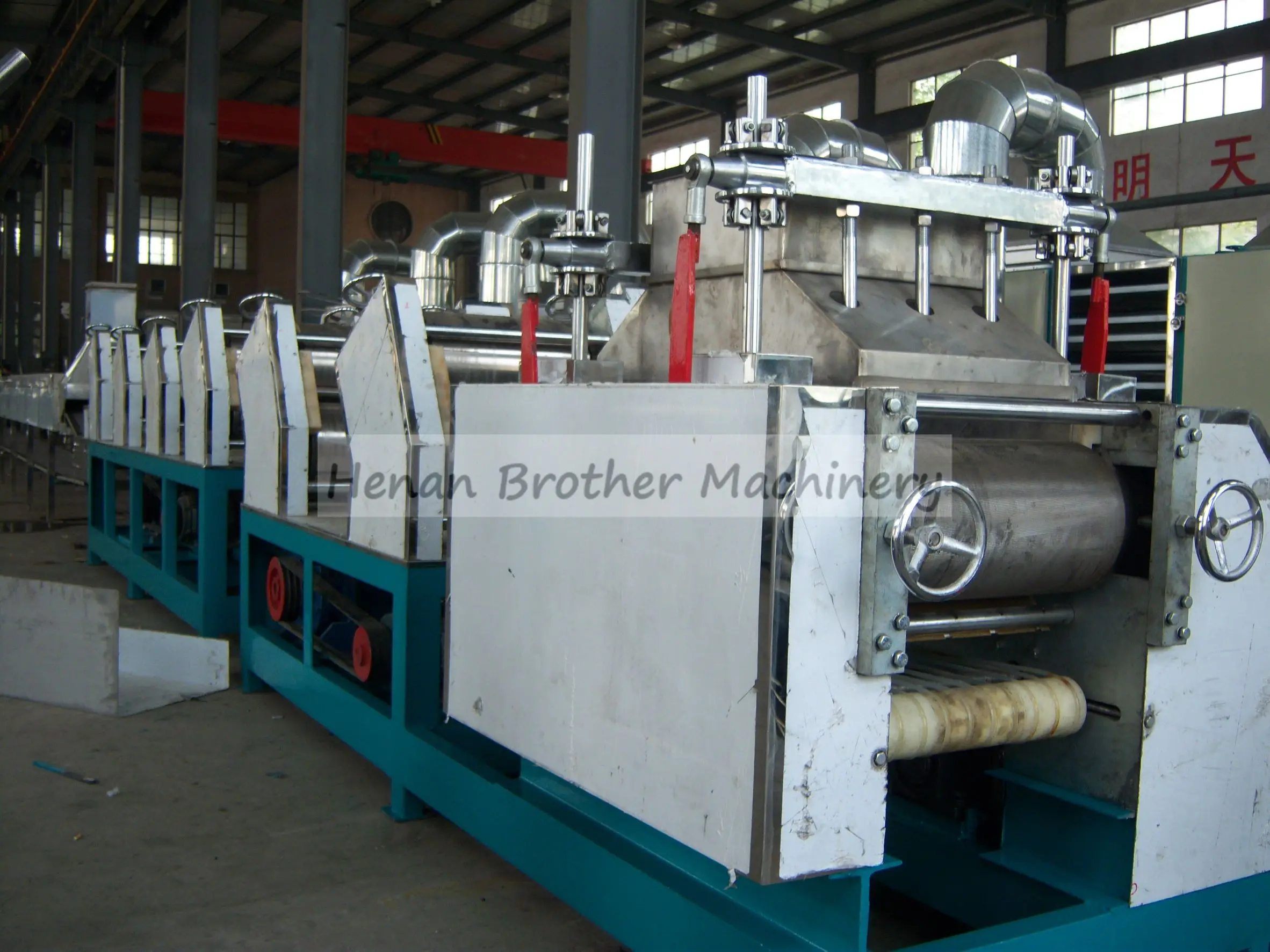

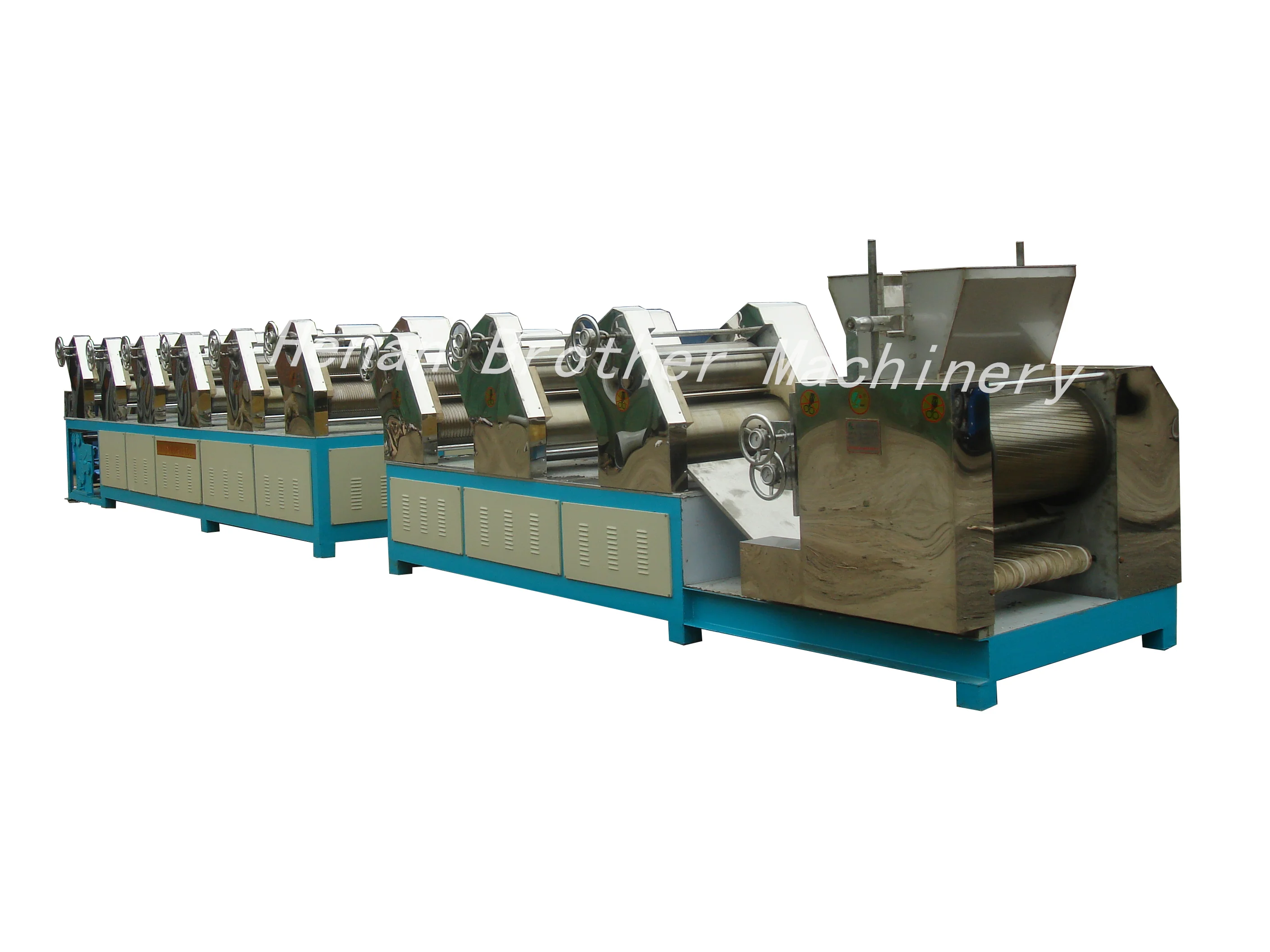

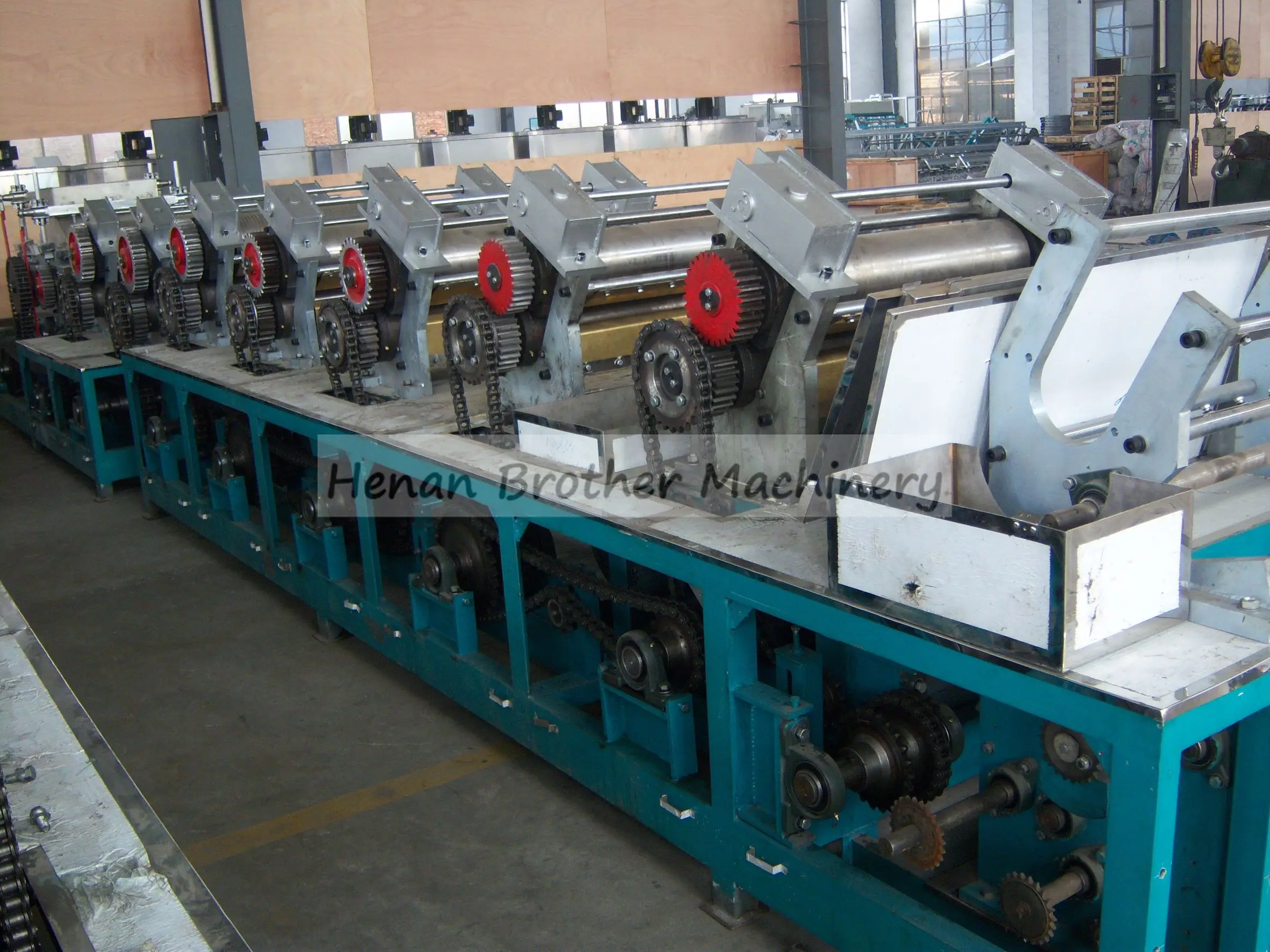

CONTINUOUS DOUGH ROLLING MACHINE

ROLLER WIDTH: 200-1500 MM
MATERIAL: ALLOY STEEL OR SUS304
FUNCTION: TO ROLL THE DROUGH FROM 14 MM TO 1 MM THICKNESS
MAIN PARAMETERS:
DOUGH SHEET THICKNESS: 14-1 MM
ROLLING SPEED: 7-10 M PER MIN
MOTOR TYPE: SOLO OR COMPOUND TYPE

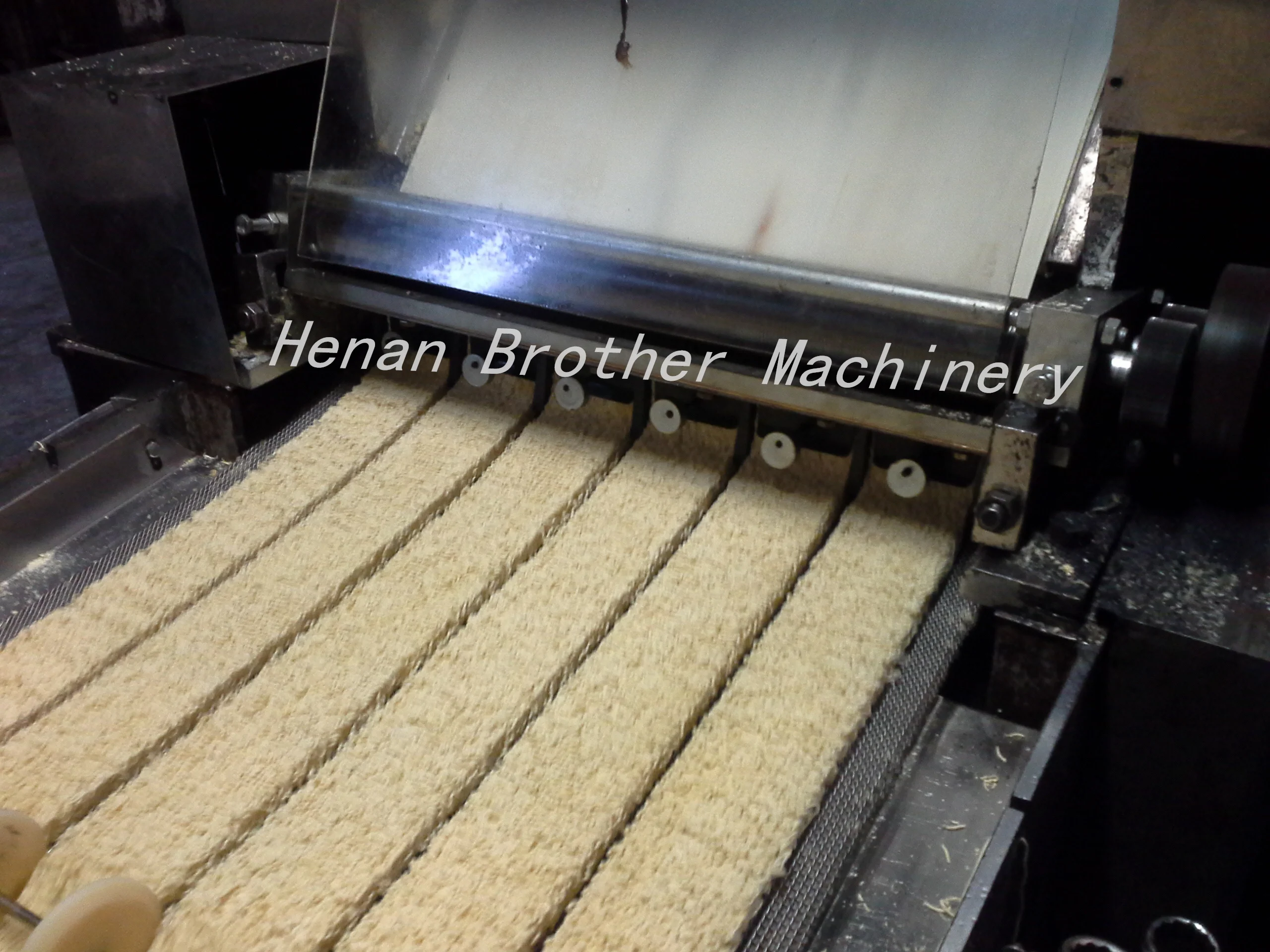

NOODLE SLITTER

WIDTH:200-1500 MM
MATERIAL: SUS304
FUNCTION: TO SLITTING DOUGH SHEET TO NOODLES
MAIN PARAMETERS:
SLITTING SIZE: 0.7-5 MM
SLITTER TYPE: ROUND AND SQUARE

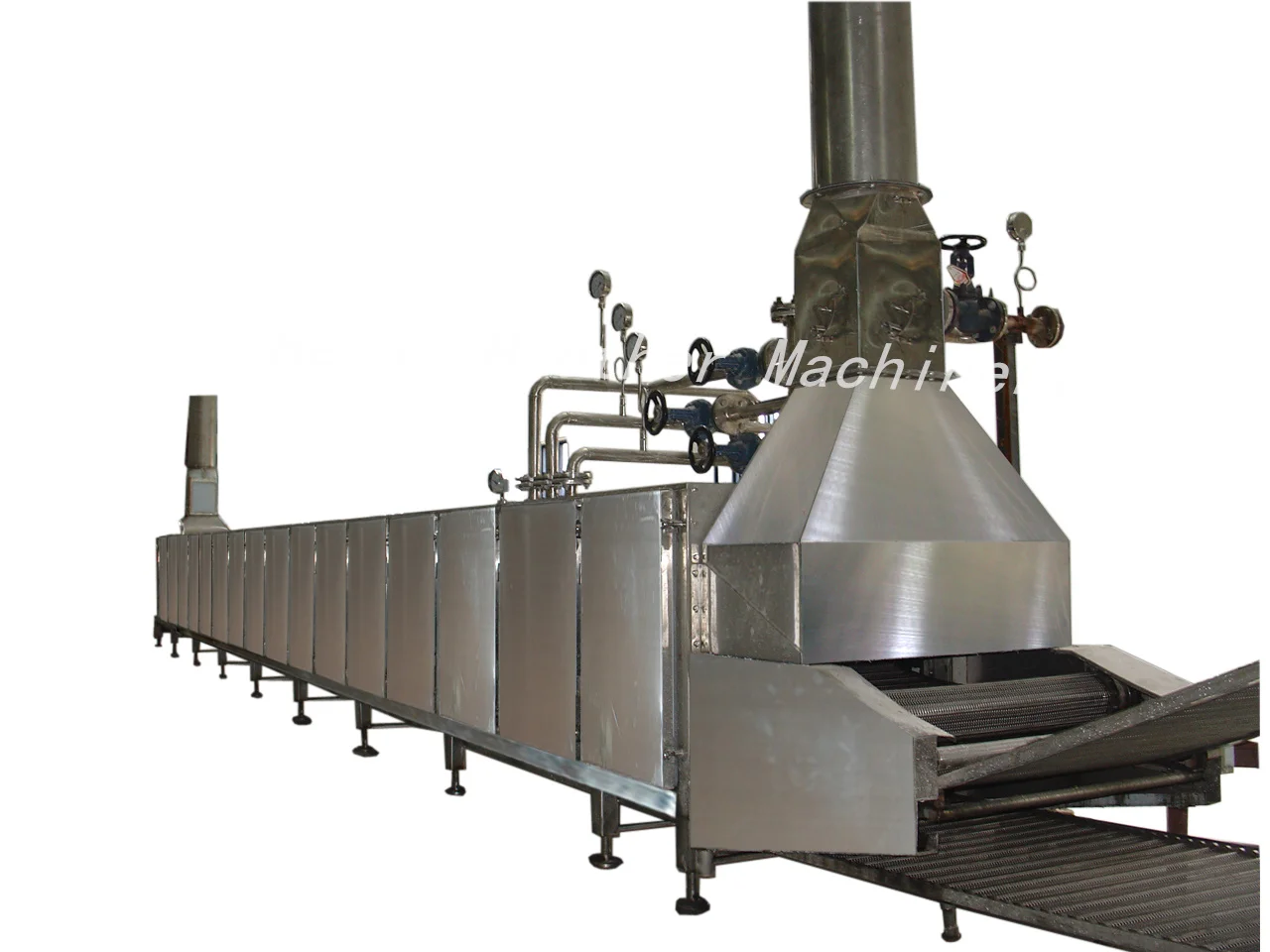

NOODLE CONTINUOUS STEAMER

WIDTH:200-1500 MM
MATERIAL: SUS304
FUNCTION: TO STEAM NOODLES CONTINUOUSLY
MAIN PARAMETERS: STEAM TEMP:110℃
STEAM TIME: 180S
STEAMER TYPE: 1 LAYER OR 3 LAYER

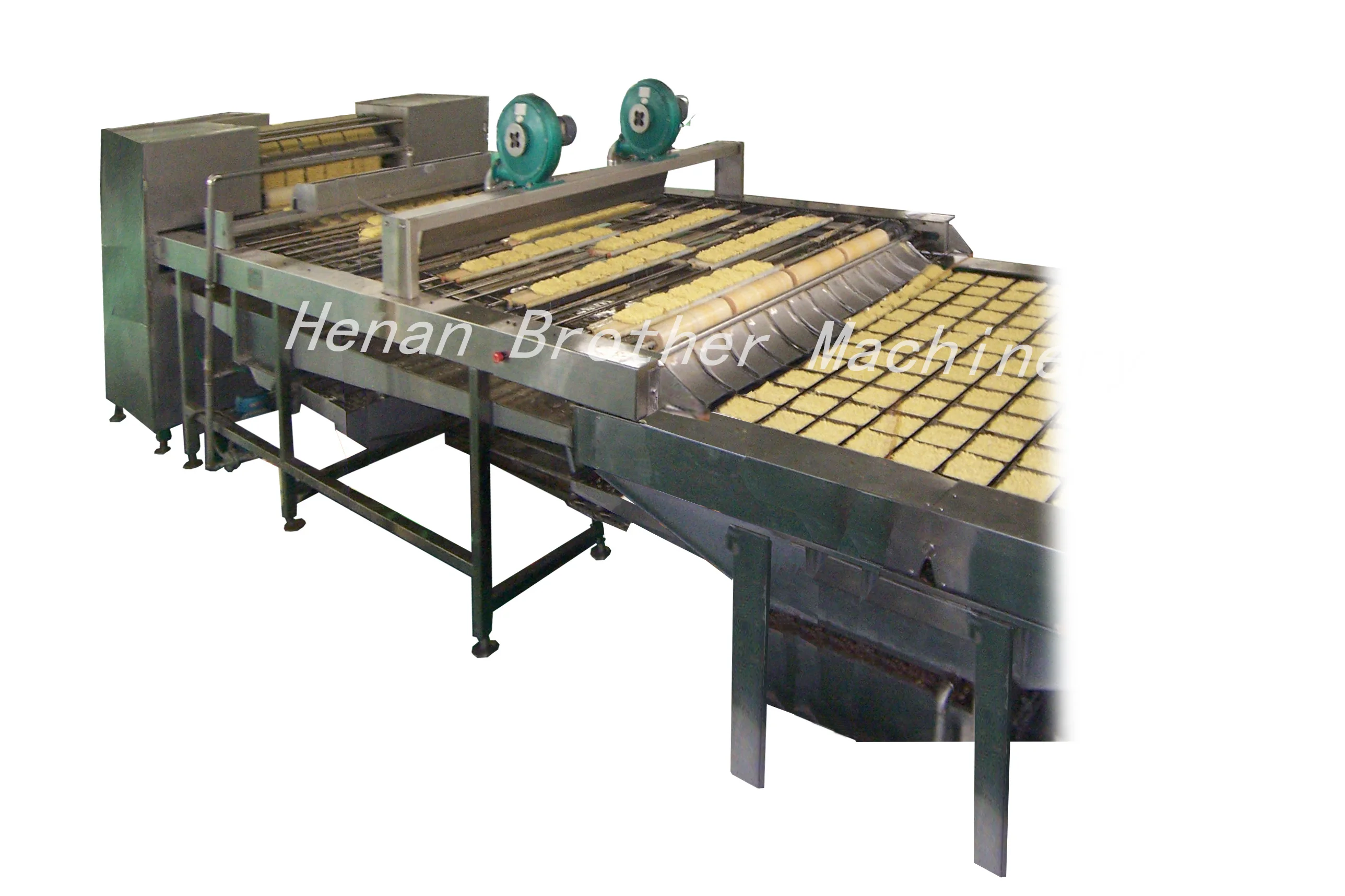

NOODLE CUTTER AND FOLDER

WIDTH:200-1500MM
MATERIAL: SUS304, SLICON PALLET
FUNCTION: TO CUT AND FOLD NOODLES BEFORE DRYING
MAIN PARAMETERS:
CUT SPEED: 20-70 CUTS PER MIN
CUT LENGTH ADJUSTABLE

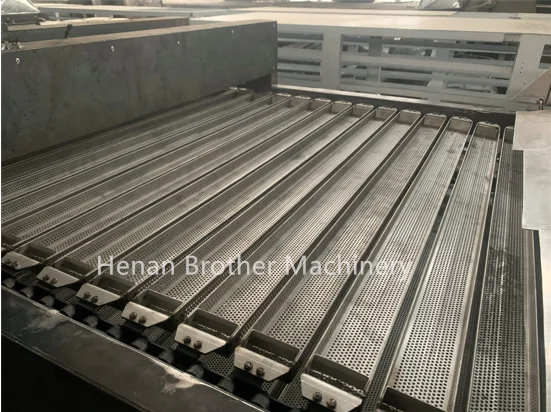

IN DRYER CONVEYOR

WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO CONVEY NOODLE TO DRYER
MAIN PARAMETERS:
BY SUS304 BUSKET
ABOUT 2M LONG

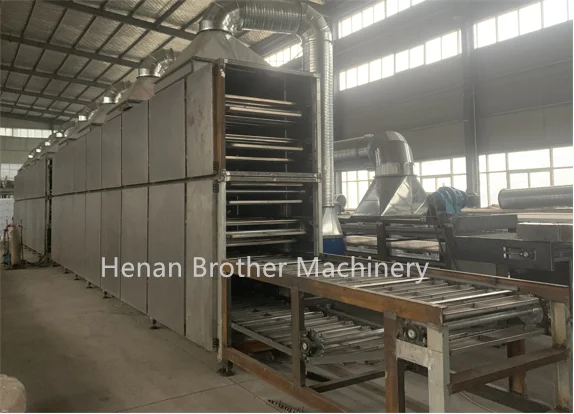

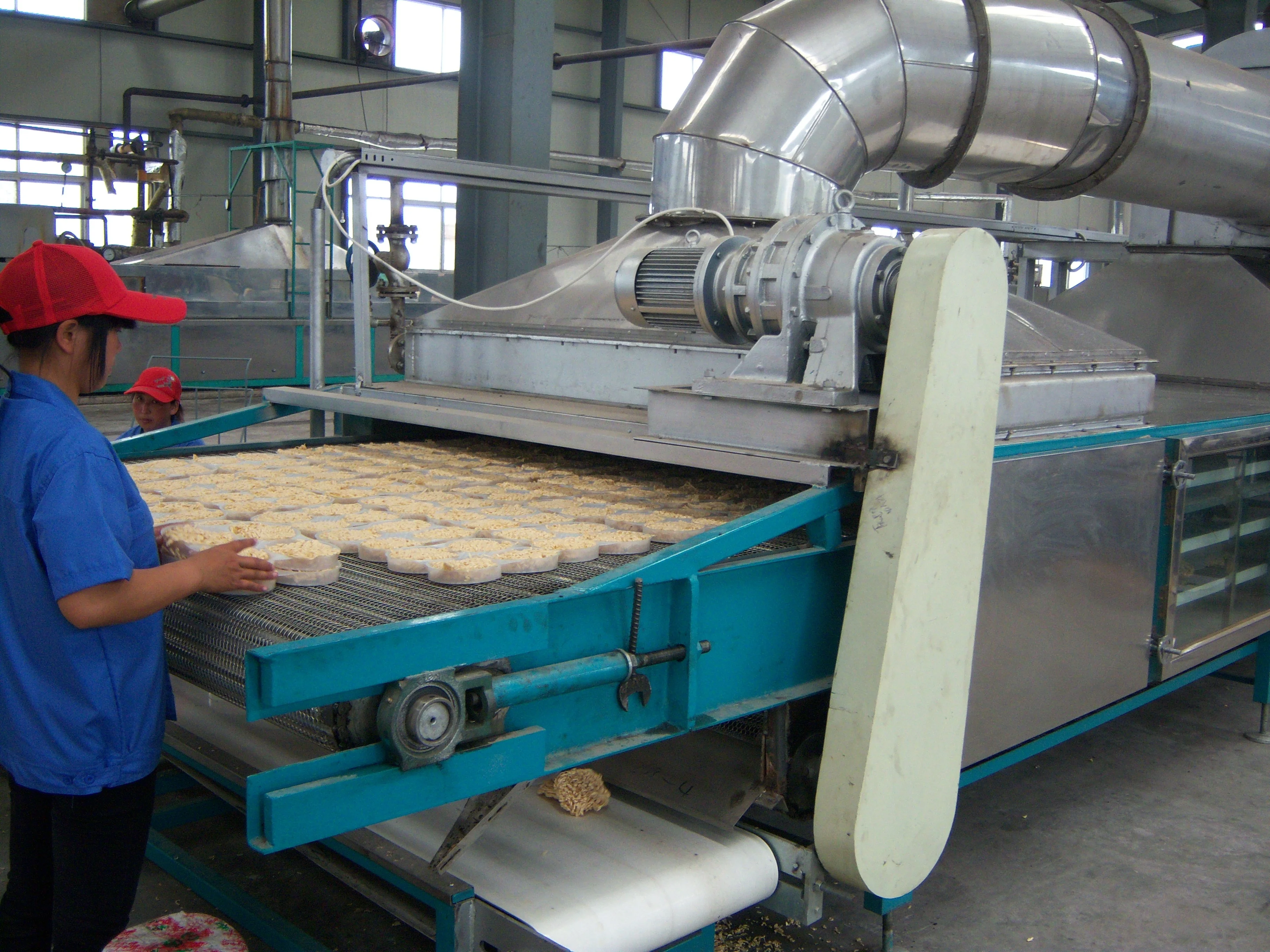

NOODLE DRYING MACHINE

WIDTH:200-3500 MM
MATERIAL: CARBON STEEL FRAME, NOODLE CONTACT USE SUS304
FUNCTION: TO DRY NOODLES AS REQUESTED TYPE
MAIN PARAMETERS:
DRYER TYPE: BUSKET + MESH
DRYING TIME: 50-60 MINS
DRYING TEMP: 60-95℃



DRYER MOULD

SIZE: 50-300G PER PC
MATERIAL: SUS304
FUNCTION: TO SHAPE THE NOODLE BY MOULD BEFORE DRYING
MAIN PARAMETERS: SIZE: FOR 50-300G NOODLES
THICKNESS: 1-1.5MM


Packing & Delivery

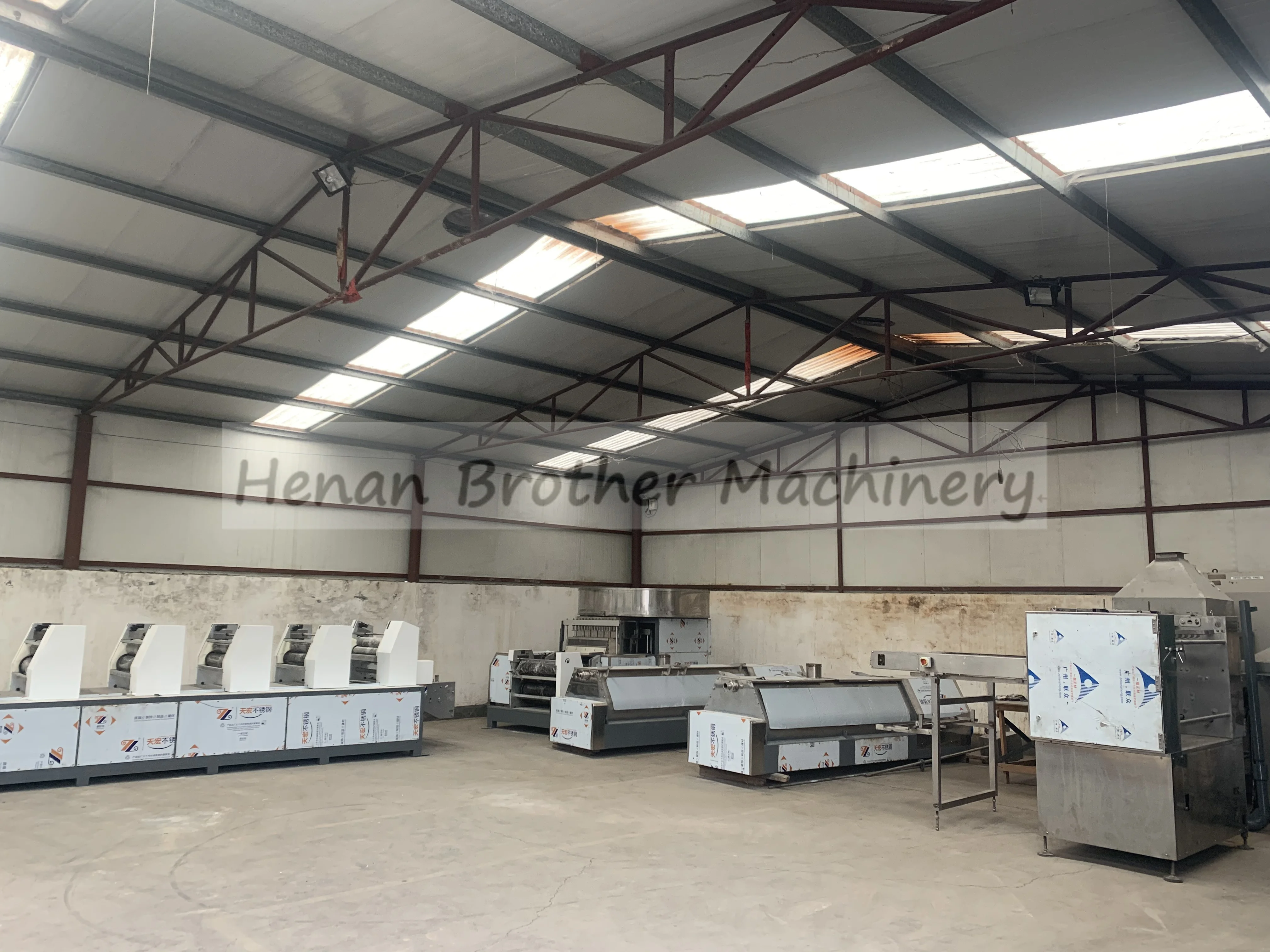

Company Profile

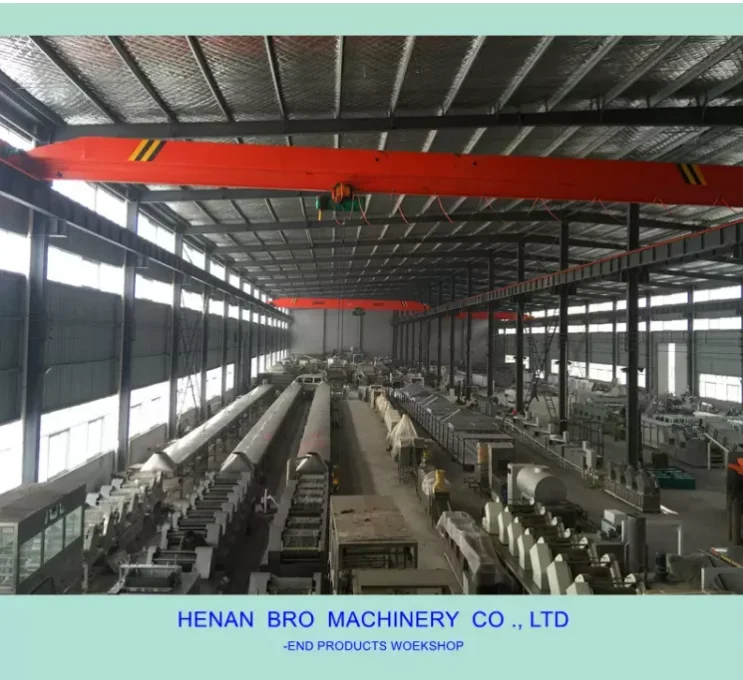

Henan Brother Machinery Co., Ltd is located in Henan Province of China. Founded in 2002, Henan Brother machinery is specialized in manufacturing, researching and technical complete sets of noodle machines.
Flagship products:
Capacity Range: 100kg/hr-2000kg/hr
=Oil Fried Instant Noodles Production Line (square&cup)
=Hot Air Dried Instant Noodles Production Line (shape as request)
=Chow-Mein Production Line(dried or steamed)
=Dried Stick Noodle Production Line( Chinese Spaghetti)
= Multifunctional Noodles Project (fried/dried/steamed)
=Modification&updating Service (as per request)
The friends from all over the world are warmly welcome to build the Win-Win future with us anytime.

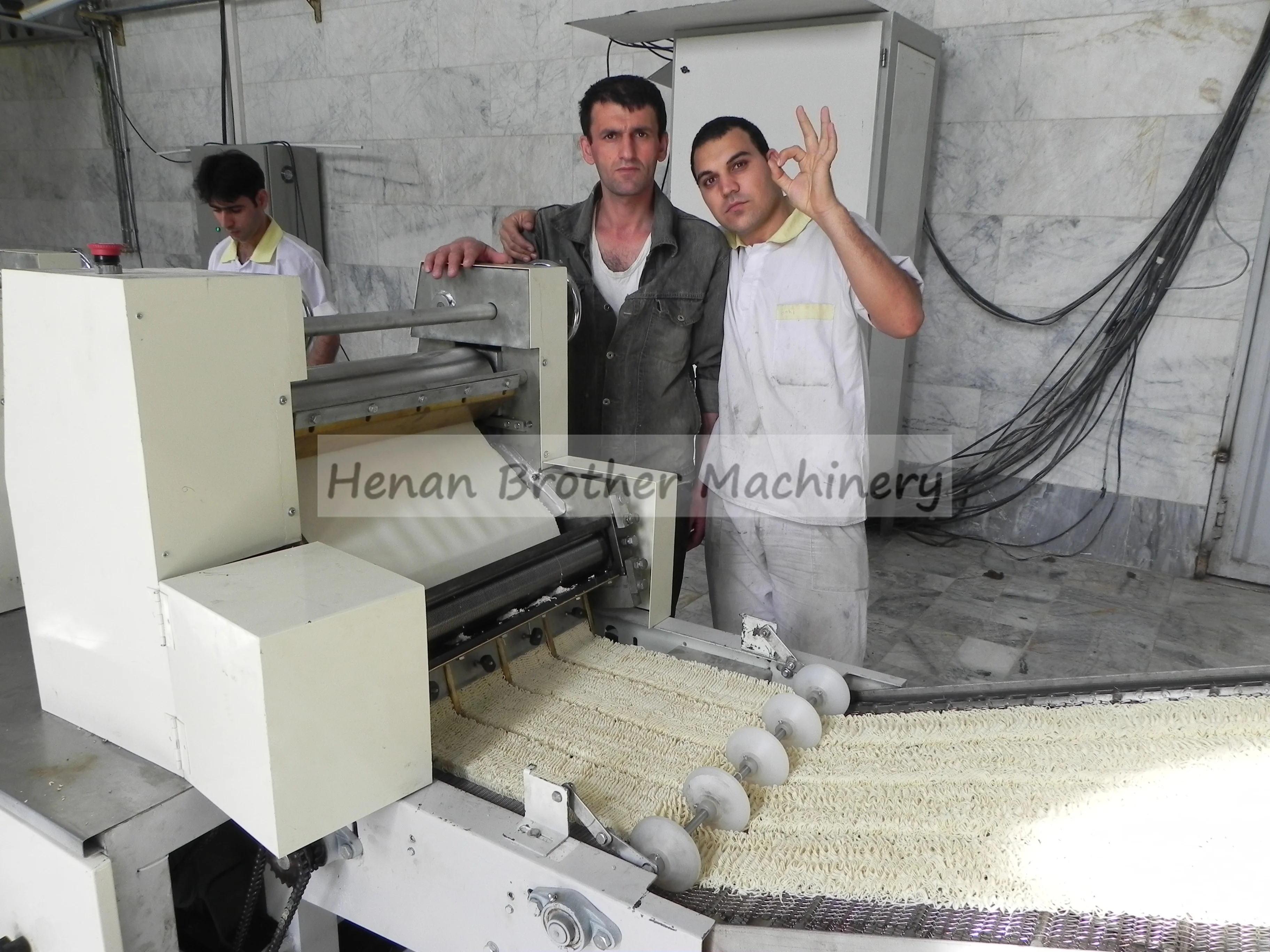

Our Customers






FAQ


1.Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO and CE certificate.
3. Q: How long is the warranty period?
A: All of our products have one year warranty.
4. Q: What’s the main market of your company?
A: We have customers all over the world.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6.Q: My recent noodle machine is still working but high wastage.
A: Generally,you don't have to replace it if not extend business, we do machine upgrade ,free service check.
7.Q: I need noodle machine spare parts.
A: We make all kinds of noodle machine spare parts: roller,slitter set, brass comb, divider,SUS304(316) mesh net, noodle casing box and cover,chain,scraper, food grade souping pallet,chain gears etc.
