Master Well garage door bearing bracket top/bottom bracket for garage door
- Category: >>>
- Supplier: Master Well Enterprise Limited
Share on (1600541237776):
Product Overview
Description
Details Images of Garage Door Accessories

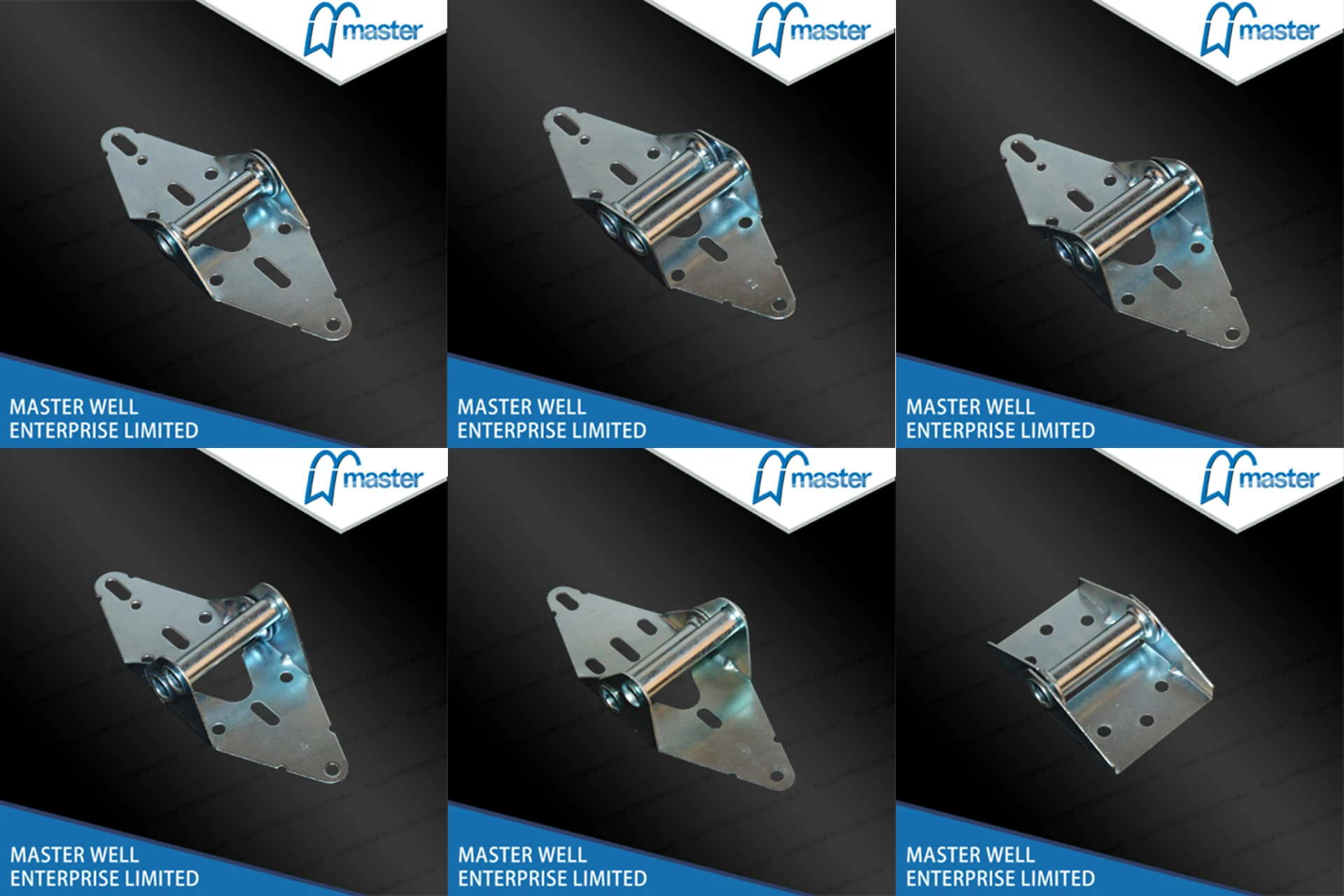

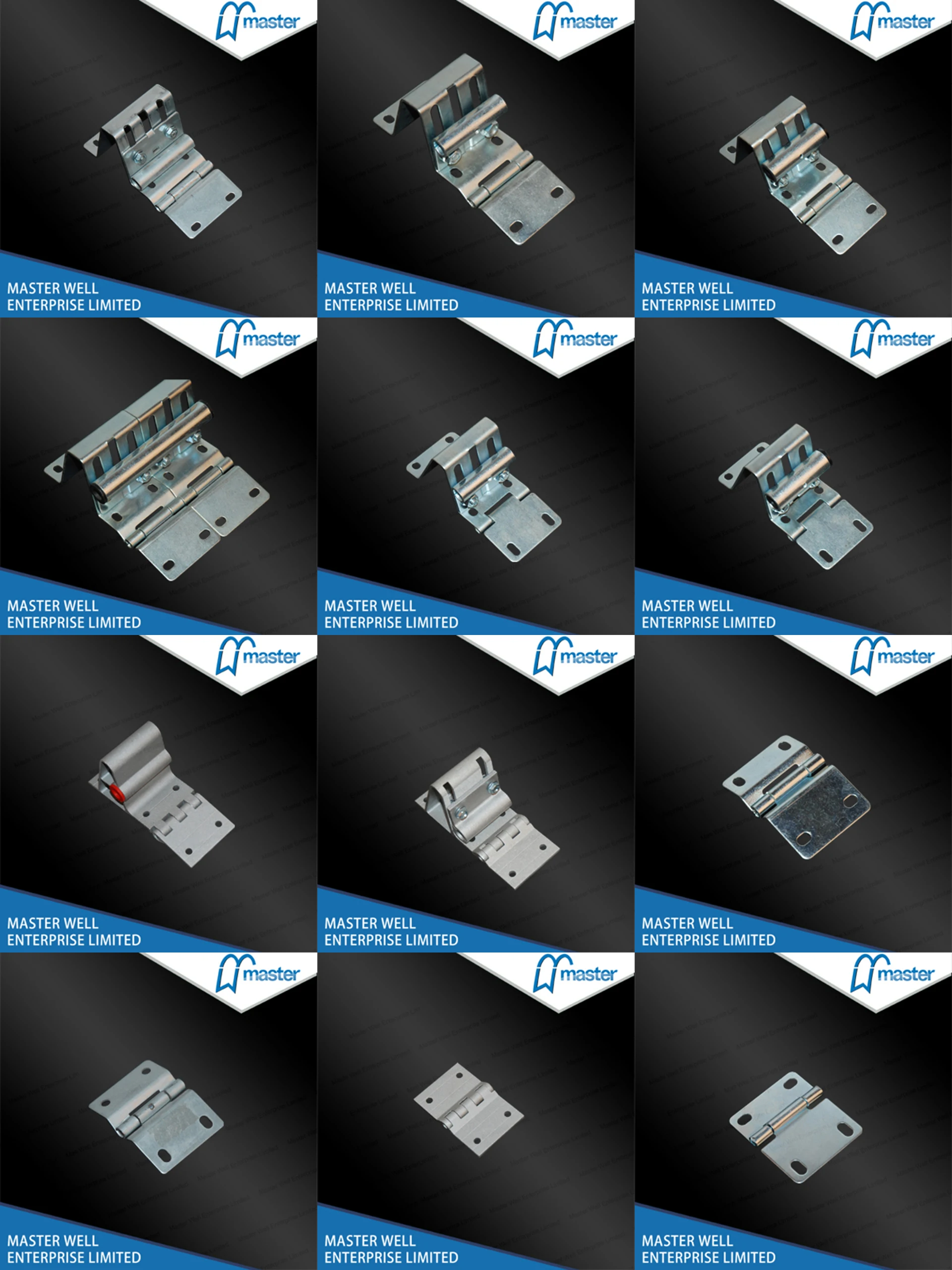

Garage Door Hinge
Garage Door Hinge, for Non-finger protection panel:
1. Item.No for hinges: MAS0001.1, MAS0001.2, MAS0001.3, MAS0001.4, MAS0001.5, MAS00022. Material: Zinc plating & normal galvanized steel;
3. Steel thickness: 1.8 mm, 2.0 mm;
4. Finished surface for 40mm thick panel with non-finger protection;
5. For 11 mm, 4'' stem rollers only ;
6. Type: garage door hinge.
Garage Door Hinge for finger protection
1. Item No. for hinges: MAS0101, MAS0501, MAS0601,MAS0801, MAS1001, MAS0501DB, MAS1101,MAS0701, MAS0102, MAS0102.B, MAS0502, MAS0602, MAS0802, MAS1002, MAS1102, MAS0302;
2. Material: Normal galvanized steel;
3. Steel thickness: 2.0mm;
4. Finished surface for panel thickness 40 mm with finger protection;
5. For 11mm stem roller only.
Top Bottom Roller Bracket
1. Top bracket model: MAS0003, MAS0803, MAS0703, MAS0603;
2. Thickness: 1.5mm, 2.0mm;
3. Material: steel/galvanized steel;
4. Use for standard single track hardware;
5. For 11 mm stem rollers only.
1. Bottom bracket model: MAS004, MAS0604, MAS0304, MAS0804, MAS0504A, MAS0504B, MAS0704, MAS0904;
2. Thickness: 2.3mm, 2.5mm, 4.0mm;
3. Material: Zinc plated/galvanized steel ;
4. For 7'', 11mm stem roller and 2"/3'' , 2''track;
5. Both left and right available.

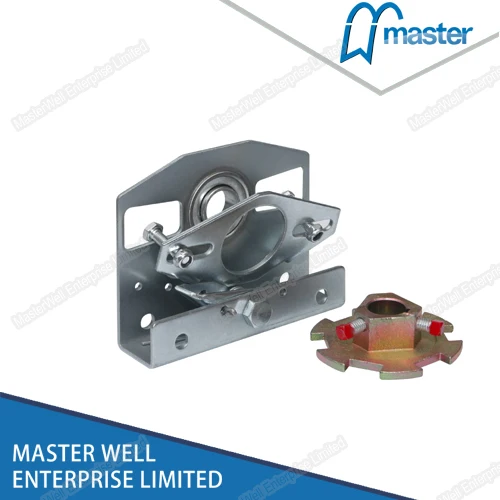

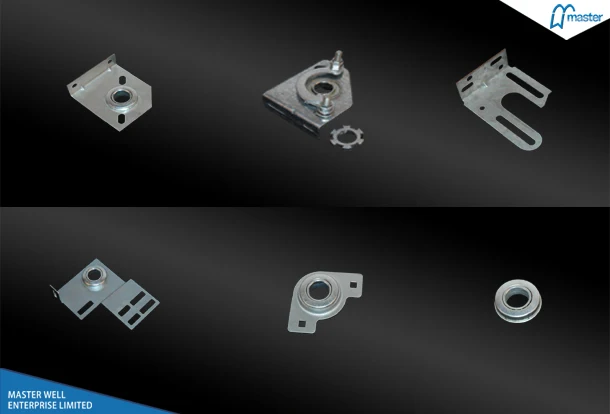

Bearing Brackets
1. Model:MAS0105, MAS005, MAS0605;
2. Distance: 65mm, 84mm;
3. Thickness: 2.0mm / 2.5mm / 3.0mm;
4.Material: steel/Zinc plating;
5. The bearing bracket is provide with a 1" bearing installed.
1. Model: MAS0606;
2. Distance: 60mm / 84mm;
3. Material: Zinc Plating;
4. Thickness: 2.5mm;
5. Both left and right are available.
1. Model: MAS0505, MAS0305;
2. Equipped with 1’’ bearing;
3. For 2’’5/8, 3’’3/4, 1''3/4, 2'' torsion spring;
4. Material: Steel/Zinc plating.

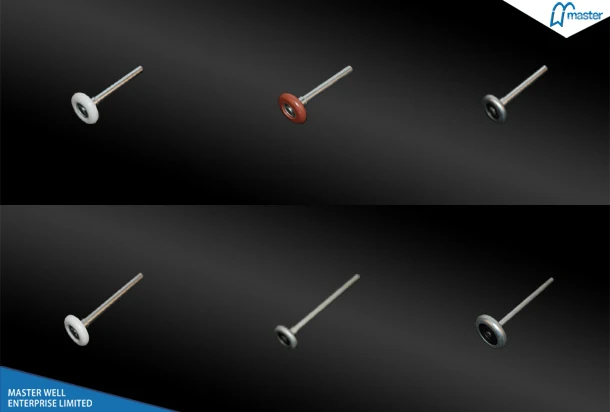

Garage Door Roller
1. Model: MAS0007, MAS0707, MAS0807, MAS0907;
2. Stem: 4''/7 ball, 7''/11 ball, 4''/ Precision 6200ZZ, 7''/ Precision 6200ZZ, 11 ball;
3.Diameter: 2'', for 2'' track only.
1. Model: MAS0507, MAS0607, MAS0608;
2. Stem: 4''/ 10 ball, 7''/ 10 ball, 7''/ 10 ball.
3. Diameter: 2'', 3'', for 2'', 3''track.

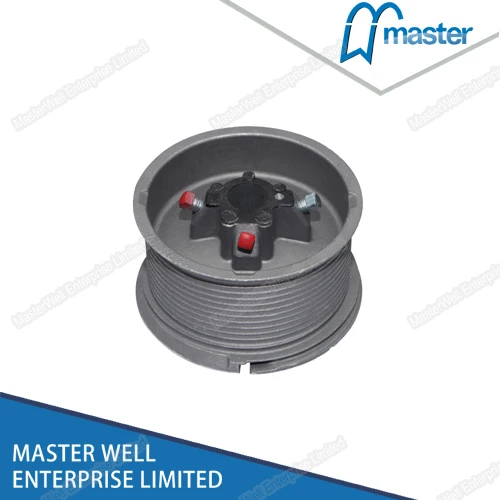

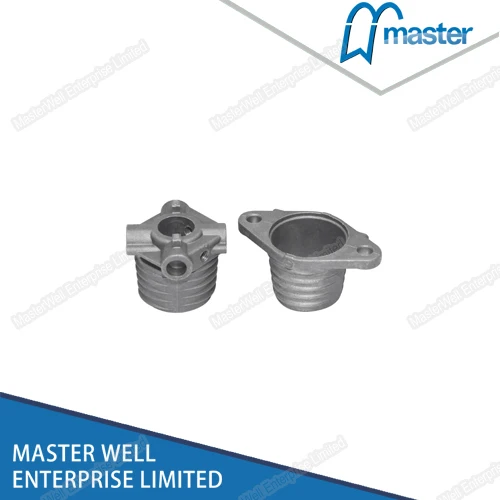

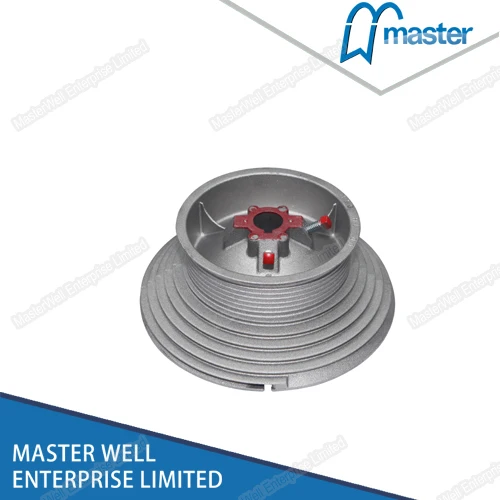

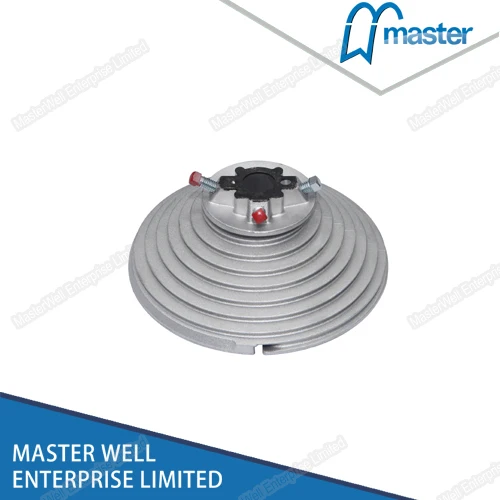

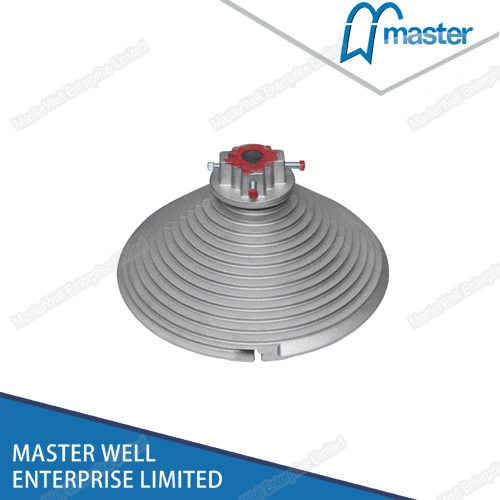

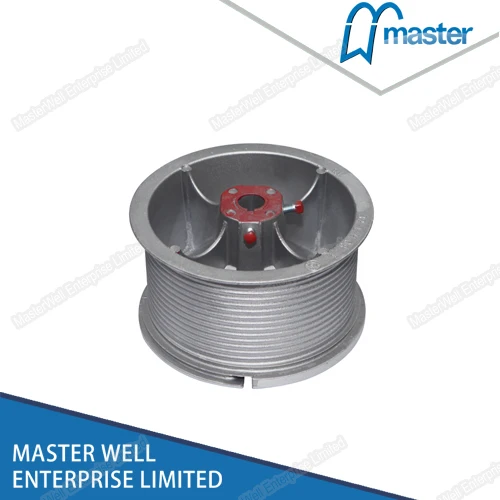

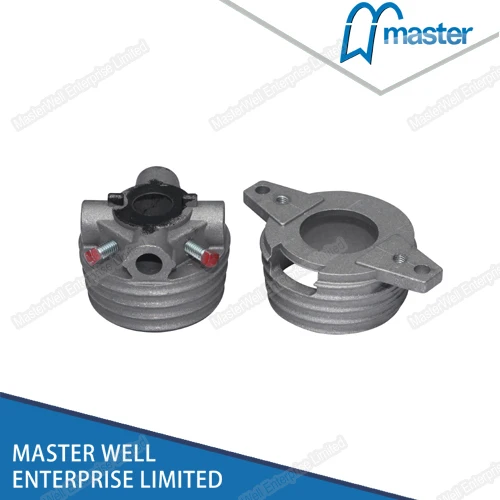

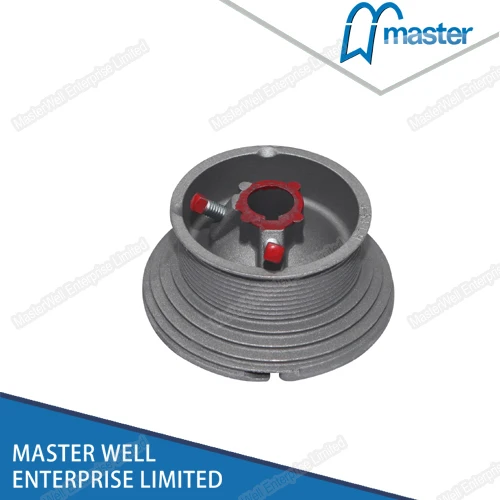

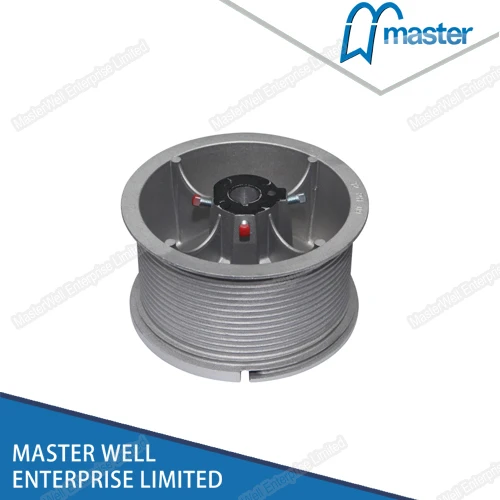

Cable drum
1. Model:
MAS0013.NL8, MAS0013.NL12, MAS0013.NL12B, MAS0013.NL10, MAS0013.NL18, MAS0013.NL18B, MAS0013.NL32, MAS0013.NL32B;
2. Max lifting height: 8', 10', 12' 18', 32';
3. Max cable diameter: 1/8'', 3/16'', 5/32'', 1/4''.

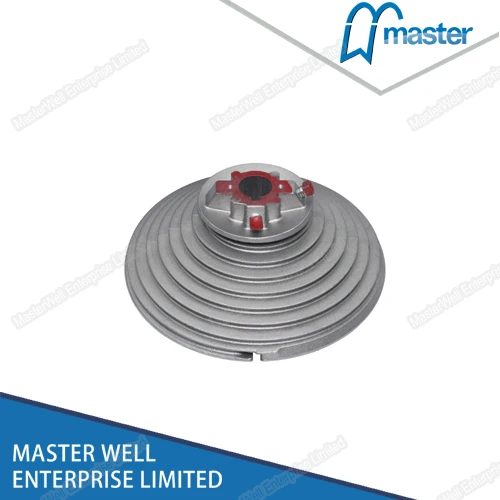

1. Model:
MAS0315.VL11, MAS0315.VL11B, MAS0315.VL18, MAS0315.VL28B;
MAS0315.VL11, MAS0315.VL11B, MAS0315.VL18, MAS0315.VL28B;
2. Max lifting height: 11'', 18'', 28'';
3. Max cable diameter: 3/16'', 1/4''.

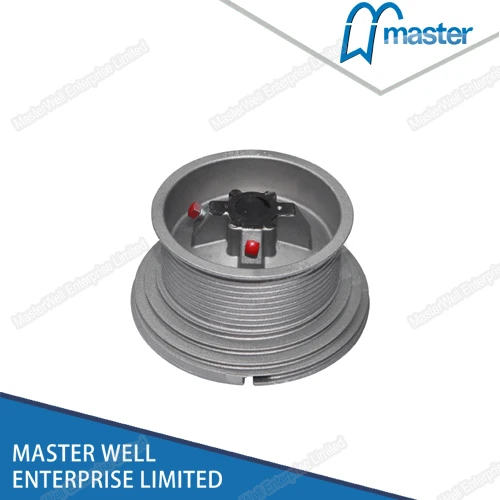

1. Model:
MAS0315.VL11, MAS0315.VL11B, MAS0315.VL18, MAS0315.VL28B
MAS0315.VL11, MAS0315.VL11B, MAS0315.VL18, MAS0315.VL28B
2. Max lifting height: 54'' vertical+120''/180'', 120'' vertical+144'', 164'' vertical+229'';
3. Max cable diameter: 1/8'', 3/16'', 1/4''.

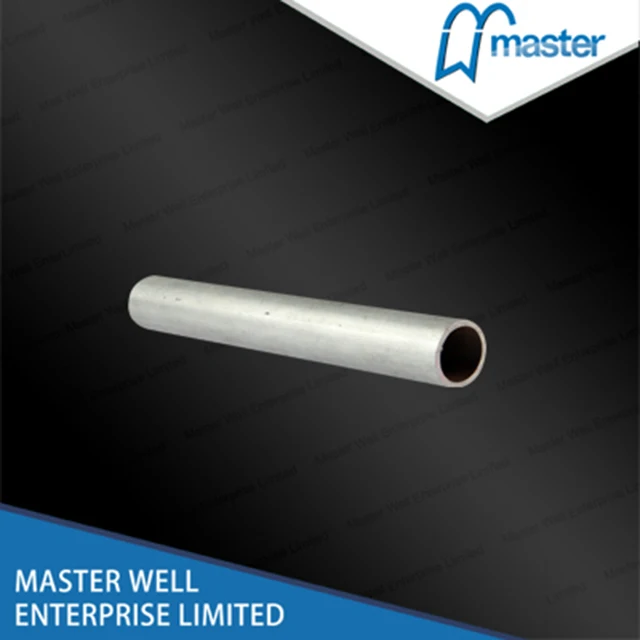

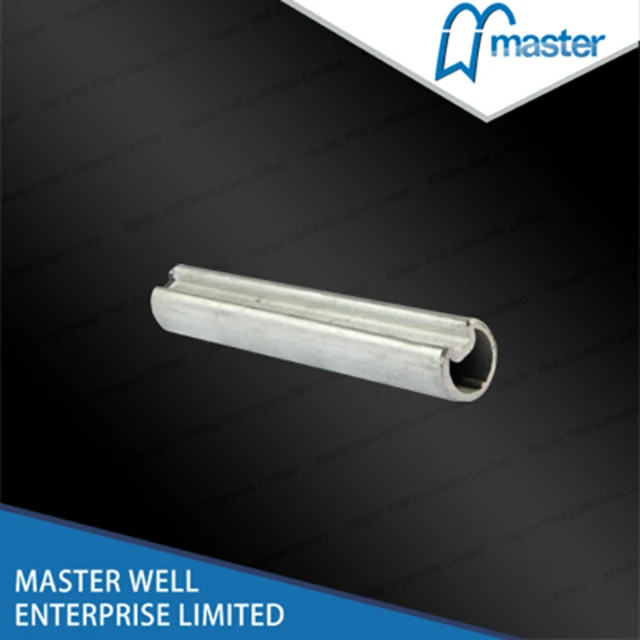

Tube shaft
Thickness:1.5mm/ 1.8mm/ 2.0mm
Outside diameter: 1''
Tube shaft with keyway MAS0124
Thickness:2.0mm/ 3.0mm
Outside diameter: 1'' with 1/4 keyway

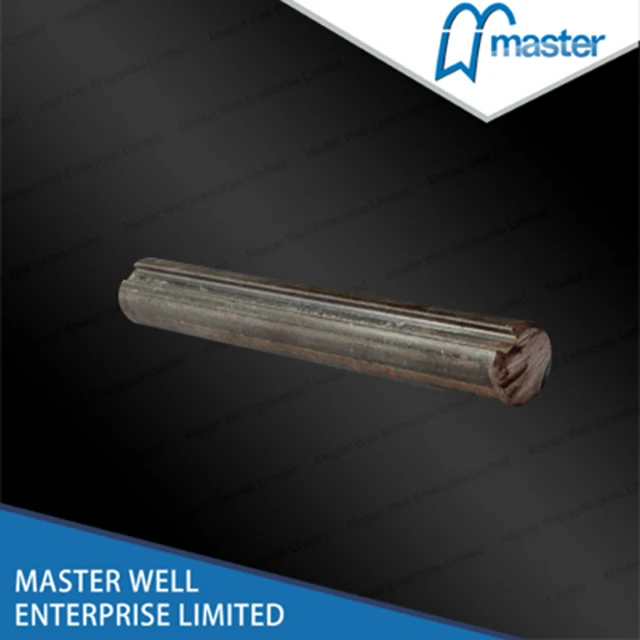

Solid shaft with keyway MAS0224
Outside diameter: 1'' with 1/4 keyway

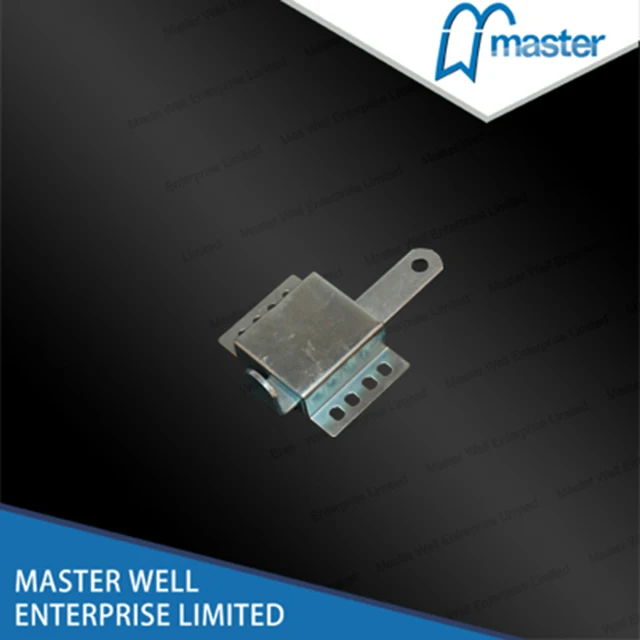

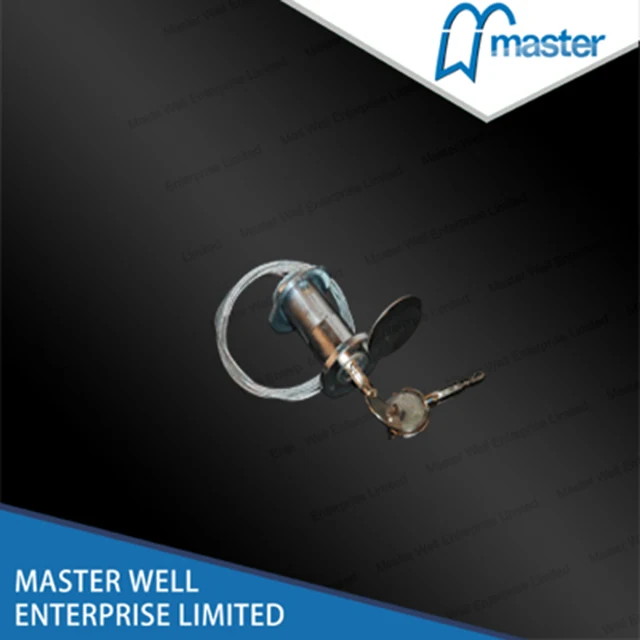

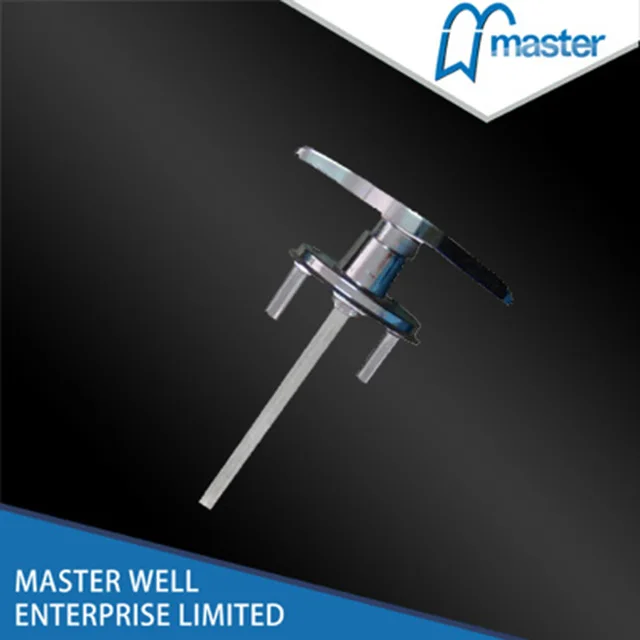

Garage door lock
shaft: 5/16'' square*4''
With 2mm cables, with lock cap
For electrical opeation only
shaft: 5/16'' square*4''

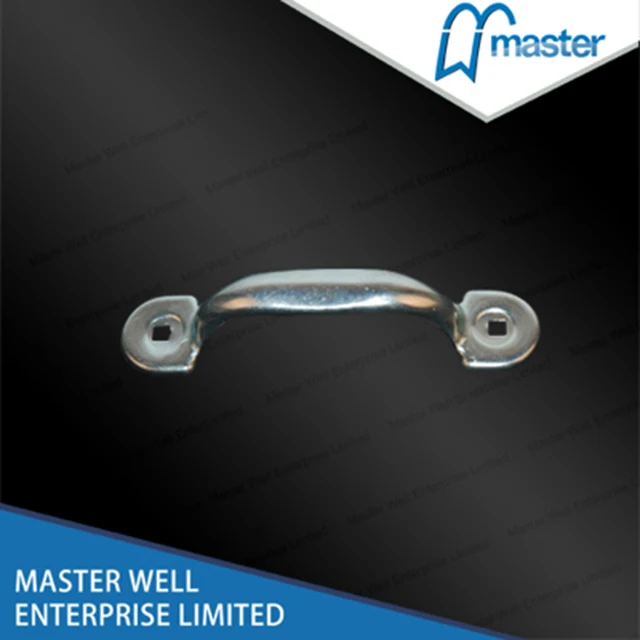

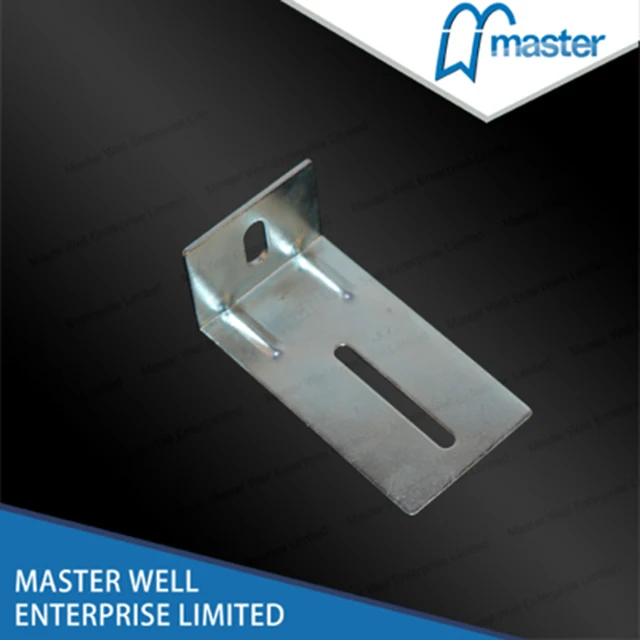

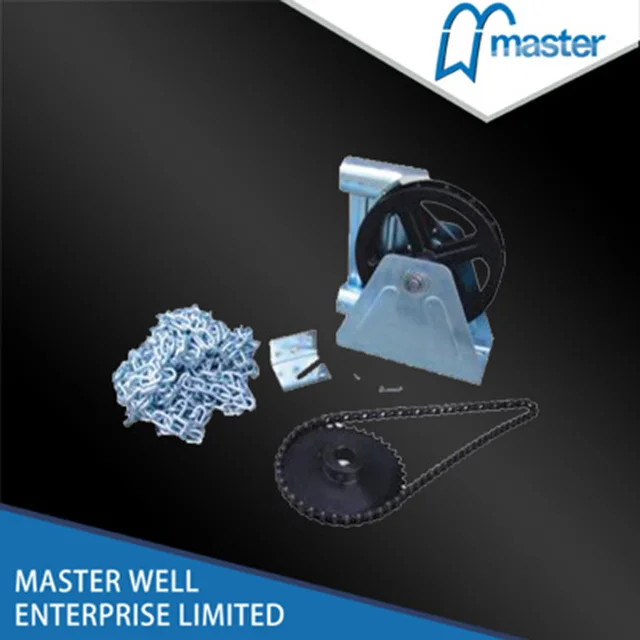

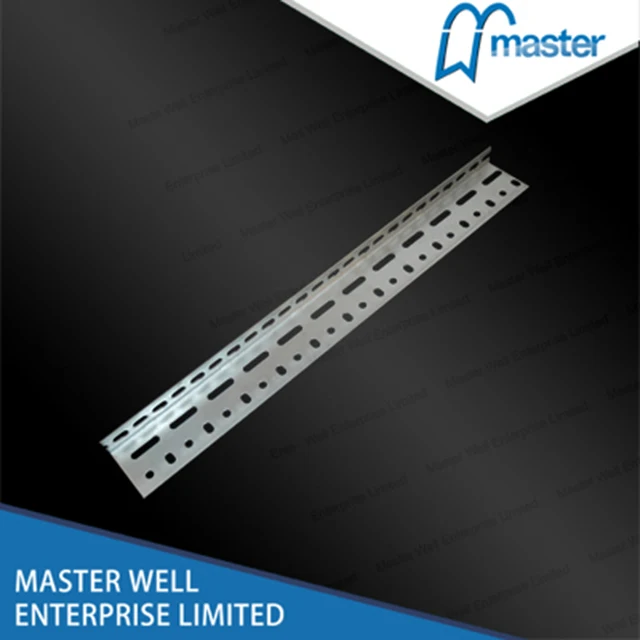

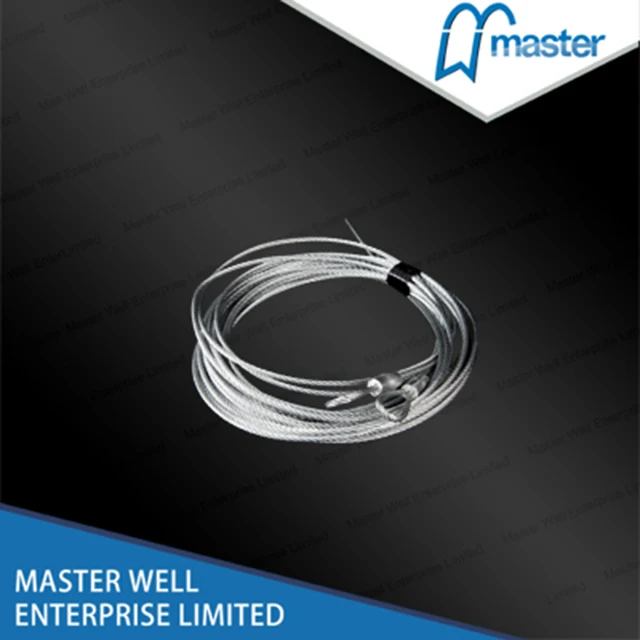

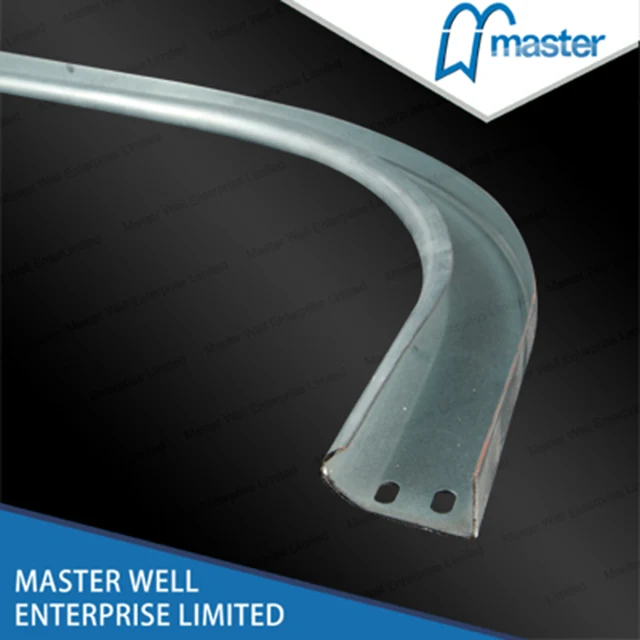

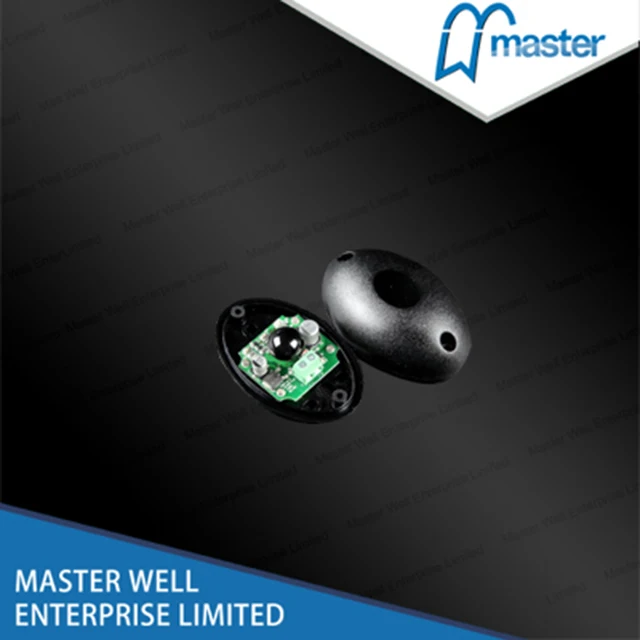

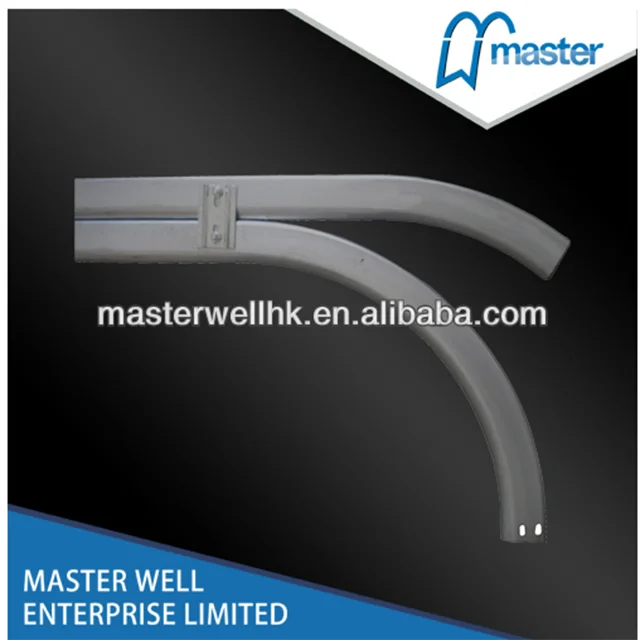

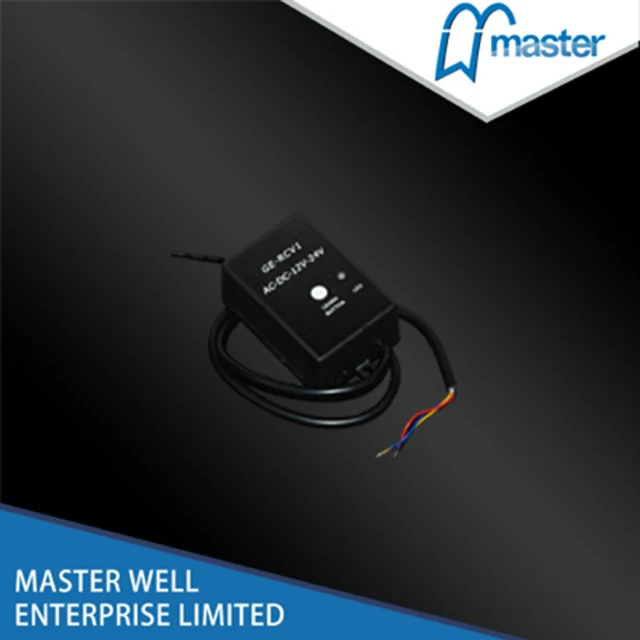

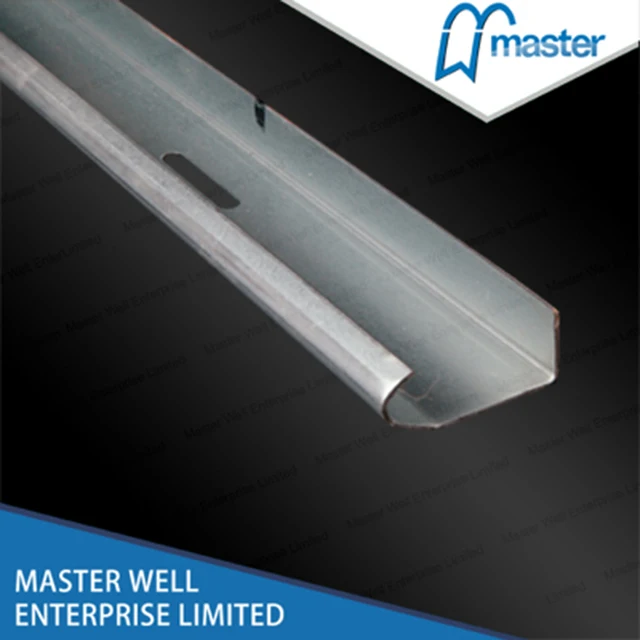

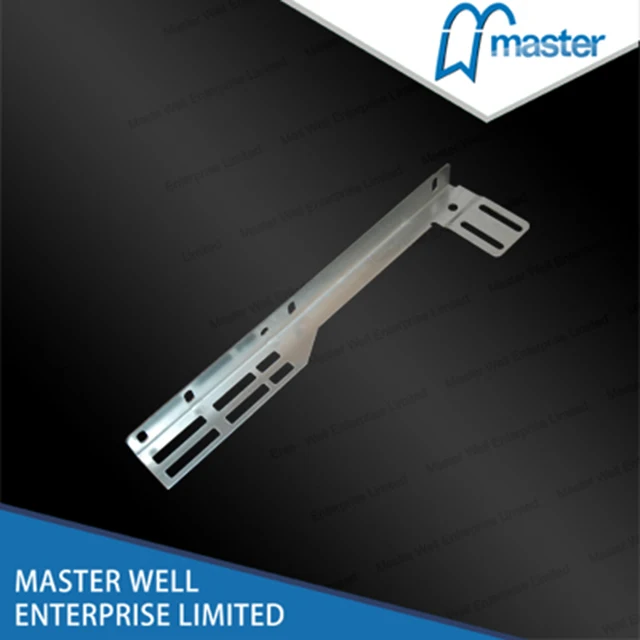

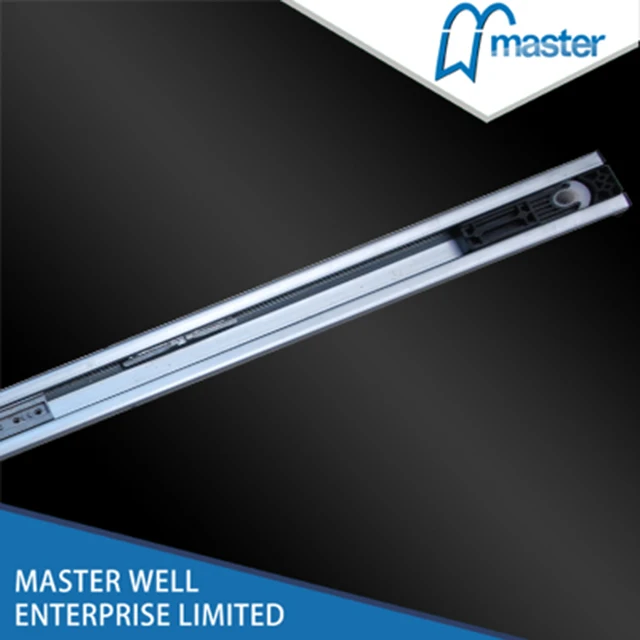

vertical track, horizontal track, motor guide, cable, cable sleeve, exterior reinforce bar,flag bracket, angle iron, jamb bracket, chain hoist, handle, receiver, pin code lock, photo beam, wall switch and etc.
