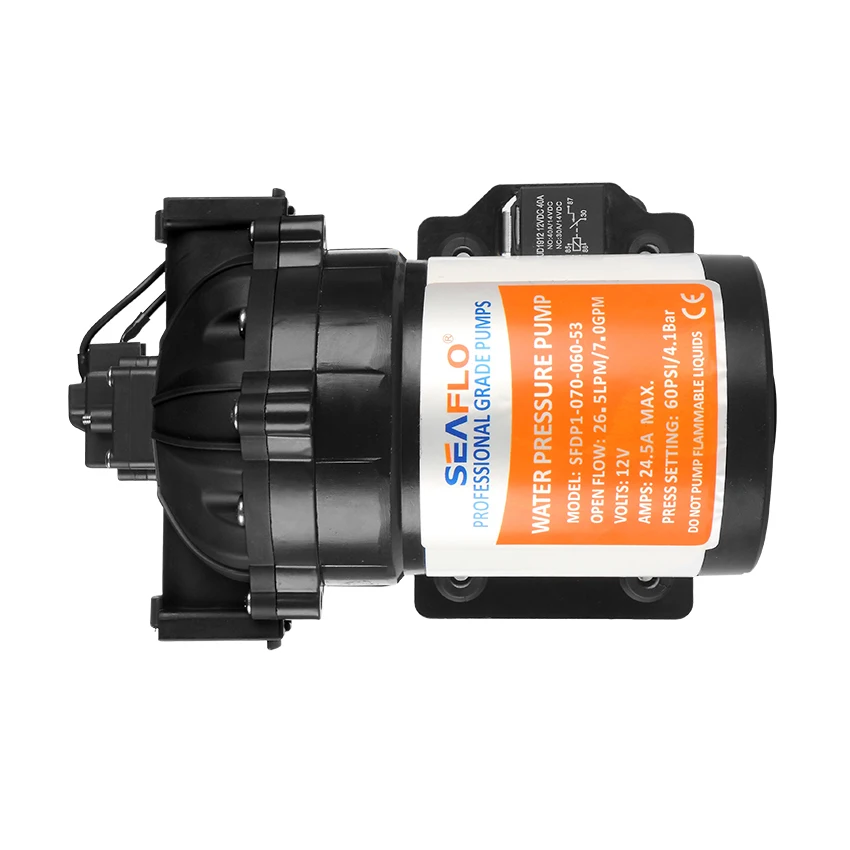

ALL NEW SEAFLO 53 Series Diaphragm Pump 12V DC 7.0 GPM 60 PSI with pressure switch Solar Booster Pressure Pump
- Category: >>>
- Supplier: Fujian Aidi Electric Co. Ltd.Fujian Ltd.
Share on (1600541294894):
Product Overview
Description
SEAFLO Profile
Product Description

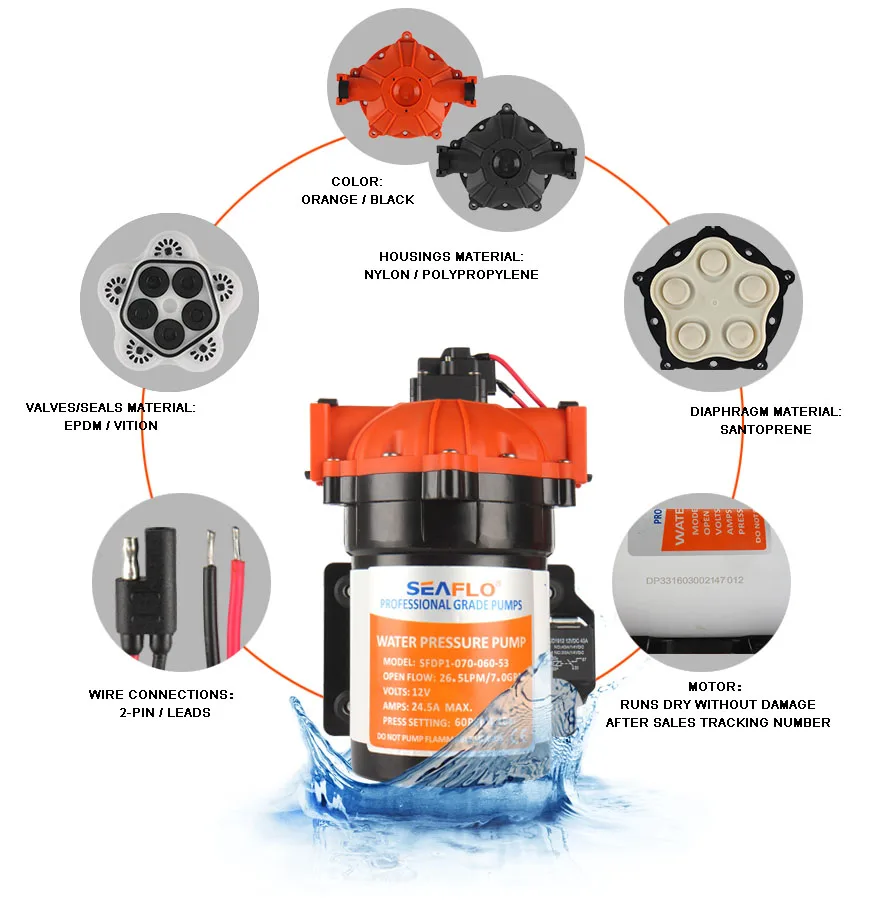

| Features & Benefits |
| 1.Flow rate up to 7.0 GPM [26.5 LPM] 3.Automatically turn on and off 5.Quiet operation 7.On demand use | 2.Can run dry without damage 4.Self priming & built-in check valve 6.Chemically resistant materials 8.Designed for spraying and fluid transfer |
| Product Name | SEAFLO 12 volt 26.5lpm 60psi Industrial High Flow Pumps Manufacturer |
| Pump Type | 5 Chambers Positive Displacement Diaphragm Pump |
| Max Flow Rate | 7.0 GPM [26.5 LPM] |
| Max Pressure | 60 PSI [4.2 Bar] |
| Voltage | 12 VDC, and 24V, 115V, 230V are available |
| Max Amp | 24.5 A |
| Fuse | 36.8 A |
| Switch Type | On Demand [Cut-off Switch], and none switch is available |
| Diaphragm Material | Santoprene |
| Valve Material | Fluororubber, and EPDM is available |
| Duty Cycle | Continuous |
| Self Priming | 6' [1.8 m] suction |
| Max Fluid Temp | 140 °F [60 °C] |
| Inlet & Outlet Port | 3/4" Quick Connect, and contact us for more ports |
| Lead | 9" [23 cm] 12 AWG lead |
The 53 Series is our Heaviest-Duty water pump. It provides high volume water flow with reduced pump cycling, thanks to the large five-chamber diaphragm. Quick Attach Fittings make installation or replacement easy. These models are designed to run on water systems with no accumulator tank necessary, and up to five fixtures! Due to its robust motor and heavy-duty construction, it's a popular choice for use with tough agricultural applications. It provides up to 7.0 gallons per minute! The 53-Series pumps are self-priming, and can run dry without damage, performance reliable. This automatic demand water pump has a built-in pressure switch, which automatically starts and stops and stops the pump when the faucet is opened and closed. They are easy to install, service and winterize.

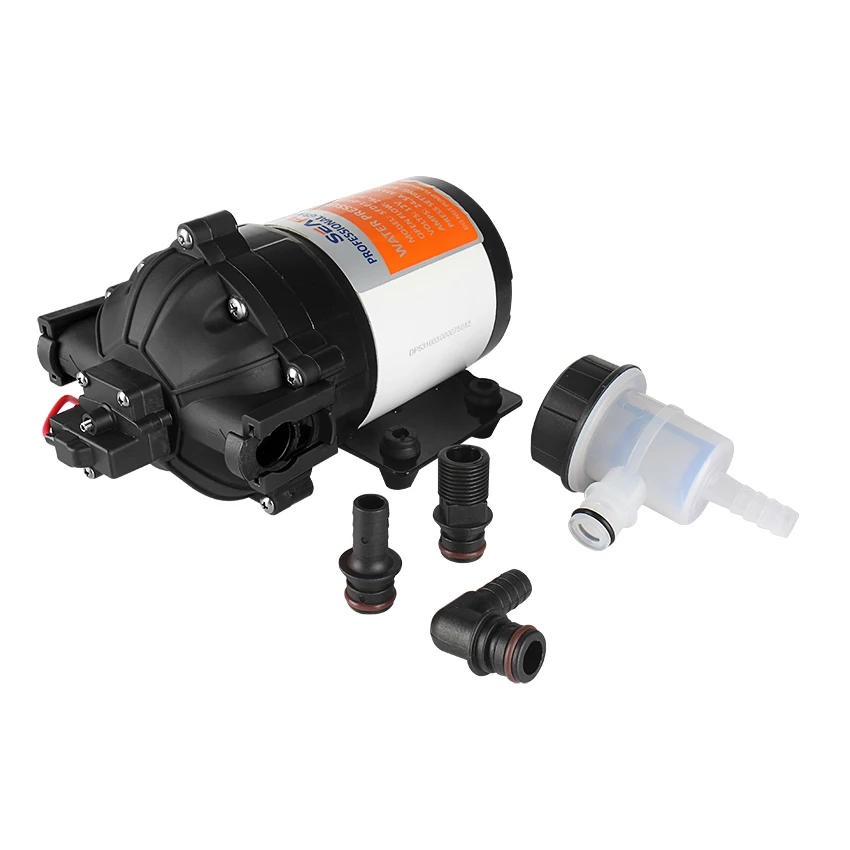

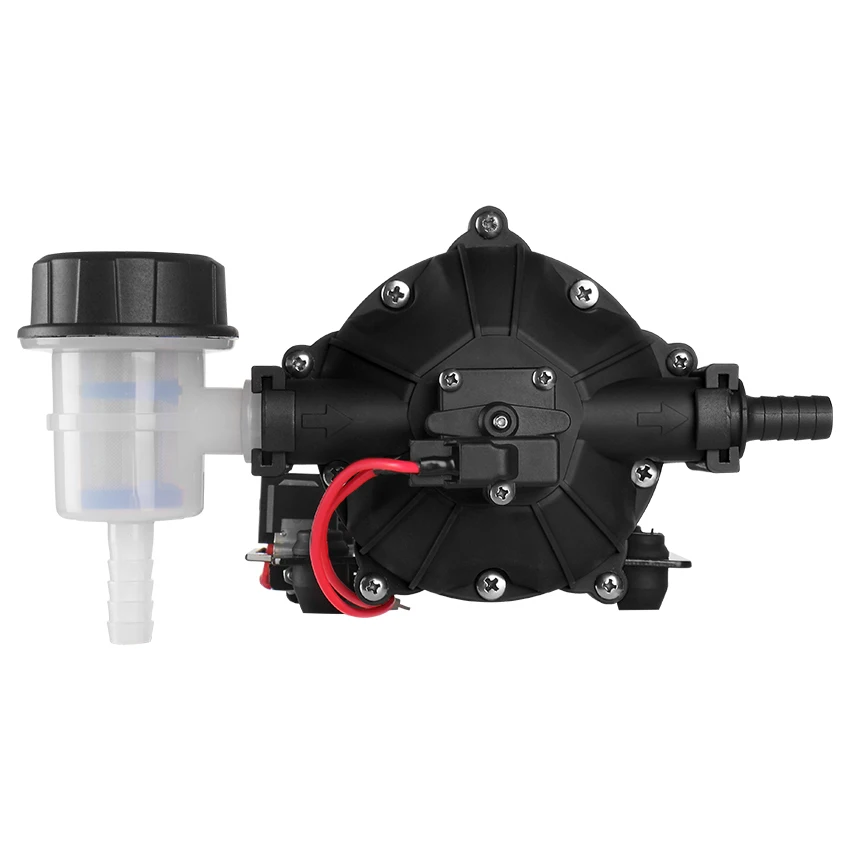

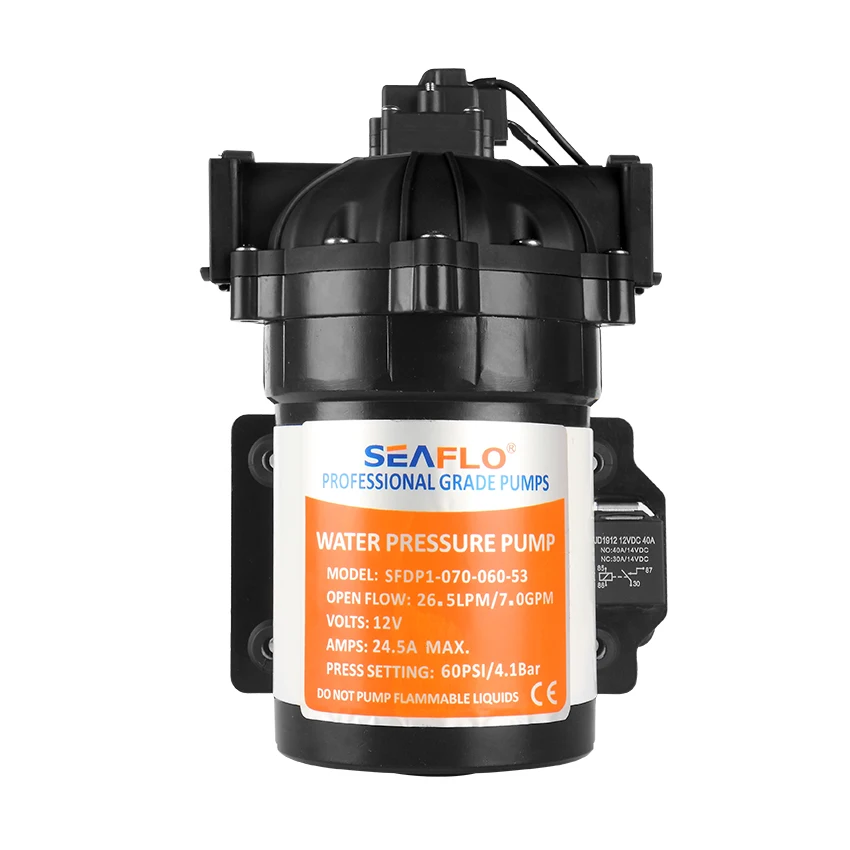

| Product Show |

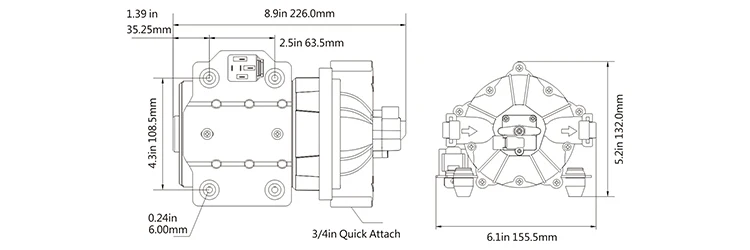

| Dimensions |
| Performance |

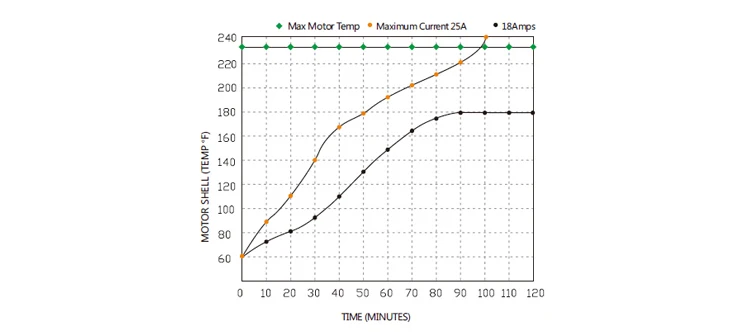

| Motor Heat Rise |

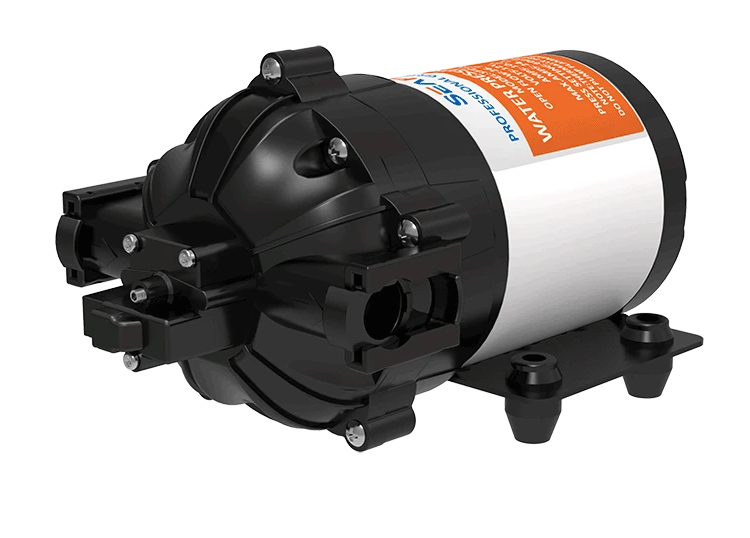

| Product Details |
Standard Pump Configurations
| Model | Voltage | Open Flow GPM [LPM] | Cut off Pressure PSI [BAR] | Max Draw | Diaphragm | Valve |
| SFDP1-070-060-53 | 12 V | 7.0 [26.5] | 60 [4.1] | 24.5 A | Santoprene | EPDM |
| SFDP2-070-060-53 | 24 V | 7.0 [26.5] | 60 [4.1] | 14.0 A | Santoprene | EPDM |
OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 70 PSI [4.8 Bar]; Open flow can be adjusted from 0.8 GPM [3.0 LPM] to 7.0 GPM [26.5 LPM]. Material can be adjusted according to your requirement.
Application
Packaging & Shipping
Package Infomation
 | Unit Pump Weight | 9.82 lbs [4.45 kg] |
| Selling Unit Size (L x W x H) | 13.46" x 7.09" x 5.63" [34.2 x 18.0 x 14.3 cm] | |
| Selling Unit Weight | 10.43 lbs [4.73 kg] | |
| Master Carton Qty | 4 pcs / carton | |
| Master Carton Size (L x W x H) | 14.96" x 14.96" x 12.60" [38.0 x 36.0 x 32.0 cm] | |
| Master Carton Weight | 42.51 lbs [19.28 kg] |
Company Information
More Products
FAQ
Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as LILIE, Lippert, Bunnings etc.
Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.
Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another question, pls feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.
Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen port.
Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.
Q: Can I get more info?
A: Please visit www.seaflo.com or www.seafloin.en.alibaba.com for more information.
