Product Overview
Description
RUIDA RDC6445G RDC6445S LASER CONTROLLER CARD for CO2 CNC LASER CUTTING ENGRAVING MACHINE RDC6445 DSP CONTROL BOARD SYSTEM
Products Description

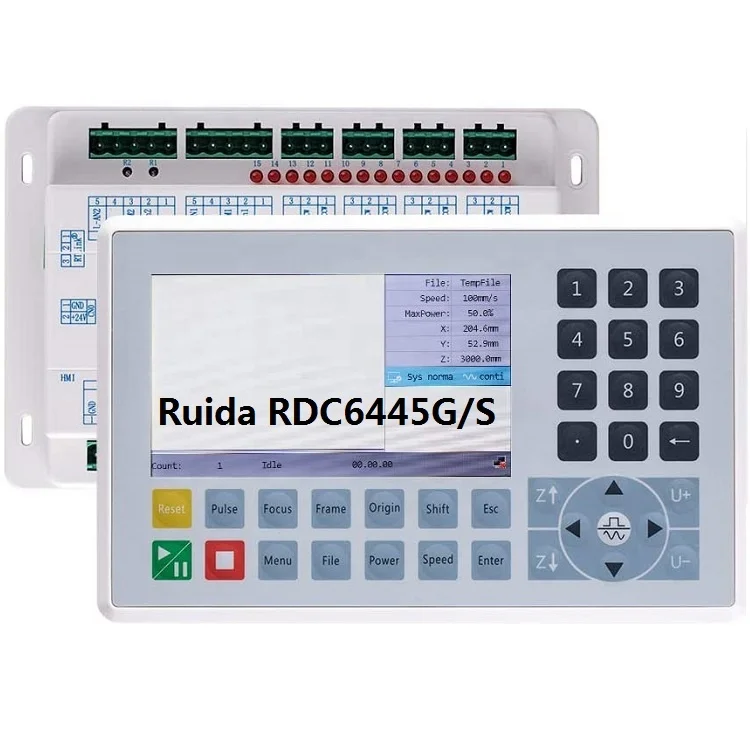

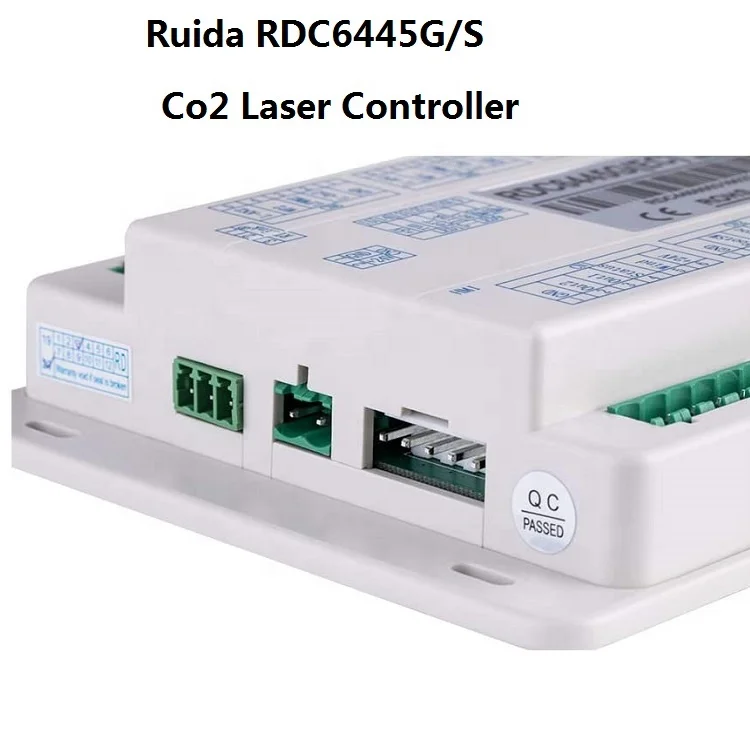

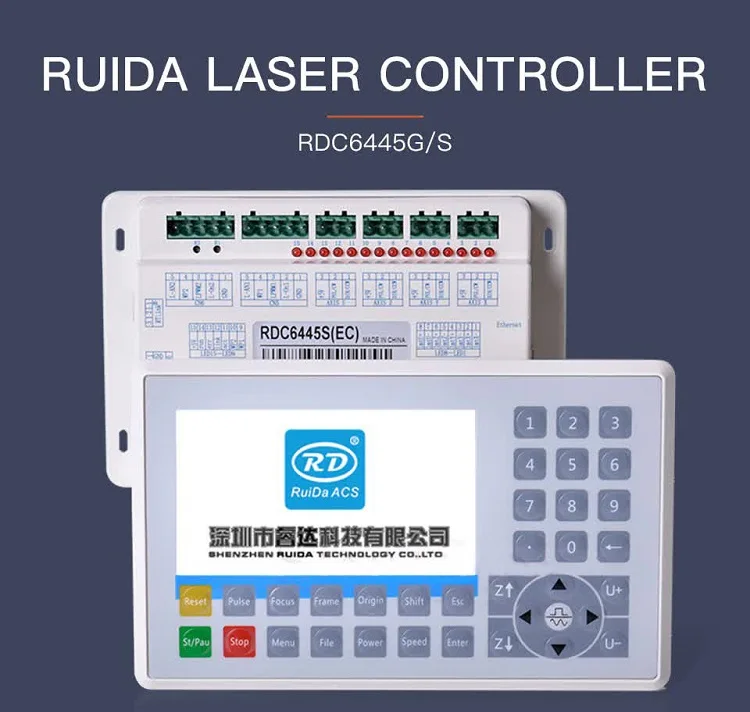

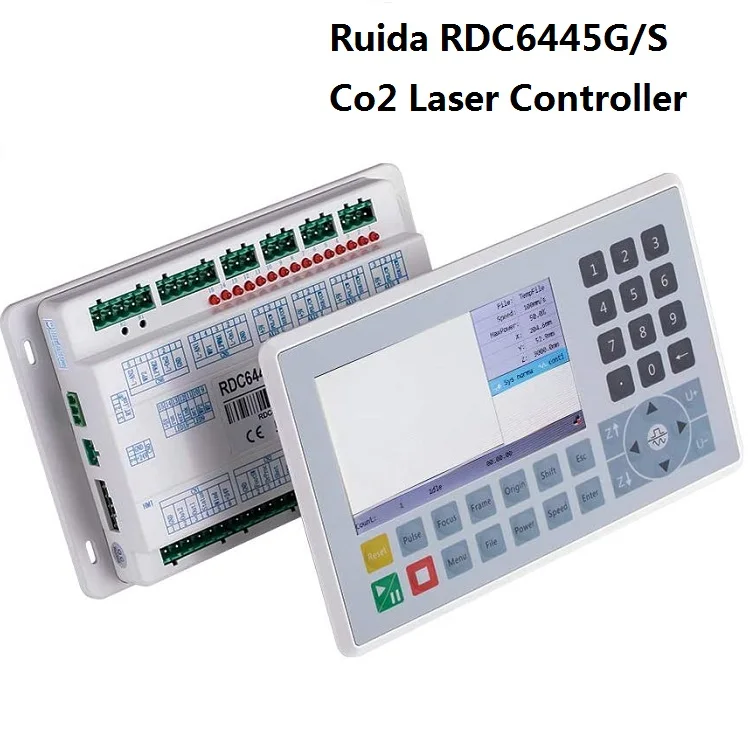

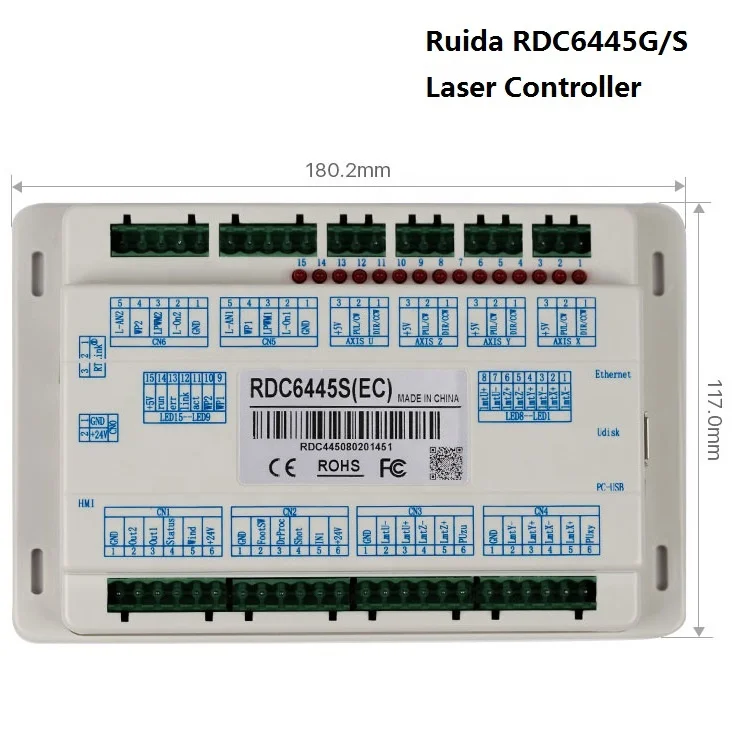

Ruida RDC6445G/S Co2 Laser Controller
Ruida controllers are laser cutting machine controller boards with several more powerful features. They are built for lasers and run download and execution programs. They are supported locally by RDWorks (free) and by Lightburn. They have a control panel that frequently displays the programs to be run and performs point-and-click operations. Many reverse engineering and support operations have been performed.
*Ruida RDC6445S is New Version upgrade from RDC6445G
RDC6445S vs RDC6445G
1. Ruida RDC6445S and RDC6445G are combined into a unified model: RDC6445G which supports Double-Head Linkage Function.
2. The function of RDC6445G/S has combined the RDC6442G and RDC6442S function.
1. Ruida RDC6445S and RDC6445G are combined into a unified model: RDC6445G which supports Double-Head Linkage Function.
2. The function of RDC6445G/S has combined the RDC6442G and RDC6442S function.
Ruida laser controller RDC6445G/S CNC system is a new generation of laser engraving and cutting control system. In addition to high hardware stability, high voltage or electrostatic suppression, and a friendly 5” TFT human-machine display. The system has more powerful software features, including perfect four-axis motion control function, large-capacity file storage, two adjustable digital laser power control interface, stronger compatibility USB driver, multiple universal / dedicated IO control, as well as, this system can communicate with PC via USB2.0 or Ethernet, the communication method is automatically detected by the system
Technical Parameters
Model Number | Ruida RDC6445G/S |
Application | Co2 Laser Engraver and Cutter Control Board |
Support Language | English, Italiano, French, Russia, Portuguese, Turkrish,German, Spanish, Vietnamese, Korean, Japanese, Chinese |

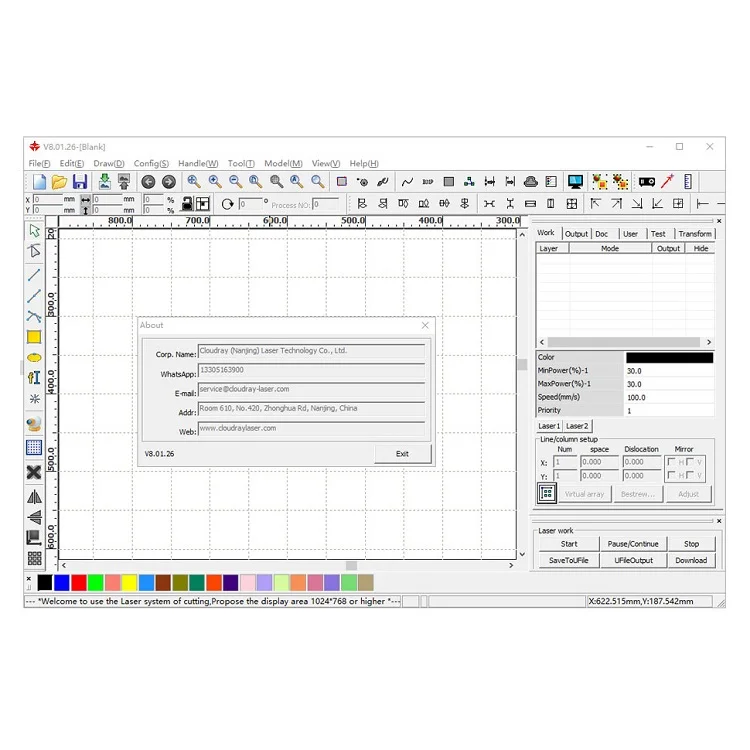

Laser Application Software | LaserCut6.1/RDWorksV8/AutoCAD/CorelDraw and Al plug-in |
Support File format | plt, hgp, ai, dxf, dst, spl, nc, cnc, ply, bmp etc |
Software Environment | Windows 2000 / xp / vista / 7 / 8 / 8 / 10 (32 and 64 bit) |
Power | DC24V 2A |
Package Size | 25cm x 15cm x 15cm (9.84in x 5.91in x 5.91in) |
Package Weight | 1.8kg (3.97lb.) |
TTL level output | 50 mA, Drive Capability |
PWM frequency | 2K-50K for adjustable |
PWM duty ratio | 1% ~ 99%, adjustable |
PWM value | Up to 5.0 V |
Power Supply | DC 24V 2A |
Drive Capability | 20 mA |
Motor control pulse frequency | Max.500KHZ |
Package list | 1pcs 6445G/S Mainboard, 1pcs 6445G/S Panel, 1pcs HMI Cable, 1pcs U-Disc Cable I, 1pcs U-Disc Cable II , Adapter & Screws, 1pcs Network Cable II , 1pcs Network Cable I ,1pcs USB Cable |
Product Details

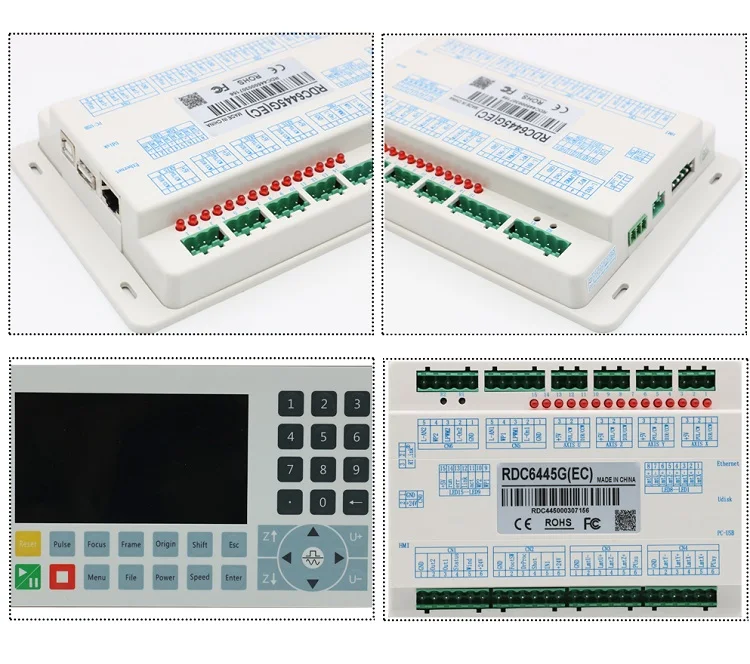

RUIDA RDC6445G RDC6445S LASER CONTROLLER MAIN FEATURES

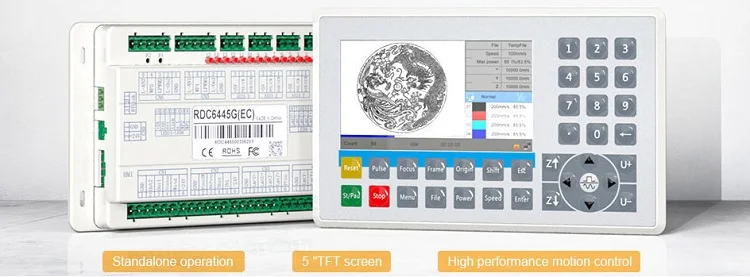

Working standalone, 128M memory on board
Support USB/Ethernet communication and U disk.
Application software: RDWorksV8.AutoCAD, CorelDraw and Al plug-in software
Support 4 axes motion control and 2 channels laser control
Support panel to modify manufacturer/user parameters.
Support manual point/continuous switch. automatic focus and docking point setting functions.
Yaxis and U axis feeding synchronously
Support fixed single and double-head cutting, Double-head shift processing and over-breadth cutting processing
Ruida RDC6445G system is a 2019 generation system for 4-Axis control of laser engraving and cutting.
Digital Laser Control Signals:
(1) TTL level output, 50 mA, Drive Capability
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V
One-Way 24V Power Supply, >2A
Motor Control Signal: Common-anode Output, Drive Capability 20 mA. Motor control pulse frequency: Max.500KHZ 10/100M Ethernet + USB 2.0 Control.
Interpolation: Linear/circular arc/B spline, accuracy + / - 0.5 pulse
Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).
Input: 4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level
If you need the Manuals and Software, please leave us your email address. We will send them to you.
4-axis Laser Engraving Cutting
10/100M Ethernet USB2.0 Control
Multi-language(En Ru Es Pt)
Support Ruida laser controller DRC6445, up to 4 servo/stepper motor control, or Co2 laser engraving and cutting machine
10/100M Ethernet USB2.0 Control
Multi-language(En Ru Es Pt)
Support Ruida laser controller DRC6445, up to 4 servo/stepper motor control, or Co2 laser engraving and cutting machine
Support 4-way OC gate output, can directly drive 5V/24 relay
Support double-head electric shift control and over-width slitting processing
Support large format vision, mark point vision cutting and projection cutting
Support double-head asynchronous processing, support cell phone APP
Support Language: English, Italiano, French, Russia, Portuguese, Turkrish,German, Spanish, Vietnamese, Korean, Japanese, Chinese
Support double-head electric shift control and over-width slitting processing
Support large format vision, mark point vision cutting and projection cutting
Support double-head asynchronous processing, support cell phone APP
Support Language: English, Italiano, French, Russia, Portuguese, Turkrish,German, Spanish, Vietnamese, Korean, Japanese, Chinese

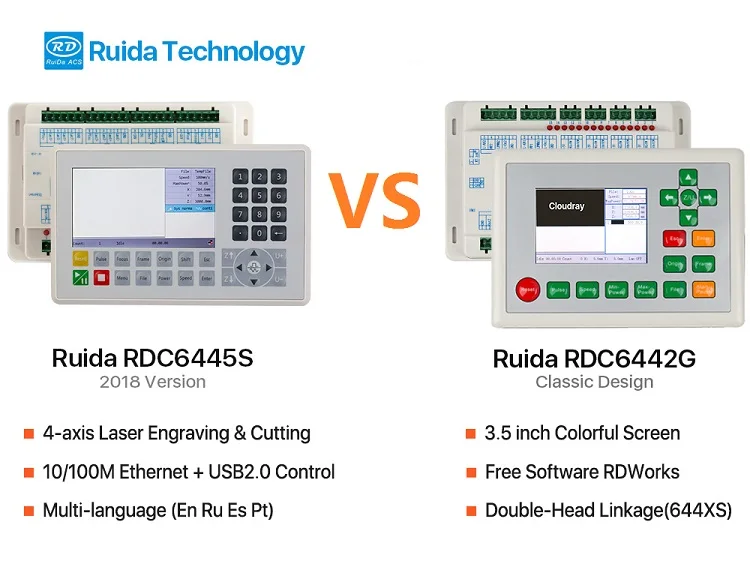

Ruida RDC6445S Controller vs RDC6442G Controller
The 6442 is a drop in replacement for the Top Wisdom. The 6445 has a larger display. You will at least have to widen the mount hole by around 50mm.
Ruida RDC6445S

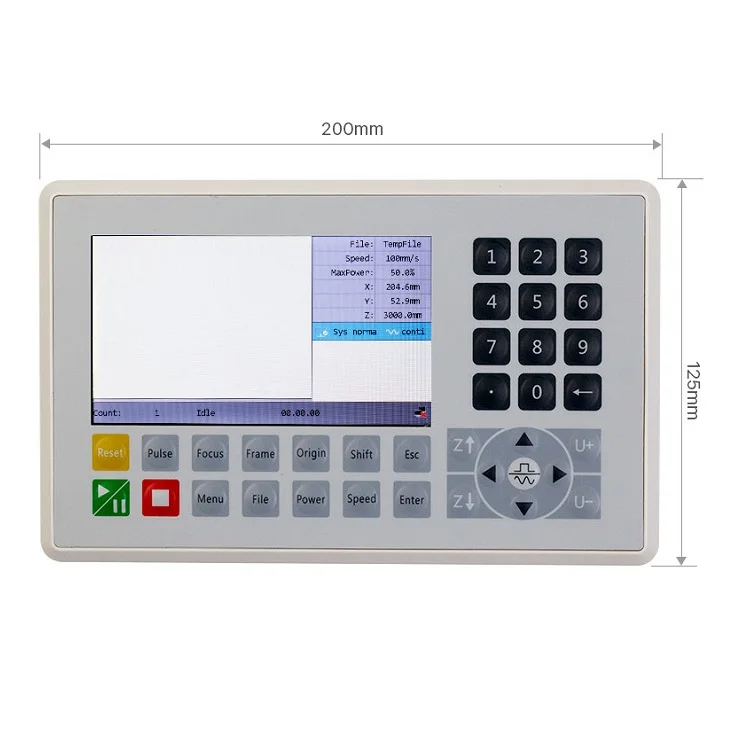

5 inch Screen
4-axis Laser Engraving & Cutting
10/100M Ethernet USB2.0 Control
Multi-language(support extra Japanese language)
Ruida RDC6442G
* 3.5 inch Colorful Screen
* Double-Head Linkage(644XS)
* Double-Head Linkage(644XS)
RDC6445G/S Advantage
1, Parameters can be set by numeric keys
2, Easy to lift and lower the table by “Z+”/”Z-” and “U+” “U-” keys. Automatic feed forward and feed back.
3, Add “Focus”, manual and continuous switching keys
4、It can stop when loading and feeding.
5、Optimize algorithm to improve efficiency
1, Parameters can be set by numeric keys
2, Easy to lift and lower the table by “Z+”/”Z-” and “U+” “U-” keys. Automatic feed forward and feed back.
3, Add “Focus”, manual and continuous switching keys
4、It can stop when loading and feeding.
5、Optimize algorithm to improve efficiency
Application
Other advantage of Ruida RDC6445G
1, With 0-9 full number keys, users can set parameters and vendor parameters from the panel.
2, Add “Z+”/”Z-” and “U+” “U-” key, users can easy press keys to up down the lift worktable and auto feed front back material.
3, Add “Focus” key, users can easy auto focus when change different thickness material, no need use ruler to find focus length.
5, Add manual and continuous switch keys to make it easy for users to precise position.
6, It can stop when framing and feeding.
7, Te motion algorithm has been optimized, the processing efficiency is higher and the processing effect is better.
8, It can diagnose IO ports to make it easy for users debug machines, and check IO accessories.
2, Add “Z+”/”Z-” and “U+” “U-” key, users can easy press keys to up down the lift worktable and auto feed front back material.
3, Add “Focus” key, users can easy auto focus when change different thickness material, no need use ruler to find focus length.
5, Add manual and continuous switch keys to make it easy for users to precise position.
6, It can stop when framing and feeding.
7, Te motion algorithm has been optimized, the processing efficiency is higher and the processing effect is better.
8, It can diagnose IO ports to make it easy for users debug machines, and check IO accessories.

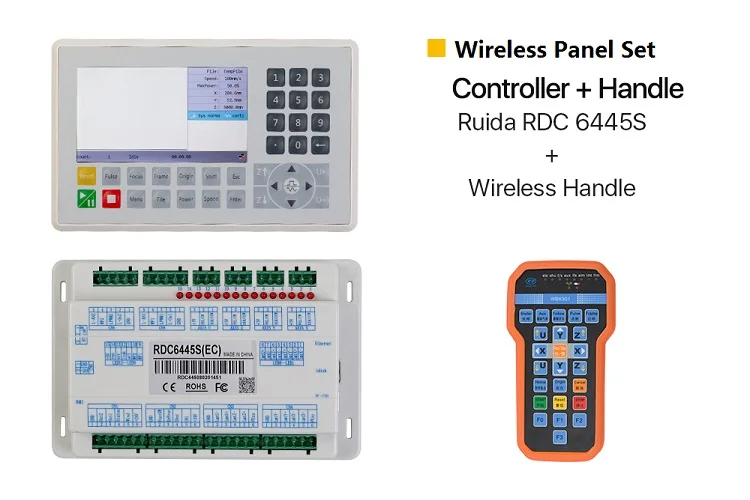

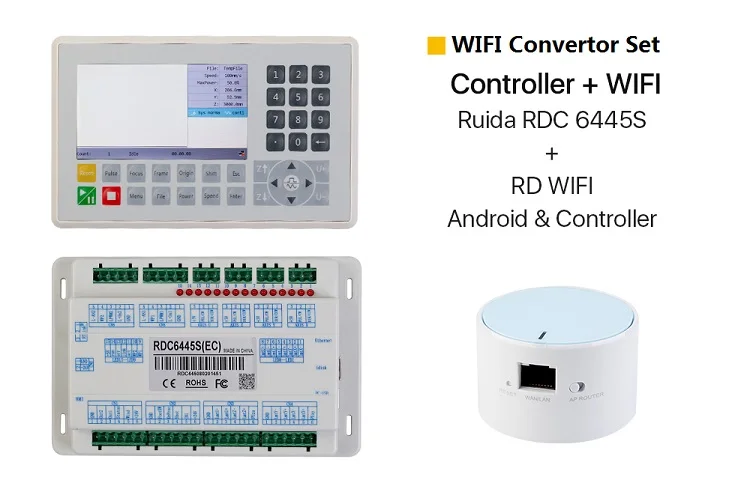

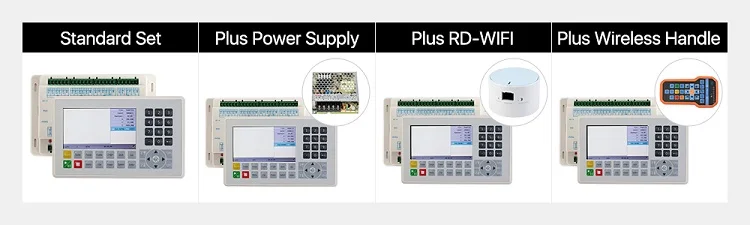

Additional Option
All RUIDA LASER CONTROLLER Purchasing Options At One Time

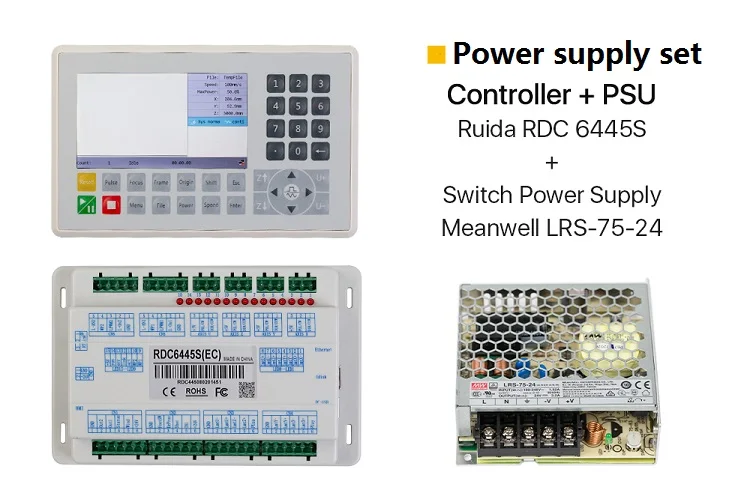

1.Ruida RDC6445G/S Co2 Laser Controller+ LRS-75 Switching Power Supply 12V 6A / 24V 3.2A 75W Original MW Taiwan Brand for Laser Controller
Packaging & Shipping

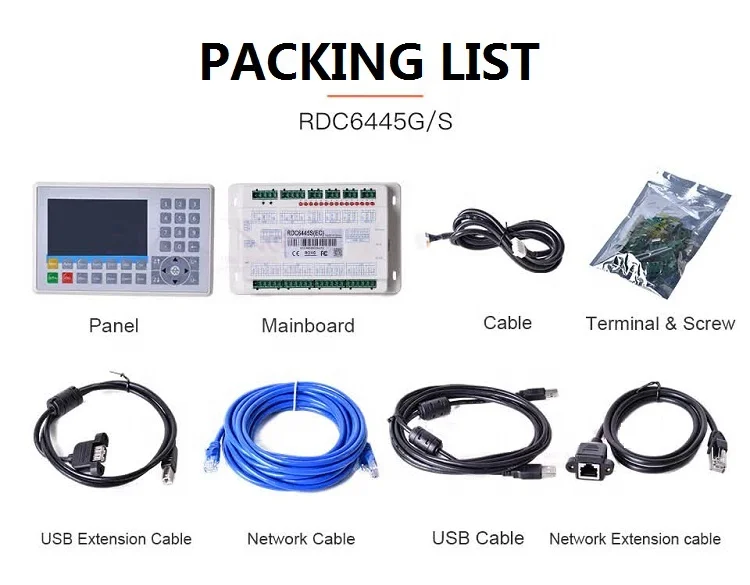

Package list:
1pcs 6445G Mainboard, 1pcs 6445G Panel, 1pcs HMI Cable, 1pcs U-Disc Cable I, 1pcs U-Disc Cable II , Adapter & Screws, 1pcs Network Cable II , 1pcs Network Cable I ,1pcs USB Cable
REFUNDS & RETURNS POLICY
Order cancellation
All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.
Refunds
Your satisfaction is our #1 priority. Therefore, if you’d like a refund you can request one no matter the reason.
If you did not receive the product within the guaranteed time(45 days not including 2-5 day processing) you can request a refund or a reshipment.
If you received the wrong item you can request a refund or a reshipment.
If you do not want the product you’ve receive you may request a refund but you must return the item at your expense and the item must be unused.
SHIPPING AND DELIVERY
We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.
Q:How do you ship packages?
Packages from our factory in China will be shipped by express or Air/Sea freight depending on the customers' request. Express shipped through UPS, USPS,FedEx, DHL, EMS etc.
Q:Do you ship worldwide?
Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.
Q:What about customs?
We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.
Q:How long does shipping take?
Shipping time varies by location. These are our estimates:
Location \t*Estimated Shipping Time
United States \t10-15 Business days
Canada, Europe \t10-15 Business days
Australia, New Zealand \t10-20 Business days
Central & South America \t15-25 Business days
*This does include our 2-5 day processing time.
Q:Do you provide tracking information?
Yes, you will receive an email once your order ships that contains your tracking information.
Q:My tracking says “no information available at the moment”.
For some shipping companies, it takes 2-5 business days for the tracking information to update on the system.
Q:Will my items be sent in one package?
Q:How do you ship packages?
Packages from our factory in China will be shipped by express or Air/Sea freight depending on the customers' request. Express shipped through UPS, USPS,FedEx, DHL, EMS etc.
Q:Do you ship worldwide?
Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.
Q:What about customs?
We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.
Q:How long does shipping take?
Shipping time varies by location. These are our estimates:
Location \t*Estimated Shipping Time
United States \t10-15 Business days
Canada, Europe \t10-15 Business days
Australia, New Zealand \t10-20 Business days
Central & South America \t15-25 Business days
*This does include our 2-5 day processing time.
Q:Do you provide tracking information?
Yes, you will receive an email once your order ships that contains your tracking information.
Q:My tracking says “no information available at the moment”.
For some shipping companies, it takes 2-5 business days for the tracking information to update on the system.
Q:Will my items be sent in one package?
Generally speaking items will be sent in separate package unless you've specified separated shipping,
For logistical reasons, sometimes be sent in separate packages is not allowed, please do check with us if you have such request.
If you have any other questions, please contact us and we will do our best to help you out.
For logistical reasons, sometimes be sent in separate packages is not allowed, please do check with us if you have such request.
If you have any other questions, please contact us and we will do our best to help you out.
REFUNDS & RETURNS POLICY
Order cancellation
All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.
Refunds
Your satisfaction is our #1 priority. Therefore, if you’d like a refund you can request one no matter the reason.
If you did not receive the product within the guaranteed time(45 days not including 2-5 day processing) you can request a refund or a reshipment.
If you received the wrong item you can request a refund or a reshipment.
If you do not want the product you’ve receive you may request a refund but you must return the item at your expense and the item must be unused.
Following circumstances does not qualified for refund
Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
Your order did not arrive due to exceptional circumstances outside the control of YongLi Sunlite BlueTimes Laser Group. (i.e. not cleared by local customs, delayed by a natural disaster).
Other exceptional circumstances outside the control of YongLi Sunlite BlueTimes Laser Group
Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
Your order did not arrive due to exceptional circumstances outside the control of YongLi Sunlite BlueTimes Laser Group. (i.e. not cleared by local customs, delayed by a natural disaster).
Other exceptional circumstances outside the control of YongLi Sunlite BlueTimes Laser Group
*You can submit refund requests within 15 days after the period for delivery has expired. You can do it by sending a message on Contact Us page。
If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.
Exchanges
If for any reason you would like to exchange your product. You must contact us first and we will guide you through the steps.
Please do not send your purchase back to us unless we notified you to do so.
If for any reason you would like to exchange your product. You must contact us first and we will guide you through the steps.
Please do not send your purchase back to us unless we notified you to do so.
Certifications

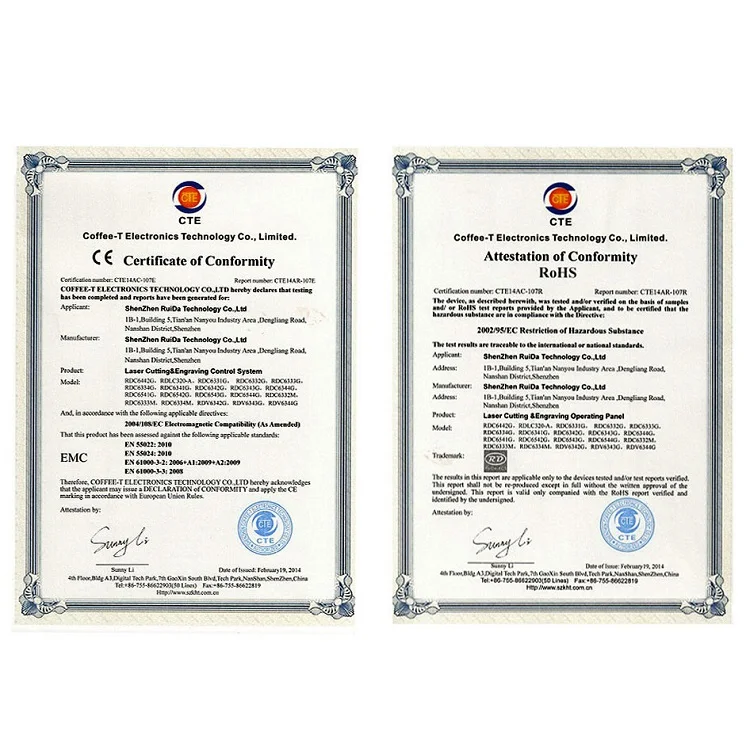

CERTIFICATION DECLARATION
CE
The product has been certified by the CE (Commutate European) safety certification. It has
passed the corresponding conformity assessment procedure and the manufacturer's
declaration of conformity, in accordance with the relevant EU directive.
ROHS
This product has been certified by EU legislation (Restriction of Hazardous Substances)
Safety certification; comply with relevant EU environmental regulations.
FCC
This product has been certified by the Federal Communications Commission for safety,
Comply with the US electronic safety regulations
The product has been certified by the CE (Commutate European) safety certification. It has
passed the corresponding conformity assessment procedure and the manufacturer's
declaration of conformity, in accordance with the relevant EU directive.
ROHS
This product has been certified by EU legislation (Restriction of Hazardous Substances)
Safety certification; comply with relevant EU environmental regulations.
FCC
This product has been certified by the Federal Communications Commission for safety,
Comply with the US electronic safety regulations
Company Profile
In 2002, YONGLI began its base in CHANGCHUN when it founded the subsidiary SUNLITE originally located in the North Lake Technology Development Zone. As SUNLITE continued its growth it expanded to add the BLUETIMES International Tranding Co.,Ltd to support their gloable business in 2021. SUNLITE began with just 43 employees and has since grown to 184 employees between the two facilities, with plans to increase this number even further in 2022.
SUNLITE develops and manufactures high-end laser systems for scientific and industrial applications. The portfolio includes radio frequency co2 laser metal tube, SINGLE MODULE CW FIBER LASER, Fiber laser welding systems and fiber laser marking machine. ODM customers, Retailers, wholesalers, distributors, and over a dozen universities all acknowledge the world-class exceptional specifications of SUNLITE's lasers, as well as their reliability and longevity.
Founded in 2005, YONGLI became one of the leading laser photonics companies by aiming for, and consistently delivering high-end specifications. YONGLI's co2 lasers are appreciated for their excellent cutting performance, wide application range and ideal beam profiles.
YONGLI's more than 400 employees take pride in developing customized products. In close collaboration with several universities and institutes, the latest scientific discoveries are frequently incorporated into commercial products. With a global distribution network, YONGLI provides exceptional service worldwide.
SUNLITE develops and manufactures high-end laser systems for scientific and industrial applications. The portfolio includes radio frequency co2 laser metal tube, SINGLE MODULE CW FIBER LASER, Fiber laser welding systems and fiber laser marking machine. ODM customers, Retailers, wholesalers, distributors, and over a dozen universities all acknowledge the world-class exceptional specifications of SUNLITE's lasers, as well as their reliability and longevity.
Founded in 2005, YONGLI became one of the leading laser photonics companies by aiming for, and consistently delivering high-end specifications. YONGLI's co2 lasers are appreciated for their excellent cutting performance, wide application range and ideal beam profiles.
YONGLI's more than 400 employees take pride in developing customized products. In close collaboration with several universities and institutes, the latest scientific discoveries are frequently incorporated into commercial products. With a global distribution network, YONGLI provides exceptional service worldwide.
TOP BRANDS
We don’t represent every line of fabrication equipment out there, we only represent the lines we believe in. That means you can trust us to provide laser equipment that will work correctly, run consistently over the long term, and help your business increase productivity and efficiency.
EXCEPTIONAL SERVICE
Our team is fast and responsive. Whether you’re looking for quotion, products catalog, product dimensions, or something else, we pride ourselves on providing a high level of customer service day in and day out.
GREAT PEOPLE!
We saved the best for last… we may be biased, but our team is a top-notch group of friendly pros. So whether you have a simple question or a complex manufacturing challenge, we’re here to help! Give us a call, stop by and see us, send us an email, and simply reach out and say “Hi.” We love to help our customers solve problems and implement solutions, so we look forward to hearing from you!
We don’t represent every line of fabrication equipment out there, we only represent the lines we believe in. That means you can trust us to provide laser equipment that will work correctly, run consistently over the long term, and help your business increase productivity and efficiency.
EXCEPTIONAL SERVICE
Our team is fast and responsive. Whether you’re looking for quotion, products catalog, product dimensions, or something else, we pride ourselves on providing a high level of customer service day in and day out.
GREAT PEOPLE!
We saved the best for last… we may be biased, but our team is a top-notch group of friendly pros. So whether you have a simple question or a complex manufacturing challenge, we’re here to help! Give us a call, stop by and see us, send us an email, and simply reach out and say “Hi.” We love to help our customers solve problems and implement solutions, so we look forward to hearing from you!
24H Online Service
Extensive coverage of 30+ domestic offices and institutions to create a 2-hour service arrival. Combination of online live chat and other social media video chat to meet customer needs in multiple directions and at multiple levels. Multi-batch customer return visits, timely discovery of problems to solve and improve.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
