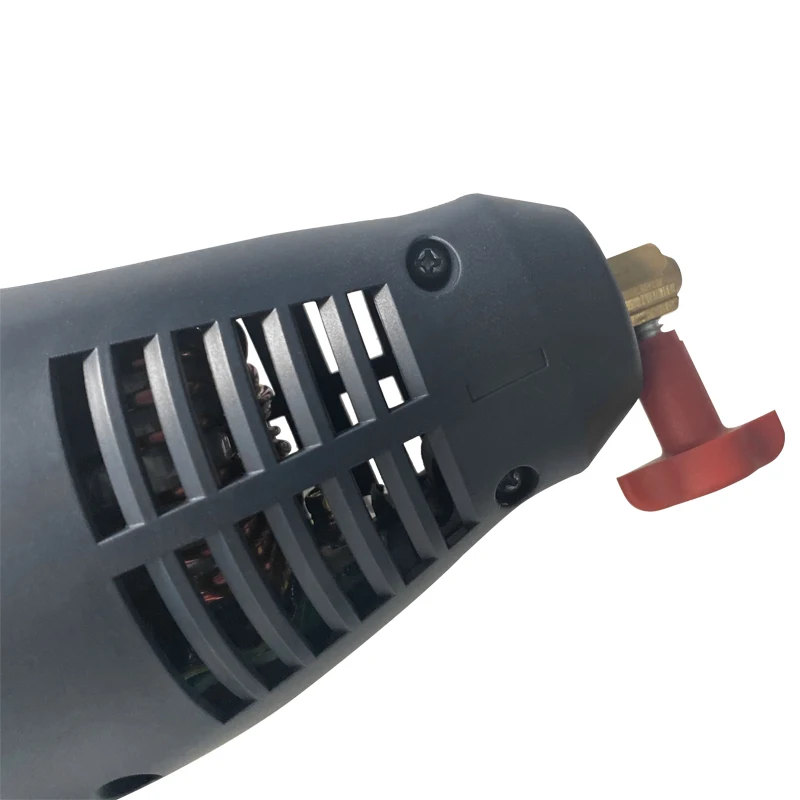

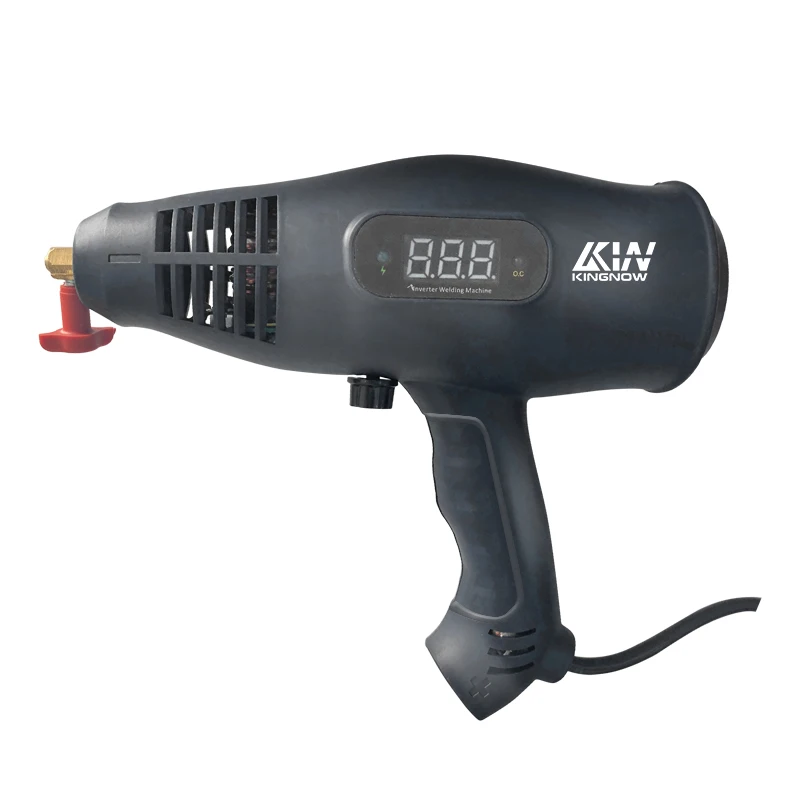

portable handheld welding machine ARC 120 IGBT inverter arc welder

Technical Specifications

ITEM

ARC 120H

ARC140H

ARC 120HI

ARC120HD

Power Voltage (V)

220

220

110

110/220

Rated Input Capacity (KVA)

3.5

4.2

3.5

3.5

Generator Capacity (KVA)

4.8

5.6

4.8

4.8

Rated Input Current (A)

16

19.2

32

32/16

Output Current Range (A)

40-120

40-140

40-120

40-120

Rated No-load Voltage (V)

56

56

56

56

Load Duration(%)

50

50

50

50

Electrode Diameter (MM)

2.5-3.2

2.5-4.0

2.5-3.2

2.5-3.2

Insulation Class

F

F

F

F

Protection Class

IP21

IP21

IP21

IP21

Weight (Kg)

2.1

2.3

2.1

2.1

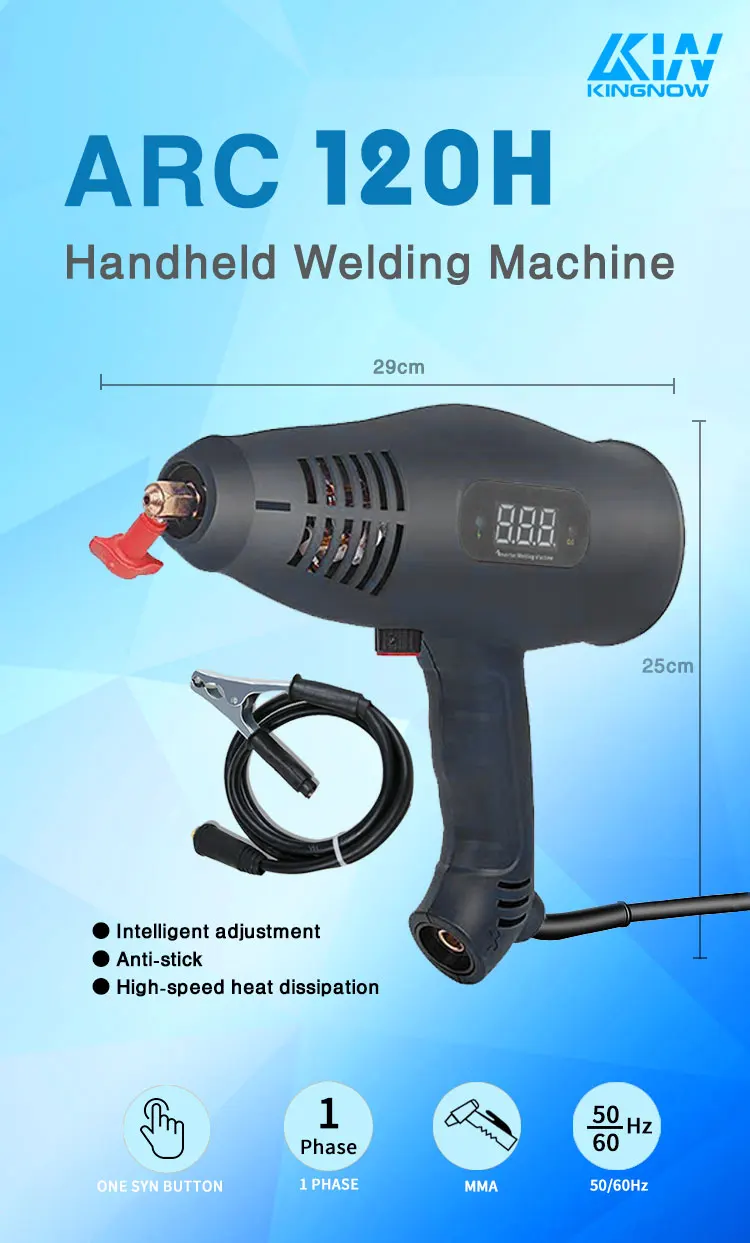

Machine Dimensions (MM)

290X250

290X250

290X250

290X250
