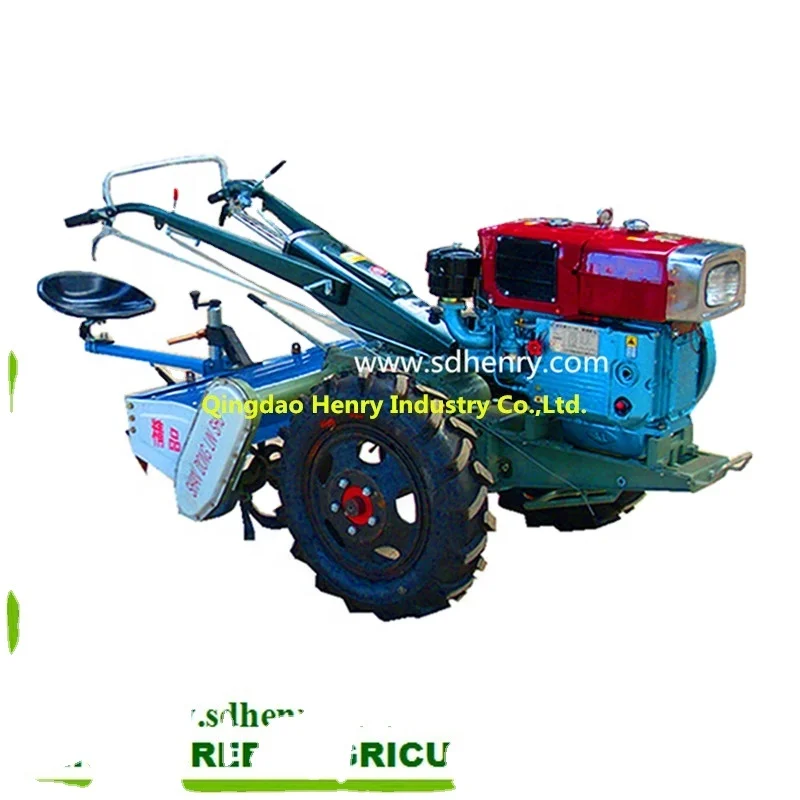

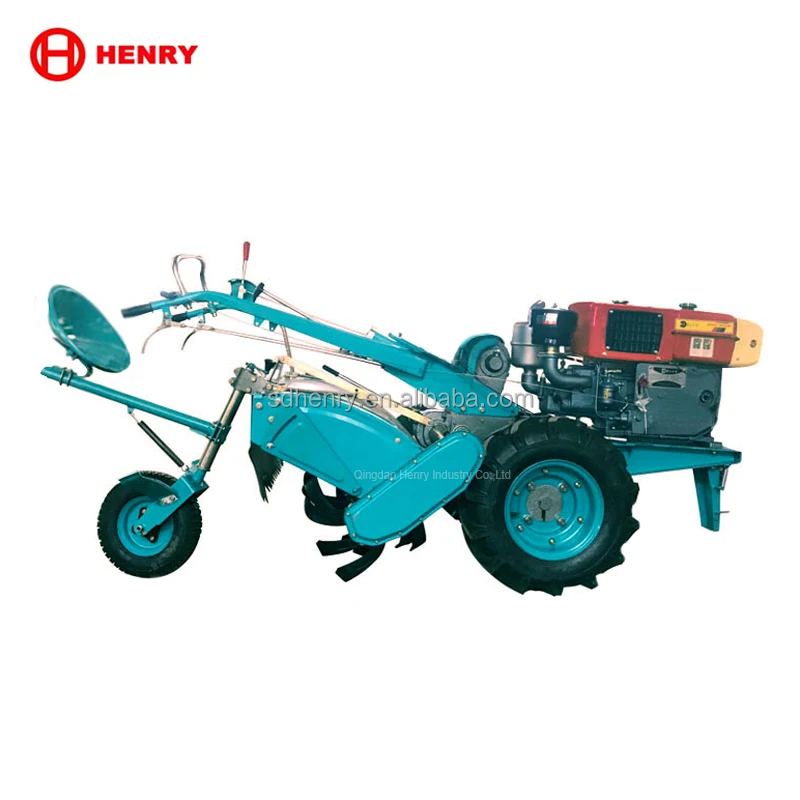

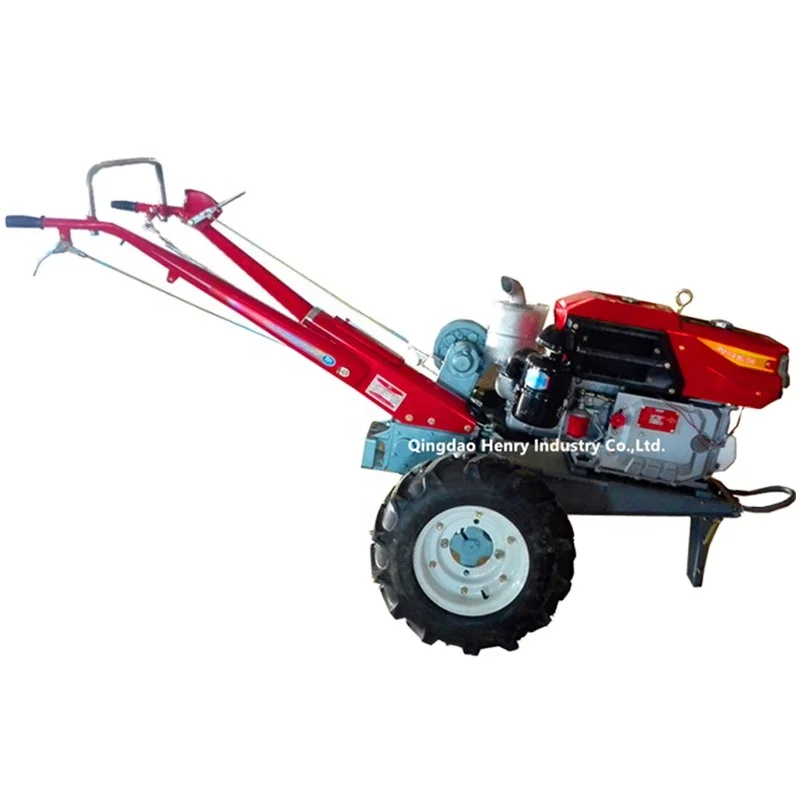

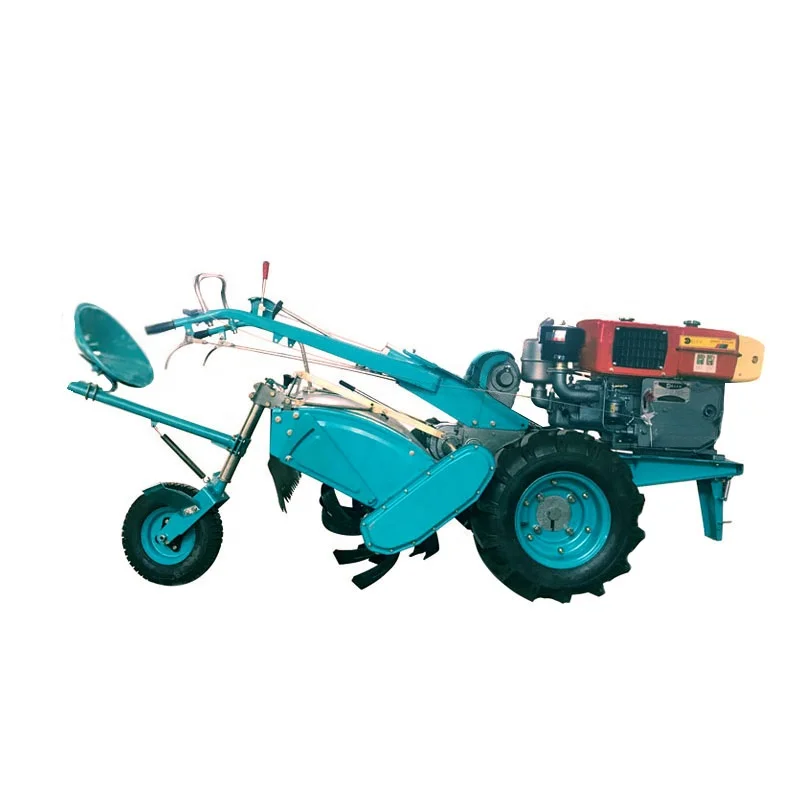

Small Paddy 2 Wheel Power Tiller Hand Walking Farm Tractor

This model is at the leading level in the industry, with an annual export of more than 40,000 units, and the products are well received by the market.
It is not only widely used in plains, hills and rice fields, but also reduces the special design of the frame, making it more suitable for orchards, vegetables, forests and other agronomic operations.
Multifunctional, light, well-designed, high-quality, can greatly improve production efficiency, reduce labor intensity, simple operation and convenient maintenance.



Why Choose HR221-1 Model?
1.The clutch position is high. When plowing in deep mud fields, the clutch will neither slip nor entangle the mud grass.

2.Directly adopt gear transmission, high transmission efficiency.

3.In field operations with high straw or high-intensity seeds, walking tractors can be used for field operations, such as rotary tillage, without the need for manual mowing.

4.with quickly coupling ,easy to change farming implements:plogh ,culivator,mower ,trailer ,water pump,snow blower,rotary plough etc.

5.equipped with lighting equipment, which can be operated at night.


Details


Model of power tiller
HR121-1
HR151-1
HR181-1
HR201-1
HR221-1
Start
Hand start or Electric start(key start)
Structure
Weight
(kg)
Without
rotavator
360
371
371
396
401
With rotavator
490
515
515
540
545
Turning speed of
rotaotilling shaft(Rpm)
Low
188
188
188
188
188
188
High
300
300
300
300
300
300
Overall dimensions
(L X W X H)(mm)
2680x960x1250
2680x960x1250
2680x960x1250
2680x960x1250
2680x960x1250
2680x960x1250
2680x960x1250
Number of blades(Pcs)
18
18 or 22
18 or 22
28 or 30pcs
28pcs,30pcs
Rototiller width(mm)
600
600/900
600 /900
1000
1000
Type of tractor
Single axle, dual –purpose for both tractor and drive
Traveling
Speed(km/h)
Forward
1.4 ,2.5 , 4.1 ,5.3 , 9.4 ,15.3
Reverse
1.1 3.8
Tyre size
600-12
600-12
600-12
600-12
600-12
Wheel track(mm)
800,740,640 580 (normally use 800)
Min.ground clearance(mm)
185
Min.turning radius(m)
0.9(with no rotavator)
Model of engine
ZS195NL
ZS1100NL
ZS1105NL
ZS1110NL
ZS1115NL
Bore x stroke(mm)
95x115
100x115
105x115
110x115
115x115
Total displacement(L)
0.815
0.903
0.996
1.093
1.194
Compression ratio
17:1
Turing speed of crankshaft
2200
1-hour rated output(kw/hp)
10.6kw/14hp
12.1kw/16hp
13.2kw/18hp
14.7kw/20hp
16.17kw/22hp
12-hour rated output(kw/hp)
8.82kw/12hp
11.03kw/15hp
11.76kw/16hp
13.23kw/18hp
14.7kw/20hp
Specific fuel consumption(g/kw.h)
≤244.8
≤244.8
≤244.8
≤244.8
≤244.8
Specific lube oil consumption(g/kw/h)
≤2.00
≤2.00
≤2.00
≤2.00
≤2.00
Cooling model
Condenser( with radiator)
Package
Engine by plywood box, chassis by wear foam .
Quantity/20GP or 40HQ
30PCS/50PCS
30PCS/50PCS
30PCS/50PCS
30PCS/50PCS
30PCS/50PCS




Other Type


Click the picture to enter the product details


HR101 Model Walking Tractor
HR101(8-12HP) model are main for common land,competitive price and good quality are welcome by the farmers.
HR151-2 Model Walking Tractor
HR151-2(15HP) model are with big gearbox
151-2model are strength axle and with big wheel,more suit for big land.




Recommend Accessories




Packing & Delivery








Company Profile


Qingdao Henry Industry Co.,Ltd.,
Our company is located in the west coast of beautiful port city - Qingdao, where there are elegant scenery and limitless business chances. It is close to the sea port, and airport,train station, enjoying very convenient transportation.



 ....................................................................
We are one of the leading manufacturer in Shandong china for agricultural machineries and industry protect products. its total
assets of RMB 1 billion , employee over 1500. Including agricultural machinery ,rubber products, gloves. The farm machinery main
including : Single cylinder diesel engines, two wheel tractors ,mini tillers(diesel engine and gasoline engine), four wheel
tractors ,trailers ,rice planters and harvester machinery, and kinds of farm Accessories and so on.


HENRY GREEN MACHINERY ,HENRY GREE POWER FOR HAPPY LIFE.
HIGH-QUALITY PURSUE EXCELLENT SERVICE FIRST-CLASS BRAND .
















FAQ


1. who are we?
We are based in Shandong, China, start from 2005,sell to Southeast Asia(15.00%),North America(15.00%),Africa(14.00%),South Asia(10.00%),Eastern Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Central America(6.00%),Mid East(5.00%),Domestic Market(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Oceania(1.00%). There are total about 1000+ people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Perfect quality program. 100% test before delivery
3.what can you buy from us?
Power tiller,Diesel engines,walking tractors,trailers,working gloves
4. why should you buy from us not from other suppliers?
Main design ,produce and export different model Farm machinerys.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
