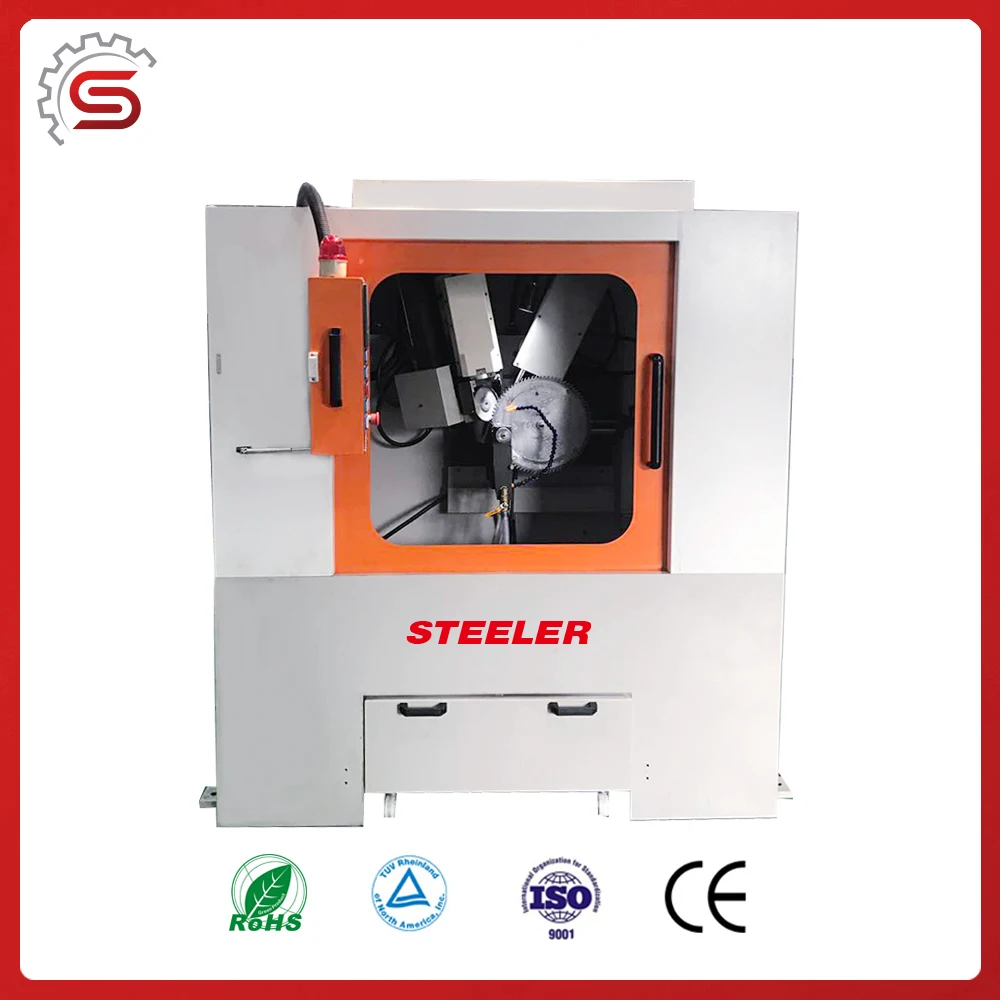

CNC circular saw blade sharpener Saw Blade Grinding Machine
- Category: >>>
- Supplier: Qingdao Steeler Woodworking Machinery Co. Ltd.
Share on (1600541509849):
Product Overview
Description
Tooth pitch | 7-100mm | ||||||
Circular saw outside diameter | 80-815mm | ||||||
Bore hole diameter | 10-220mm | ||||||
Hook angle of grinding | -20 degree-40degree | ||||||
Tooth face angle of grinding | -15degree+15degree | ||||||
The rear angle of grinding | 6-45 degree | ||||||
Left-right pitch of tooth | Tooth tip :45degree Tooth face:45degree | ||||||
Range of Grinding Cycle | 0-30mm | ||||||
Wheel speed | 6000 r/min | ||||||
The Speed of Work | 24 teeth/min | ||||||
Total Power | 1.69kw | ||||||
Cooling Device | 25L/min | ||||||
Grinding wheel outside dia. | 32mm-125mm | ||||||
Net weight | 960kg | ||||||
Gorss weight | 1100kg | ||||||
Overall size | 1650*1350*1830mm | ||||||
Packing size | 1760*1220*2020mm | ||||||
Voltage | 380v,50hz,3phase | ||||||
Greatly improve the processing capacity and production efficiency by shortening the auxiliary working time.In addition, it reduces
the number of traditional machine tools, saves the number of operators and reduces the floor area of the workshop.
1. Improve processing capacity and production efficiency.
2. Improve wood yield. 3. Improve product quality and processing precision.
4. Expand the technological range and increase the product variety.
the number of traditional machine tools, saves the number of operators and reduces the floor area of the workshop.
1. Improve processing capacity and production efficiency.
2. Improve wood yield. 3. Improve product quality and processing precision.
4. Expand the technological range and increase the product variety.
Features:
1.Convenient control panel ,easy operation and high accuracy.
2.Body adopts quality cast iron, which can keep the machine more
sturdy. 3.Worktable uses the special treatment and polishing, high precision and well weat-resistance.
4.Suitable for polishing furniture panels, decorative panels, and so on.
