W3230 24V Digital Temperature Controller Thermostat Control Switch Sensor Meter With 1M Cable
- Category: >>>
- Supplier: Shenzhen Kuongshun Electronic Business Department
Share on (1600542089391):
Product Overview
Description

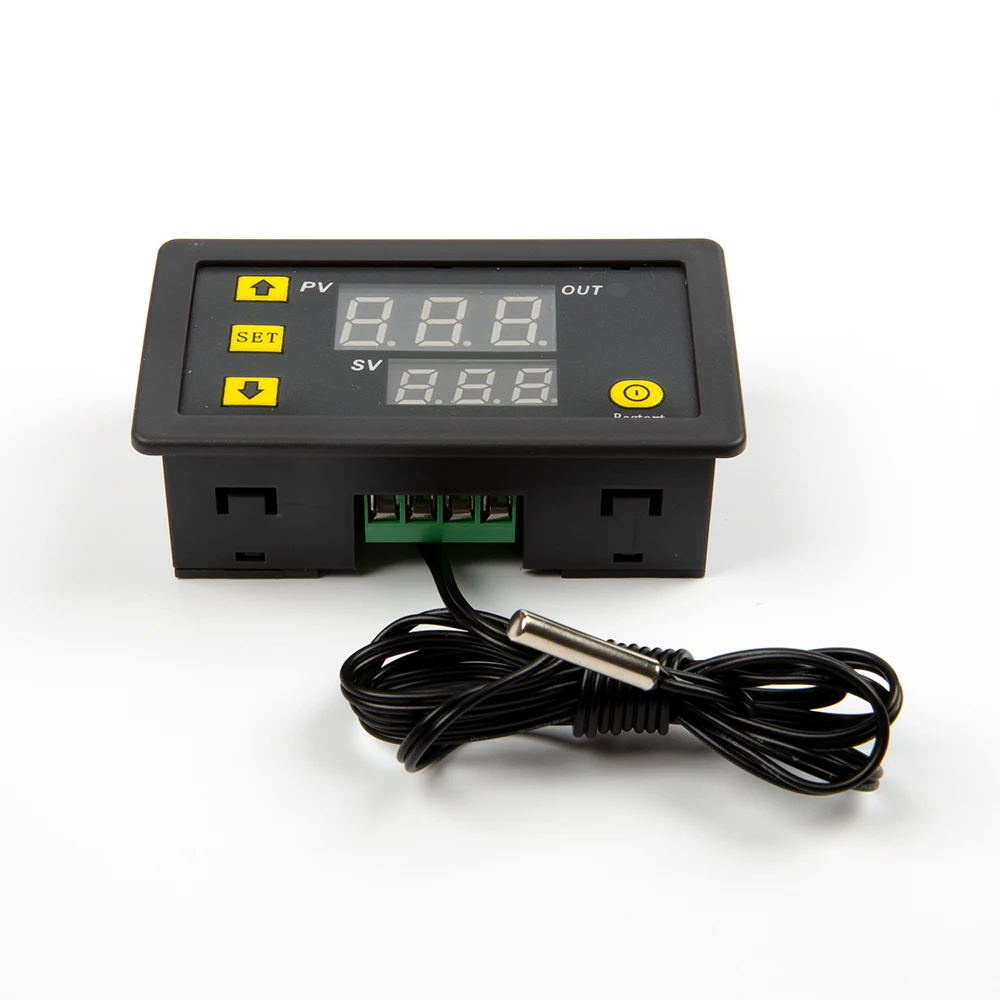

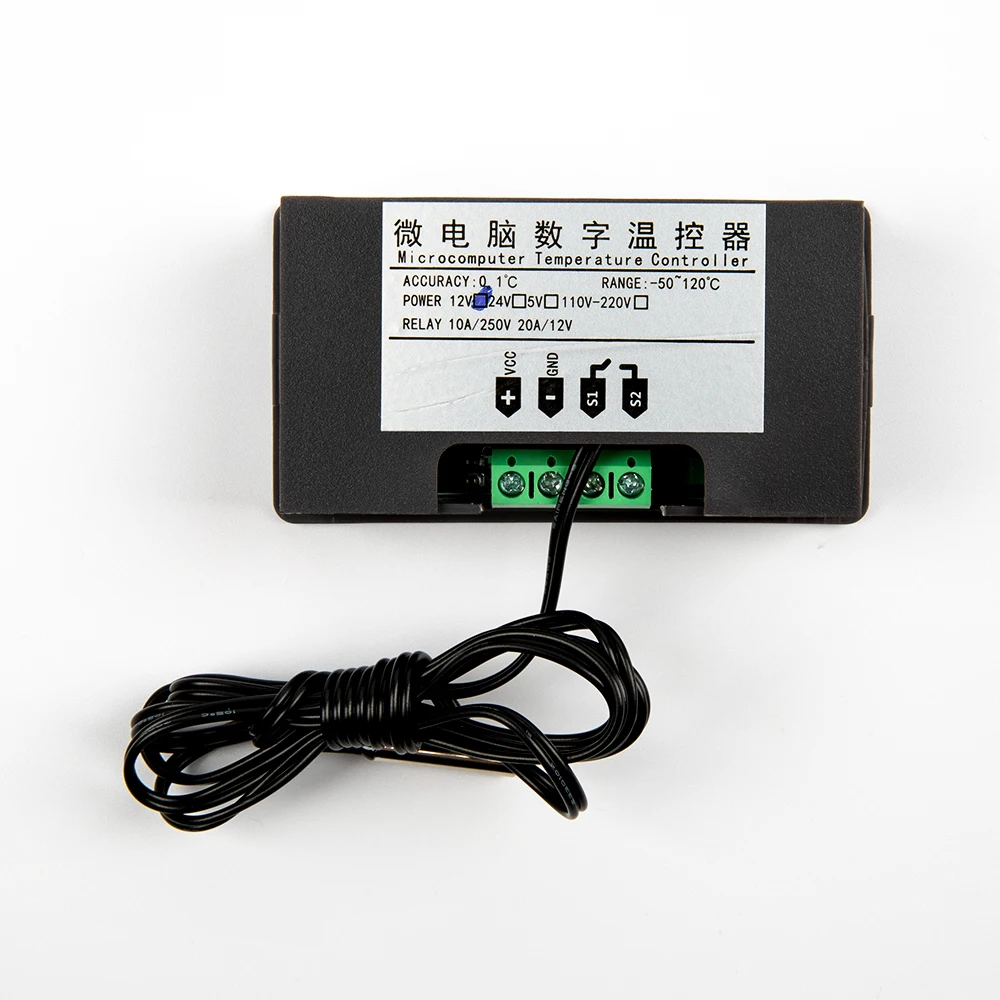

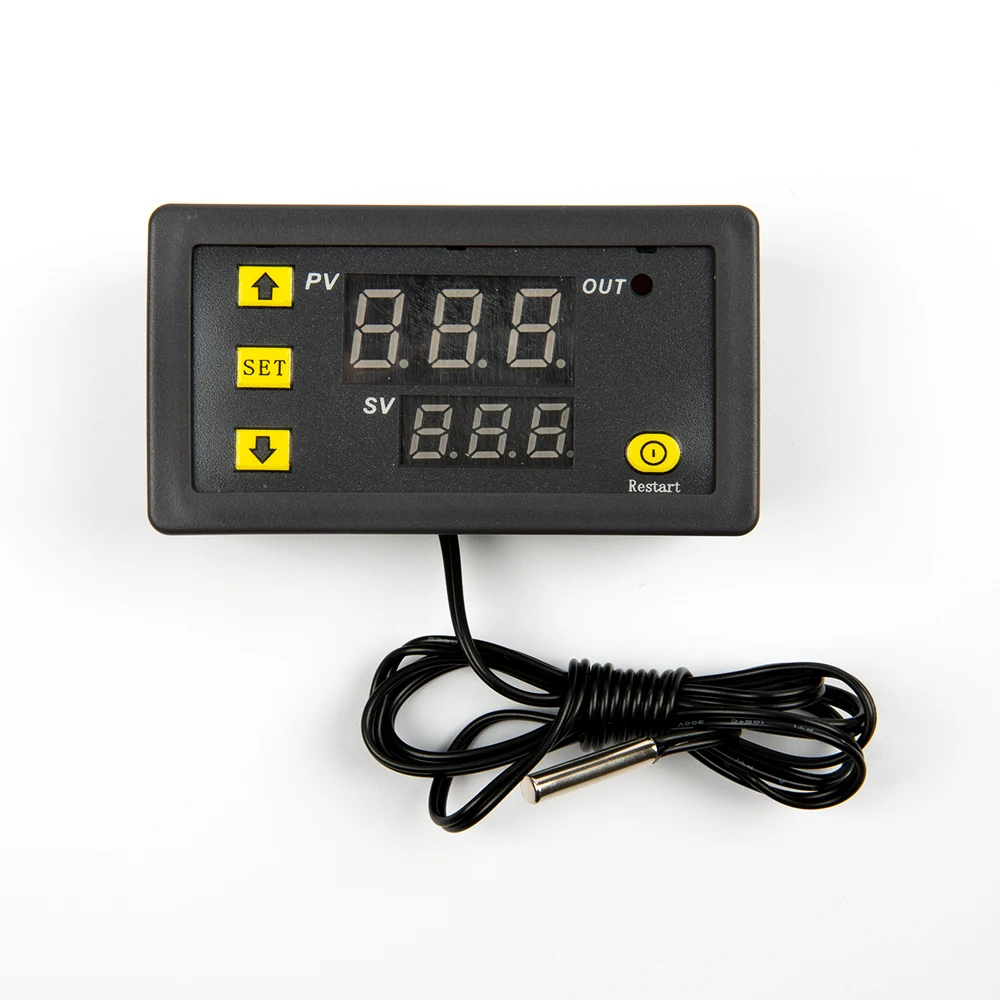

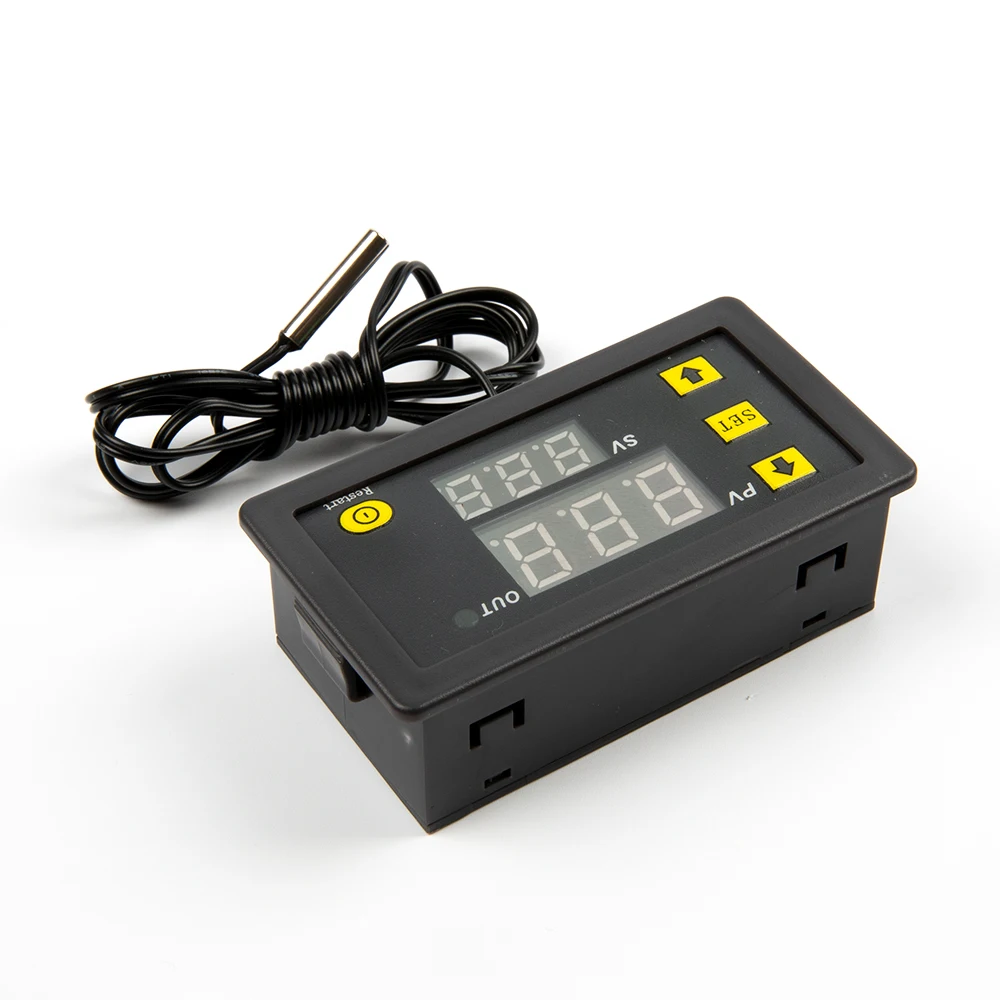

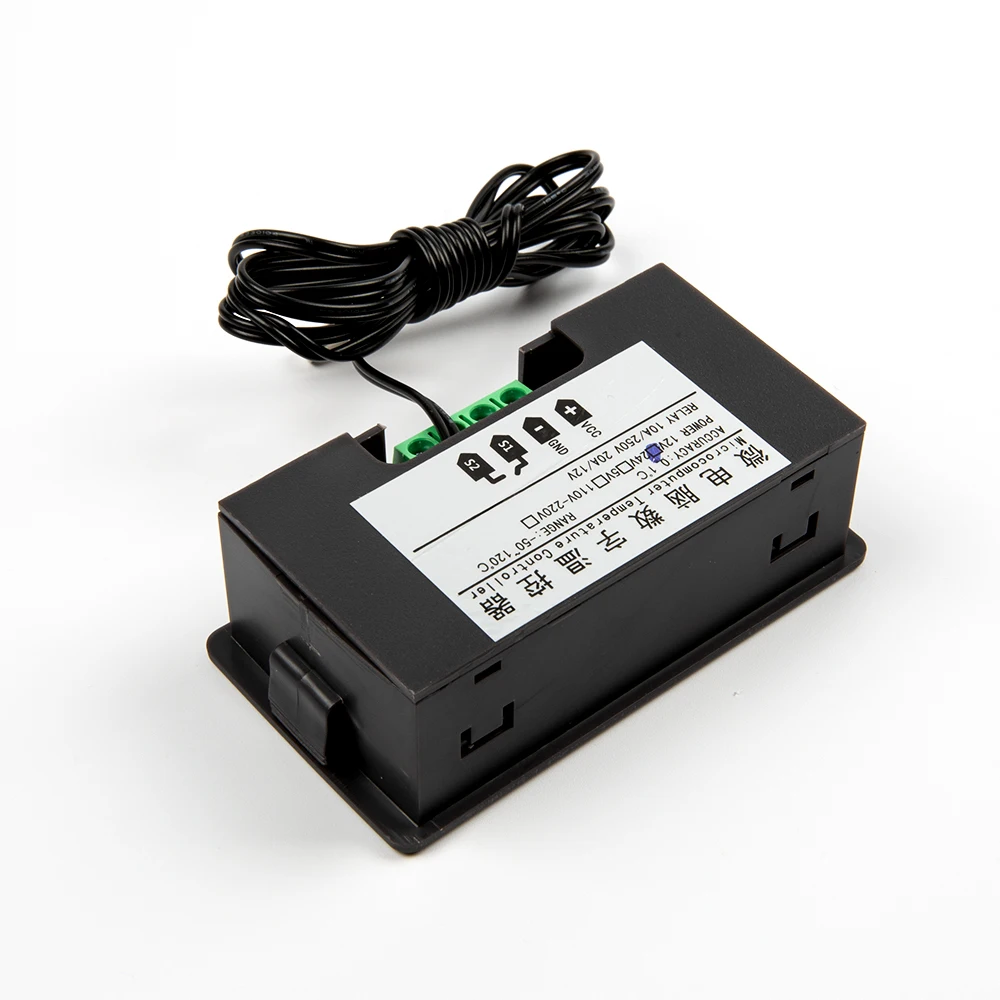

W3230 24V Digital Temperature Controller Thermostat Control Switch Sensor Meter With 1M Cable
Descriptions:
* Mini temperature controller.
* With clear LED display for better readability.
* Wide temperature measuring range.
* Heating or cooling control.
* All parameters setting can be saved after short circuit.
* Relay output.
* High Control precision 0.1 centigrade
* Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other
temperature-controlled system.
Specifications:
* Power Supply:24V DC
* Temperature Control Range:-55°-120°
* Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
* Color of Displaying: red/blue
* Measurement accuracy: ±0.1°C
* Control accuracy: 0.1°C
* Sensor: NTC10K Waterproof sensor
* Output: Relay Contact Capacity 10A 220V / 20A 12V / 20A 24V
* Environmental requirements: -10-60°C , humidity 20%-85%RH
* Dimension:79mm *43mm*26mm
* Cutting Size:73mm*39mm
* Sensor wire: 1 meter
* Mini temperature controller.
* With clear LED display for better readability.
* Wide temperature measuring range.
* Heating or cooling control.
* All parameters setting can be saved after short circuit.
* Relay output.
* High Control precision 0.1 centigrade
* Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other
temperature-controlled system.
Specifications:
* Power Supply:24V DC
* Temperature Control Range:-55°-120°
* Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
* Color of Displaying: red/blue
* Measurement accuracy: ±0.1°C
* Control accuracy: 0.1°C
* Sensor: NTC10K Waterproof sensor
* Output: Relay Contact Capacity 10A 220V / 20A 12V / 20A 24V
* Environmental requirements: -10-60°C , humidity 20%-85%RH
* Dimension:79mm *43mm*26mm
* Cutting Size:73mm*39mm
* Sensor wire: 1 meter
Package Includes:
1 x W3230 electronic thermostat with 1m Cable
1 x W3230 electronic thermostat with 1m Cable
