Nextion 4.3 Inch NX4827P043 011R Intelligent Series LCD TFT HMI Display Resistive Touch Panel Screen Module Without Enclosure
- Category: >>>
- Supplier: Shenzhen Chuangyi Intelligent System Co. Ltd.
Share on (1600542127675):
Product Overview
Description
Nextion 4.3 Inch NX4827P043 011R Intelligent Series LCD-TFT HMI Display Resistive Touch Panel Screen Module Without Enclosure
Description

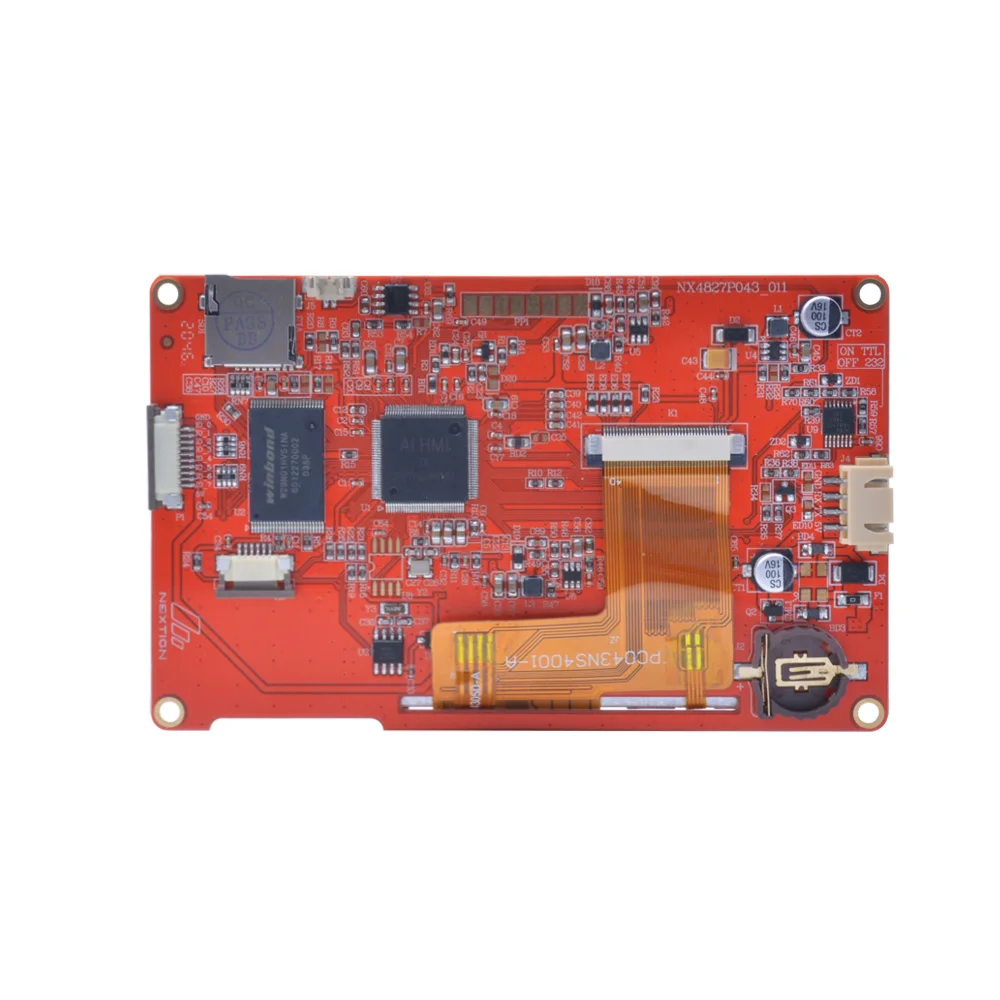

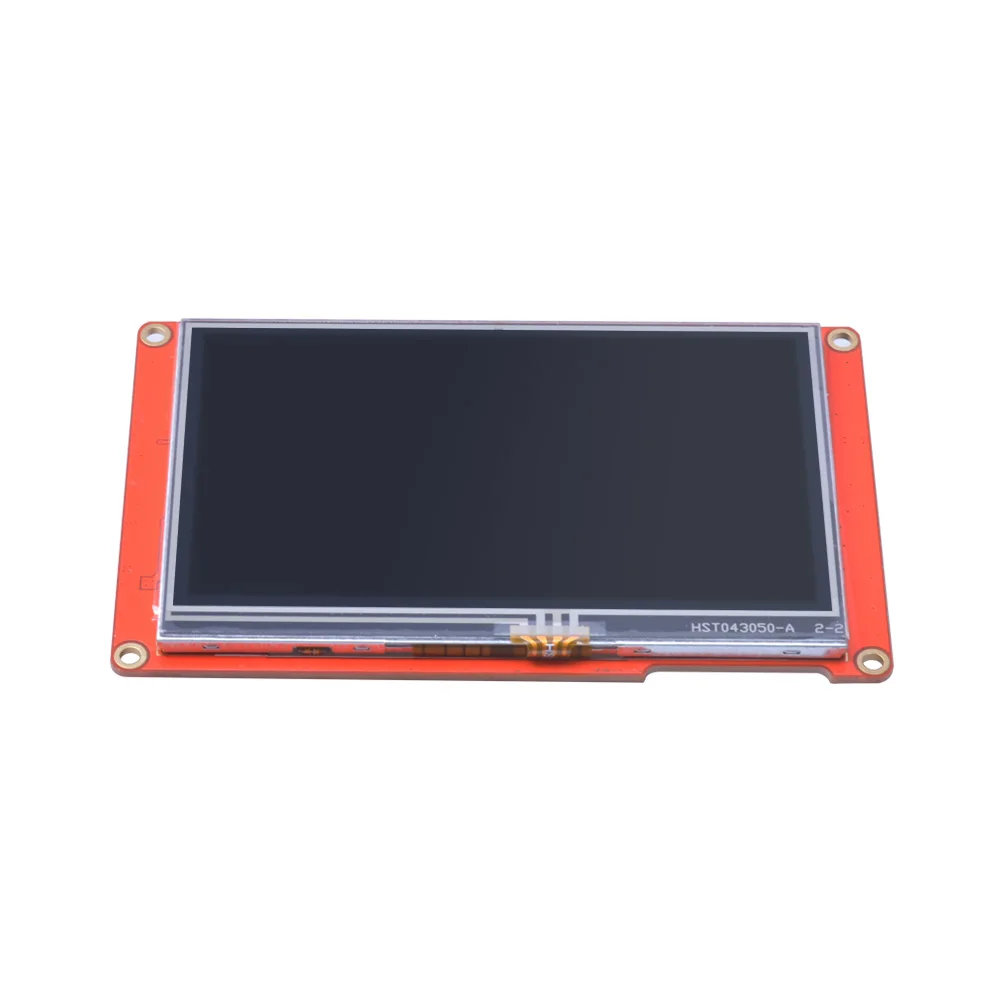

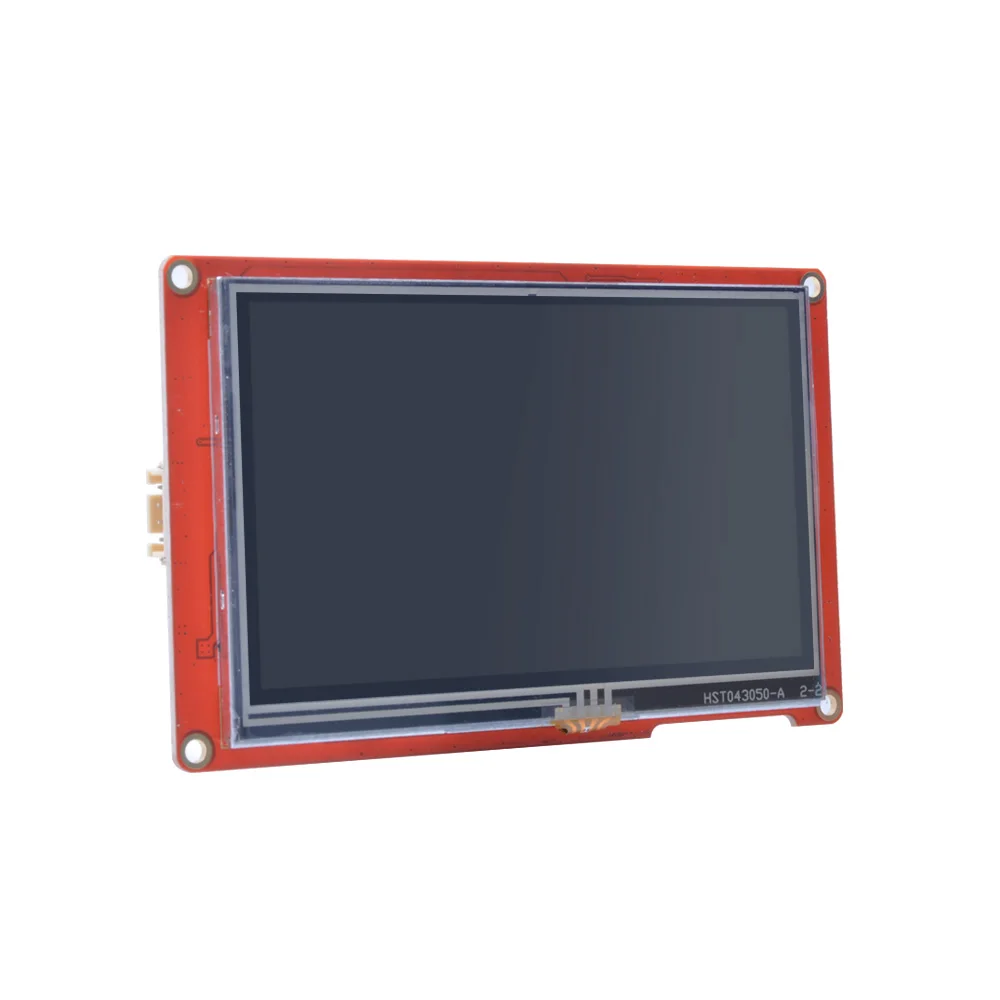

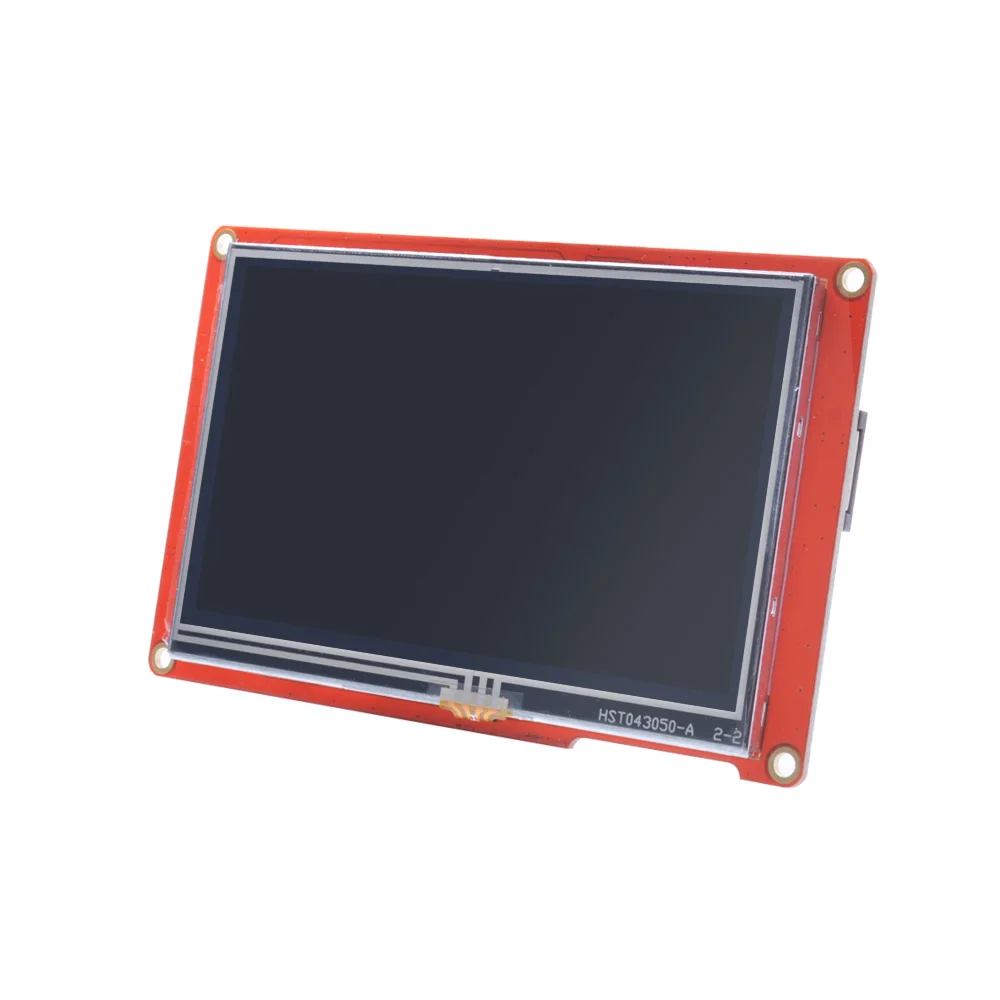

NX4827P043-011R is a Nextion Intelligent series 4.3'' Resistive HMI touchscreen without enclosure.

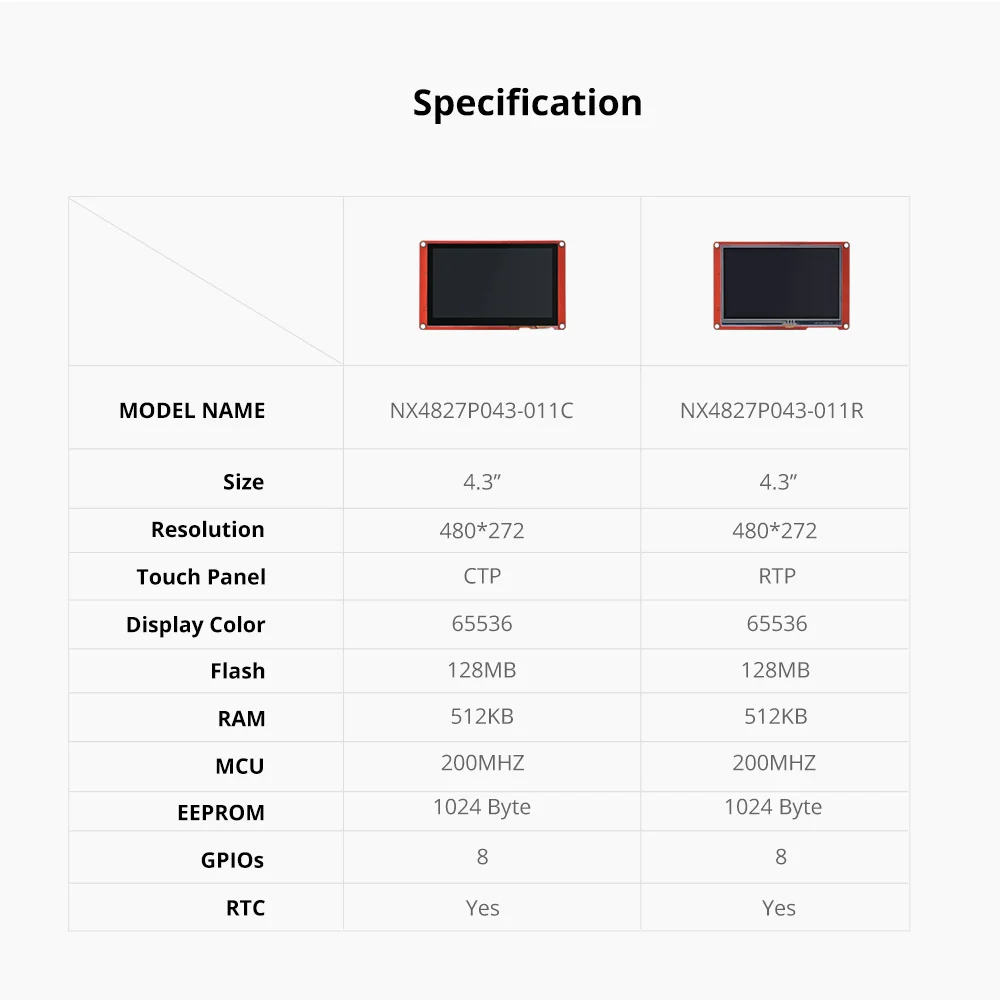

Hardware Features

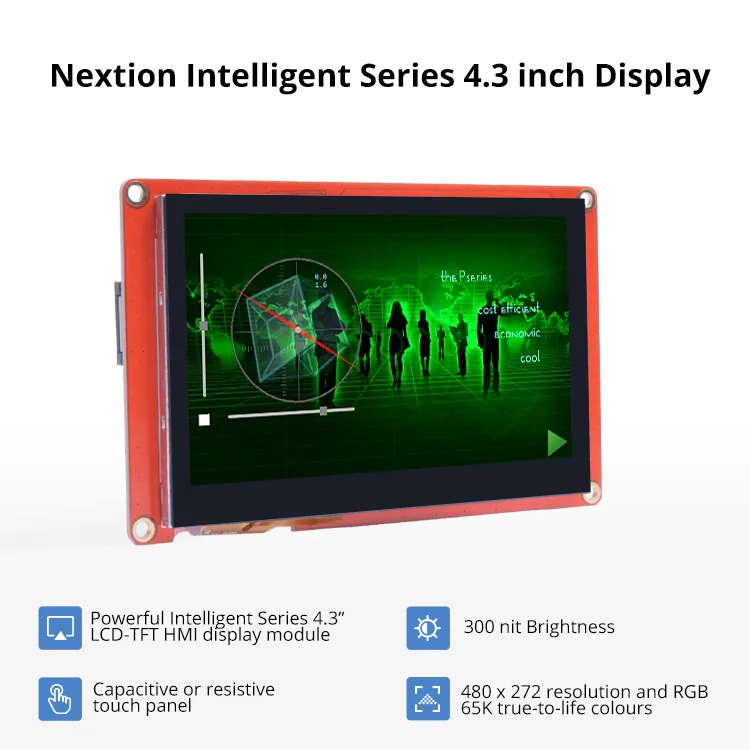

4.3” LCD-TFT HMI display module
480 x 272 screen resolution
RGB 65K true-to-life colours
Capacitive or Resistive touch panel
300 nit Brightness
Onboard 200MHz MCU
512 KB of SRAM
128 MB of Flash memory
1024 Byte EEPROM

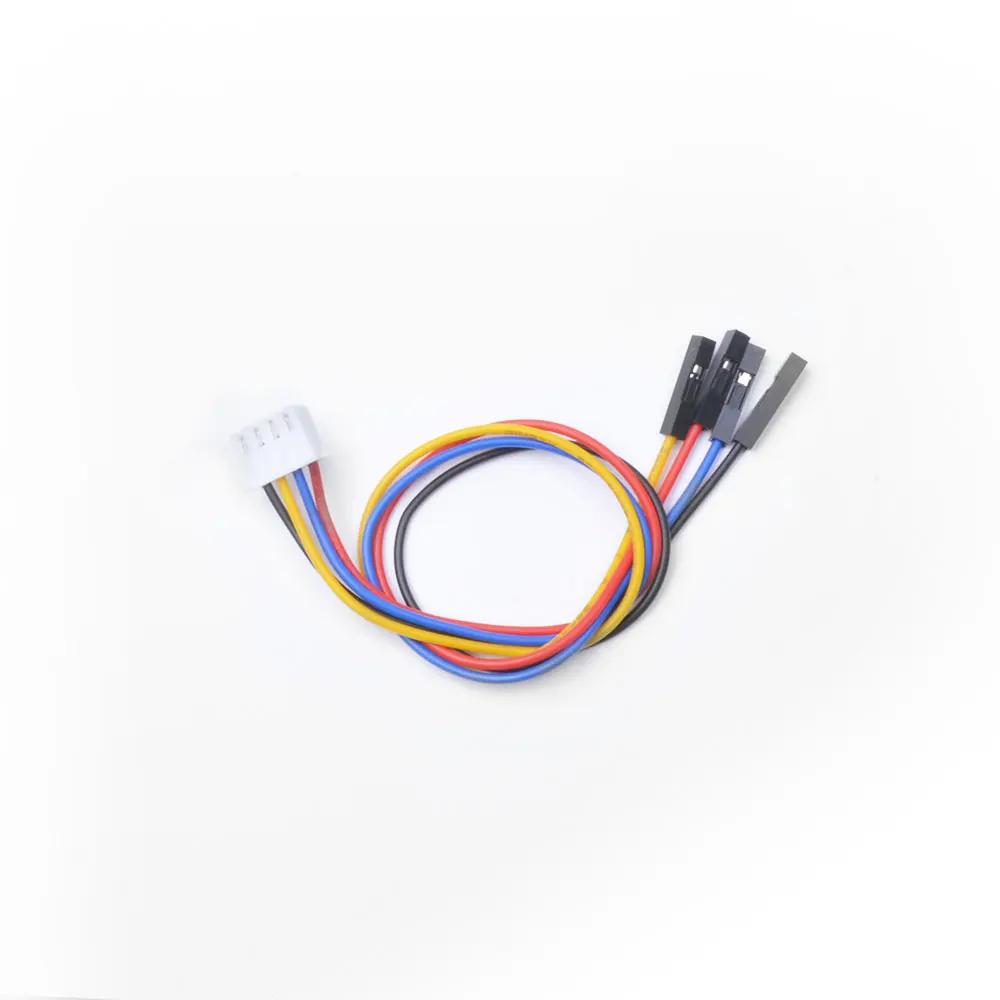

XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
1.25T-2-2A Audio port for external speaker connection
8 Digital extended GPIO
(IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)
Built-in RTC support

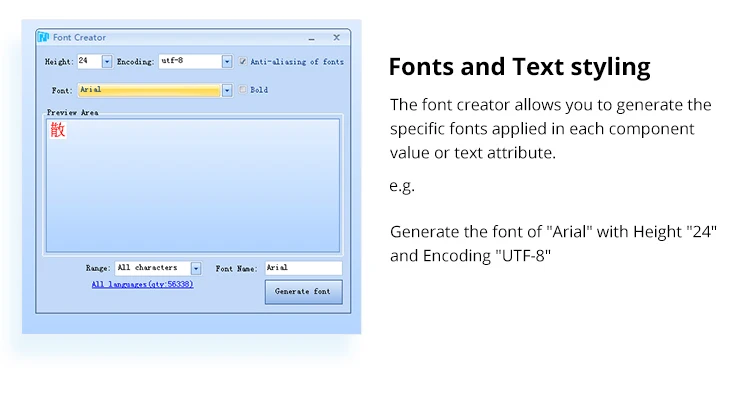

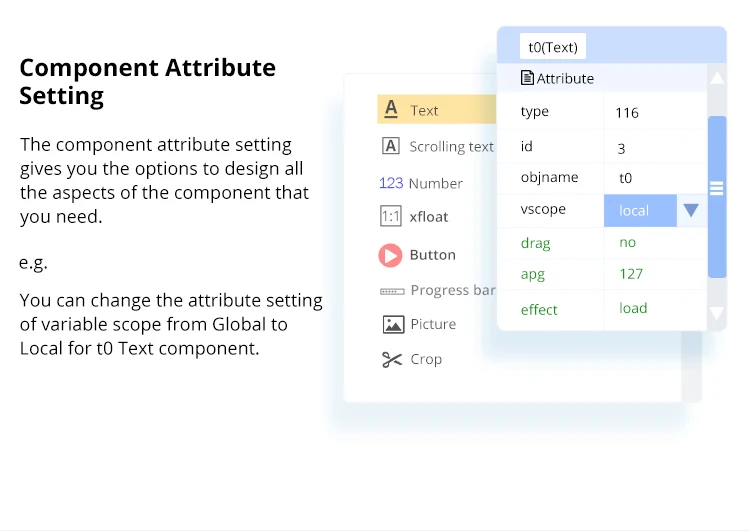

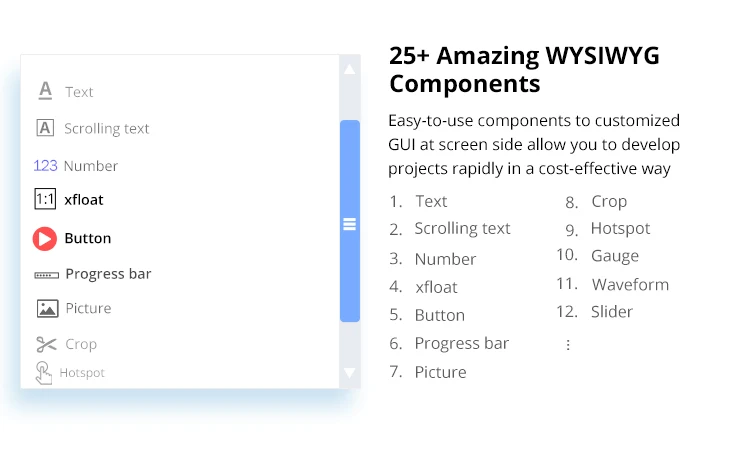

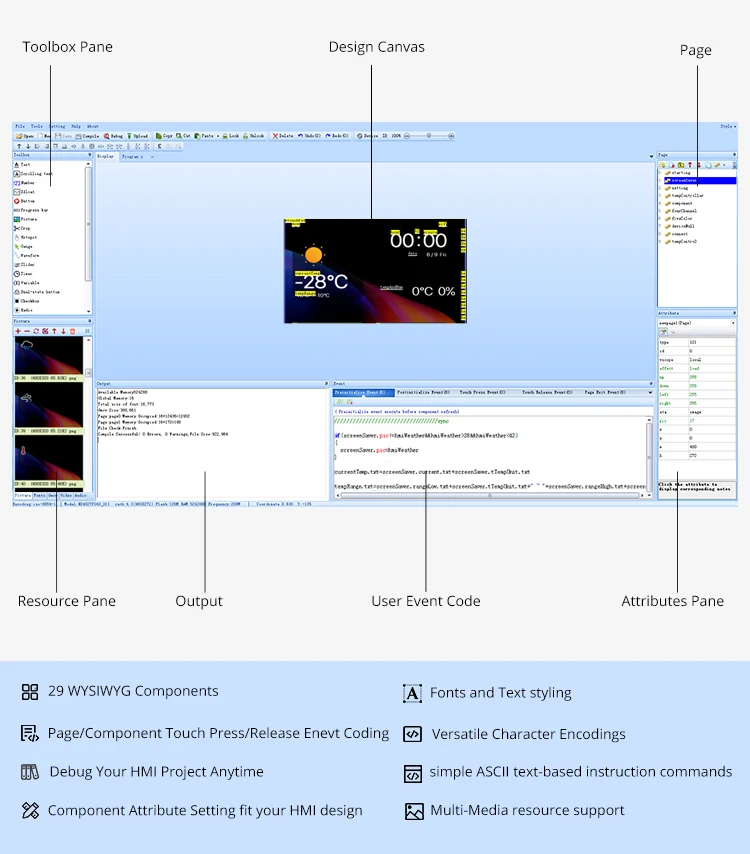

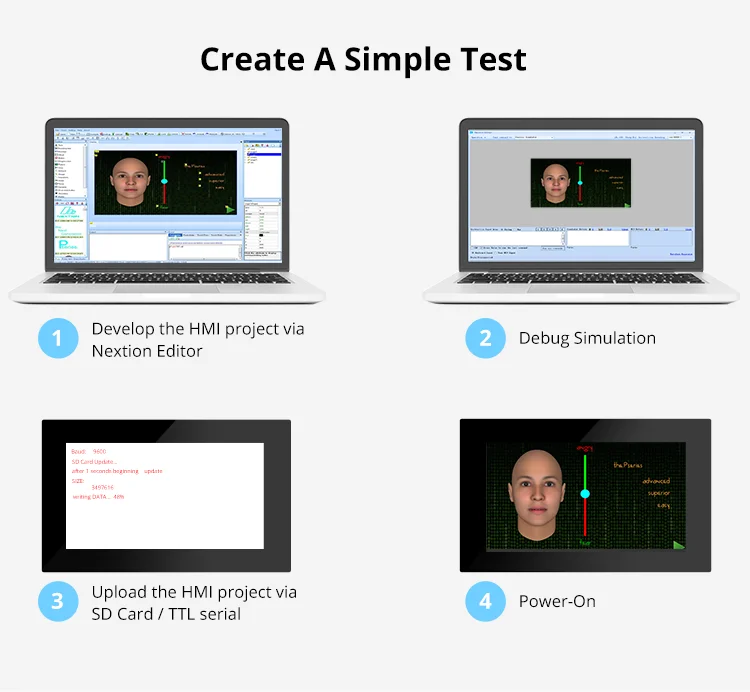

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic
Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive
and superb touch user interface even for beginners. Add a static picture as a background, define
functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components
and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads
and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution
between cost and benefit with a low and decreased learning curve.
Company Introduce
Shenzhen Itead (Chuangyi) Intelligent System Co.,Ltd is located in Shenzhen ,China. Established in
2011,and the online store was replaced with itead.cc in 2012,
Sonoff brand was founded in 2016 and enter into high-speed development period, ITEAD as an
electronics international e-commerce platform providing SONOFF smart home products, smart switch,
DIY electronic module,smart socket,smart lighting and so on. We also developed APP e-welink and
cloud platform by ourselves , original product “basic” also released in 2015 and sale over 2 million unit
2018, same year we passed ISO9001:2015, be partner with HUAWEI ,expand production line and
invest a lot in our R&D laboratory, Itead become a top-ranking smart home automation manufacturer
specializing in R&D ,design,production and sale, NEXITION AIRSPY brand were founded later.
FAQ
1.Are you trade company or manufacturer?
A: We are professional manufacturer in this industrial over 12 years, with several brands are popular
around the world. SONOFF. NEXTION.AIRSPY.
2.How does your factory do in terms of quality control?
A: We have strict production standards, testing procedures, quality inspections before delivery,
and professional technical team support ,fast and efficient after-sales service,
we have CE ROSH FCC TUV certificate and test report.
3.What is your MOQ?
A: MOQ 10. low MOQ .
4.What’s your delivery ?
A: Qty <500pcs ,delivery during 3 days,qty <5000pcs,delivery during 5-7days,need confirm if qty over 5000pcs.
5.How to use and install device?
A: We have detail user manual and video to tech you step by step.
