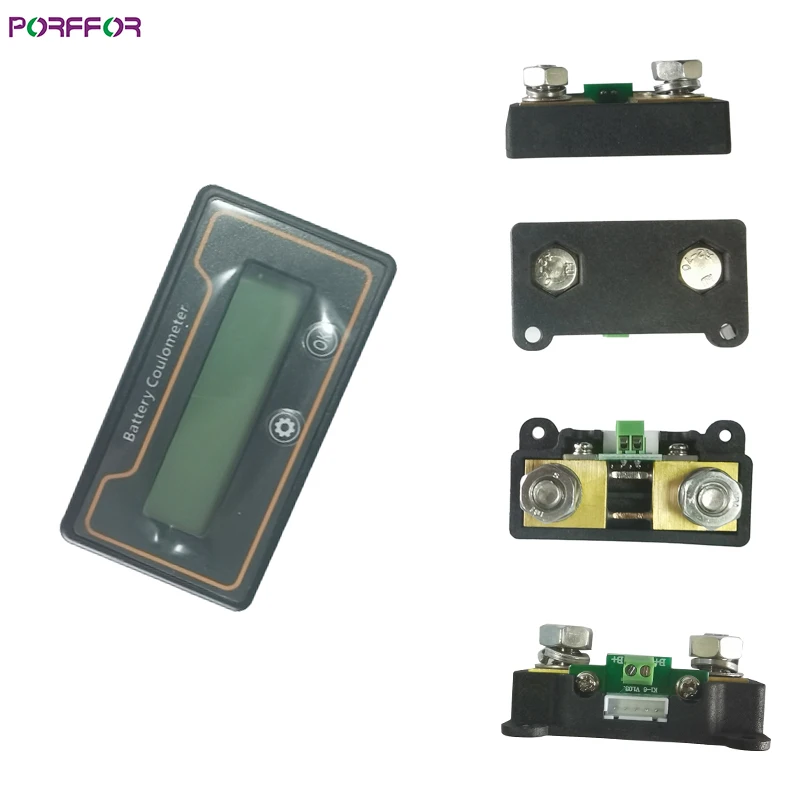

8 120V Sodium ion SIB NIB Lithium lifepo4 Lead acid battery indicator coulomb meter display current/voltage/capacity/percentage
- Category: >>>
- Supplier: Wuxi Porffor Technology Co. Ltd.Wuxi Ltd.
Share on (1600542140456):
Product Overview
Description
Specification
Product Introduction: High-precision battery power display meter, using current calculation (coulomb) accurately display battery power percentage, capacity, current, voltage. Coulomb display meter is not limited to battery type, battery voltage 8-120V can be used on any battery, can timely and accurately grasp the battery working status; In particular, the load with large fluctuation of current and the large current load with intermittent work have excellent use effect, such as all kinds of electric vehicles, sweeper, electric forklift, high-power motor equipment, etc. The electric quantity adopts the liquid crystal display mode, displays more clearly also saves electricity.

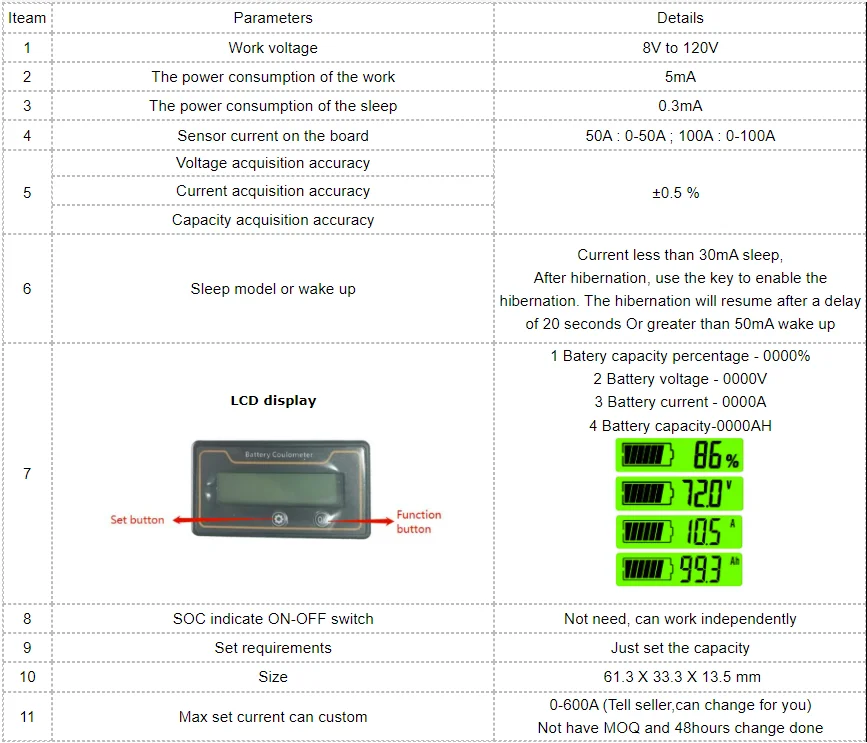

Below specification same as above format
1.Work voltage : 10V-100V (8V-120V)
2.The power consumption of the work : 5mA
3.The power consumption of the sleep : 0.3mA

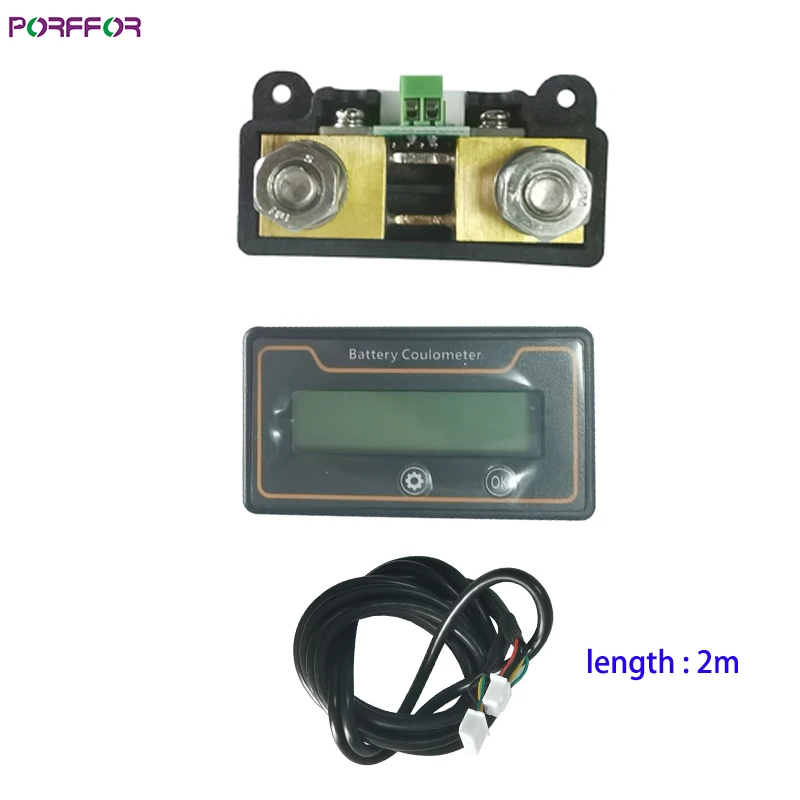

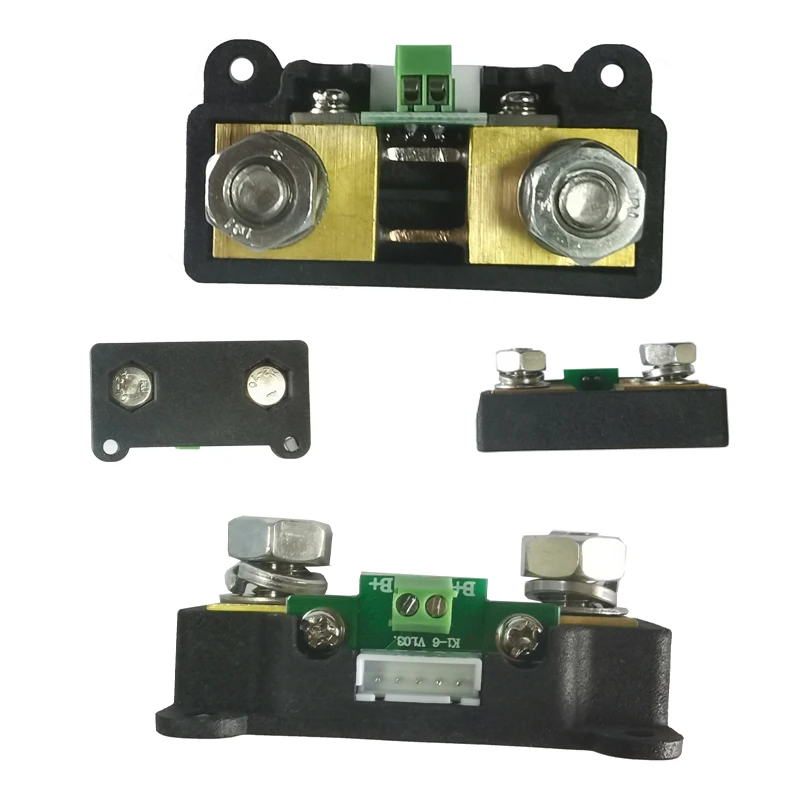

4. Sensor current on the board : 50A , 0-50A ; 100A, 0-100A
5.Voltage acquisition accuracy / Current acquisition accuracy / Capacity acquisition accuracy : ±0.5 %
6.Sleep model or wake up :Current less than 30mA sleep, After hibernation, use the key to enable the hibernation. The hibernation will resume after a delay of 20 seconds Or greater than 50mA wake up 7.LCD display :

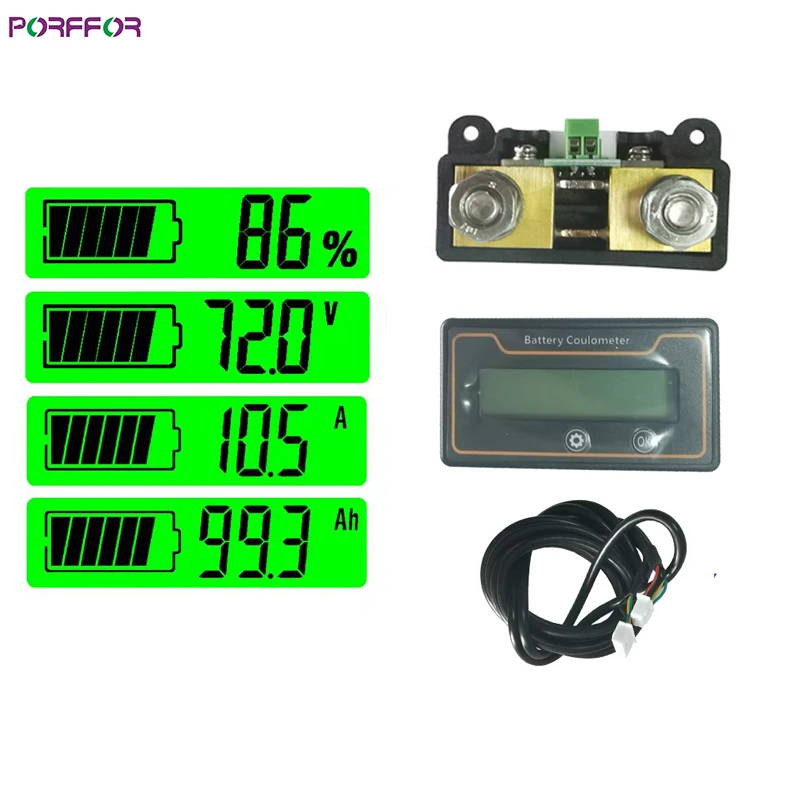

Batery capacity percentage - 0000% Battery voltage- 0000V Battery current - 0000A Battery capacity-0000AH
8.SOC indicat ON-OFF switch : Not need, can work independently
9.Set requirements : Just set the capacity

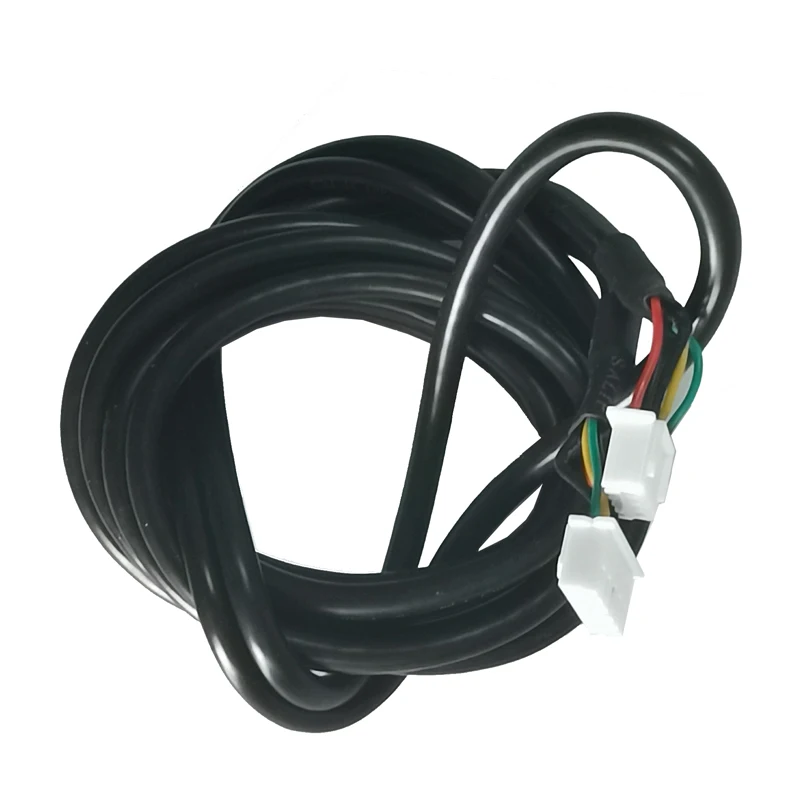

10.Counnter wires length : 50A-200mm/250mm , 100A-2m

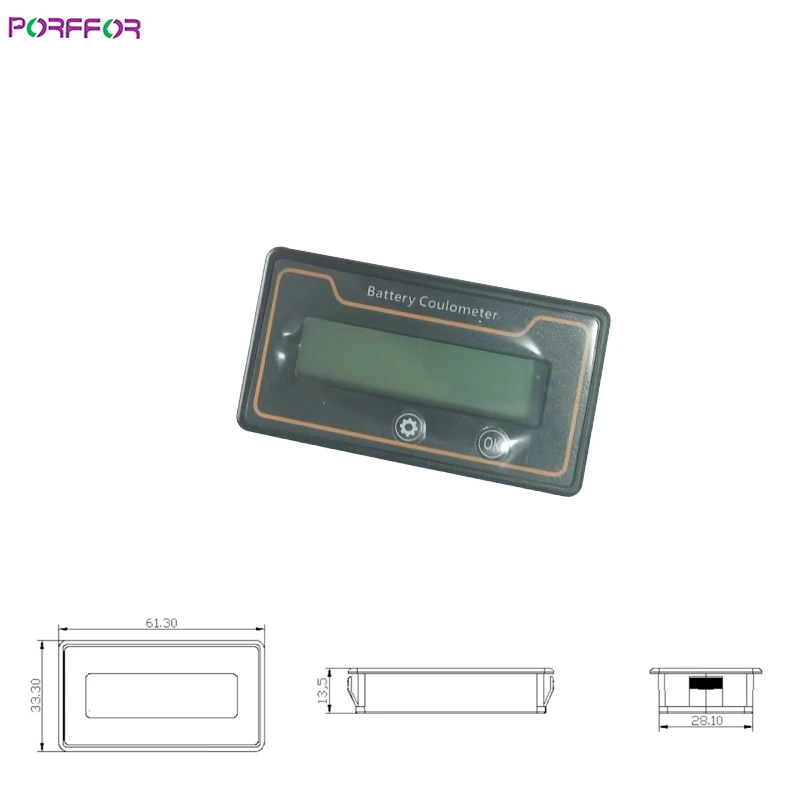

11.Size : 61.3 X 33.5 X 13.5 mm
Contact :
After sales service team and supervision team friendship expression :
When you encounter any product problems, please do not immediately give negative comments, please immediately contact the seller and leave a message. Due to the time difference, we will properly deal with it immediately after returning to work until you are satisfied. (The company has a special team to supervise: when negative comments are received, the relevant sales and service personnel must be fired immediately, and the relevant products and services must be corrected. So please feel free to buy and don't worry about after-sales service.
Packing details and ship details :

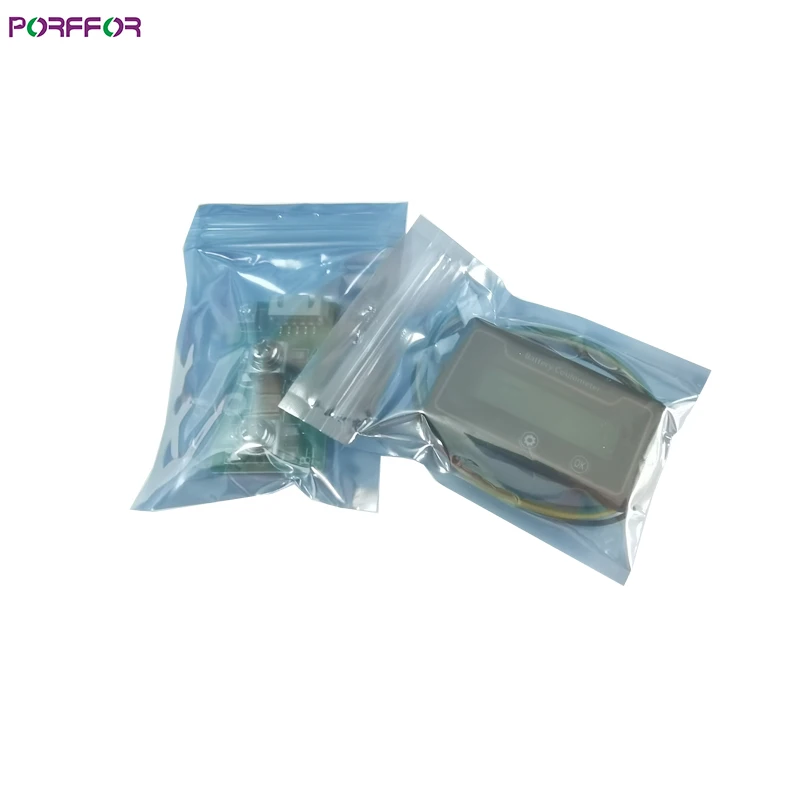

Package : Packed in static bag or static bubble bag, packed in carton outside
Ship : According to the customer's choice of logistics to transport
