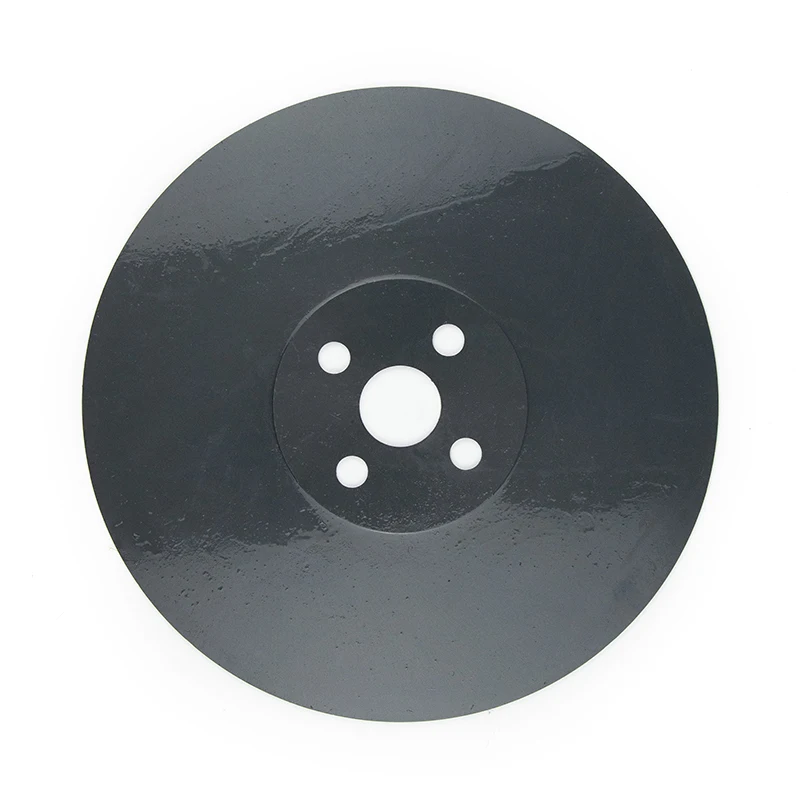

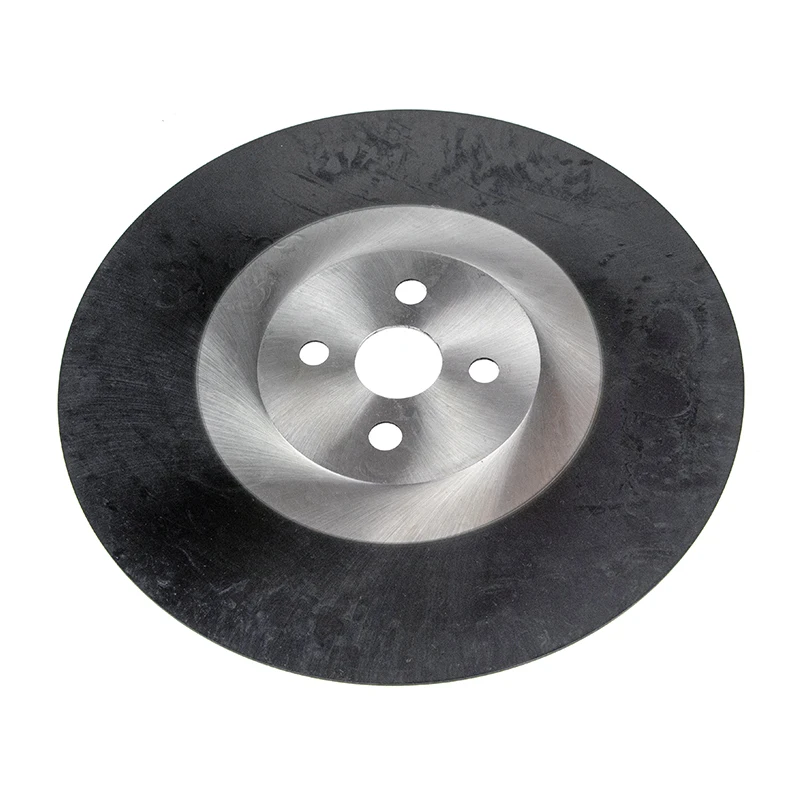

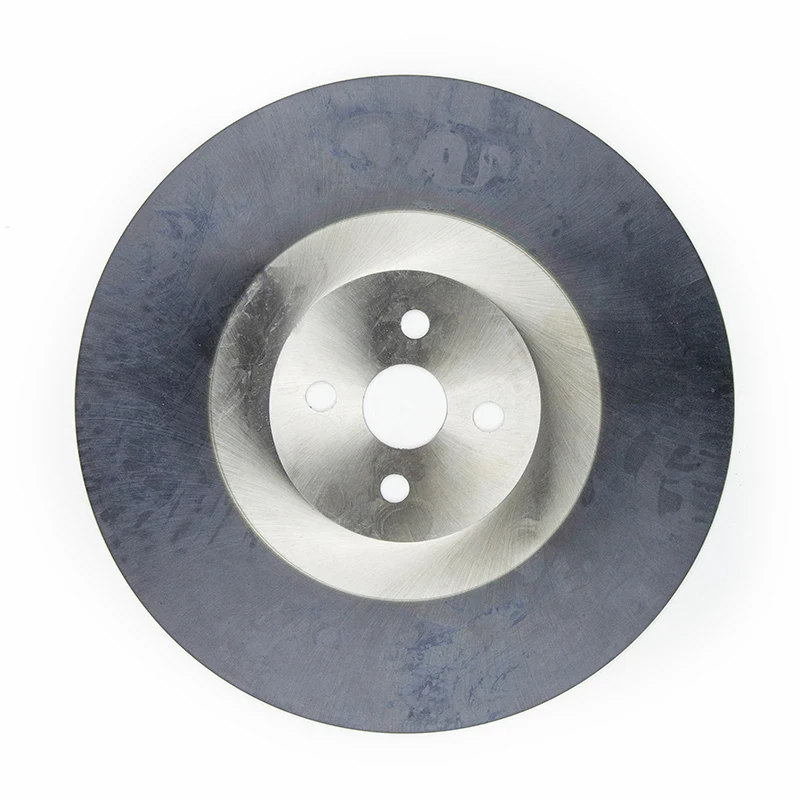

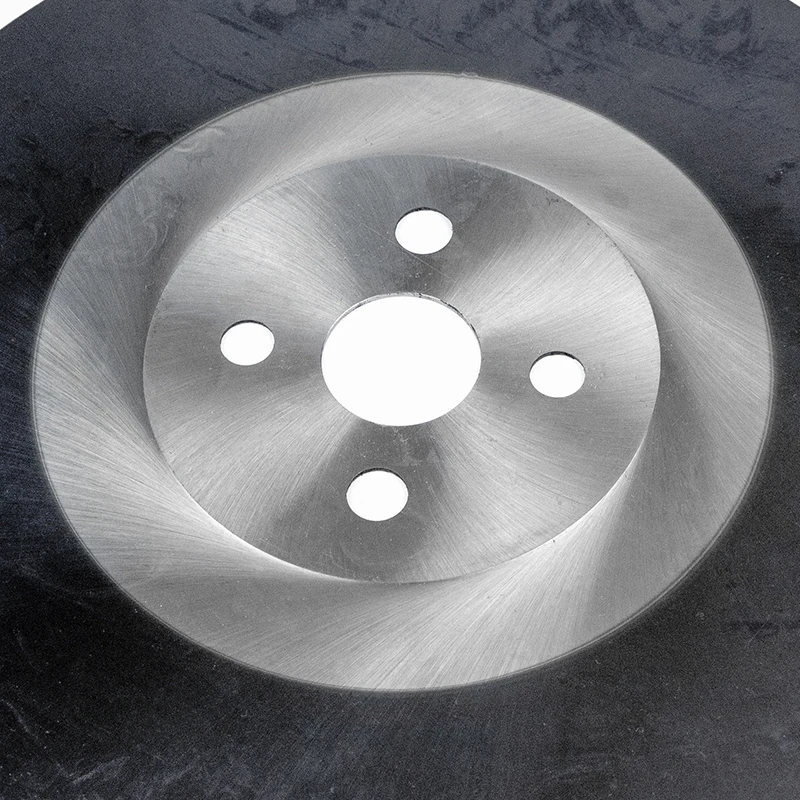

Zhongzuan 24 Inches Karnasch Premium Cold Cut Hss Coated Circular Saw Blade For Metal Steel Cutting
- Category: >>>
- Supplier: Zhongzuan (Chongqing ) Precision Tools Manufacturing Co. Ltd.
Share on (1600542152352):
Product Overview
Description
Product Description
HSS saw blade also called cold saw, which is designed to cut metal material to transfer the heat generated by cutting to the chips created by the circular saw blade, allowing both the blade and material being cut to remain cool. High speed steel (HSS) saw blade is a kind of blade composed of a certain amount of carbon (C), tungsten (W), molybdenum (Mo), chromium (Cr), vanadium (V), etc. High speed steel blanks, the semi-finished products have high hardness after cutting, forging, annealing, quenching and grinding procedures.
Product Name | 24 Inches Karnasch Premium Cold Cut Hss Coated Circular Saw Blade For Metal Steel Cutting |
Size | Diameter φ20-500mm, Aperture: φ5-40mm, Thickness: 0.2-7mm |
Tooth Type | No teeth, coarse teeth, medium teeth, fine teeth |
Saw Tooth Processing Method | Milling, grinding, full grinding, no grinding |
Tooth Shape | BW, B, BR, A, AW, HZ, VP |
Surface Coating | Natural color, AlTiN coating, titanium coating, nitride coating, colorful nitride alloy coating |
Material | HSS, M42, M2, W18, W9, M35, tungsten carbide steel (K10, K15) |
Uses | Mainly used for milling, grooving and sawing of ordinary steel, stainless steel, brass, aluminum alloy, plastic, titanium alloy, cast iron, high nickel cupronickel, heat-resistant alloy, structural steel, alloy steel, cast steel and other materials , cutting, cutting, etc. |
Specification | Specification | Specification |
250*1.0 | 300*1.6 | 350*2.5 |
250*1.2 | 300*2.0 | 350*3.0 |
250*1.6 | 300*2.5 | 375*2.0 |
250*2.0 | 300*3.0 | 375*2.5 |
250*2.5 | 315*1.6 | 375*3.0 |
250*3.0 | 315*2.0 | 400*2.0 |
275*1.0 | 315*2.5 | 400*2.5 |
275*1.2 | 315*3.0 | 400*3.0 |
275*1.6 | 325*1.6 | 425*2.5 |
275*2.0 | 325*2.0 | 425*3.0 |
275*2.5 | 325*2.5 | 450*2.5 |
275*3.0 | 325*3.0 | 450*3.0 |
300*1.0 | 350*1.6 | 500*3.0 |
300*1.2 | 350*2.0 |
If you need other sizes or customized sizes, please contact us for consultation.
AlTiN Coating
As a new type of coating material, AlTiN coating has excellent properties such as high hardness, high oxidation temperature, good thermal hardness, strong adhesion, low friction coefficient, low thermal conductivity, etc. It is especially suitable for high-speed cutting of alloy steel, stainless steel, Chin alloy, and nickel alloy. and other materials. Cutting test and machining practice show that the super-A coating tool has good chemical stability and strong oxidation resistance. The popularization and application of super A-coated tools will improve tool durability, reduce processing auxiliary time, reduce cutting costs and improve enterprise economic benefits.
Nitride Coating
Nitride coating: After steam treatment, the saw blade has an oxide layer formed on the surface. This saw blade has good surface smoothness, which helps to enhance the self-lubricating ability of the saw blade. The phenomenon that the saw blade is stuck by the material is certain. It can be avoided to a certain extent, and the ability to cool and absorb is better. This is a kind of saw blade that we usually use.

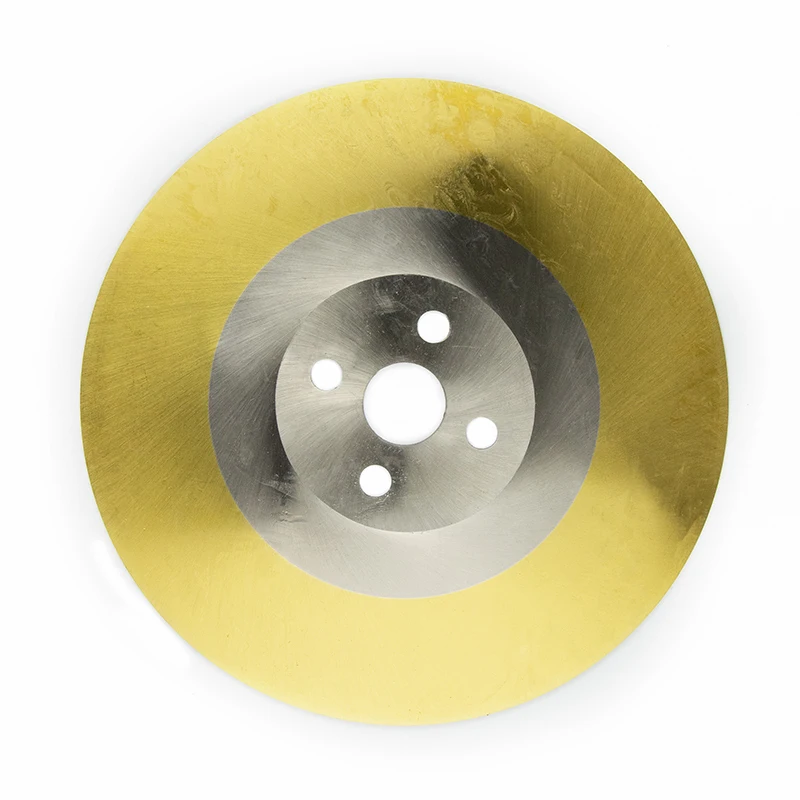

Titanium Coating
The saw blade treated with special PVD coating has a golden surface, which is suitable for fast sawing of seamless steel pipes, iron pipes, bars, etc. on semi-automatic or automatic metal circular sawing machines, effectively reducing cutting costs. It can also get a satisfactory cutting effect when it is in the tube

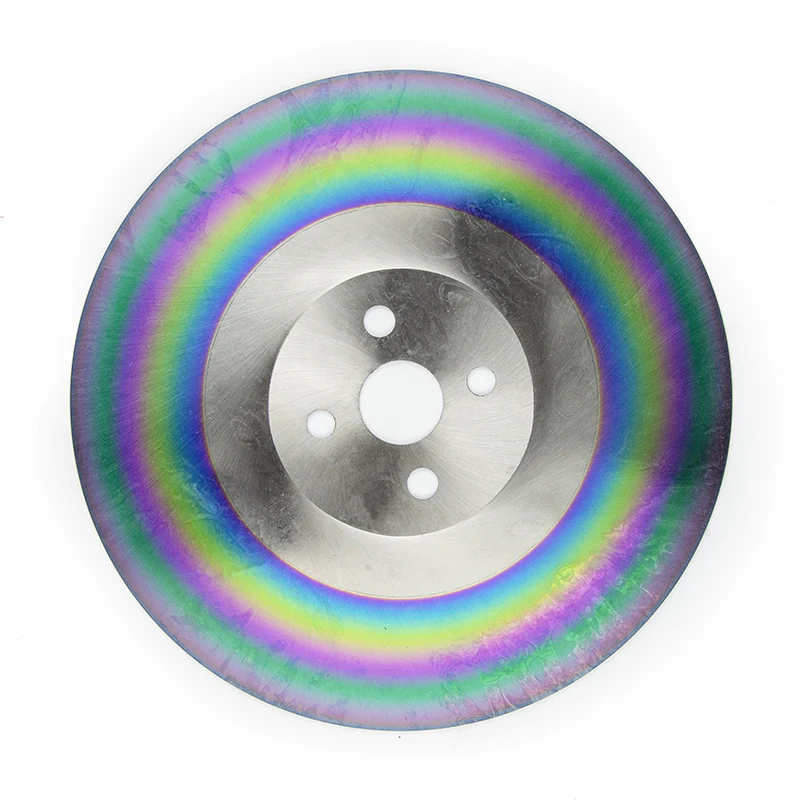

Colorful Nitrided Alloy Coating
This coating has better wear resistance than ordinary coatings when cutting stainless steel and alloy steel and materials, and reduces the positive force under high-speed action, which not only prolongs the life of the saw blade and maintains the stability under long-term action. And adding drilling to the saw blade can effectively improve the stability, hardness and wear resistance of the saw blade. Increasing the drill content can also reduce the friction coefficient between the saw blade and the workpiece. This saw blade is especially suitable for Saw cutting, cutting, cutting and milling of rust steel pipe and bar profiles. When used in the processing of ordinary steel, aluminum alloy, plastic, wood and other materials, the effect is also obvious.
BW: Standard profile for pipe cutting
B: As an alternative to BW for thinner saw blades
BR: is the tooth profile for pipe cutting on automatic machine tools
A: The tooth shape used when the tooth pitch is small (T < 3mm) or when cutting brass alloys, jewelry and screw grooving
AW: Chamfering is added on the basis of the A-shaped tooth, which can make the waste cut better discharge
HZ: For cutting solid materials or thicker (> 3mm) tubes
VP: With variable pitch, for cutting very irregular profiles with severe vibration and noise
Packing & Delivery
We have cooperated with DHLUPS,TNT Fedex,China Post and other sea shipping agent,thus we can quote the most economical shipping charge for you.
Company Profile
ZhongZuan is a professional power tool accessories manufacturer & supplier in China. Since 1995,with 27 years of industry experience. We manufacture and sell Diamond Core Bits, Hss Drill Bits, Wood Drill Bits, Hammer Drill Bits & Chisels, Router Bits, Diamond Saw Blades, Hss Saw Blades, TCT Saw Blades, Polishing Pads, Abrasive Tools and many more to choose from. We have accumulated rich experience in product
design, manufacturing and application, and can design supporting products for the complex processing environment of products, help customers solve various application problems of products, and provide professional solutions.
design, manufacturing and application, and can design supporting products for the complex processing environment of products, help customers solve various application problems of products, and provide professional solutions.
FAQ
Q: How long is the delivery time?
A: We have stock of common specification products, which can be shipped normally within three days after your payment. The latest delivery will be within 15 days. If you need to customize products or do not have stock, we need to schedule the production, the time limit is expected to give you according to our order scheduling situation.
Q: How about the quality of your products?
A: Our products are processed and manufactured with high quality raw materials, and we equipped with professional quality inspection team personnel and quality inspection equipment. From the purchase of raw materials → put into production → product molding →packaging, each link will have strict quality control!
Q: Is OEM available?
A: Yes! Please send your brand in PNG, JPG, PDF, PSD, AI and other file formats to our sales staff and tell us your detailed
requirements, we have professional designers who will produce a preview of the effect according to your requirements for your confirmation and reference.
Q: Can I package my products or customize the packaging according to my requirements?
A: Absolutely! Welcome to contact our professional business team to tell us all the details of the packaging.
Q: Can I get samples?
A: Absolutely! We know that when a customer purchases in bulk, they will get a sample to test the quality of the product to see if they will buy in bulk from that supplier. So we are happy to provide samples for you. We support free samples for most of our products, except for some higher value products which require you to pay for the samples. The shipping cost will be borne by you.
Q: How about the quality of your products?
A: Our products are processed and manufactured with high quality raw materials, and we equipped with professional quality inspection team personnel and quality inspection equipment. From the purchase of raw materials → put into production → product molding →packaging, each link will have strict quality control!
Q: Is OEM available?
A: Yes! Please send your brand in PNG, JPG, PDF, PSD, AI and other file formats to our sales staff and tell us your detailed
requirements, we have professional designers who will produce a preview of the effect according to your requirements for your confirmation and reference.
Q: Can I package my products or customize the packaging according to my requirements?
A: Absolutely! Welcome to contact our professional business team to tell us all the details of the packaging.
Q: Can I get samples?
A: Absolutely! We know that when a customer purchases in bulk, they will get a sample to test the quality of the product to see if they will buy in bulk from that supplier. So we are happy to provide samples for you. We support free samples for most of our products, except for some higher value products which require you to pay for the samples. The shipping cost will be borne by you.
