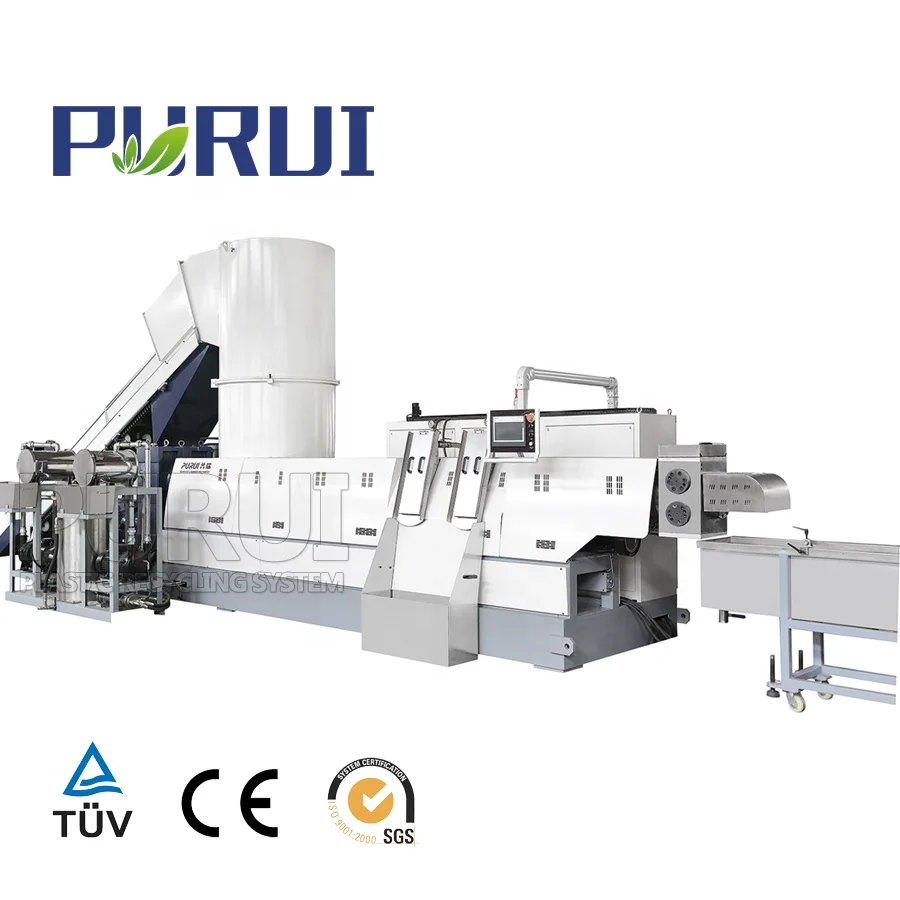

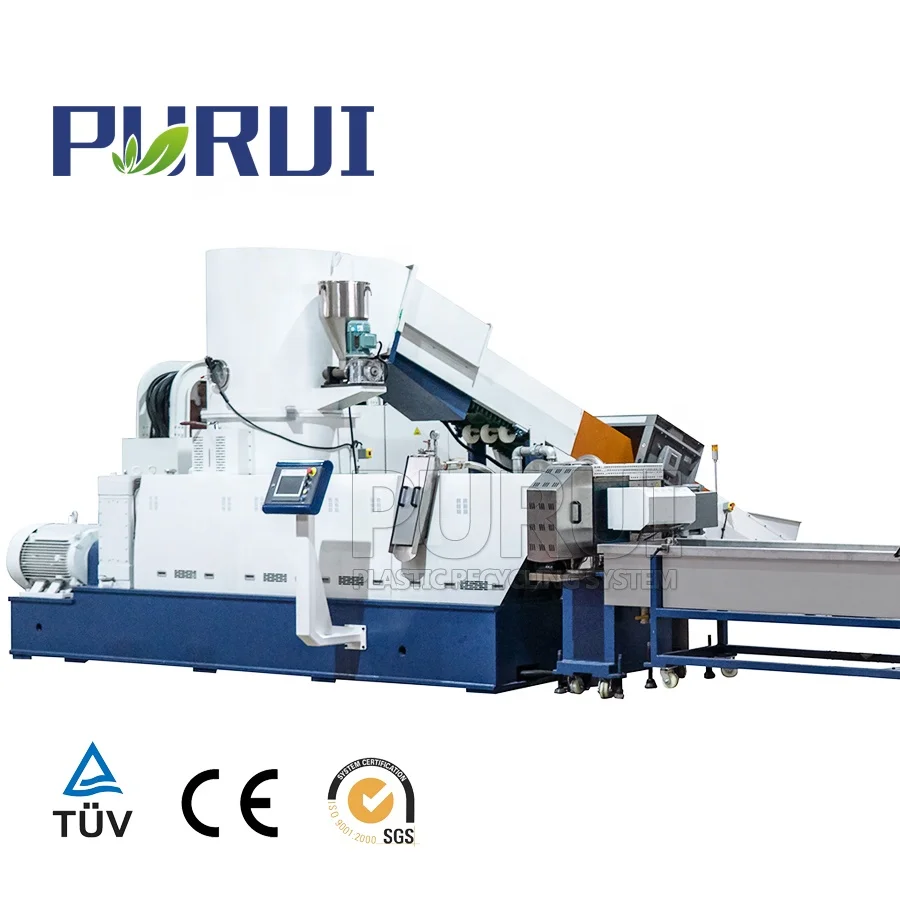

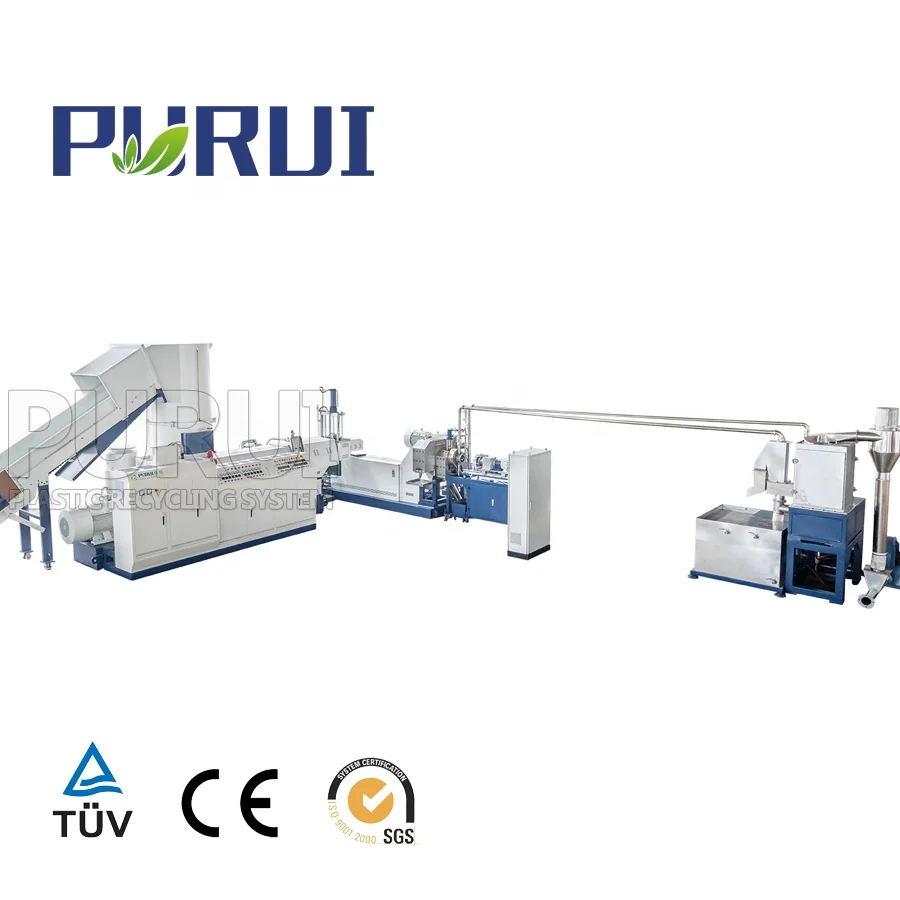

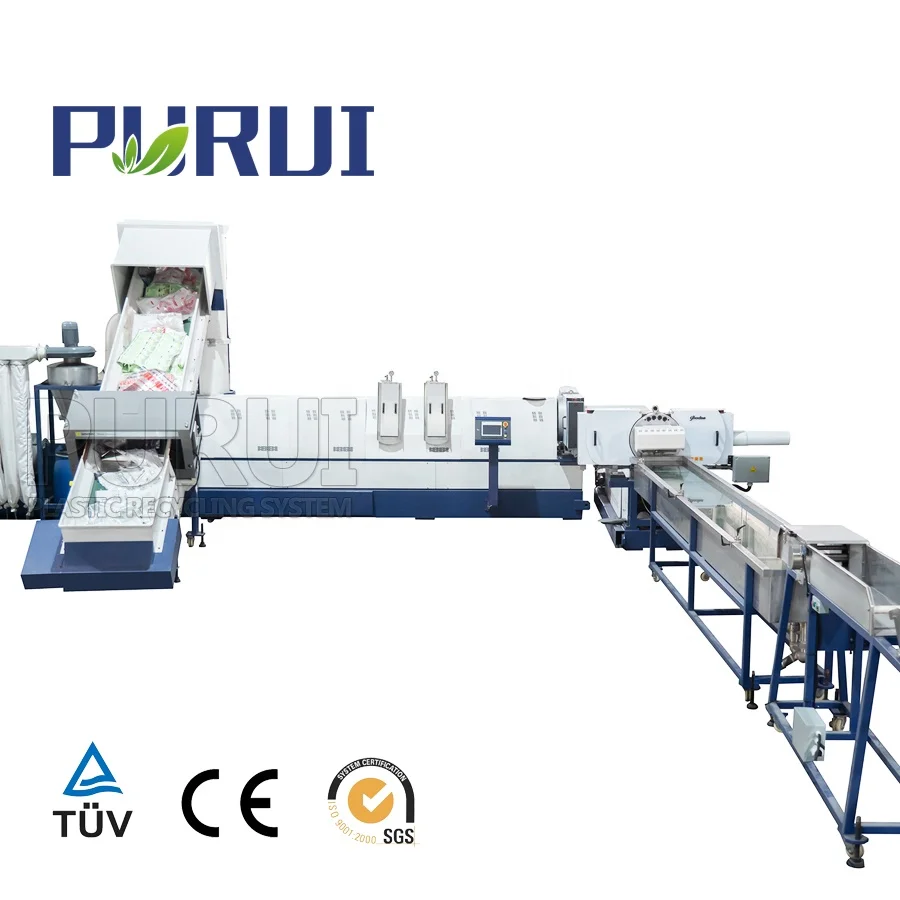

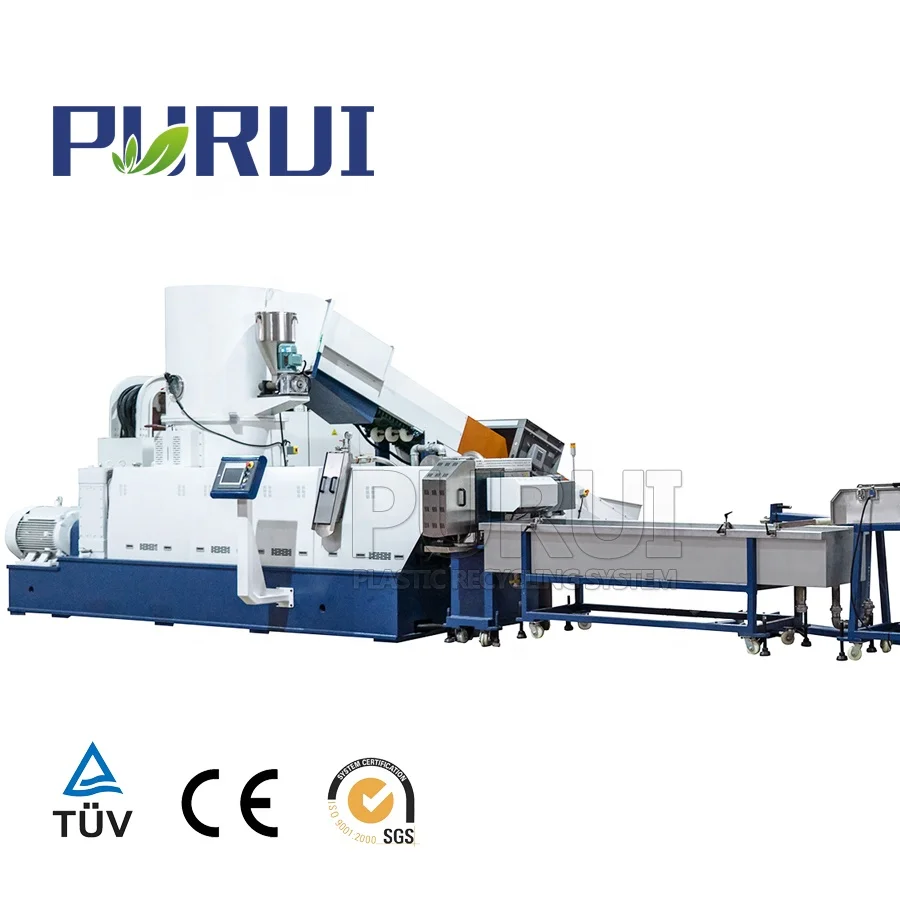

polyethylene fiber recycling machine Waste PE filament yarn recycling plant granulating machine plastic pelletizer
- Category: >>>
- Supplier: Zhangjiagang City Purui Plastics&Rubber Machinery Co. Ltd.
Share on (1600542159339):
Product Overview
Description
Automatic factory cost price fully automatic polyethylene fiber recycling machine Waste PE filament yarn recycling plant granulating machine plastic pelletizer
Deatail description for fiber recycling machine
1. fiber recycling single screw extruder’s good quality / long life time screw and barrel
2. Gearbox: From Jiangyin gearbox company,very famous brand in China,with nice outline, stable running, low noise and long service time.
3. Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4. Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.
5.Water cooling tank is all made by stainless steel.
6. Fan dryer hopper is also made by stainless steel
7. Granule cutting machine speed is adjustable by frequency inverter,cutting stable and quick.
1. fiber recycling single screw extruder’s good quality / long life time screw and barrel
2. Gearbox: From Jiangyin gearbox company,very famous brand in China,with nice outline, stable running, low noise and long service time.
3. Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4. Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.
5.Water cooling tank is all made by stainless steel.
6. Fan dryer hopper is also made by stainless steel
7. Granule cutting machine speed is adjustable by frequency inverter,cutting stable and quick.
25 Years Only Focus On Producing Plastic Recycling Washing Line And Plastic Granulating line
DESCRIPTION FOR PLASTIC EXTRUDER & GRANULATOR MACHINE
Single screw extruder in plastic granulating line
fiber recycling granulator’s screw and the barrels are all made of high quality nitrided steel-38CrMoAIA,and are nitration austerely according to NATIONAL STANDARD, nitration hardness
fiber pelletizing machine working flow:
Fiber →conveying feeding →metal detector →compactor / agglomerating →Loading System→Single screw extruder →hydraulic screen exchanger →material outing mould→single screw extruder →hydraulic screen exchanger →Material outting mold→water cooling tank →air blowing drying sytem → pellet cutting machine → vibrating screener →blowing system →storage hopper → finished product packing
fiber pelletizing machine working flow:
Fiber →conveying feeding →metal detector →compactor / agglomerating →Loading System→Single screw extruder →hydraulic screen exchanger →material outing mould→single screw extruder →hydraulic screen exchanger →Material outting mold→water cooling tank →air blowing drying sytem → pellet cutting machine → vibrating screener →blowing system →storage hopper → finished product packing
Feeding fabric to cut compactor
Feeding fabric
Vacuum system
Degassing system
Metal detector
Detect the metal
HYDRAULIC SCREEN CHANGER
Filtering system in plastic granulating line -----CPF filter
There are too many kinds of filtering system,such as plate type filter,plunger type filter,laser filter,without mesh filter,CPF filter etc.Our engineer can help you to design the most suitable filtering system as your raw material characteristic.So please feel free to contact us for design the most suitable plastic recycling machine solution for you.
Large area plunger screen changer
Without mesh filter
Automatic Laser filter
PLASTIC PELLETIZING SYSTEM
Plastic pelletizing system in plastic granulating line(Strand pull strips cutting system)
Speed controlling by frequency conversion
Material:Stainless steel
Our engineer can help you to design the most suitable plastic pelletizing system as your raw material characteristic.So please feel free to contact us for design the most suitable plastic recycling machine solution for you.Air cooling rubs surface cutting system
Under water Strand pull strips cutting system
Under-water cutting system
VIBRATOR SIEVE
Dewatering Vibrator in plastic pellet machine line
Dewatering and choose the pellet
Material: Stainless steel
ELECTRIC CONTROL CABINET
SIEMENS PLC controller for plastic granules making machine line
“RKC” or "OMRON" Temperature controlling system
Supply the line which connect the main machine and cabinet
Supply the line which connect the main machine and cabinet
VIDEO
MACHINE PARAMETER
Single stage extruder & plastic pellets making machine technology parameter:
Model | Extruder motor | L/D | Output capacity | Screw Diameter | ||||
ML85 | 55kW | 36:1 | 50-200kg/h | 85mm | ||||
ML100 | 90kW | 36:1 | 200-400kg/h | 100mm | ||||
ML130 | 132kW | 33:1 | 400-600kg/h | 130mm | ||||
ML160 | 185kW | 33:1 | 600-800kg/h | 160mm | ||||
ML180 | 250kW | 30:1 | 800-1000kg/h | 180mm | ||||
Contact us for further more technology parameters and price | ||||||||
Double stage extruder & plastic pellets making machine technology parameter:
Model | First extruder | Second Extruder | Output Capacity | Screw diameter | ||||
ML85/SJ100 | 55kW | 22kW | 50-200kg/h | 85/100mm | ||||
ML100/SJ120 | 90kW | 37kW | 200-400kg/h | 100/120mm | ||||
ML130/SJ140 | 132kW | 45kW | 400-600kg/h | 130/140mm | ||||
ML160/SJ180 | 185kW | 55kW | 600-800kg/h | 160/180mm | ||||
ML180/SJ200 | 250kW | 75kW | 800-1000kg/h | 180/200mm | ||||
Contact us for further more technology parameters and price | ||||||||
COMPANY PROFILE
Purui is engaged in the design and manufacture of plastic recycling machinery.With more than 25 years of experience and unremitting efforts, Purui has accumulated rich production experience to offer the best plastic recycling solution. Our machine meets the requirements of national energy conservation and environmental protection.The machine has passed the European CE and CSA certification, we also have 13 patented technologies for the design of plastic washing and granulation machinery.
Purui is a competitive manufacturer in the field of producing plastic recycling machine. Such as plastic washing machine,plastic granulator,waste film recycling machine, agriculture film crushing and washing machine, rigid plastic recycling pelletizer machine,pp pe bopp pet plastic film granulating machine, waste hdpe pet bottle recycling machine, pp woven bag recycling (washing and granulator ) machine,non woven fabric pelletizing line, PA fiber pelletizing machine,twin screw compounding extruder, PET bottle flakes pelletizing line ,plastic crusher machine, plastic shredder machine etc.
Our machines are specialized in processing PP PE HDPE LDPE BOPP PET PA PVC ABS PS EVA and so on.
Our machines are specialized in processing PP PE HDPE LDPE BOPP PET PA PVC ABS PS EVA and so on.
We firmly believe that "Brand" is not only a trademark,a product,but also a quality.It uses good quality to maintain customers' trust in enterprises. With the joint efforts of our team, our recycling machines have been exported to the United States, Germany, Britain, Poland, Spain, Australia,Canada, Japan, South Korea, Malaysia, Indonesia, Thailand, Vietnam, India, Saudi Arabia and other countries all over the world,and the customer return rate is very high. Reliable quality enables customers to have higher cost performance.
PURUI promise,what we offer is not only the operation equipments with reasonable price,easy to operate, but also the perfect technical solutions and quicK after-sale service.
FAQ
Q:How to choose proper plastic recycling machine you want?
A:Please tell us as detail as what you want?For example:
* What’s your raw material?If you have the raw material photo,it will be very helpful for us to design the most suitable plastic washing line or plastic granulator machine.
* What capacity(kg/h)you want it performance?The capacity requirement decide our price directly. so it’s a import ant question.
Q:How to control the plastic recycling machine quality?
A:We have technical, engineer team design the suitable plastic recycling machinery before it enter into market
* Each component of plastic recycling machine before assembly needs strict control by inspecting personnel. All our workers have rich experience in this plastic recycling machine manufacturing field.
* We will running every plastic washing line or plastic pelletizing machine after finished before shipment.Customer can appoint a staff to come to checking the testing on spot.
* Optional choose by client running the machinery by material.
Q:Are you only a trading company or a real plastic recycling machinery manufacturer?
A:We are a professional plastic recycling machinery manufacturer in China and we can assure the quality of our plastic recycling crushing washing machine and plastic granulator machine.Welcome to visit our factory at any time!
Q:What’s your guarantee or the warranty of the quality if we buy your plastic recycling machines?
A We have one year warranty of the spare parts free of charge. If any quality problems on our side occured in this period ,we will can do some replacement.
A:Please tell us as detail as what you want?For example:
* What’s your raw material?If you have the raw material photo,it will be very helpful for us to design the most suitable plastic washing line or plastic granulator machine.
* What capacity(kg/h)you want it performance?The capacity requirement decide our price directly. so it’s a import ant question.
Q:How to control the plastic recycling machine quality?
A:We have technical, engineer team design the suitable plastic recycling machinery before it enter into market
* Each component of plastic recycling machine before assembly needs strict control by inspecting personnel. All our workers have rich experience in this plastic recycling machine manufacturing field.
* We will running every plastic washing line or plastic pelletizing machine after finished before shipment.Customer can appoint a staff to come to checking the testing on spot.
* Optional choose by client running the machinery by material.
Q:Are you only a trading company or a real plastic recycling machinery manufacturer?
A:We are a professional plastic recycling machinery manufacturer in China and we can assure the quality of our plastic recycling crushing washing machine and plastic granulator machine.Welcome to visit our factory at any time!
Q:What’s your guarantee or the warranty of the quality if we buy your plastic recycling machines?
A We have one year warranty of the spare parts free of charge. If any quality problems on our side occured in this period ,we will can do some replacement.
