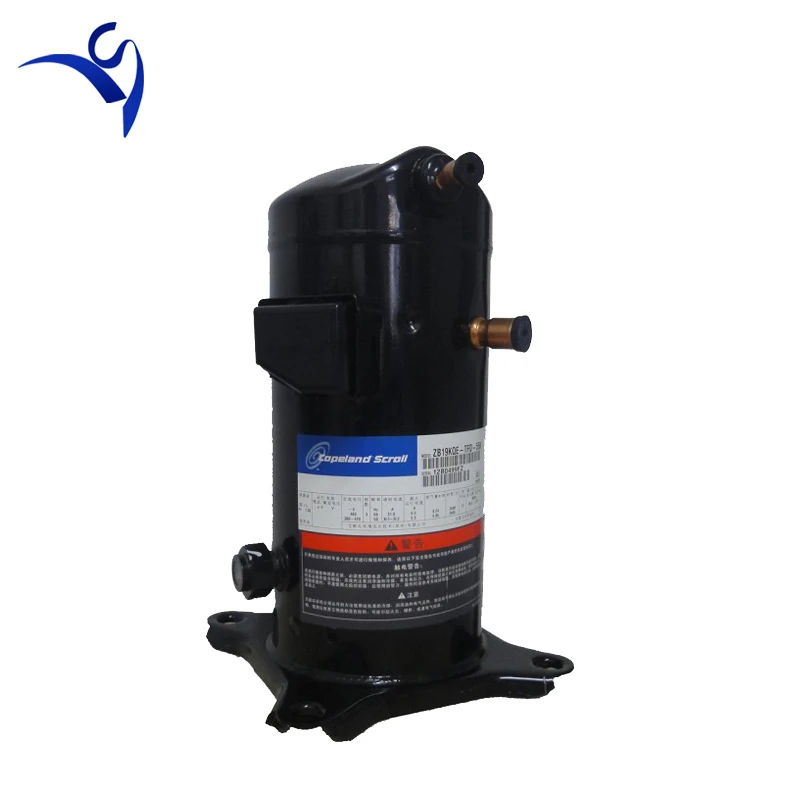

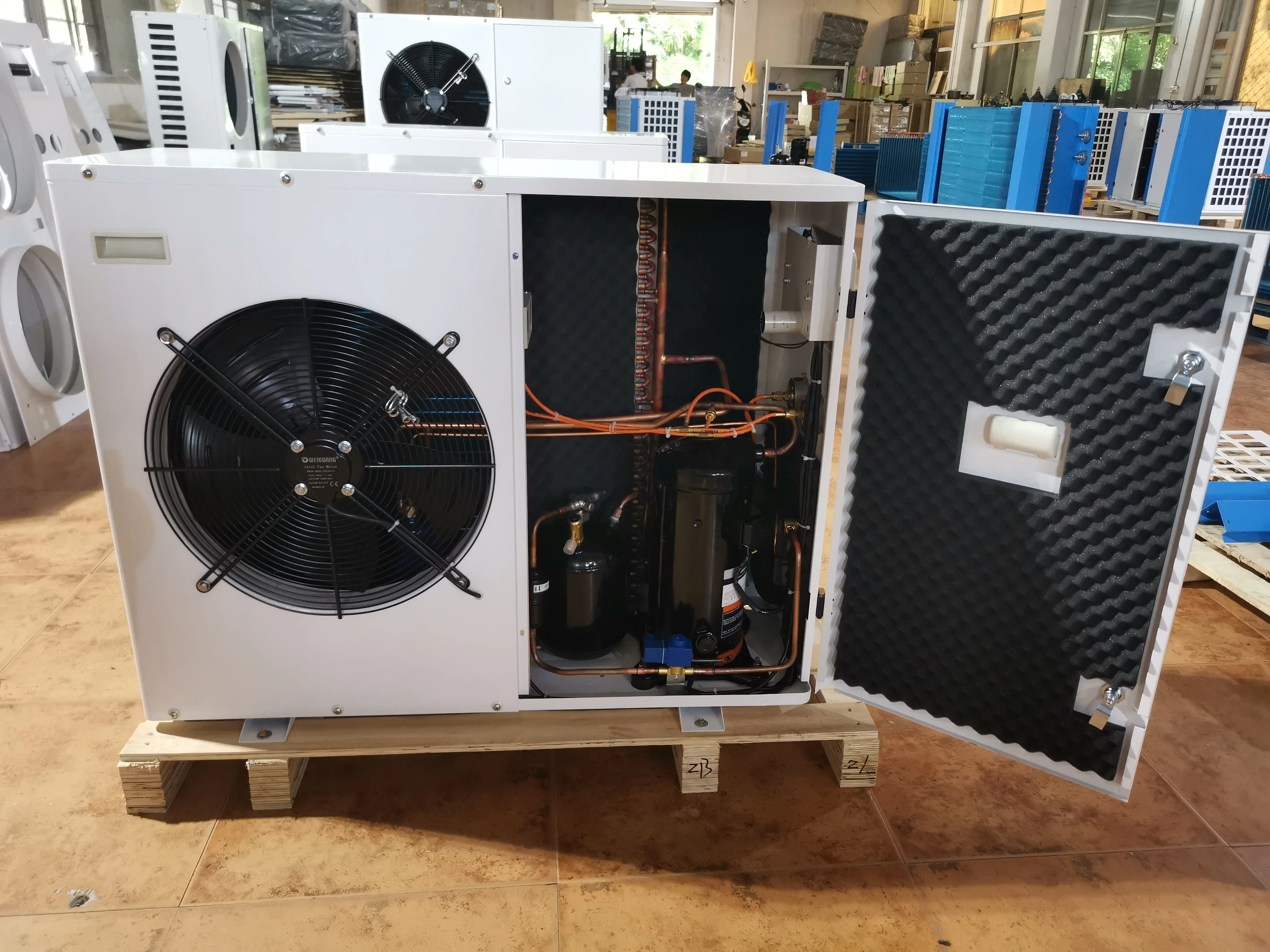

3hp ZB21KQE TFD Copeland ZB scroll compressor condensing unit

Product Overview

Description







Copeland ZB SCROLL COMPRESSORS R404A FOR MEDIUM AND HIGH TEMPERATURE

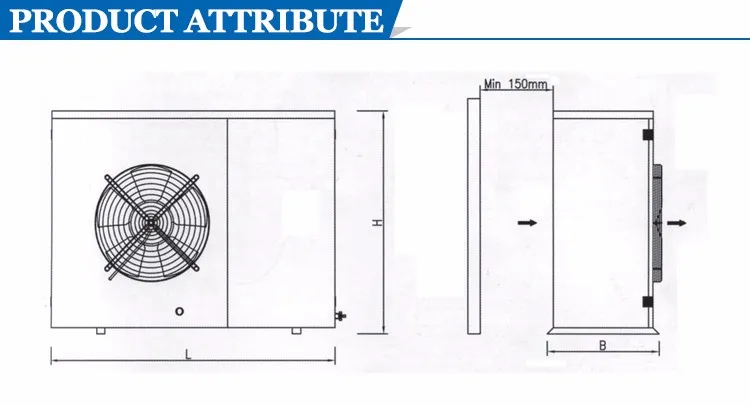

Model	HP	Compressor	Voltage	Cooling capacity(W)					Axial Fans	Dimensions			Noisy	Connection
				Evaporating temperature(°C)
			(V-Ph-Hz)	-15	-10	-5	0	5	N°x Diameter	L	W	H	10m(db)	Inlet	Outlet
LKPG200	2	ZB15KQE-PFJ	220-1-50	2400	2950	3600	4300	5150	1 x 450	1050	380	830	33	3/4"	3/8"
LKPG200S	2	ZB15KQE-TFD	380-3-50	2400	2950	3600	4300	5150	1 x 450	1050	380	830	33	3/4"	3/8"
LKPG250	2.5	ZB19KQE-PFJ	220-1-50	3150	3800	4600	5450	6500	1 x 450	1050	380	830	33	3/4"	3/8"
LKPG250S	2.5	ZB19KQE-TFD	380-3-50	3150	3800	4600	5450	6500	1 x 450	1050	380	830	33	3/4"	3/8"
LKPG300	3	ZB21KQE-PFJ	220-1-50	3750	4550	5500	6550	7750	1 x 450	1050	380	830	39	3/4"	3/8"
LKPG300S	3	ZB21KQE-TFD	380-3-50	3750	4550	5500	6550	7750	1 x 450	1050	380	830	39	3/4"	3/8"
LKPG350	3.5	ZB26KQE-PFJ	220-1-50	4400	5350	6400	7650	9100	1 x 450	1050	380	830	42	3/4"	1/2"
LKPG350S	3.5	ZB26KQE-TFD	380-3-50	4400	5350	6400	7650	9100	1 x 450	1050	380	830	42	3/4"	1/2"
LKPG400S	4	ZB29KQE-TFD	380-3-50	5100	6200	7450	8900	10550	2 x 450	1050	380	1220	42	7/8"	1/2"
LKPG500S	5	ZB38KQE-TFD	380-3-50	6450	7800	9400	11200	13300	2 x 450	1050	380	1220	43	7/8"	1/2"
LKPG600S	6	ZB45KQE-TFD	380-3-50	7550	9150	11000	13100	15550	2 x 450	1050	380	1220	43	7/8"	1/2"
LKPG700S	7	ZB48KQE-TFD	380-3-50	8300	10050	12050	14400	17100	2 x 450	1050	380	1220	43	7/8"	1/2"
TEST CONDITION: Condensing Temperature: 50°C
