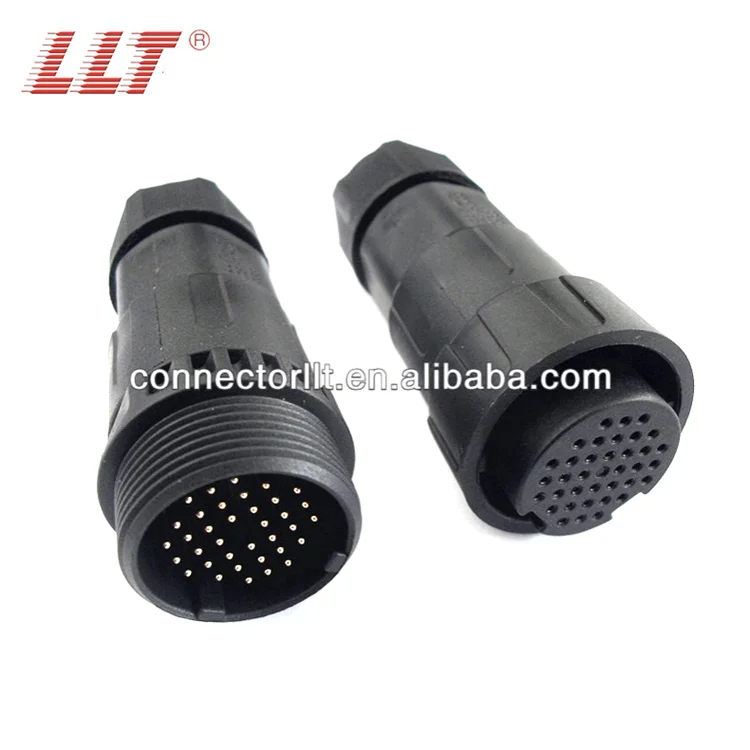

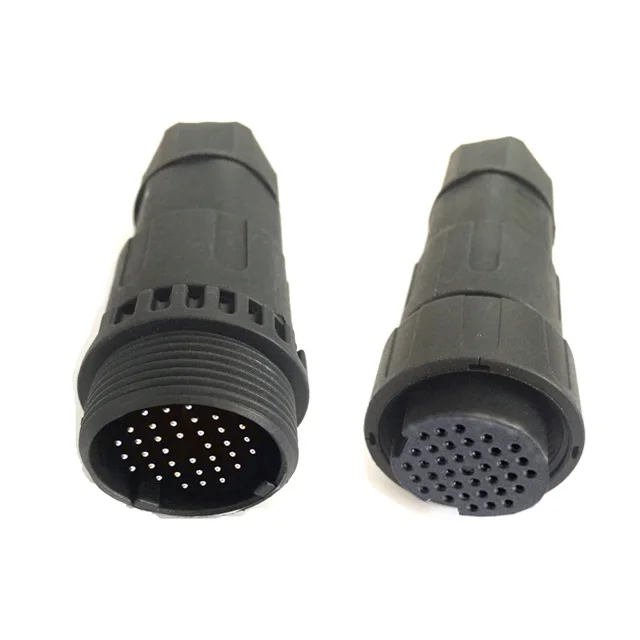

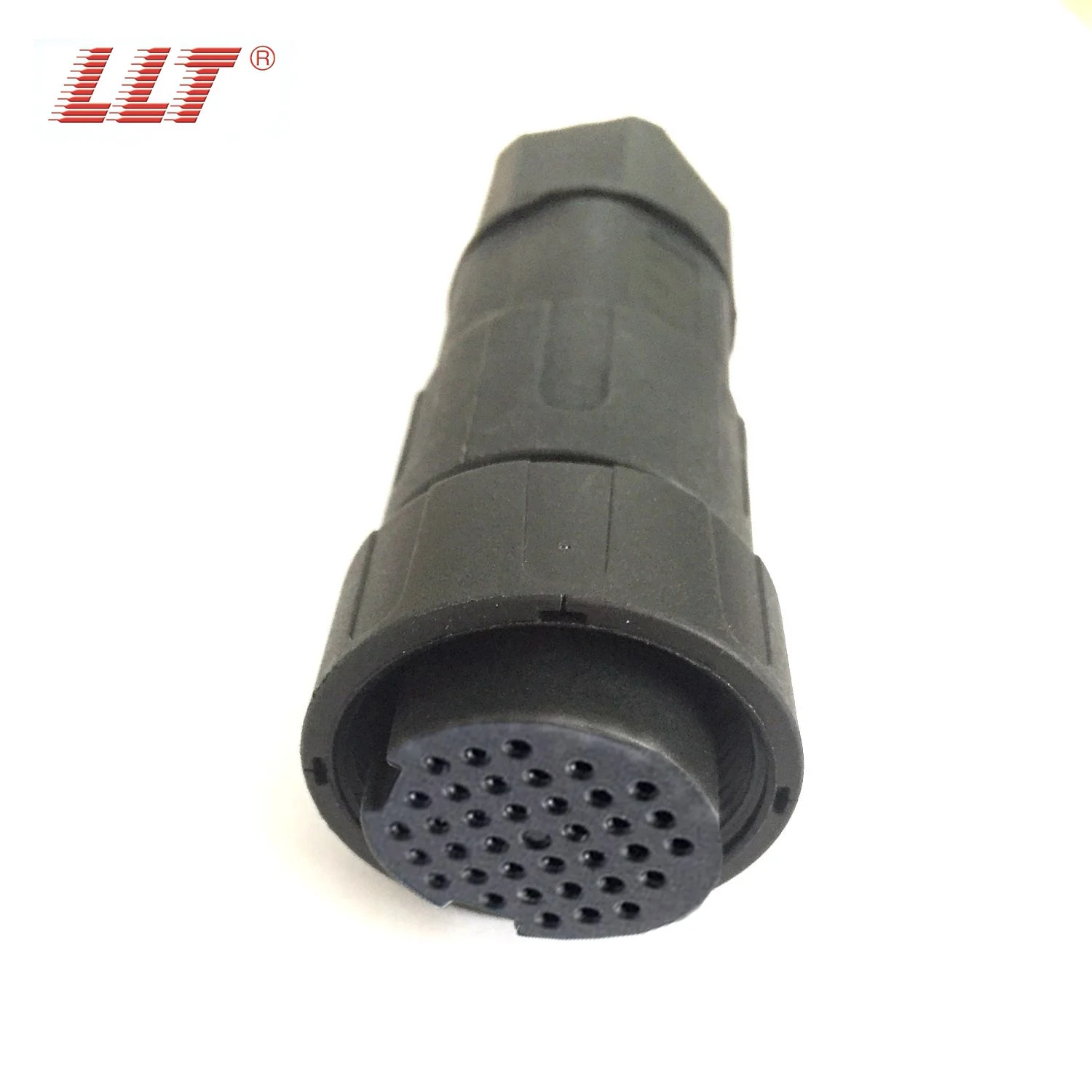

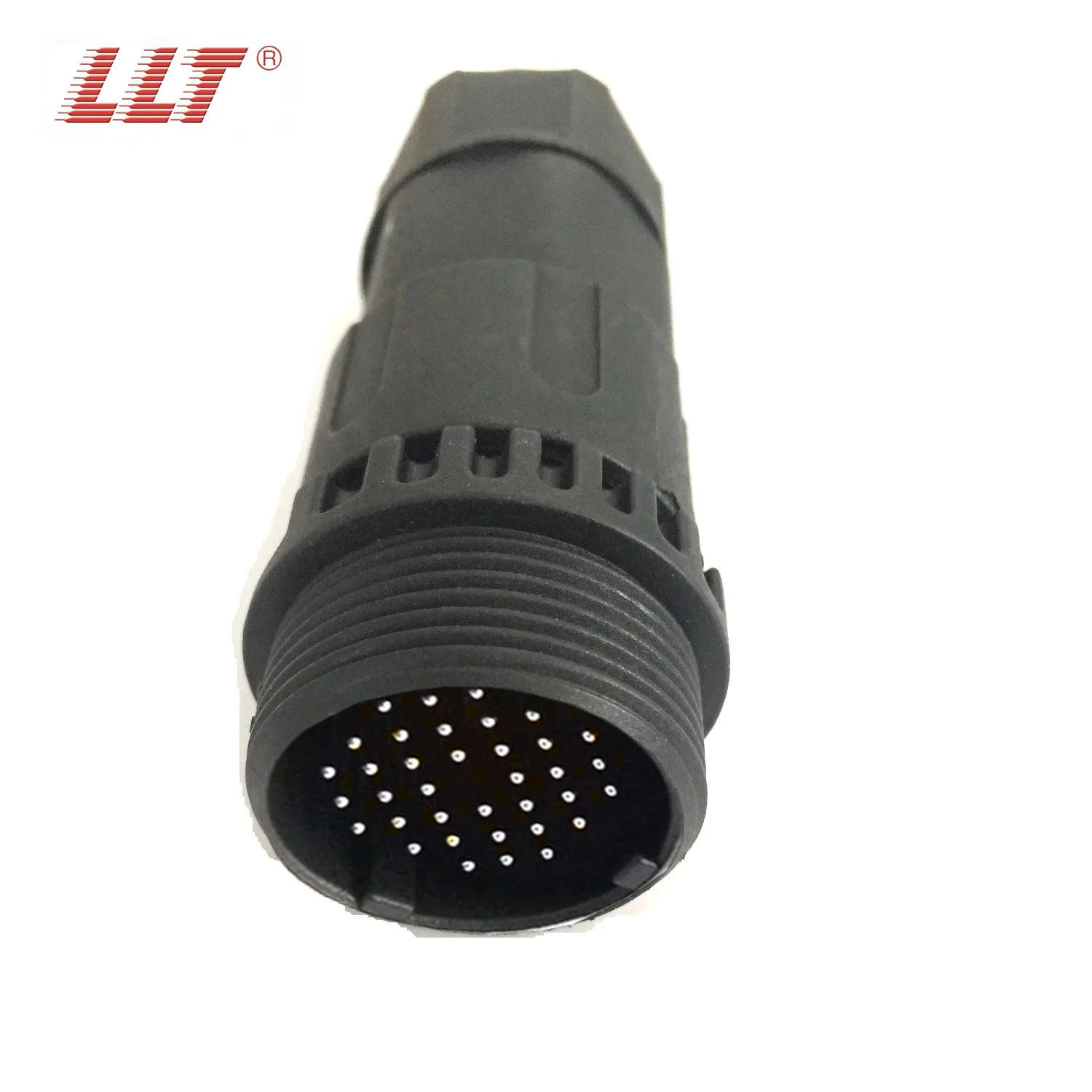

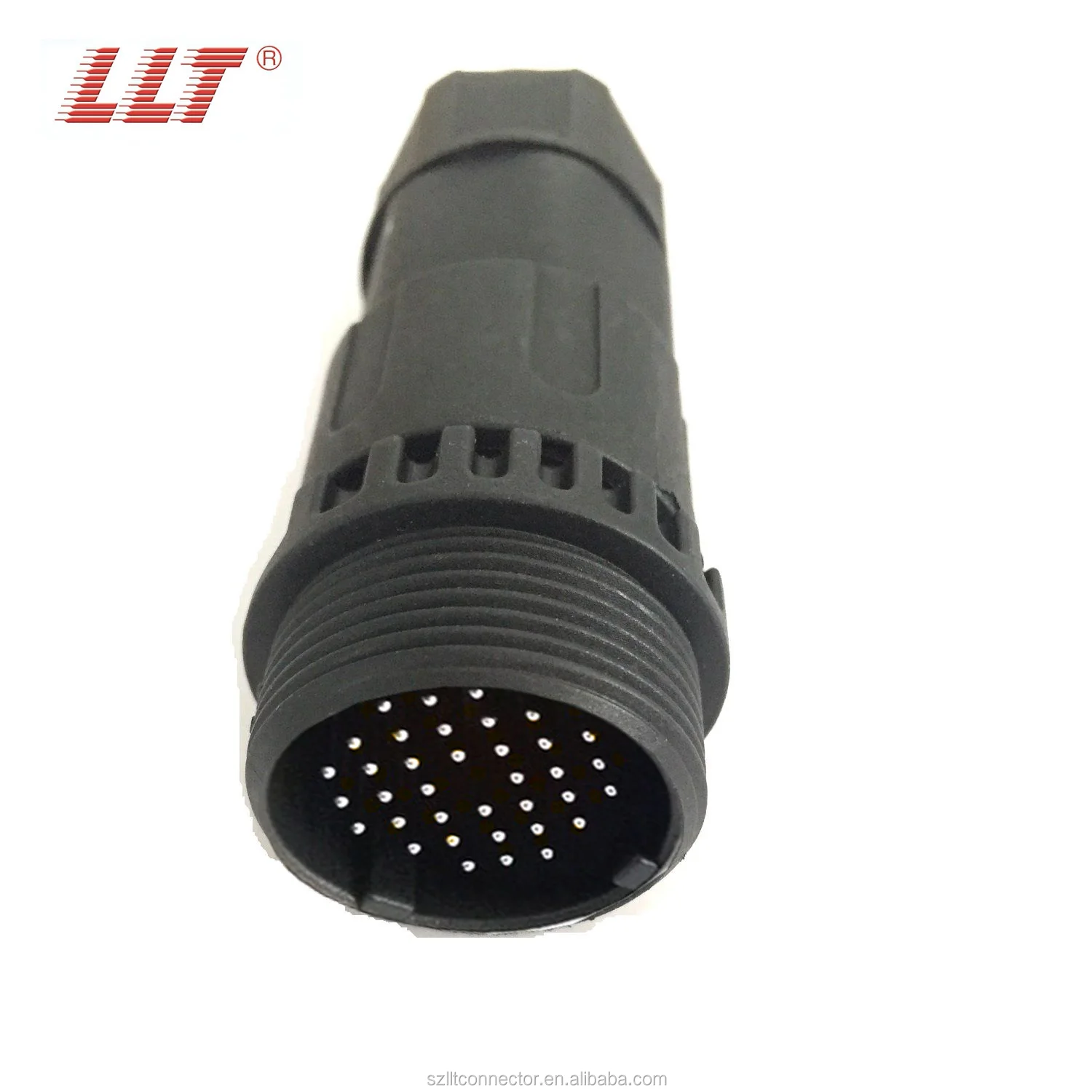

auto electrical 36pin signal Plug Socket Male Female plastic solder multiply pin connector
- Category: >>>
- Supplier: Shenzhen Lilutong Connector Corp. Ltd.
Share on (1600542176135):
Product Overview
Description
Product Description
Specification:
Model number:LLT-M29-05036F1051
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:5A
Voltage rating:100V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2 to 8 and12/18/20/24pin
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:5A
Voltage rating:100V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2 to 8 and12/18/20/24pin
36pin
Max Cable Range:15mm
Max Cable Range:15mm
Terminal attach wire:solder
Pin Number | Voltage Rating | Current Rating | Contact Resistance | Insulation Resistance | IP Code | Cable Diameter | Breakdown Voltage |
2 | 600V | 35A | <=10mΩ | 1000MΩ | IP68 | <=15mm | 1.5KV/1 minute |
3 | 600V | 35A | <=10mΩ | 1000MΩ | IP68 | <=15mm | 1.5KV/1 minute |
4 | 600V | 35A | <=10mΩ | 1000MΩ | IP68 | <=15mm | 1.5KV/1 minute |
5 | 300V | 20A | <=10mΩ | 1000MΩ | IP68 | <=15mm | 1.5KV/1 minute |
6 | 300V | 20A | <=10mΩ | 1000MΩ | IP68 | <=15mm | 1.5KV/1 minute |
8 | 300V | 20A | <=10mΩ | 1000MΩ | IP68 | <=15mm | 1.5KV/1 minute |
12 | 100V | 5A | <=10mΩ | 1000MΩ | IP68 | <=15mm | 1.5KV/1 minute |
18 | 100V | 5A | <=10mΩ | 1000MΩ | IP68 | <=15mm | 1.5KV/1 minute |
20 | 100V | 5A | <=10mΩ | 1000MΩ | IP68 | <=15mm | 1.5KV/1 minute |
24 | 100V | 5A | <=10mΩ | 1000MΩ | IP68 | <=15mm | 1.5KV/1 minute |
36 | 100V | 5A | <=10mΩ | 1000MΩ | IP68 | <=15mm | 1.5KV/1 minute |
37 | 100V | 5A | <=10mΩ | 1000MΩ | IP68 | <=15mm | 1.5KV/1 minute |
