Intrinsically Safe Acceleration/Temperature Accelerometer Vibration Complex Transducer Piezoelectric Sensor
- Category: >>>
- Supplier: Yangzhou Xiyuan Electronic Technology Co. Ltd.
Share on (1600542184296):
Product Overview
Description
Product Description
Characteristic:
Model Specifications：EA11 24VDC
Ex-mark：Ex ia ⅡC T6 Ga
The Ann parameters：Ui= 28VDC,Ii=93mA,Pi=0.65W,Ci=0μF,Li=0mH
Ex-mark：Ex ia ⅡC T6 Ga
The Ann parameters：Ui= 28VDC,Ii=93mA,Pi=0.65W,Ci=0μF,Li=0mH
Specification:
Supply Voltage | 18-24VDC (current source) |
Constant current source excitation current source excitation | 2-10mA (typical value：4mA) |
Range | Accelerated:±10g,±50g choosable; Temp:-40- +85℃（Pt100） |
Acceleration signal output | 100mV/g, 500mV/g choosable |
The temperature signal | Pt100 A level（±0.15%） |
Frequency Response | 0.5-10000Hz（±3dB） |
Operation Temp | -40- +85℃ |
Storage environment | Temp:-40℃~+85℃，RH:≤80%RH |
Normal working environment | No strong magnetic field, no corrosive vapor liquid, no strong vibration source |
Hazardous working environment | Dangerous places in zone 0, zone 1 and Zone 2 of explosive gas mixtures of class ⅱ A ~ ⅱ C and T6 |
Ex-mark | Ex ia ⅡC T6 Ga |
Protection Class | IP65 |
The shielded wire is insulated from the ground | ＞200MΩ |
Dielectric strength | ＞500Vrms |
Shell Material | 304 Stainless Steel |
Weight | 80g |
Output way | 5/8-24 two-core(Accelerated) or 5/8-24four/five-core(Accelerated+Temp) |
Install the screw | 1/4-28 |

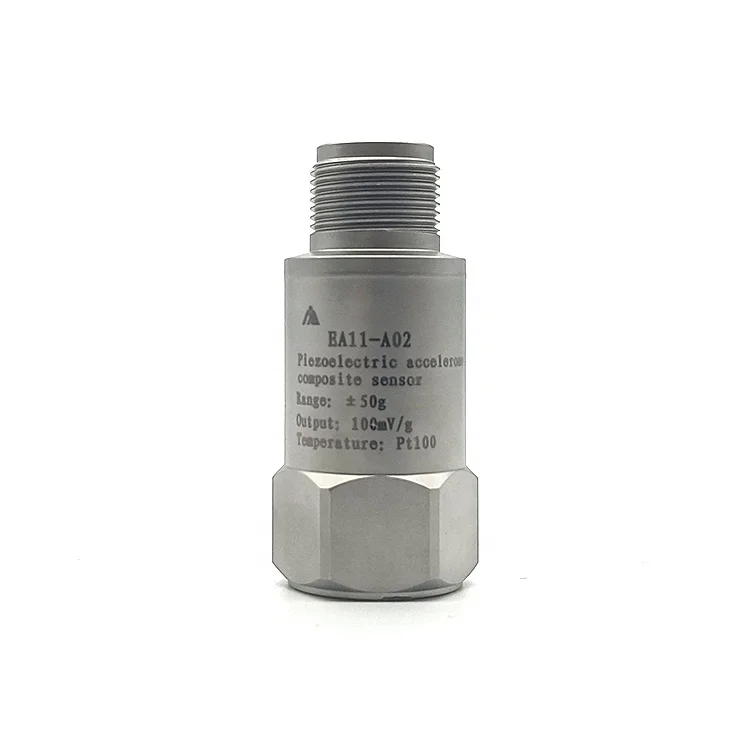

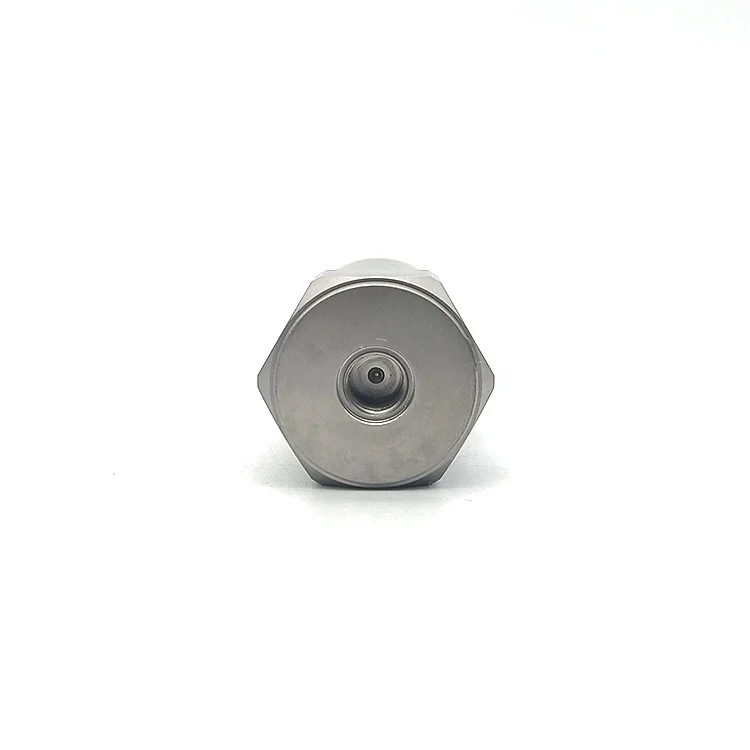

Product Display

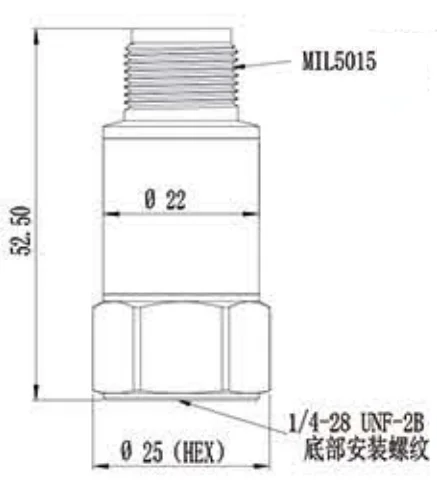

Size
Temperature Curve

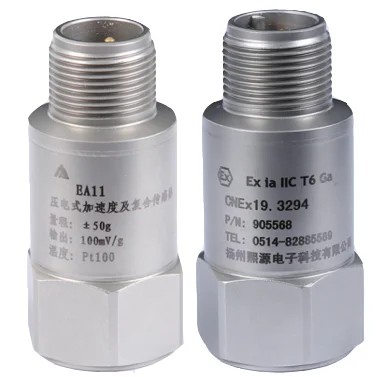

PRODUCT DISPLAY
