bench lathe torno mini metal lathe
- Category: >>>
- Supplier: Zaozhuang Tok Machinery Co. Ltd.
Share on (1600542185743):
Product Overview
Description

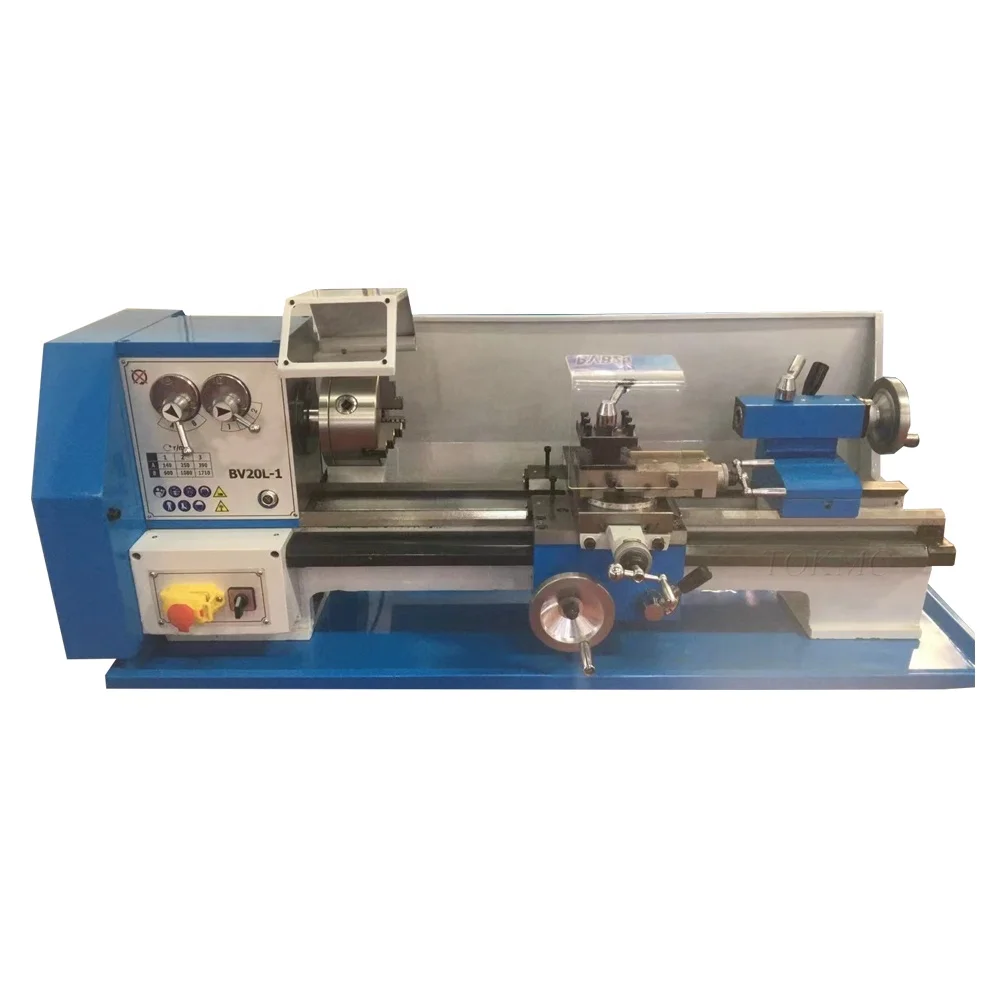

Feature gear head mini lathe BV20L-1 : V-way bed ,precision ground
Spindle is supported by precision tapered bearing
Headstock is constantly oiled during operating
Power longitudinal feed allows threading
Adjustable gids for slideways
Equiped with leadscrew,chuck and cutter covers
Change gears had large feed and threading functions
Tailstock may be offset for turning tapers.
Spindle is supported by precision tapered bearing
Headstock is constantly oiled during operating
Power longitudinal feed allows threading
Adjustable gids for slideways
Equiped with leadscrew,chuck and cutter covers
Change gears had large feed and threading functions
Tailstock may be offset for turning tapers.
Specification | Unit | BV20L-1 |
Max.swing over bed | mm | 200 |
max.swing over cross slide | mm | 115 |
Max.distance between centers | mm | 520 |
Taper of spindle hole | Morse | MT3 |
Spindle bore | mm | 20 |
No. Of steps spindle speed | No. | 6 |
Spindle speeds | R.p.m | 140-1710 |
Range of longitudinal feeds | Mm/rev | 0.05-0.15 |
Range of inch threads | T.P.I. | 8-32 |
Range of metric threads | Mm | 0.4-3 |
Taper of tailstock sleeve | Morse | MT2 |
Tailstock quill travel | mm | 35 |
Motor | Kw | 0.55 |
Lathe size LxWxH | mm | 1200x500x550 |
N.W/ G.weight | Kgs | 105/110 |
optional accessory hobby lathe,economic mini metal lathe | ||||||
1 | Four jaw chuck | 6 | Foot stand | |||
2 | Follow rest | 7 | Turning tools | |||
3 | Steady rest | 8 | Splash guard | |||
4 | Face plate | 9 | Chip tray | |||
5 | Collet chuck /collet holder | 10 | Back plate | |||
-When do you delivery?
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ，L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ，L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
