ET2501 150B 30~ 150C Cheaper price Dry Block Temperature bath temperature Calibration calibrator
- Category: >>>
- Supplier: Hangzhou Zhongchuang Electron Co. Ltd.
Share on (1600542192518):
Product Overview
Description
Product Overview
ET2501-150B -30~ 150C Cheaper price Dry Block Temperature bath temperature calibrator
Portable Dry Block Calibration Dry Type Temperature Calibrator from -30~ 1200c
1. Small Size, light weight. G.W. weight is about 19 kgs, save shipping cost.
2. 4 standard insertion tube, and it can also be customized.

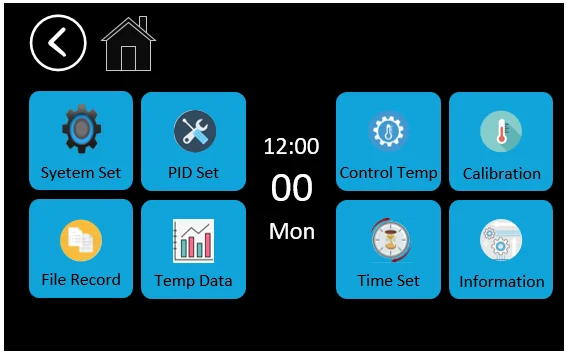

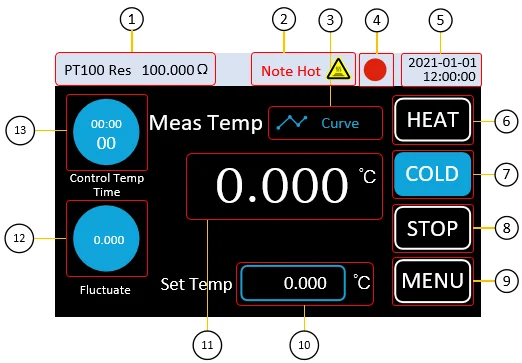

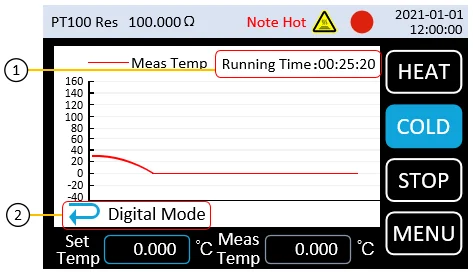

3. 5.7 inch TFT color LCD display, full touch operation.
4. Quick heating, cooling, convenient setting and good stability.
5. Protective functions: Short circuit with load, load circuit breaking, sensor protection.
6. Upper management software, data can be easily read.
Portable Dry Block Calibration Dry Type Temperature Calibrator from -30~ 1200c
FEATURES AT A GLANCE
Temperature Range: -30~1200c
Resolution Rate: 0.01c
Trademark: EAST TESTER
The heating block could be customized according to customer's requirement.

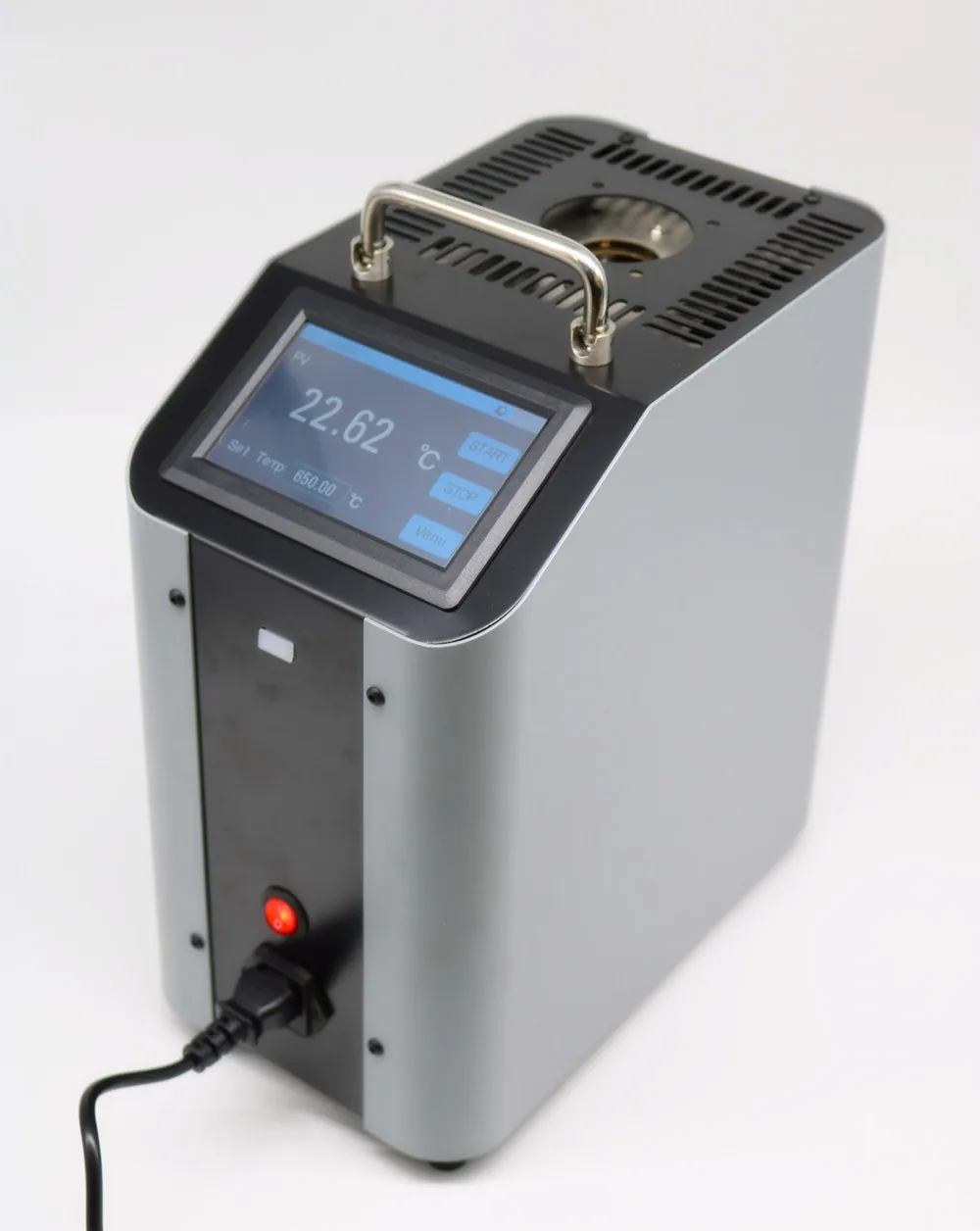

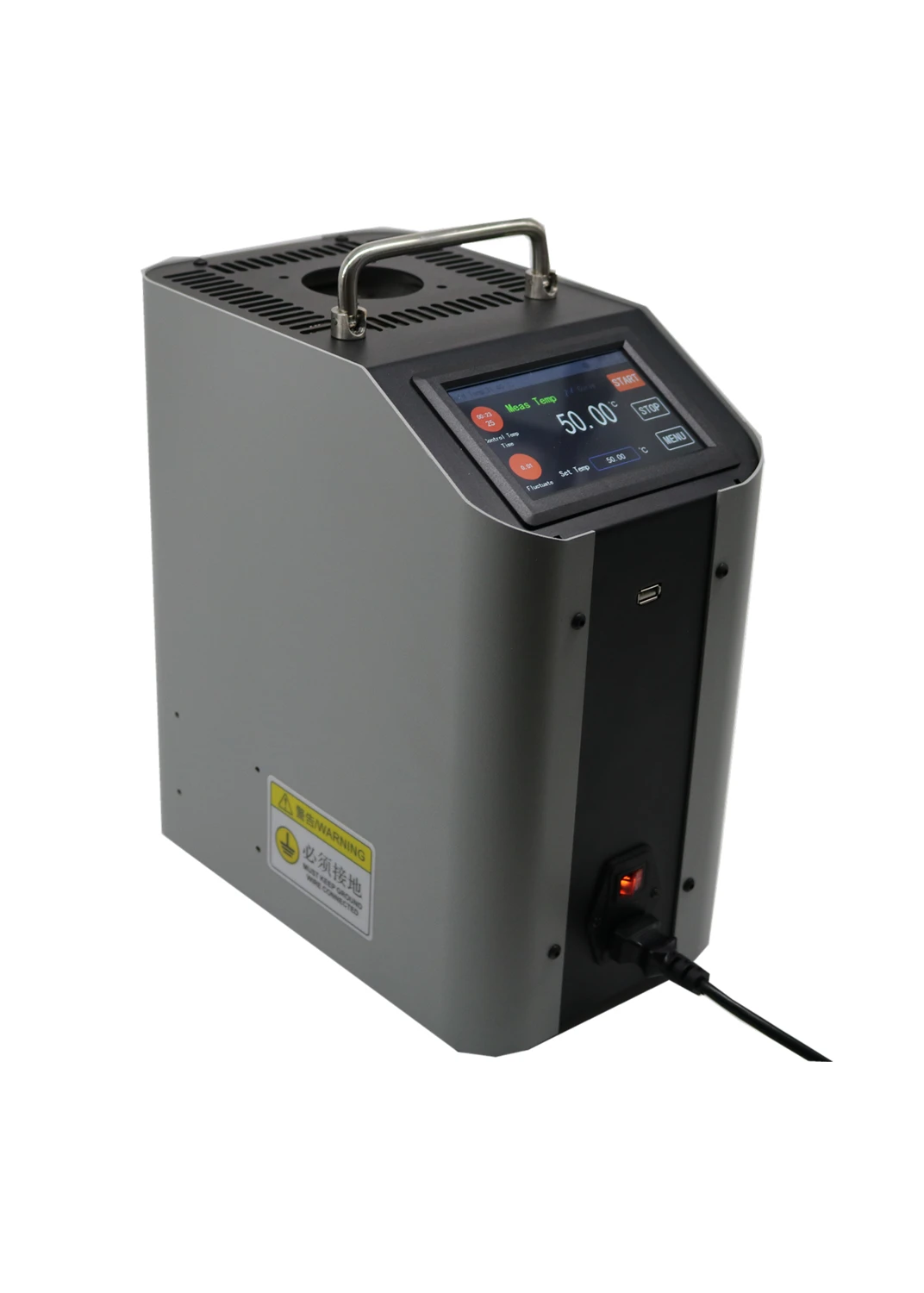

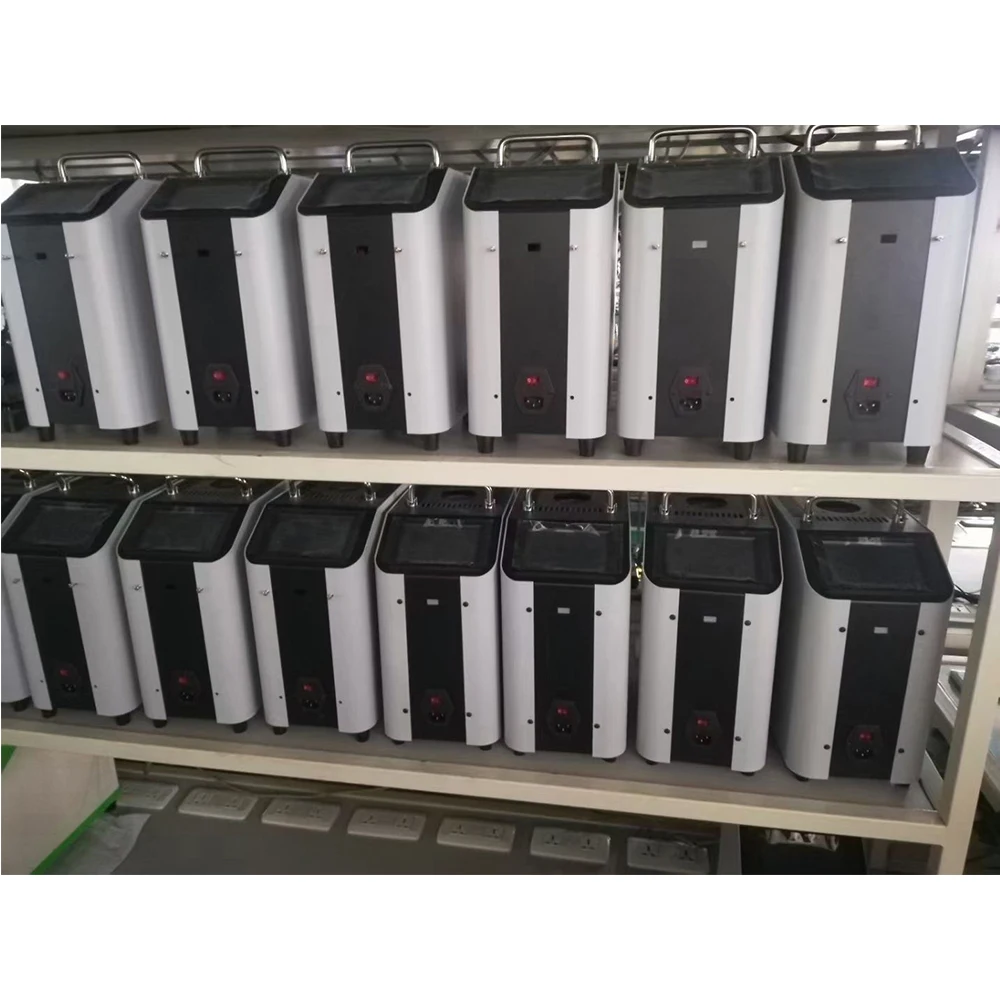

Product Photoes
PRODUCT SPECIFICATIONS
Model | ET2501-150A | ET2501-150B | ET2501-650 | ET2501-1200 | |||
temperature range | -20℃~150℃ | -30℃~150℃ | 50℃~650℃ | 300℃~1200℃ | |||
Heating Rate | 25℃~50℃6min 50℃~100℃15mins 100℃~150℃20mins 25℃~0℃15mins 0℃~-20℃15mins -20℃~-30℃ 22mins | 50℃~300℃：7mins 50℃~650℃：30mins | 25℃~100℃：10mins； 100℃~600℃：15mins； 600℃~800℃：20mins 800℃~1200℃：30mins； | ||||
Display accuracy | ≤±0.1℃ | ≤±0.1℃ | Below 400℃：≤±0.35℃ 400-650℃：≤±0.5℃ | ≤±1.2℃ | |||
Insertion depth | 160mm | 160mm | 150mm | 135mm | |||
Average heat block diameter | 36mm | 32mm | 32mm | 39mm | |||
Temperature field stability | ≤±0.02℃ | ≤±0.02℃ | ≤±0.05℃ | ≤±0.2℃ | |||
Horizontal temperature field | ≤±0.05℃ | ≤±0.05℃ | ≤±0.05℃ | ≤±0.25℃ | |||
Vertical temperature field | The deviation in the range of 50mm calculated from the bottom of the hole of the soaking block is 1 degree | ||||||
Temperature unit | ℃ or ℉ | ||||||
Temp Accuracy | 0.1% | ||||||
Display resolution | 0.01℃ / 0.001℃ | ||||||
maximum power | Negative temperature type: 3000W, medium temperature type: 1200W, high temperature type: 3000W | ||||||
weight(Net weight) | Negative temperature type: 10kg, medium temperature type: 10kg, high temperature type: 8kg | ||||||
weight (Containing packaging) | Negative temperature type: 19kg, medium temperature type: 19kg, high temperature type:16kg Packaging includes aluminium box and transport wooden box | ||||||
Demension | Negative temperature type and high temperature type: 310*190*340mm, medium temperature type: 250*150*310mm | ||||||
Use environment | Ambient temperature 0-50℃, relative humidity less than 95%(no condensation) | ||||||
Optional USB Communication | The standard dry block temperature calibrator is with no USB FUNCTION, please contact supplier for optional USB function. | ||||||

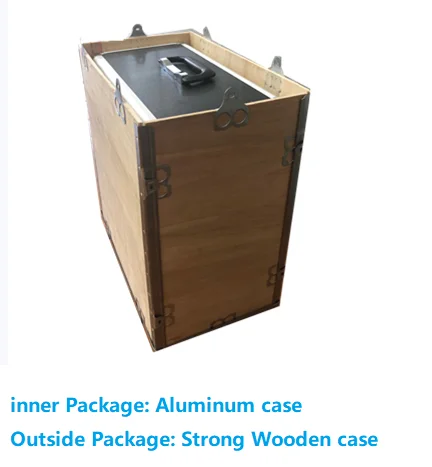

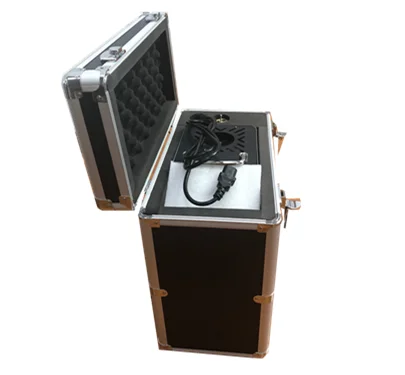

Packaging and Delivery

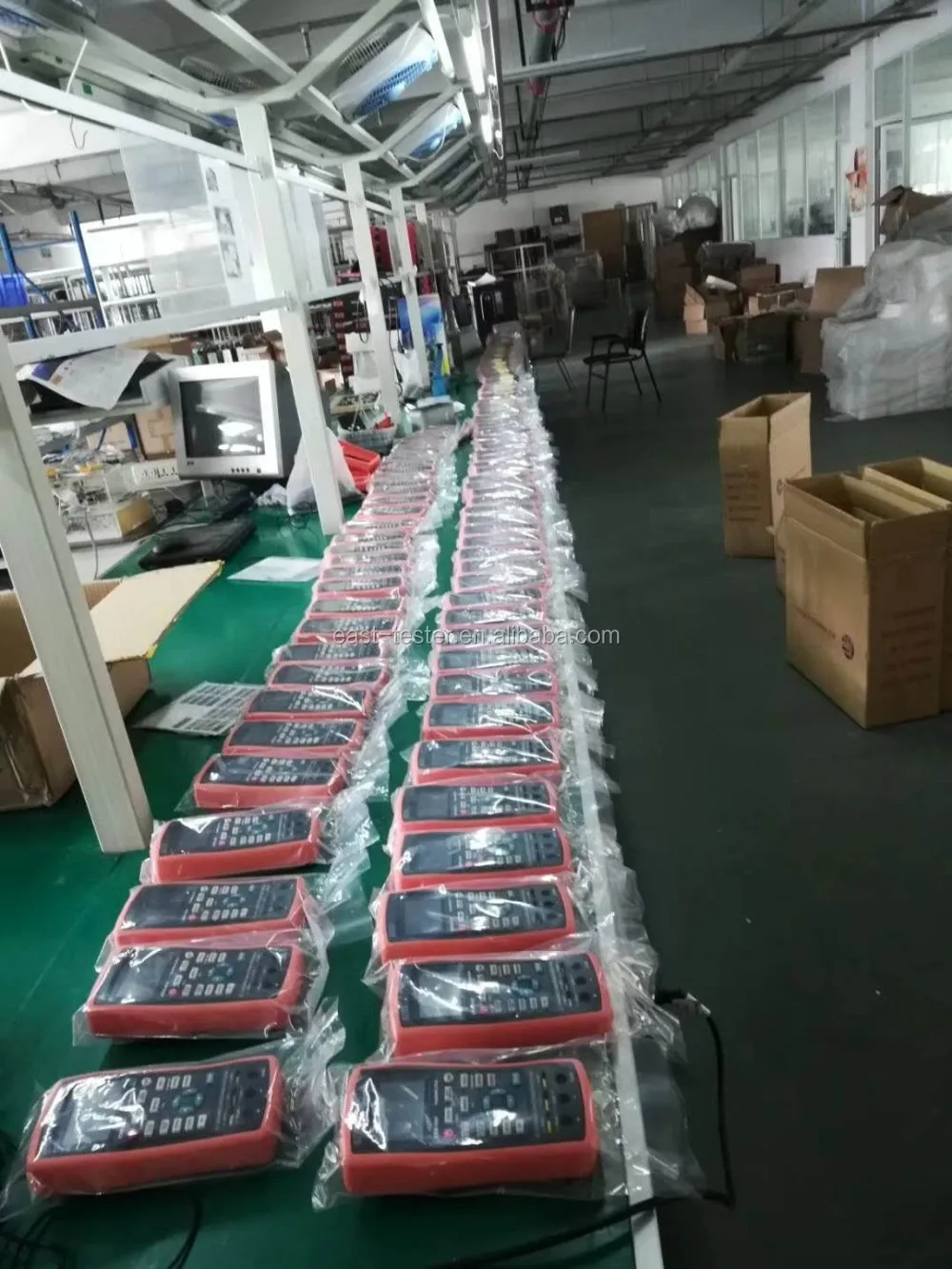

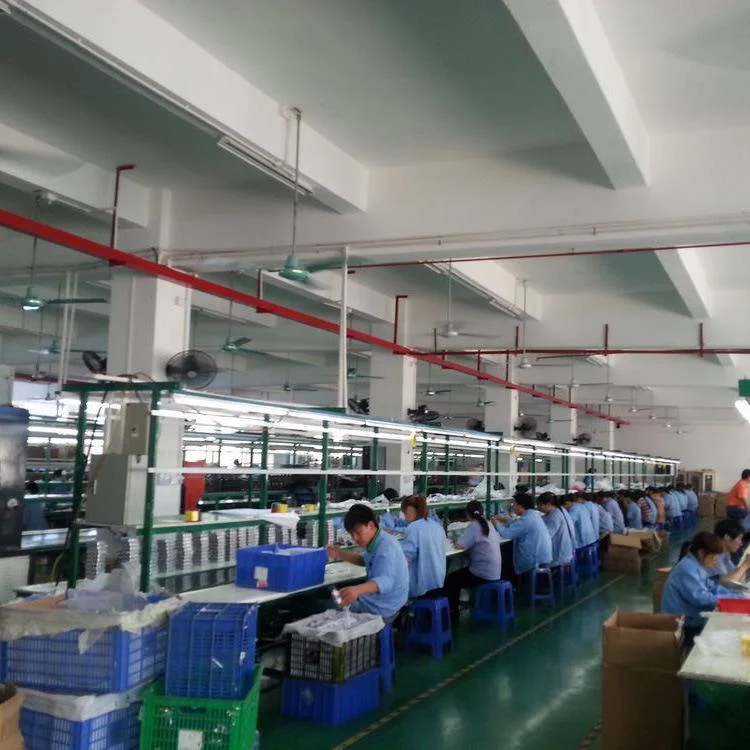

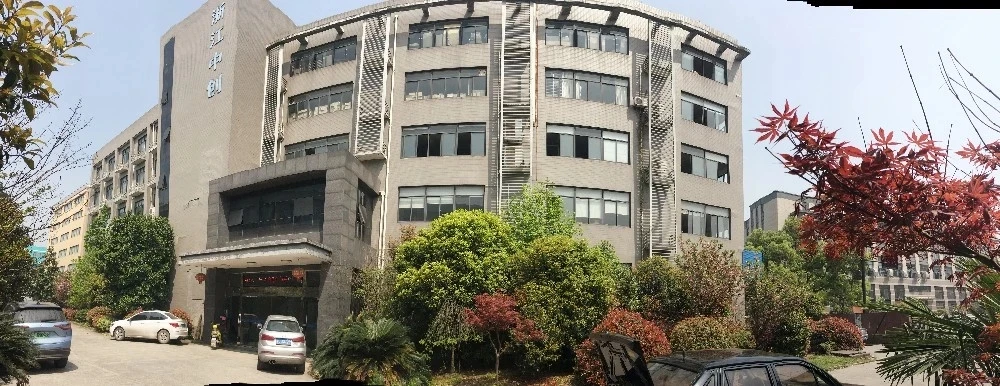

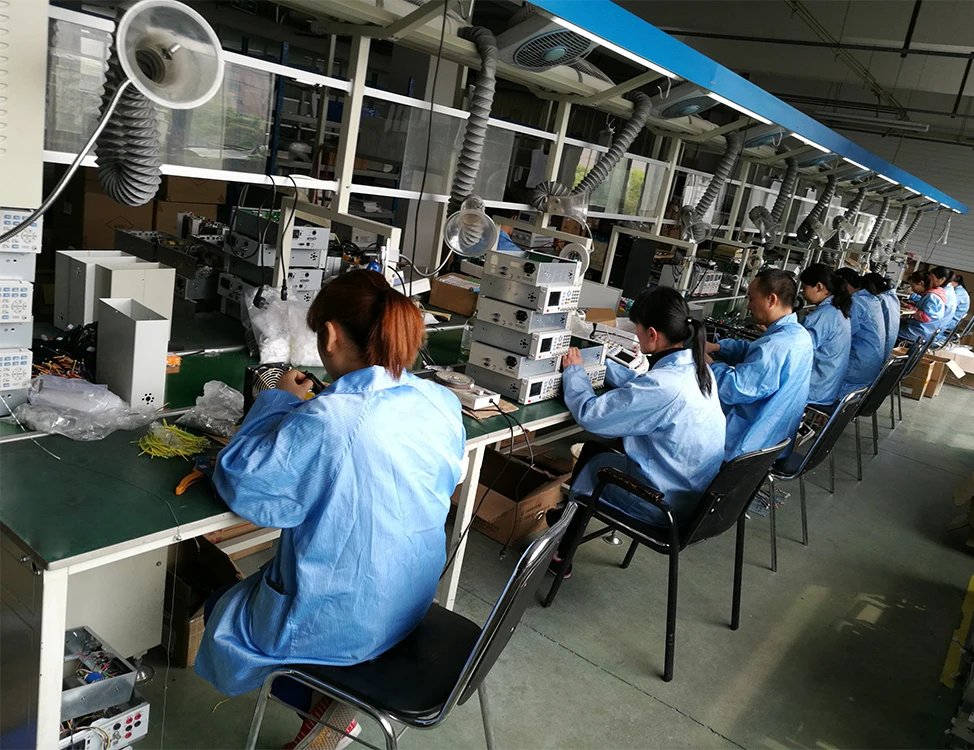

Company Profile
Hangzhou Zhongchuang Electron Co., Ltd. is a professional manufacturer integrating R&D, production and sales of thermal inspection instruments since 1998., located in Kangqiao Industrial Park, North Hangzhou Software Park. The company covers an area of 7300 square meters and a building area of 17500 square meters.
And we have developed dry block temperature calibrator, zero thermostat, handheld process calibrator, benchtop process calibrator, DC electric load, digital LCR meter and digital multimeter, mainly used in electric power, petroleum, chemical industry, metallurgy, metrology, railway, textile, and other industries.
The company has more than 120 employees, including 15 high-tech engineers.

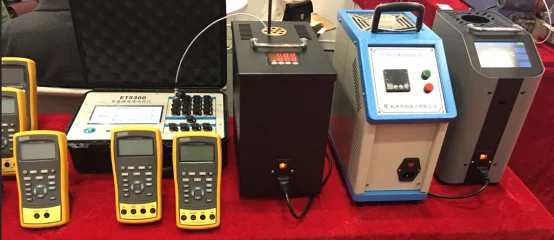

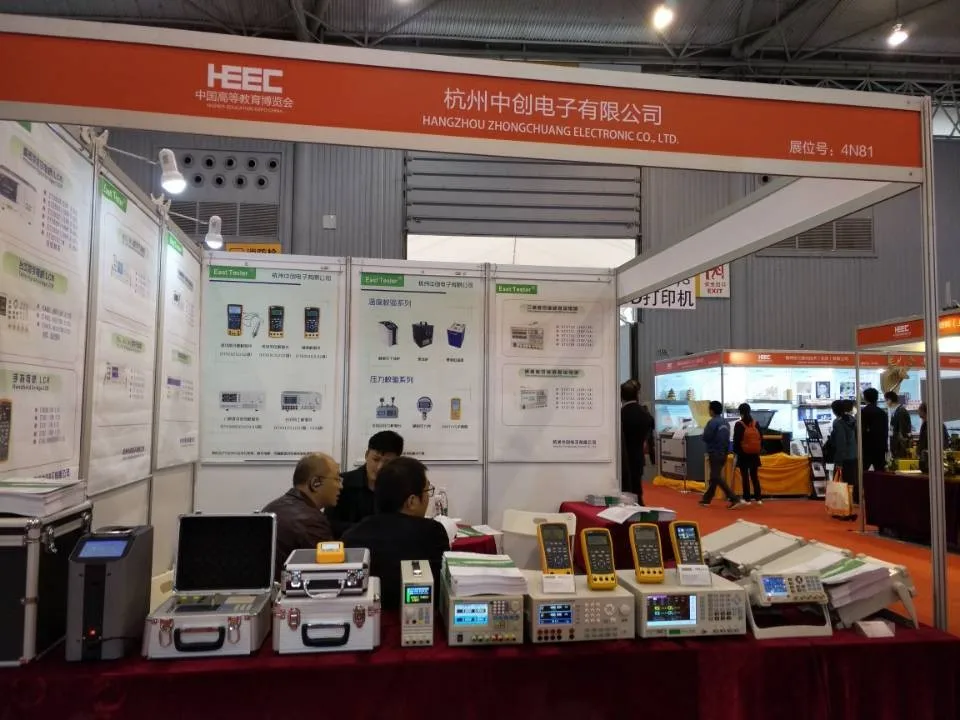

Exhibition
Certificate
F & Q
1. Are you a factory or a foreign trade company?
A: We are a factory with OEM and ODM service, with 120 employees.
2. How do you guarantee your products ?
A: 1)Pre-production confirmation;
2) Professional QC for inspection;
3)Manufacturing inspection& full-inspection after production finished,
4)Good after-sales services.
3. Why we can choose you?
A:1): Reliable---we are the real company, we dedicate in win-win.
2): Professional---we offer the Temperature& Measurement products exactly you want.
3): Factory---we have factory, our price is competitive.
4. How about the shipping method?
A: If the package is not large, we propose send goods to you via courier, such as FEDEX, DHL. We have built long cooperation with
them.
For large package, we recommend send it to you via sea, or through your designated forwarder.
5. How about the price? Can you make it cheaper?
A: The price depends on the quantity of your demand(model, quantity)
Best quotation will be provided after receiving full description of the item you want.
6. What is the payment?
A: Most of the products are with stock here. If no stock, full payment in advance is required before production.
We accept T/T, E-CHECKING, CREDIT CARD,, Alibaba Trade Assurance.
