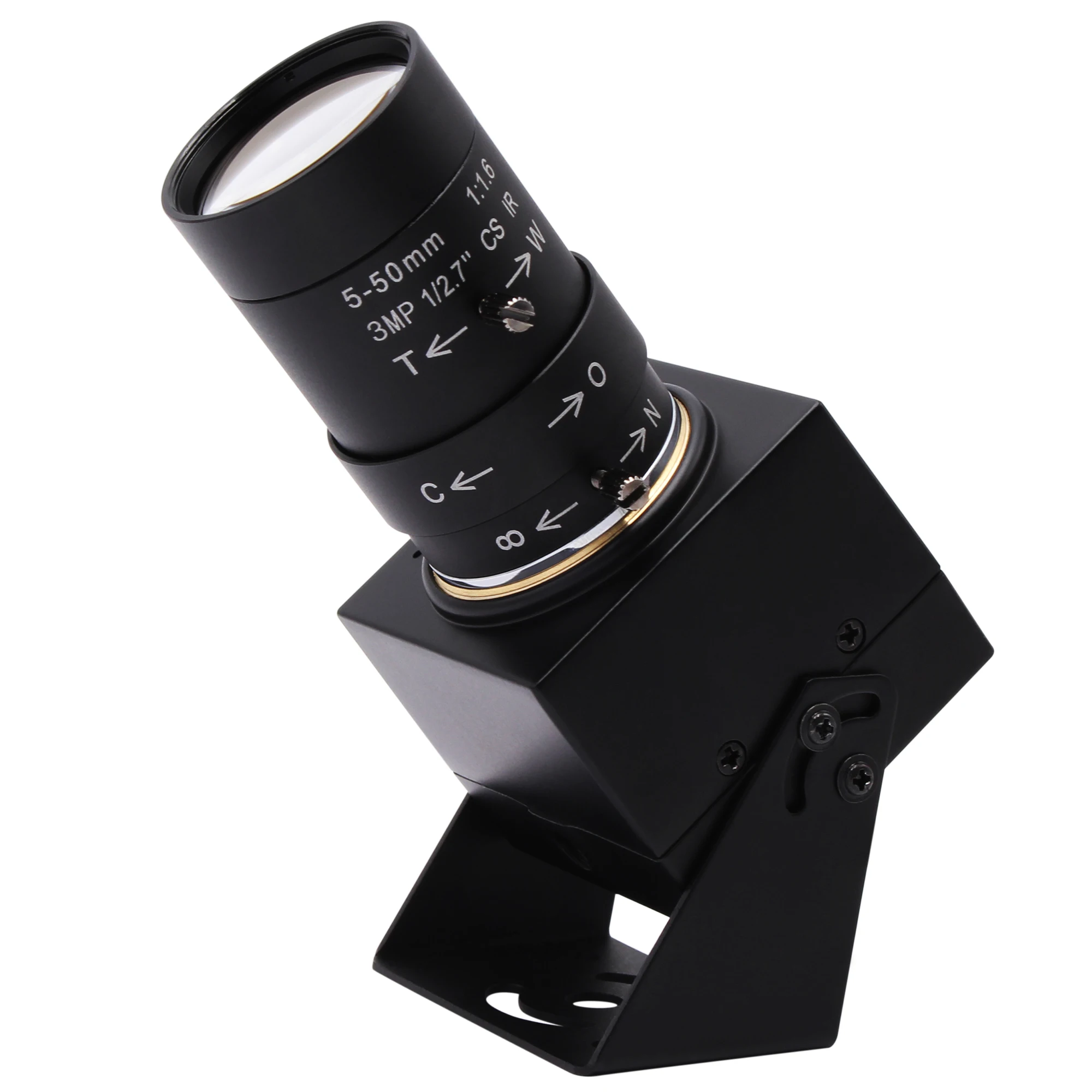

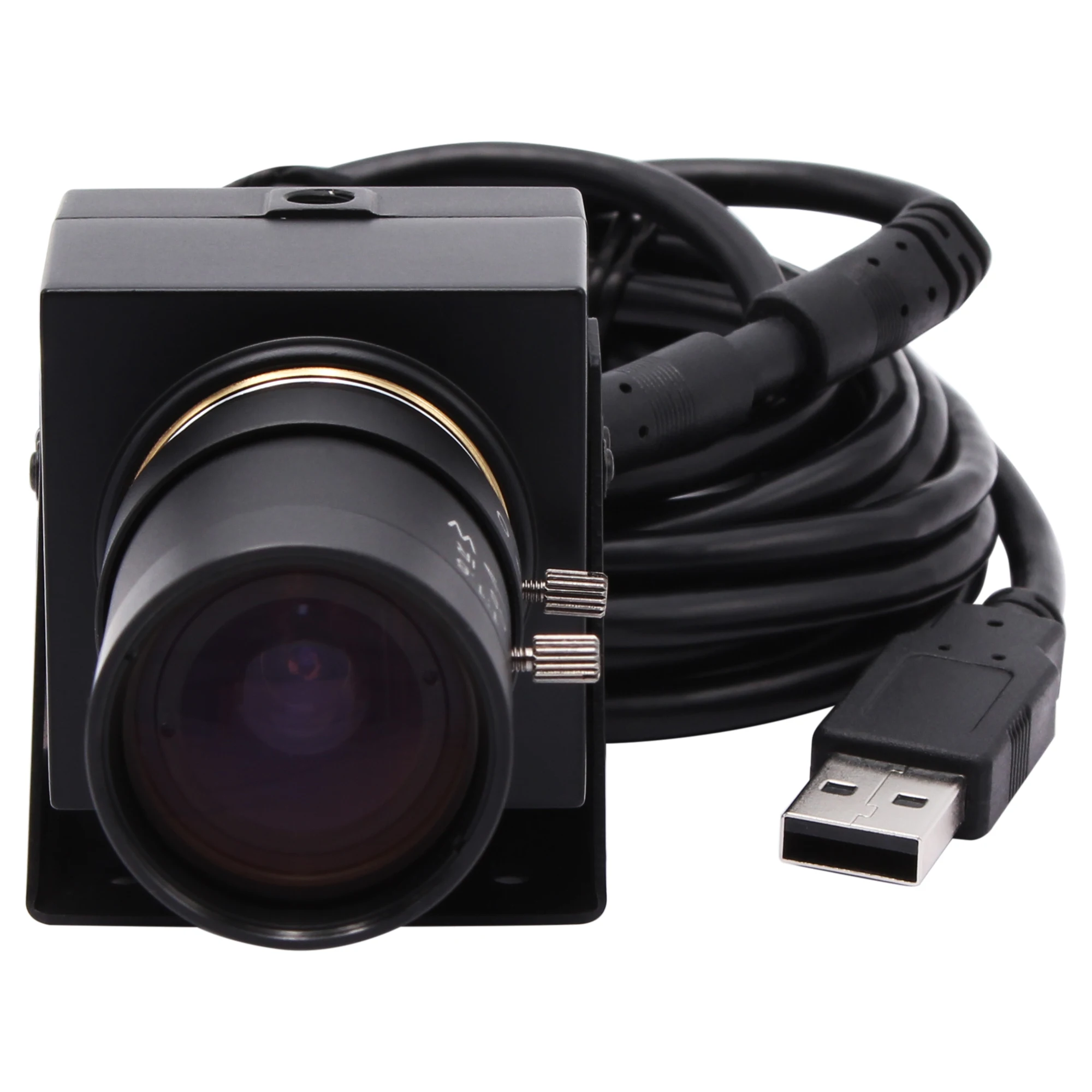

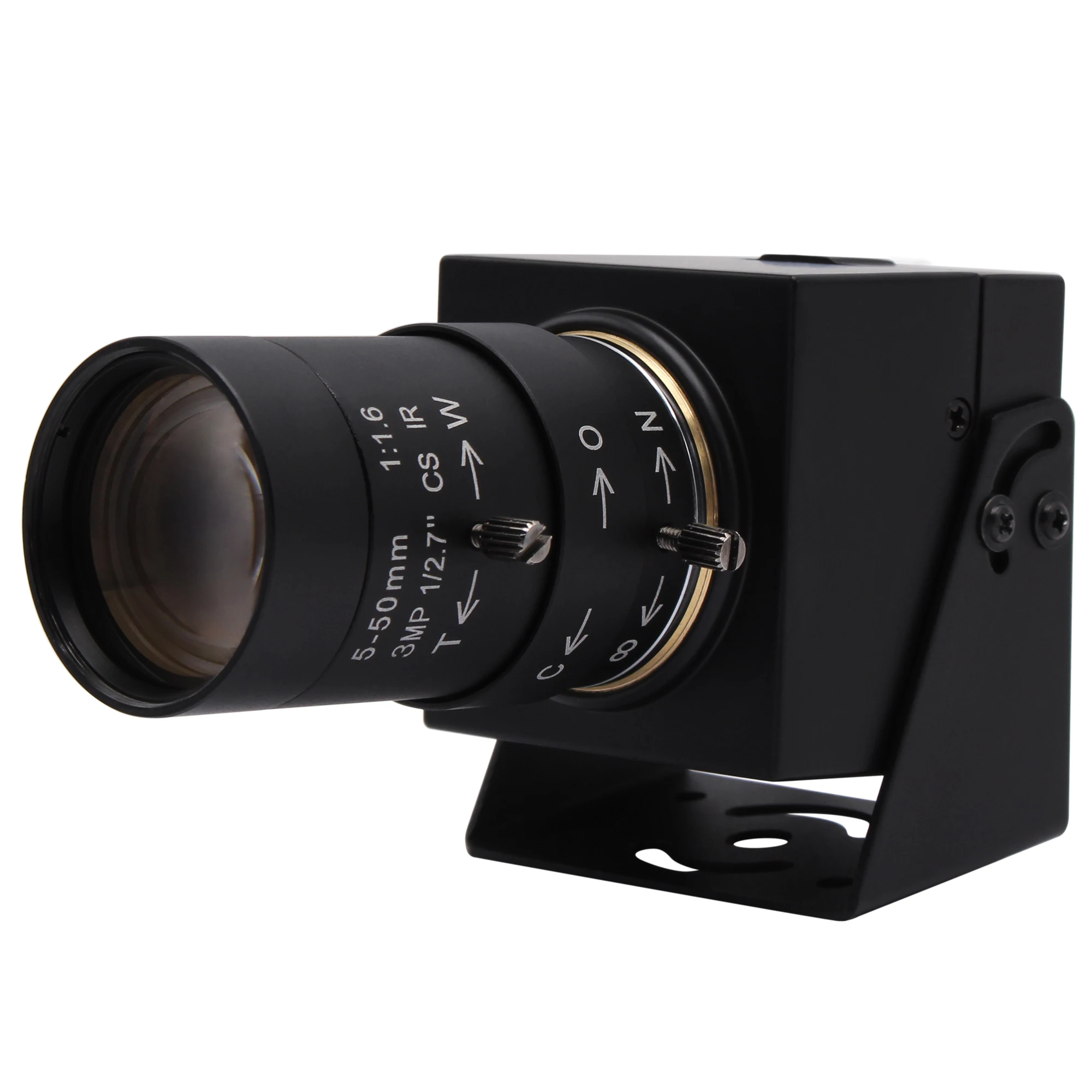

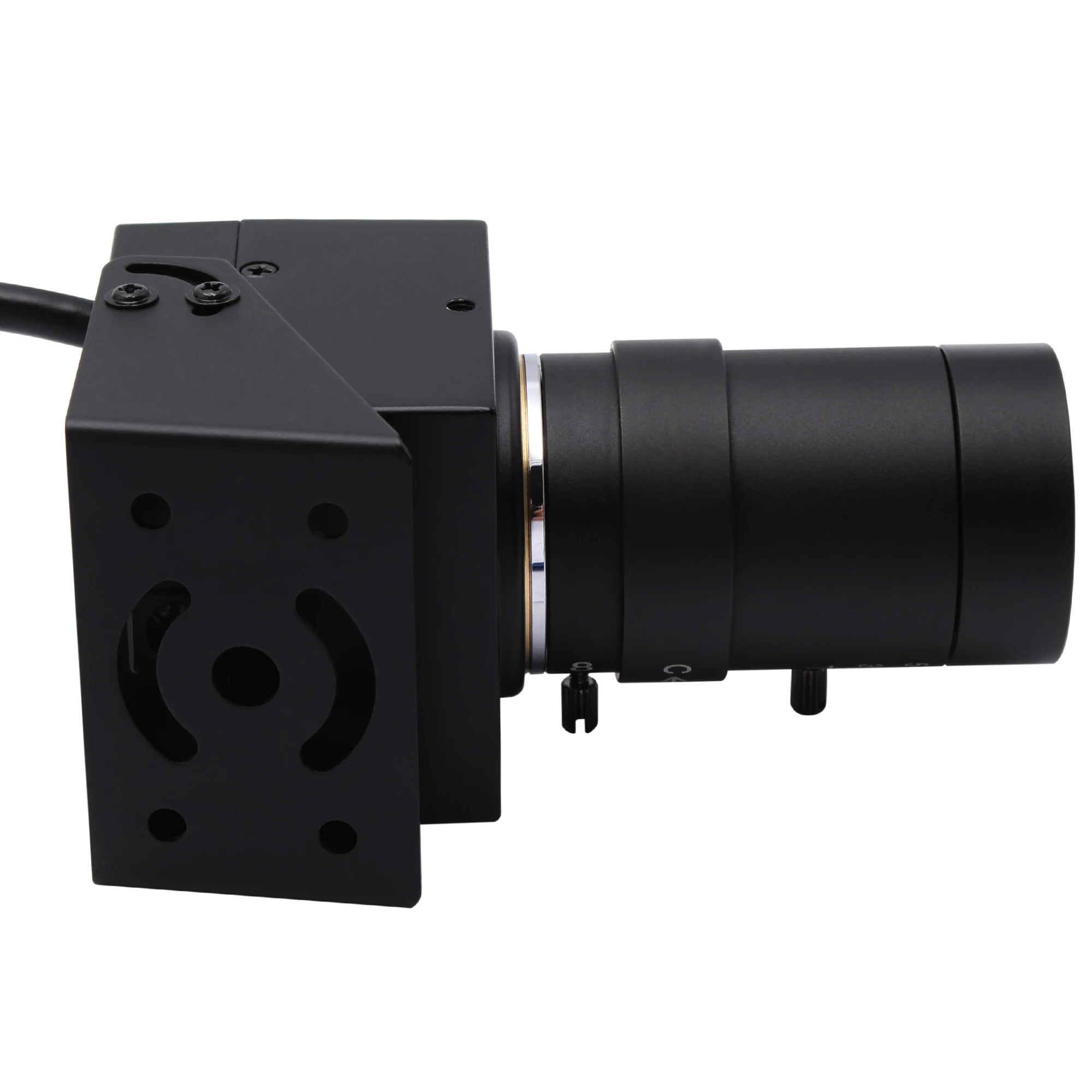

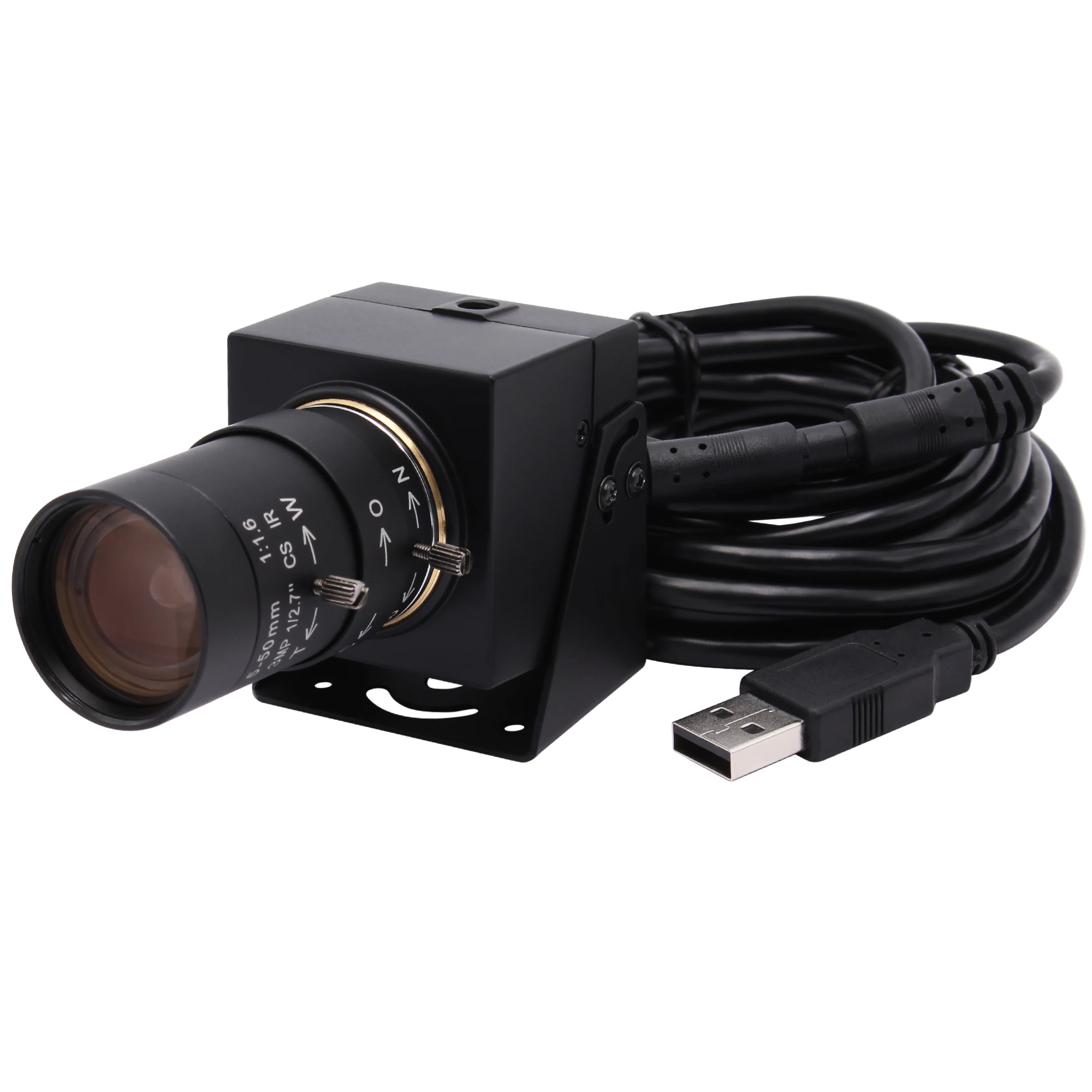

3840*2160 4K Camera IMX415 Micro PC Video USB Computer Webcam for Robot ATM Kiosk With Zoom Focus Lens
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600542196456):
Product Overview
Description
3840*2160 4K Camera IMX415 Micro PC Video USB Computer Webcam for Robot ATM Kiosk With Zoom Focus Lens
Features:
High-Quality Imaging: This small camera module adopts a 4K IMX415 sensor for sharp image and accurate color reproduction, still picture resolution: 3840 x 2160 Max.
High quality HD 2.8-12mm and 5-50mm Manual varifocal CS Mount lens ,4/6/8mm manual focus CS lens,manually adjustable focal length provides you with an ultra-clear image detail to reflect a more realistic environment.
Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable,without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
Applications: Come with a metal case, this tiny camera is highly recommended for the video surveillance system, live streaming,videoconference, dashcam, and other vision
High quality HD 2.8-12mm and 5-50mm Manual varifocal CS Mount lens ,4/6/8mm manual focus CS lens,manually adjustable focal length provides you with an ultra-clear image detail to reflect a more realistic environment.
Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable,without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
Applications: Come with a metal case, this tiny camera is highly recommended for the video surveillance system, live streaming,videoconference, dashcam, and other vision
Specification
Model NO.: | ELP-USB4K03-UFV (2.8-12mm) (2.8-12mm lens ) ELP-USB4K03-UFV (5-50mm) (5-50mm lens ) ELP-USB4K03-UF40 (4mm lens ) ELP-USB4K03-UF60 (6mm lens ) ELP-USB4K03-UF80 (8mm lens ) |
Image Sensor | SONY IMX415 (1/2.8” ) |
Max. Resolution | 3840(H) *2160 (V) |
Sensitivity | 1000mV/Lux-sec |
Pixel Size | 1.45µmx1.45µm |
Compression format | MJPEG / YUY2（YUYV） |
Resolution & frame | 3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE 1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2 1920x1080@ 5fps YUY2/1280x960@5fps YUY2 1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2 |
Center definition | 1000LW/PH (Center) |
S/N Ratio | 30dB |
Sensitivity | 0.65V/lux-sec@550nm |
Minimum illumination | 0.2lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
AEC | Support |
AEB | Support |
AGC | Support |
Auto Focus | Support |
Adjustable parameters | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure |
Lens Parameter | Varifocal lens |
Power supply& connector | USB BUS POWER 4P-2.0mm socket |
Power Voltage | DC5V |
Power Current | 200mA |
Board Size | 38mm × 38mm |
Storage Temperature | -20°C to 70°C |
Work Temperature | 0°C to 60°C |
USB Cable | 3M(2M/5M optional) |
Operating System support | Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Details Images

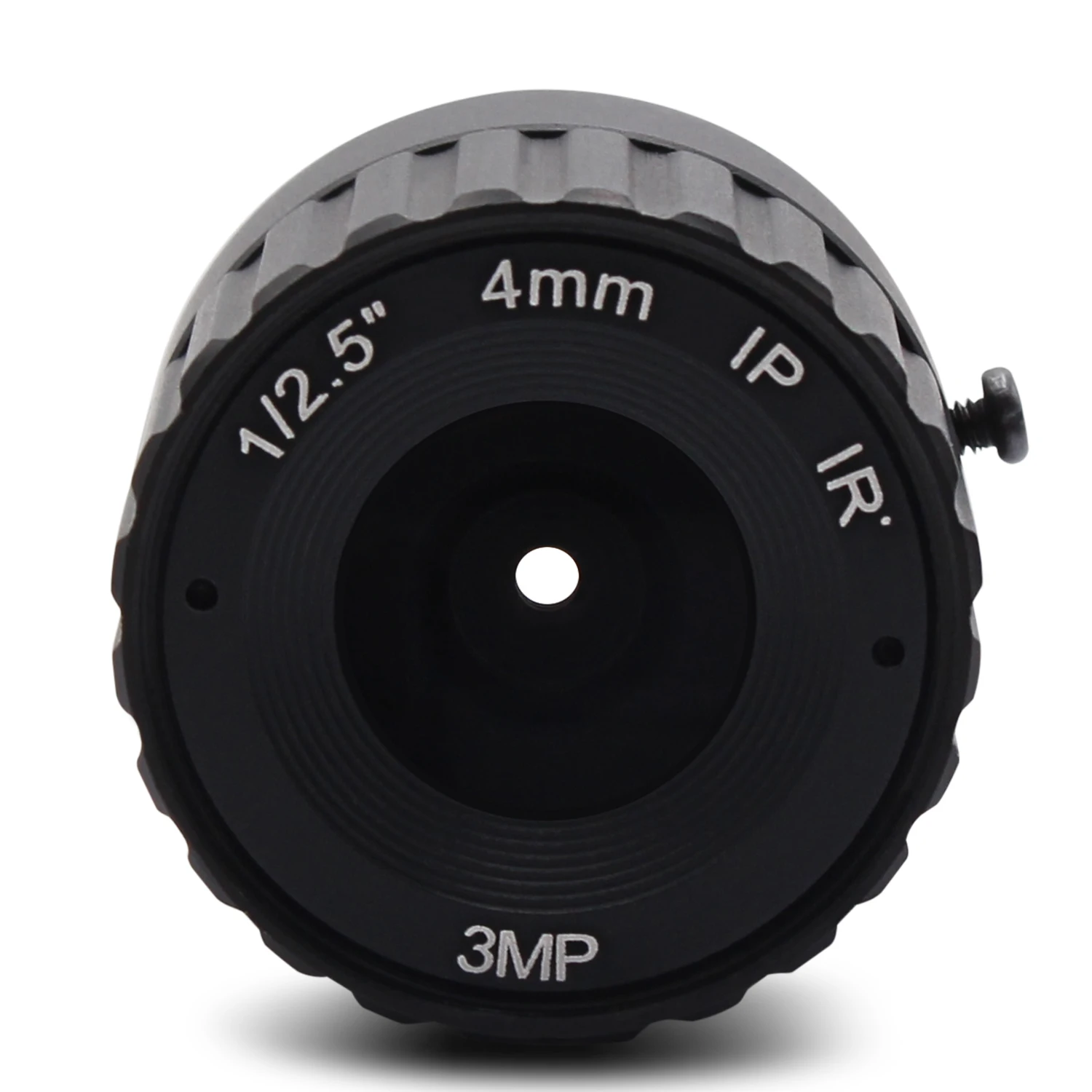

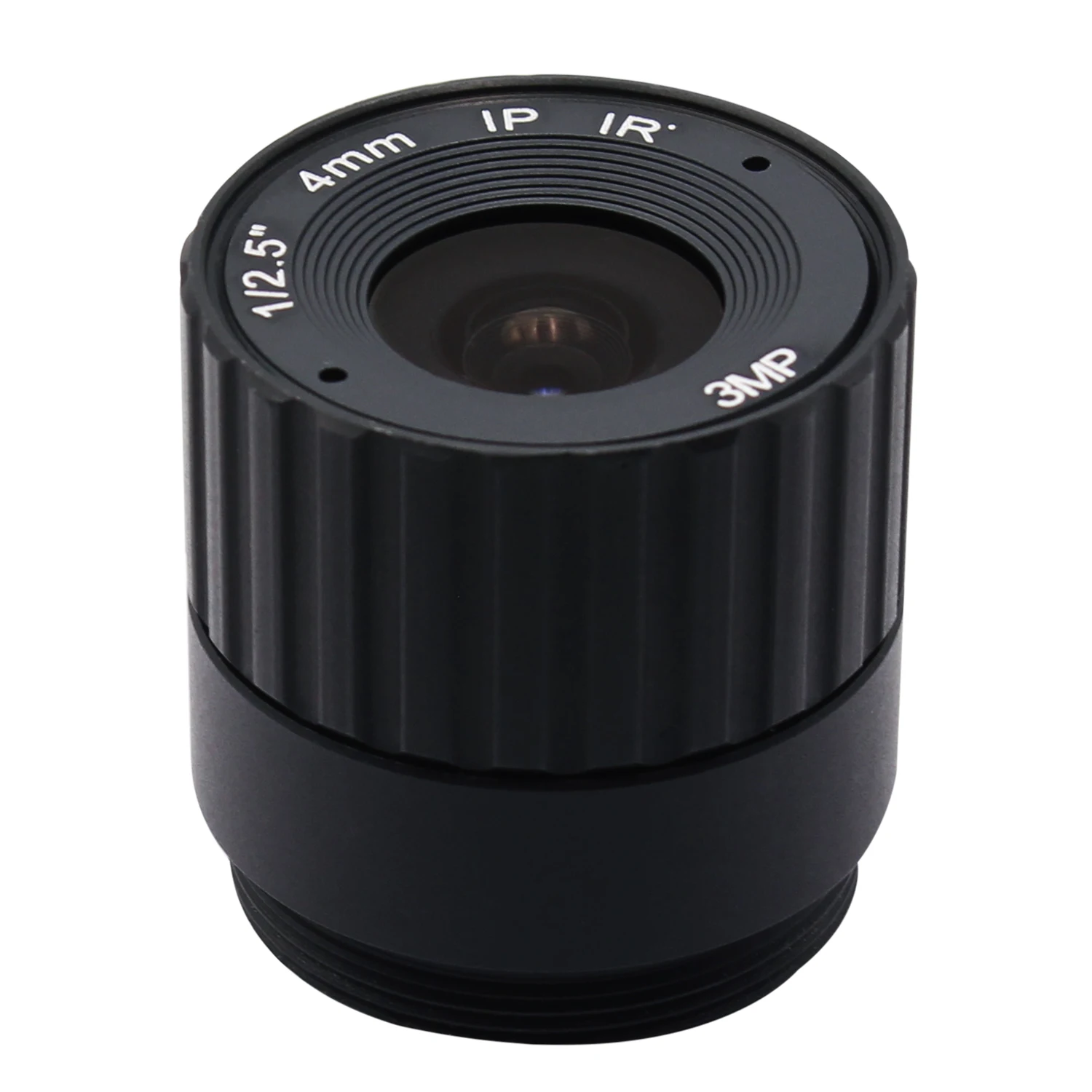

4/6/8mm manual focus lens
Packing and delivery
Package Includes:
1. 1PC 4K usb camera
2. 1PC 3meter usb cable
Delivery Time:
Usually we send products by DHL express, which takes about 5-7 working days to arrive
Company Profile
Shenzhen Ailipu Technology Co.,Ltd, who has 15 years history, is a professional manufacturer of surveillance system . Ailipu has
its own brand ELP, which already well know in security surveillance system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed
into a prefessional video products company integrate with developing, production, sales and also service all together.
its own brand ELP, which already well know in security surveillance system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed
into a prefessional video products company integrate with developing, production, sales and also service all together.
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
